Page 3385 of 4647
LAN-38
[CAN FUNDAMENTAL]
TROUBLE DIAGNOSES WORK FLOW
Revision: 2007 April2007 M35/M45

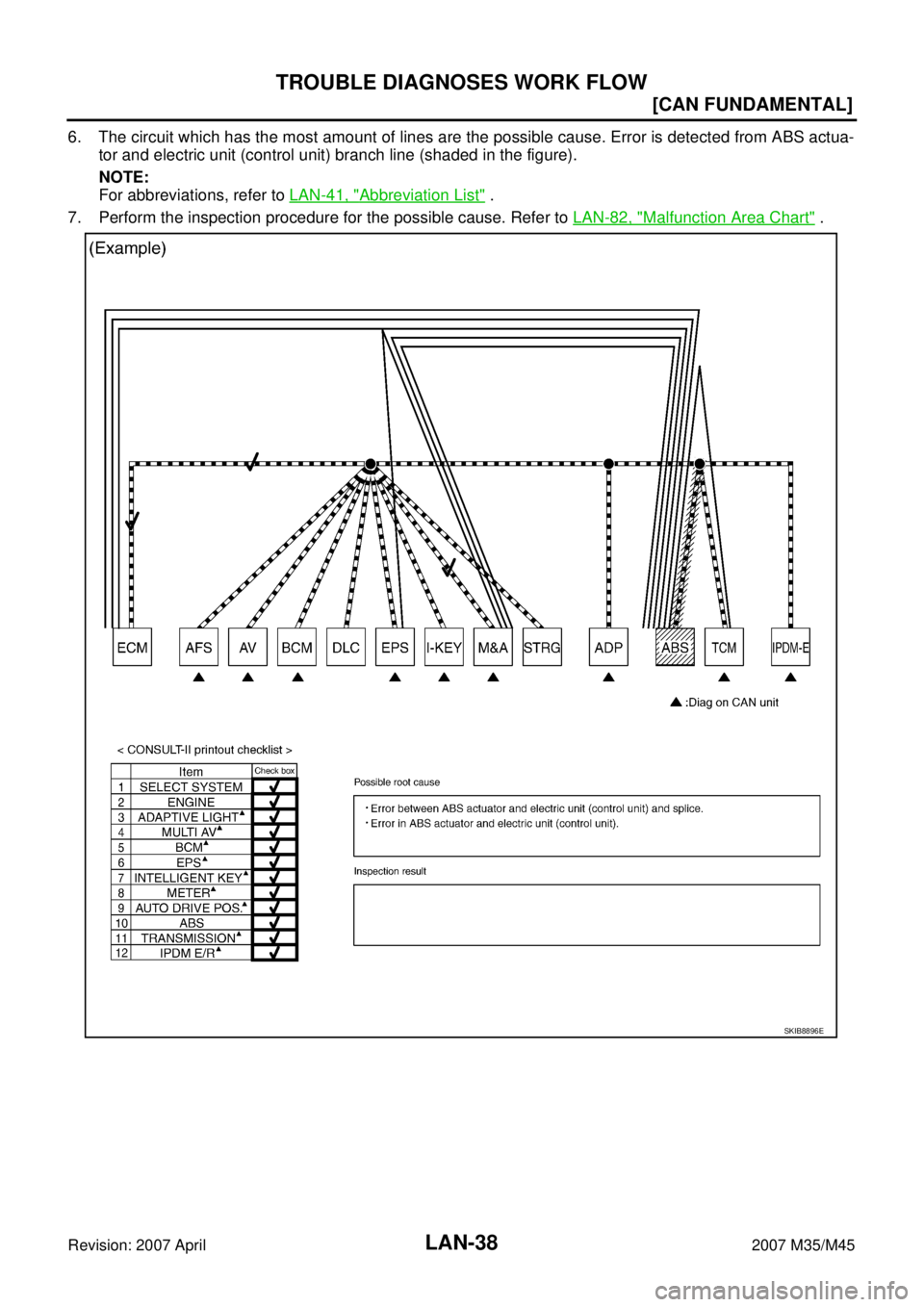

6. The circuit which has the most amount of lines are the possible cause. Error is detected from ABS actua-
tor and electric unit (control unit) branch line (shaded in the figure).
NOTE:
For abbreviations, refer to LAN-41, "
Abbreviation List" .
7. Perform the inspection procedure for the possible cause. Refer to LAN-82, "
Malfunction Area Chart" .
SKIB8896E
Page 3386 of 4647
TROUBLE DIAGNOSES WORK FLOW
LAN-39
[CAN FUNDAMENTAL]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
Past Error — Short Circuit —
When the symptoms listed below exist, a short circuit of the CAN communication line is a possible cause.
Item (CONSULT-II) Indication Inspection procedure
SELF-DIAG RESULTS “U1000” and “U1001” is indicated in the past for most units.
Refer to LAN-82, "
Malfunction
Area Chart" .
CAN DIAG SUPPORT MNTROnly on CAN DIAG SUPPORT MNTR (with PAST), “1 - 39” is
indicated on “PAST” of “TRANSMIT DIAG” and the reception
item.
SKIB8897E
Page 3387 of 4647
![INFINITI M35 2007 Factory Service Manual LAN-40
[CAN]
INDEX FOR DTC
Revision: 2007 April2007 M35/M45
[CAN]INDEX FOR DTCPFP:00004
DTC No. IndexNKS004FM
DTCSelf-diagnosis item
(CONSULT-II indication)DTC detection condition Inspection
U1000 CA INFINITI M35 2007 Factory Service Manual LAN-40
[CAN]
INDEX FOR DTC
Revision: 2007 April2007 M35/M45
[CAN]INDEX FOR DTCPFP:00004
DTC No. IndexNKS004FM
DTCSelf-diagnosis item
(CONSULT-II indication)DTC detection condition Inspection
U1000 CA](/manual-img/42/57024/w960_57024-3386.png)
LAN-40
[CAN]
INDEX FOR DTC
Revision: 2007 April2007 M35/M45
[CAN]INDEX FOR DTCPFP:00004
DTC No. IndexNKS004FM
DTCSelf-diagnosis item
(CONSULT-II indication)DTC detection condition Inspection
U1000 CAN COMM CIRCUITWhen ECM is not transmitting or receiving CAN
communication signal of OBD (emission-related
diagnosis) for 2 seconds or more.
Refer to LAN-41, "
HOW
TO USE THIS SEC-
TION" . When a control unit (except for ECM) is not
transmitting or receiving CAN communication
signal for 2 seconds or more.
U1001 CAN COMM CIRCUITWhen ECM is not transmitting or receiving CAN
communication signal other than OBD (emis-
sion-related diagnosis) for 2 seconds or more.
U1002 SYSTEM COMMWhen a control unit is not transmitting or receiv-
ing CAN communication signal for 2 seconds or
less.Start the inspection.
Refer to the applicable
section of the indicated
control unit.
U1010 CONTROL UNIT [CAN]When an error is detected during the initial diag-
nosis for CAN controller of each control unit.Replace the control unit
indicating “U1010”.
Page 3388 of 4647
![INFINITI M35 2007 Factory Service Manual HOW TO USE THIS SECTION
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
HOW TO USE THIS SECTIONPFP:00008
CautionNKS004FN
This section describes information specific to a vehi INFINITI M35 2007 Factory Service Manual HOW TO USE THIS SECTION
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
HOW TO USE THIS SECTIONPFP:00008
CautionNKS004FN
This section describes information specific to a vehi](/manual-img/42/57024/w960_57024-3387.png)
HOW TO USE THIS SECTION
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
HOW TO USE THIS SECTIONPFP:00008
CautionNKS004FN
This section describes information specific to a vehicle, sheets for trouble diagnosis, and inspection pro-
cedures.
For trouble diagnosis procedure, refer to LAN-17, "Trouble Diagnosis Procedure" .
Abbreviation ListNKS004FO
Abbreviations in CAN communication signal chart and the diagnosis sheet are as per the following list.
Abbreviation Unit nameSELECT SYSTEM
(CONSULT-II)CAN DIAG SUPPORT MNTR
(CONSULT-II)
4WD AWD control unit ALL MODE AWD/4WD AWD/4WD
ABS ABS actuator and electric unit (control unit) ABS VDC/TCS/ABS
ADP Driver seat control unit AUTO DRIVE POS. –
AFS AFS control unit ADAPTIVE LIGHT AFS
AVNAVI control unit
MULTI AVMULTI AV
DISPLAY
AV control unitMULTI AV
DISPLAY
BCM BCM BCM BCM/SEC
DLC Data link connector – –
ECM ECM ENGINE ECM
ICC ICC sensor integrated unit ICCICC
ICC/e4WD
I-KEY Intelligent Key unit INTELLIGENT KEY I-KEY
IPDM-E IPDM E/R IPDM E/R IPDM E/R
M&A Unified meter and A/C amp. METER A/C AMP METER/M&A
PSB Pre-crash seat belt control unit PRECRASH SEATBELT –
RAS RAS control unit RAS/HICAS RAS C/U
STRG Steering angle sensor – STRG
TCM TCM A/T TCM
TPMS Low tire pressure warning control unit AIR PRESSURE MONITOR TIRE-P
LANE LDW camera unit LDW –
Page 3389 of 4647
![INFINITI M35 2007 Factory Service Manual LAN-42
[CAN]
PRECAUTIONS
Revision: 2007 April2007 M35/M45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NKS004HN
The Supplem INFINITI M35 2007 Factory Service Manual LAN-42
[CAN]
PRECAUTIONS
Revision: 2007 April2007 M35/M45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NKS004HN
The Supplem](/manual-img/42/57024/w960_57024-3388.png)
LAN-42
[CAN]
PRECAUTIONS
Revision: 2007 April2007 M35/M45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NKS004HN
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions When Using CONSULT-IINKS004HK
Use CONSULT-II CONVERTER when connecting CONSULT-II to data link connector.
CAUTION:
CAN communication does not function properly if CONSULT-II is used without connecting CONSULT-II
CONVERTER.
Precautions for Trouble DiagnosisNKS004HL
CAUTION:
Never apply 7.0 V or more to the measurement terminal.
Use a tester with open terminal voltage of 7.0 V or less.
Turn the ignition switch OFF and disconnect the battery cable from the negative terminal when
checking the harness.
Precautions for Harness RepairNKS004HM
Solder the repaired area and wrap tape around the soldered
area.
NOTE:
A fray of twisted lines must be within 110 mm (4.33 in).
SKIB8766E
Page 3390 of 4647
PRECAUTIONS
LAN-43
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
Bypass connection is never allowed at the repaired area.
NOTE:
Bypass connection may cause CAN communication error. The
spliced wire becomes separated and the characteristics of
twisted line are lost.
Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communi-
cation line.
SKIB8767E
Page 3391 of 4647
![INFINITI M35 2007 Factory Service Manual LAN-44
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
TROUBLE DIAGNOSISPFP:00004
CAN Diagnostic Support MonitorNKS004FT
Use “CAN DIAG SUPPORT MNTR” for detecting the root cause.
MONITOR INFINITI M35 2007 Factory Service Manual LAN-44
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
TROUBLE DIAGNOSISPFP:00004
CAN Diagnostic Support MonitorNKS004FT
Use “CAN DIAG SUPPORT MNTR” for detecting the root cause.
MONITOR](/manual-img/42/57024/w960_57024-3390.png)
LAN-44
[CAN]
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
TROUBLE DIAGNOSISPFP:00004
CAN Diagnostic Support MonitorNKS004FT
Use “CAN DIAG SUPPORT MNTR” for detecting the root cause.
MONITOR ITEM LIST (CONSULT-II)
ECM
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
AWD control unit
NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.
SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
ENGINETRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0 VDC/TCS/ABSSignal receiving status from the ABS actu-
ator and electric unit (control unit)
METER/M&ASignal receiving status from the unified
meter and A/C amp.
BCM/SEC Signal receiving status from the BCM
ICCSignal receiving status from the ICC sen-
sor integrated unit
HVAC Not used even though indicated
TCM Signal receiving status from the TCM OKOK
or
1 – 39
*UNKWN 0
EPS Not used even though indicated
IPDM E/R Signal receiving status from the IPDM E/R OKOK
or
1 – 39
*UNKWN 0
e4WD Not used even though indicated
AW D/4 WDSignal receiving status from the AWD con-
trol unitOKOK
or
1 – 39
*UNKWN 0
SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT
ALL MODE AWD/
4WDINITIAL DIAG Status of CAN controller
OKNG
TRANSMIT DIAG Signal transmission status
UNKWN VDC/TCS/ABSSignal receiving status from the ABS actuator and electric unit
(control unit)
ECM Signal receiving status from the ECM
TCM Not used even though indicated
METER/M&A Signal receiving status from the unified meter and A/C amp. OK UNKWN
Page 3392 of 4647
![INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS
LAN-45
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
AFS control unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the igni INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS
LAN-45
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
AFS control unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the igni](/manual-img/42/57024/w960_57024-3391.png)
TROUBLE DIAGNOSIS
LAN-45
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2007 April2007 M35/M45
AFS control unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
BCM
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
LDW camera unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF→ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
ADAPTIVE
LIGHTTRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0 ECM Signal receiving status from the ECM
METER/M&ASignal receiving status from the unified
meter and A/C amp.
TCM Signal receiving status from the TCM
STRGSignal receiving status from the steering
angle sensor
IPDM E/R Signal receiving status from the IPDM E/R
SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
BCMTRANSMIT DIAG Signal transmission status
OKOK
or
1 – 39
*UNKWN 0 ECM Signal receiving status from the ECM
METER/M&ASignal receiving status from the unified
meter and A/C amp.
TCM Not used even though indicated
MULTI AVWith navigation system: Signal receiving
status from the NAVI control unit
OKOK
or
1 – 39
*UNKWN 0 Without navigation system: Signal receiv-
ing status from the AV control unit
IPDM E/R Signal receiving status from the IPDM E/R
TIRE-PSignal receiving status from the low tire
pressure warning control unit
I-KEYSignal receiving status from the Intelligent
Key unit
SELECT SYS-
TEMCAN DIAG SUP-
PORT MNTRDescriptionNormal Error
PRSNT PAST PRSNT PAST
LDWTRANSMIT DIAG Not used even though indicated
ECM Signal receiving status from the ECM
OKOK
or
1 – 39
*UNKWN 0 VDC/TCS/ABSSignal receiving status from the ABS actu-
ator and electric unit (control unit)
BCM/SEC Signal receiving status from the BCM
TCM Signal receiving status from the TCM
