Page 4297 of 4647
SE-98
POWER SEAT(REAR)
Revision: 2007 April2007 M35/M45
SchematicNIS00274
TIWT1386E
Page 4298 of 4647
POWER SEAT(REAR)
SE-99
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45

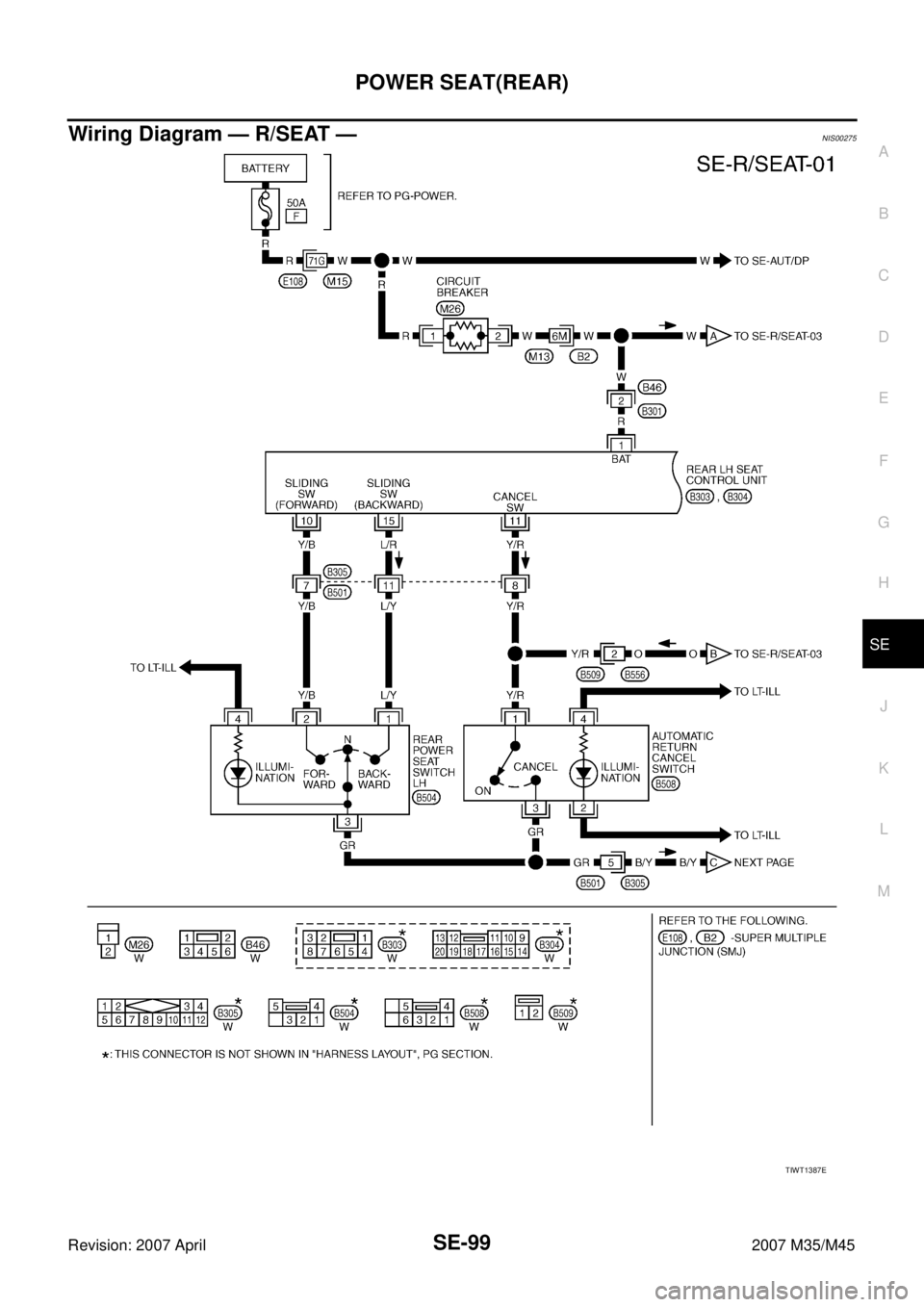

Wiring Diagram — R/SEAT —NIS00275
TIWT1387E
Page 4299 of 4647
SE-100
POWER SEAT(REAR)
Revision: 2007 April2007 M35/M45

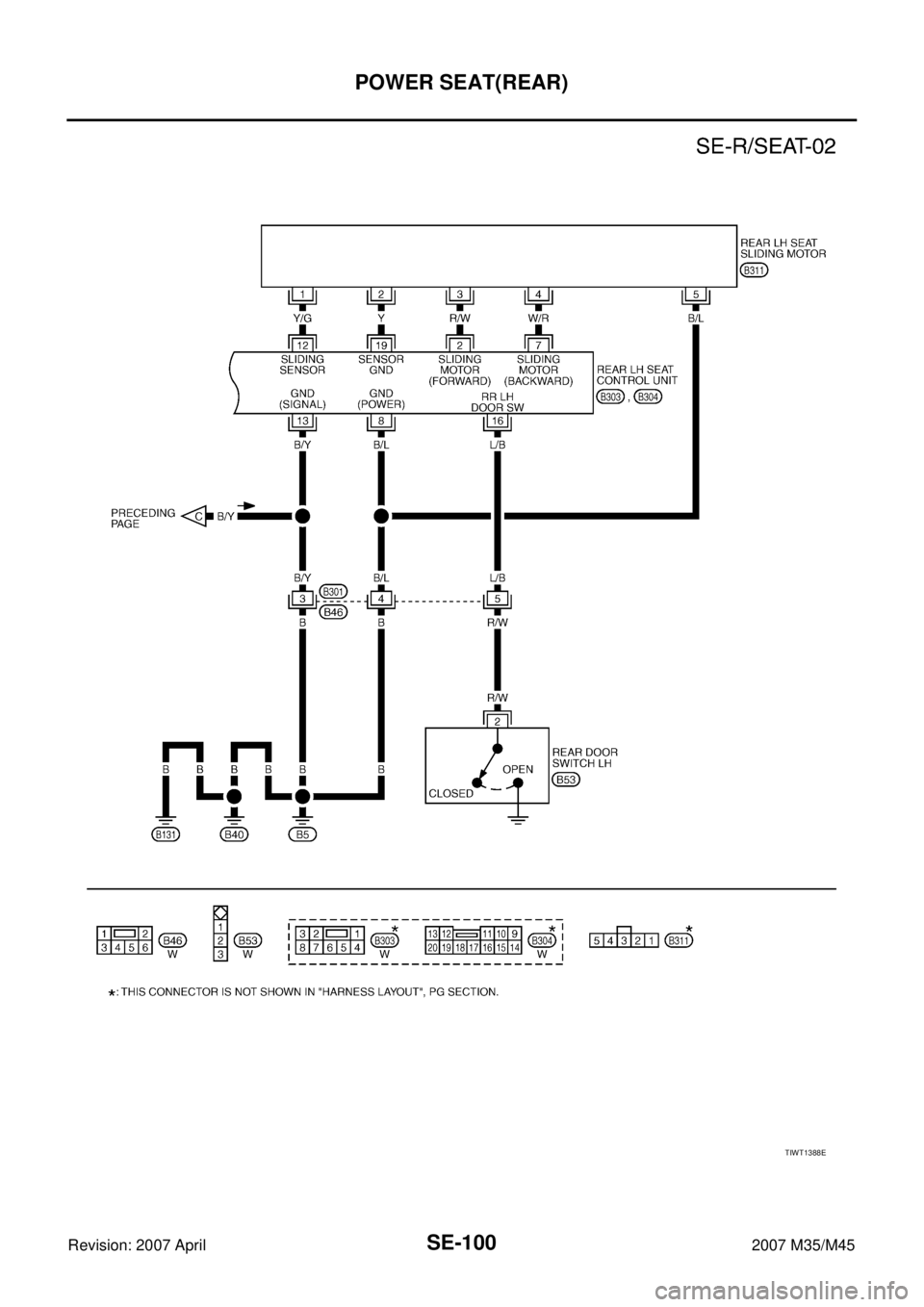

TIWT1388E
Page 4300 of 4647
POWER SEAT(REAR)
SE-101
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45

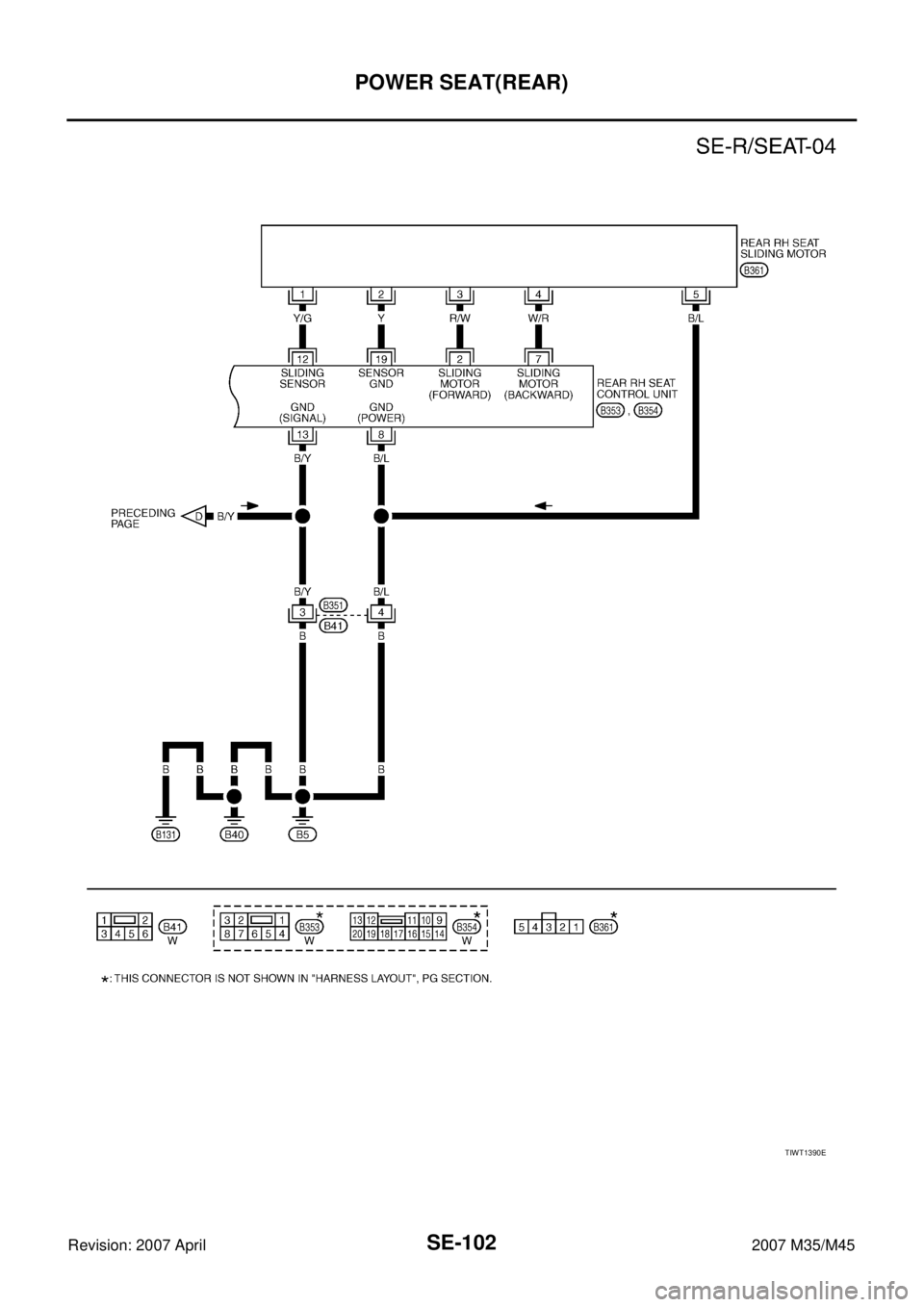

TIWT2128E
Page 4301 of 4647
SE-102
POWER SEAT(REAR)
Revision: 2007 April2007 M35/M45
TIWT1390E
Page 4302 of 4647

POWER SEAT(REAR)
SE-103
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
Terminals and Reference Values for Rear Seat Control Unit NIS00276
Te r m i -
nalWire
ColorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
1 R Power source (BAT) Input — Battery voltage
2 R/W Sliding motor forward signal OutputWhen sliding switch forward is
operatedBattery voltage
Other than above 0
7 W/R Sliding motor backward signal OutputWhen sliding switch backward
is operatedBattery voltage
Other than above 0
8 B/L Ground (power) — — 0
10 Y/B Sliding switch forward signal InputWhen sliding switch forward is
operated0
Other than above. Battery voltage
11 Y/R Cancel switch signal InputCancel switch ON 5
Cancel switch CANCEL 0
12 Y/GSliding sensor signal
InputSliding device active
Sliding device inactive 0 or 5
13 B/Y Ground (signal) — — 0
15 L/R Sliding switch backward signal InputWhen sliding switch backward
is operated0
Other than above Battery voltage
16 L/B Rear door switch signal InputRear door open (ON) 0
Rear door close (OFF) Battery voltage
19 Y Sensor ground — — 0
SIIA0690J
Page 4303 of 4647

SE-104
POWER SEAT(REAR)
Revision: 2007 April2007 M35/M45
Work FlowNIS00277
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to SE-96, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-104,
"Trouble Diagnoses Symptom Chart" .
4. Does rear power seat operate normally? YES: GO TO 5, NO: GO TO 4.
5. INSPECTION END.
Trouble Diagnoses Symptom ChartNIS00278
Check that other systems using the signal of the following systems operate normally.
Check Rear Power Seat Power Supply CircuitNIS00279
1. CHECK FUSIBLE LINK
Check 50A fusible link (letter F located in the fuse and fusible link box).
NOTE:
Refer to SE-96, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse, refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK CIRCUIT BREAKER
Check circuit breaker.
NOTE:
Refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace the circuit breaker.
Symptom Diagnoses / service procedure Refer to page
Rear power seat LH, RH do not operate. Check rear power seat power supply circuitSE-104
Rear power seat LH or RH sliding switch does not operate moreover,
retreat function does not operate if the door is opened1. Check rear seat control unit power supply
and ground circuit SE-105
2. Check rear seat sliding motor circuit SE-106
Rear power seat LH or RH does not operate, but retreat function
operates when the door is openedCheck rear power seat switch circuitSE-107
Rear power seat LH and RH retreat function does not operate,
but operates by sliding switchCheck automatic return cancel switchSE-110
Rear power seat LH or RH retreat function does not operate,
but operates by a sliding switch1. Check rear door switch circuitSE-1112. Check automatic return cancel switch circuit SE-109
3. Check rear seat sliding sensor circuitSE-112
Page 4304 of 4647

POWER SEAT(REAR)
SE-105
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45

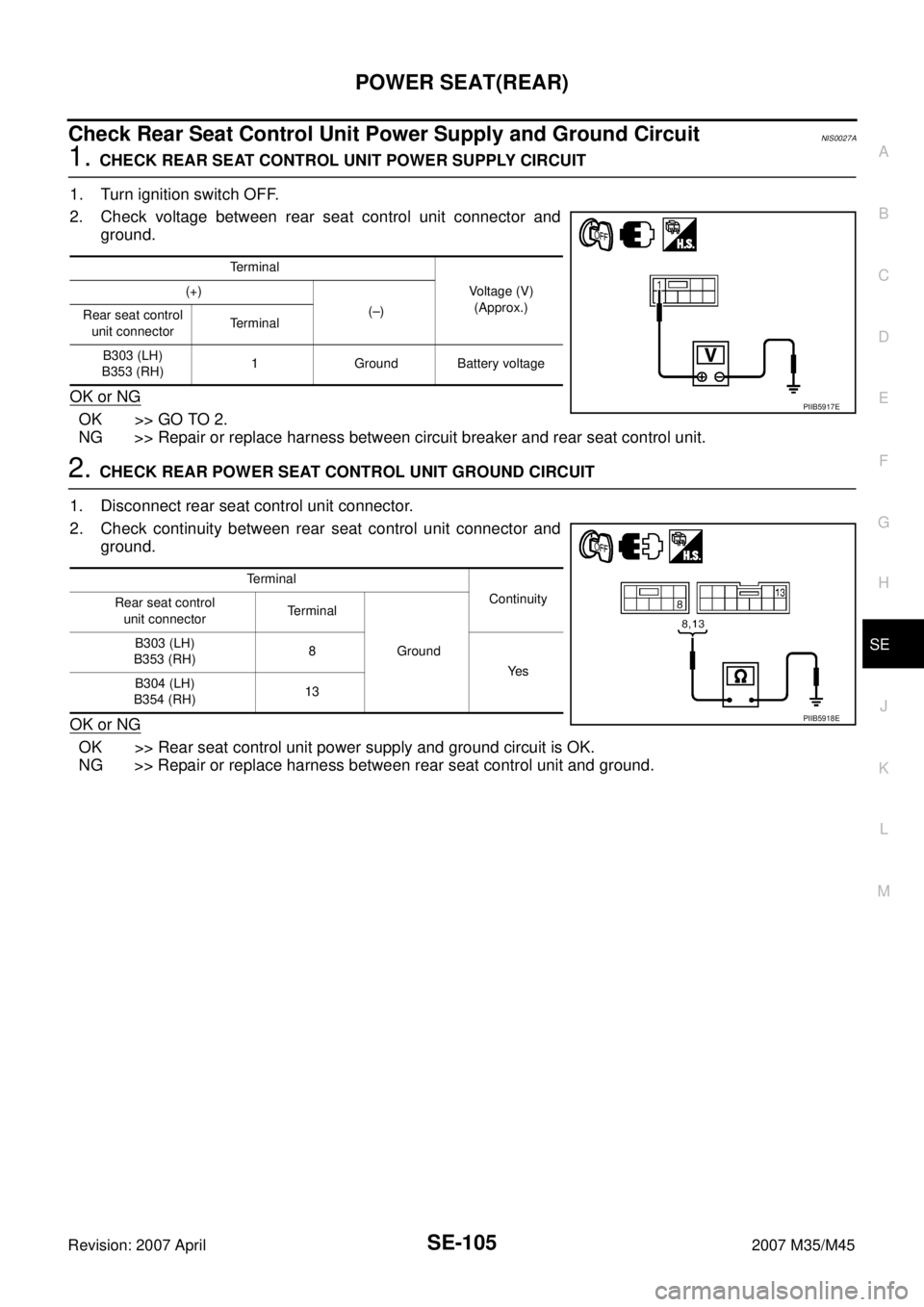

Check Rear Seat Control Unit Power Supply and Ground CircuitNIS0027A
1. CHECK REAR SEAT CONTROL UNIT POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Check voltage between rear seat control unit connector and
ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between circuit breaker and rear seat control unit.
2. CHECK REAR POWER SEAT CONTROL UNIT GROUND CIRCUIT
1. Disconnect rear seat control unit connector.
2. Check continuity between rear seat control unit connector and
ground.
OK or NG
OK >> Rear seat control unit power supply and ground circuit is OK.
NG >> Repair or replace harness between rear seat control unit and ground.
Terminal
Voltage (V)
(Approx.) (+)
(–)
Rear seat control
unit connectorTerminal
B303 (LH)
B353 (RH)1 Ground Battery voltage
PIIB5917E
Terminal
Continuity
Rear seat control
unit connectorTerminal
Ground B303 (LH)
B353 (RH)8
Ye s
B304 (LH)
B354 (RH)13
PIIB5918E
