Page 1409 of 4647
CO-48
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2007 April2007 M35/M45

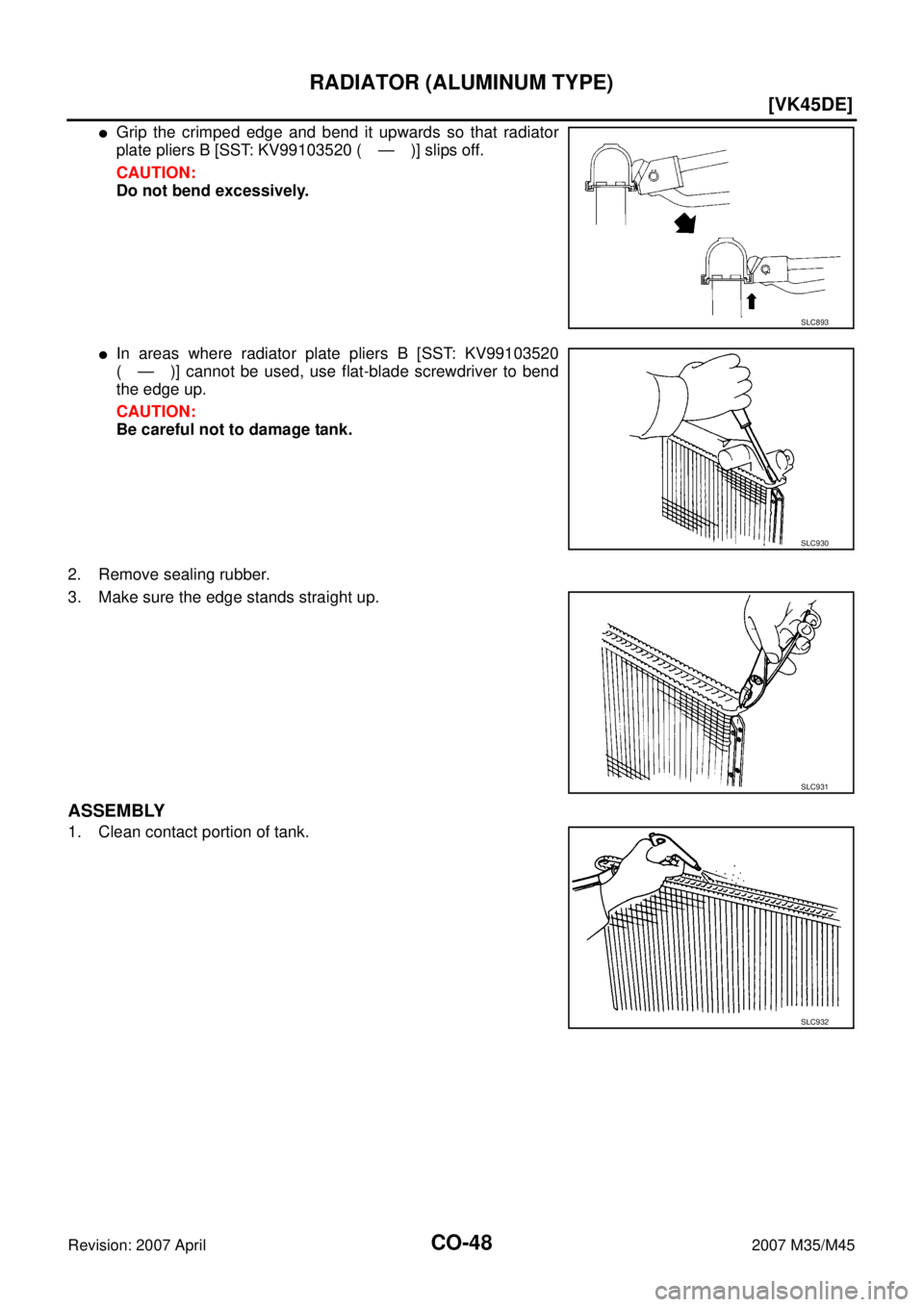

Grip the crimped edge and bend it upwards so that radiator
plate pliers B [SST: KV99103520 ( — )] slips off.
CAUTION:
Do not bend excessively.
In areas where radiator plate pliers B [SST: KV99103520
( — )] cannot be used, use flat-blade screwdriver to bend
the edge up.
CAUTION:
Be careful not to damage tank.
2. Remove sealing rubber.
3. Make sure the edge stands straight up.
ASSEMBLY
1. Clean contact portion of tank.
SLC893
SLC930
SLC931
SLC932
Page 1410 of 4647
RADIATOR (ALUMINUM TYPE)
CO-49
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45

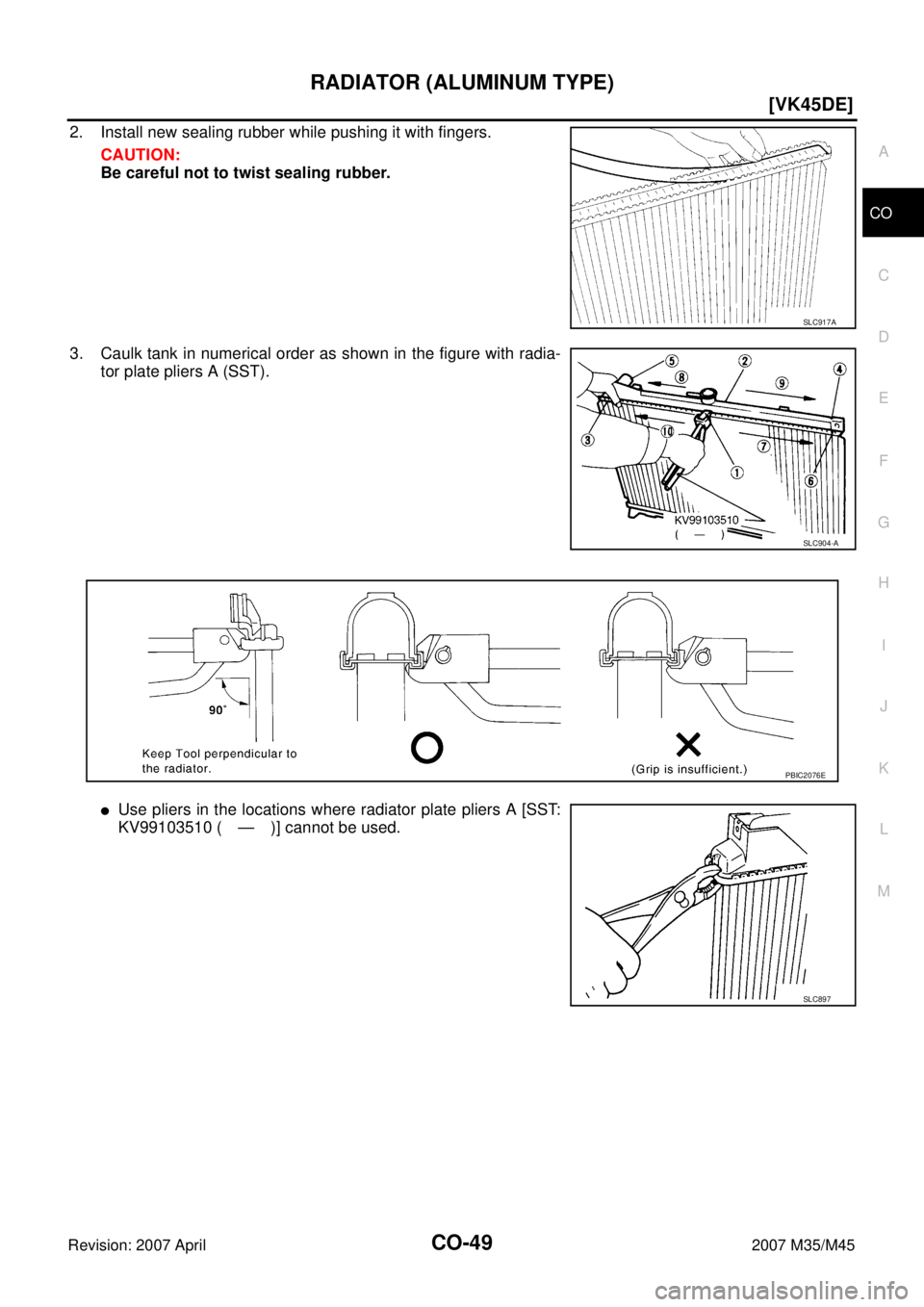

2. Install new sealing rubber while pushing it with fingers.
CAUTION:
Be careful not to twist sealing rubber.
3. Caulk tank in numerical order as shown in the figure with radia-
tor plate pliers A (SST).
Use pliers in the locations where radiator plate pliers A [SST:
KV99103510 ( — )] cannot be used.
SLC917A
SLC904-A
PBIC2076E
SLC897
Page 1411 of 4647
![INFINITI M35 2007 Factory Service Manual CO-50
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2007 April2007 M35/M45
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-50, "
INSPECTION" .
IN INFINITI M35 2007 Factory Service Manual CO-50
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2007 April2007 M35/M45
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-50, "
INSPECTION" .
IN](/manual-img/42/57024/w960_57024-1410.png)
CO-50
[VK45DE]
RADIATOR (ALUMINUM TYPE)
Revision: 2007 April2007 M35/M45
4. Make sure that the rim is completely crimped down.
5. Make sure that there is no leakage. Refer to CO-50, "
INSPECTION" .
INSPECTION
1. Apply pressure with radiator cap tester adapter (commercial ser-
vice tool) and radiator cap tester (commercial service tool).
provide used radiator and connect it to tested radiator using
radiator hoses as shown in the figure.
NOTE:
The used radiator should be tested beforehand to confirm it
has no leakage. If used one is not available, it is possible to
use new service part as a radiator testing tool.
WARNING:
To prevent the risk of hose coming undone while under pressure, securely fasten it down with
hose clamp.
CAUTION:
Attach hose to A/T fluid cooler to seal its inlet and outlet.
2. Check for leakage by soaking radiator in water container with
the testing pressure applied.Standard height “H” : 8.0 - 8.4 mm (0.315 - 0.331 in)
SLC554A
Testing pressure
: 157 kPa (1.6 kg/cm
2 , 23 psi)PBIC5158E
PBIC1699E
Page 1412 of 4647
![INFINITI M35 2007 Factory Service Manual COOLING FAN
CO-51
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45
COOLING FANPFP:21140
ComponentsNBS004RM
Removal and InstallationNBS004RN
REMOVAL
1. Remove engine room cover (RH a INFINITI M35 2007 Factory Service Manual COOLING FAN
CO-51
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45
COOLING FANPFP:21140
ComponentsNBS004RM
Removal and InstallationNBS004RN
REMOVAL
1. Remove engine room cover (RH a](/manual-img/42/57024/w960_57024-1411.png)
COOLING FAN
CO-51
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45
COOLING FANPFP:21140
ComponentsNBS004RM
Removal and InstallationNBS004RN
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-173, "ENGINE ROOM COVER" .
2. Remove air duct (inlet) and air cleaner case assembly. Refer to EM-177, "
AIR CLEANER AND AIR
DUCT" .
3. Drain engine coolant from radiator. Refer to CO-40, "
ENGINE COOLANT" .
4. Disconnect harness connector from cooling fan control module, and move harness to aside.
5. Remove radiator hose (upper). Refer to CO-43, "
RADIATOR" .
6. Remove cooling fan assembly.
CAUTION:
Be careful not to damage or scratch on radiator core.
INSTALLATION
Note the following, and Install in the reverse order of removal.
CAUTION:
Only use genuine parts for radiator shroud and cooling fan mounting bolt and observe the specified
torque (to prevent radiator from being damaged).
INSPECTION AFTER INSTALLATION
Make sure that fan motors operate normally.

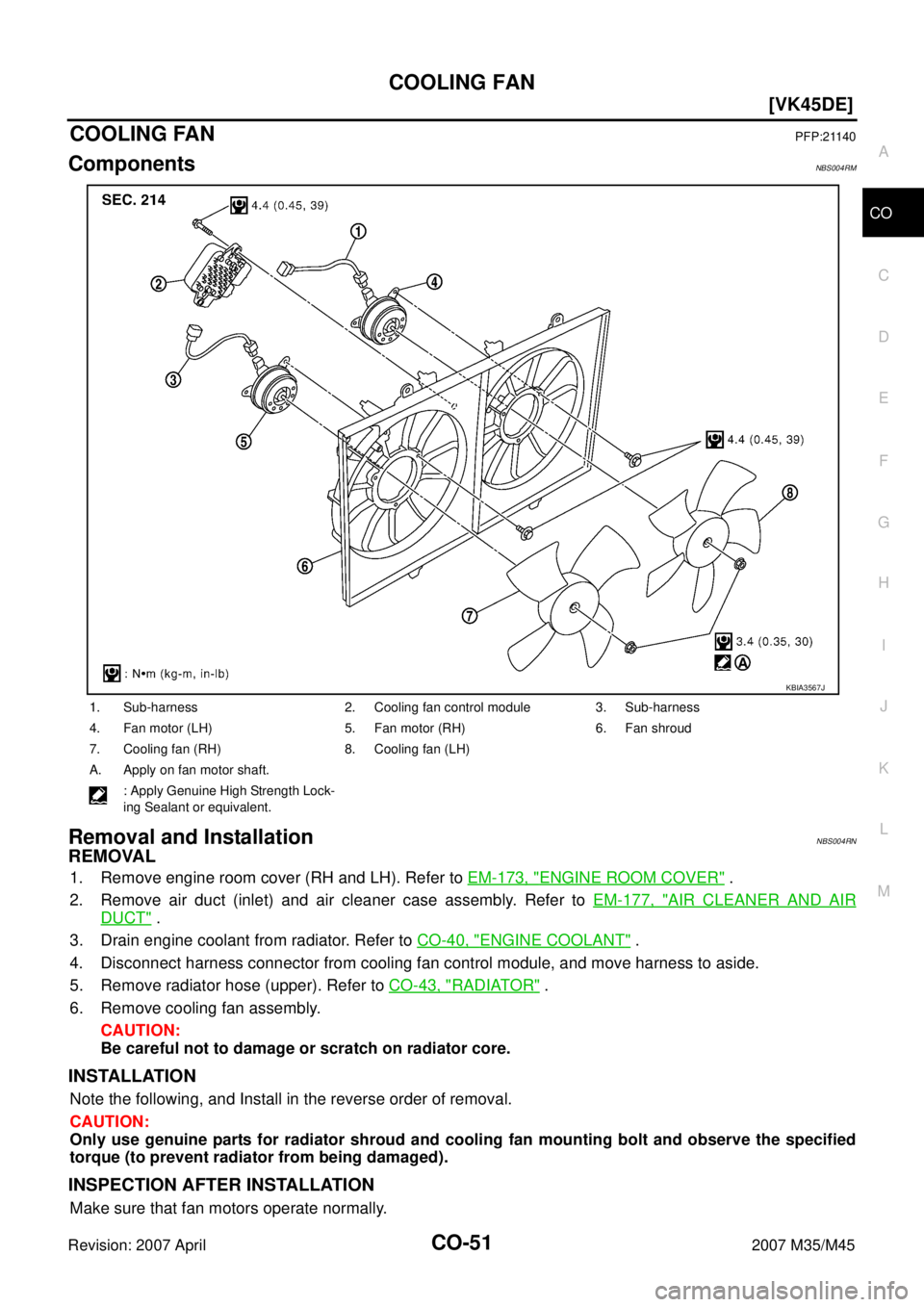

1. Sub-harness 2. Cooling fan control module 3. Sub-harness
4. Fan motor (LH) 5. Fan motor (RH) 6. Fan shroud
7. Cooling fan (RH) 8. Cooling fan (LH)
A. Apply on fan motor shaft.
: Apply Genuine High Strength Lock-
ing Sealant or equivalent.
KBIA3567J
Page 1413 of 4647
![INFINITI M35 2007 Factory Service Manual CO-52
[VK45DE]
COOLING FAN
Revision: 2007 April2007 M35/M45
NOTE:
Cooling fans are controlled by cooling fan control module. For details. Refer to EC-1214, "
DTC P1217
ENGINE OVER TEMPERATURE" .
Disas INFINITI M35 2007 Factory Service Manual CO-52
[VK45DE]
COOLING FAN
Revision: 2007 April2007 M35/M45
NOTE:
Cooling fans are controlled by cooling fan control module. For details. Refer to EC-1214, "
DTC P1217
ENGINE OVER TEMPERATURE" .
Disas](/manual-img/42/57024/w960_57024-1412.png)
CO-52
[VK45DE]
COOLING FAN
Revision: 2007 April2007 M35/M45
NOTE:
Cooling fans are controlled by cooling fan control module. For details. Refer to EC-1214, "
DTC P1217
ENGINE OVER TEMPERATURE" .
Disassembly and Assembly NBS004RO
DISASSEMBLY
1. Disconnect sub-harness from fan motor (RH and LH) and cooling fan control module.
2. Remove cooling fan control module from fan shroud.
CAUTION:
Handle carefully to avoid dropping and shocks.
3. Remove cooling fan mounting nuts, and then remove the cooling fan (RH and LH).
4. Remove fan motor (RH and LH).
INSPECTION AFTER DISASSEMBLY
Cooling Fan
Inspect cooling fan for crack or unusual bend.
If anything is found, replace cooling fan.
ASSEMBLY
Note the following, and assemble in the reverse order of disassembly.
CAUTION:
RH and LH cooling fans are different. Be careful not to misassemble them.
Install each fan in the following position.
Secure the sub-harness tightly to the fan shroud to prevent the fan rotation area from being loose.Right side : 4 blades
Left side : 5 blades
Page 1414 of 4647
![INFINITI M35 2007 Factory Service Manual WATER PUMP
CO-53
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45
WAT E R P U MPPFP:21020
ComponentsNBS004RP
Refer to GI-11, "Components" for symbols in the figure.
Removal and I INFINITI M35 2007 Factory Service Manual WATER PUMP
CO-53
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45
WAT E R P U MPPFP:21020
ComponentsNBS004RP
Refer to GI-11, "Components" for symbols in the figure.
Removal and I](/manual-img/42/57024/w960_57024-1413.png)
WATER PUMP
CO-53
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45
WAT E R P U MPPFP:21020
ComponentsNBS004RP
Refer to GI-11, "Components" for symbols in the figure.
Removal and InstallationNBS004RQ
CAUTION:
When removing water pump, be careful not to get engine coolant on drive belts.
Water pump can not be disassembled and should be replaced as a unit.
After installing water pump, connect hose and clamp securely, then check for leaks using radiator
cap tester (commercial service tool) and radiator cap tester adapter (commercial service tool).
REMOVAL
1. Remove following parts:
Front engine undercover (power tool)
Engine cover: Refer to EM-179, "INTAKE MANIFOLD" .
Engine room cover (RH and LH): Refer to EM-173, "ENGINE ROOM COVER" .
Air duct (inlet): Refer to EM-177, "AIR CLEANER AND AIR DUCT" .
Alternator, water pump and A/C compressor belt: Refer to EM-174, "DRIVE BELTS" .
2. Drain engine coolant from drain plugs on radiator and both side of cylinder block. Refer to CO-40, "
Chang-
ing Engine Coolant" and EM-253, "DISASSEMBLY" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.
3. Remove water pump pulley.
4. Remove water pump.
Engine coolant will leak from cylinder block, so have a receptacle ready under vehicle.
CAUTION:
Handle the water pump vane so that it does not contact any other parts.
Do not disassemble water pump.

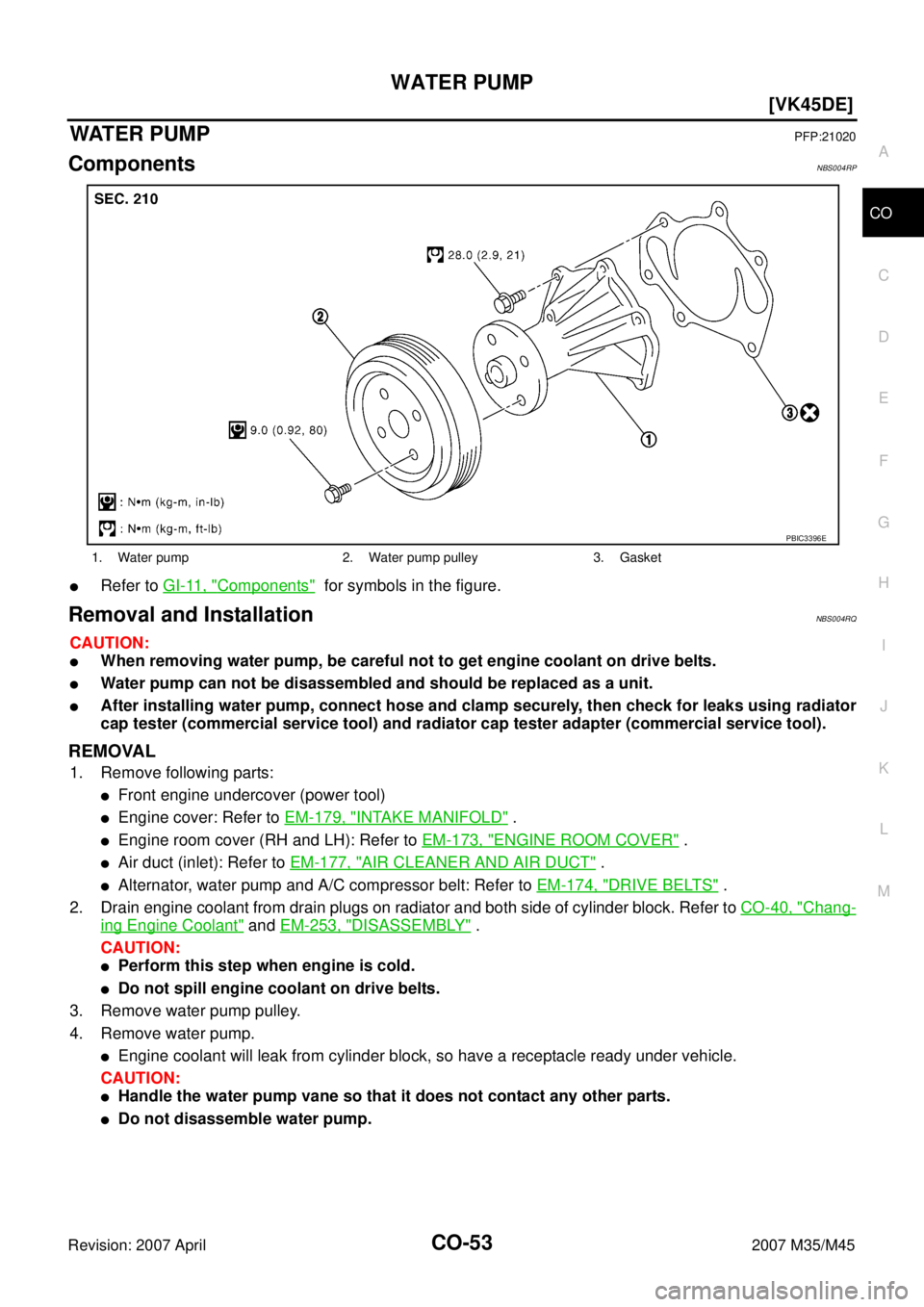

1. Water pump 2. Water pump pulley 3. Gasket
PBIC3396E
Page 1415 of 4647
CO-54
[VK45DE]
WATER PUMP
Revision: 2007 April2007 M35/M45
INSPECTION AFTER REMOVAL
Visually check that there is no significant dirt or rusting on water
pump body and vane.
Make sure there is no looseness in vane shaft, and that it turns
smoothly when rotated by hand.
If anything is found, replace water pump.
INSTALLATION
Installation is the reverse order of removal.
INSPECTION AFTER INSTALLATION
Check for leaks of engine coolant using radiator cap tester adapter (commercial service tool) and radiator
cap tester (commercial service tool). Refer to CO-40, "
LEAK CHECK" .
Start and warm up engine. Visually check if there is no leaks of engine coolant.
PBIC1539E
Page 1416 of 4647
![INFINITI M35 2007 Factory Service Manual THERMOSTAT AND WATER CONTROL VALVE
CO-55
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45
THERMOSTAT AND WATER CONTROL VALVEPFP:21200
ComponentsNBS004RR
Refer to GI-11, "Components INFINITI M35 2007 Factory Service Manual THERMOSTAT AND WATER CONTROL VALVE
CO-55
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45
THERMOSTAT AND WATER CONTROL VALVEPFP:21200
ComponentsNBS004RR
Refer to GI-11, "Components](/manual-img/42/57024/w960_57024-1415.png)
THERMOSTAT AND WATER CONTROL VALVE
CO-55
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
CO
Revision: 2007 April2007 M35/M45
THERMOSTAT AND WATER CONTROL VALVEPFP:21200
ComponentsNBS004RR
Refer to GI-11, "Components" for symbols in the figure.
Removal and InstallationNBS004RS
REMOVAL
1. Remove engine room cover (RH and LH). Refer to EM-173, "ENGINE ROOM COVER" .
2. Remove engine cover with power tool. Refer to EM-179, "
INTAKE MANIFOLD" .
3. Remove air duct (inlet). Refer to EM-177, "
AIR CLEANER AND AIR DUCT" .
4. Drain engine coolant from drain plugs on radiator and both side of cylinder block. Refer to CO-40, "
Chang-
ing Engine Coolant" and EM-253, "DISASSEMBLY" .
CAUTION:
Perform this step when engine is cold.
Do not spill engine coolant on drive belts.

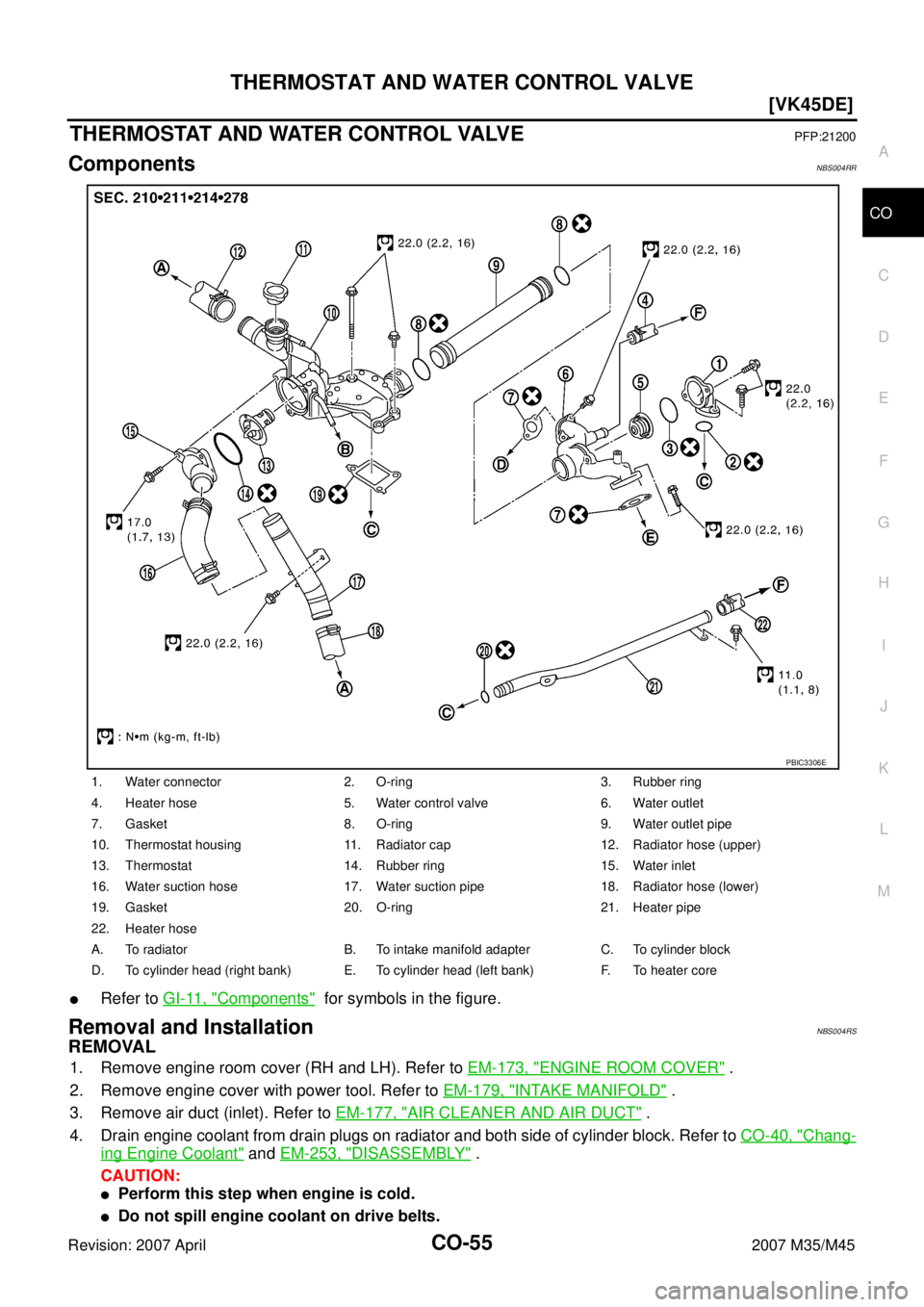

1. Water connector 2. O-ring 3. Rubber ring
4. Heater hose 5. Water control valve 6. Water outlet
7. Gasket 8. O-ring 9. Water outlet pipe
10. Thermostat housing 11. Radiator cap 12. Radiator hose (upper)
13. Thermostat 14. Rubber ring 15. Water inlet
16. Water suction hose 17. Water suction pipe 18. Radiator hose (lower)
19. Gasket 20. O-ring 21. Heater pipe
22. Heater hose
A. To radiator B. To intake manifold adapter C. To cylinder block
D. To cylinder head (right bank) E. To cylinder head (left bank) F. To heater core
PBIC3306E
