EC-520
[VQ35DE]
DTC P1226 TP SENSOR
Revision: 2007 April2007 M35/M45
DTC P1226 TP SENSORPFP:16119
Component DescriptionNBS0053M
Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has the two sensors. These sensors are
a kind of potentiometers which transform the throttle valve position
into output voltage, and emit the voltage signal to the ECM. In addi-
tion, these sensors detect the opening and closing speed of the
throttle valve and feed the voltage signals to the ECM. The ECM
judges the current opening angle of the throttle valve from these sig-
nals and the ECM controls the throttle control motor to make the
throttle valve opening angle properly in response to driving condi-
tion.
On Board Diagnosis LogicNBS0053N
The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureNBS0053O
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds.
4. Turn ignition switch ON.
5. Repeat steps 3 and 4 for 32 times.
6. If 1st trip DTC is detected, go to EC-521, "
Removal and Installa-
tion" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1226
1226Closed throttle position
learning performanceClosed throttle position learning is not per-
formed successfully, repeatedly.
Electric throttle control actuator
(TP sensor 1 and 2)
SEF058Y
Page 2050 of 4647
DTC P1226 TP SENSOR
EC-521
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

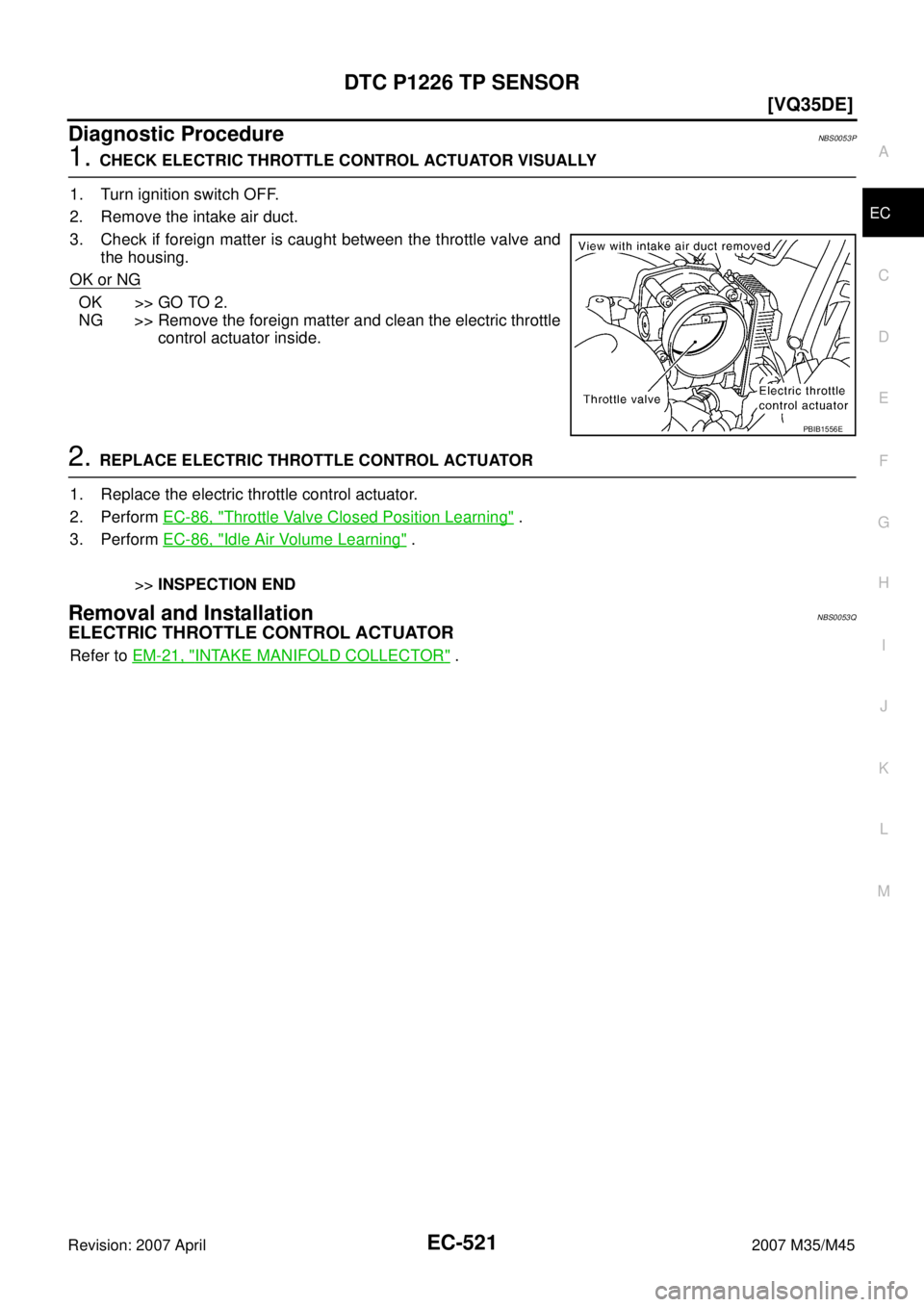

Diagnostic ProcedureNBS0053P
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve and
the housing.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-86, "
Throttle Valve Closed Position Learning" .
3. Perform EC-86, "
Idle Air Volume Learning" .
>>INSPECTION END
Removal and InstallationNBS0053Q
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-21, "INTAKE MANIFOLD COLLECTOR" .
PBIB1556E
Page 2051 of 4647
![INFINITI M35 2007 Factory Service Manual EC-522
[VQ35DE]
DTC P1421 COLD START CONTROL
Revision: 2007 April2007 M35/M45
DTC P1421 COLD START CONTROLPFP:23710
DescriptionNBS005S9
ECM controls ignition timing and engine idle speed when engine i INFINITI M35 2007 Factory Service Manual EC-522
[VQ35DE]
DTC P1421 COLD START CONTROL
Revision: 2007 April2007 M35/M45
DTC P1421 COLD START CONTROLPFP:23710
DescriptionNBS005S9
ECM controls ignition timing and engine idle speed when engine i](/manual-img/42/57024/w960_57024-2050.png)

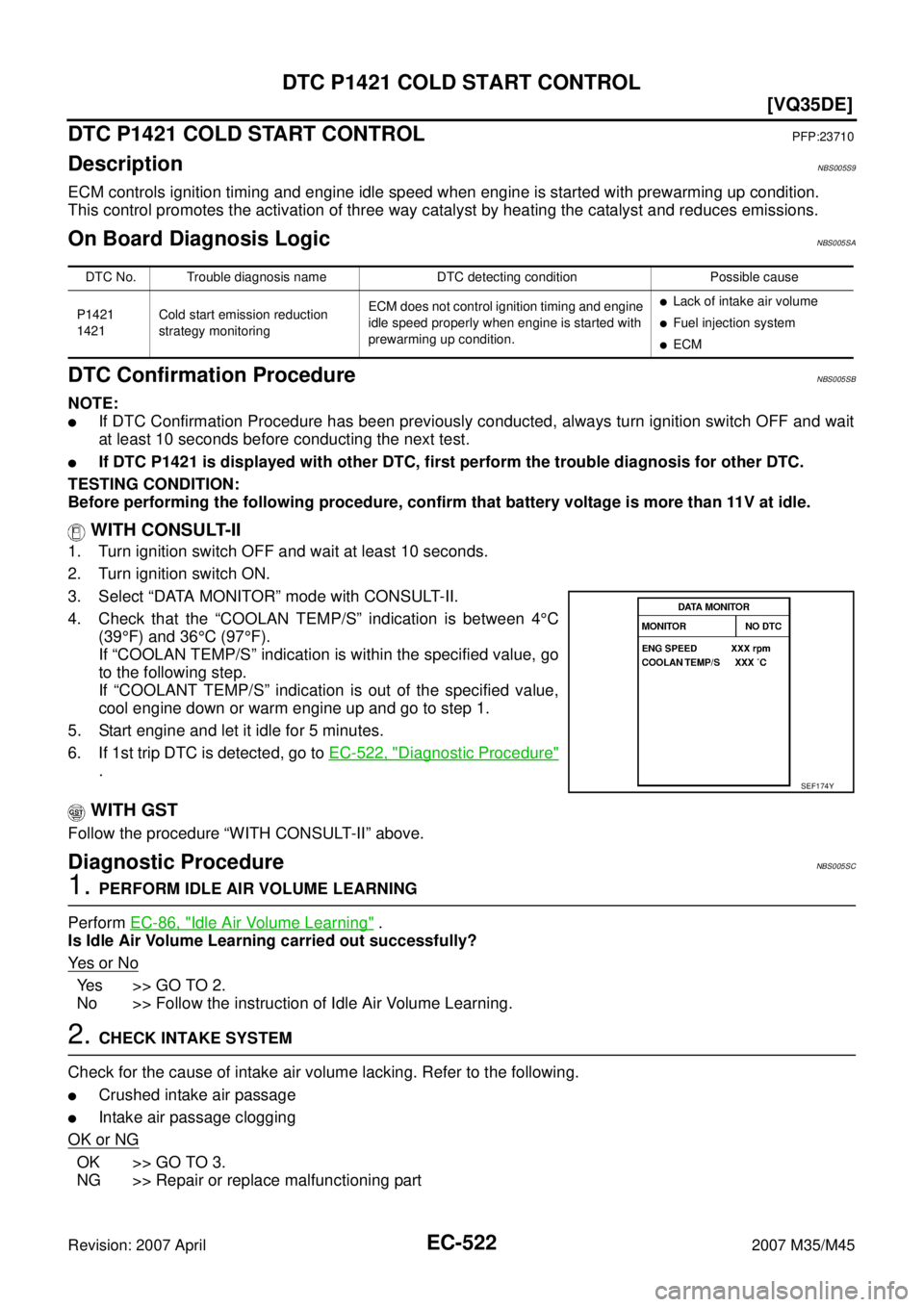

EC-522
[VQ35DE]
DTC P1421 COLD START CONTROL
Revision: 2007 April2007 M35/M45
DTC P1421 COLD START CONTROLPFP:23710
DescriptionNBS005S9
ECM controls ignition timing and engine idle speed when engine is started with prewarming up condition.
This control promotes the activation of three way catalyst by heating the catalyst and reduces emissions.
On Board Diagnosis LogicNBS005SA
DTC Confirmation ProcedureNBS005SB
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
If DTC P1421 is displayed with other DTC, first perform the trouble diagnosis for other DTC.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-II
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-II.
4. Check that the “COOLAN TEMP/S” indication is between 4°C
(39°F) and 36°C (97°F).
If “COOLAN TEMP/S” indication is within the specified value, go
to the following step.
If “COOLANT TEMP/S” indication is out of the specified value,
cool engine down or warm engine up and go to step 1.
5. Start engine and let it idle for 5 minutes.
6. If 1st trip DTC is detected, go to EC-522, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
Diagnostic ProcedureNBS005SC
1. PERFORM IDLE AIR VOLUME LEARNING
Perform EC-86, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Yes >> GO TO 2.
No >> Follow the instruction of Idle Air Volume Learning.
2. CHECK INTAKE SYSTEM
Check for the cause of intake air volume lacking. Refer to the following.
Crushed intake air passage
Intake air passage clogging
OK or NG
OK >> GO TO 3.
NG >> Repair or replace malfunctioning part
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1421
1421Cold start emission reduction
strategy monitoringECM does not control ignition timing and engine
idle speed properly when engine is started with
prewarming up condition.
Lack of intake air volume
Fuel injection system
ECM
SEF174Y
Page 2052 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P1421 COLD START CONTROL
EC-523
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
3. CHECK FUEL INJECTION SYSTEM FUNCTION
Perform EC-309, "
DTC Confirmation Procedure" in DTC P0 INFINITI M35 2007 Factory Service Manual DTC P1421 COLD START CONTROL
EC-523
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
3. CHECK FUEL INJECTION SYSTEM FUNCTION
Perform EC-309, "
DTC Confirmation Procedure" in DTC P0](/manual-img/42/57024/w960_57024-2051.png)
DTC P1421 COLD START CONTROL
EC-523
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
3. CHECK FUEL INJECTION SYSTEM FUNCTION
Perform EC-309, "
DTC Confirmation Procedure" in DTC P0171, P0174 FUEL INJECTION SYSTEM FUNC-
TION.
OK or NG
OK >> GO TO 4.
NG >> Go to EC-315, "
Diagnostic Procedure" .
4. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4.Perform DTC Confirmation Procedure.
See EC-522, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P1421 displayed again?
With GST
1. Turn ignition switch ON.
2. Select Service $04 with GST.
3.Perform DTC Confirmation Procedure.
See EC-522, "
DTC Confirmation Procedure" .
4. Is the 1st trip DTC P1421 displayed again?
Ye s o r N o
Ye s > > G O T O 5 .
No >>INSPECTION END
5. REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs.
Refer to BL-248, "
ECM Re-Communicating Function" .
3. Perform EC-85, "
VIN Registration" .
4. Perform EC-86, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-86, "
Throttle Valve Closed Position Learning" .
6. Perform EC-86, "
Idle Air Volume Learning" .
>>INSPECTION END
Page 2053 of 4647
![INFINITI M35 2007 Factory Service Manual EC-524
[VQ35DE]
DTC P1550 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
DTC P1550 BATTERY CURRENT SENSORPFP:294G0
Component DescriptionNBS0053R
The power generation voltage variable control INFINITI M35 2007 Factory Service Manual EC-524
[VQ35DE]
DTC P1550 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
DTC P1550 BATTERY CURRENT SENSORPFP:294G0
Component DescriptionNBS0053R
The power generation voltage variable control](/manual-img/42/57024/w960_57024-2052.png)

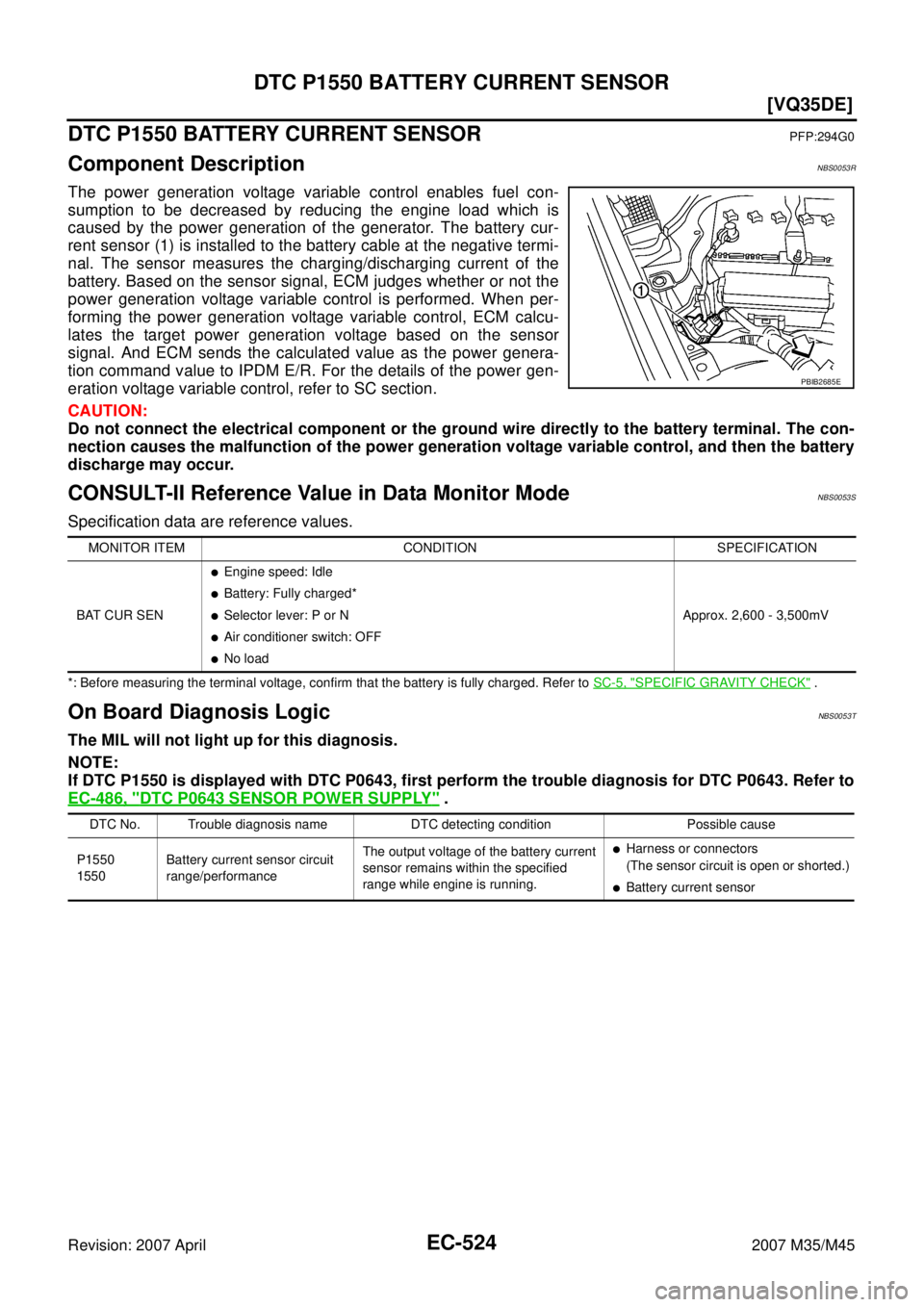

EC-524
[VQ35DE]
DTC P1550 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
DTC P1550 BATTERY CURRENT SENSORPFP:294G0
Component DescriptionNBS0053R
The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator. The battery cur-
rent sensor (1) is installed to the battery cable at the negative termi-
nal. The sensor measures the charging/discharging current of the
battery. Based on the sensor signal, ECM judges whether or not the
power generation voltage variable control is performed. When per-
forming the power generation voltage variable control, ECM calcu-
lates the target power generation voltage based on the sensor
signal. And ECM sends the calculated value as the power genera-
tion command value to IPDM E/R. For the details of the power gen-
eration voltage variable control, refer to SC section.
CAUTION:
Do not connect the electrical component or the ground wire directly to the battery terminal. The con-
nection causes the malfunction of the power generation voltage variable control, and then the battery
discharge may occur.
CONSULT-II Reference Value in Data Monitor ModeNBS0053S
Specification data are reference values.
*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SC-5, "SPECIFIC GRAVITY CHECK" .
On Board Diagnosis LogicNBS0053T
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1550 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
EC-486, "
DTC P0643 SENSOR POWER SUPPLY" .
PBIB2685E
MONITOR ITEM CONDITION SPECIFICATION
BAT CUR SEN
Engine speed: Idle
Battery: Fully charged*
Selector lever: P or N
Air conditioner switch: OFF
No loadApprox. 2,600 - 3,500mV
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1550
1550Battery current sensor circuit
range/performanceThe output voltage of the battery current
sensor remains within the specified
range while engine is running.
Harness or connectors
(The sensor circuit is open or shorted.)
Battery current sensor
Page 2054 of 4647
DTC P1550 BATTERY CURRENT SENSOR
EC-525
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS0053U
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and wait at least 10 seconds.
4. If 1st trip DTC is detected, go to EC-527, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF058Y
Page 2055 of 4647
EC-526
[VQ35DE]
DTC P1550 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45

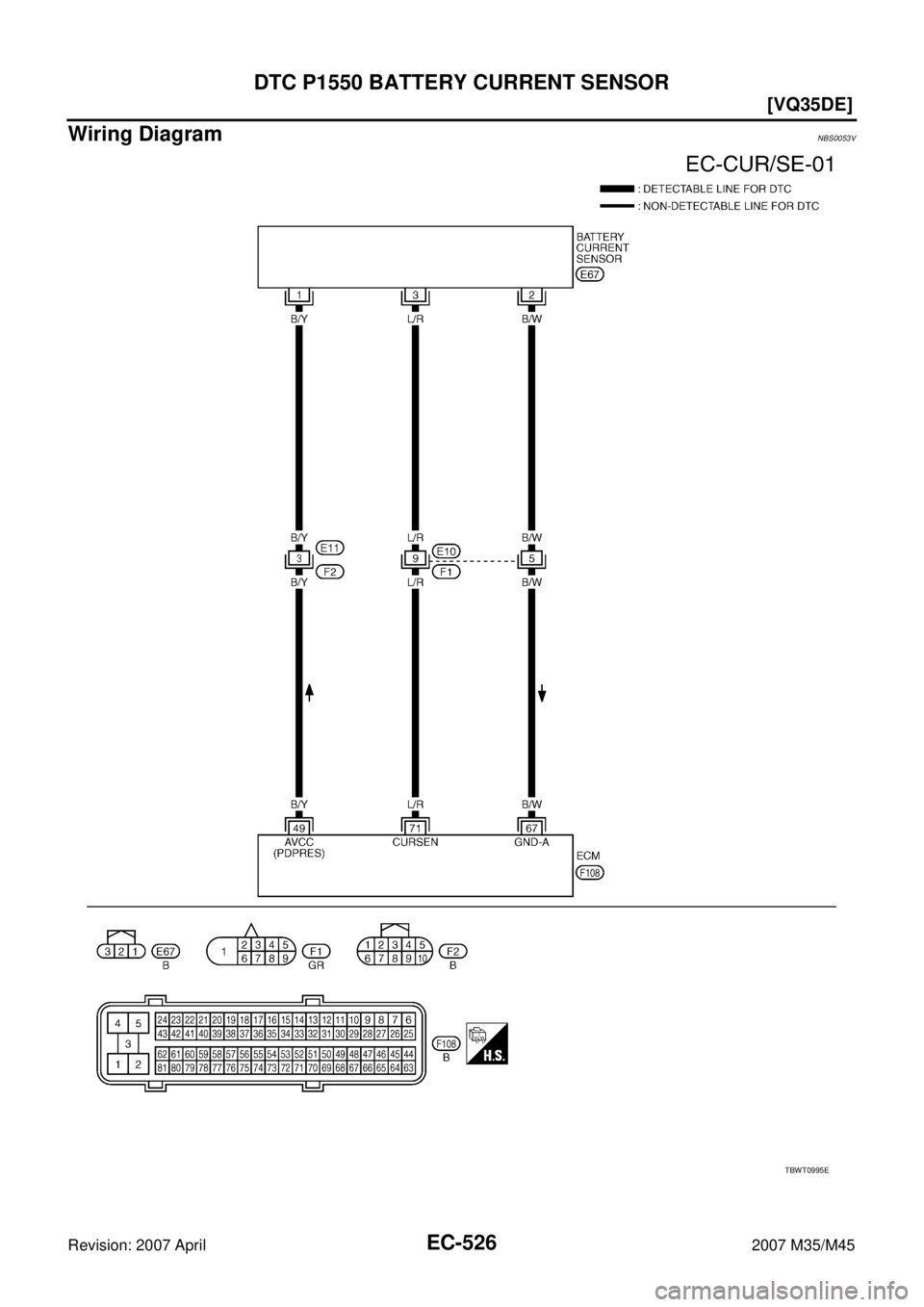

Wiring DiagramNBS0053V
TBWT0995E
Page 2056 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P1550 BATTERY CURRENT SENSOR
EC-527
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
C INFINITI M35 2007 Factory Service Manual DTC P1550 BATTERY CURRENT SENSOR
EC-527
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
C](/manual-img/42/57024/w960_57024-2055.png)
DTC P1550 BATTERY CURRENT SENSOR
EC-527
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SC-5, "SPECIFIC GRAVITY CHECK" .

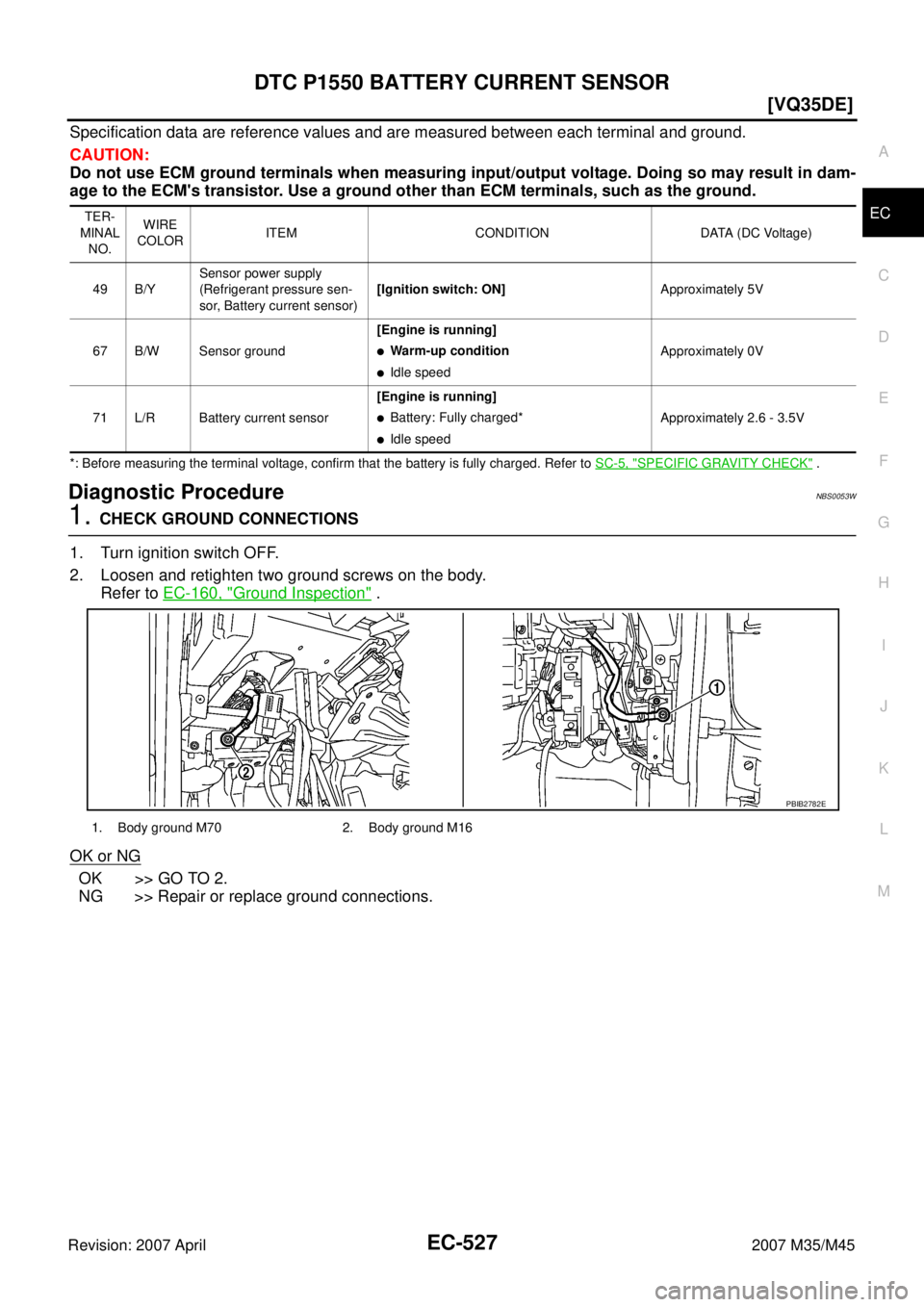

Diagnostic ProcedureNBS0053W
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten two ground screws on the body.
Refer to EC-160, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
49 B/YSensor power supply
(Refrigerant pressure sen-
sor, Battery current sensor)[Ignition switch: ON]Approximately 5V
67 B/W Sensor ground[Engine is running]
Warm-up condition
Idle speedApproximately 0V
71 L/R Battery current sensor[Engine is running]
Battery: Fully charged*
Idle speedApproximately 2.6 - 3.5V
1. Body ground M70 2. Body ground M16
PBIB2782E
