Page 4345 of 4647
SE-146
HEATED SEAT
Revision: 2007 April2007 M35/M45

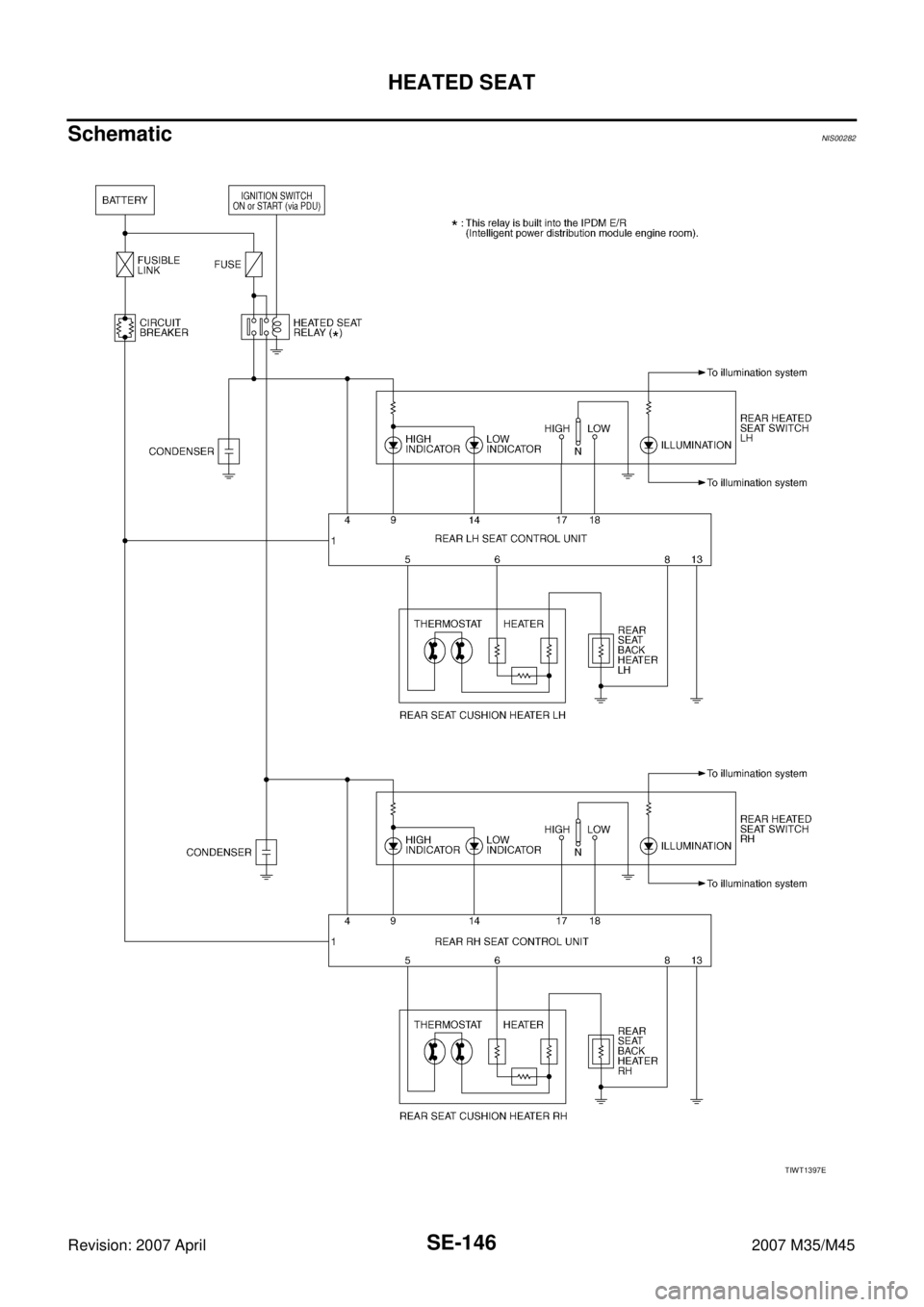

SchematicNIS00282
TIWT1397E
Page 4346 of 4647
HEATED SEAT
SE-147
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45

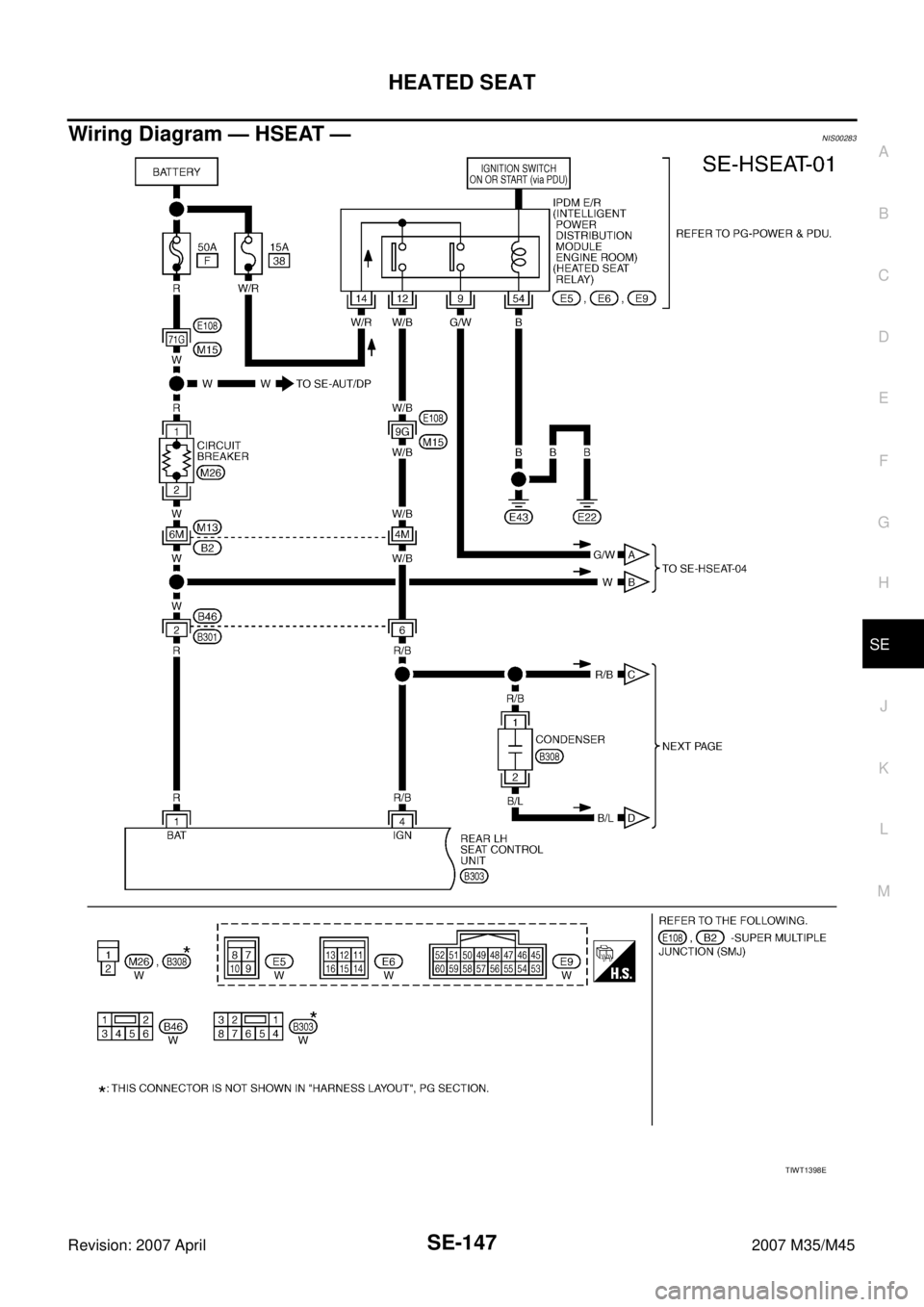

Wiring Diagram — HSEAT —NIS00283
TIWT1398E
Page 4347 of 4647
SE-148
HEATED SEAT
Revision: 2007 April2007 M35/M45

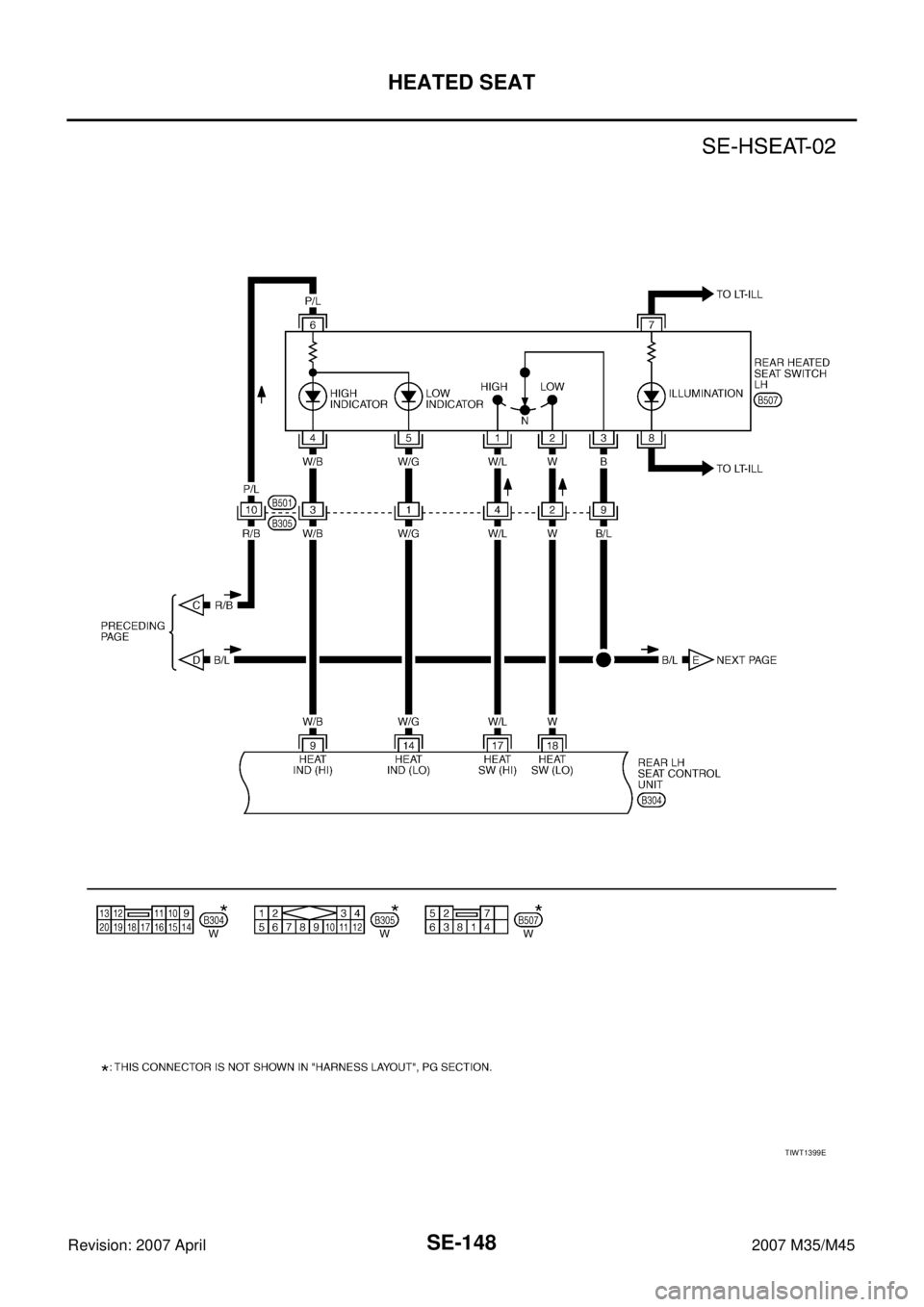

TIWT1399E
Page 4348 of 4647
HEATED SEAT
SE-149
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45

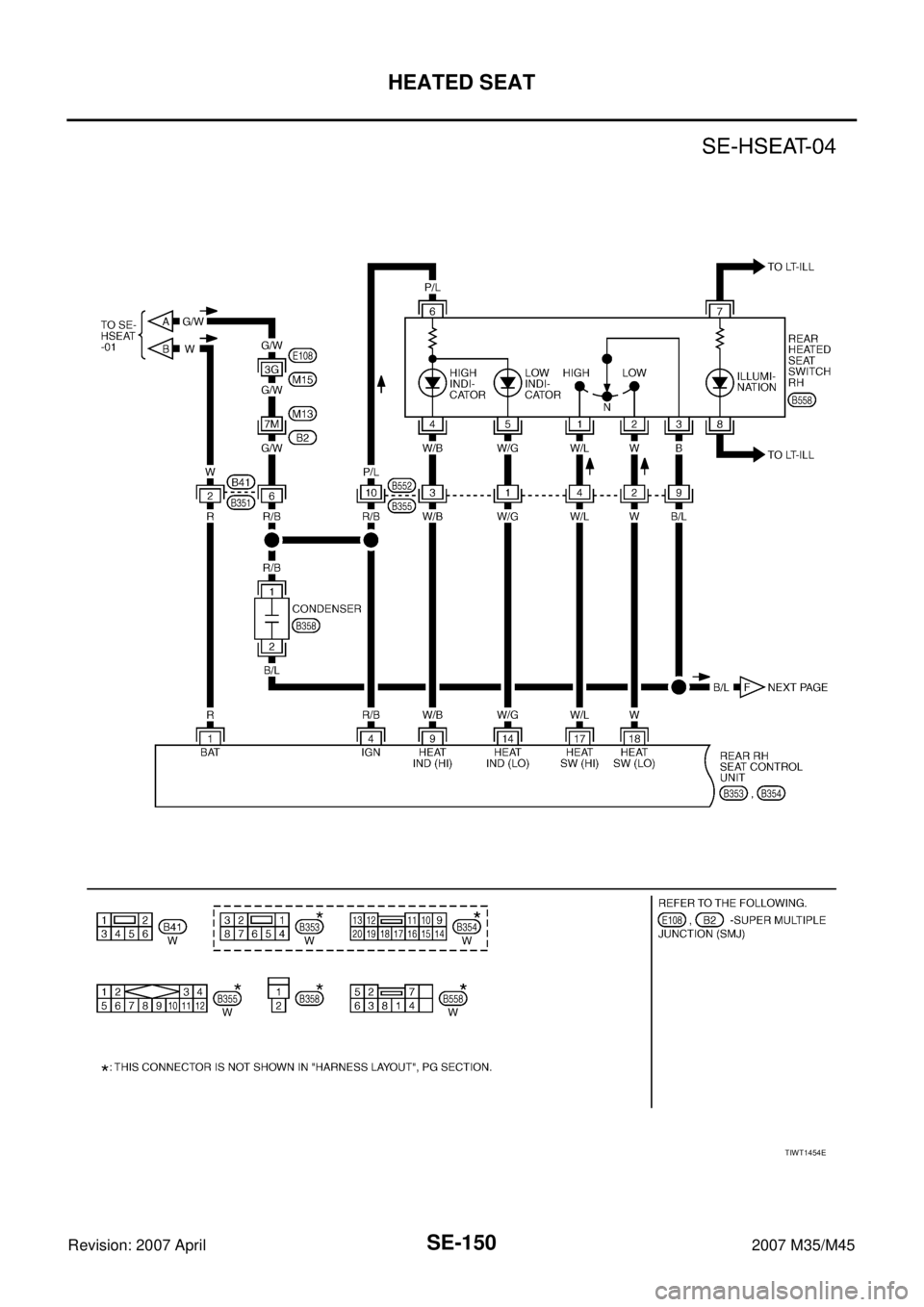

TIWT1400E
Page 4349 of 4647
SE-150
HEATED SEAT
Revision: 2007 April2007 M35/M45

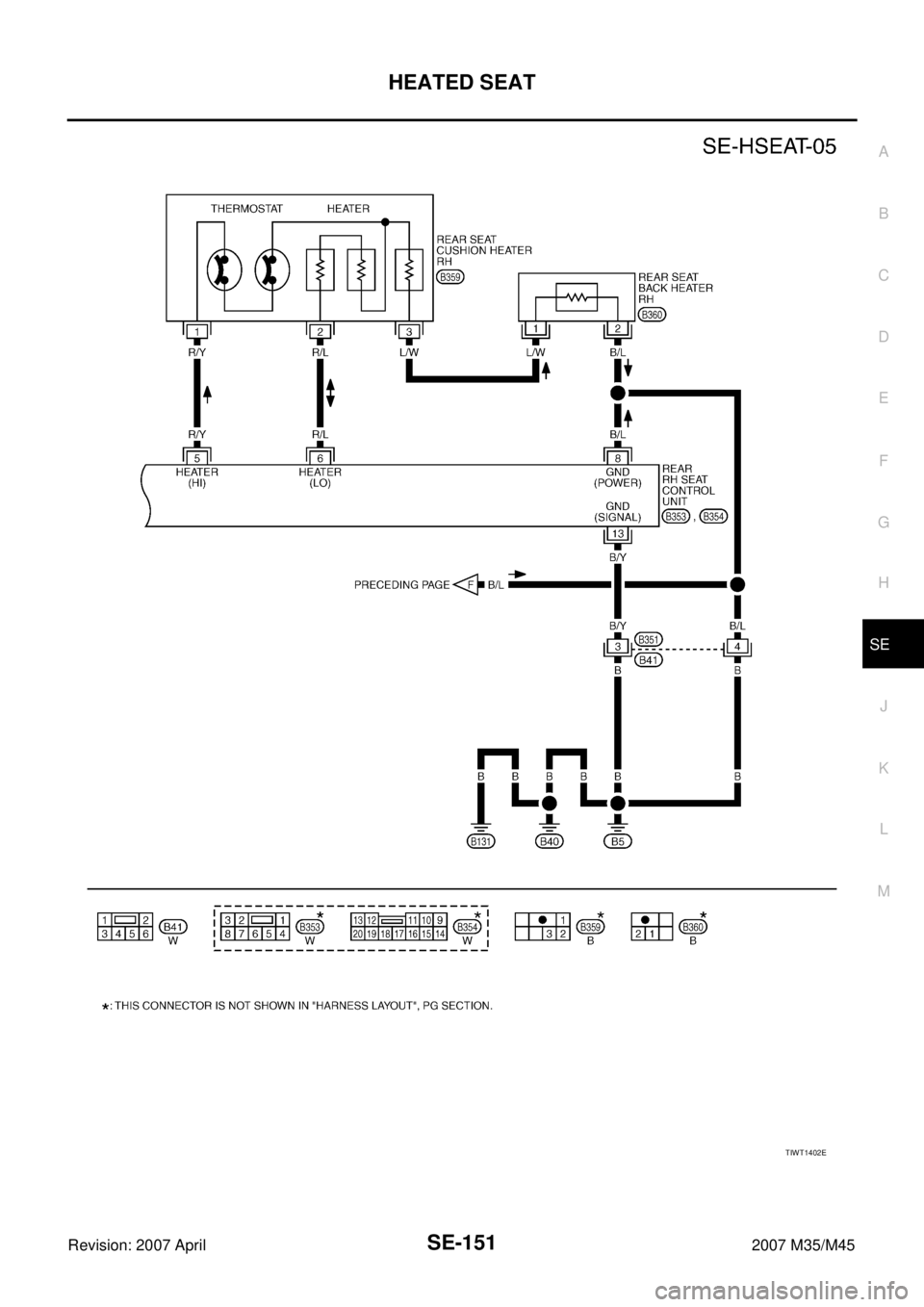

TIWT1454E
Page 4350 of 4647
HEATED SEAT
SE-151
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
TIWT1402E
Page 4351 of 4647

SE-152
HEATED SEAT
Revision: 2007 April2007 M35/M45
Terminals and Reference Values for Rear Seat Control UnitNIS00284
Work FlowNIS00285
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to SE-144, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-152,
"Trouble Diagnoses Symptom Chart" .
4. Does heated seat operate normally? YES: GO TO 5, NO: GO TO 3.
5. INSPECTION END.
Trouble Diagnoses Symptom ChartNIS00286
Check that other systems using the signal of the following systems operate normally.
TerminalWire
colorItemSignal
Input/OutputConditionVoltage (V)
(Approx.)
1 R Power source (BAT) Input — Battery voltage
4 R/B Power source (IGN) Input — Battery voltage
5 R/Y Seat heater HI signal InputSeat heater HI operation Battery voltage
Other than above 0
6 R/L Seat heater LO signal InputSeat heater LO operation Battery voltage
Other than above 0
8 B/L Ground (power) — — 0
9 W/B Heated seat indicator HI signal OutputHeater HI operation (lit) 0
Other than above Battery voltage
13 B/Y Ground (signal) — — 0
14 W/G Heated seat indicator LO signal OutputHeater LO operation (lit) 0
Other than above Battery voltage
17 W/L Heated seat switch HI signal InputHeated seat switch (HI) – ON (pressed) 0
Heated seat switch (HI) – OFF Battery voltage
18 W Heated seat switch LO signal InputHeated seat switch (LO) – ON (pressed) 0
Heated seat switch (LO) – OFF Battery voltage
Symptom Diagnoses / service procedure Refer to page
Rear heated seat LH and RH does not operate.Check rear heated seat power supply and ground
circuitSE-153
Rear heated seat LH or RH do not operate.1. Check rear seat control unit power supply and
ground circuitSE-1542. Check rear heated seat switch circuit SE-156
3. Check rear seatback heater circuit SE-162
4. Replace rear LH or RH seat control unitSE-144
Rear heated seat do not operate with LO or HI position.1. Check rear heated seat switch circuitSE-1562. Check rear heated seat circuitSE-161
Rear heated seat LH or RH indicator do not operate.Check rear heated seat indicator power supply
circuit SE-158
Rear heated seat indicator do not operate with LO or HI position Check rear heated seat indicator circuit SE-159
Page 4352 of 4647

HEATED SEAT
SE-153
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2007 April2007 M35/M45
Check Rear Heated Seat Power Supply and Ground CircuitNIS00287
1. CHECK FUSIBLE LINK AND FUSE
Check 50A fusible link (letter F located in the fuse and fusible link box).
Check 15A fuse (No.38, located in fuse block).
Check circuit breaker.
NOTE:
Refer to SE-144, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse or circuit breaker is blown, be sure to eliminate cause of malfunction before installing new
fuse or new circuit breaker, refer to PG-3, "
POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK HEATED SEAT RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Check voltage between IPDM E/R (heated seat relay) connector
and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between fuse block (J/B) and IPDM E/R (heated seat relay).
3. CHECK HEATED SEAT RELAY GROUND CIRCUIT
1. Disconnect IPDM E/R (heated seat relay) connector.
2. Check continuity between IPDM E/R (heated seat relay) con-
nector and ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Repair or replace harness between IPDM E/R (heated
seat relay) and ground.
Terminal
Voltage (V)
(Approx.) (+)
(–) IPDM E/R
(heated seat relay)
connectorTerminal
E6 14 Ground Battery voltage
PIIB5995E
Terminal
Continuity IPDM E/R
(heated seat relay)
connectorTerminal
Ground
E9 54 Yes
PIIB5996E
