Page 1129 of 4647
BL-196
FRONT DOOR LOCK
Revision: 2007 April2007 M35/M45
11. Remove the front gasket and rear gasket.
12. Remove the TORX bolts, remove the door lock assembly.
13. Remove the TORX bolt of the outside handle bracket.
14. While pulling outside handle bracket, slide toward rear of vehicle
to remove outside handle bracket.
15. Disconnect the door lock actuator connector and remove the door lock assembly.
PIIB5811E
PIIB5812E
PIIB5813E
PIIB5814E
Page 1130 of 4647
FRONT DOOR LOCK
BL-197
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
16. Reach to separate the outside handle cable connection.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
To install each rod, be sure to rotate the rod holder until a click is felt.
PIIB5815E
Page 1131 of 4647
BL-198
REAR DOOR LOCK
Revision: 2007 April2007 M35/M45

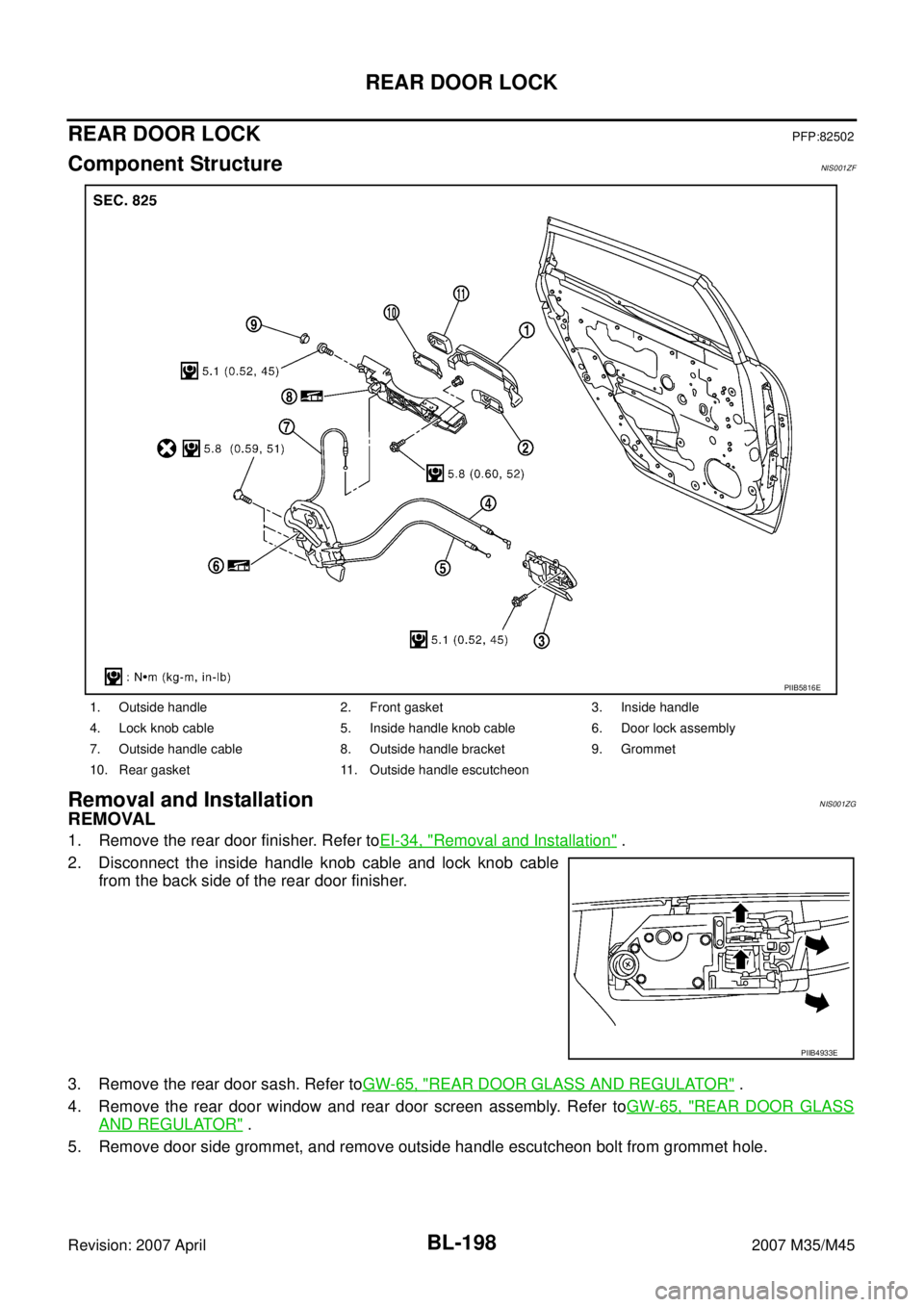

REAR DOOR LOCKPFP:82502
Component StructureNIS001ZF
Removal and InstallationNIS001ZG
REMOVAL
1. Remove the rear door finisher. Refer toEI-34, "Removal and Installation" .
2. Disconnect the inside handle knob cable and lock knob cable
from the back side of the rear door finisher.
3. Remove the rear door sash. Refer toGW-65, "
REAR DOOR GLASS AND REGULATOR" .
4. Remove the rear door window and rear door screen assembly. Refer toGW-65, "
REAR DOOR GLASS
AND REGULATOR" .
5. Remove door side grommet, and remove outside handle escutcheon bolt from grommet hole.
1. Outside handle 2. Front gasket 3. Inside handle
4. Lock knob cable 5. Inside handle knob cable 6. Door lock assembly
7. Outside handle cable 8. Outside handle bracket 9. Grommet
10. Rear gasket 11. Outside handle escutcheon
PIIB5816E
PIIB4933E
Page 1132 of 4647
REAR DOOR LOCK
BL-199
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45

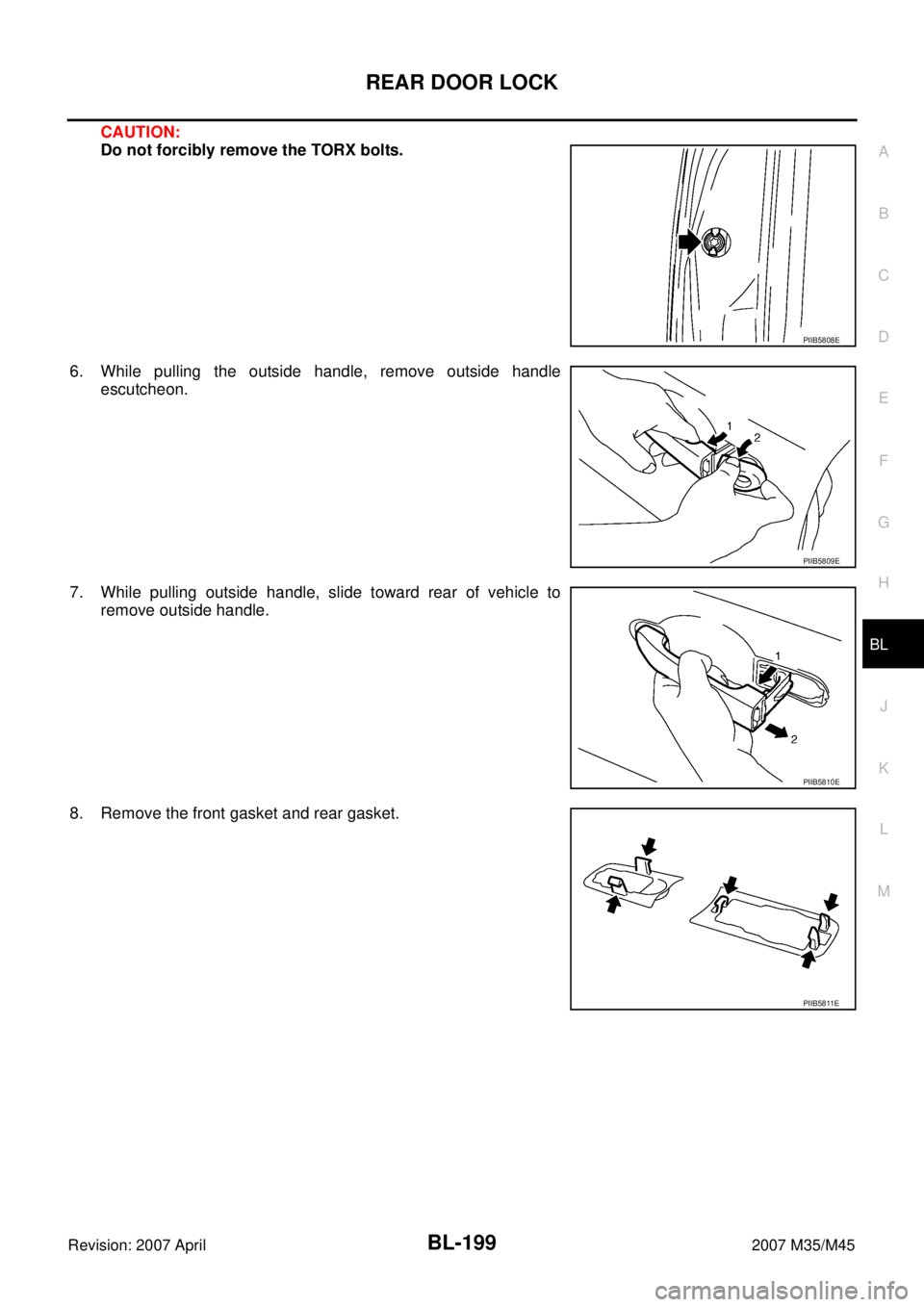

CAUTION:
Do not forcibly remove the TORX bolts.
6. While pulling the outside handle, remove outside handle
escutcheon.
7. While pulling outside handle, slide toward rear of vehicle to
remove outside handle.
8. Remove the front gasket and rear gasket.
PIIB5808E
PIIB5809E
PIIB5810E
PIIB5811E
Page 1133 of 4647
BL-200
REAR DOOR LOCK
Revision: 2007 April2007 M35/M45

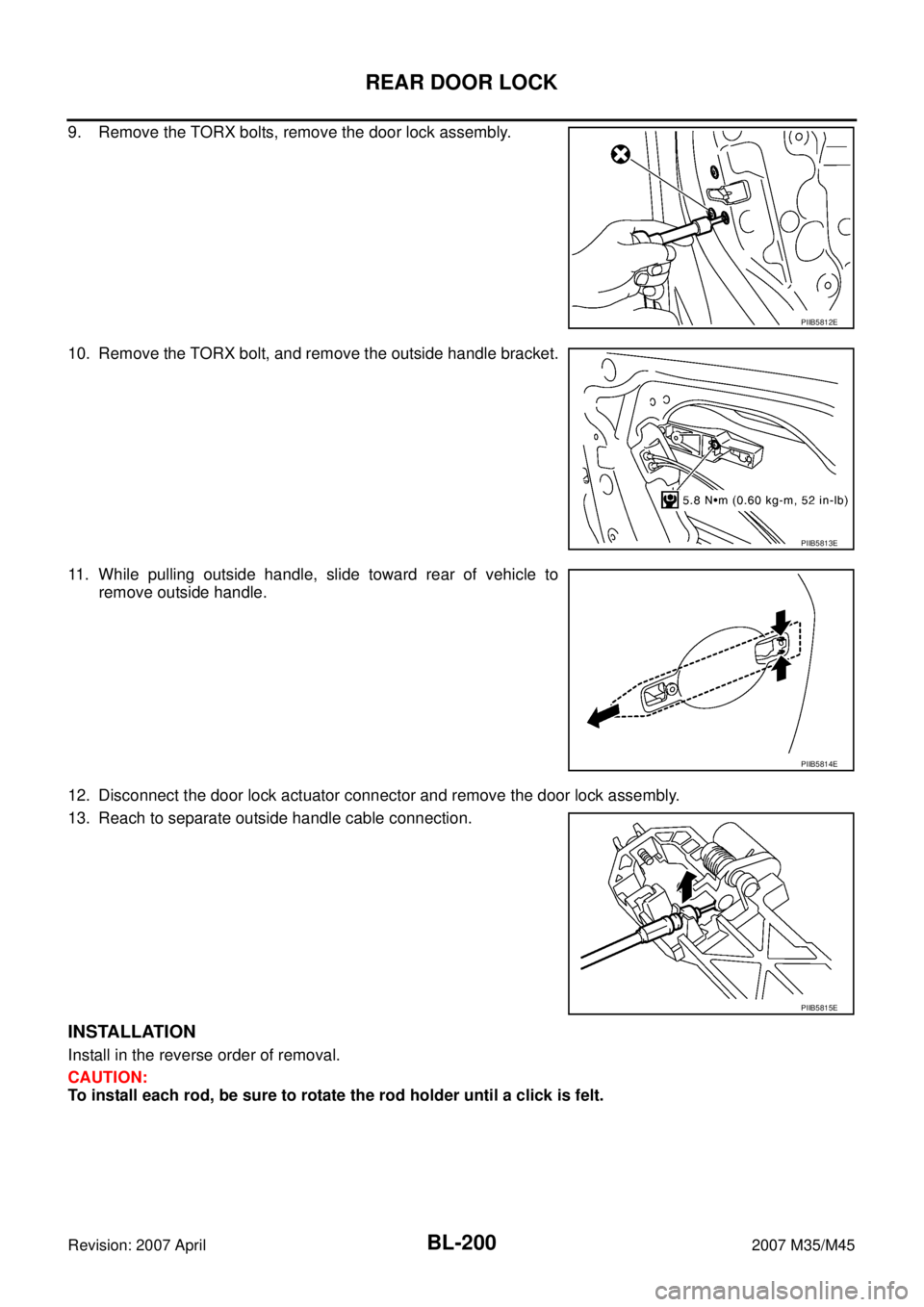

9. Remove the TORX bolts, remove the door lock assembly.
10. Remove the TORX bolt, and remove the outside handle bracket.
11. While pulling outside handle, slide toward rear of vehicle to
remove outside handle.
12. Disconnect the door lock actuator connector and remove the door lock assembly.
13. Reach to separate outside handle cable connection.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
To install each rod, be sure to rotate the rod holder until a click is felt.
PIIB5812E
PIIB5813E
PIIB5814E
PIIB5815E
Page 1134 of 4647
TRUNK LID
BL-201
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45

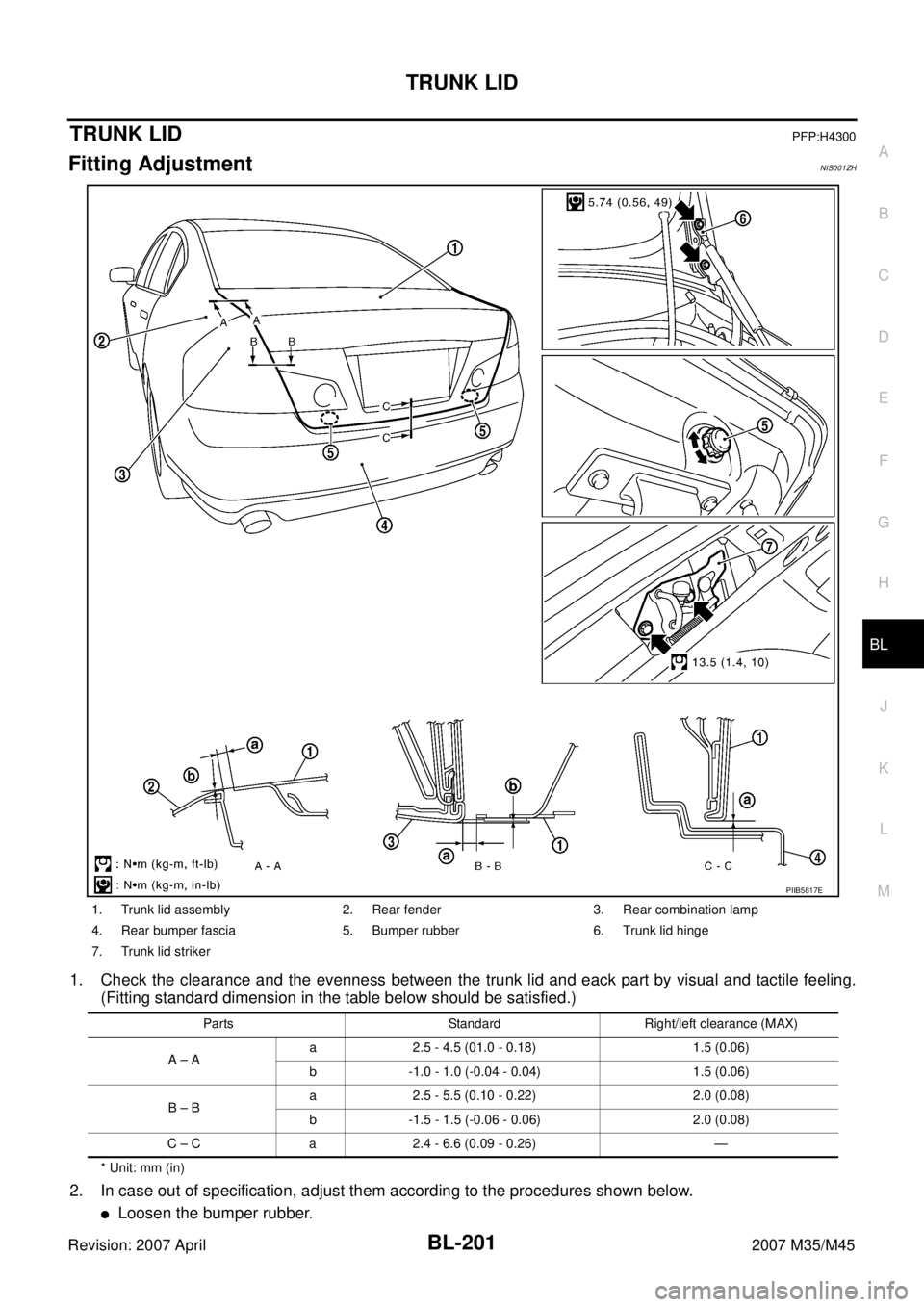

TRUNK LIDPFP:H4300
Fitting AdjustmentNIS001ZH
1. Check the clearance and the evenness between the trunk lid and eack part by visual and tactile feeling.
(Fitting standard dimension in the table below should be satisfied.)
* Unit: mm (in)
2. In case out of specification, adjust them according to the procedures shown below.
Loosen the bumper rubber.
1. Trunk lid assembly 2. Rear fender 3. Rear combination lamp
4. Rear bumper fascia 5. Bumper rubber 6. Trunk lid hinge
7. Trunk lid striker
Parts Standard Right/left clearance (MAX)
A – Aa 2.5 - 4.5 (01.0 - 0.18) 1.5 (0.06)
b -1.0 - 1.0 (-0.04 - 0.04) 1.5 (0.06)
B – Ba 2.5 - 5.5 (0.10 - 0.22) 2.0 (0.08)
b -1.5 - 1.5 (-0.06 - 0.06) 2.0 (0.08)
C – C a 2.4 - 6.6 (0.09 - 0.26) —
PIIB5817E
Page 1135 of 4647

BL-202
TRUNK LID
Revision: 2007 April2007 M35/M45
Loosen the striker mounting bolts.
Lift up the trunk lid approx. 100 - 150 mm (3.94 - 5.91 in) height then close it lightly and make sure it
engaged firmly with the trunk lid closed.
Check the clearance and evenness.
Finally tighten the trunk lid striker.
Removal and Installation of Trunk Lid AssemblyNIS001ZI
CAUTION:
After installing, apply touch-up paint (the body color) onto the head of the hinge mounting bolts.
After installing, check operation.
After installing, perform fitting adjustment. Refer to BL-201, "Fitting Adjustment" .
REMOVAL
1. Remove trunk lid finisher. Refer to EI-56, "Removal and Installation for Trunk Room Trim" .
2. Disconnect the connectors in the trunk lid, and remove the harness clamps to pull the harness out of the
trunk lid.
3. Insert flat-bladed screwdriver into the gap and remove holder.
1. Trunk lid assembly 2. Trunk lid hinge 3. Trunk lid stay
4. Trunk lid finisher 5. Trunk lid harness
PIIB5818E
PIIB3895J
Page 1136 of 4647
TRUNK LID
BL-203
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45

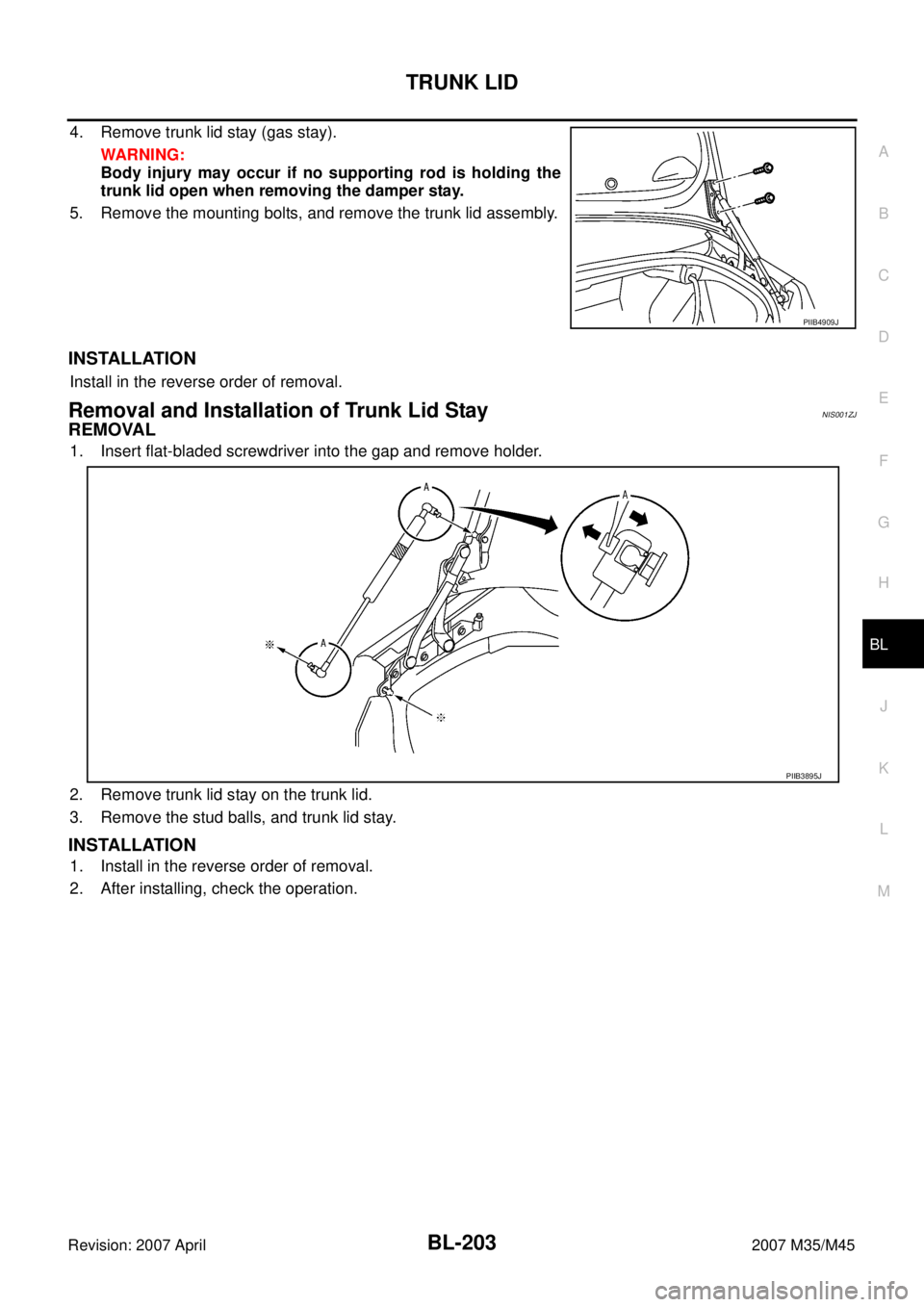

4. Remove trunk lid stay (gas stay).
WARNING:
Body injury may occur if no supporting rod is holding the
trunk lid open when removing the damper stay.
5. Remove the mounting bolts, and remove the trunk lid assembly.
INSTALLATION
Install in the reverse order of removal.
Removal and Installation of Trunk Lid StayNIS001ZJ
REMOVAL
1. Insert flat-bladed screwdriver into the gap and remove holder.
2. Remove trunk lid stay on the trunk lid.
3. Remove the stud balls, and trunk lid stay.
INSTALLATION
1. Install in the reverse order of removal.
2. After installing, check the operation.
PIIB4909J
PIIB3895J
