Page 4161 of 4647

INFINITI M35 2007 Factory Service Manual SB-36
TOP TETHER STRAP CHILD RESTRAINT
Revision: 2007 April2007 M35/M45
TOP TETHER STRAP CHILD RESTRAINTPFP:88000
Removal and InstallationNHS0008N
CAUTION:
Replace anchor bolts if they are deformed or

Page 4162 of 4647

INFINITI M35 2007 Factory Service Manual SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION SC
A
B
SC
Revision: 2007 April2007 M35/M45
STARTING & CHARGING SYSTEM
PRECAUTIONS ...................................

SC-1
STARTING & CHARGING SYSTEM
K ELECTRICAL
CONTENTS
C
D
E
F
G
H
I
J
L
M
SECTION SC
A
B
SC
Revision: 2007 April2007 M35/M45
STARTING & CHARGING SYSTEM
PRECAUTIONS .......................................................... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 2
Precautions for Power Generation Voltage Variable
Control System ......................................................... 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
BATTERY .................................................................... 4
How to Handle Battery ............................................. 4
METHODS OF PREVENTING OVER-DIS-
CHARGE ............................................................... 4
CHECKING ELECTROLYTE LEVEL .................... 5
SPECIFIC GRAVITY CHECK ............................... 5
CHARGING THE BATTERY ................................. 6
Trouble Diagnosis with Battery Service Center ........ 7
Removal and Installation .......................................... 7
REMOVAL ............................................................. 7
INSTALLATION ..................................................... 7
STARTING SYSTEM .................................................. 8
System Description .................................................. 8
Wiring Diagram — START — ................................... 9
VQ35DE ENGINE MODELS ................................. 9
VK45DE ENGINE MODELS ............................... 10
Trouble Diagnosis with Starting/Charging System
Tester (Starting) ....................................................... 11
DIAGNOSTIC PROCEDURE 1 ........................... 12
DIAGNOSTIC PROCEDURE 2 ........................... 13
MINIMUM SPECIFICATION OF CRANKING
VOLTAGE REFERENCING COOLANT TEM-
PERATURE ......................................................... 13
Removal and Installation ........................................ 14
VQ35DE ENGINE MODELS (2WD) .................... 14
VQ35DE ENGINE MODELS (AWD) ................... 15
VK45DE ENGINE MODELS ............................... 16Disassembly and Assembly .................................... 17
VQ35DE ENGINE MODELS (2WD) .................... 17
VQ35DE ENGINE MODELS (AWD) .................... 18
VK45DE ENGINE MODELS ................................ 19
Inspection After Disassembly ................................. 19
PINION/CLUTCH CHECK ................................... 19
CHARGING SYSTEM ............................................... 20
System Description ................................................. 20
DESCRIPTION .................................................... 20
MALFUNCTION INDICATOR .............................. 20
POWER GENERATION VOLTAGE VARIABLE
CONTROL SYSTEM ........................................... 21
Wiring Diagram — CHARGE — ............................. 22
VQ35DE ENGINE MODELS (2WD) .................... 22
VQ35DE ENGINE MODELS (AWD) .................... 23
VK45DE ENGINE MODELS ................................ 24
Trouble Diagnosis with Starting/Charging System
Tester (Charging) .................................................... 25
PRELIMINARY INSPECTION ............................. 26
DIAGNOSTIC PROCEDURE 1 ........................... 26
DIAGNOSTIC PROCEDURE 2 ........................... 27
DIAGNOSTIC PROCEDURE 3 ........................... 27
DIAGNOSTIC PROCEDURE 4 ........................... 28
Power Generation Voltage Variable Control System
Operation Inspection .............................................. 29
Removal and Installation ........................................ 31
VQ35DE ENGINE MODELS ............................... 31
VK45DE ENGINE MODELS ................................ 33
Disassembly and Assembly .................................... 35
VQ35DE ENGINE MODELS ............................... 35
VK45DE ENGINE MODELS ................................ 36
SERVICE DATA AND SPECIFICATIONS (SDS) ...... 37
Battery .................................................................... 37
Starter ..................................................................... 37
Alternator ................................................................ 37

Page 4163 of 4647

INFINITI M35 2007 Factory Service Manual SC-2
PRECAUTIONS
Revision: 2007 April2007 M35/M45
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NKS003NB
The Supplemental R

SC-2
PRECAUTIONS
Revision: 2007 April2007 M35/M45
PRECAUTIONS PFP:00011
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NKS003NB
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.
Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.
Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
Precautions for Power Generation Voltage Variable Control SystemNKS003NC
CAUTION:
For this model, the battery current sensor that is installed to the battery cable at the negative terminal
measures the charging/discharging current of the battery, and performs various controls. If the electri-
cal component or the ground wire is connected directly to the battery terminal, the current other than
that being measured with the battery current sensor is charging to or discharging from the battery.
This condition causes the malfunction of the control, and then the battery discharge may occur. Do
not connect the electrical component or the ground wire directly to the battery terminal.

Page 4164 of 4647

INFINITI M35 2007 Factory Service Manual PREPARATION
SC-3
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2007 April2007 M35/M45

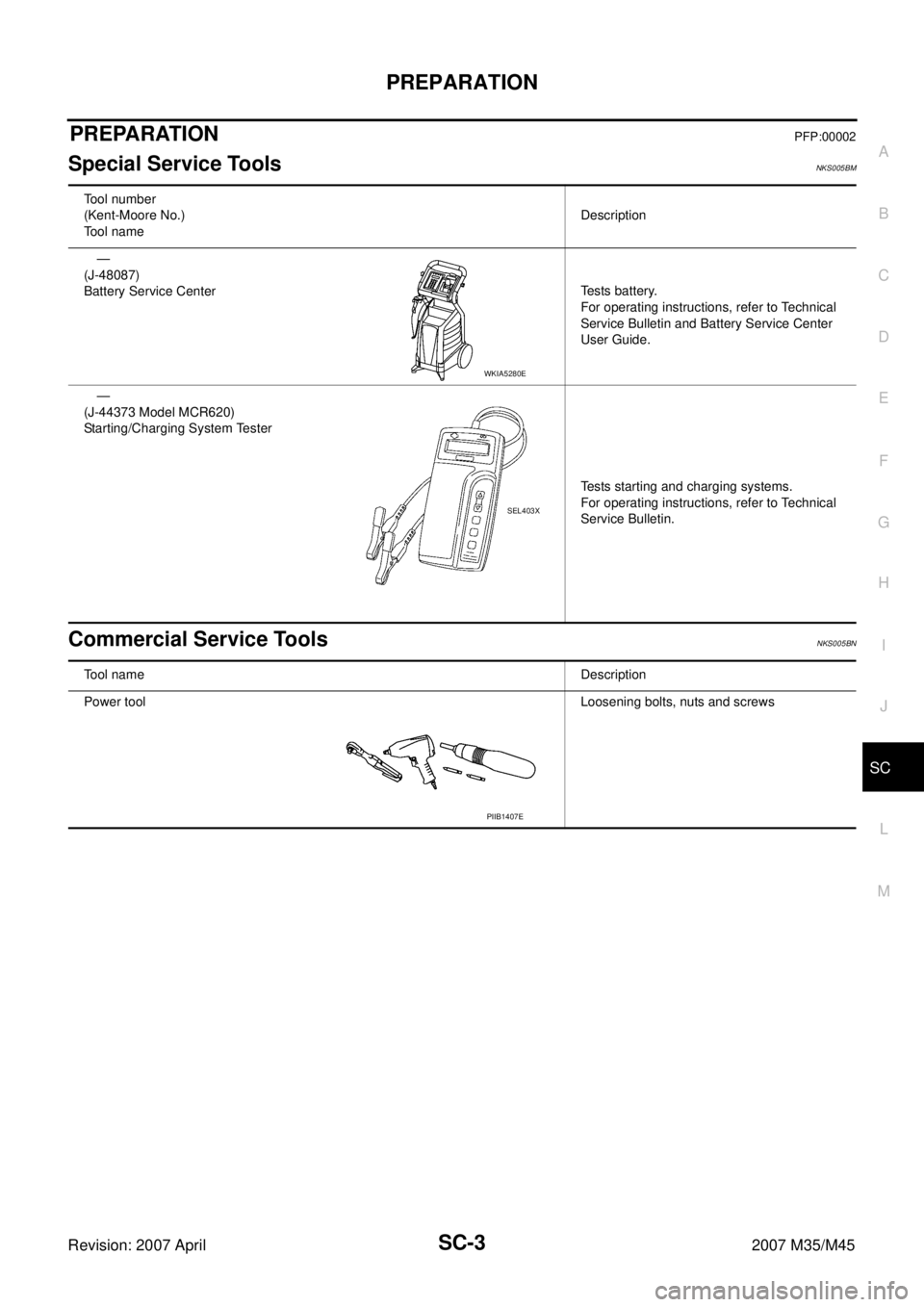

PREPARATIONPFP:00002
Special Service ToolsNKS005BM
Commercial Service ToolsNKS005BN
Tool number
(Kent-Moore No.)
Tool nameDe

Page 4165 of 4647

INFINITI M35 2007 Factory Service Manual SC-4
BATTERY
Revision: 2007 April2007 M35/M45

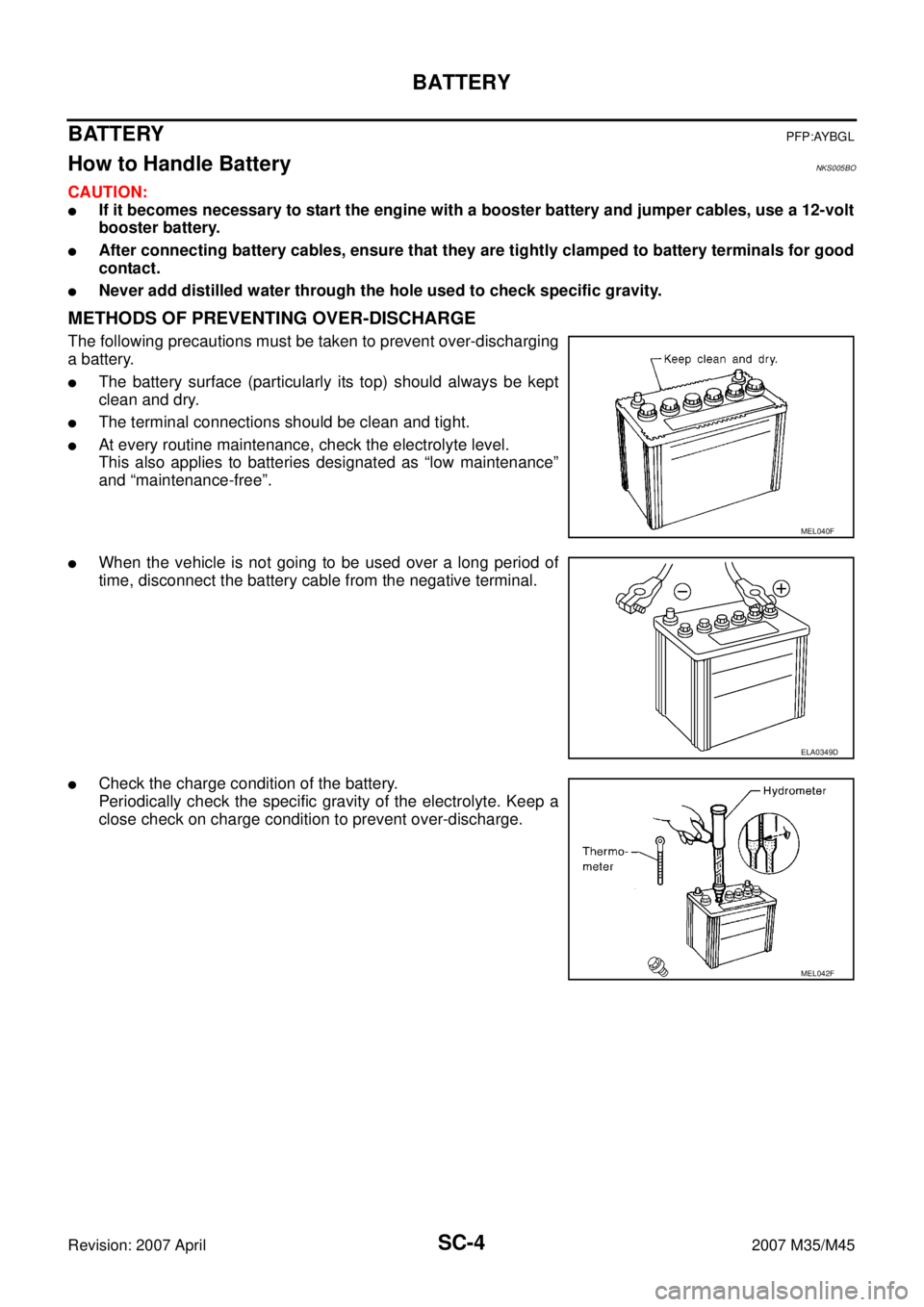

BATTERYPFP:AYBGL
How to Handle BatteryNKS005BO
CAUTION:
If it becomes necessary to start the engine with a booster battery and jumper cables, use a 12-vo

Page 4166 of 4647

INFINITI M35 2007 Factory Service Manual BATTERY
SC-5
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2007 April2007 M35/M45

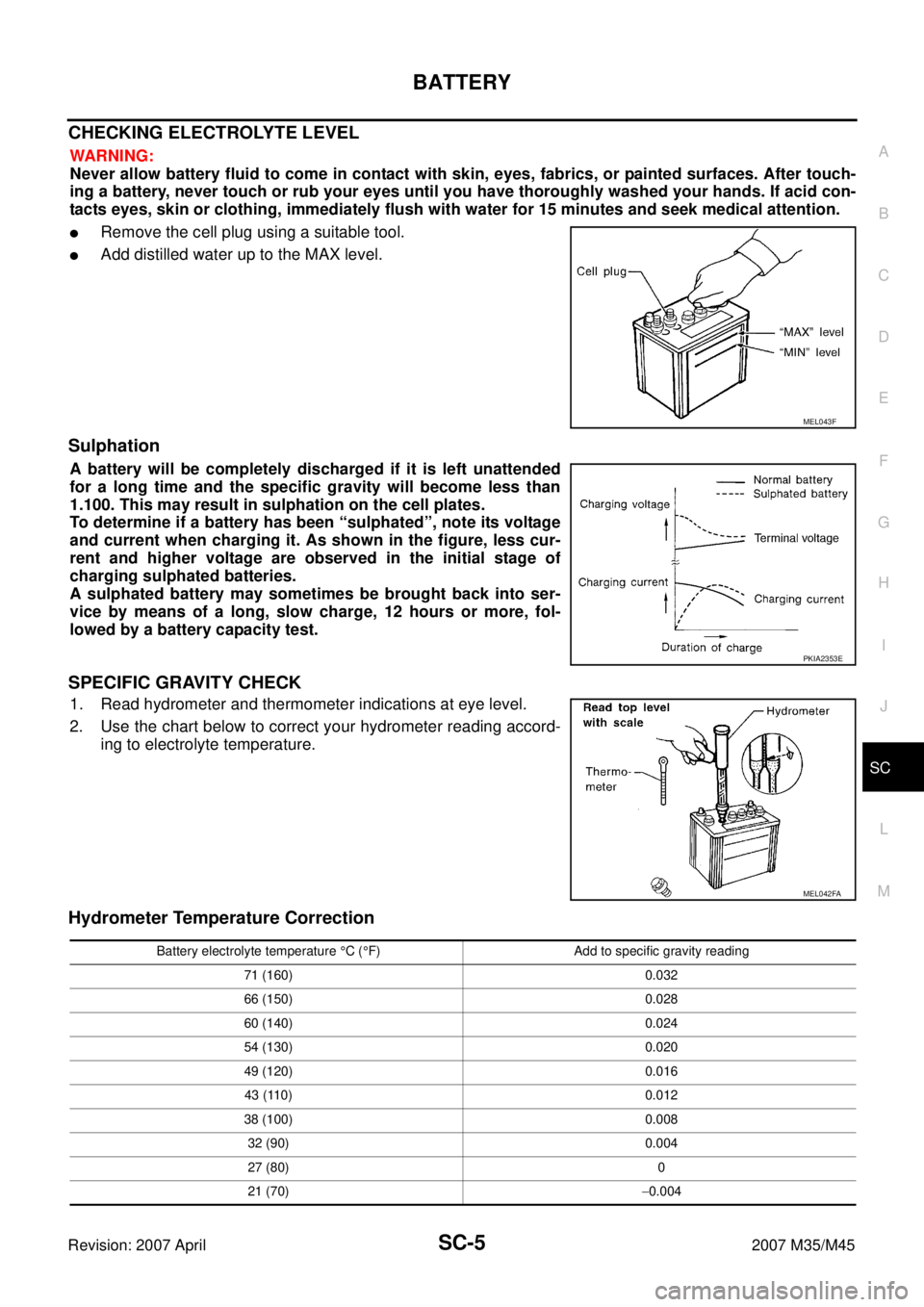

CHECKING ELECTROLYTE LEVEL
WARNING:
Never allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces.

Page 4167 of 4647

INFINITI M35 2007 Factory Service Manual SC-6
BATTERY
Revision: 2007 April2007 M35/M45
CHARGING THE BATTERY
CAUTION:
Never “quick charge” a fully discharged battery.
Keep the battery away from open flame while it is being charged.
Whe

Page 4168 of 4647

INFINITI M35 2007 Factory Service Manual BATTERY
SC-7
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2007 April2007 M35/M45

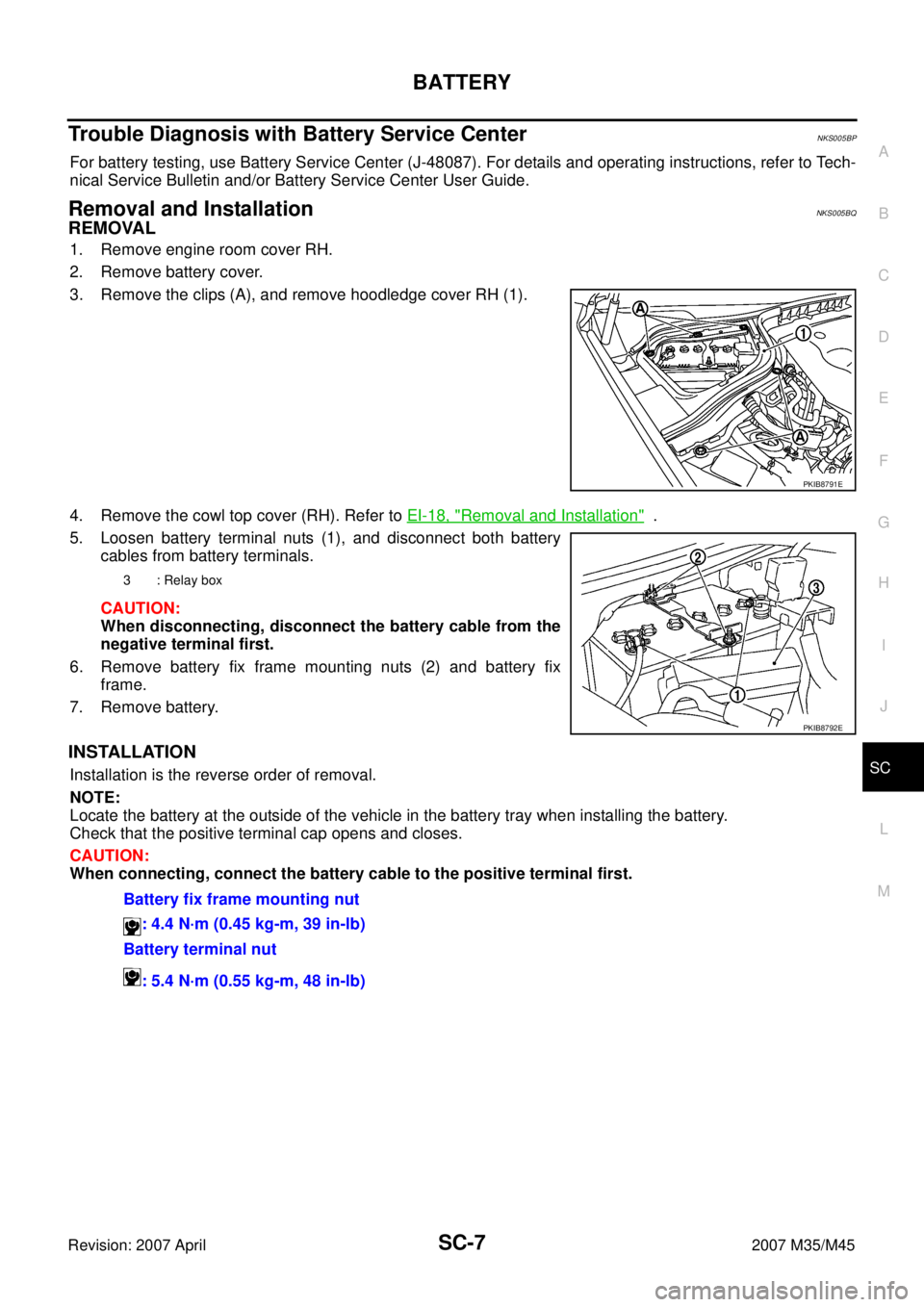

Trouble Diagnosis with Battery Service CenterNKS005BP
For battery testing, use Battery Service Center (J-48087). For details and
