QUICK REFERENCE CHART M35/M45
QUICK REFERENCE CHART M35/M45PFP:00000
ENGINE TUNE-UP DATA (VQ35DE)ELS0003W
*: If belt tension gauge cannot be installed at check points shown, check drive belt tension at different location on belt.Engine modelVQ35DE
Firing order1-2-3-4-5-6
Idle speed
A/T (In “P” or “N” position)rpm
650 ± 50
Ignition timing (BTDC at idle speed)
A/T (In “P” or “N” position)15° ± 5°
CO% at idle 0.7 - 9.9% and engine runs smoothly
Drive BeltDeflection adjustment Unit: mm
(in)Tension adjustment* Unit: N (kg, lb)
Used belt
New beltUsed belt
New belt
Limit After adjustment Limit After adjustment
Alternator and
power steering
oil pump beltWith idler pulley 1 7 (0.28)4 - 5
(0.16 - 0.20)3.5 - 4.5
(0.138 - 0.177)
294 (30, 66)730 - 818
(74.5 - 83.4,
164 - 184)838 - 926
(85.5 - 94.5,
188 - 208) Without idler pul-
ley 112 (0.47)7 - 8
(0.28 - 0.31)6 - 7
(0.24 - 0.28)
A/C compresor belt 12 (0.47)9 - 10
(0.35 - 0.39)8 - 9
(0.31 - 0.35)196 (20, 44)348 - 436
( 35.5 - 44.5,
78 - 98)470 - 559
( 4 8 - 5 7 ,
106 - 126)
Applied pushing force 98N (10kg, 22lb) —
Radiator cap relief pressure
kPa (kg/cm
2 , psi)
Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Cooling system leakage testing
pressurekPa (kg/cm
2 , psi)157 (1.6, 23)
Compression pressure
kPa (kg/cm
2 , psi)/rpm
Standard 1,275 (13.0, 185) /300
Minimum 981 (10.0, 142) /300

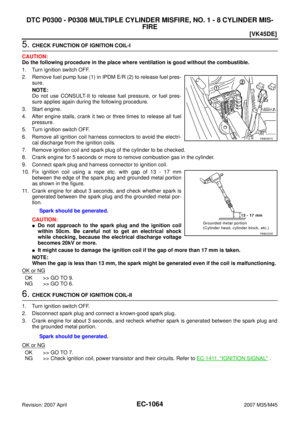

Spark plug Standard type PLFR5A-11
Hot type PLFR4A-11
Cold type PLFR6A-11
2007
Page 3 of 4647

QUICK REFERENCE CHART M35/M45
ENGINE TUNE-UP DATA (VK45DE)
FRONT WHEEL ALIGNMENT (Unladen* )
ELS0003X
Engine modelVK45DE
Firing order1-8-7-3-6-5-4-2
Idle speed
A/T (In “P” or “N” position) rpm650 ± 50
Ignition timing
(BTDC at idle speed)12° ± 5°
CO% at idle 0.7 - 9.9% and engine runs smoothly
Tensions of drive belts Auto adjustment by auto tensioner
Radiator cap relief pressure
kPa (kg/cm
2 , psi)
78 - 98 (0.8 - 1.0 , 11 - 14) Standard
Limit 59 (0.6, 9)
Cooling system leakage testing pressure
157 (1.6, 23)
kPa (kg/cm
2 , psi)
Compression pressure
kPa (kg/cm
2 , psi)/rpm
1,320 (13.5, 191) /300 Standard
Minimum 1,130 (11.5, 164) /300
Spark plug Standard type PLFR5A-11
Hot type PLFR4A-11
Cold type PLFR6A-11
Axle2WD AWD
Tire 245/45R18 245/40R19 245/45R18
Camber
Degree minute (Decimal degree)Minimum –1° 00′ (–1.00°)
Nominal –0° 15′ (–0.25°)
Maximum 0° 30′ (0.50°)
Left and right difference 33′ (0.55°) or less
Caster
Degree minute (Decimal degree)Minimum 3° 45′ ( 3.75° )3° 50′ (3.83°)3° 05′ ( 3.08° )
Nominal 4° 30′ ( 4.50° )4° 35′ (4.58°)3° 50′ ( 3.83° )
Maximum 5° 15′ ( 5.25° )5° 20′ (5.33°)4° 35′ ( 4.58° )
Left and right difference 39′ (0.65°) or less
Kingpin inclination
Degree minute (Decimal degree)Minimum 6° 30′ (6.50°)
Nominal 7° 15′ (7.25°)
Maximum 8° 00′ (8.00°)
Total toe-inDistanceMinimum 0 mm (0 in)
Nominal 1 mm (0.04 in)
Maximum 2 mm (0.08 in)
Angle
(left wheel or right wheel)
Degree minute
(Decimal degree)Minimum 0′ (0°)
Nominal 3′ (0.05°)
Maximum 6′ (0.10°)
2007
Page 4 of 4647

QUICK REFERENCE CHART M35/M45
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
REAR WHEEL ALIGNMENT (Unladen*)ELS0003Y
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
BRAKEELS0003Z
* : Under force of 490 N ( 50 kg, 110 lb ) with engine running.
REFILL CAPACITIESELS00040
Wheel
turning
angle (Full
turn)Inside
Degree minute
(Decimal degree)Minimum 36°20′ (36.3°)39°45′ (39.8°)
Nominal 39°20′ (39.3°)42°45′ (42.8°)
Maximum 40°20′ (40.3°)43°45′ (43.8°)
Outside
Degree minute
(Decimal degree)Nominal 33° 25′ (33.4°)33° 20′ (33.3°)32° 30′ (32.5°) Axle2WD AWD
Tire 245/45R18 245/40R19 245/45R18
Axle2WD AWD
Tire 245/45R18 245/40R19 245/45R18
Camber
Degree minute (Decimal degree)Minimum –1° 10′ (–1.17°)–1° 20′ (–1.33°)–0° 40′ (–0.67°)
Nominal –0° 40′ (–0.67°)–0° 50′ (–0.83°)–0° 10′ (–0.17°)
Maximum –0° 10′ (–0.17°)–0° 20′ (–0.33°) 0° 20′ (0.33° )
Total toe-inDistanceMinimum 0.1 mm (0.004 in)
Nominal 2.8 mm (0.110 in)
Maximum 5.5 mm (0.217 in)
Angle
(left wheel or right wheel )
Degree minute
(Decimal degree)Minimum 0′ (0°)
Nominal 7′ (0.12°)
Maximum 14′ (0.23°)
Front brake Repair limit thickness 2.0 mm (0.079 in)
Wear limit 26.0 mm (1.024 in)
Rear brake Repair limit thickness 2.0 mm (0.079 in)
Wear limit 14.0 mm (0.551 in)
Brake pedal height 157 - 167 mm (6.18 - 6.57 in)
Depressed pedal height* 90 mm (3.54 in) or more
UNITLiter US measure
Fuel tank76 20 gal
Coolant ( With reservoir tank )VQ35DE 8.9 9 - 3/8 qt
VK45DE 10.4 11 qt
Engine (VQ35DE)Drain and refill
With oil filter change 4.7 5 qt
Without oil filter change 4.4 4 - 5/8 qt
Dry engine (Overhaul) 5.4 5 - 3/4 qt
Engine (VK45DE)Drain and refill
With oil filter change 5.5 5 - 3/4 qt
Without oil filter change 4.9 5 - 1/8 qt
Dry engine (Overhaul) 6.7 7 - 1/8 qt
2007
Page 5 of 4647
QUICK REFERENCE CHART M35/M45
Transmission A/T 10.3 10 - 7/8 qt
Transfer1.25 2 - 5/8 pt
Differential carrierFront 0.65 1 - 3/8 pt
Rear 1.4 3 pt
Power steering system 1.0 1 - 1/8 qt
Air conditioning systemCompressor oil 0.15 5.03 fl oz
Refrigerant 0.55 kg 1.21 lb UNITLiter US measure
2007
Page 6 of 4647
