INFINITI M35 2007 Factory Service Manual TF-24
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
DATA MONITOR MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. Touch “D

TF-24
TROUBLE DIAGNOSIS
Revision: 2007 April2007 M35/M45
DATA MONITOR MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. Touch “DATA MONITOR”.
3. Select from “SELECT MONITOR ITEM”, screen of data monitor mode is displayed.
NOTE:
When malfunction is detected, CONSULT-II performs REAL-TIME DIAGNOSIS.
Also, any malfunction detected while in this mode will be displayed at real time.
Display Item List
×: Standard –: Not applicable
Monitor item (Unit)SELECT MONITOR ITEM
Remarks
ECU INPUT
SIGNALSMAIN
SIGNALSSELECTION
FROM MENU
FR RH SENSOR [km/h] or [mph]×××Wheel speed calculated by front wheel
sensor RH signal is displayed.
FR LH SENSOR [km/h] or [mph]×××Wheel speed calculated by front wheel
sensor LH signal is displayed.
RR RH SENSOR [km/h] or [mph]×××Wheel speed calculated by rear wheel
sensor RH signal is displayed.
RR LH SENSOR [km/h] or [mph]×××Wheel speed calculated by rear wheel
sensor LH signal is displayed.
BATTERY VOLT [V] – –×Power supply voltage for AWD control unit
THRTL POS SEN [%] – –×Throttle opening status is displayed.
ETS SOLENOID [A] – –×Monitored value of current at AWD sole-
noid
STOP LAMP SW [ON/OFF] – –×Stop lamp switch signal status via CAN
communication line is displayed.
ENG SPEED SIG [RUN/STOP] – –×Engine status is displayed.
ETS ACTUATOR [ON/OFF] – –×Operating condition of AWD actuator relay
(integrated in AWD control unit) is dis-
played.
4WD WARN LAMP [ON/OFF] – –×Control status of AWD warning lamp is dis-
played.
4WD MODE SW [AUTO] – –×Mode switch is not equipped, but dis-
played.
4WD MODE MON [AUTO] – –×Control status of AWD is displayed.
DIS-TIRE MONI [mm] – –×Improper size tire installed condition is dis-
played.
P BRAKE SW [ON/OFF] – –×Parking switch signal status via CAN com-
munication line is displayed.
Voltage [V] – –×The value measured by the voltage probe
is displayed.
Frequency [Hz] – –×
The value measured by the pulse probe is
displayed. DUTY-HI (high) [%] – –×
DUTY-LOW (low) [%] – –×
PLS WIDTH-HI [msec] – –×
PLS WIDTH-LOW [msec] – –×

Page 4514 of 4647

INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS
TF-25
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: 2007 April2007 M35/M45
ACTIVE TEST MODE
Description
Use this mode to determine and identify the details of a malfunction based on self-diagn

Page 4515 of 4647

INFINITI M35 2007 Factory Service Manual TF-26
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45

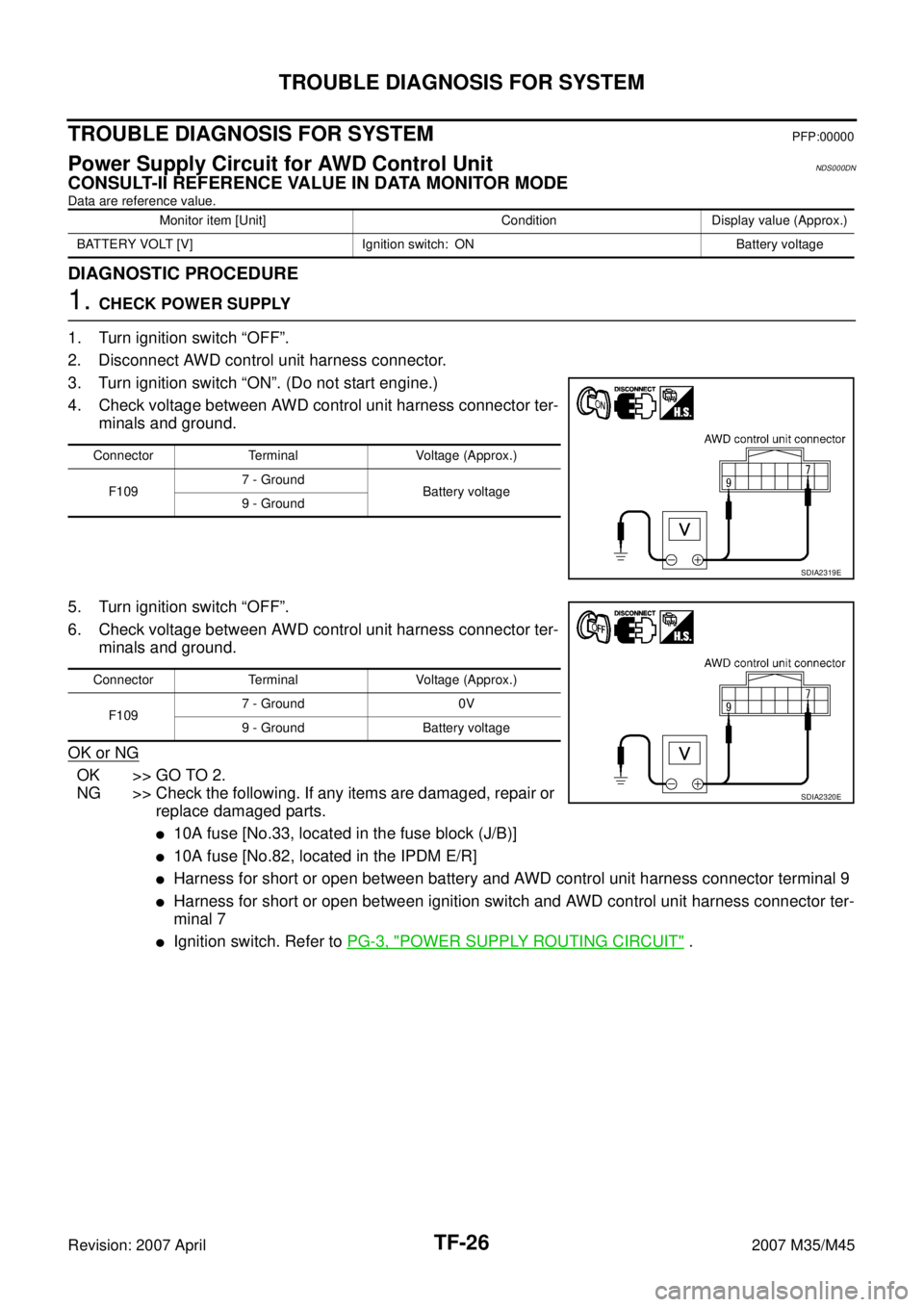

TROUBLE DIAGNOSIS FOR SYSTEMPFP:00000
Power Supply Circuit for AWD Control UnitNDS000DN
CONSULT-II REFERENCE VALUE IN DATA MONITOR M

Page 4516 of 4647

INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-27
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: 2007 April2007 M35/M45

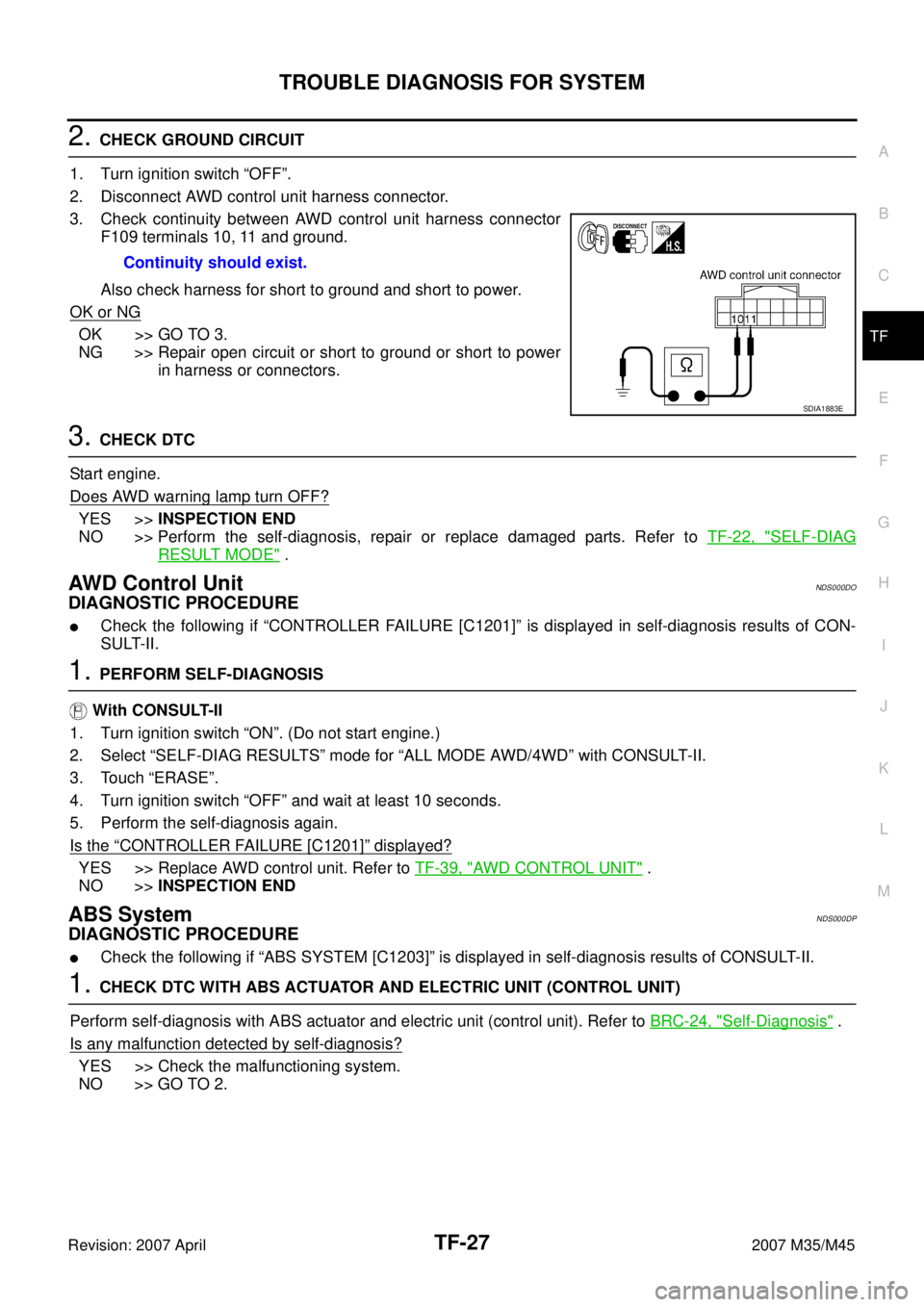

2. CHECK GROUND CIRCUIT
1. Turn ignition switch “OFF”.
2. Disconnect AWD control unit harness connecto

Page 4517 of 4647

INFINITI M35 2007 Factory Service Manual TF-28
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45
2. CHECK DTC AFTER DRIVING
1. Turn ignition switch “OFF”.
2. Start engine and drive vehicle at 30 km/h (19 MPH) for at least 1 m

Page 4518 of 4647

INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-29
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: 2007 April2007 M35/M45

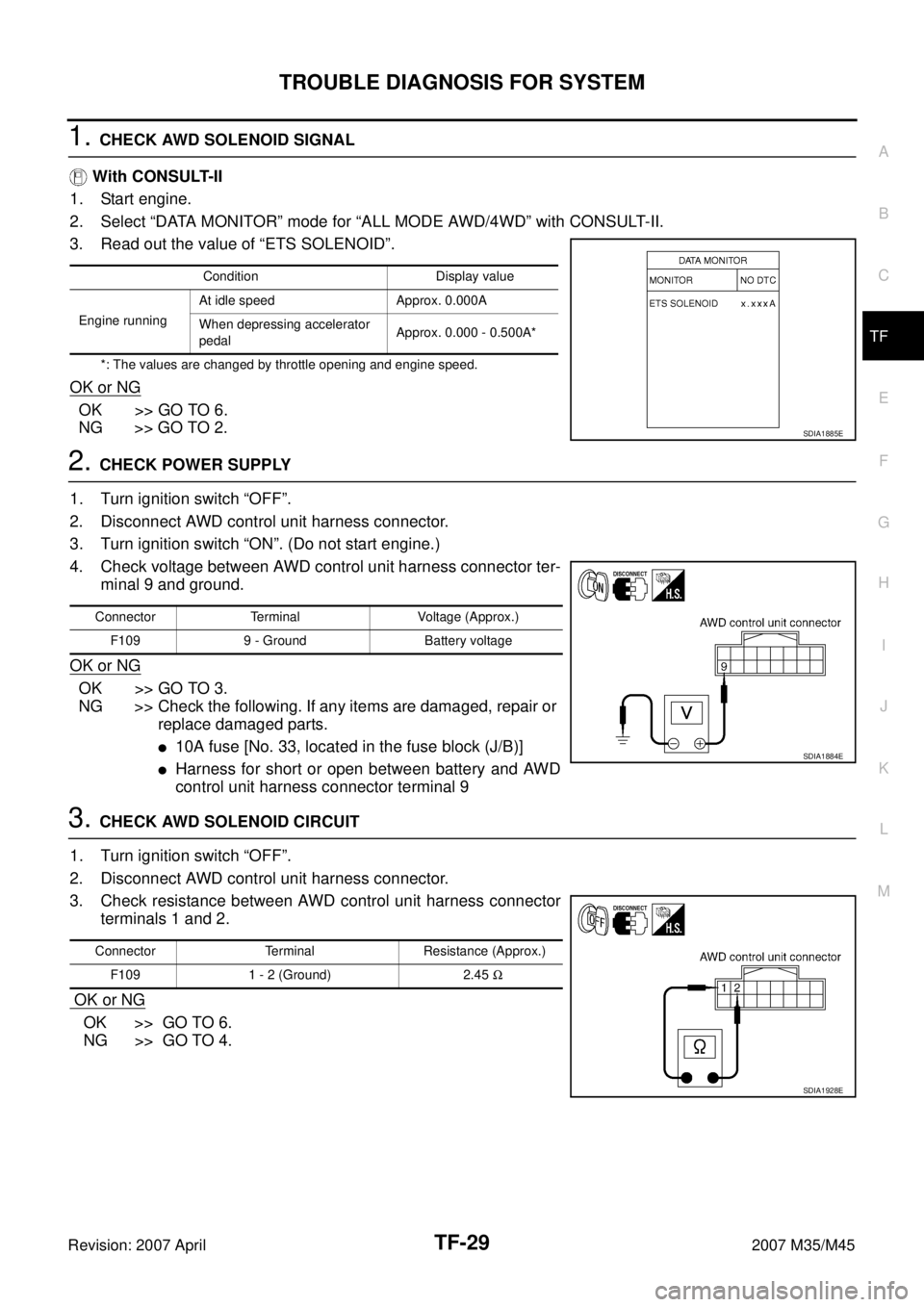

1. CHECK AWD SOLENOID SIGNAL
With CONSULT-II
1. Start engine.
2. Select “DATA MONITOR” mode for “AL

Page 4519 of 4647

INFINITI M35 2007 Factory Service Manual TF-30
TROUBLE DIAGNOSIS FOR SYSTEM
Revision: 2007 April2007 M35/M45

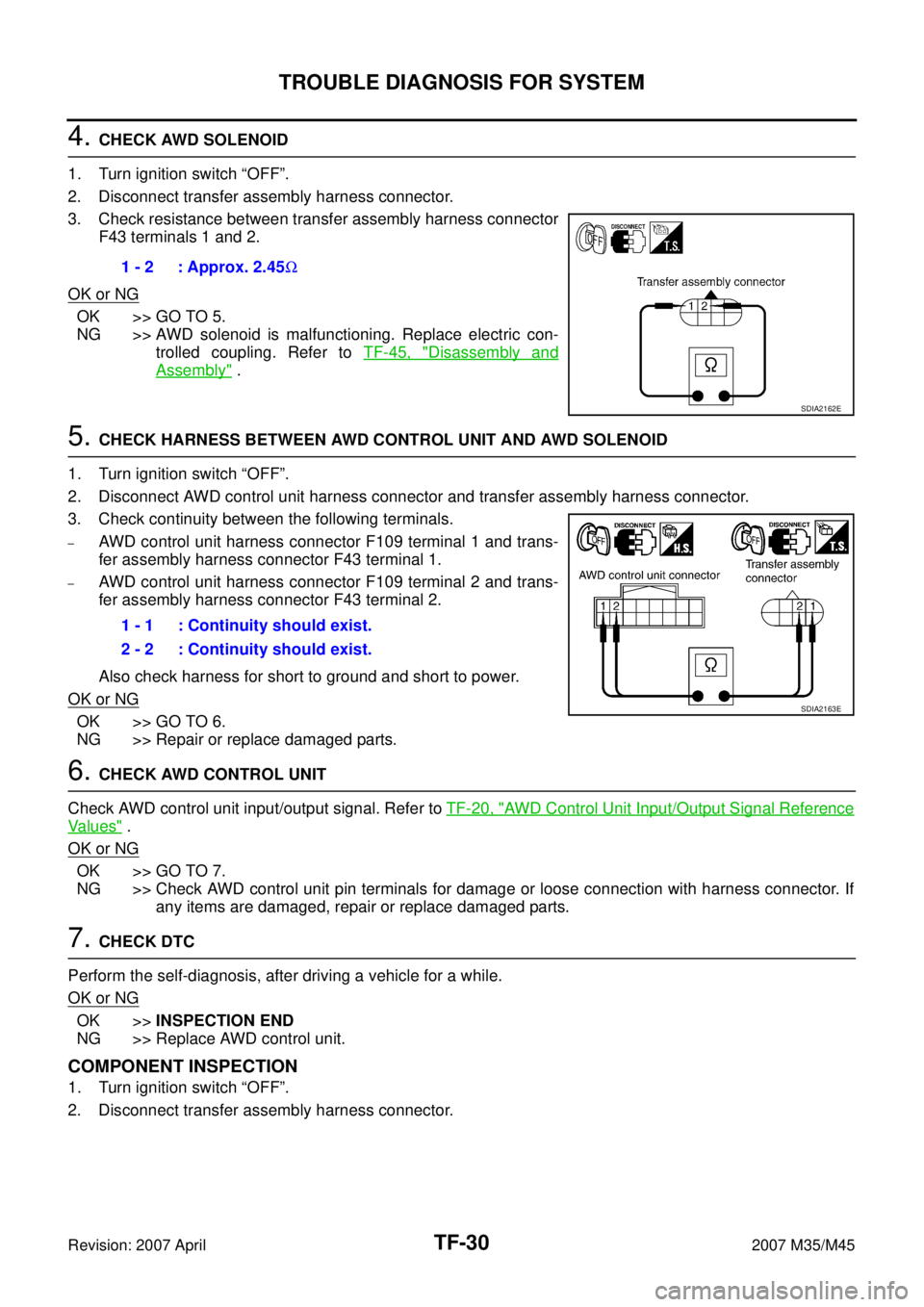

4. CHECK AWD SOLENOID
1. Turn ignition switch “OFF”.
2. Disconnect transfer assembly harness connector.
3. Check resistance be

Page 4520 of 4647

INFINITI M35 2007 Factory Service Manual TROUBLE DIAGNOSIS FOR SYSTEM
TF-31
C
E
F
G
H
I
J
K
L
MA
B
TF
Revision: 2007 April2007 M35/M45

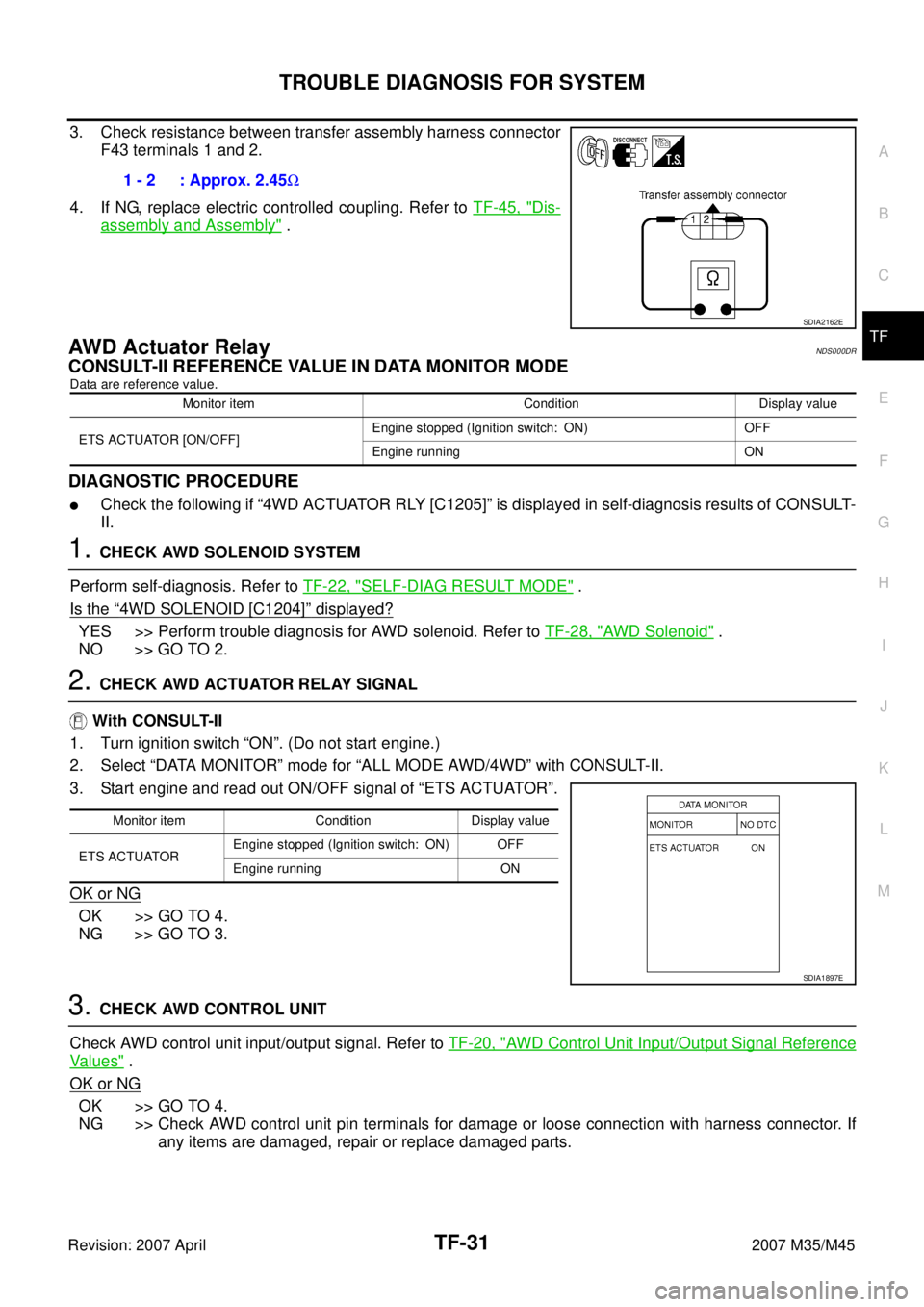

3. Check resistance between transfer assembly harness connector
F43 terminals 1 and 2.
4. If NG, replace e
