Page 2529 of 4647

INFINITI M35 2007 Factory Service Manual EC-1000 [VK45DE] DTC P0138, P0158 HO2S2 Revision: 2007 April2007 M35/M45 9. Start engine and following the instruction of CONSULT-II. NOTE: It will take at most 10 minutes until “COMPLETED” is dis

Page 2530 of 4647

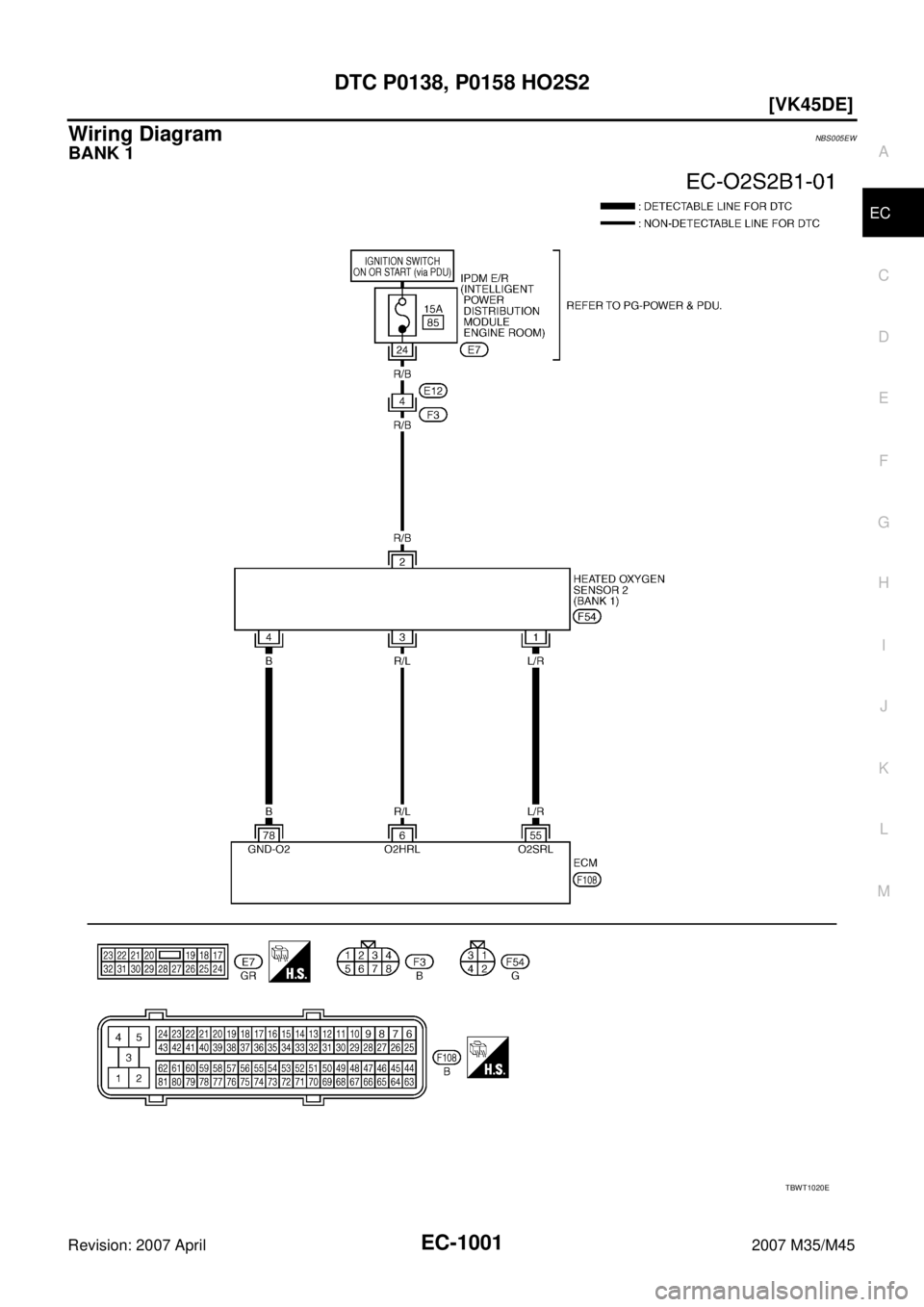

INFINITI M35 2007 Factory Service Manual DTC P0138, P0158 HO2S2 EC-1001 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 Wiring DiagramNBS005EW BANK 1 TBWT1020E

Page 2531 of 4647

INFINITI M35 2007 Factory Service Manual EC-1002 [VK45DE] DTC P0138, P0158 HO2S2 Revision: 2007 April2007 M35/M45 Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground termi

Page 2532 of 4647

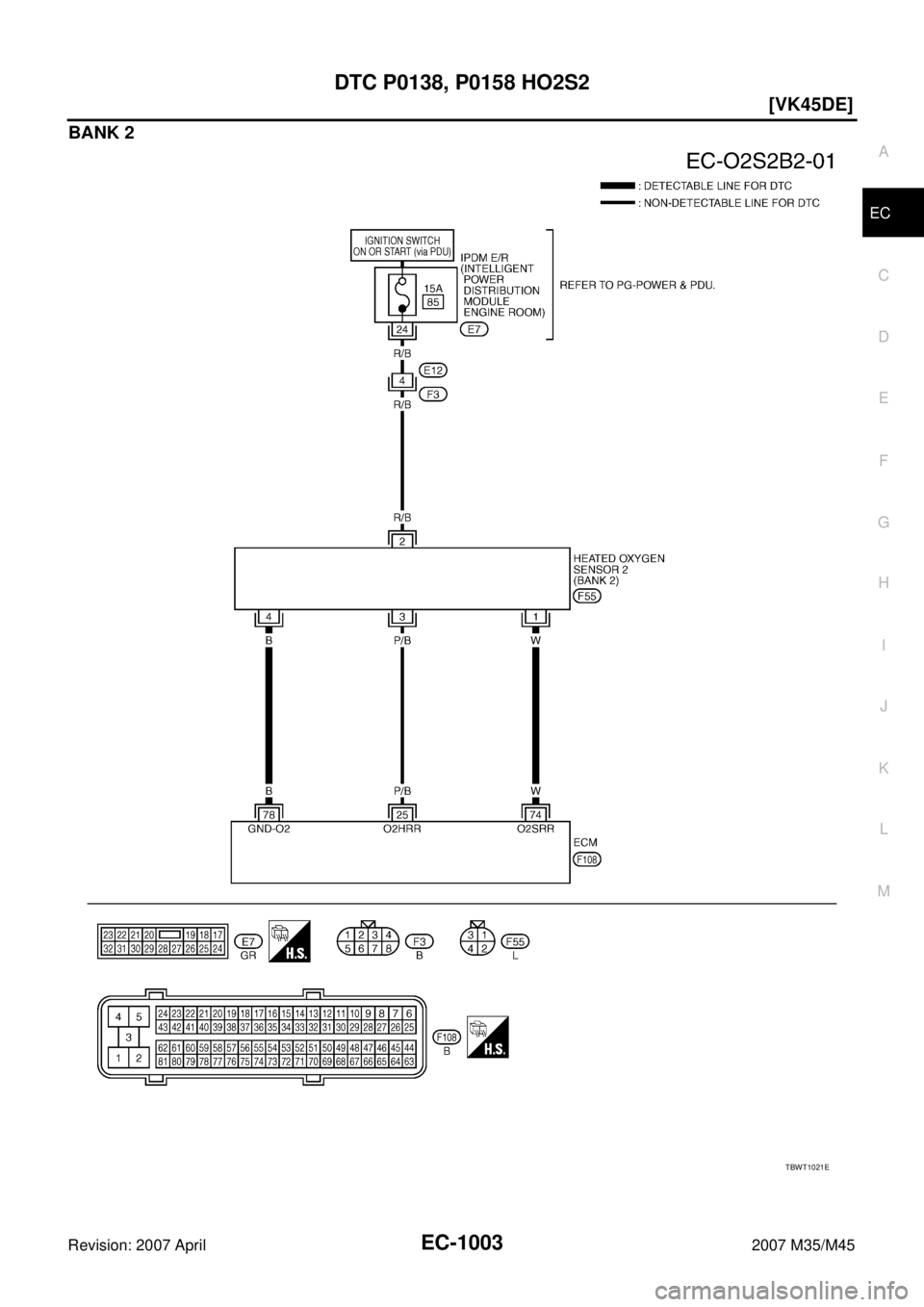

INFINITI M35 2007 Factory Service Manual DTC P0138, P0158 HO2S2 EC-1003 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 BANK 2 TBWT1021E

Page 2533 of 4647

INFINITI M35 2007 Factory Service Manual EC-1004 [VK45DE] DTC P0138, P0158 HO2S2 Revision: 2007 April2007 M35/M45 Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not use ECM ground termi

Page 2534 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0138, P0158 HO2S2 EC-1005 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 2. CHECK HO2S2 GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disconnect heated ox

Page 2535 of 4647

INFINITI M35 2007 Factory Service Manual EC-1006 [VK45DE] DTC P0138, P0158 HO2S2 Revision: 2007 April2007 M35/M45 4. CHECK HO2S2 CONNECTOR FOR WATER Check connectors for water. OK or NG OK >> GO TO 5. NG >> Repair or replace harness or conne

Page 2536 of 4647

INFINITI M35 2007 Factory Service Manual DTC P0138, P0158 HO2S2 EC-1007 [VK45DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 2. CLEAR THE SELF-LEARNING DATA With CONSULT-II 1. Start engine and warm it up to normal operating t
