Page 3593 of 4647
LT-142
ACTIVE AFS
Revision: 2007 April2007 M35/M45

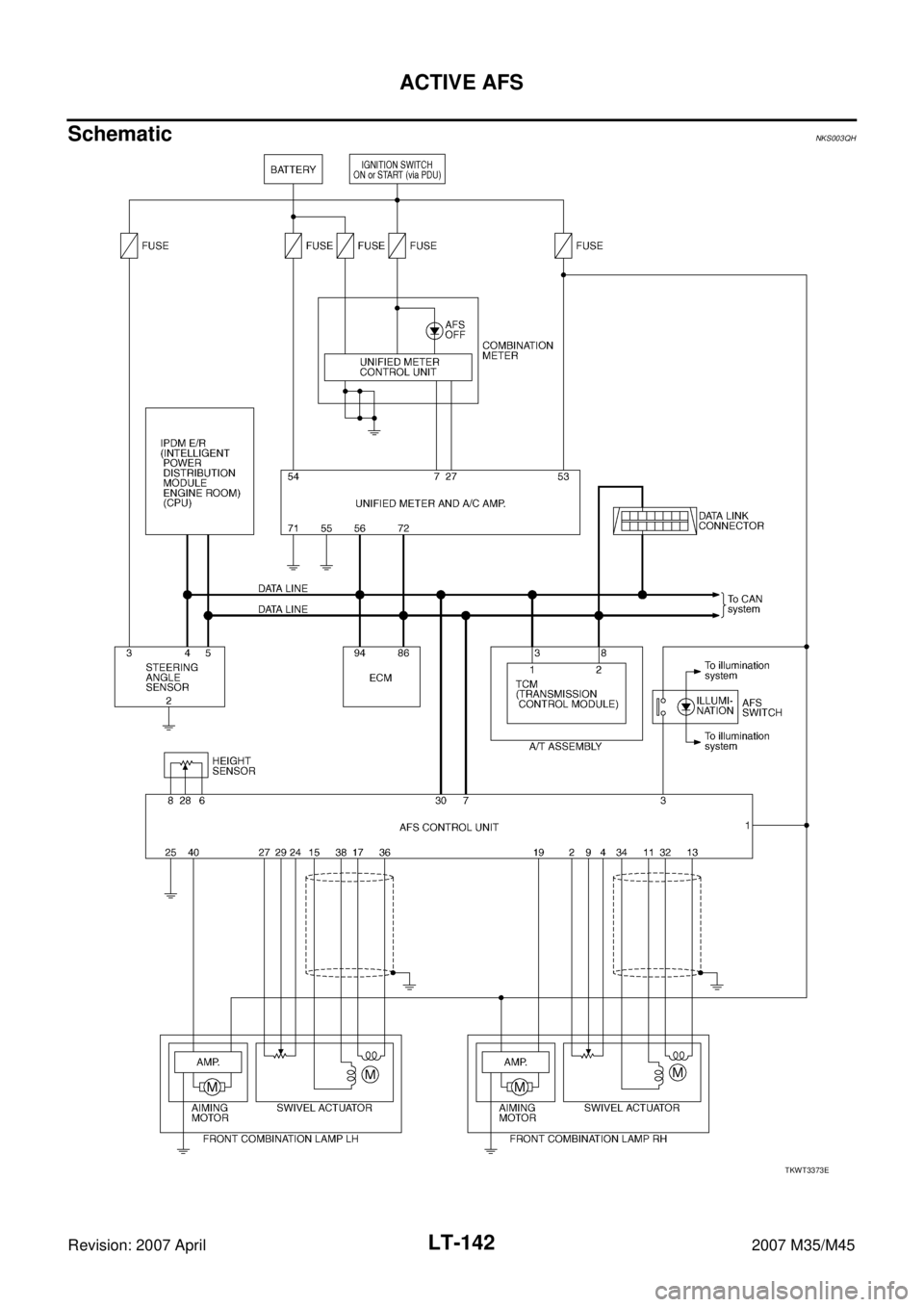

SchematicNKS003QH
TKWT3373E
Page 3594 of 4647
ACTIVE AFS
LT-143
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

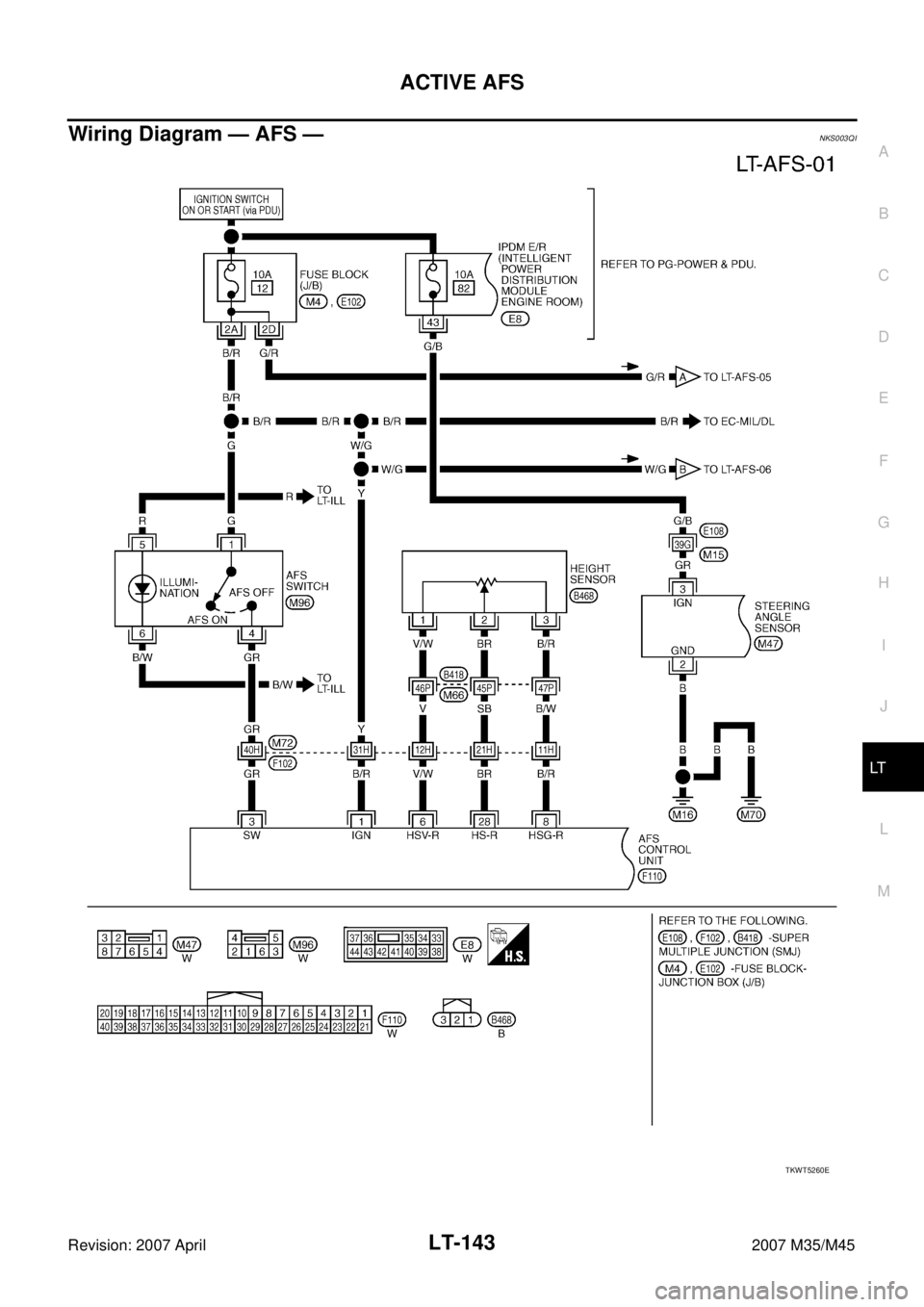

Wiring Diagram — AFS —NKS003QI
TKWT5260E

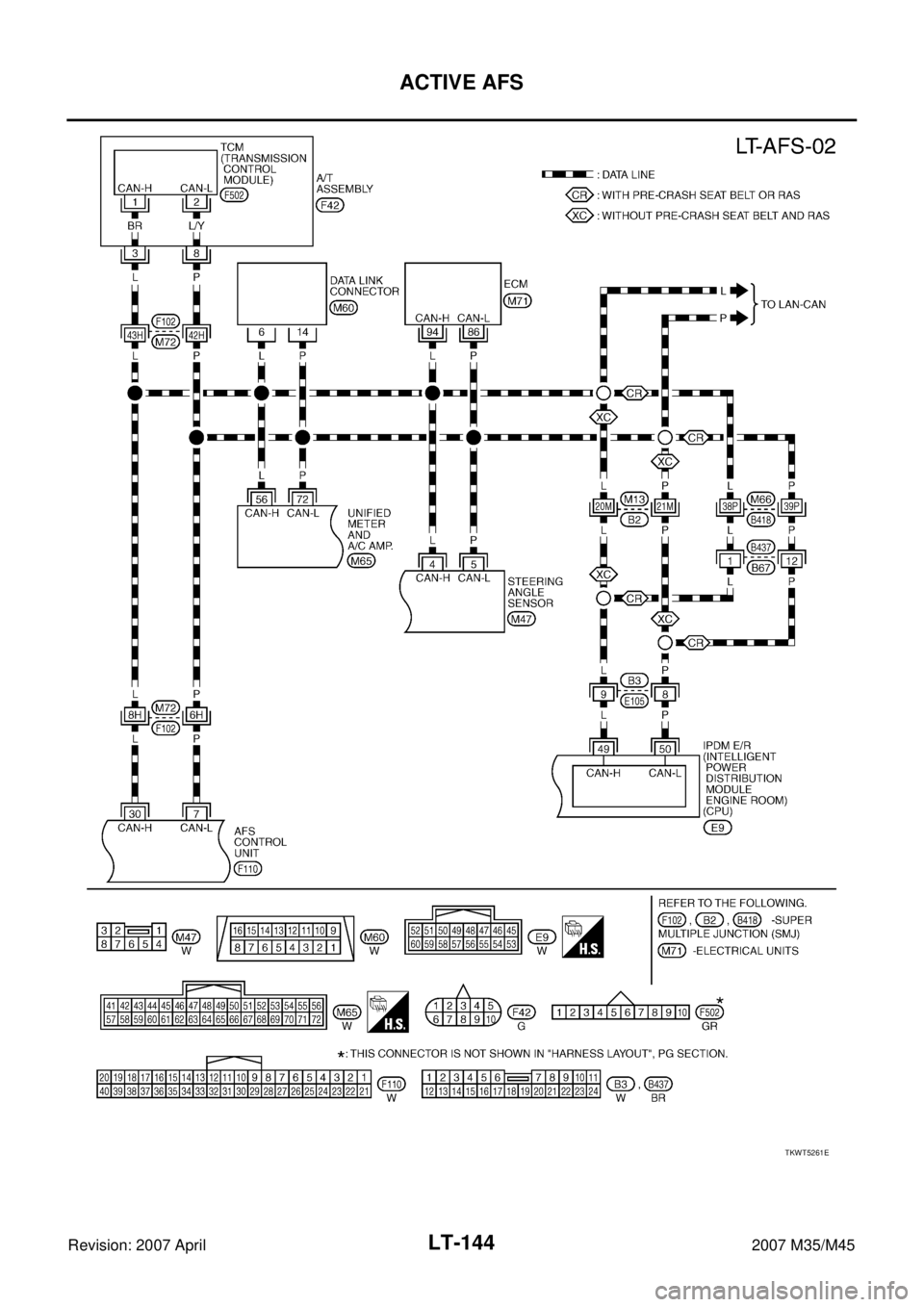

Page 3595 of 4647
LT-144
ACTIVE AFS
Revision: 2007 April2007 M35/M45
TKWT5261E

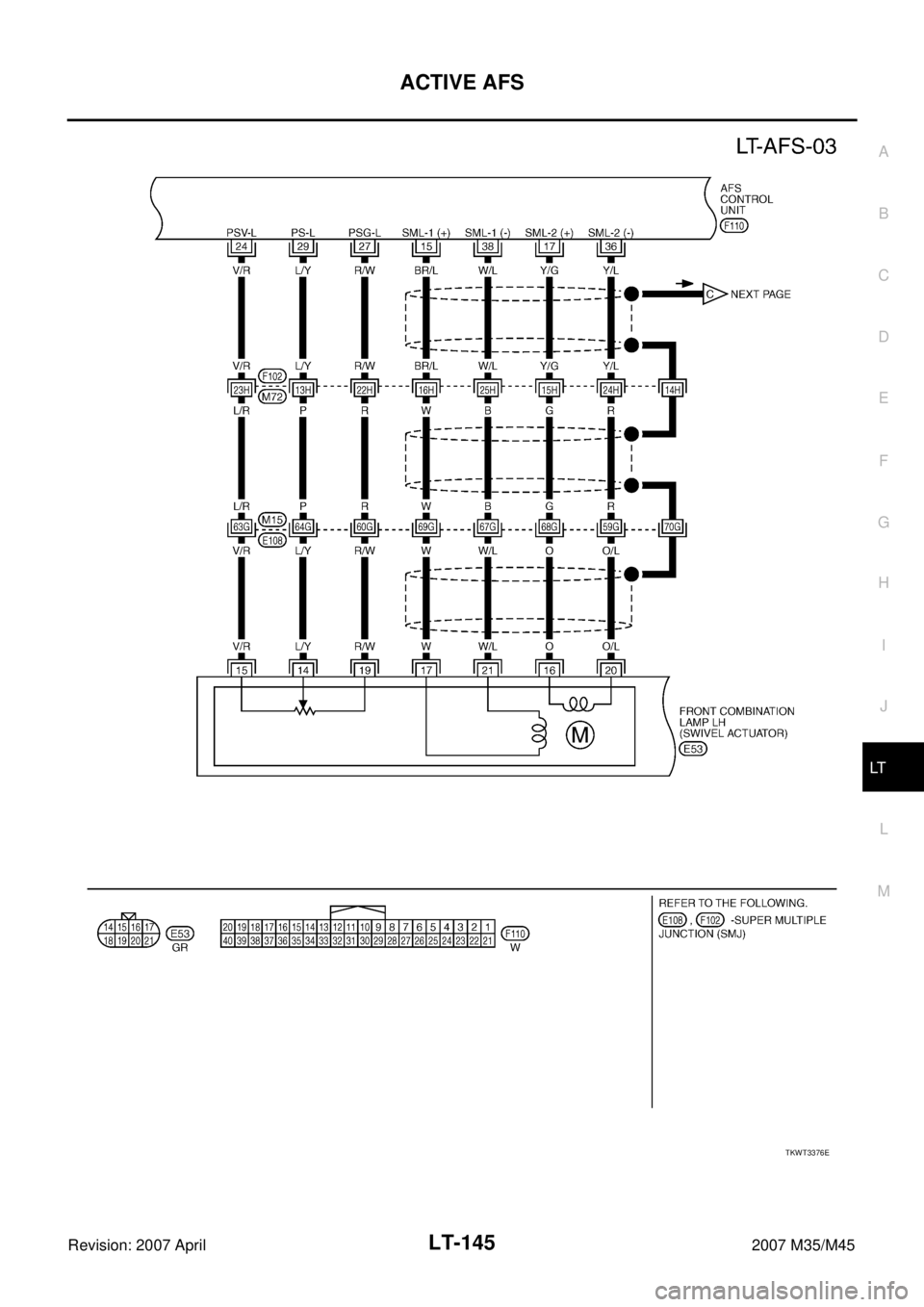

Page 3596 of 4647
ACTIVE AFS
LT-145
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
TKWT3376E
Page 3597 of 4647
LT-146
ACTIVE AFS
Revision: 2007 April2007 M35/M45
TKWT3377E

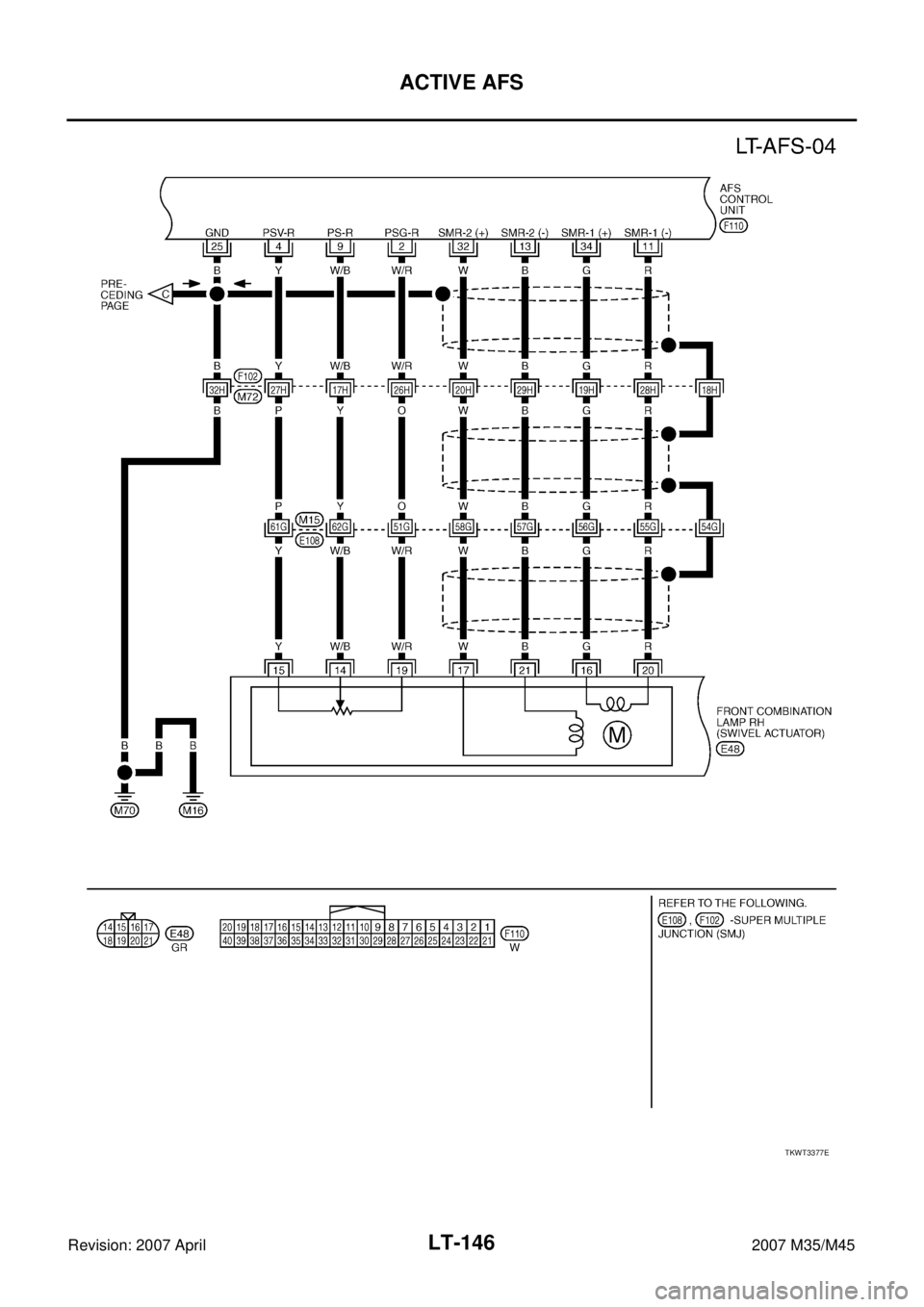

Page 3598 of 4647
ACTIVE AFS
LT-147
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
TKWT3378E

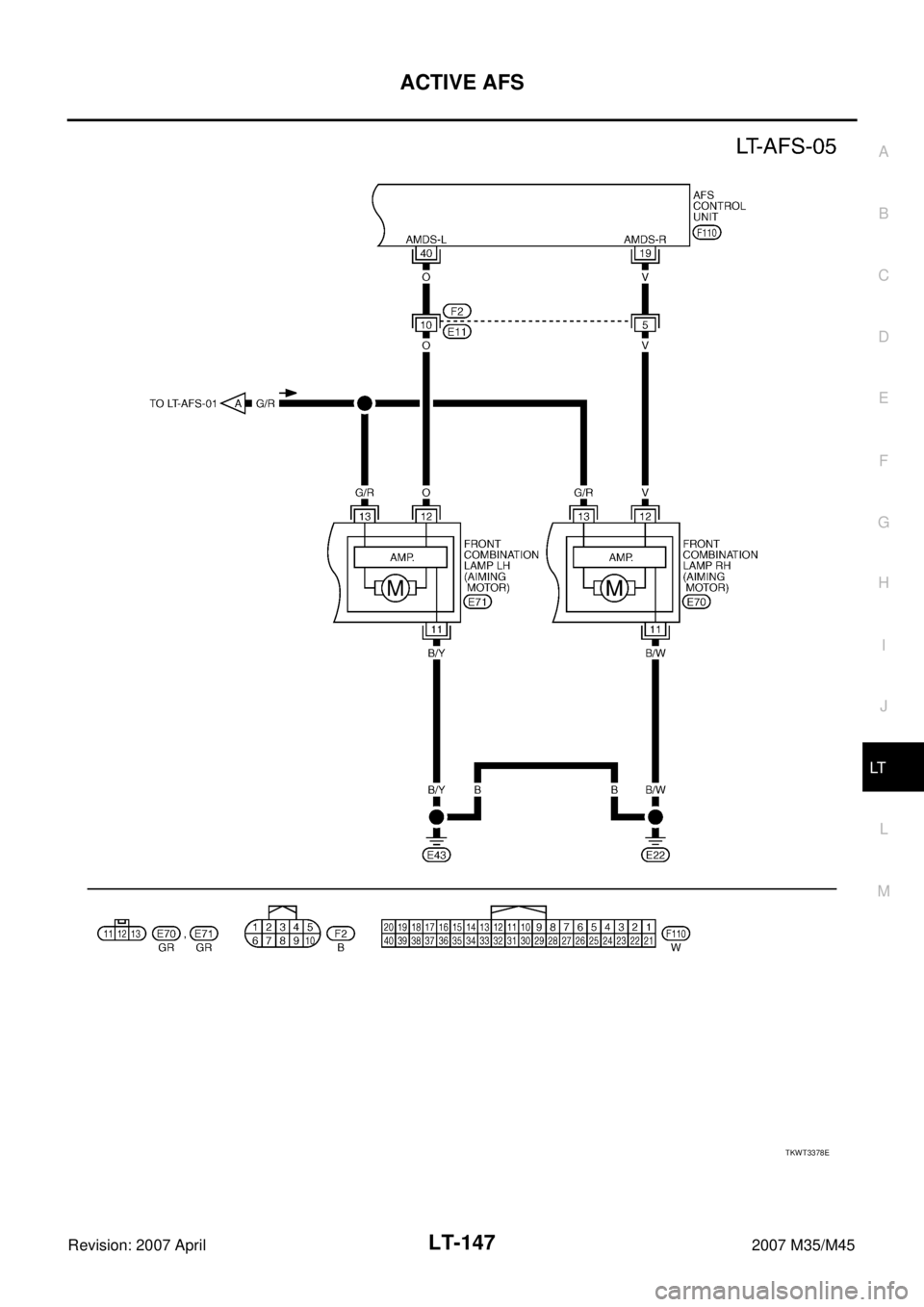

Page 3599 of 4647
LT-148
ACTIVE AFS
Revision: 2007 April2007 M35/M45
TKWT5068E

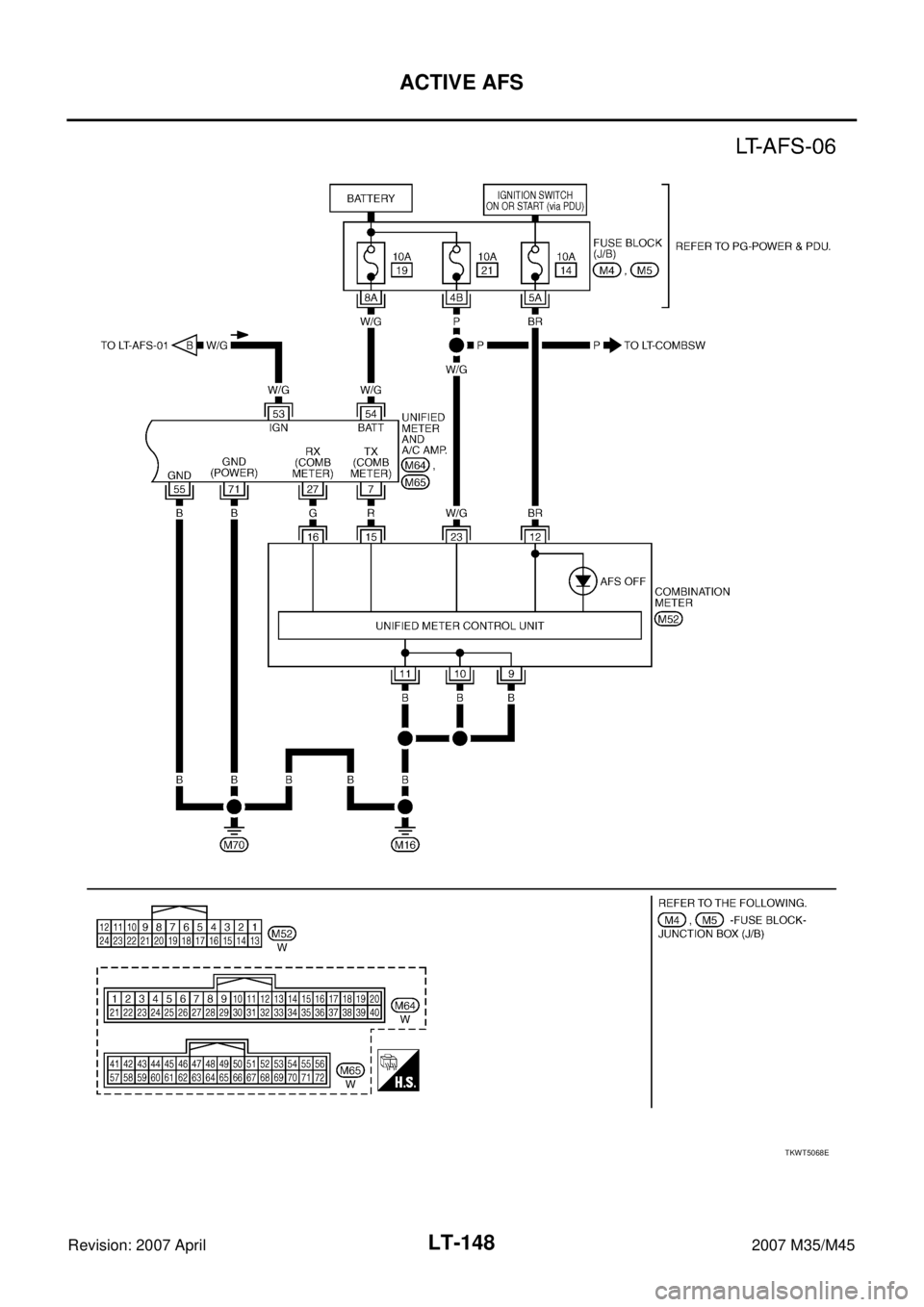

Page 3600 of 4647

ACTIVE AFS
LT-149
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
Terminals and Reference Values for AFS Control UnitNKS003QJ
Te r -
minal
No.Wire
colorItemMeasuring condition
Reference value
Ignition
switchOperation or condition
1 B/R IGN power supply ON — Battery voltage
2W/RSwivel position sensor ground
(right)ON — Approx. 0 V
3 GR AFS switch signal ON AFS switchON Approx. 0 V
OFF Battery voltage
4YSwivel position sensor power
supply (right)ON — Approx. 5 V
6 V/W Height sensor power supply ON — Approx. 5 V
7 P CAN-L — — —
8 B/R Height sensor ground ON — Approx. 0 V
9W/BSwivel position sensor signal
(right)ONLow beam headlamp
(right) swivel angle0°Approx. 1.5 V
Maximum
angleApprox. 2.5 V
11 R Swivel motor 1 phase− (right) ON
Low beam headlamp
(right) swivelONReference waveform
Approx. 8 - 12 V
13 B Swivel motor 2 phase− (right) ON OFF Approx. 9.5 - 11.5 V
15 BR/L Swivel motor 1 phase+ (left) ON
Low beam headlamp
(left) swivelONReference waveform
Approx. 8 - 12 V
17 Y/G Swivel motor 2 phase+ (left) ON OFF Approx. 9.5 - 11.5 V
19 V Aiming motor drive signal (right) ONLow beam headlamp
(right) auto aimingUnloaded
vehicle posi-
tionApprox. 9 V
Maximum
laden condi-
tion Approx. 4.8 V
(With 18- inch wheel)
Approx. 5.2 V
(With 19 -inch wheel)
24 V/RSwivel position sensor power
supply (left)ON — Approx. 5 V
25 B Ground ON — Approx. 0 V
27 R/WSwivel position sensor ground
(left)ON — Approx. 0 V
SKIB2408J
SKIB2408J
