Page 2185 of 4647

INFINITI M35 2007 Factory Service Manual EC-656 [VQ35DE] DTC P2A00, P2A03 A/F SENSOR 1 Revision: 2007 April2007 M35/M45 11 . REPLACE AIR FUEL RATIO (A/F) SENSOR 1 Replace malfunctioning air fuel ratio (A/F) sensor 1. CAUTION: Discard any A

Page 2186 of 4647

INFINITI M35 2007 Factory Service Manual ASCD BRAKE SWITCH EC-657 [VQ35DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 ASCD BRAKE SWITCHPFP:25320 Component DescriptionNBS0058H When the brake pedal is depressed, ASCD brake swit

Page 2187 of 4647

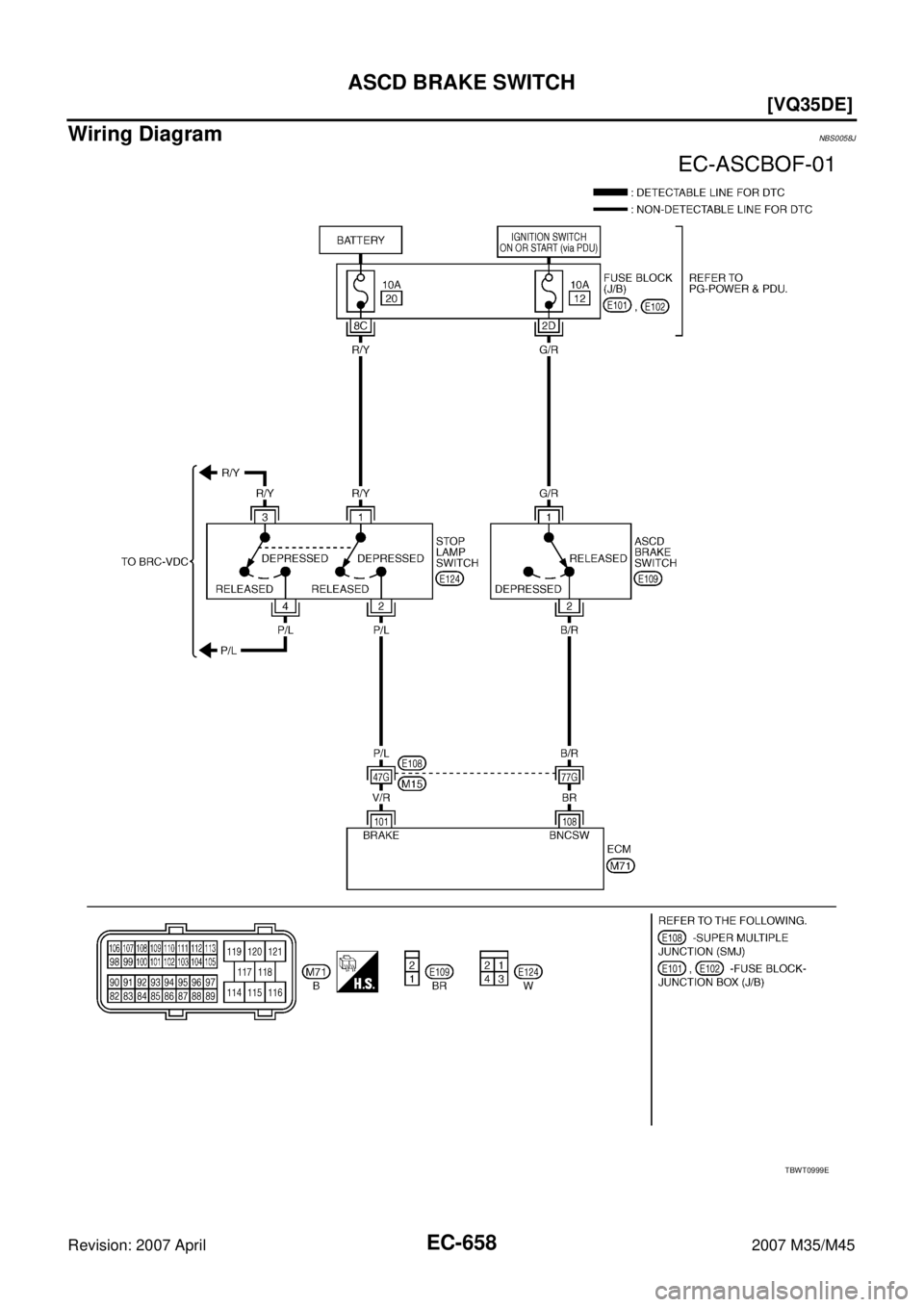

INFINITI M35 2007 Factory Service Manual EC-658 [VQ35DE] ASCD BRAKE SWITCH Revision: 2007 April2007 M35/M45 Wiring DiagramNBS0058J TBWT0999E

Page 2188 of 4647

INFINITI M35 2007 Factory Service Manual ASCD BRAKE SWITCH EC-659 [VQ35DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 Specification data are reference values and are measured between each terminal and ground. CAUTION: Do not

Page 2189 of 4647

INFINITI M35 2007 Factory Service Manual EC-660 [VQ35DE] ASCD BRAKE SWITCH Revision: 2007 April2007 M35/M45 2. CHECK OVERALL FUNCTION-II With CONSULT-II Check “BRAKE SW2” indication in “DATA MONITOR” mode. Without CONSULT-II Check

Page 2190 of 4647

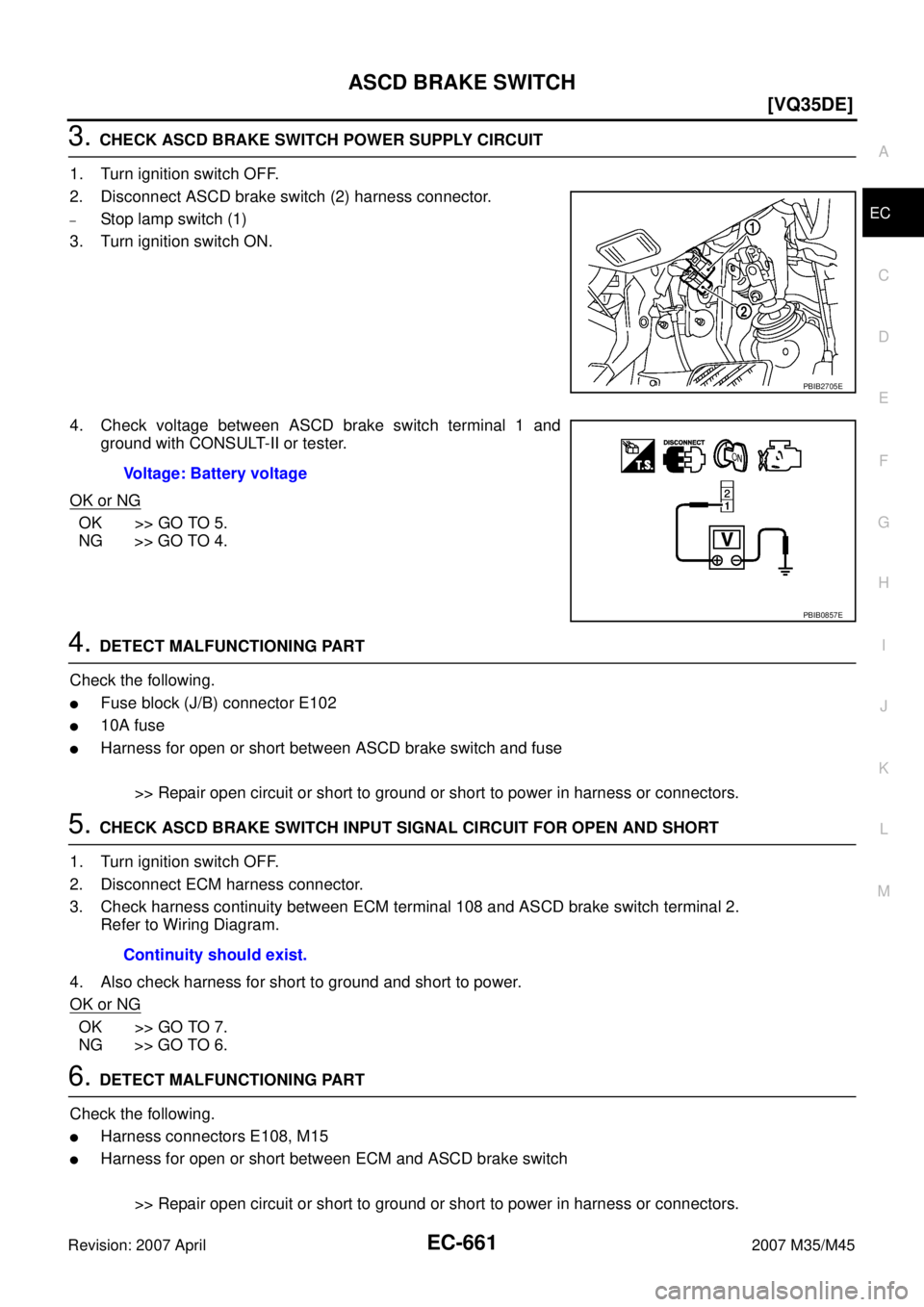

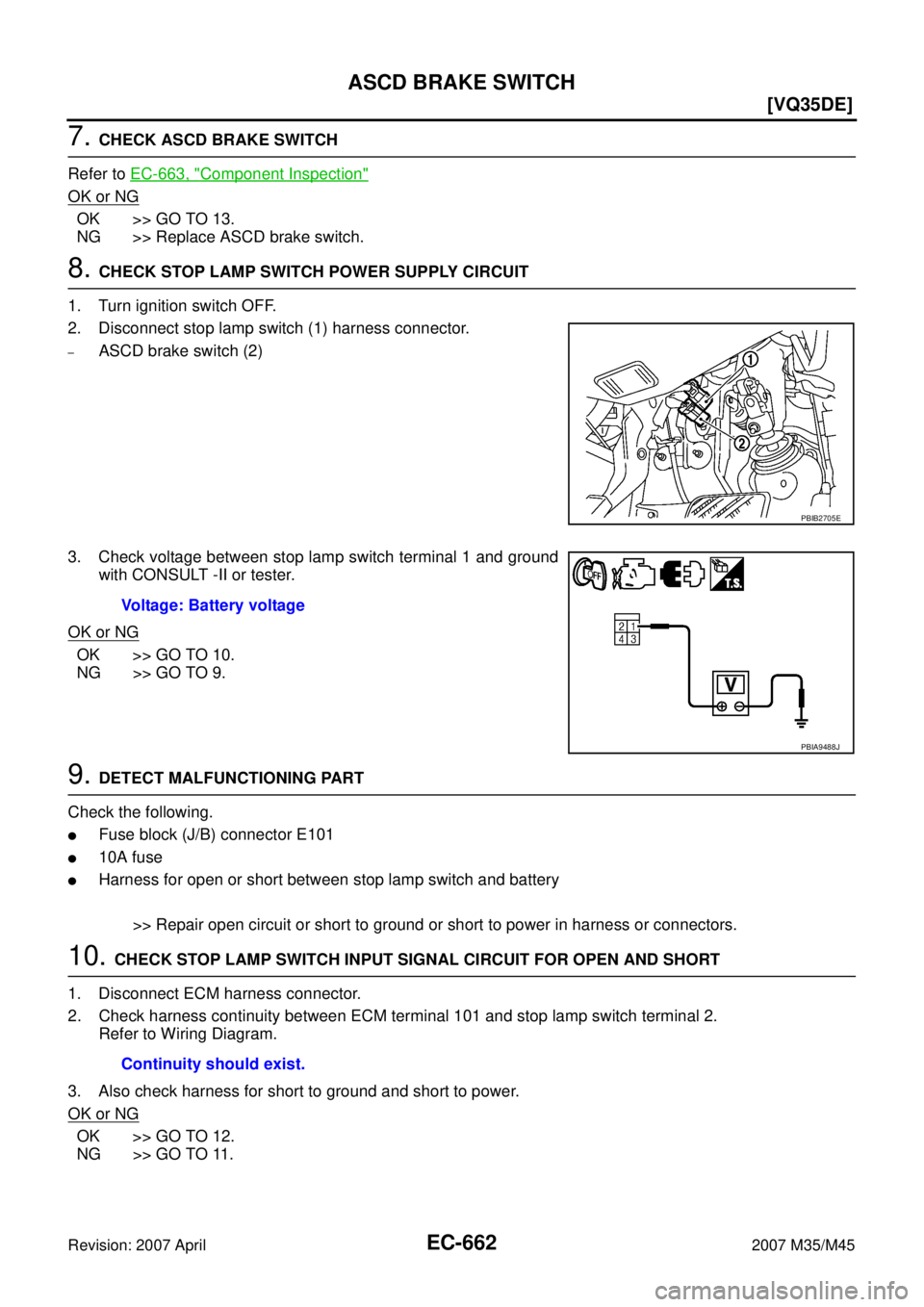

INFINITI M35 2007 Factory Service Manual ASCD BRAKE SWITCH EC-661 [VQ35DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect ASCD brake switc

Page 2191 of 4647

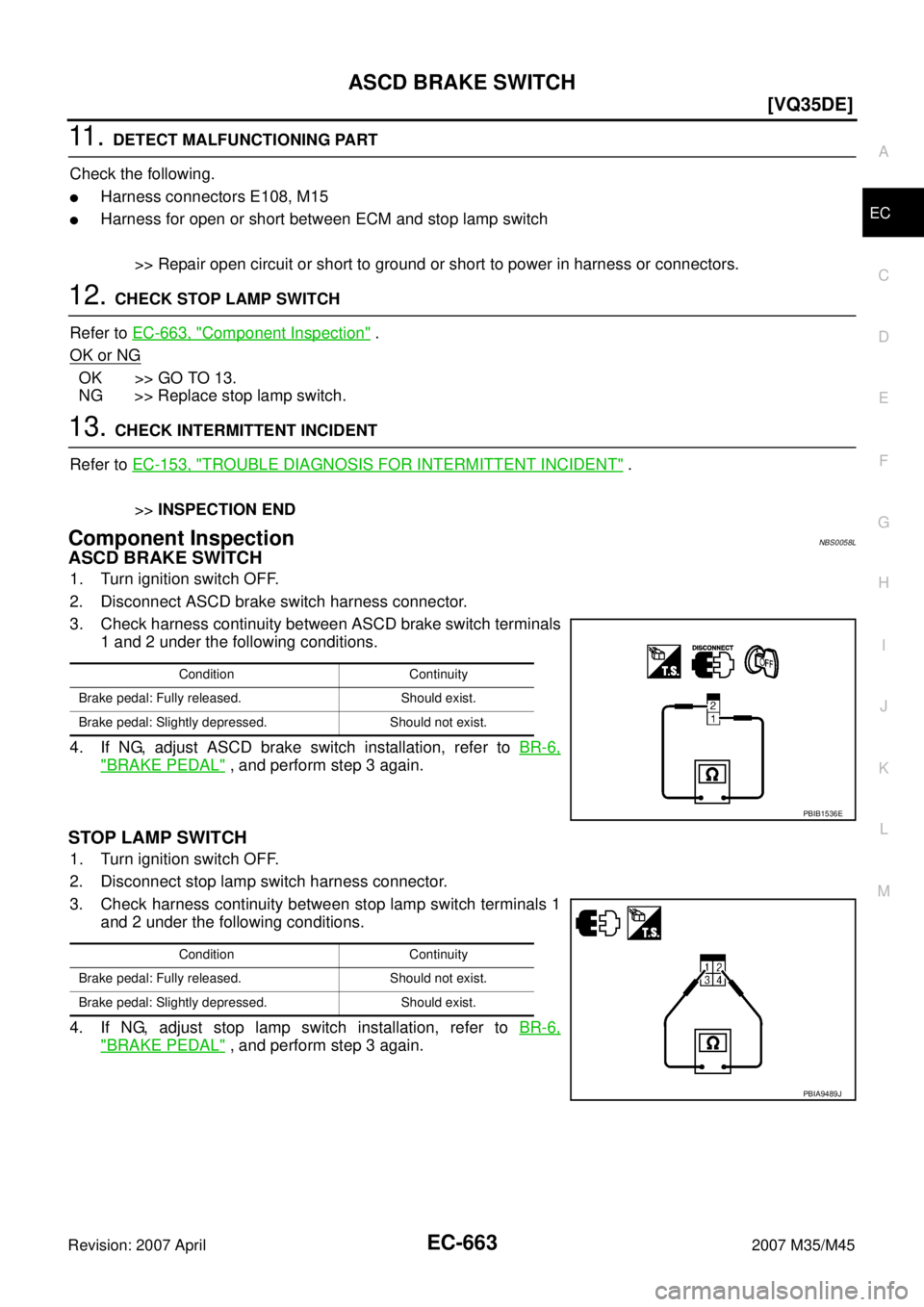

INFINITI M35 2007 Factory Service Manual EC-662 [VQ35DE] ASCD BRAKE SWITCH Revision: 2007 April2007 M35/M45 7. CHECK ASCD BRAKE SWITCH Refer to EC-663, " Component Inspection" OK or NG OK >> GO TO 13. NG >> Replace ASCD brake switch. 8. CH

Page 2192 of 4647

INFINITI M35 2007 Factory Service Manual ASCD BRAKE SWITCH EC-663 [VQ35DE] C D E F G H I J K L MA EC Revision: 2007 April2007 M35/M45 11 . DETECT MALFUNCTIONING PART Check the following. Harness connectors E108, M15 Harness for open or sh
