INFINITI M35 2007 Factory Service Manual LT-270
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45

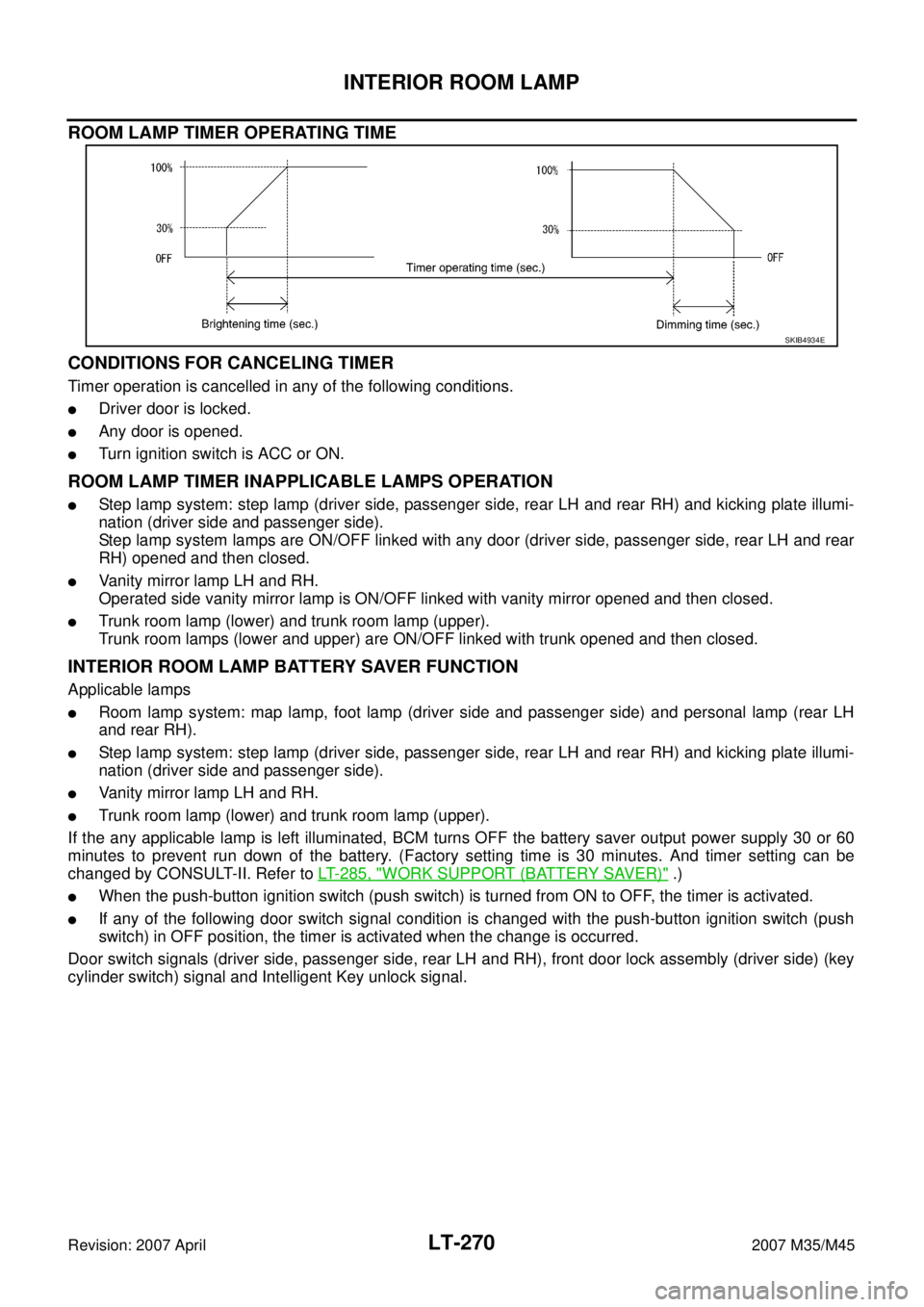

ROOM LAMP TIMER OPERATING TIME
CONDITIONS FOR CANCELING TIMER
Timer operation is cancelled in any of the following conditions.
Driver door i

LT-270
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45
ROOM LAMP TIMER OPERATING TIME
CONDITIONS FOR CANCELING TIMER
Timer operation is cancelled in any of the following conditions.
Driver door is locked.
Any door is opened.
Turn ignition switch is ACC or ON.
ROOM LAMP TIMER INAPPLICABLE LAMPS OPERATION
Step lamp system: step lamp (driver side, passenger side, rear LH and rear RH) and kicking plate illumi-
nation (driver side and passenger side).
Step lamp system lamps are ON/OFF linked with any door (driver side, passenger side, rear LH and rear
RH) opened and then closed.
Vanity mirror lamp LH and RH.
Operated side vanity mirror lamp is ON/OFF linked with vanity mirror opened and then closed.
Trunk room lamp (lower) and trunk room lamp (upper).
Trunk room lamps (lower and upper) are ON/OFF linked with trunk opened and then closed.
INTERIOR ROOM LAMP BATTERY SAVER FUNCTION
Applicable lamps
Room lamp system: map lamp, foot lamp (driver side and passenger side) and personal lamp (rear LH
and rear RH).
Step lamp system: step lamp (driver side, passenger side, rear LH and rear RH) and kicking plate illumi-
nation (driver side and passenger side).
Vanity mirror lamp LH and RH.
Trunk room lamp (lower) and trunk room lamp (upper).
If the any applicable lamp is left illuminated, BCM turns OFF the battery saver output power supply 30 or 60
minutes to prevent run down of the battery. (Factory setting time is 30 minutes. And timer setting can be
changed by CONSULT-II. Refer to LT- 2 8 5 , "
WORK SUPPORT (BATTERY SAVER)" .)
When the push-button ignition switch (push switch) is turned from ON to OFF, the timer is activated.
If any of the following door switch signal condition is changed with the push-button ignition switch (push
switch) in OFF position, the timer is activated when the change is occurred.
Door switch signals (driver side, passenger side, rear LH and RH), front door lock assembly (driver side) (key
cylinder switch) signal and Intelligent Key unlock signal.
SKIB4934E

Page 3722 of 4647

INFINITI M35 2007 Factory Service Manual INTERIOR ROOM LAMP
LT-271
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

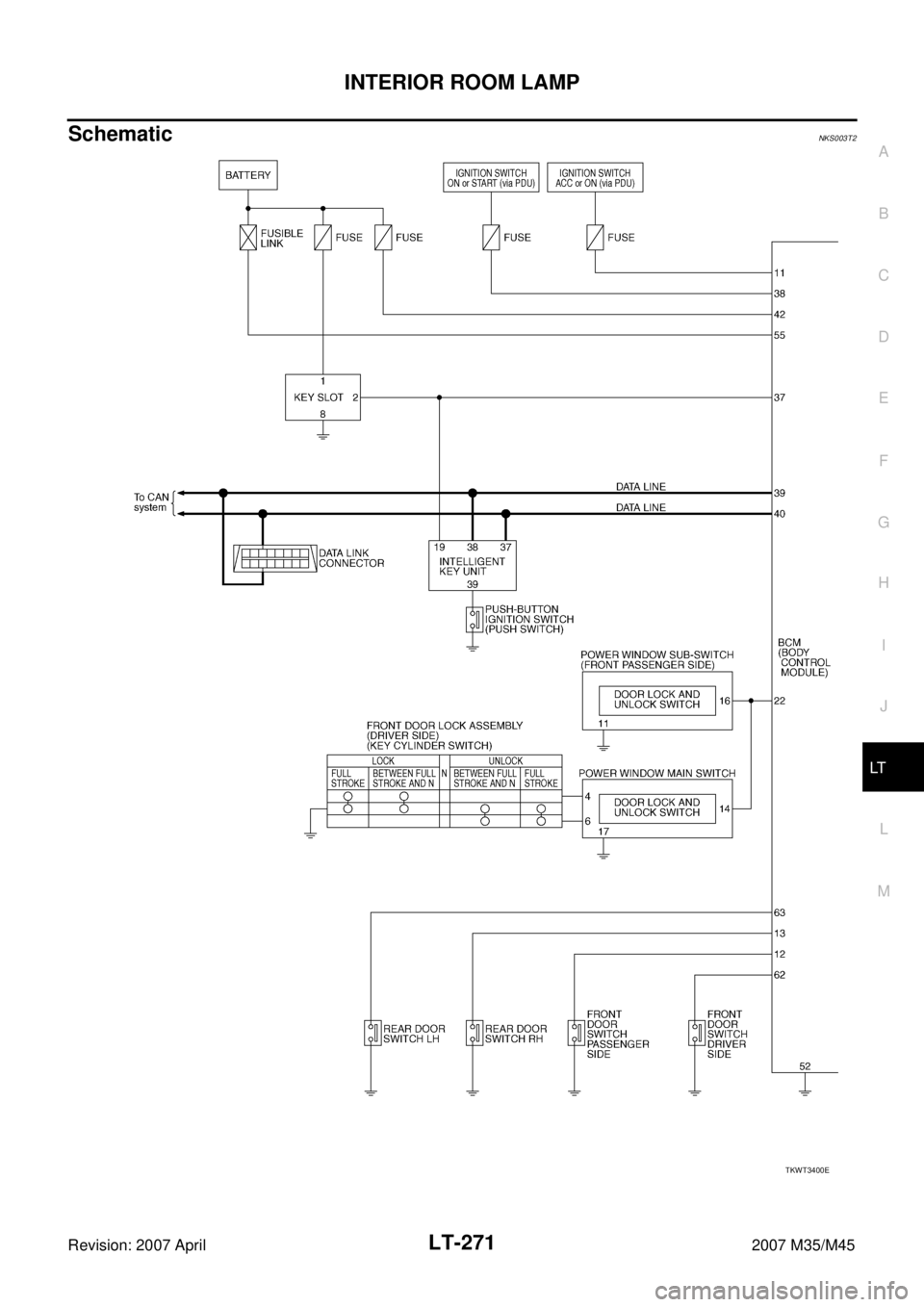

SchematicNKS003T2
TKWT3400E

Page 3723 of 4647

INFINITI M35 2007 Factory Service Manual LT-272
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45

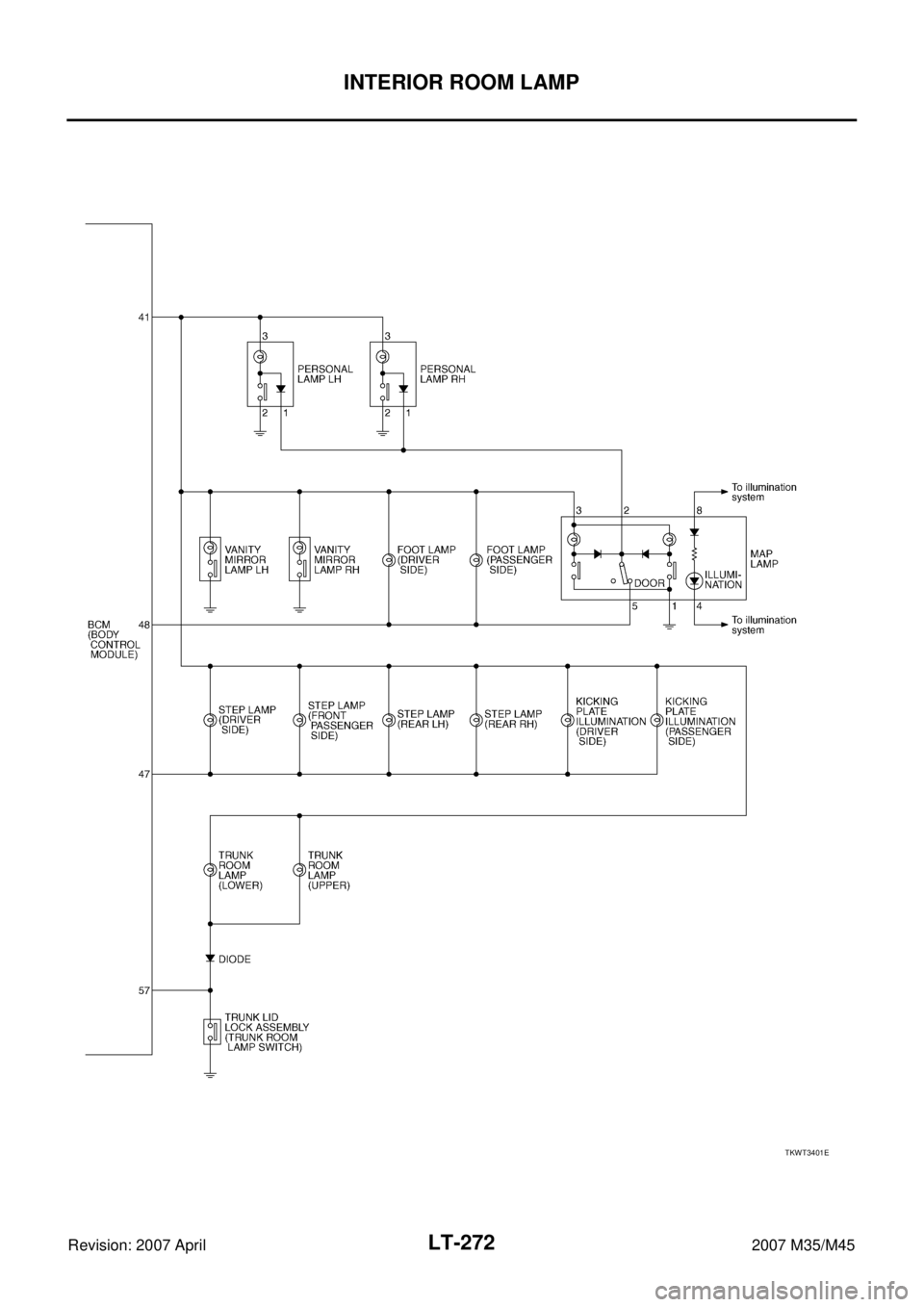

TKWT3401E

Page 3724 of 4647

INFINITI M35 2007 Factory Service Manual INTERIOR ROOM LAMP
LT-273
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

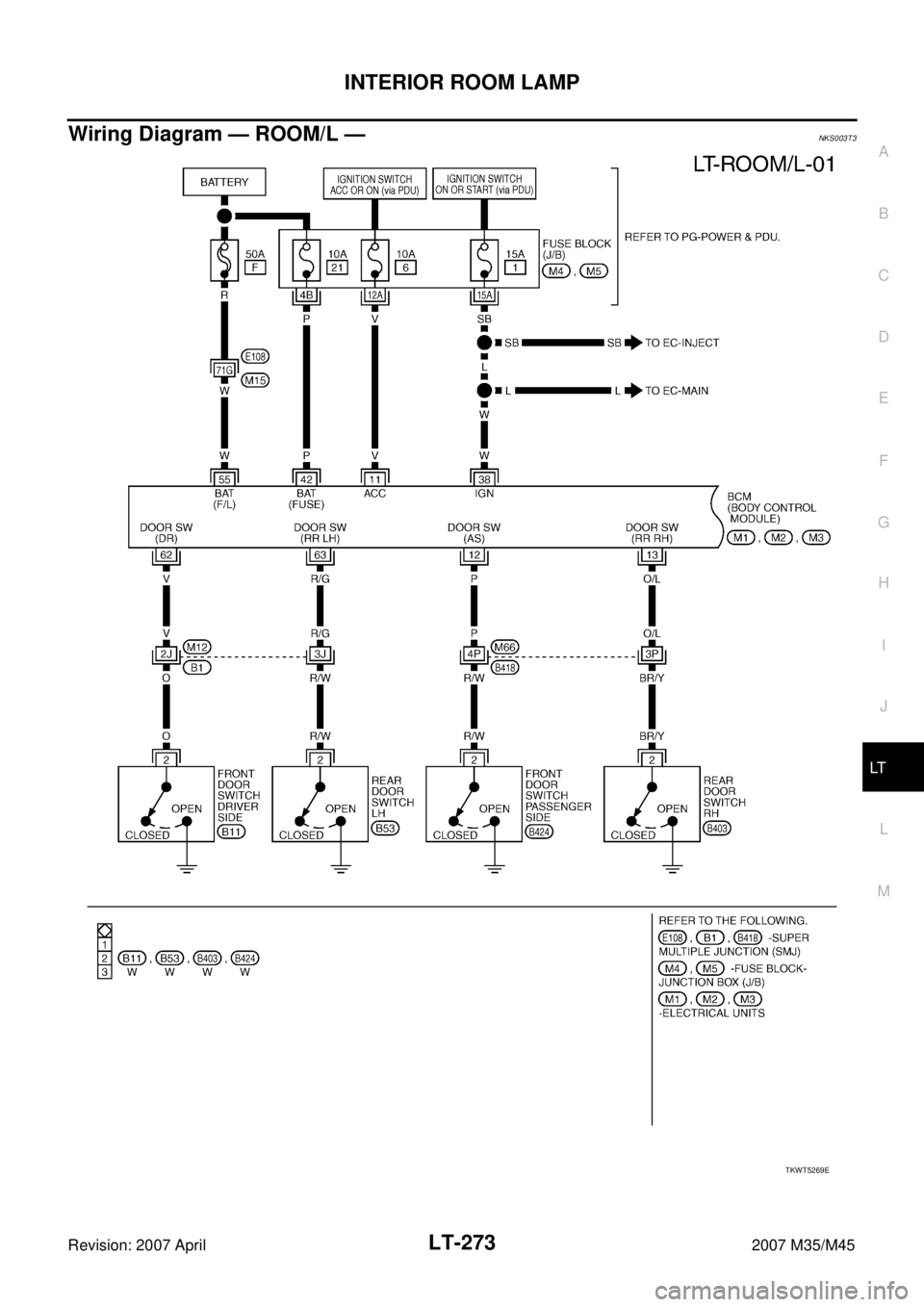

Wiring Diagram — ROOM/L —NKS003T3

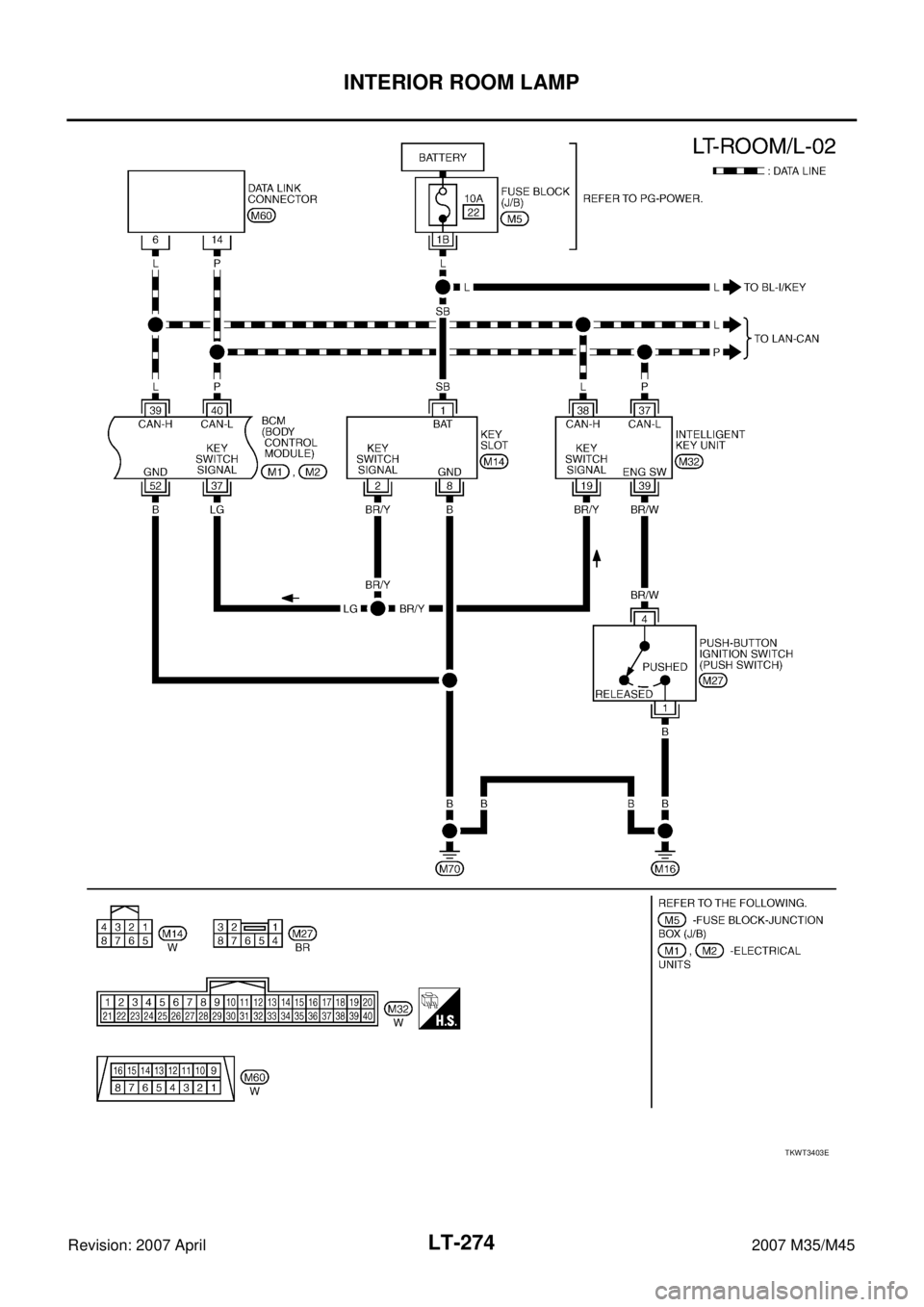

TKWT5269E

Page 3725 of 4647

INFINITI M35 2007 Factory Service Manual LT-274
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45

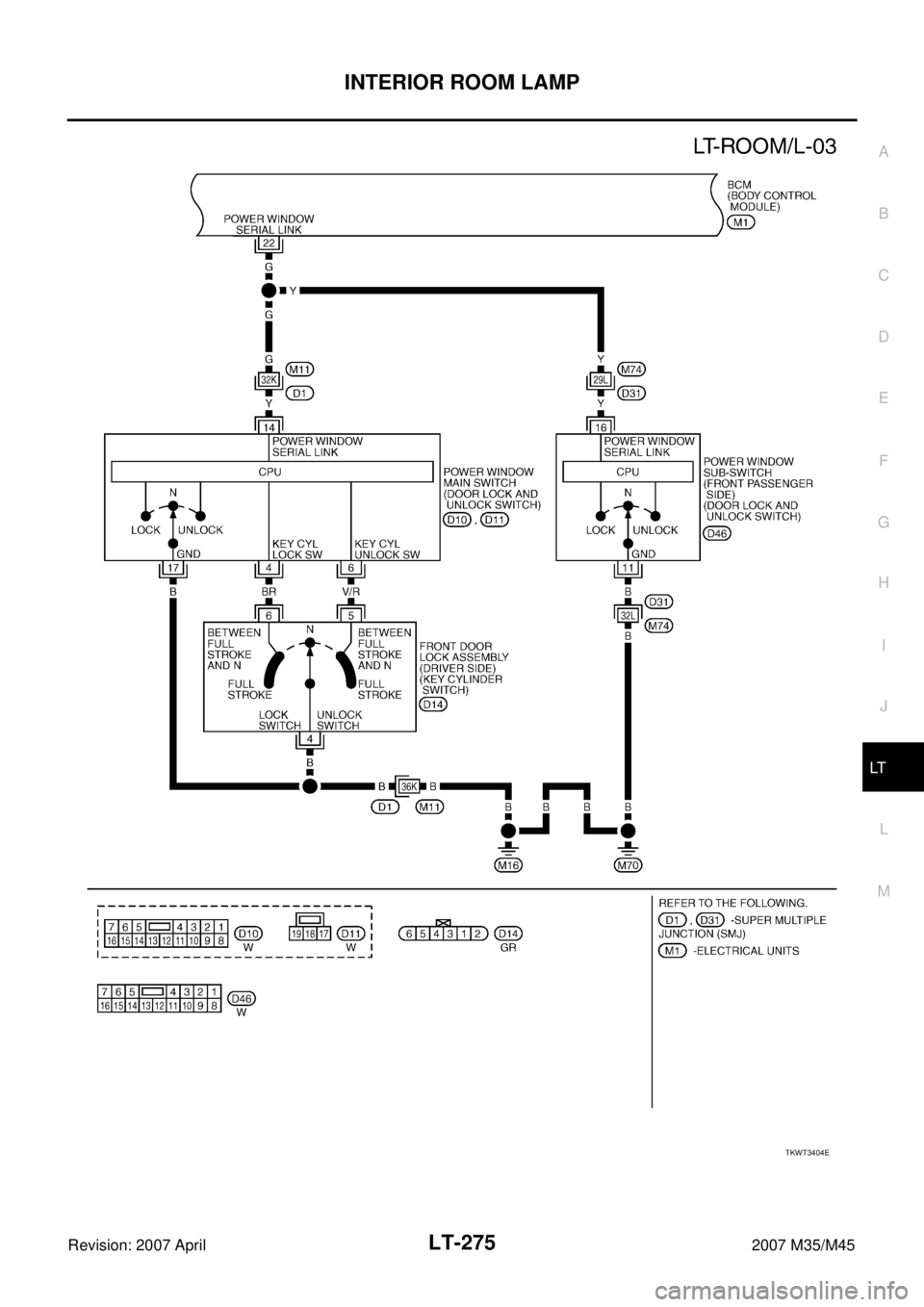

TKWT3403E

Page 3726 of 4647

INFINITI M35 2007 Factory Service Manual INTERIOR ROOM LAMP
LT-275
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

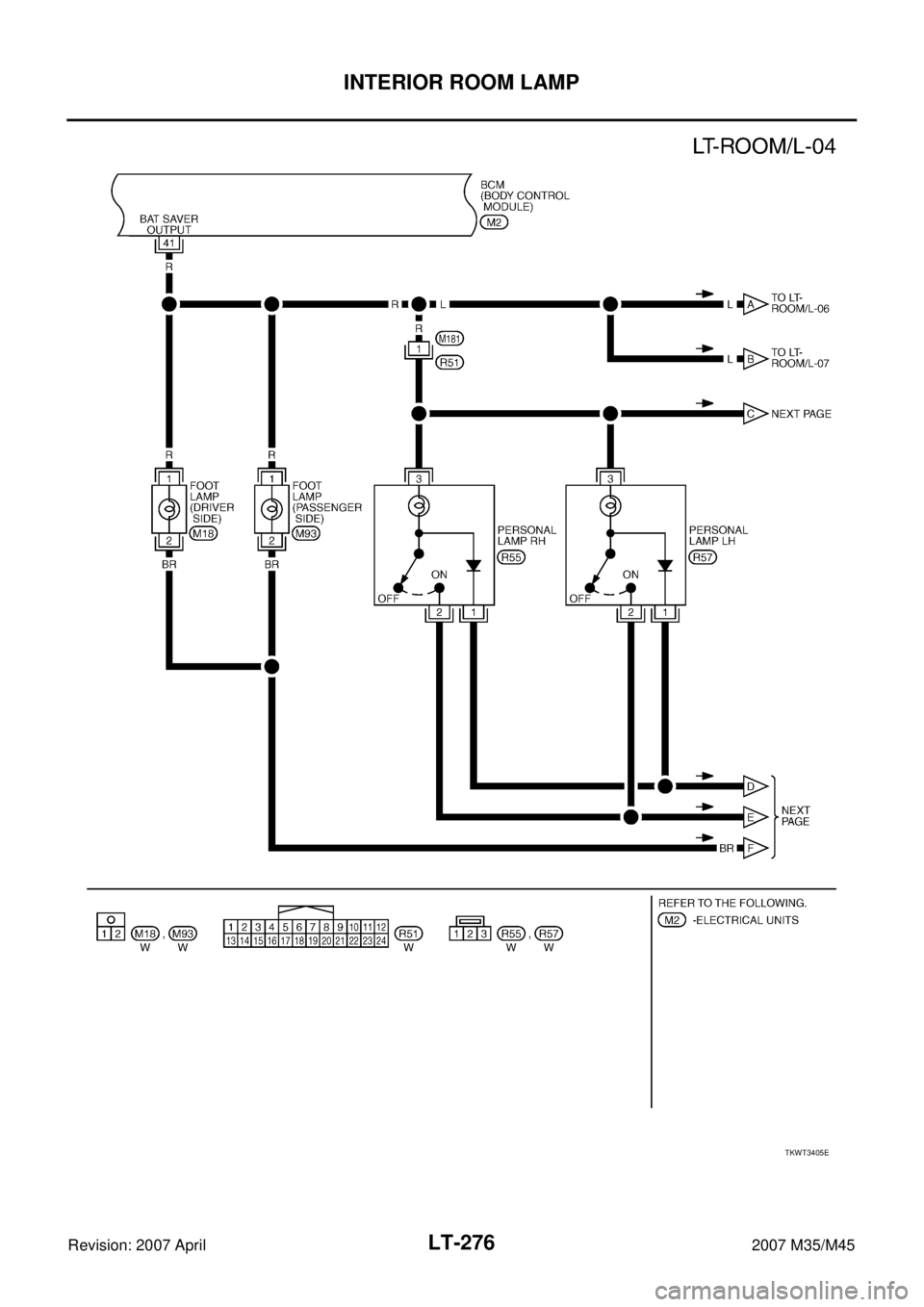

TKWT3404E

Page 3727 of 4647

INFINITI M35 2007 Factory Service Manual LT-276
INTERIOR ROOM LAMP
Revision: 2007 April2007 M35/M45

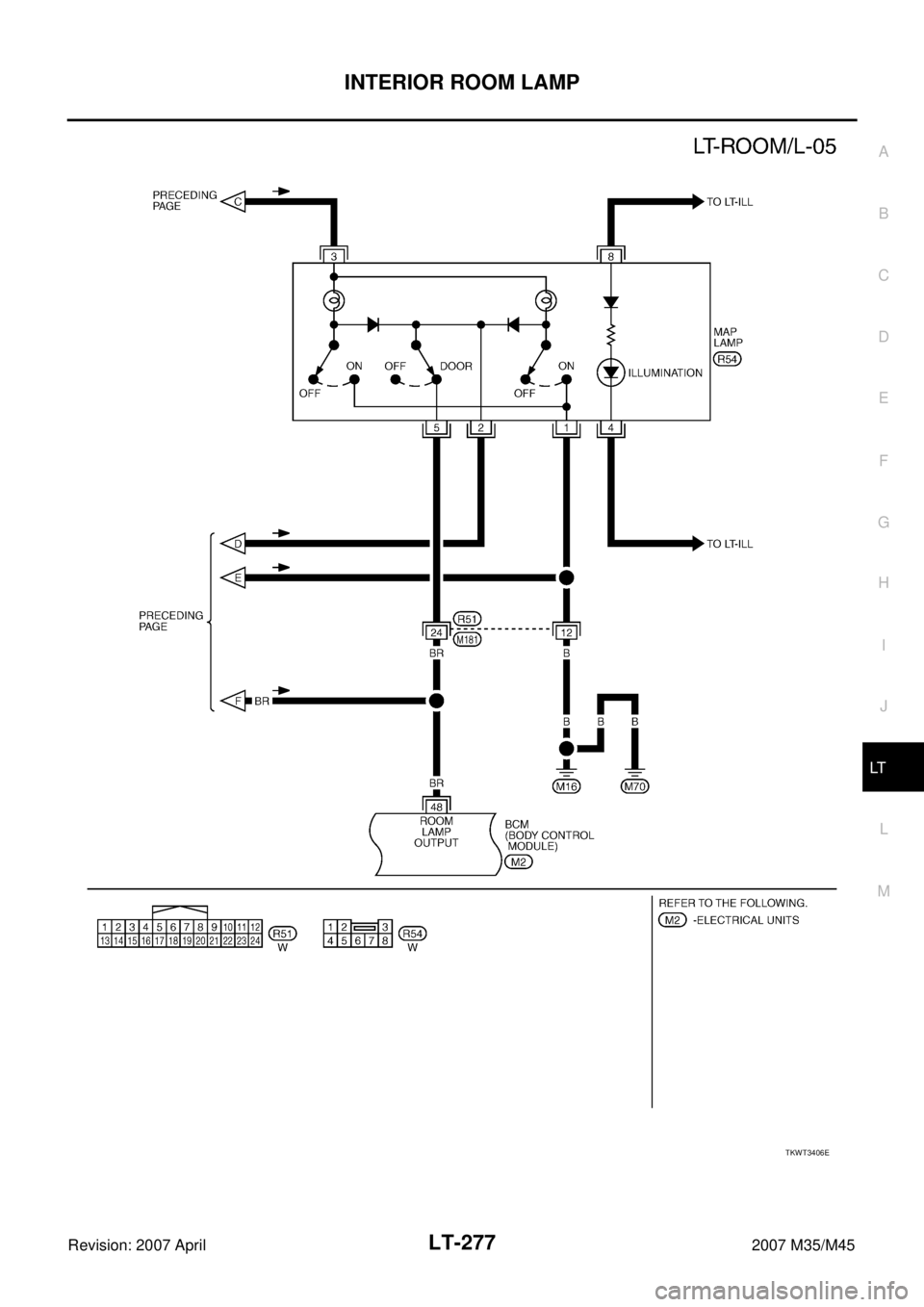

TKWT3405E

Page 3728 of 4647

INFINITI M35 2007 Factory Service Manual INTERIOR ROOM LAMP
LT-277
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
TKWT3406E
