INFINITI M35 2007 Factory Service Manual EC-1328
[VK45DE]
DTC P2101 ELECTRIC THROTTLE CONTROL FUNCTION
Revision: 2007 April2007 M35/M45
14. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perf

Page 2858 of 4647

INFINITI M35 2007 Factory Service Manual DTC P2118 THROTTLE CONTROL MOTOR
EC-1329
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P2118 THROTTLE CONTROL MOTORPFP:16119
Component DescriptionNBS005O6
The throttle contro

Page 2859 of 4647

INFINITI M35 2007 Factory Service Manual EC-1330
[VK45DE]
DTC P2118 THROTTLE CONTROL MOTOR
Revision: 2007 April2007 M35/M45

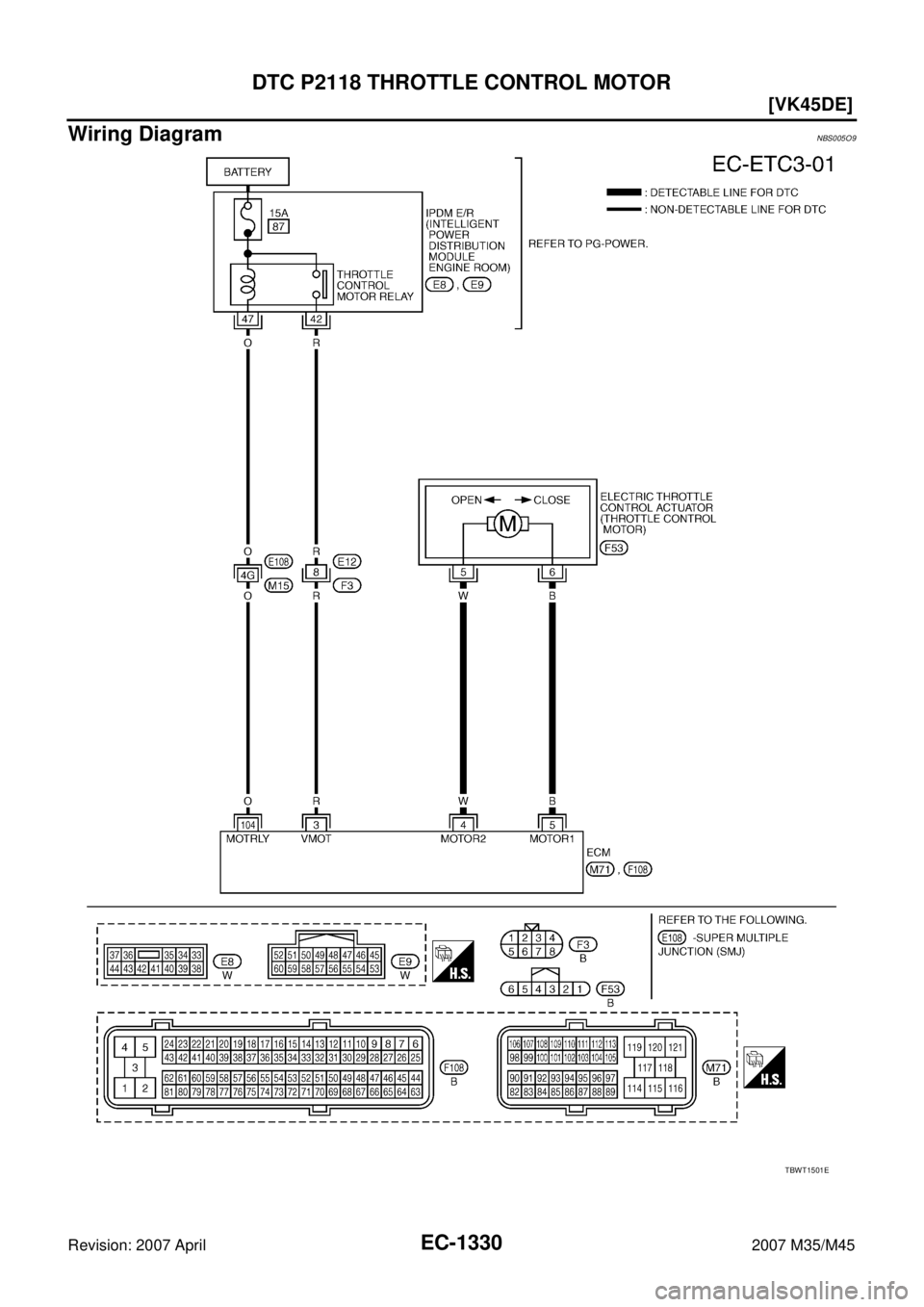

Wiring DiagramNBS005O9
TBWT1501E

Page 2860 of 4647

INFINITI M35 2007 Factory Service Manual DTC P2118 THROTTLE CONTROL MOTOR
EC-1331
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.

Page 2861 of 4647

INFINITI M35 2007 Factory Service Manual EC-1332
[VK45DE]
DTC P2118 THROTTLE CONTROL MOTOR
Revision: 2007 April2007 M35/M45
2. CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect electric throttle control actu

Page 2862 of 4647

INFINITI M35 2007 Factory Service Manual DTC P2118 THROTTLE CONTROL MOTOR
EC-1333
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Removal and InstallationNBS005OC
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-179, "INTAK

Page 2863 of 4647

INFINITI M35 2007 Factory Service Manual EC-1334
[VK45DE]
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
Revision: 2007 April2007 M35/M45
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
Component DescriptionNBS005OD
Electric throttle con

EC-1334
[VK45DE]
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
Revision: 2007 April2007 M35/M45
DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATORPFP:16119
Component DescriptionNBS005OD
Electric throttle control actuator consists of throttle control motor, throttle position sensor, etc.
The throttle control motor is operated by the ECM and it opens and closes the throttle valve.
The throttle position sensor detects the throttle valve position, and the opening and closing speed of the throt-
tle valve and feeds the voltage signals to the ECM. The ECM judges the current opening angle of the throttle
valve from these signals and the ECM controls the throttle control motor to make the throttle valve opening
angle properly in response to driving condition.
On Board Diagnosis LogicNBS005OE
This self-diagnosis has one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureNBS005OF
NOTE:
Perform PROCEDURE FOR MALFUNCTION A AND B first. If the DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION C.
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A AND B
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Shift selector lever to D position and wait at least 3 seconds.
4. Shift selector lever to P position.
5. Turn ignition switch OFF and wait at least 10 seconds.
6. Turn ignition switch ON and wait at least 1 second.
7. Shift selector lever to D position and wait at least 3 seconds.
8. Shift selector lever to P position.
9. Turn ignition switch OFF, wait at least 10 seconds, and then turn
ON.
10. If DTC is detected, go to EC-1335, "
Diagnostic Procedure" .
With GST
Follow the procedure “With CONSULT-II” above.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2119
2119Electric throttle control
actuatorA)Electric throttle control actuator does not function
properly due to the return spring malfunction.
Electric throttle control actuator
B)Throttle valve opening angle in fail-safe mode is
not in specified range.
C) ECM detect the throttle valve is stuck open.
Detected items Engine operating condition in fail-safe mode
Malfunction AThe ECM controls the electric throttle actuator by regulating the throttle opening around the idle position.
The engine speed will not rise more than 2,000 rpm.
Malfunction B ECM controls the electric throttle control actuator by regulating the throttle opening to 20 degrees or less.
Malfunction CWhile the vehicle is driving, it slows down gradually by fuel cut. After the vehicle stops, the engine stalls.
The engine can restart in N or P position, and engine speed will not exceed 1,000 rpm or more.
SEF058Y

Page 2864 of 4647

INFINITI M35 2007 Factory Service Manual DTC P2119 ELECTRIC THROTTLE CONTROL ACTUATOR
EC-1335
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch ON and wai
