2007 INFINITI M35 Factory Service Manual

fog light bulb snow chains bulb stop start radio controls USB port

Load previous 8 pages

Page 4193 of 4647

INFINITI M35 2007 Factory Service Manual SC-32
CHARGING SYSTEM
Revision: 2007 April2007 M35/M45
Removal (AWD Models)
1. Disconnect the battery cable from the negative terminal.
2. Remove power steering oil reservoir tank from the bracket.
3.

Page 4194 of 4647

INFINITI M35 2007 Factory Service Manual CHARGING SYSTEM
SC-33
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2007 April2007 M35/M45

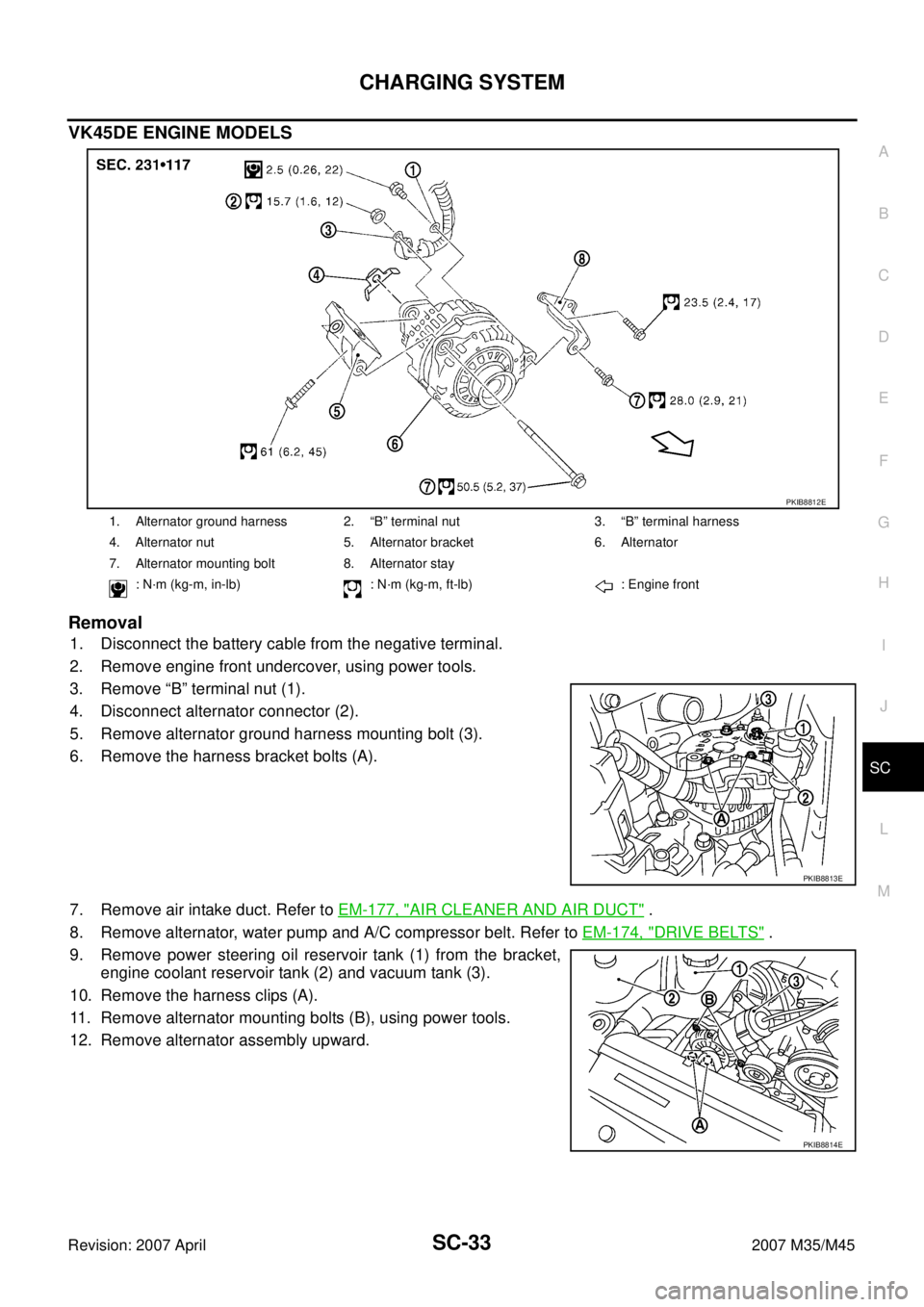

VK45DE ENGINE MODELS
Removal
1. Disconnect the battery cable from the negative terminal.
2. Remove engine front underco

Page 4195 of 4647

INFINITI M35 2007 Factory Service Manual SC-34
CHARGING SYSTEM
Revision: 2007 April2007 M35/M45
Alternator Pulley Inspection
Perform the following.
Make sure that alternator pulley does not rattle.
Make sure that alternator pulley nut is t

Page 4196 of 4647

INFINITI M35 2007 Factory Service Manual CHARGING SYSTEM
SC-35
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2007 April2007 M35/M45

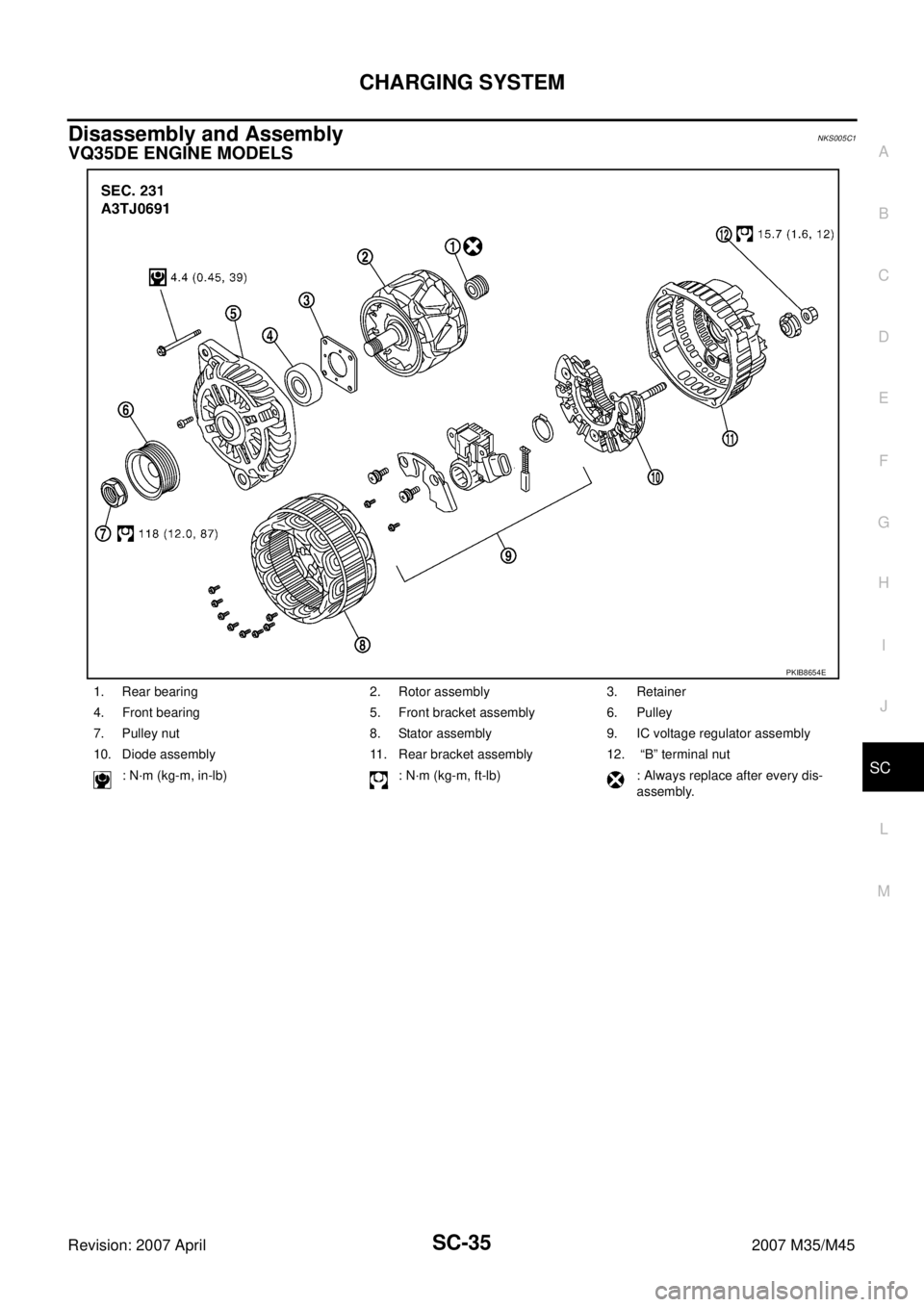

Disassembly and AssemblyNKS005C1
VQ35DE ENGINE MODELS
1. Rear bearing 2. Rotor assembly 3. Retainer
4. Front bearing 5.

Page 4197 of 4647

INFINITI M35 2007 Factory Service Manual SC-36
CHARGING SYSTEM
Revision: 2007 April2007 M35/M45
VK45DE ENGINE MODELS
1. Rear bearing 2. Rotor assembly 3. Retainer
4. Front bearing 5. Front bracket assembly 6. Pulley
7. Pulley nut 8. Stator a

Page 4198 of 4647

INFINITI M35 2007 Factory Service Manual SERVICE DATA AND SPECIFICATIONS (SDS)
SC-37
C
D
E
F
G
H
I
J
L
MA
B
SC
Revision: 2007 April2007 M35/M45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
BatteryNKS003NT
StarterNKS003NU
AlternatorNKS003NV

Page 4199 of 4647

INFINITI M35 2007 Factory Service Manual SC-38
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2007 April2007 M35/M45

Page 4200 of 4647

INFINITI M35 2007 Factory Service Manual SE-1
SEAT
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION SE
A
B
SE
Revision: 2007 April2007 M35/M45
SEAT
PRECAUTIONS .......................................................... 3
Precautions for Suppleme

SE-1
SEAT
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION SE
A
B
SE
Revision: 2007 April2007 M35/M45
SEAT
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Service Notice .......................................................... 3
Precautions for Work ................................................ 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
AUTOMATIC DRIVE POSITIONER ...........................11
Component Parts And Harness Connector Location
.... 11
System Description ................................................ 12
MANUAL OPERATION ....................................... 12
MEMORY OPERATION ...................................... 12
EXITING OPERATION ........................................ 14
ENTRY OPERATION .......................................... 14
INTELLIGENT KEY INTERLOCK OPERATION ... 15
FAIL-SAFE MODE .............................................. 15
INITIALIZATION PROCEDURE .......................... 16
SETTING CHANGE FUNCTION ......................... 16
CAN Communication System Description .............. 16CAN Communication Unit ....................................... 16
Schematic ............................................................... 17
Wiring Diagram — AUT/DP — ............................... 19
Terminals and Reference Values for BCM .............. 31
Terminals and Reference Value for Intelligent Key
Unit ......................................................................... 31
Terminals and Reference Values for Driver Seat
Control Unit ............................................................. 32
Terminals and Reference Values for Automatic
Drive Positioner Control Unit .................................. 34
CONSULT-II Function (AUTO DRIVE POS.) .......... 37
CONSULT-II START PROCEDURE .................... 37
SELF-DIAGNOSIS RESULTS ............................. 37
DATA MONITOR ................................................. 38
ACTIVE TEST ..................................................... 39
WORK SUPPORT ............................................... 39
Work Flow ............................................................... 40
Symptom Chart ....................................................... 40
CAN Communication Inspection Using CONSULT-
II (Self-Diagnosis) ................................................... 42
Check BCM Power Supply and Ground Circuit ...... 42
Check Driver Seat Control Unit Power Supply and
Ground Circuit ........................................................ 43
Check Automatic Drive Positioner Control Unit
Power Supply and Ground Circuit .......................... 44
Check Sliding Motor Circuit .................................... 45
Check Reclining Motor Circuit ................................ 46
Check Front Lifting Motor Circuit ............................ 47
Check Rear Lifting Motor Circuit ............................. 49
Check Telescopic Motor Circuit .............................. 50
Check Tilt Motor Circuit .......................................... 51
Check Sliding Sensor Circuit .................................. 53
Check Reclining Sensor Circuit .............................. 55
Check Front Lifting Sensor Circuit .......................... 57
Check Rear Lifting Sensor Circuit .......................... 59
Check Telescopic Sensor Circuit ............................ 61
Check Tilt Sensor Circuit ........................................ 63
Check Door Mirror Sensor LH Circuit ..................... 64
Check Door Mirror Sensor RH Circuit .................... 67
Check Sliding Switch Circuit ................................... 69
