Page 4537 of 4647

INFINITI M35 2007 Factory Service Manual TF-48 TRANSFER ASSEMBLY Revision: 2007 April2007 M35/M45 11. Remove snap ring from front case. 12. Remove mainshaft bearing from front case, using the drift. 13. Remove drive chain and front drive sha

Page 4538 of 4647

INFINITI M35 2007 Factory Service Manual TRANSFER ASSEMBLY TF-49 C E F G H I J K L MA B TF Revision: 2007 April2007 M35/M45 16. Remove retainer from transfer assembly harness connector. 17. Remove transfer assembly harness connector from rea

Page 4539 of 4647

INFINITI M35 2007 Factory Service Manual TF-50 TRANSFER ASSEMBLY Revision: 2007 April2007 M35/M45 Mainshaft Assembly 1. Separate front case and rear case, then remove mainshaft assembly. Refer to TF-46, "Front Case and Rear Case" . 2. Remove

Page 4540 of 4647

INFINITI M35 2007 Factory Service Manual TRANSFER ASSEMBLY TF-51 C E F G H I J K L MA B TF Revision: 2007 April2007 M35/M45 INSPECTION Cases Check items below. If necessary, replace them with new ones. Contact surfaces of bearing for wear,

Page 4541 of 4647

INFINITI M35 2007 Factory Service Manual TF-52 TRANSFER ASSEMBLY Revision: 2007 April2007 M35/M45 ASSEMBLY Front Drive Shaft and Drive Chain 1. Install front drive shaft front bearing, using the drift. 2. Install front drive shaft rear beari

Page 4542 of 4647

INFINITI M35 2007 Factory Service Manual TRANSFER ASSEMBLY TF-53 C E F G H I J K L MA B TF Revision: 2007 April2007 M35/M45 Mainshaft Assembly 1. Install needle bearing to mainshaft. CAUTION: Apply ATF to periphery of needle bearing. 2. Inst

Page 4543 of 4647

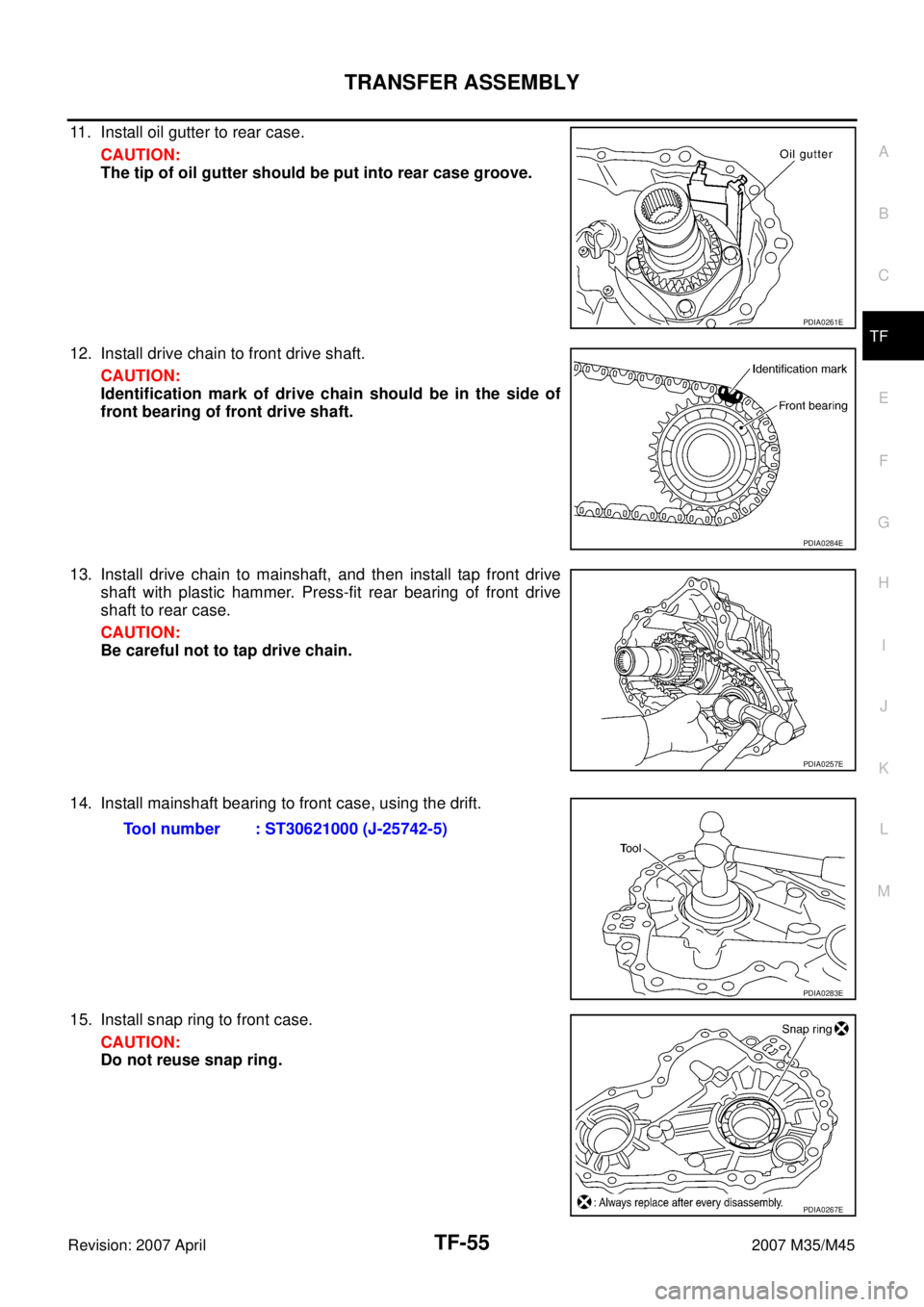

INFINITI M35 2007 Factory Service Manual TF-54 TRANSFER ASSEMBLY Revision: 2007 April2007 M35/M45 4. Install snap ring to rear case. CAUTION: Do not reuse snap ring. 5. Install mainshaft assembly to rear case, using the drift. CAUTION: ATF s

Page 4544 of 4647

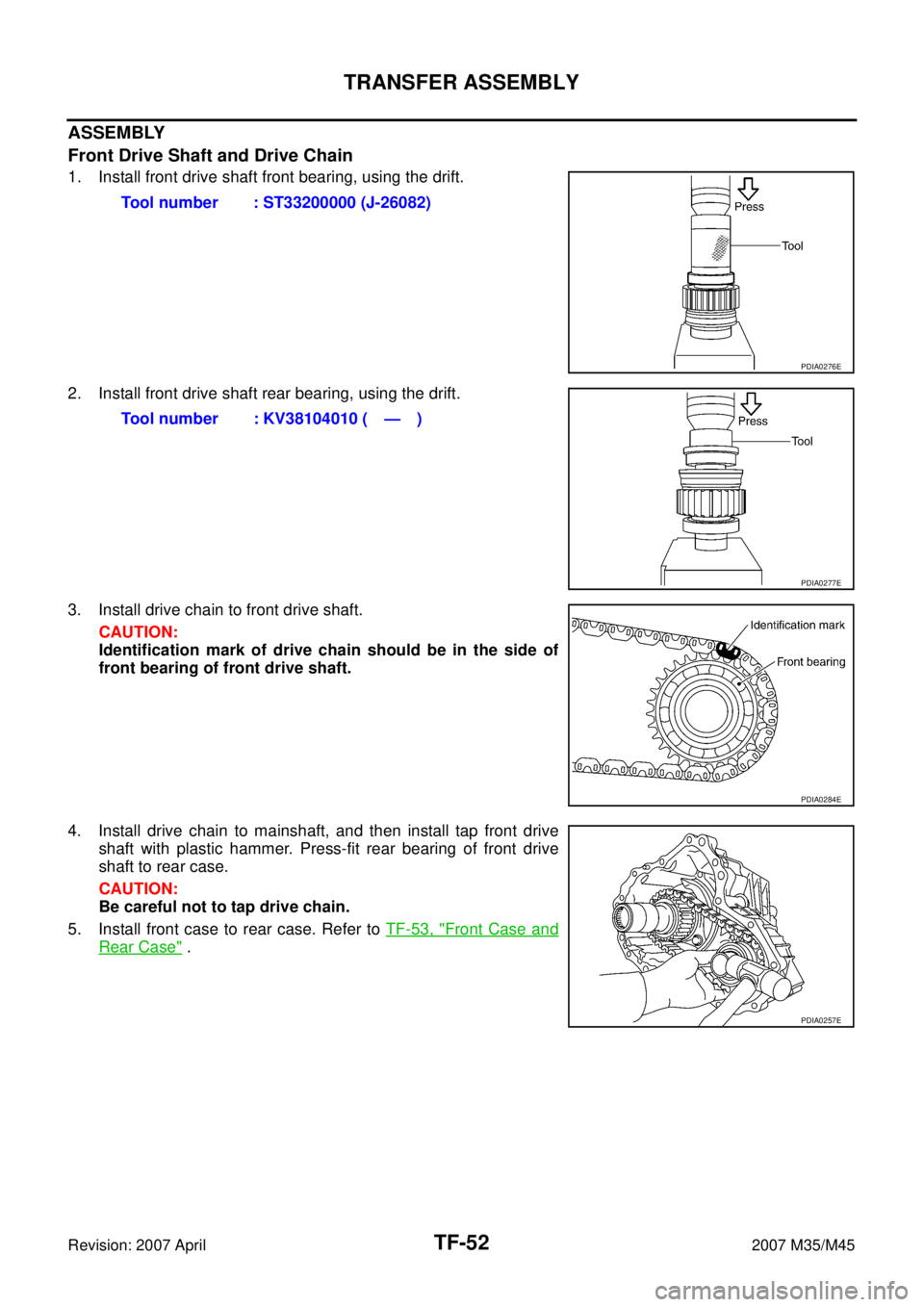

INFINITI M35 2007 Factory Service Manual TRANSFER ASSEMBLY TF-55 C E F G H I J K L MA B TF Revision: 2007 April2007 M35/M45 11. Install oil gutter to rear case. CAUTION: The tip of oil gutter should be put into rear case groove. 12. Install
