INFINITI M35 2007 Factory Service Manual PG-22 IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) Revision: 2007 April2007 M35/M45 CAN DIAG SUPPORT MNTR Refer to LAN-44, "CAN Diagnostic Support Monitor" in LAN section. ACTIVE TEST

Page 3874 of 4647

INFINITI M35 2007 Factory Service Manual IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PG-23 C D E F G H I J L MA B PG Revision: 2007 April2007 M35/M45 Auto Active TestNKS004E7 DESCRIPTION In auto active test mode, operation i

Page 3875 of 4647

INFINITI M35 2007 Factory Service Manual PG-24 IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) Revision: 2007 April2007 M35/M45 INSPECTION IN AUTO ACTIVE TEST MODE When auto active test mode is actuated, the following eight step

Page 3876 of 4647

INFINITI M35 2007 Factory Service Manual IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PG-25 C D E F G H I J L MA B PG Revision: 2007 April2007 M35/M45 Concept of Auto Active Test IPDM E/R actuates auto active test mode when

Page 3877 of 4647

INFINITI M35 2007 Factory Service Manual PG-26 IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) Revision: 2007 April2007 M35/M45 Cooling fan does not operate.Perform auto active test. Does cooling fan operate?YES ECM signal i

Page 3878 of 4647

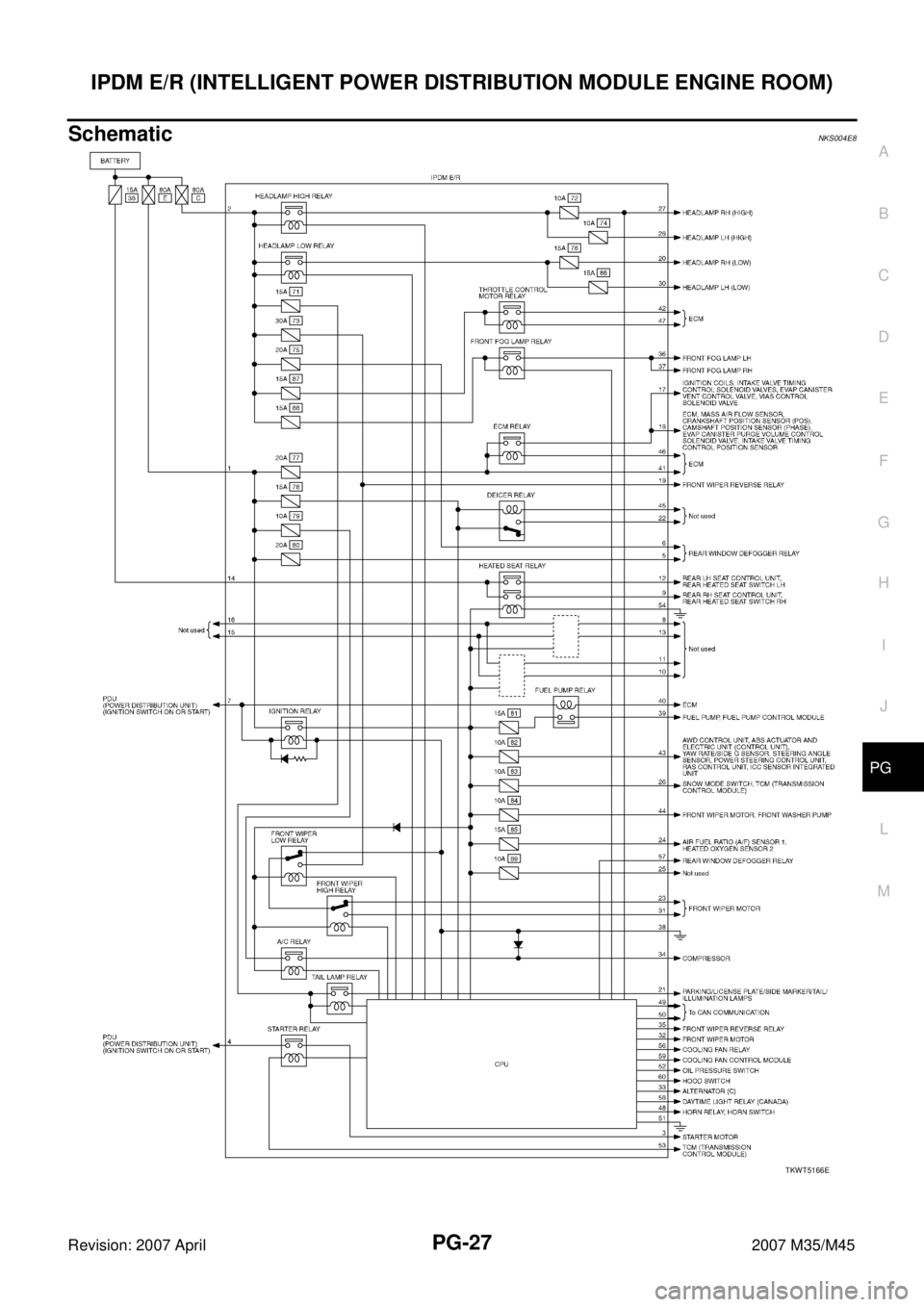

INFINITI M35 2007 Factory Service Manual IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PG-27 C D E F G H I J L MA B PG Revision: 2007 April2007 M35/M45 SchematicNKS004E8 TKWT5166E

Page 3879 of 4647

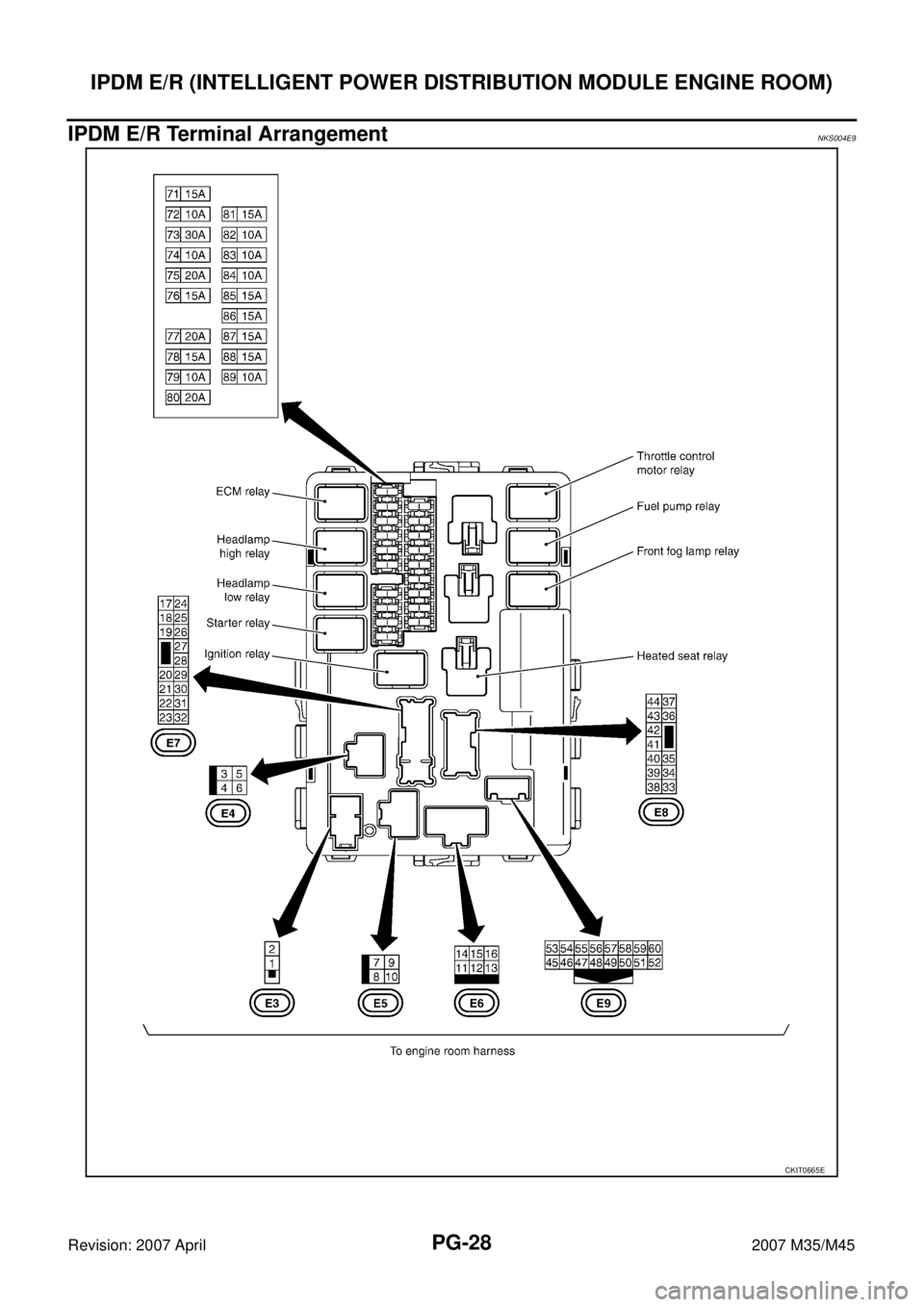

INFINITI M35 2007 Factory Service Manual PG-28 IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) Revision: 2007 April2007 M35/M45 IPDM E/R Terminal ArrangementNKS004E9 CKIT0665E

Page 3880 of 4647

INFINITI M35 2007 Factory Service Manual IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) PG-29 C D E F G H I J L MA B PG Revision: 2007 April2007 M35/M45 Check IPDM E/R Power Supply and Ground CircuitNKS004EA 1. CHECK FUSES AND
