INFINITI M35 2007 Factory Service Manual FSU-8
[2WD]
FRONT SUSPENSION ASSEMBLY
Revision: 2007 April2007 M35/M45
ComponentsNES000IC
SEIA0664E

Page 3114 of 4647

INFINITI M35 2007 Factory Service Manual FRONT SUSPENSION ASSEMBLY
FSU-9
[2WD]
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2007 April2007 M35/M45
.
Removal and Installation NES000ID
REMOVAL
1. For VK45DE engine models, disconnect related electric w

FRONT SUSPENSION ASSEMBLY
FSU-9
[2WD]
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2007 April2007 M35/M45
.
Removal and Installation NES000ID
REMOVAL
1. For VK45DE engine models, disconnect related electric wires and hoses from engine assembly to remove
front suspension member with engine assembly. Refer to EM-247, "
ENGINE ASSEMBLY" .
2. Remove cowl top panel and hood. Refer to EI-18, "
COWL TOP" , EI-17, "HOOD" .
3. For VQ35DE engine models, install engine slinger, and then hoist engine. Refer to EM-114, "
Removal and
Installation (2WD Models)" .
4. Remove tires from vehicle with a power tool.
5. Remove wheel sensor from steering knuckle. Refer to BRC-54, "
WHEEL SENSOR" .
CAUTION:
Do not pull on wheel sensor harness.
6. Remove brake hose bracket. Refer to BR-11, "
BRAKE TUBE AND HOSE" .
7. Remove undercover with a power tool.
8. Remove cotter pin (1), and then loosen the nut.
9. Remove steering outer socket (2) from steering knuckle (3) so
as not to damage ball joint boot (4) using the ball joint remover
(suitable tool).
CAUTION:
Temporarily tighten the nut to prevent damage to threads
and to prevent the ball joint remover (suitable tool) from
suddenly coming off.
10. Remove the mounting nut on the upper side of stabilizer con-
necting rod with a power tool, and then remove stabilizer con-
necting rod from transverse link.
11. Separate steering gear assembly and lower joint. Refer to PS-13, "
STEERING COLUMN" .
12. Remove rack stay. Refer to FSU-8, "
Components" .
13. Remove steering hydraulic piping bracket from front suspension member. Refer to PS-39, "
HYDRAULIC
LINE" .
14. Remove the mounting nut and bolt on the lower side of shock absorber with a power tool, and then
remove shock absorber from transverse link.
15. Remove cotter pin of transverse link and steering knuckle, and then loosen nut.
16. Set jack under front suspension member.
17. Remove transverse link from steering knuckle so as not to damage ball joint boot using the ball joint
remover (suitable tool)
CAUTION:
Temporarily tighten the nut to prevent damage to threads and to prevent ball joint remover (suit-
able tool) from suddenly coming off.
18. Remove the mounting nuts of engine mounting insulator. Refer to EM-114, "
ENGINE ASSEMBLY" .
19. Remove the mounting bolts of member bracket, and then remove member bracket from front suspension
member with a power tool. Refer to FSU-8, "
Components" .
20. Remove the mounting nut and bolts of member stay, and then remove member stay from front suspension
member and vehicle with a power tool.
21. Remove the mounting nut of front suspension member with a power tool. Refer to FSU-8, "
Components" .

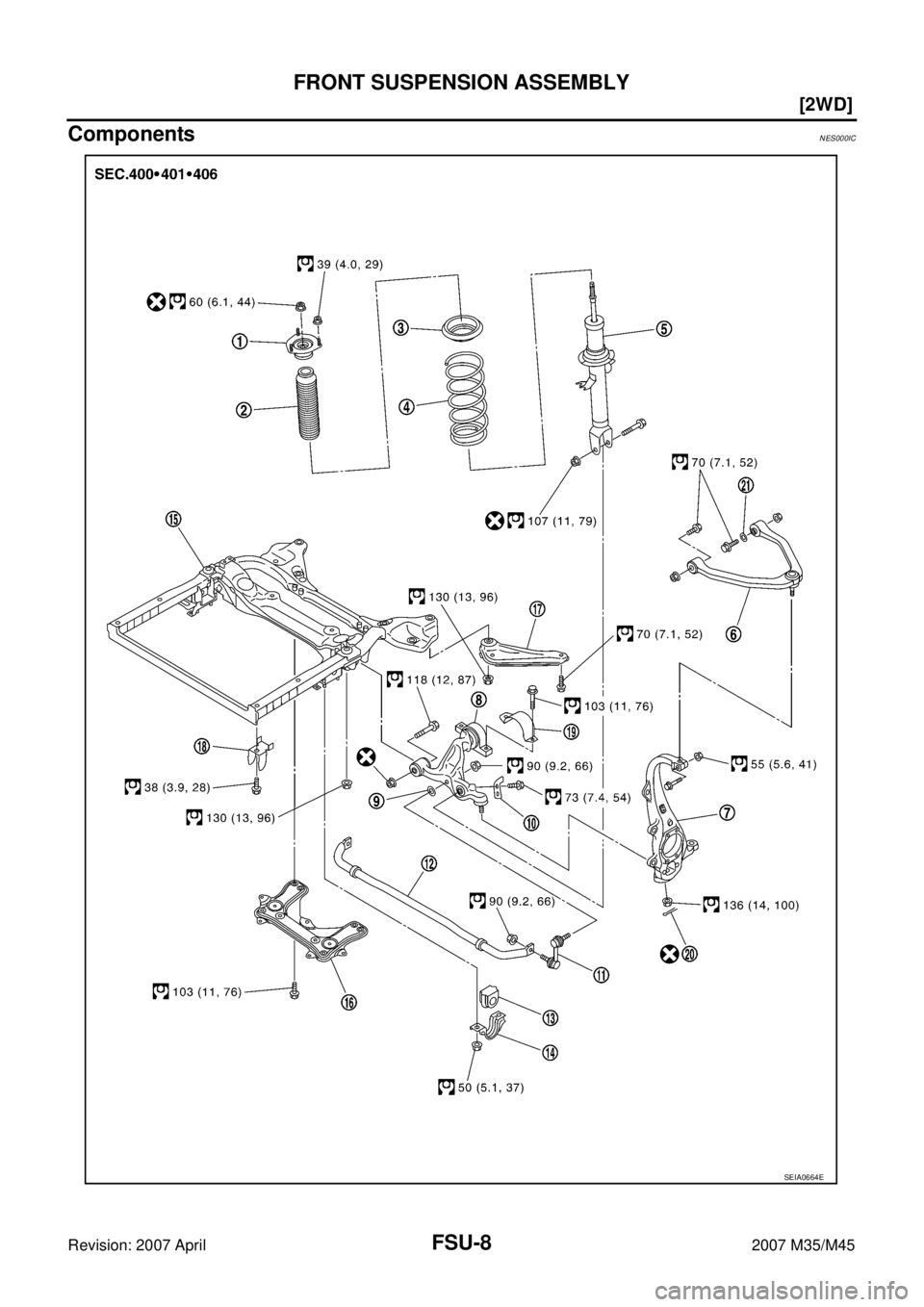

1. Shock absorber mounting bracket 2. Bound bumper 3. Rubber seat
4. Coil spring 5. Shock absorber 6. Upper link
7. Steering knuckle 8. Transverse link 9. Washer
10. Steering stopper bracket 11. Stabilizer connecting rod 12. Stabilizer bar
13. Stabilizer bushing 14. Stabilizer clamp 15. Front suspension member
16. Rack stay 17. Member stay 18. Member bracket
19. Clamp 20. Cotter pin 21. Stopper rubber
Refer to GI-11, "
Components" , for the symbols in the figure.
SGIA1183E

Page 3115 of 4647

INFINITI M35 2007 Factory Service Manual FSU-10
[2WD]
FRONT SUSPENSION ASSEMBLY
Revision: 2007 April2007 M35/M45
22. For VQ35DE engine models, gradually lower a jack to remove front suspension assembly from vehicle.
For VK45DE engine models,

Page 3116 of 4647

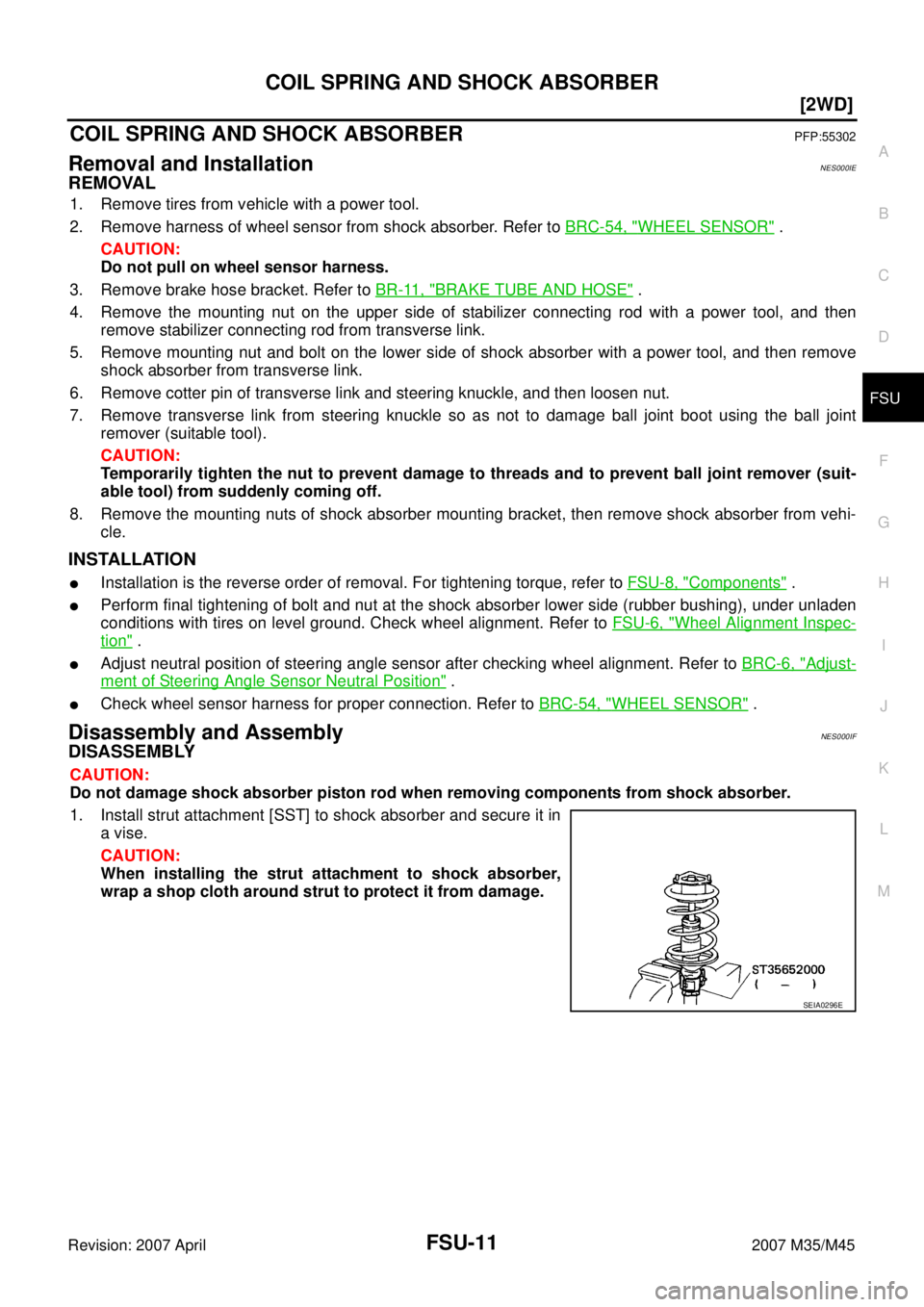

INFINITI M35 2007 Factory Service Manual COIL SPRING AND SHOCK ABSORBER
FSU-11
[2WD]
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2007 April2007 M35/M45
COIL SPRING AND SHOCK ABSORBERPFP:55302
Removal and InstallationNES000IE
REMOVAL
1. Remove tires

COIL SPRING AND SHOCK ABSORBER
FSU-11
[2WD]
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2007 April2007 M35/M45
COIL SPRING AND SHOCK ABSORBERPFP:55302
Removal and InstallationNES000IE
REMOVAL
1. Remove tires from vehicle with a power tool.
2. Remove harness of wheel sensor from shock absorber. Refer to BRC-54, "
WHEEL SENSOR" .
CAUTION:
Do not pull on wheel sensor harness.
3. Remove brake hose bracket. Refer to BR-11, "
BRAKE TUBE AND HOSE" .
4. Remove the mounting nut on the upper side of stabilizer connecting rod with a power tool, and then
remove stabilizer connecting rod from transverse link.
5. Remove mounting nut and bolt on the lower side of shock absorber with a power tool, and then remove
shock absorber from transverse link.
6. Remove cotter pin of transverse link and steering knuckle, and then loosen nut.
7. Remove transverse link from steering knuckle so as not to damage ball joint boot using the ball joint
remover (suitable tool).
CAUTION:
Temporarily tighten the nut to prevent damage to threads and to prevent ball joint remover (suit-
able tool) from suddenly coming off.
8. Remove the mounting nuts of shock absorber mounting bracket, then remove shock absorber from vehi-
cle.
INSTALLATION
Installation is the reverse order of removal. For tightening torque, refer to FSU-8, "Components" .
Perform final tightening of bolt and nut at the shock absorber lower side (rubber bushing), under unladen
conditions with tires on level ground. Check wheel alignment. Refer to FSU-6, "
Wheel Alignment Inspec-
tion" .
Adjust neutral position of steering angle sensor after checking wheel alignment. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .
Check wheel sensor harness for proper connection. Refer to BRC-54, "WHEEL SENSOR" .
Disassembly and AssemblyNES000IF
DISASSEMBLY
CAUTION:
Do not damage shock absorber piston rod when removing components from shock absorber.
1. Install strut attachment [SST] to shock absorber and secure it in
a vise.
CAUTION:
When installing the strut attachment to shock absorber,
wrap a shop cloth around strut to protect it from damage.
SEIA0296E

Page 3117 of 4647

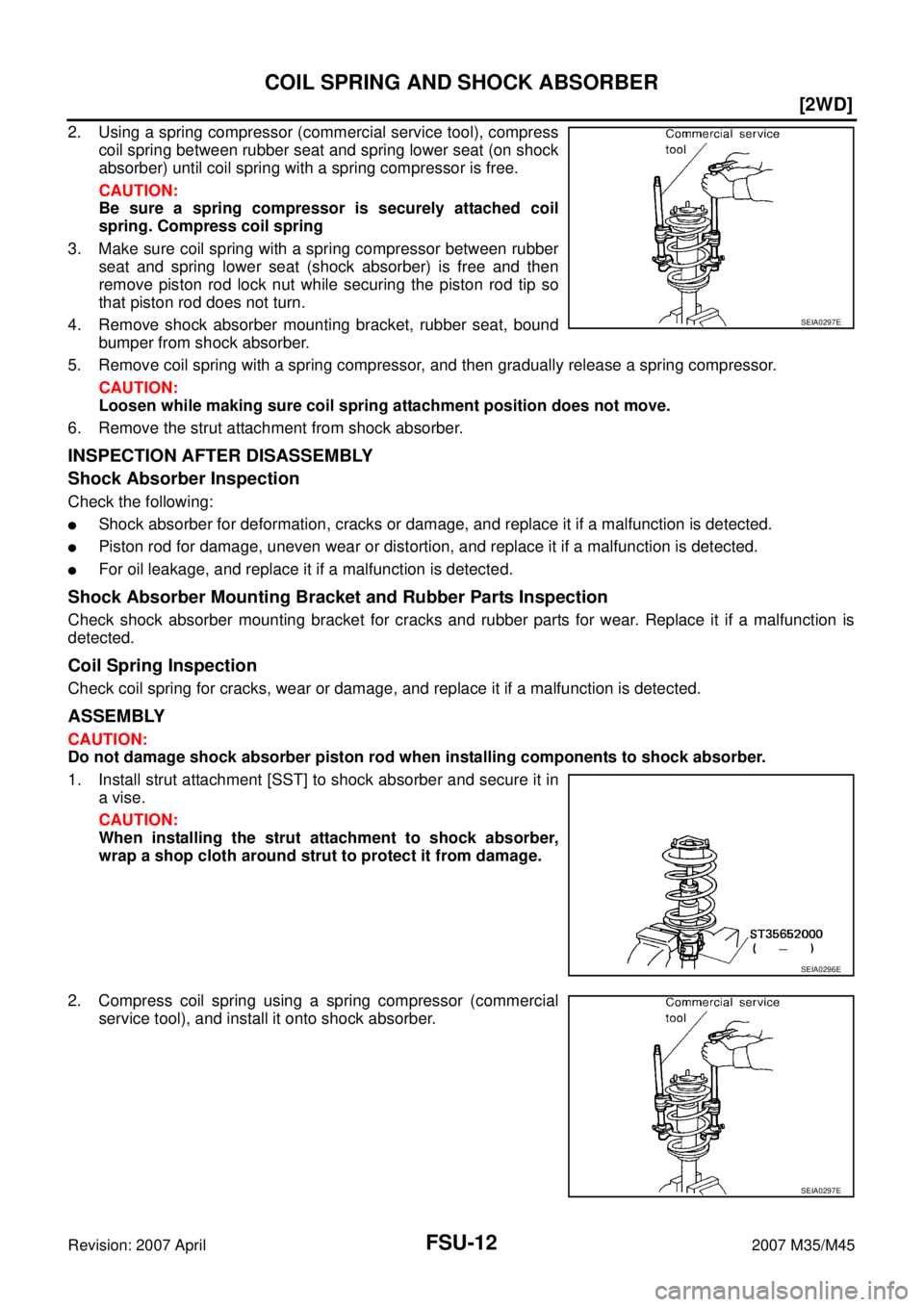

INFINITI M35 2007 Factory Service Manual FSU-12
[2WD]
COIL SPRING AND SHOCK ABSORBER
Revision: 2007 April2007 M35/M45
2. Using a spring compressor (commercial service tool), compress
coil spring between rubber seat and spring lower seat (on

Page 3118 of 4647

INFINITI M35 2007 Factory Service Manual COIL SPRING AND SHOCK ABSORBER
FSU-13
[2WD]
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2007 April2007 M35/M45
CAUTION:
Install coil spring as shown in the figure with large diame-
ter side [100 mm (3.94 in

Page 3119 of 4647

INFINITI M35 2007 Factory Service Manual FSU-14
[2WD]
TRANSVERSE LINK
Revision: 2007 April2007 M35/M45
TRANSVERSE LINKPFP:54500
Removal and InstallationNES000IG
REMOVAL
1. Remove tires from vehicle with a power tool.
2. Remove undercover wit

FSU-14
[2WD]
TRANSVERSE LINK
Revision: 2007 April2007 M35/M45
TRANSVERSE LINKPFP:54500
Removal and InstallationNES000IG
REMOVAL
1. Remove tires from vehicle with a power tool.
2. Remove undercover with a power tool.
3. Remove the mounting nut on the upper side of stabilizer connecting rod with a power tool, and then
remove stabilizer connecting rod from transverse link.
4. Separate steering gear assembly and lower joint. Refer to PS-13, "
STEERING COLUMN" .
5. Remove rack stay. Refer to FSU-8, "
Components" .
6. Remove the mounting nut and bolt on the lower side of shock absorber with a power tool, and then
remove shock absorber from transverse link.
7. Remove transverse link from steering knuckle. Refer to FAX-5, "
Removal and Installation" .
8. Set jack under front suspension member.
9. Remove the mounting bolts of member bracket, and then remove member bracket from front suspension
member with a power tool. Refer to FSU-8, "
Components" .
10. Remove the mounting nut and bolts of member stay, and then remove member stay from front suspension
member and vehicle with a power tool.
11. Remove the mounting nut of front suspension member with a power tool. Refer to FSU-8, "
Components" .
12. Gradually lower the suspension member to the position where transverse link mounting bolts is remove.
CAUTION:
Be careful not to lower it too far. (Do not overload the links)
13. Remove mounting nut and bolts, and then remove transverse link from vehicle.
INSPECTION AFTER REMOVAL
Visual Inspection
Check transverse link and bushing for deformation, cracks or damage. Replace it if a malfunction is
detected.
Check ball joint boot for cracks or other damage, and also for grease leakage. Replace it if a malfunction
is detected.
Ball Joint Inspection
Manually move ball stud to confirm it moves smoothly with no binding.
Swing Torque Inspection
NOTE:
Before measurement, move ball stud at least ten times by hand to check for smooth movement.
Hook a spring balance at cotter pin mounting hole. Confirm
spring balance measurement value is within specifications when
ball stud begins moving.
If it is outside the specified range, replace transverse link
assembly.Swing torque
: 0.5 - 3.6 N·m (0.06 - 0.36 kg-m, 5 - 31 in-lb)
Spring balance measurement
: 7.8 - 56.3 N (0.8 - 5.7 kg, 1.8 - 12.5 lb)
SEIA0523E

Page 3120 of 4647

INFINITI M35 2007 Factory Service Manual TRANSVERSE LINK
FSU-15
[2WD]
C
D
F
G
H
I
J
K
L
MA
B
FSU
Revision: 2007 April2007 M35/M45
Rotating Torque Inspection
Attach mounting nut to ball stud. Make sure that rotating torque
is within specific
