2007 INFINITI M35 Factory Service Manual

traction control pairing phone navigation instrument cluster oil type tyre pressure

Page 985 of 4647

INFINITI M35 2007 Factory Service Manual BL-52
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45
Hazard and Horn Reminder Function
When doors are locked or unlocked by Intelligent Key, Intelligent Key unit sends hazard and horn request

BL-52
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45
Hazard and Horn Reminder Function
When doors are locked or unlocked by Intelligent Key, Intelligent Key unit sends hazard and horn request sig-
nal to BCM via CAN communication line.
BCM flashes hazard warning lamps as a reminder and sends horn chirp signal to IPDM E/R. IPDM E/R
sounds horn as a reminder.

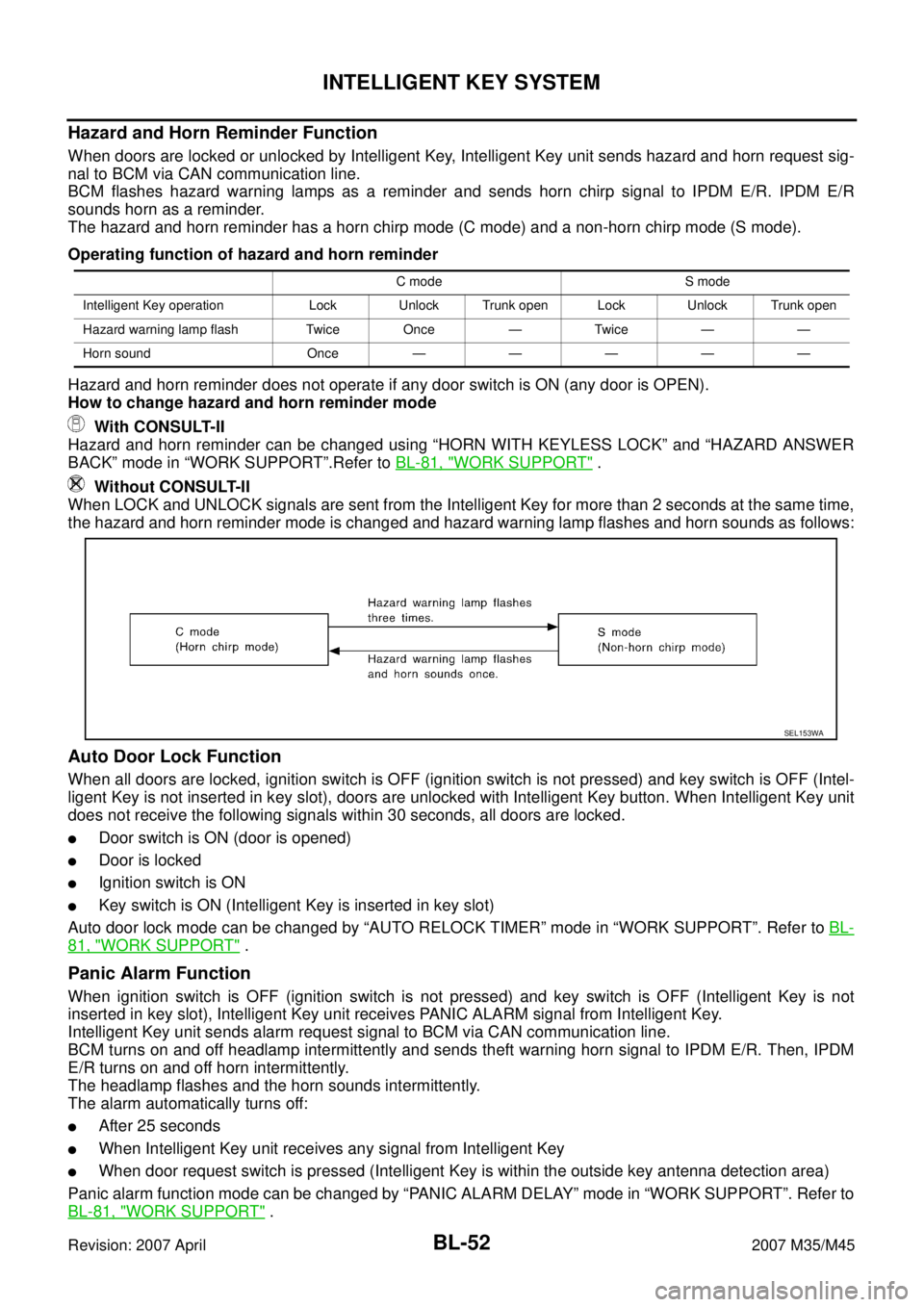

The hazard and horn reminder has a horn chirp mode (C mode) and a non-horn chirp mode (S mode).
Operating function of hazard and horn reminder
Hazard and horn reminder does not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder mode
With CONSULT-II
Hazard and horn reminder can be changed using “HORN WITH KEYLESS LOCK” and “HAZARD ANSWER
BACK” mode in “WORK SUPPORT”.Refer to BL-81, "
WORK SUPPORT" .
Without CONSULT-II
When LOCK and UNLOCK signals are sent from the Intelligent Key for more than 2 seconds at the same time,
the hazard and horn reminder mode is changed and hazard warning lamp flashes and horn sounds as follows:
Auto Door Lock Function
When all doors are locked, ignition switch is OFF (ignition switch is not pressed) and key switch is OFF (Intel-
ligent Key is not inserted in key slot), doors are unlocked with Intelligent Key button. When Intelligent Key unit
does not receive the following signals within 30 seconds, all doors are locked.
Door switch is ON (door is opened)
Door is locked
Ignition switch is ON
Key switch is ON (Intelligent Key is inserted in key slot)
Auto door lock mode can be changed by “AUTO RELOCK TIMER” mode in “WORK SUPPORT”. Refer to BL-
81, "WORK SUPPORT" .
Panic Alarm Function
When ignition switch is OFF (ignition switch is not pressed) and key switch is OFF (Intelligent Key is not
inserted in key slot), Intelligent Key unit receives PANIC ALARM signal from Intelligent Key.
Intelligent Key unit sends alarm request signal to BCM via CAN communication line.
BCM turns on and off headlamp intermittently and sends theft warning horn signal to IPDM E/R. Then, IPDM
E/R turns on and off horn intermittently.
The headlamp flashes and the horn sounds intermittently.
The alarm automatically turns off:
After 25 seconds
When Intelligent Key unit receives any signal from Intelligent Key
When door request switch is pressed (Intelligent Key is within the outside key antenna detection area)
Panic alarm function mode can be changed by “PANIC ALARM DELAY” mode in “WORK SUPPORT”. Refer to
BL-81, "
WORK SUPPORT" .
C mode S mode
Intelligent Key operation Lock Unlock Trunk open Lock Unlock Trunk open
Hazard warning lamp flash Twice Once — Twice — —
Horn sound Once—————
SEL153WA

Page 986 of 4647

INFINITI M35 2007 Factory Service Manual INTELLIGENT KEY SYSTEM
BL-53
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Keyless Power Window Down (Open) Function
All power windows open when the unlock button on Intelligent Key is ac

INTELLIGENT KEY SYSTEM
BL-53
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Keyless Power Window Down (Open) Function
All power windows open when the unlock button on Intelligent Key is activated and kept pressed for more than
3 seconds with the ignition switch OFF. The windows keep opening if the unlock button is continuously
pressed.
The power window opening stops when the following operations are performed:
When the unlock button is kept pressed more than 15 seconds.
When the ignition switch is turned ON while the power window opening is operated.
When the unlock button is released.
While retained power operation activate, Keyless power window down (open) Function cannot be operated.
Keyless power window down operation mode can be changed by “P/W DOWN DELAY” mode in “WORK SUP-
PORT”. Refer to BL-81, "
WORK SUPPORT" .
Room Lamp Illumination Operation
When the following conditions are met:
Condition of interior lamp switch is in DOOR position
Door switch OFF (all the doors are closed)
Intelligent Key system turns on interior lamp (for 30 seconds) by receiving UNLOCK signal from Intelligent
Key. For detailed description, refer to LT- 2 6 9 , "
ROOM LAMP TIMER OPERATION" .
List of Operation Related Parts
Parts marked with × are the parts related to operation.
ENGINE START FUNCTION
Refer to BL-125, "INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION" .
Remote keyless entry functions
Intelligent Key
Key slot
Door request switch (Driver, Passenger)
Door switch
Trunk room lamp switch
Door lock actuator
Trunk lid opener actuator
Intelligent Key warning buzzer
Intelligent Key unit
CAN communication system
BCM
Combination meter
Hazard warning lamp
Horn
IPDM E/R
Head lamp
Door lock/unlock function by remote control button×× × × ×××
Trunk open function by remote control button×× × × ×××
Hazard and horn reminder function× ××××××××
Selective unlock function××××××
Keyless power window down (open) function×× ×××
Auto door lock function×× × ×××
Panic alarm function× × ××× ×××

Page 987 of 4647

INFINITI M35 2007 Factory Service Manual BL-54
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45
WARNING FUNCTION
Operation Description
The warning function are as follows and are given to the user as warning information and warnings u

Page 988 of 4647

INFINITI M35 2007 Factory Service Manual INTELLIGENT KEY SYSTEM
BL-55
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Operation Condition
Once the following condition from below is established, alert or warning will be executed.
W

INTELLIGENT KEY SYSTEM
BL-55
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Operation Condition
Once the following condition from below is established, alert or warning will be executed.
Warning/Information functions Operation procedure
Intelligent Key system malfunctionWhen a malfunction is detected on Intelligent Key unit, “KEY” warning lamp
will illuminates.
OFF position warning For internal
Ignition switch: ACC position.
Door switch (driver side): ON (Door is open).
For externalOFF position warning (For internal) is in active mode, driver side door has
been closed.
NOTE:
OFF position (For external) active only when each of the sequence has
occurred as below: P position warning → ACC warning → OFF position warn-
ing (For internal) → OFF position warning (For internal)
P position warning
Shift position: Except P position
Engine is running to stopped (Ignition switch is ON to ACC)
ACC warning
During P position warning is in active mode, shift position has changed P
position.
Ignition switch: Except OFF position.
Take away warningDoor is open to close
Ignition switch: Except OFF position.
Door switch: ON to OFF (Door is open to close).
Intelligent Key can not be detected inside the vehicle.
Door is open
Door switch: ON (Door is open)
Key ID vilification every 5 seconds when registered Intelligent Key can not
be detected inside the vehicle.
Push-ignition switch
operation
Ignition switch: Except OFF position.
Press ignition switch.
Intelligent Key can not be detected inside the vehicle.
Take away through win-
dow
Engine is running.
Key ID vilification every 30 seconds when registered Intelligent Key can not
be detected inside the vehicle.
After vehicle speed verification, the registered Intelligent Key can not be
detect inside the vehicle.
Intelligent Key is
removed from key slot
When Intelligent Key is removed from key slot, Intelligent Key can not be
detected inside the vehicle.
Door lock operation
warningRequest switch operationWhen request switch is pushed (lock operation) under the following condi-
tions.
Door switch: ON (Any door is open).
Intelligent Key is inside vehicle.
Intelligent Key button
operationWhen Intelligent Key bottom is pushed (lock operation) under the following
conditions.
Door switch: ON (Any door is open).
For 3 seconds after Intelligent Key is removed from key slot.
Key warning
Ignition switch is OFF position.
Driver side door switch: ON (Driver side door is open).
Intelligent Key is inserted in key slot.
Intelligent Key insert information
Door switch: ON to OFF (Door is open to close).
Ignition switch: OFF to ON position.
Intelligent Key is out of key slot.
Intelligent Key can not be detected inside the vehicle.

Page 989 of 4647

INFINITI M35 2007 Factory Service Manual BL-56
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45

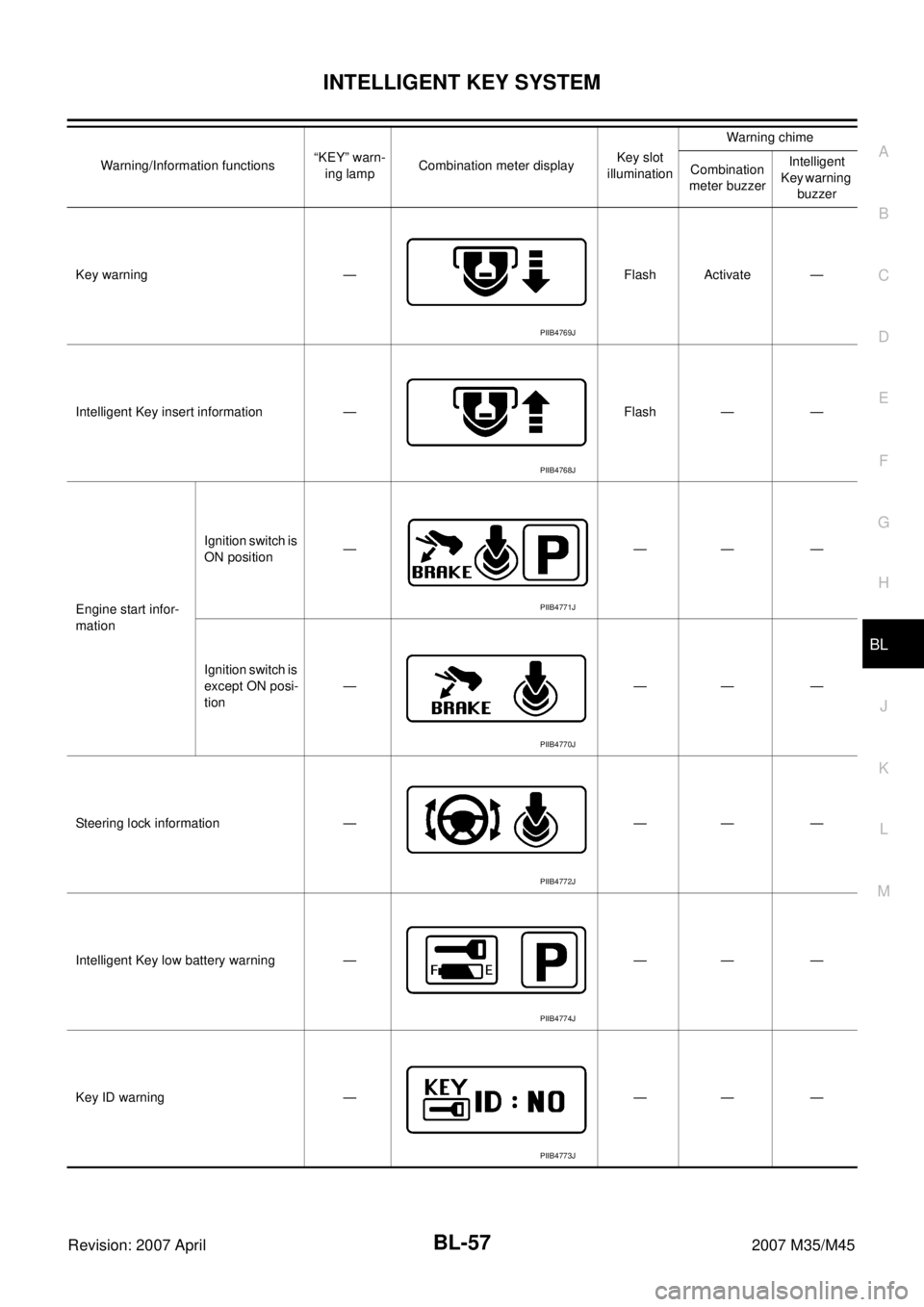

Warning Method
The following table shows the alarm or warning methods with chime.
Meter display, “KEY” indicator or key slot illuminat

Page 990 of 4647

INFINITI M35 2007 Factory Service Manual INTELLIGENT KEY SYSTEM
BL-57
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Key warning — Flash Activate —
Intelligent Key insert information — Flash — —
Engine start infor-
mati

Page 991 of 4647

INFINITI M35 2007 Factory Service Manual BL-58
INTELLIGENT KEY SYSTEM
Revision: 2007 April2007 M35/M45
List of Operation Related Parts
Parts marked with × are the parts related to operation.
Warning function
Intelligent Key
Key slot
Ignitio

Page 992 of 4647

INFINITI M35 2007 Factory Service Manual INTELLIGENT KEY SYSTEM
BL-59
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
CHANGE SETTINGS FUNCTION
The settings for each function can be changed with the CONSULT-II.
Changing Settings Us

INTELLIGENT KEY SYSTEM
BL-59
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
CHANGE SETTINGS FUNCTION
The settings for each function can be changed with the CONSULT-II.
Changing Settings Using CONSULT-II
The settings for the Intelligent Key system functions can be changed using CONSULT-II (WORK SUPPORT).
Refer to BL-81, "
WORK SUPPORT" .
NOTE:
Once a function setting is changed, it will remain effective even if the battery is disconnected.
INTELLIGENT KEY REGISTRATION
Intelligent Key-ID registration is performed using the CONSULT-II.
CAUTION:
After a new Intelligent Key-ID is registered, be sure to check the function.
When registering an additional Intelligent Key-ID, take any Intelligent Keys already registered and
Intelligent Keys for any other vehicles out of the vehicle before starting.
CONSULT-II can be used to check and delete Intelligent Key-IDs.
For future information, see Technical Bulletin.
STEERING LOCK UNIT REGISTRATION
Steering Lock Unit ID Registration
CAUTION:
The method for registering a steering lock unit ID depends on the status of the steering lock unit
and Intelligent Key unit (new or old unit).
After registration is completed, press ignition switch with an Intelligent Key in the vehicle so that it
can be turned, and confirm that it cannot be turned even when ignition switch is pressed without
an Intelligent Key in the vehicle.
For future information, see Technical Bulletin.
CAN Communication System DescriptionNIS001X9
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNIS001XA
Refer to LAN-50, "CAN System Specification Chart"
