![INFINITI M35 2007 Factory Service Manual EC-1288
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2007 April2007 M35/M45
Component InspectionNBS005MU
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector INFINITI M35 2007 Factory Service Manual EC-1288
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2007 April2007 M35/M45
Component InspectionNBS005MU
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector](/manual-img/42/57024/w960_57024-2816.png)
EC-1288
[VK45DE]
DTC P1572 ICC BRAKE SWITCH
Revision: 2007 April2007 M35/M45
Component InspectionNBS005MU
ICC BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ICC brake switch harness connector.
3. Check continuity between ICC brake switch terminals 1 and 2
under the following conditions.
4. If NG, adjust ICC brake switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
STOP LAMP SWITCH
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check continuity between stop lamp switch terminals 1 and 2
under the following conditions.
4. If NG, adjust stop lamp switch installation, refer to BR-6,
"BRAKE PEDAL" , and perform step 3 again.
ICC BRAKE HOLD RELAY
1. Check continuity between ICC brake hold relay terminals 3 and
5 under the following conditions.
2. If NG, replace ICC brake hold relay.
Condition Continuity
Brake pedal: Fully released Should exist
Brake pedal: Slightly depressed Should not exist
PBIB1536E
Condition Continuity
Brake pedal: Fully released Should not exist
Brake pedal: Slightly depressed Should exist
PBIA9489J
Condition Continuity
12V direct current supply between terminals
1 and 2Should not exist
No current supply Should exist
PBIB0098E
Page 2818 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P1572 ASCD BRAKE SWITCH
EC-1289
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionNBS005MV
When the brake pedal is depre INFINITI M35 2007 Factory Service Manual DTC P1572 ASCD BRAKE SWITCH
EC-1289
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionNBS005MV
When the brake pedal is depre](/manual-img/42/57024/w960_57024-2817.png)
DTC P1572 ASCD BRAKE SWITCH
EC-1289
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
DTC P1572 ASCD BRAKE SWITCHPFP:25320
Component DescriptionNBS005MV
When the brake pedal is depressed, ASCD brake switch (2) is
turned OFF and stop lamp switch (1) is turned ON. ECM detects the
state of the brake pedal by this input of two kinds (ON/OFF signal).
Refer to EC-738, "
AUTOMATIC SPEED CONTROL DEVICE
(ASCD)" for the ASCD function.
CONSULT-II Reference Value in Data Monitor ModeNBS005MW
Specification data are reference values.
On Board Diagnosis LogicNBS005MX
This self-diagnosis has the one trip detection logic.
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1572 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605.
Refer to EC-1190, "
DTC P0605 ECM" .
This self-diagnosis has the one trip detection logic. When malfunction A is detected, DTC is not
stored in ECM memory. And in that case, 1st trip DTC and 1st trip freeze frame data are displayed.
1st trip DTC is erased when ignition switch OFF. And even when malfunction A is detected in two
consecutive trips, DTC is not stored in ECM memory.
PBIB2705E
MONITOR ITEM CONDITION SPECIFICATION
BRAKE SW1
(ASCD brake switch)
Ignition switch: ONBrake pedal: Fully released ON
Brake pedal: Slightly depressed OFF
BRAKE SW2
(Stop lamp switch)
Ignition switch: ONBrake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1572
1572ASCD brake switchA)When the vehicle speed is above 30 km/h
(19 MPH), ON signals from the stop lamp
switch and the ASCD brake switch are sent
to the ECM at the same time.
Harness or connectors
(The stop lamp switch circuit is shorted.)
Harness or connectors
(The ASCD brake switch circuit is
shorted.)
Stop lamp switch
ASCD brake switch
Incorrect stop lamp switch installation
Incorrect ASCD brake switch installation
ECM B)ASCD brake switch signal is not sent to
ECM for extremely long time while the vehi-
cle is driving.
Page 2819 of 4647
![INFINITI M35 2007 Factory Service Manual EC-1290
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS005MY
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has INFINITI M35 2007 Factory Service Manual EC-1290
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS005MY
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has](/manual-img/42/57024/w960_57024-2818.png)
EC-1290
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2007 April2007 M35/M45
DTC Confirmation ProcedureNBS005MY
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait
at least 10 seconds before conducting the next test.
Procedure for malfunction B is not described here. It takes extremely long time to complete procedure for
malfunction B. By performing procedure for malfunction A, the incident that causes malfunction B can be
detected.
TESTING CONDITION:
Steps 4 and 5 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-II
1. Start engine (VDC switch OFF).
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Press MAIN switch and make sure that CRUISE lamp lights up.
4. Drive the vehicle for at least 5 consecutive seconds under the
following conditions.
If 1st trip DTC is detected, go to EC-1292, "
Diagnostic Proce-
dure" .
If 1st trip DTC is not detected, go to the following step.
5. Drive the vehicle for at least 5 consecutive seconds under the following conditions.
6. If 1st trip DTC is detected, go to EC-1292, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
PBIB2386E
VHCL SPEED SE More than 30 km/h (19 MPH)
Selector lever Suitable position
Driving locationDepress the brake pedal for more than
five seconds so as not to come off from
the above-mentioned vehicle speed.
Page 2820 of 4647
DTC P1572 ASCD BRAKE SWITCH
EC-1291
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45

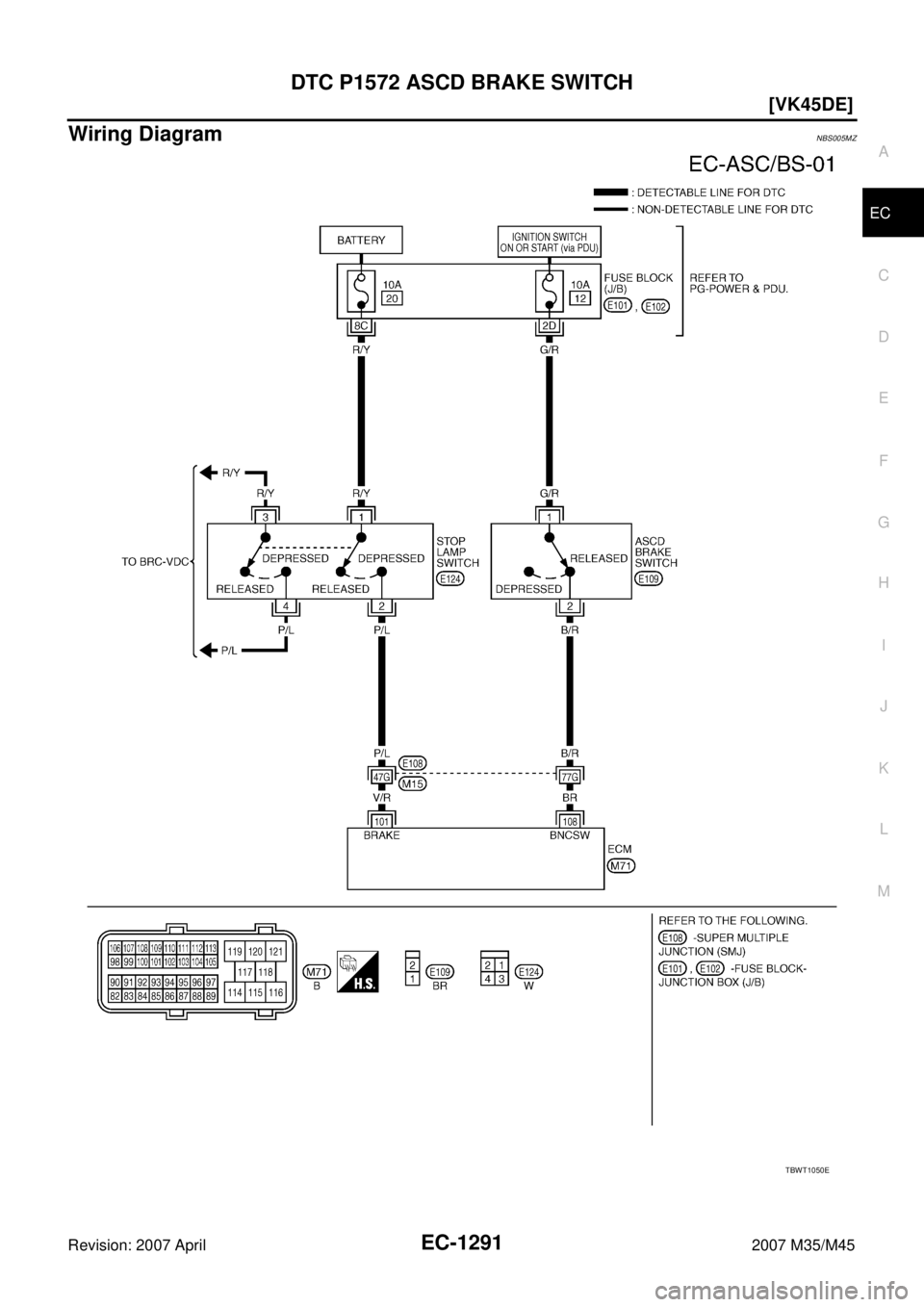

Wiring Diagram NBS005MZ
TBWT1050E
Page 2821 of 4647
![INFINITI M35 2007 Factory Service Manual EC-1292
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground INFINITI M35 2007 Factory Service Manual EC-1292
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground](/manual-img/42/57024/w960_57024-2820.png)
EC-1292
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS005N0
1. CHECK OVERALL FUNCTION-I
With CONSULT-II
1. Turn ignition switch ON.
2. Select “BRAKE SW1” in “DATA MONITOR” mode with CONSULT-II.
3. Check “BRAKE SW1” indication under the following conditions.
Without CONSULT-II
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 108 and ground under the
following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
101 V/R Stop lamp switch[Ignition switch: OFF]
Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]
Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V)
108 BR ASCD brake switch[Ignition switch: ON]
Brake pedal: Slightly depressedApproximately 0V
[Ignition switch: ON]
Brake pedal: Fully releasedBATTERY VOLTAGE
(11 - 14V)
CONDITION INDICATION
Brake pedal: Slightly depressed OFF
Brake pedal: Fully released ON
SEC011D
CONDITION VOLTAGE
Brake pedal: Slightly depressed Approximately 0V
Brake pedal: Fully released Battery voltage
MBIB0061E
Page 2822 of 4647
DTC P1572 ASCD BRAKE SWITCH
EC-1293
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
2. CHECK OVERALL FUNCTION-II
With CONSULT-II
Check “BRAKE SW2” indication in “DATA MONITOR” mode.
Without CONSULT-II
Check voltage between ECM terminal 101 and ground under the following conditions.
OK or NG
OK >> GO TO 13.
NG >> GO TO 8.
CONDITION INDICATION
Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
SEC013D
CONDITION VOLTAGE
Brake pedal: Fully released Approximately 0V
Brake pedal: Slightly depressed Battery voltage
PBIB1537E
Page 2823 of 4647
![INFINITI M35 2007 Factory Service Manual EC-1294
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2007 April2007 M35/M45
3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch (2) harness c INFINITI M35 2007 Factory Service Manual EC-1294
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2007 April2007 M35/M45
3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch (2) harness c](/manual-img/42/57024/w960_57024-2822.png)
EC-1294
[VK45DE]
DTC P1572 ASCD BRAKE SWITCH
Revision: 2007 April2007 M35/M45
3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch (2) harness connector.
–Stop lamp switch (1)
3. Turn ignition switch ON.
4. Check voltage between ASCD brake switch terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E102
10A fuse
Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness for open or short between ECM and ASCD brake switch
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2705E
Voltage: Battery voltage
PBIB0857E
Continuity should exist.
Page 2824 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P1572 ASCD BRAKE SWITCH
EC-1295
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
7. CHECK ASCD BRAKE SWITCH
Refer to EC-1296, "
Component Inspection"
OK or NG
OK >> GO TO 13.
INFINITI M35 2007 Factory Service Manual DTC P1572 ASCD BRAKE SWITCH
EC-1295
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
7. CHECK ASCD BRAKE SWITCH
Refer to EC-1296, "
Component Inspection"
OK or NG
OK >> GO TO 13.](/manual-img/42/57024/w960_57024-2823.png)
DTC P1572 ASCD BRAKE SWITCH
EC-1295
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
7. CHECK ASCD BRAKE SWITCH
Refer to EC-1296, "
Component Inspection"
OK or NG
OK >> GO TO 13.
NG >> Replace ASCD brake switch.
8. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect stop lamp switch (1) harness connector.
–ASCD brake switch (2)
3. Check voltage between stop lamp switch terminal 1 and ground
with CONSULT -II or tester.
OK or NG
OK >> GO TO 10.
NG >> GO TO 9.
9. DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E101
10A fuse
Harness for open or short between stop lamp switch and battery
>> Repair open circuit or short to ground or short to power in harness or connectors.
10. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> GO TO 11.
PBIB2705E
Voltage: Battery voltage
PBIA9488J
Continuity should exist.
