WT-20
TROUBLE DIAGNOSES
Revision: 2007 April2007 M35/M45
WORK SUPPORT MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. Perform the “ID Regist”. Refer to WT-18, "
ID Registration Procedure" .
SELF-DIAG RESULT MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. The self-diagnostic results are displayed. (Touch “PRINT” to print out the self-diagnostic results if neces-
sary.) Check low tire pressure warning lamp if “NO FAILURE” is displayed.
3. Perform the appropriate inspection from the display item list, and repair or replace the malfunctioning
component. Refer to WT-20, "
Display Item List" .
Display Item List
DTCItems
(CONSULT-II screen terms)Diagnostic item is detected when ···Check
items
C1704 LOW PRESSURE FL
Front LH tire pressure drops to * kPa (* kg/cm
2 , * psi) or less. (Notice)
— C1705 LOW PRESSURE FR
Front RH tire pressure drops to * kPa (* kg/cm
2 , * psi) or less. (Notice)
C1706 LOW PRESSURE RR
Rear RH tire pressure drops to * kPa (* kg/cm
2 , * psi) or less. (Notice)
C1707 LOW PRESSURE RL
Rear LH tire pressure drops to * kPa (* kg/cm
2 , * psi) or less. (Notice)
C1708 [NO DATA] FL Data from front LH transmitter cannot be received.
WT-29
C1709 [NO DATA] FR Data from front RH transmitter cannot be received.
C1710 [NO DATA] RR Data from rear RH transmitter cannot be received.
C1711 [NO DATA] RL Data from rear LH transmitter cannot be received.
C1716 [PRESSDATA ERR] FL Air pressure data from front LH transmitter is malfunctioning.
WT-31
C1717 [PRESSDATA ERR] FR Air pressure data from front RH transmitter is malfunctioning.
C1718 [PRESSDATA ERR] RR Air pressure data from rear RH transmitter is malfunctioning.
C1719 [PRESSDATA ERR] RL Air pressure data from rear LH transmitter is malfunctioning.
C1720 [CODE ERROR] FL Function code data from front LH transmitter is malfunctioning.
WT-32
C1721 [CODE ERROR] FR Function code data from front RH transmitter is malfunctioning.
C1722 [CODE ERROR] RR Function code data from rear RH transmitter is malfunctioning.
C1723 [CODE ERROR] RL Function code data from rear LH transmitter is malfunctioning.
C1724 [BATT VOLT LOW] FL Battery voltage of front LH transmitter drops.
WT-32
C1725 [BATT VOLT LOW] FR Battery voltage of front RH transmitter drops.
C1726 [BATT VOLT LOW] RR Battery voltage of rear RH transmitter drops.
C1727 [BATT VOLT LOW] RL Battery voltage of rear LH transmitter drops.
C1728 RECEIVER ID NO REG ID registration of receiver is not completed.WT-33
C1729 VHCL SPEED SIG ERR Vehicle speed signal is error.WT-33
C1750 [RECEIVER ERR] FL Data from front LH receiver cannot be received.
WT-30
C1751 [RECEIVER ERR] FR Data from front RH receiver cannot be received.
C1752 [RECEIVER ERR] RR Data from rear RH receiver cannot be received.
C1753 [RECEIVER ERR] RL Data from rear LH receiver cannot be received.
C1754 CONTROL UNIT (EEPROM)When the malfunction is detected in low tire pressure warning control
unit memory [CONTROL UNIT (EEPROM)] function.WT-34
U1000 CAN COMM CIRCUITWhen a low tire pressure warning control unit is not transmitting or
receiving CAN communication signal 2 seconds or more. WT-34
U1010 CONTROL UNIT [CAN]When detecting error during the initial diagnosis of CAN controller of
low tire pressure warning control unit.WT-34
Page 4570 of 4647

TROUBLE DIAGNOSES
WT-21
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2007 April2007 M35/M45
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from that dis-
played on CONSULT-II.
NOTICE:
182 kPa (1.82 kg/cm
2 , 26.5 psi): Standard air pressure is for 230 kpa (2.3 kg/cm2 , 33 psi) vehicles.
How to Erase Self-Diagnostic Results
1. Perform applicable inspection of malfunctioning item and then repair or replace.
2. Start engine, and touch “START (NISSAN BASED VHCL)” “AIR PRESSURE MONITOR” “SELF-DIAG
RESULTS” “ERASE” in this order to erase the diagnostic memory.
CAUTION:
If memory cannot be erased, repeat step 1, 2.
3. Perform self-diagnosis again, and make sure that DTC memory is erased.
DATA MONITOR MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. Touch “DATA MONITOR”.
3. Select from “SELECT MONITOR ITEM”, screen of data monitor is displayed.
NOTE:
When malfunction is detected, CONSULT-II performs REAL-TIME DIAGNOSIS. Also, any malfunction
detected while in this mode will be displayed in real time.
Display Item List
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from that dis-
played on CONSULT-II.MONITOR CONDITION SPECIFICATION
VEHICLE SPEED SE Drive vehicle. Vehicle speed (km/h or MPH)
AIR PRESS FL
AIR PRESS FR
AIR PRESS RR
AIR PRESS RL
Drive vehicle for a few minutes.
Tire pressure (kPa or Psi) or
Ignition switch ON and activation tool is
transmitting activation signals.
ID REGST FL
ID REGST FR
ID REGST RR
ID REGST RL
Ignition switch ONRegistration ID: DONE
No registration ID: YET
WARNING LAMPLow tire pressure warning lamp on: ON
Low tire pressure warning lamp off: OFF
BUZZERBuzzer in combination meter on: ON
Buzzer in combination meter off: OFF
Page 4571 of 4647

WT-22
TROUBLE DIAGNOSES
Revision: 2007 April2007 M35/M45
ACTIVE TEST MODE
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. “ACTIVE TEST” is displayed.
Display Item List
NOTE:
Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from that dis-
played on CONSULT-II.
LOW TIRE PRESSURE WARNING CONTROL UNIT PART NUMBER
Operation Procedure
1. Perform “CONSULT-II Start Procedure”. Refer to GI-38, "CONSULT-II Start Procedure" .
2. The part number described on low tire pressure warning control unit sticker is displayed.
Diagnosis Procedure with Warning Lamp Function (Without CONSULT-II)NES000K6
DESCRIPTION
During driving, the tire pressure monitoring system receives the signal transmitted from the transmitter
installed in each wheel when the tire pressure becomes low. The control unit (low tire pressure warning control
unit) of this system has pressure judgement and trouble diagnosis functions.
FUNCTION
When the tire pressure monitoring system detects low inflation pressure or another unusual symptom, the
warning lamps in the combination meter comes on. To start the self-diagnostic results mode, ground terminal
of the tire pressure warning check connector. The malfunction location is indicated by the warning lamp flash-
ing. Regarding location of tire pressure warning check connector, refer to PG-62, "
HARNESS" .
Test item Content
BUZZER This test is able to check to make sure that the buzzer sounds.
WARNING LAMP This test is able to check to make sure that the warning lamp turns on.
Page 4572 of 4647

TROUBLE DIAGNOSES
WT-23
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2007 April2007 M35/M45
LOW TIRE PRESSURE WARNING LAMP DIAGNOSTIC CHART
Diagnosis
ItemSymptom
(Ignition switch ON)Low tire pressure warning lamp Cause Action
Low tire pres-
sure warning
lampWarning light comes
on immediately and
turns off after 1 sec-
ond.All wheel transmit-
ters are “activated”
(working).None (system OK)
Warning light blinks
on for 2 seconds,
then turns off for 0.2
seconds-repeats.All wheel transmit-
ters are not acti-
vated.Activate all wheel tire pres-
sure transmitters. Refer to
WT-19, "
Transmitter Wake Up
Operation" .
Warning light blinks
1 time.Tire pressure trans-
mitter front LH is not
activated.Activate tire pressure trans-
mitter front LH. Refer to WT-
19, "Transmitter Wake Up
Operation" .
Warning light blinks
2 times.Tire pressure trans-
mitter front RH is not
activated.Activate tire pressure trans-
mitter front RH. Refer to WT-
19, "Transmitter Wake Up
Operation" .
Warning light blinks
3 times.Tire pressure trans-
mitter rear RH is not
activated.Activate tire pressure trans-
mitter rear RH. Refer to WT-
19, "Transmitter Wake Up
Operation" .
SEIA0592E
SEIA0593E
SEIA0594E
SEIA0595E
SEIA0596E
Page 4573 of 4647

WT-24
TROUBLE DIAGNOSES
Revision: 2007 April2007 M35/M45

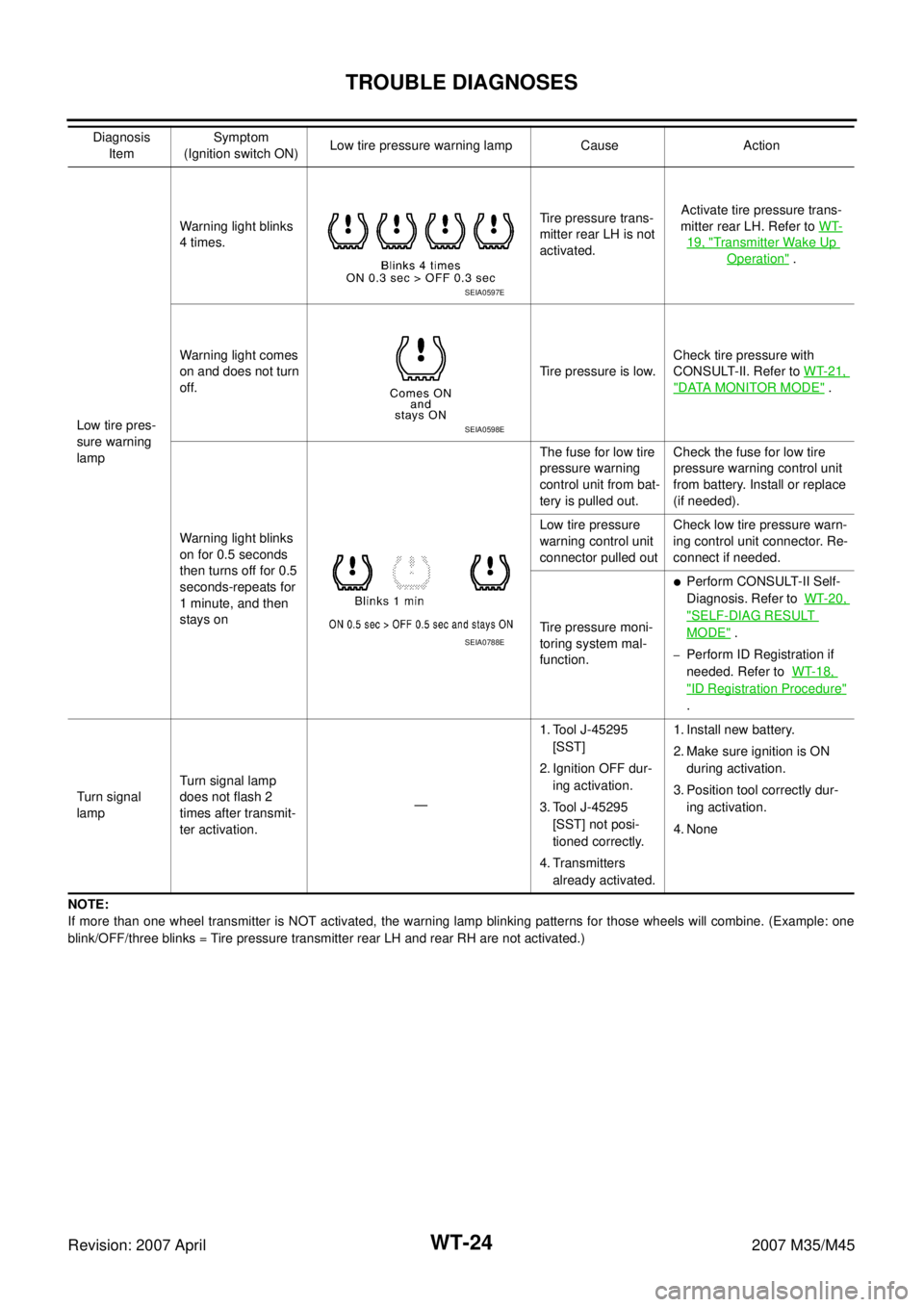

NOTE:
If more than one wheel transmitter is NOT activated, the warning lamp blinking patterns for those wheels will combine. (Example: one
blink/OFF/three blinks = Tire pressure transmitter rear LH and rear RH are not activated.)Low tire pres-
sure warning
lampWarning light blinks
4 times.Tire pressure trans-
mitter rear LH is not
activated.Activate tire pressure trans-
mitter rear LH. Refer to WT-
19, "Transmitter Wake Up
Operation" .
Warning light comes
on and does not turn
off.Tire pressure is low.Check tire pressure with
CONSULT-II. Refer to WT-21,
"DATA MONITOR MODE" .
Warning light blinks
on for 0.5 seconds
then turns off for 0.5
seconds-repeats for
1 minute, and then
stays onThe fuse for low tire
pressure warning
control unit from bat-
tery is pulled out.Check the fuse for low tire
pressure warning control unit
from battery. Install or replace
(if needed).
Low tire pressure
warning control unit
connector pulled outCheck low tire pressure warn-
ing control unit connector. Re-
connect if needed.
Tire pressure moni-
toring system mal-
function.
Perform CONSULT-II Self-
Diagnosis. Refer to WT-20,
"SELF-DIAG RESULT
MODE" .
–Perform ID Registration if
needed. Refer to WT-18,
"ID Registration Procedure"
.
Turn signal
lampTurn signal lamp
does not flash 2
times after transmit-
ter activation.—1. Tool J-45295
[SST]
2. Ignition OFF dur-
ing activation.
3. Tool J-45295
[SST] not posi-
tioned correctly.
4. Transmitters
already activated.1. Install new battery.
2. Make sure ignition is ON
during activation.
3. Position tool correctly dur-
ing activation.
4. None Diagnosis
ItemSymptom
(Ignition switch ON)Low tire pressure warning lamp Cause Action
SEIA0597E
SEIA0598E
SEIA0788E
Page 4574 of 4647
TROUBLE DIAGNOSES
WT-25
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2007 April2007 M35/M45
How to Perform Trouble Diagnosis for Quick and Accurate RepairNES000K7
INTRODUCTION
Before troubleshooting, verify customer complaints.
If a vehicle malfunction is difficult to reproduce, harnesses, harness connectors or terminals may be mal-
functioning. Hold and shake these parts to make sure they are securely connected.
When using a circuit tester to measure voltage or resistance of each circuit, be careful not to damage or
deform connector terminals.

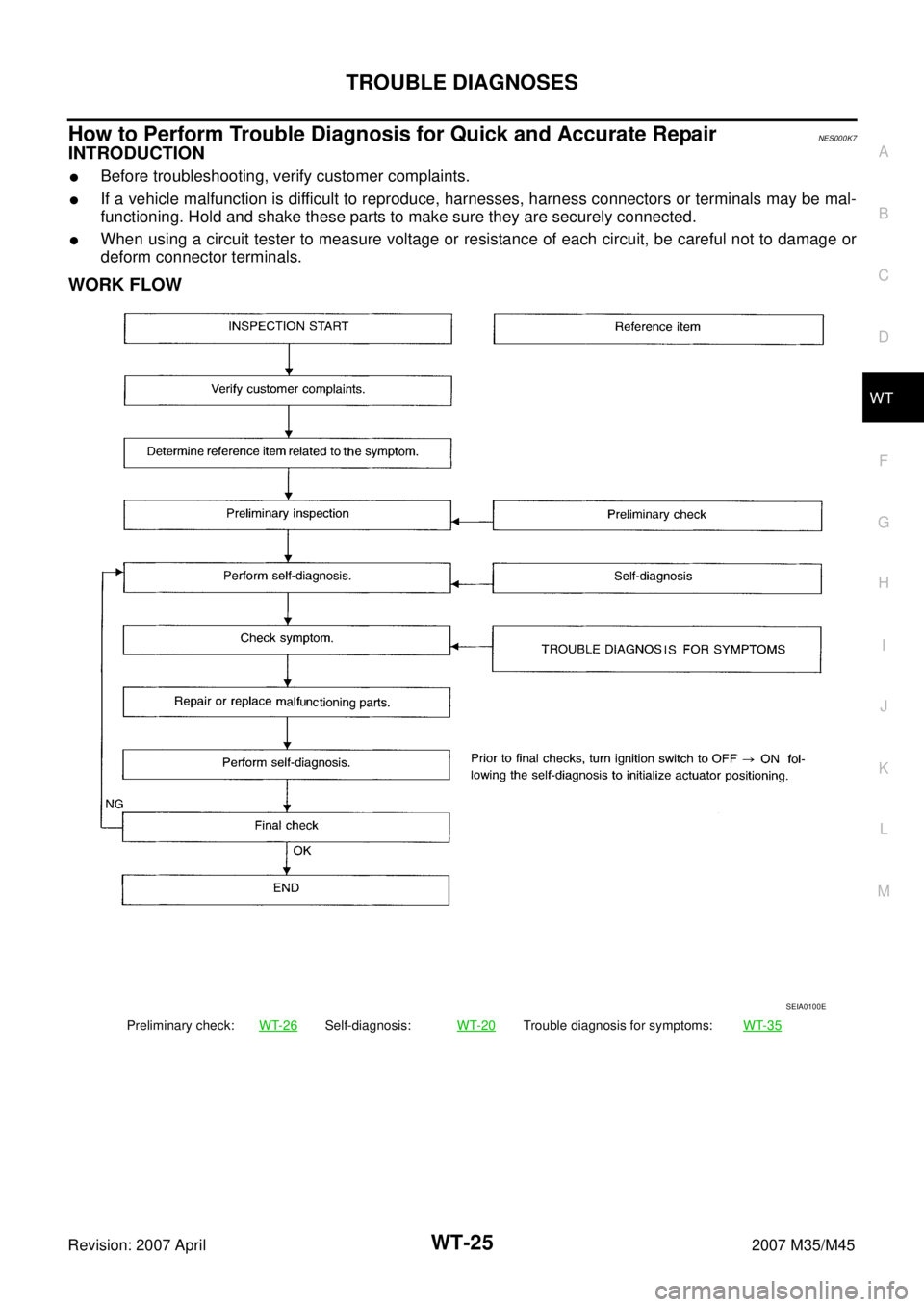

WORK FLOW
Preliminary check:WT-26Self-diagnosis:WT-20Trouble diagnosis for symptoms:WT-35
SEIA0100E
Page 4575 of 4647
WT-26
TROUBLE DIAGNOSES
Revision: 2007 April2007 M35/M45
Preliminary CheckNES000K8
BASIC INSPECTION
1. CHECK ALL TIRE PRESSURES
Check all tire pressures. Refer to WT-41, "
SERVICE DATA AND SPECIFICATIONS (SDS)" .
OK or NG
OK >> GO TO 2.
NG >> Adjust tire pressure to specified value.
2. CHECK LOW TIRE PRESSURE WARNING LAMP ACTIVATION
1. Check low tire pressure warning lamp activation.
2. Does low tire pressure warning lamp activate for 1 second when ignition switch is turned “ON”.
Does warning lamp activate?
YES >> GO TO 3.
NO >> Check fuse and combination meter. Refer to DI-5, "
COMBINATION METERS" .
3. CHECK CONNECTOR
1. Disconnect low tire pressure warning control unit harness connectors M19.
2. Check terminals for damage or loose connection.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace damaged parts.
4. CHECK ACTIVATION TOOL
Check activation tool battery.
OK or NG
OK >> Perform self-diagnosis.
NG >> Replace activation tool battery.
Page 4576 of 4647

TROUBLE DIAGNOSES
WT-27
C
D
F
G
H
I
J
K
L
MA
B
WT
Revision: 2007 April2007 M35/M45
Trouble Diagnosis ChartNES000K9
SELF-DIAGNOSIS
NOTICE:
182 kPa (1.82 kg/cm2 , 26.5 psi): Standard air pressure is for 230 kpa (2.3 kg/cm2 , 33 psi) vehicles. Item
Reference Self-diagnosis function CONSULT-II
DTC (warning lamp blinks) Diagnosis item Diagnosis item
15Front LH tire pressure drops to * kPa (* kg/
cm
2 , * psi) or less. (Notice)LOW PRESSURE FL
— 16Front RH tire pressure drops to * kPa (* kg/
cm
2 , * psi) or less. (Notice)LOW PRESSURE FR
17Rear RH tire pressure drops to * kPa (* kg/
cm
2 , * psi) or less. (Notice)LOW PRESSURE RR
18Rear LH tire pressure drops to * kPa (* kg/
cm
2 , * psi) or less. (Notice)LOW PRESSURE RL
21 Transmitter no data (front LH) [NO DATA] FL
WT-29
22 Transmitter no data (front RH) [NO DATA] FR
23 Transmitter no data (rear RH) [NO DATA] RR
24 Transmitter no data (rear LH) [NO DATA] RL
25 Receiver data error (front LH) [RECEIVER ERR] FL
WT-30
26 Receiver data error (front RH) [RECEIVER ERR] FR
27 Receiver data error (rear RH) [RECEIVER ERR] RR
28 Receiver data error (rear LH) [RECEIVER ERR] RL
35 Transmitter pressure data error (front LH) [PRESSDATA ERR] FL
WT-31
36 Transmitter pressure data error (front RH) [PRESSDATA ERR] FR
37 Transmitter pressure data error (rear RH) [PRESSDATA ERR] RR
38 Transmitter pressure data error (rear LH) [PRESSDATA ERR] RL
41 Transmitter function code error (front LH) [CODE ERROR] FL
WT-32
42 Transmitter function code error (front RH) [CODE ERROR] FR
43 Transmitter function code error (rear RH) [CODE ERROR] RR
44 Transmitter function code error (rear LH) [CODE ERROR] RL
45 Transmitter battery voltage low (front LH) [BATT VOLT LOW] FL
WT-32
46 Transmitter battery voltage low (front RH) [BATT VOLT LOW] FR
47 Transmitter battery voltage low (rear RH) [BATT VOLT LOW] RR
48 Transmitter battery voltage low (rear LH) [BATT VOLT LOW] RL
51 Receiver ID no registration RECEIVER ID NO REGWT-33
52 Vehicle speed signal VHCL SPED SIG ERRWT-33
54 Control unit (EEPROM) malfunction CONTROL UNIT (EEPROM)WT-34
— CAN COMM CIRCUITWT-34
— CONTROL UNIT [CAN]WT-34
