EC-1256
[VK45DE]
DTC P1553 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between battery current sensor terminal 3 and ECM terminal 71.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E73, F68
Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK BATTERY CURRENT SENSOR
Refer to EC-1256, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace battery negative cable assembly.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-857, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS005LZ
BATTERY CURRENT SENSOR
1. Reconnect harness connectors disconnected.
2. Disconnect battery negative cable (1).
: To body ground
3. Install jumper cable A between battery negative terminal and
body ground.
4. Turn ignition switch ON.Continuity should exist.
PBIB2724E
Page 2786 of 4647
DTC P1553 BATTERY CURRENT SENSOR
EC-1257
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
5. Check voltage between ECM terminal 71 (battery current sensor
signal) and ground.
6. If NG, replace battery negative cable assembly.Voltage: Approximately 2.5V
PBIB2617E
Page 2787 of 4647
![INFINITI M35 2007 Factory Service Manual EC-1258
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
DTC P1554 BATTERY CURRENT SENSORPFP:294G0
Component DescriptionNBS005M0
The power generation voltage variable control INFINITI M35 2007 Factory Service Manual EC-1258
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
DTC P1554 BATTERY CURRENT SENSORPFP:294G0
Component DescriptionNBS005M0
The power generation voltage variable control](/manual-img/42/57024/w960_57024-2786.png)
EC-1258
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
DTC P1554 BATTERY CURRENT SENSORPFP:294G0
Component DescriptionNBS005M0
The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator. The battery cur-
rent sensor (1) is installed to the battery cable at the negative termi-
nal. The sensor measures the charging/discharging current of the
battery. Based on the sensor signal, ECM judges whether or not the
power generation voltage variable control is performed. When per-
forming the power generation voltage variable control, ECM calcu-
lates the target power generation voltage based on the sensor
signal. And ECM sends the calculated value as the power genera-
tion command value to IPDM E/R. For the details of the power gen-
eration voltage variable control, refer to SC section.
CAUTION:
Do not connect the electrical component or the ground wire directly to the battery terminal. The con-
nection causes the malfunction of the power generation voltage variable control, and then the battery
discharge may occur.
CONSULT-II Reference Value in Data Monitor ModeNBS005M1
Specification data are reference values.
*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SC-5, "SPECIFIC GRAVITY CHECK" .
On Board Diagnosis LogicNBS005M2
The MIL will not light up for this diagnosis.
NOTE:
If DTC P1554 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643. Refer to
EC-1193, "
DTC P0643 SENSOR POWER SUPPLY" .
PBIB2685E
MONITOR ITEM CONDITION SPECIFICATION
BAT CUR SEN
Engine speed: Idle
Battery: Fully charged*
Selector lever: P or N
Air conditioner switch: OFF
No loadApprox. 2,600 - 3,500mV
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1554
1554Battery current sensor performanceThe output voltage of the battery current
sensor is lower than the specified value
while the battery voltage is high enough.
Harness or connectors
(The sensor circuit is open or shorted.)
Battery current sensor
Page 2788 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P1554 BATTERY CURRENT SENSOR
EC-1259
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Overall Function CheckNBS005M3
Use this procedure to check the overall function of the batt INFINITI M35 2007 Factory Service Manual DTC P1554 BATTERY CURRENT SENSOR
EC-1259
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Overall Function CheckNBS005M3
Use this procedure to check the overall function of the batt](/manual-img/42/57024/w960_57024-2787.png)
DTC P1554 BATTERY CURRENT SENSOR
EC-1259
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Overall Function CheckNBS005M3
Use this procedure to check the overall function of the battery current sensor circuit. During this check, a 1st
trip DTC might not be confirmed.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 12.8V at idle.
Before performing the following procedure, confirm that all load switches and A/C switch are
turned OFF.
WITH CONSULT-II
1. Start engine and let it idle.
2. Select “BAT CUR SEN” in “DATA MONITOR” mode with CON-
SULT-II.
3. Check “BAT CUR SEN” indication for 10 seconds.
“BAT CUR SEN” should be above 2,300mV at least once.
4. If NG, go to EC-1261, "
Diagnostic Procedure" .
WITH GST
1. Start engine and let it idle.
2. Check voltage between ECM terminal 71 (battery current sensor
signal) and ground for 10 seconds.
The voltage should be above 2.3V at least once.
3. If NG, go to EC-1261, "
Diagnostic Procedure" .
PBIB2615E
PBIB2616E
Page 2789 of 4647
EC-1260
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45

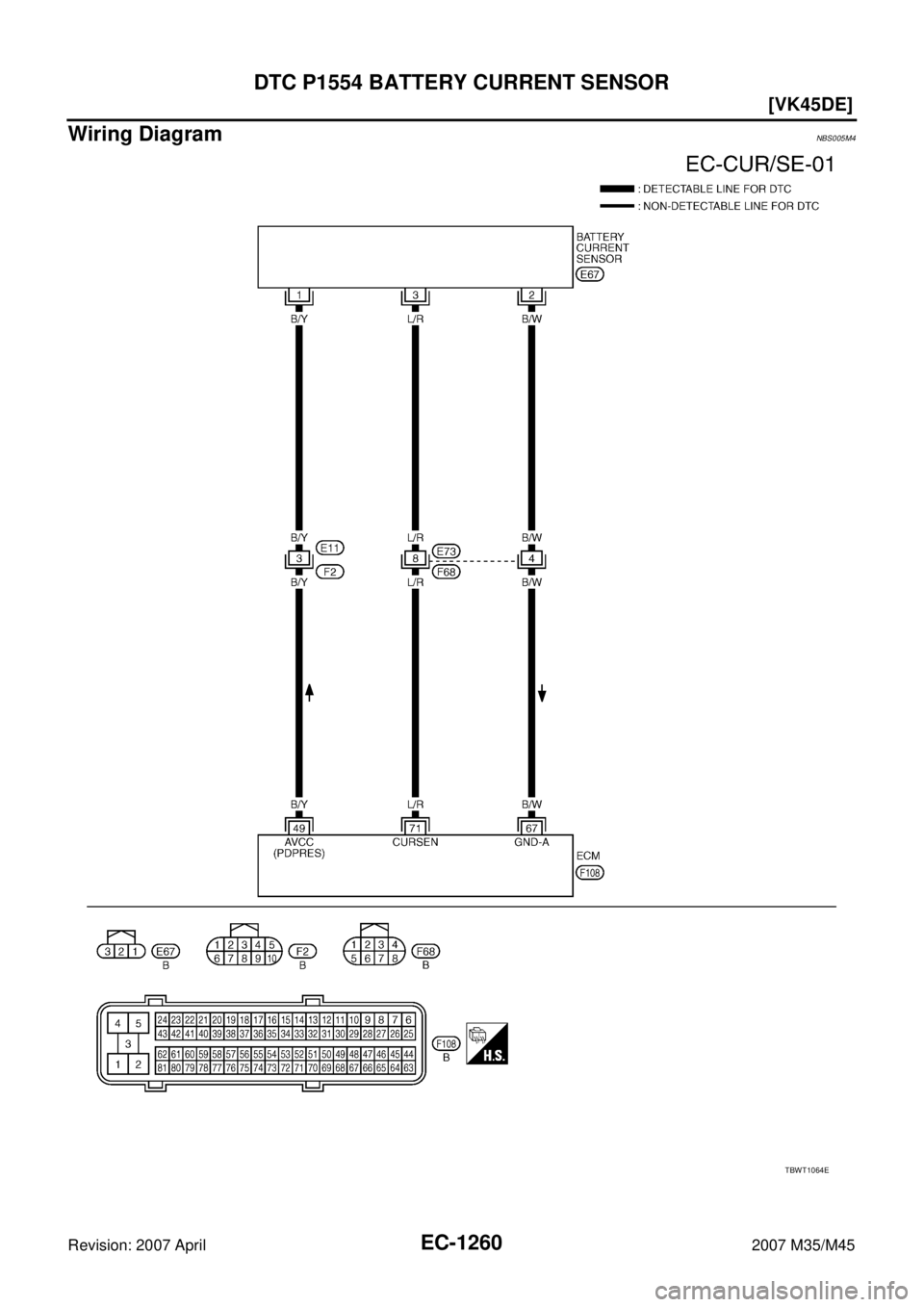

Wiring DiagramNBS005M4
TBWT1064E
Page 2790 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P1554 BATTERY CURRENT SENSOR
EC-1261
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
INFINITI M35 2007 Factory Service Manual DTC P1554 BATTERY CURRENT SENSOR
EC-1261
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.](/manual-img/42/57024/w960_57024-2789.png)
DTC P1554 BATTERY CURRENT SENSOR
EC-1261
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
*: Before measuring the terminal voltage, confirm that the battery is fully charged. Refer to SC-5, "SPECIFIC GRAVITY CHECK" .
Diagnostic ProcedureNBS005M5
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screws on the body.
Refer to EC-864, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
49 B/YSensor power supply
(Battery current sensor)[Ignition switch: ON]Approximately 5V
67 B/WSensor ground
(Battery current sensor)[Engine is running]
Warm-up condition
Idle speedApproximately 0V
71 L/R Battery current sensor[Engine is running]
Battery: Fully charged*
Idle speedApproximately 2.6 - 3.5V
1. Body ground M70 2. Body ground M16
PBIB2782E
Page 2791 of 4647
![INFINITI M35 2007 Factory Service Manual EC-1262
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor (1) harness connector.
2. T INFINITI M35 2007 Factory Service Manual EC-1262
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor (1) harness connector.
2. T](/manual-img/42/57024/w960_57024-2790.png)
EC-1262
[VK45DE]
DTC P1554 BATTERY CURRENT SENSOR
Revision: 2007 April2007 M35/M45
2. CHECK BATTERY CURRENT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect battery current sensor (1) harness connector.
2. Turn ignition switch ON.
3. Check voltage between battery current sensor terminal 1 and
ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E11, F2
Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK BATTERY CURRENT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between battery current sensor terminal 2 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E73, F68
Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2685E
Voltage: Approximately 5V
PBIA9891J
Continuity should exist.
Page 2792 of 4647
![INFINITI M35 2007 Factory Service Manual DTC P1554 BATTERY CURRENT SENSOR
EC-1263
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness co INFINITI M35 2007 Factory Service Manual DTC P1554 BATTERY CURRENT SENSOR
EC-1263
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness co](/manual-img/42/57024/w960_57024-2791.png)
DTC P1554 BATTERY CURRENT SENSOR
EC-1263
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2007 April2007 M35/M45
6. CHECK BATTERY CURRENT SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between battery current sensor terminal 3 and ECM terminal 71.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E73, F68
Harness for open or short between battery current sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK BATTERY CURRENT SENSOR
Refer to EC-1263, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace battery negative cable assembly.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-857, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
Component InspectionNBS005M6
BATTERY CURRENT SENSOR
1. Reconnect harness connectors disconnected.
2. Disconnect battery negative cable (1).
: To body ground
3. Install jumper cable A between battery negative terminal and
body ground.
4. Turn ignition switch ON.Continuity should exist.
PBIB2724E
