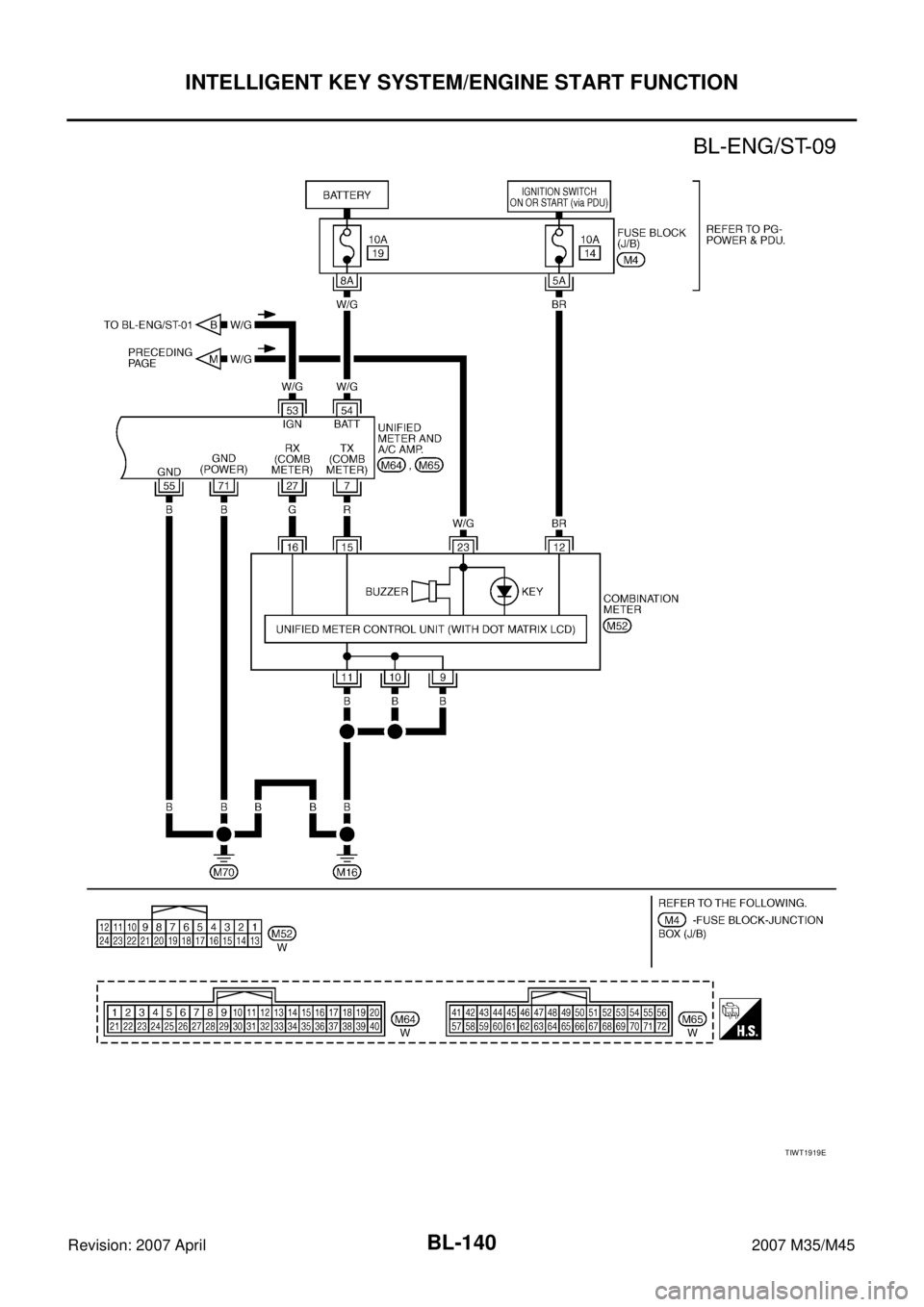

INFINITI M35 2007 Factory Service Manual BL-140
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2007 April2007 M35/M45
TIWT1919E

Page 1074 of 4647

INFINITI M35 2007 Factory Service Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-141
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Terminals and Reference Value for Intelligent Key UnitNIS001YE
Termi-
nal
No.Wire
color

Page 1075 of 4647

INFINITI M35 2007 Factory Service Manual BL-142
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2007 April2007 M35/M45
10 VPush-button ignition
switch ON indicatorOutputONPush-button ignition switch is in
ON position0
—Push-button

Page 1076 of 4647

INFINITI M35 2007 Factory Service Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-143
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
35 LG Vehicle speed signal Input ONAt speedometer operation (vehi-
cle speed approx. 40 k

Page 1077 of 4647

INFINITI M35 2007 Factory Service Manual BL-144
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2007 April2007 M35/M45
51 F/LInside key antenna (+)
signal
(Rear seat)Input/
Output
LOCKAny door open → closed
(Door switch: ON → OFF

Page 1078 of 4647

INFINITI M35 2007 Factory Service Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-145
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Terminals and Reference Value for Steering Lock UnitNIS001YF
Terminals and Reference Valu

Page 1079 of 4647

INFINITI M35 2007 Factory Service Manual BL-146
INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
Revision: 2007 April2007 M35/M45
Terminals and Reference Value for IPDM E/RNIS001YH
Te r -
minal
No.Wire
ColorItemSignal
Input/
OutputCondition
V

Page 1080 of 4647

INFINITI M35 2007 Factory Service Manual INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-147
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Terminals and Reference Value for PDUNIS001YI
Te r -
minal
No.Wire
colorItemSignal
Inp

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION
BL-147
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: 2007 April2007 M35/M45
Terminals and Reference Value for PDUNIS001YI
Te r -
minal
No.Wire
colorItemSignal
Input/
OutputCondition
Voltage (V)
(Approx.) Push-
button
ignition
switch
positionOperation or conditions
1 P Wake up signal InputLOCKSleep condition (30 seconds or more
after all doors are closed under the
condition that the power supply posi-
tion is in the LOCK position)Battery voltage
— Wake-up condition (Open driver door) 0
2 G Starter control signal InputON At starter motor cranking 0
— Any condition other than above Battery voltage
3GRSteering lock unit
power sourceOutputLOCKPush-button ignition switch is pressed
under the condition that Intelligent
Key is in the vehicle or Intelligent Key
is inserted0 → Battery voltage → 0
— Any condition other than above 0
6VSteering lock control
signal-1Input—Push-button ignition switch is pressed
under the condition that Intelligent
Key is in the vehicle or Intelligent Key
is insertedBattery voltage
LOCKPower supply position is in LOCK
position
(Steering lock activated)Battery voltage → 0 → Bat-
tery voltage
(Battery voltage is detected
when activating the steer-
ing lock)
7LGSteering lock control
signal-2Input—Push-button ignition switch is pressed
under the condition that Intelligent
Key is in the vehicle or Intelligent Key
is insertedBattery voltage
LOCKPower supply position is in LOCK
position
(Steering lock activated)Battery voltage → 0 → Bat-
tery voltage
(Battery voltage is detected
when activating the steer-
ing lock)
9OSteering lock feed
back signalOutput— Steering lock: Lock 0
LOCK Steering lock: Unlock 8
10 B Ground — — — 0
11 YIPDM E/R current
signalOutputSTART At starter motor cranking 5
LOCK Any condition other than above 2
12 R Feed back signal OutputLOCKSleep condition (30 seconds or more
after all doors are closed under the
condition that the power supply posi-
tion is in the LOCK position)1
—Wake-up condition (any condition
other than above)0
13 R Starter relay OutputSTART At starter motor cranking Battery voltage
— Any condition other than above 4
14 SB Power source (fuse) Input — — Battery voltage
15 LPower source (fus-
ible link)Input — — Battery voltage
17 GPower source (fus-
ible link)Input — — Battery voltage
