Page 3081 of 4647

INFINITI M35 2007 Factory Service Manual FFD-26 FRONT FINAL DRIVE ASSEMBLY Revision: 2007 April2007 M35/M45 3. Press-fit side bearing outer race into gear carrier with tool. CAUTION: At first, using a hammer, tap bearing outer race until it

Page 3082 of 4647

INFINITI M35 2007 Factory Service Manual FRONT FINAL DRIVE ASSEMBLY FFD-27 C E F G H I J K L MA B FFD Revision: 2007 April2007 M35/M45 9. If the turning torque is outside the specification, use a thicker/ thinner side bearing adjusting shim

Page 3083 of 4647

INFINITI M35 2007 Factory Service Manual FFD-28 FRONT FINAL DRIVE ASSEMBLY Revision: 2007 April2007 M35/M45 3. Temporarily tighten removed drive pinion lock nut to drive pinion. NOTE: Use removed drive pinion lock nut only for the preload me

Page 3084 of 4647

INFINITI M35 2007 Factory Service Manual FRONT FINAL DRIVE ASSEMBLY FFD-29 C E F G H I J K L MA B FFD Revision: 2007 April2007 M35/M45 2. Temporarily install pinion height adjusting washer (1). When hypoid gear set has been replaced Select

Page 3085 of 4647

INFINITI M35 2007 Factory Service Manual FFD-30 FRONT FINAL DRIVE ASSEMBLY Revision: 2007 April2007 M35/M45 10. Install companion flange (1). NOTE: When reusing drive pinion, align the matching mark (B) of drive pinion with the matching mark

Page 3086 of 4647

INFINITI M35 2007 Factory Service Manual FRONT FINAL DRIVE ASSEMBLY FFD-31 C E F G H I J K L MA B FFD Revision: 2007 April2007 M35/M45 2. Install side gears and thrust washers into differential case. CAUTION: Do not reuse circular clip. Ma

Page 3087 of 4647

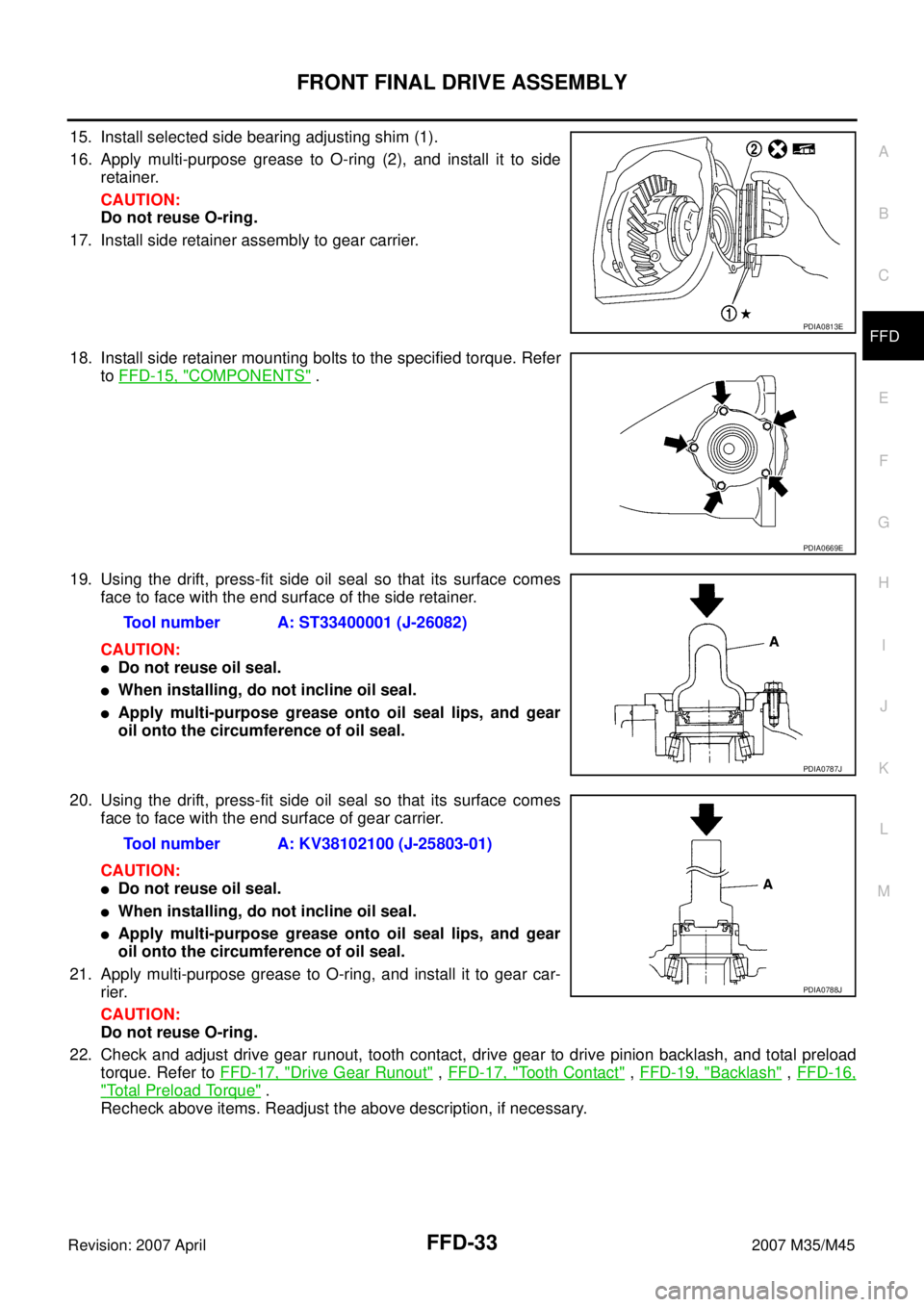

INFINITI M35 2007 Factory Service Manual FFD-32 FRONT FINAL DRIVE ASSEMBLY Revision: 2007 April2007 M35/M45 9. Install drive gear on the mounting bolts, and then tighten to the specified torque. Refer to FFD-15, " COMPONENTS" . CAUTION: Tigh

Page 3088 of 4647

INFINITI M35 2007 Factory Service Manual FRONT FINAL DRIVE ASSEMBLY FFD-33 C E F G H I J K L MA B FFD Revision: 2007 April2007 M35/M45 15. Install selected side bearing adjusting shim (1). 16. Apply multi-purpose grease to O-ring (2), and in
