Page 1225 of 4647

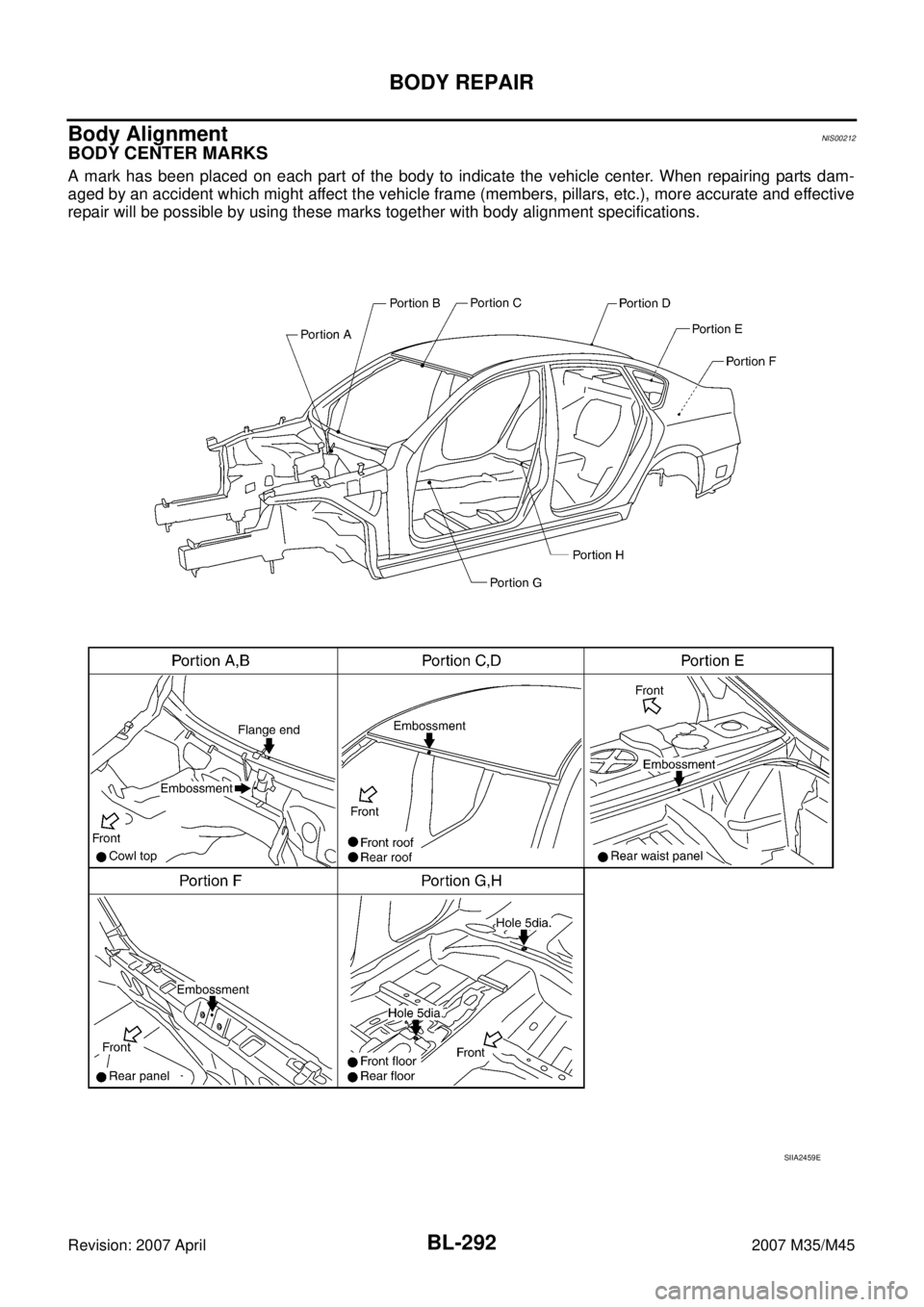

INFINITI M35 2007 Factory Service Manual BL-292 BODY REPAIR Revision: 2007 April2007 M35/M45 Body AlignmentNIS00212 BODY CENTER MARKS A mark has been placed on each part of the body to indicate the vehicle center. When repairing parts dam- a

Page 1226 of 4647

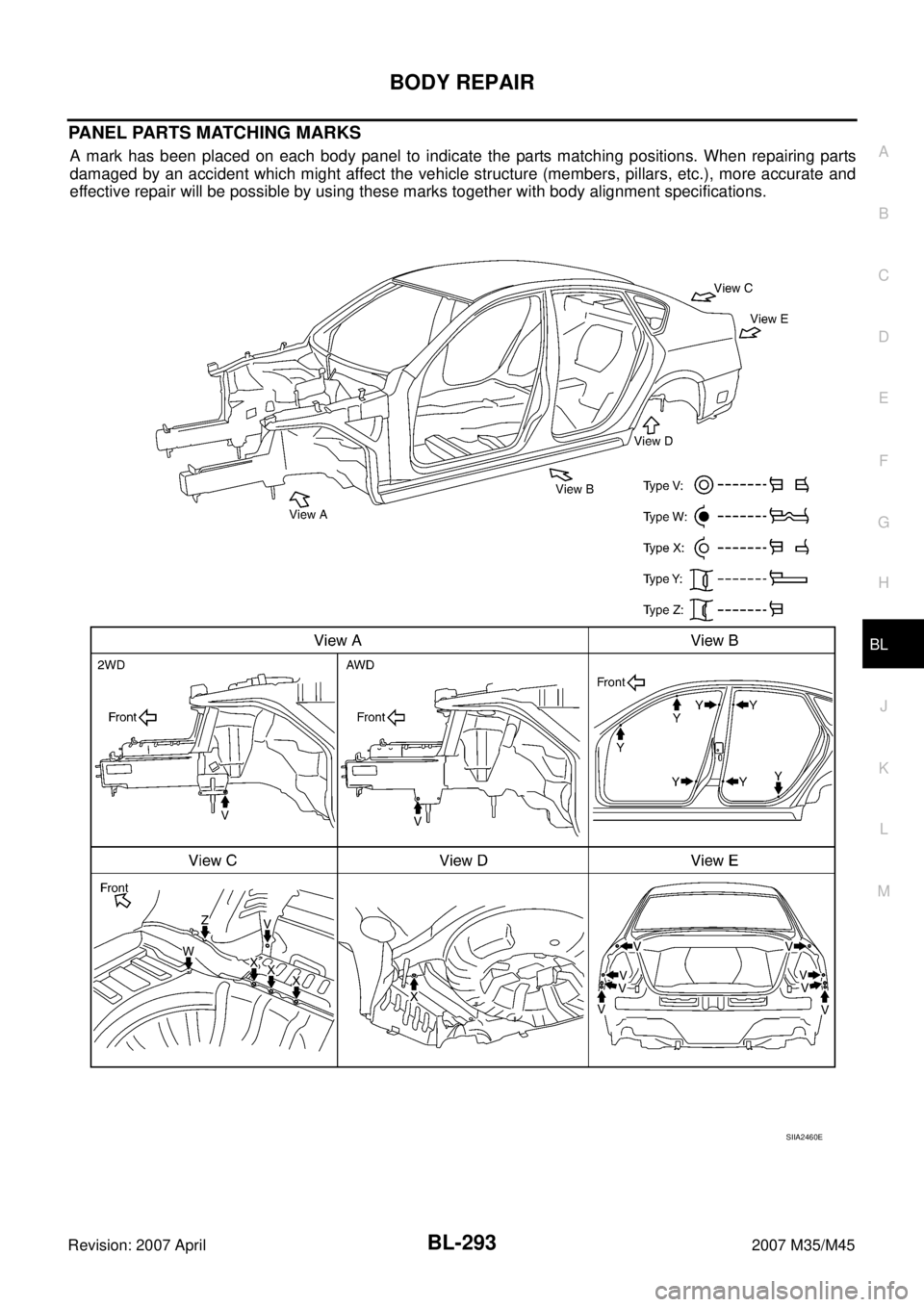

INFINITI M35 2007 Factory Service Manual BODY REPAIR BL-293 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 PANEL PARTS MATCHING MARKS A mark has been placed on each body panel to indicate the parts matching positions. When repair

Page 1227 of 4647

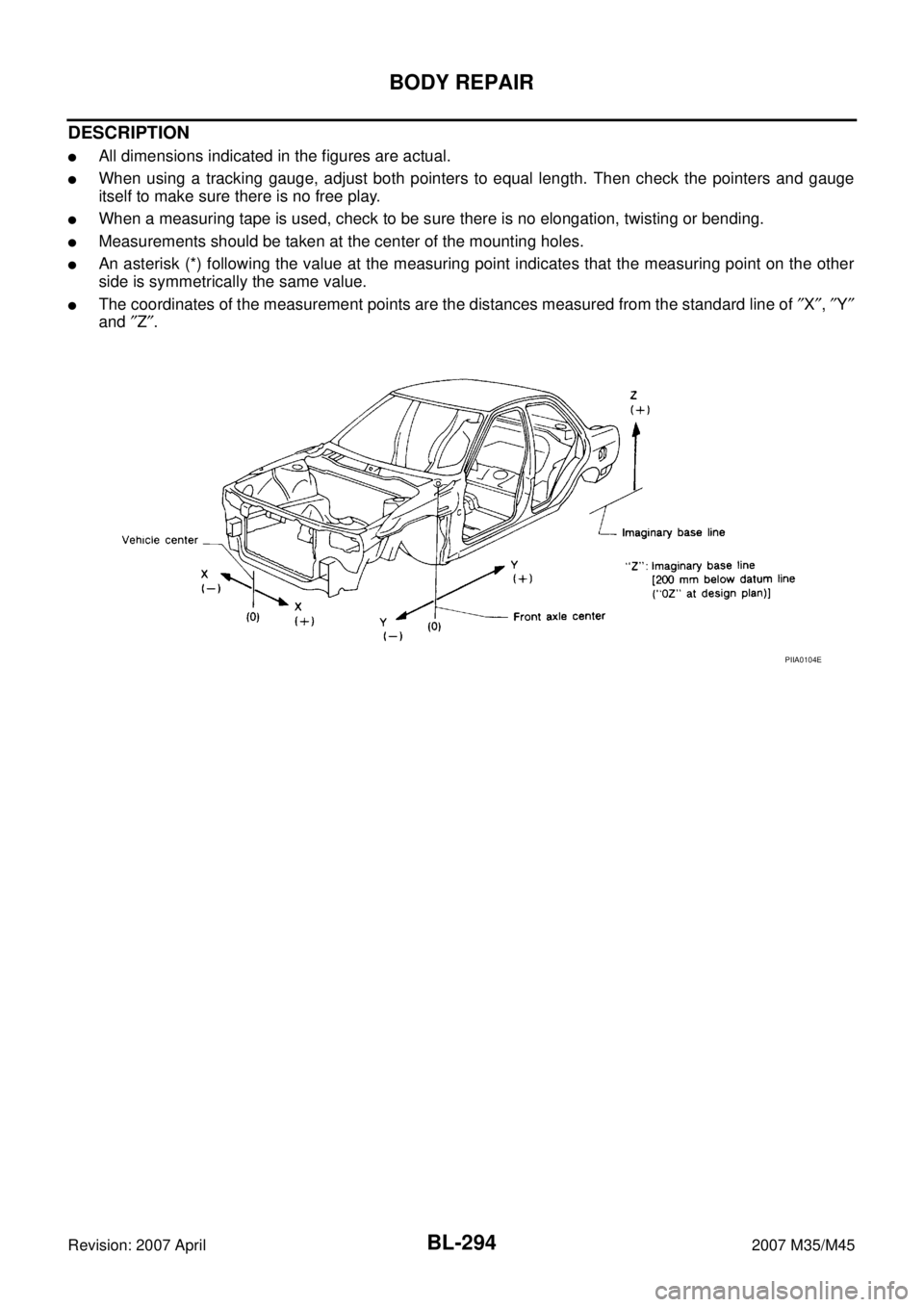

INFINITI M35 2007 Factory Service Manual BL-294 BODY REPAIR Revision: 2007 April2007 M35/M45 DESCRIPTION All dimensions indicated in the figures are actual. When using a tracking gauge, adjust both pointers to equal length. Then check the

Page 1228 of 4647

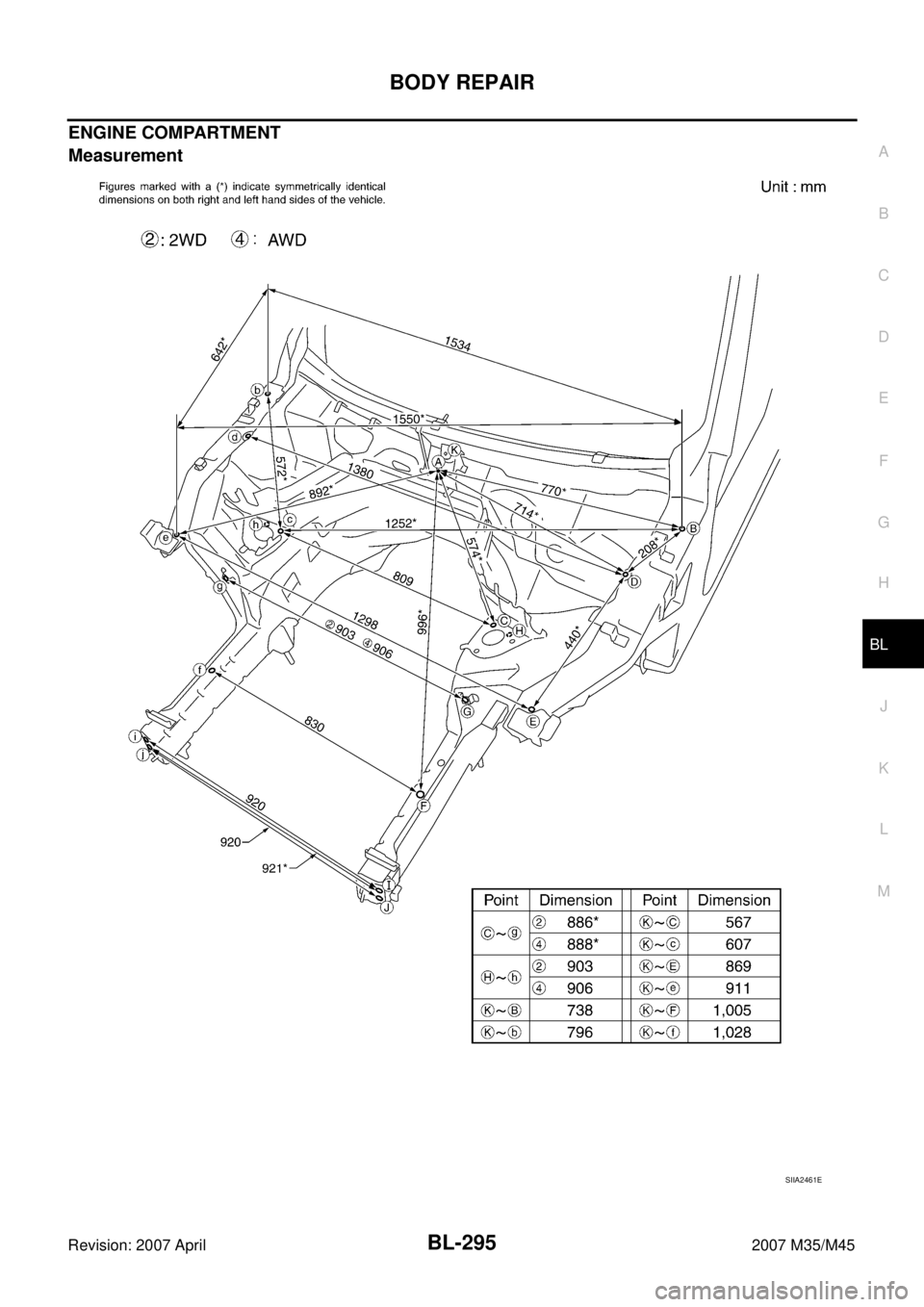

INFINITI M35 2007 Factory Service Manual BODY REPAIR BL-295 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 ENGINE COMPARTMENT Measurement SIIA2461E

Page 1229 of 4647

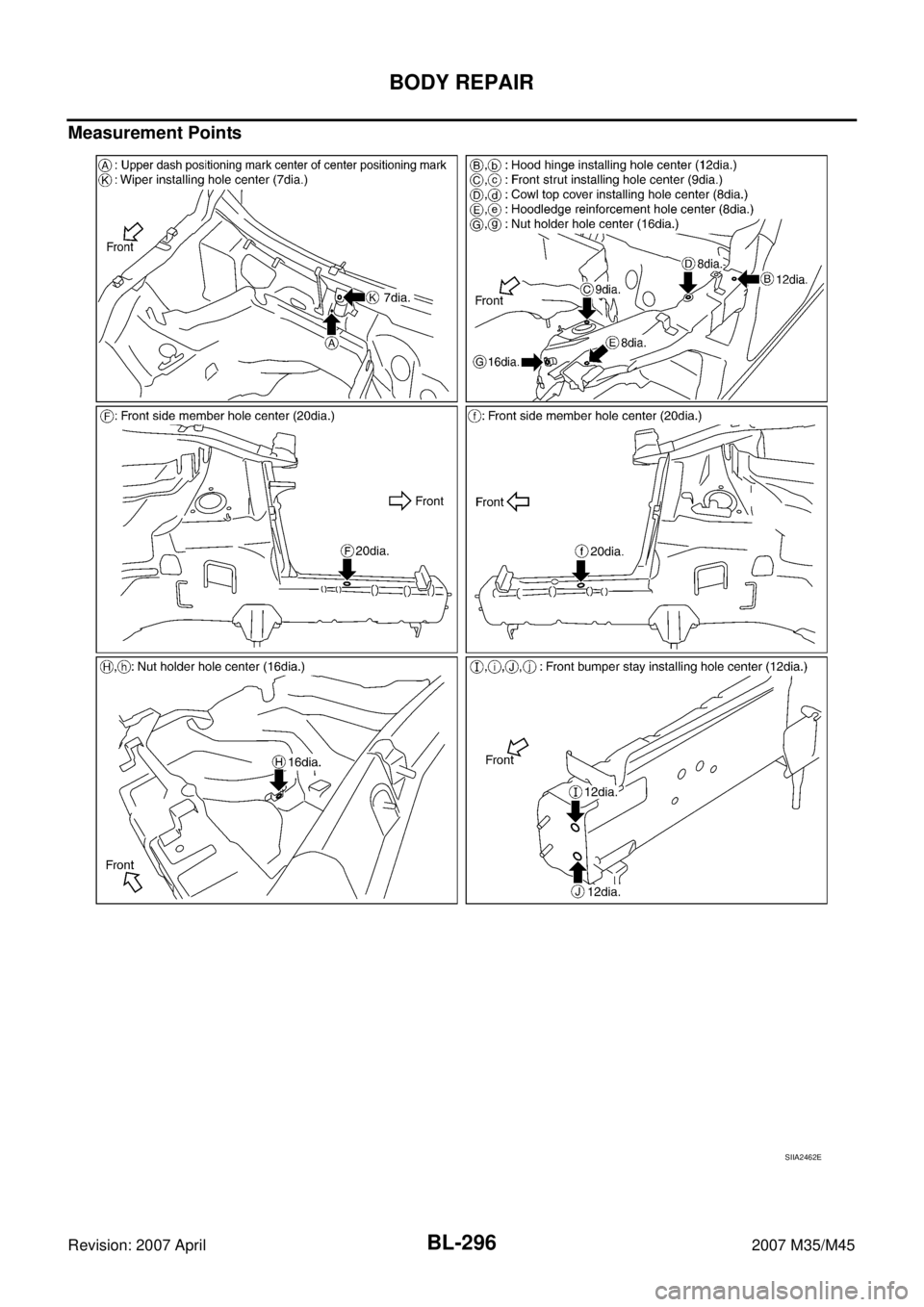

INFINITI M35 2007 Factory Service Manual BL-296 BODY REPAIR Revision: 2007 April2007 M35/M45 Measurement Points SIIA2462E

Page 1230 of 4647

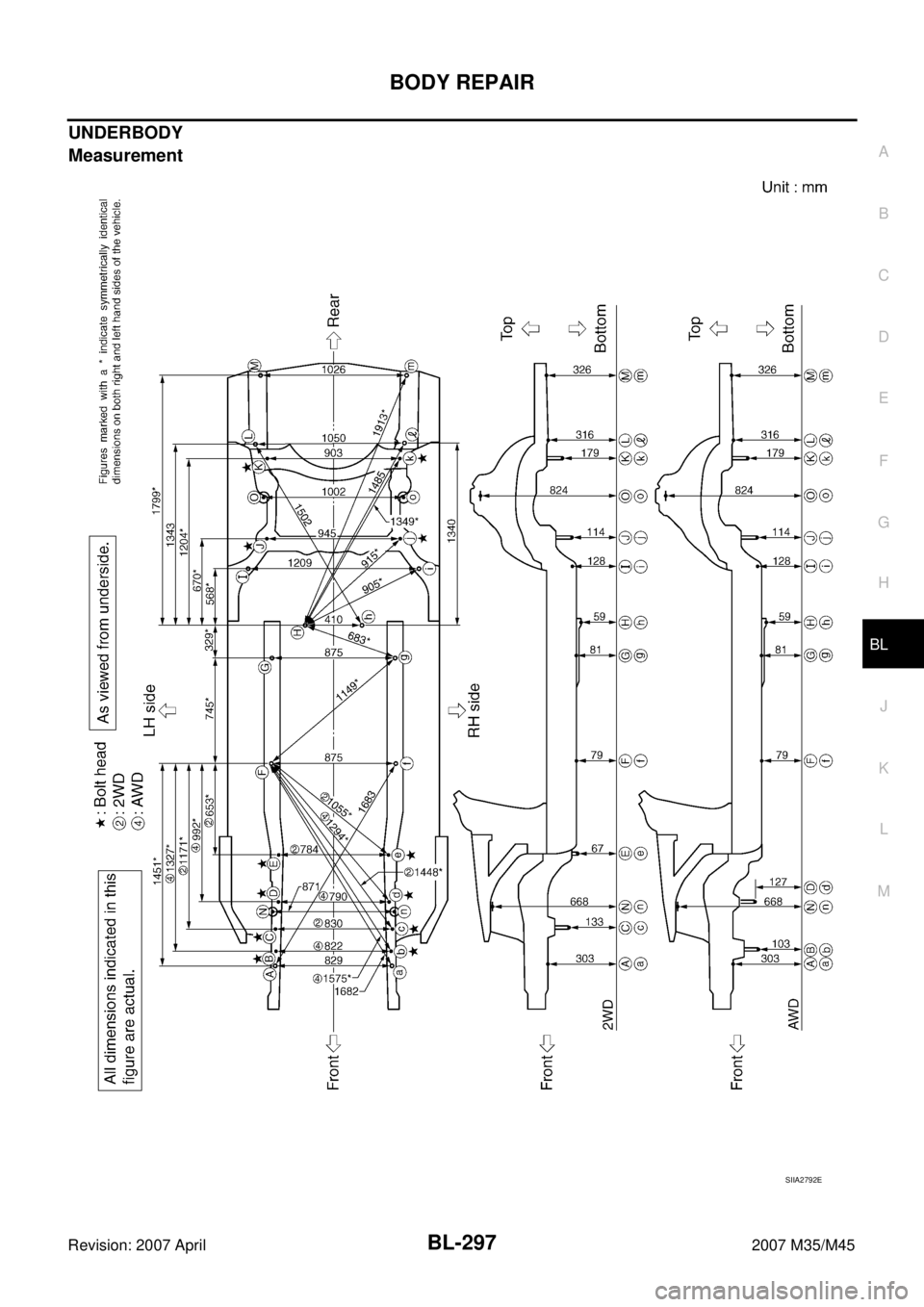

INFINITI M35 2007 Factory Service Manual BODY REPAIR BL-297 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 UNDERBODY Measurement SIIA2792E

Page 1231 of 4647

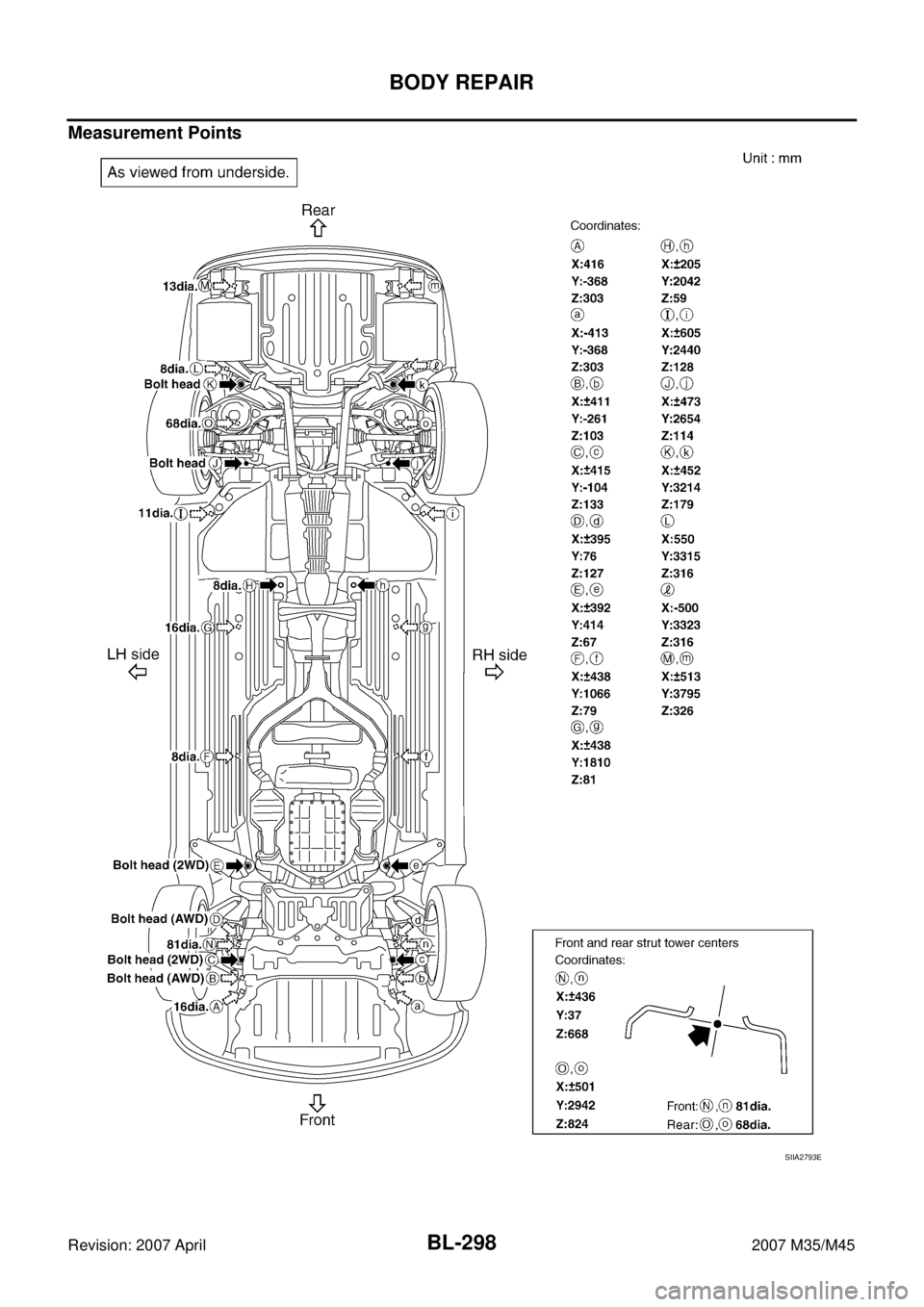

INFINITI M35 2007 Factory Service Manual BL-298 BODY REPAIR Revision: 2007 April2007 M35/M45 Measurement Points SIIA2793E

Page 1232 of 4647

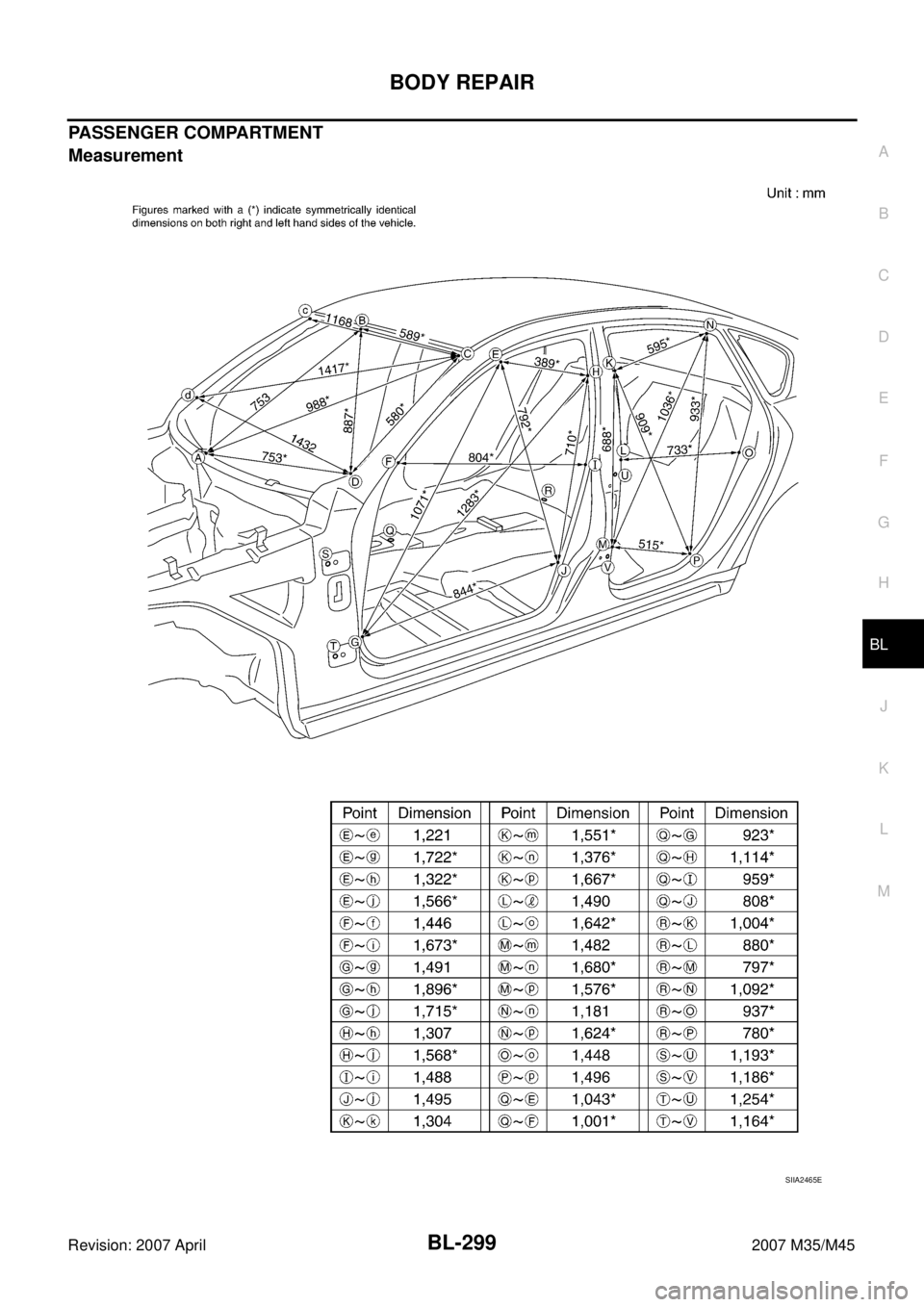

INFINITI M35 2007 Factory Service Manual BODY REPAIR BL-299 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 PASSENGER COMPARTMENT Measurement SIIA2465E
