Page 3297 of 4647

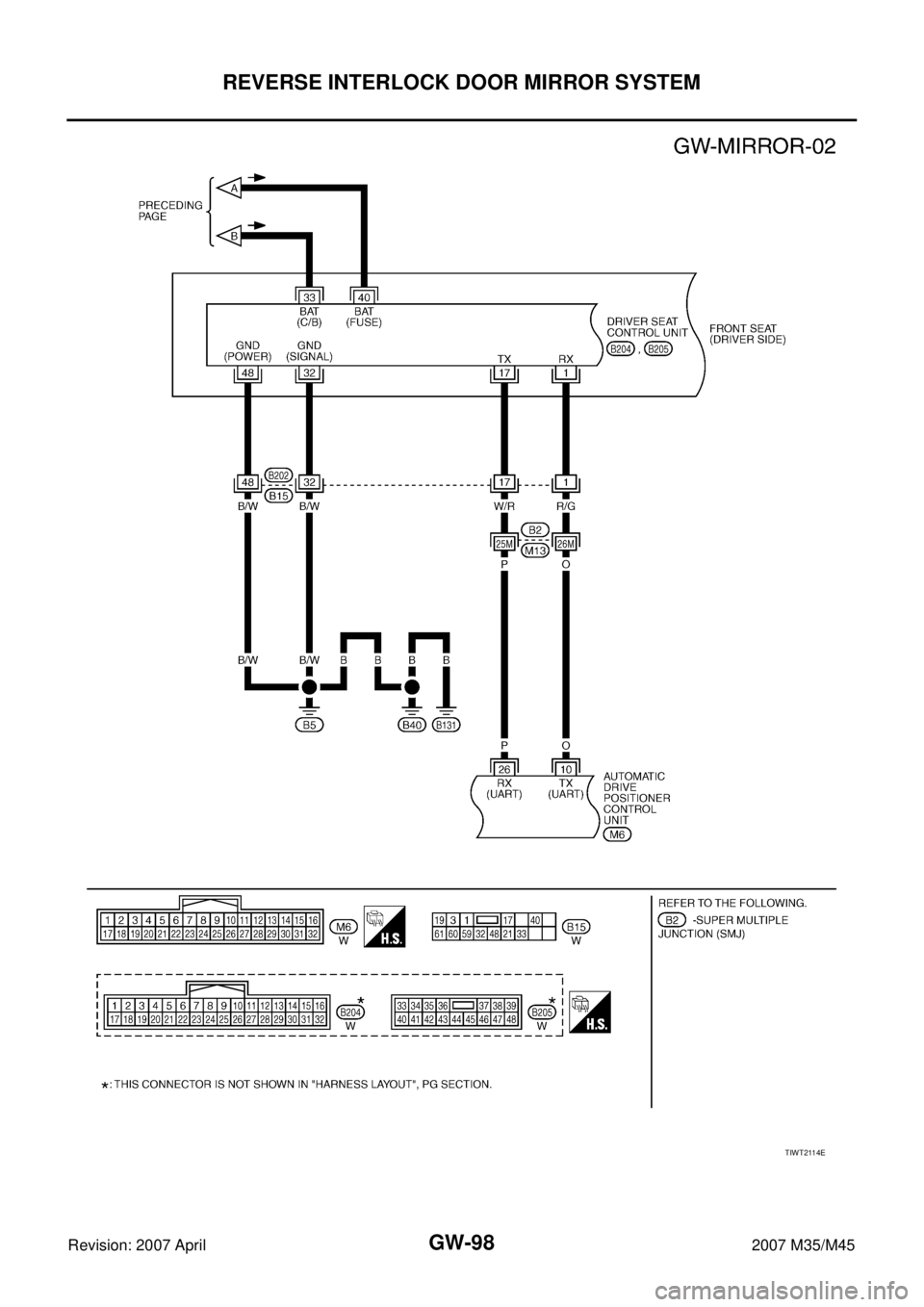

GW-98

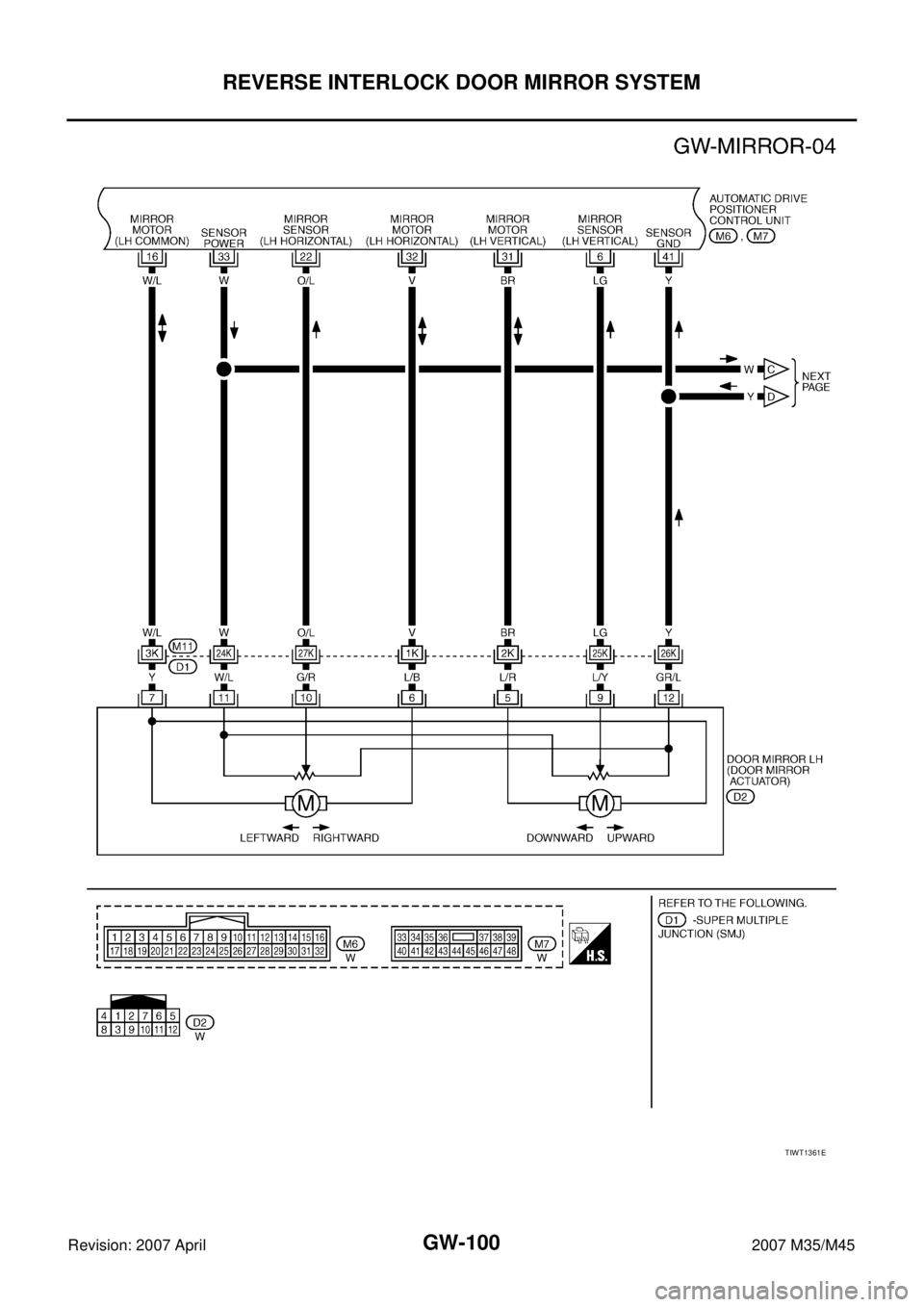

REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2007 April2007 M35/M45
TIWT2114E

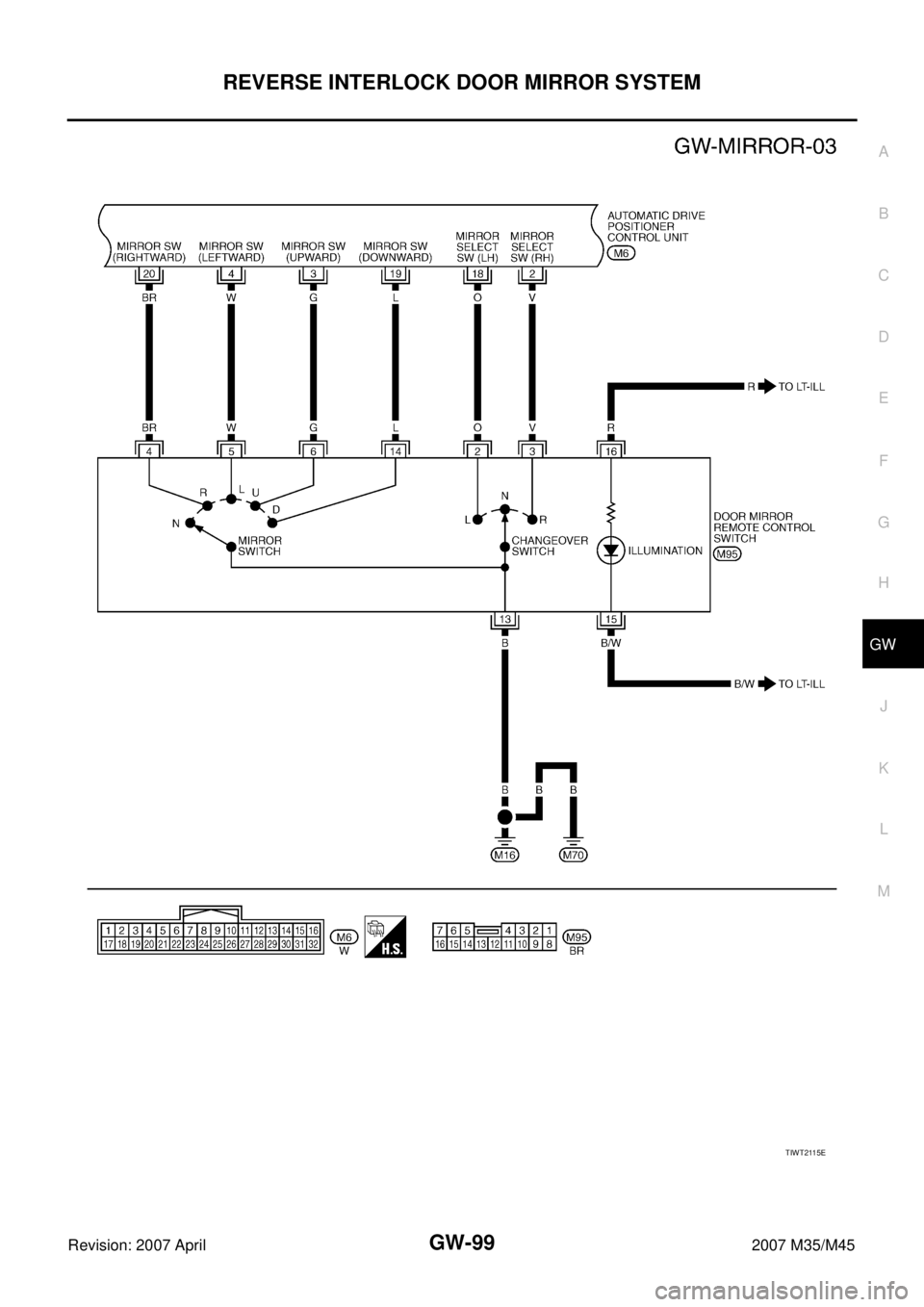

Page 3298 of 4647
REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-99
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
TIWT2115E

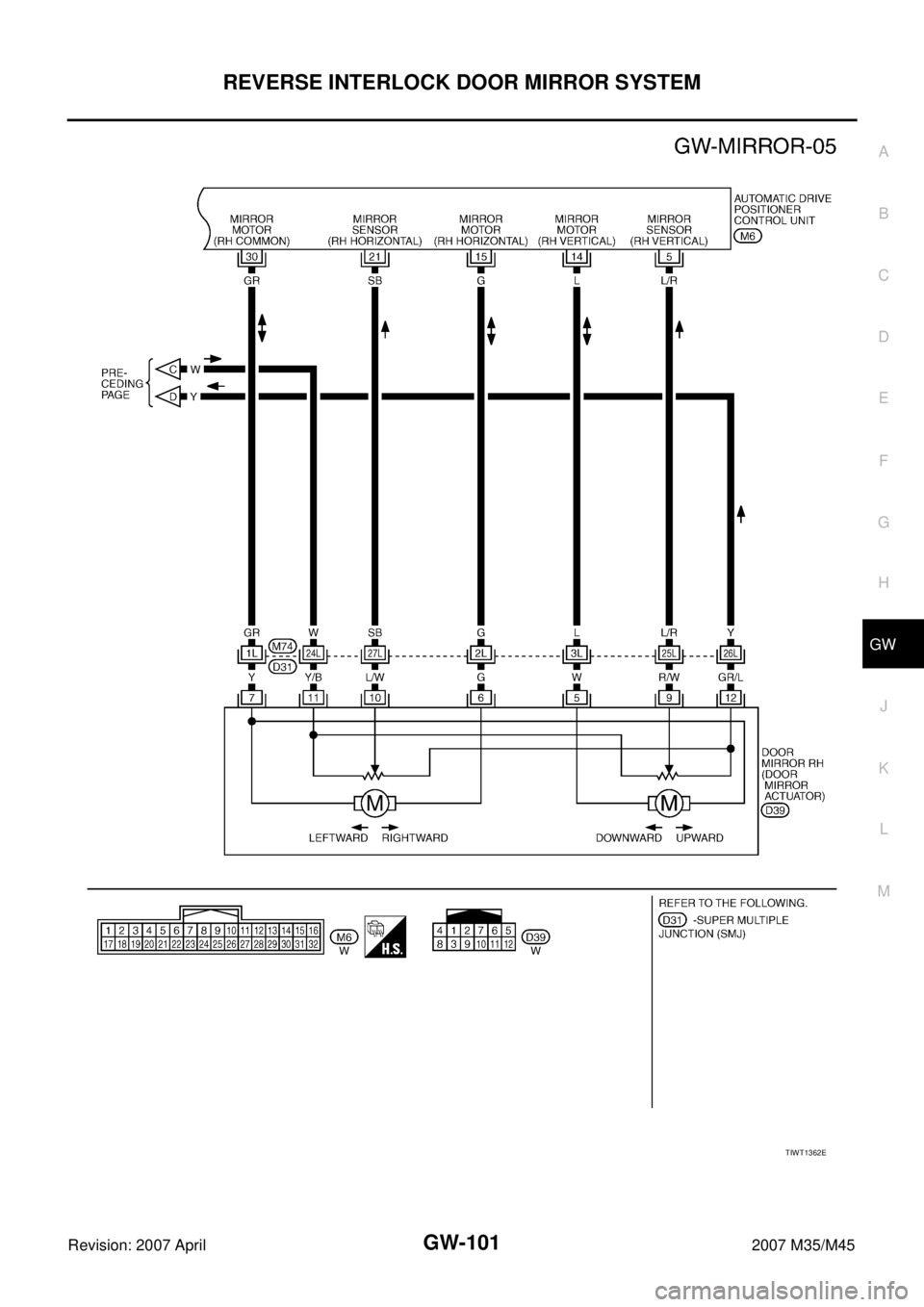

Page 3299 of 4647
GW-100
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2007 April2007 M35/M45
TIWT1361E

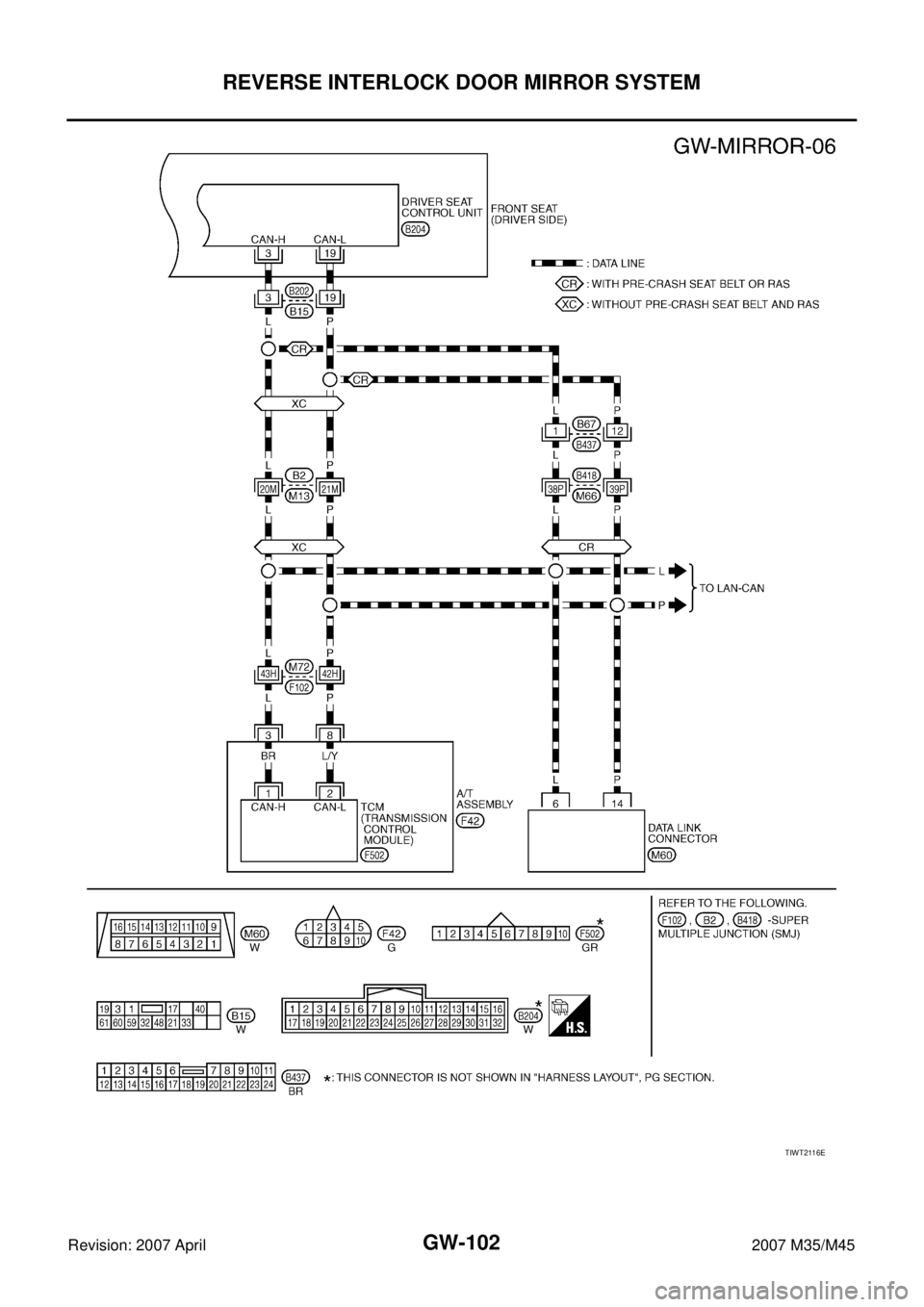

Page 3300 of 4647
REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-101
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
TIWT1362E
Page 3301 of 4647
GW-102
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2007 April2007 M35/M45
TIWT2116E
Page 3302 of 4647

REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-103
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
Terminals and Reference Values for Automatic Drive Positioner Control UnitNIS00236
Te r -
minalWire
colorItemSignal
Input/
OutputConditionVoltage (V)
(Approx.)
2VChangeover switch
RH signalInputWhen changeover
switch positionRH 0
Other than above 5
3GMirror switch
UP signalInputWhen mirror switch
positionUP 0
Other than above 5
4WMirror switch
LEFT signalInputWhen mirror switch
positionLEFT 0
Other than above 5
5L/RDoor mirror RH sensor
vertical signalInputWhen door mirror
RH mirror face posi-
tionClose to perk 4.2
Close to valley 0.5
6LGDoor mirror LH sensor
vertical signalInputWhen door mirror LH
mirror face positionClose to perk 4.2
Close to valley 0.5
10 O UART LINE (TX)Input/
OutputTilt switch operated
14 LDoor mirror RH mirror
motor
UP signalOutputWhen door mirror
RH mirror motor
operationUP Battery voltage
Other than above 0
15 GDoor mirror RH mirror
motor LEFT signalOutputWhen door mirror
RH mirror motor
operationLEFT Battery voltage
Other than above 0
16 W/LDoor mirror LH mirror
motor RIGHT or DOWN
signalOutputWhen door mirror LH
mirror motor opera-
tionRIGHT or DOWN Battery voltage
Other than above 0
18 OChangeover switch
LH signalInputWhen changeover
switch positionLH 0
Other than above 5
19 L Mirror switch DOWN signal InputWhen mirror switch
positionDOWN 0
Other than above 5
20 BR Mirror switch RIGHT signal inputWhen mirror switch
positionRIGHT 0
Other than above 5
21 SBDoor mirror RH sensor
horizontal signalInputWhen door mirror
RH mirror face posi-
tionClose to left edge 3.5
Close to right edge 0.5
22 O/LDoor mirror LH sensor
horizontal signalInputWhen door mirror LH
mirror face positionClose to left edge 0.5
Close to right edge 3.5
26 P UART LINE (RX)Input/
OutputTilt switch operated
30 GRDoor mirror LH mirror
motor RIGHT or DOWN
signalOutputWhen door mirror LH
mirror motor opera-
tionRIGHT or DOWN Battery voltage
Other than above 0
SKIA0175E
SKIA0175E
Page 3303 of 4647

GW-104
REVERSE INTERLOCK DOOR MIRROR SYSTEM
Revision: 2007 April2007 M35/M45
Terminals and Reference Values for Driver Seat Control UnitNIS00237
31 BRDoor mirror LH mirror
motor UP signalOutputWhen door mirror LH
mirror motor opera-
tionUP Battery voltage
Other than above 0
32 VDoor mirror LH mirror
motor LEFT signalOutputWhen door mirror LH
mirror motor opera-
tionLEFT Battery voltage
Other than above 0
33 W Mirror sensor power supply Output — Battery voltage
34 R Power supply (fuse) Input — Battery voltage
39 L Power supply (fusible link) Input — Battery voltage
40 B Ground (signal) — — 0
41 Y Sensor ground — — 0
48 B Ground (power) — — 0 Te r -
minalWire
colorItemSignal
Input/
OutputConditionVoltage (V)
(Approx.)
Te r m i -
nal Wire
colorItemSignal
Input/
OutputConditionVoltage (V)
(Approx.)
1 R/G UART LINE (RX)Input/
OutputTilt switch operated
3 L CAN-HInput/
Output——
17 W/R UART LINE (TX)Input/
OutputTilt switch operated
19 P CAN-LInput/
Output——
32 B/W Ground (signal) — — 0
33 W Power supply (fusible link) Input — Battery voltage
40 B/W Power supply (fuse) Input — Battery voltage
48 B/W Ground (power) — — 0
SKIA0175E
SKIA0175E
Page 3304 of 4647

REVERSE INTERLOCK DOOR MIRROR SYSTEM
GW-105
C
D
E
F
G
H
J
K
L
MA
B
GW
Revision: 2007 April2007 M35/M45
CONSULT-II Function (AUTO DRIVE POS.)NIS00238
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
*1: For setting automatic drive positioner functions only.
*2: During vehicle driving, do not perform active test.
CONSULT-II START PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure"
DATA MONITOR
Selection from Menu
ACTIVE TEST
CAUTION:
During vehicle driving, do not perform active test.
NOTE:
If active test is performed, reset seat memory and key fob interlock drive positioner after performing work.
CONSULT-II
diagnosis
itemsInspection item, self-diagnosis mode Content Refer to page
AUTO DRIVE
POSITIONERWORK SUPPORT*
1Changes the setting for each function.SE-39
SELF–DIG RESULTS Check the self-diagnosis results.SE-37
DATA MONITOR Selection from menuDisplays the input data to driver seat control
unit and automatic driving positioned control
unit on real-time basis.SE-38
CAN DIAGNOSTIC SUPPORT MONITORThe results of transmit / receive diagnosis of
CAN communication can be readLAN-13
ACTIVE TEST*2Gives a drive signal to a load to check the
operation.SE-39
DRIVER SEAT CONTROL UNIT PART NUMBER Displays driver seat control unit part No. —
Monitor item [OPERATION or UNIT] Contents
MIR CON SW–UP “ON/OFF”ON/OFF status judged from the door mirror remote control switch (UP) signal is
displayed.
MIR CON SW–DN “ON/OFF”ON/OFF status judged from the door mirror remote control switch (DOWN) signal
is displayed.
MIR CON SW–RH “ON/OFF”ON/OFF status judged from the door mirror remote control switch (RIGHT) signal
is displayed.
MIR CON SW–LH “ON/OFF”ON/OFF status judged from the door mirror remote control switch (LEFT) signal s
displayed.
MIR CHNG SW–R “ON/OFF”ON/OFF status judged from the door mirror remote control switch (switching to
RIGHT) signal is displayed.
MIR CHNG SW–L “ON/OFF”ON/OFF status judged from the door mirror remote control switch (switching to
LEFT) signal is displayed.
SET SW “ON/OFF” ON/OFF status judged from the setting switch signal is displayed.
MEMORY SW1 “ON/OFF” ON/OFF status judged from the seat memory switch 1 signal is displayed.
MEMORY SW2 “ON/OFF” ON/OFF status judged from the seat memory switch 2 signal is displayed.
MIR/SE RH R–L “V” Voltage output from RH door mirror sensor (LH/RH) is displayed.
MIR/SE RH U–D “V” Voltage output from RH door mirror sensor (UP/DOWN) is displayed.
MIR/SE LH R–L “V” Voltage output from LH door mirror sensor (LH/RH) is displayed.
MIR/SE LH U–D “V” Voltage output from LH door mirror sensor (UP/DOWN) is displayed.
