Page 1121 of 4647

INFINITI M35 2007 Factory Service Manual BL-188 DOOR Revision: 2007 April2007 M35/M45 DOORPFP:80100 Fitting AdjustmentNIS001Z9 FRONT DOOR Longitudinal Clearance and Surface Height Adjustment At Front End Loosen the hinge mounting bolts. Rais

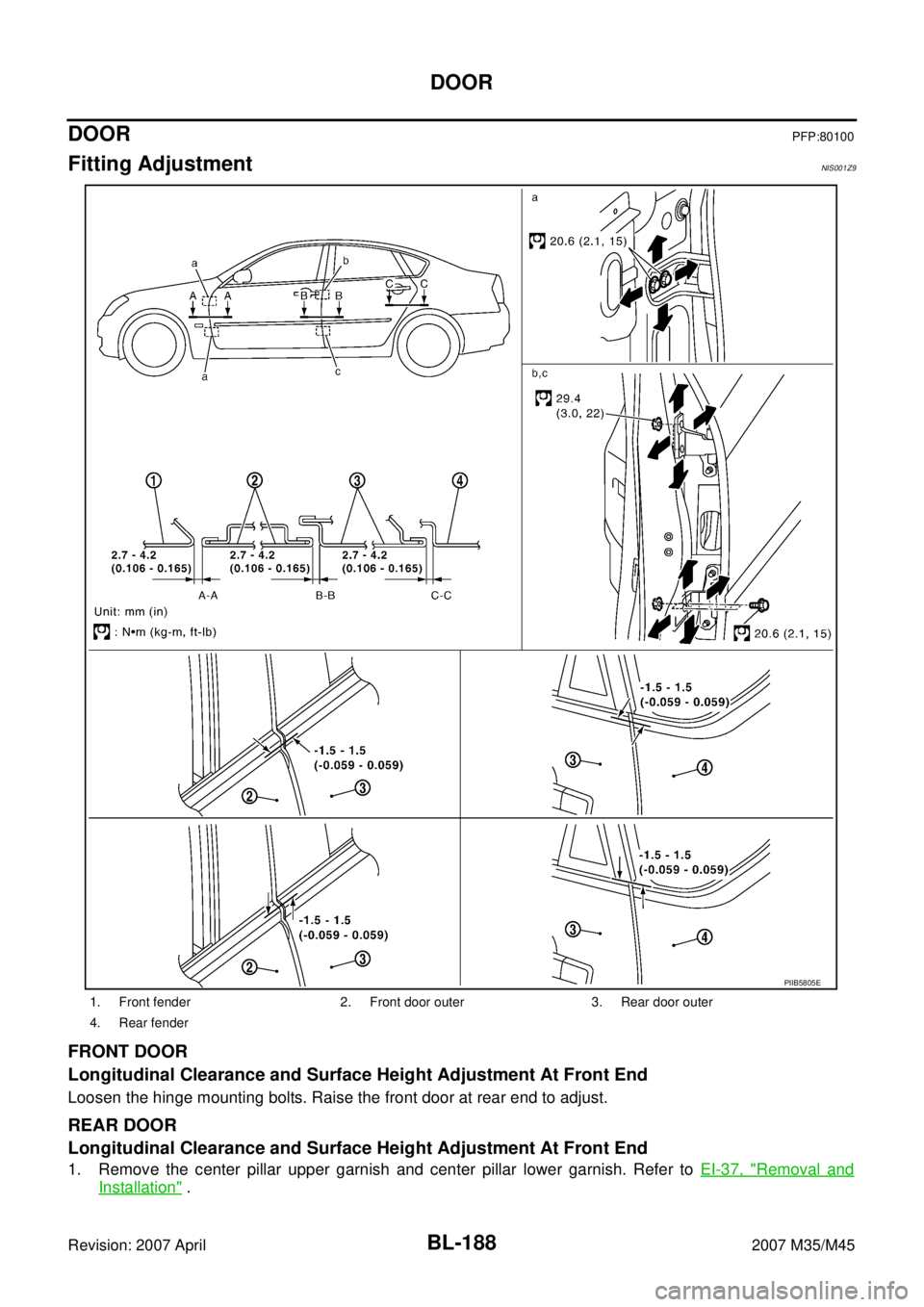

Page 1122 of 4647

INFINITI M35 2007 Factory Service Manual DOOR BL-189 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 2. Accessing from inside the vehicle, loosen the mounting nuts. Open the rear door, and raise the rear door at rear end to adjust

Page 1123 of 4647

INFINITI M35 2007 Factory Service Manual BL-190 DOOR Revision: 2007 April2007 M35/M45 3. Remove the door-side hinge mounting nuts, then remove the door assembly. INSTALLATION Install in the reverse order of removal. Removal and Installation

Page 1124 of 4647

INFINITI M35 2007 Factory Service Manual DOOR BL-191 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 3. Remove the door-side hinge mounting nuts, and remove the door assembly. INSTALLATION Install in the reverse order of removal.

Page 1125 of 4647

INFINITI M35 2007 Factory Service Manual BL-192 DOOR Revision: 2007 April2007 M35/M45 Door WeatherstripNIS001ZC FRONT DOOR REMOVAL 1. Remove the mounting bolts of the check link on the vehicle. Refer to BL-189, "Removal and Installation of F

Page 1126 of 4647

INFINITI M35 2007 Factory Service Manual DOOR BL-193 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 REAR DOOR REMOVAL 1. Remove the mounting bolts of the check link on the vehicle. Refer to BL-189, "Removal and Installation of Fr

Page 1127 of 4647

INFINITI M35 2007 Factory Service Manual BL-194 FRONT DOOR LOCK Revision: 2007 April2007 M35/M45 FRONT DOOR LOCKPFP:80502 Component StructureNIS001ZD Removal and InstallationNIS001ZE REMOVAL 1. Remove the front door finisher. Refer toEI-34,

Page 1128 of 4647

INFINITI M35 2007 Factory Service Manual FRONT DOOR LOCK BL-195 C D E F G H J K L MA B BL Revision: 2007 April2007 M35/M45 CAUTION: Do not forcibly remove the TORX bolt. 5. Disconnect door antenna and door request switch connector and remove
