Page 3017 of 4647
EI-46
SUNSHADE
Revision: 2007 April2007 M35/M45

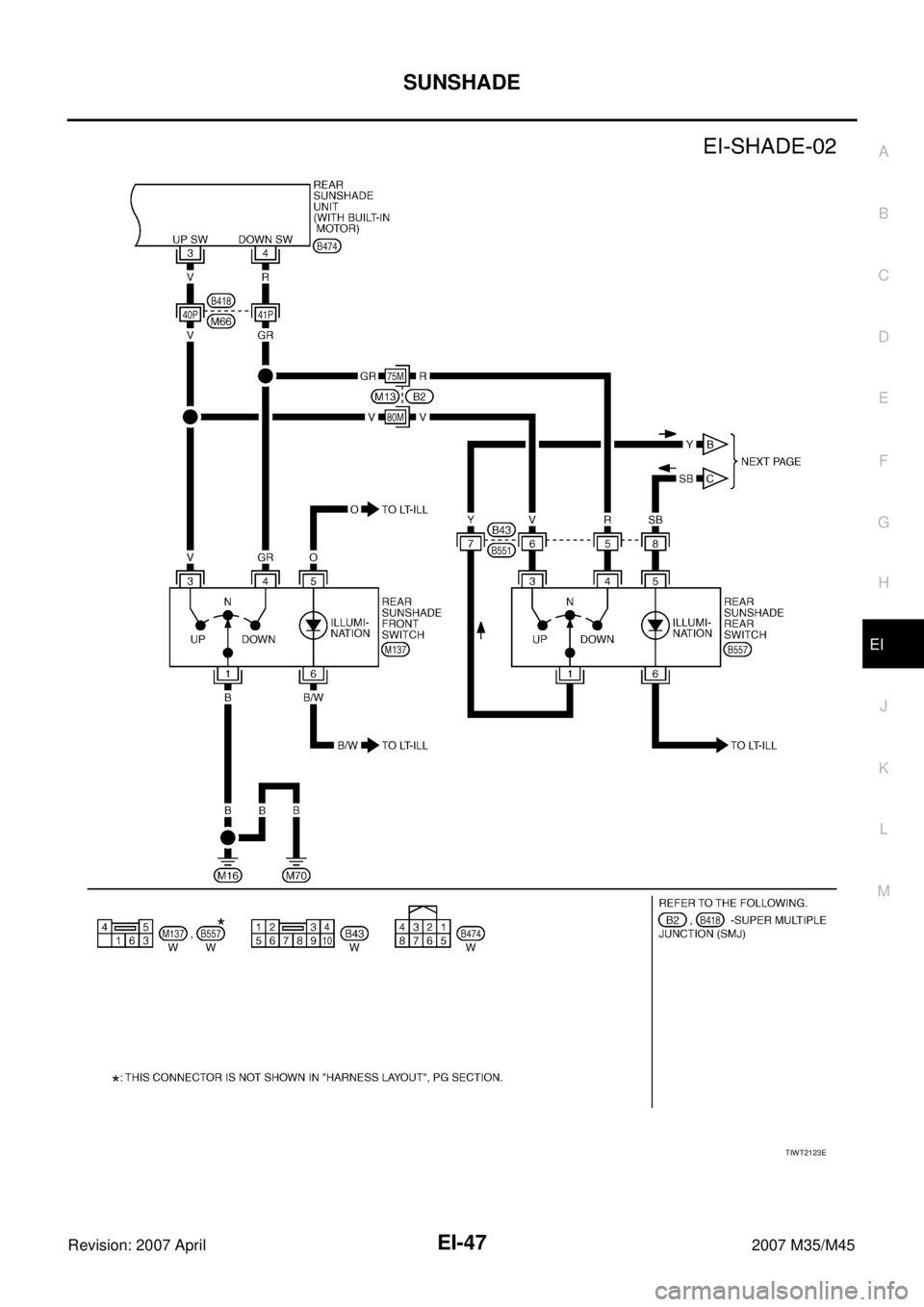

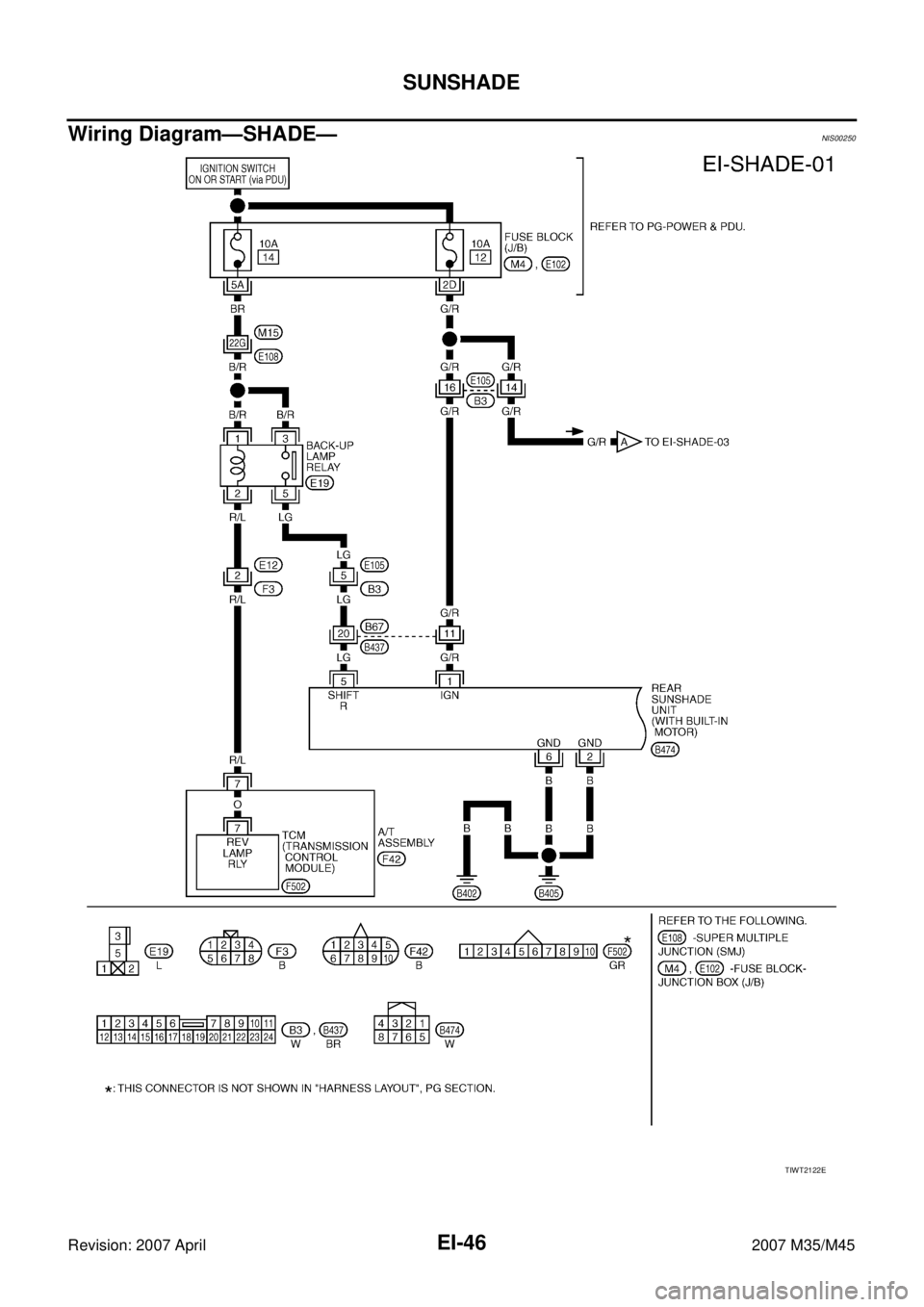

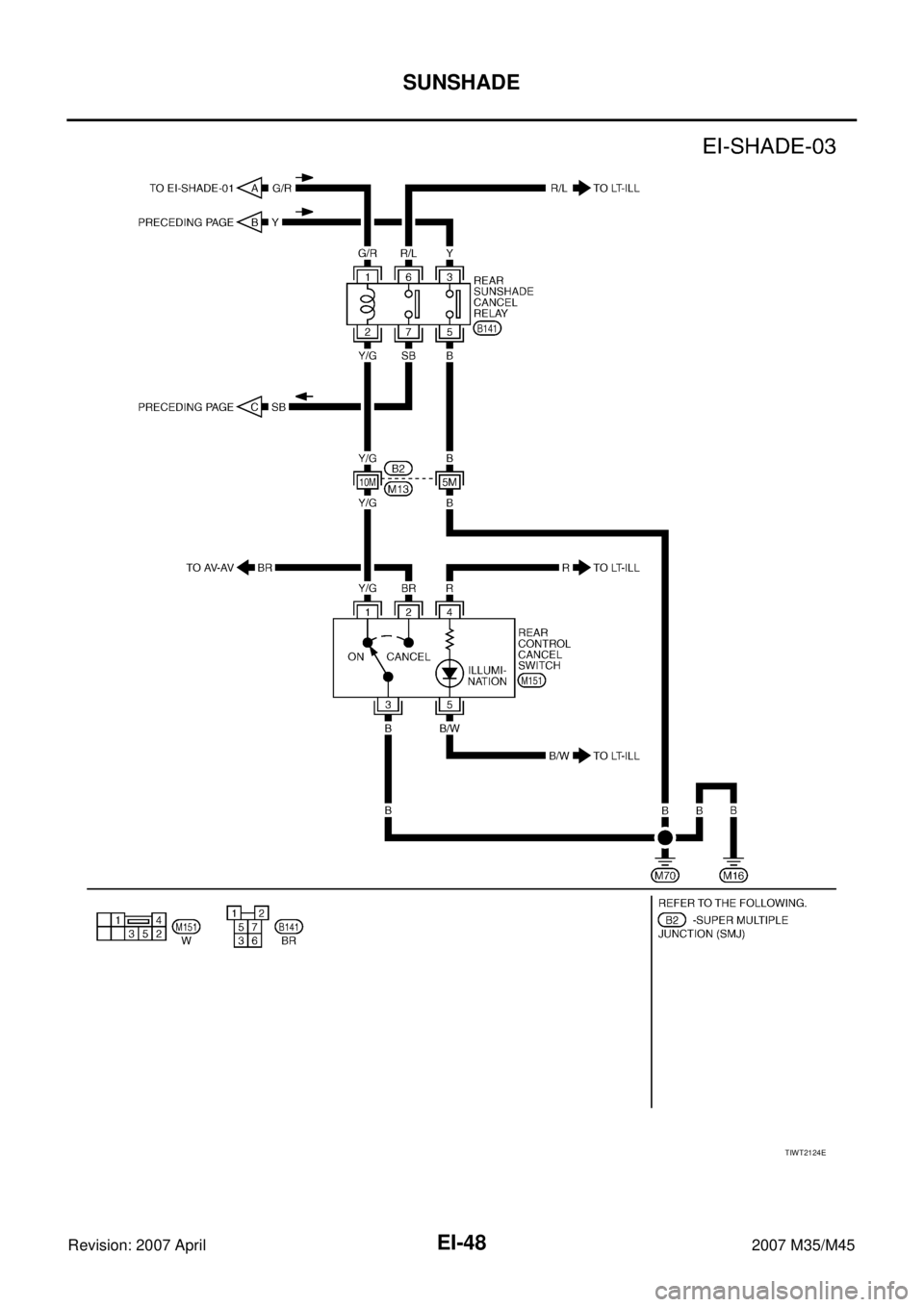

Wiring Diagram—SHADE—NIS00250
TIWT2122E
Page 3018 of 4647
SUNSHADE
EI-47
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2007 April2007 M35/M45
TIWT2123E
Page 3019 of 4647
EI-48
SUNSHADE
Revision: 2007 April2007 M35/M45
TIWT2124E
Page 3020 of 4647
SUNSHADE
EI-49
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2007 April2007 M35/M45
Terminals and Reference Values for Rear Sunshade UnitNIS00251
TerminalWire
colorItem ConditionVoltage (V)
(Approx.)
1 G/R Ignition switch (ON or START) Ignition switch is ON or START position Battery voltage
2 B Ground — 0
3 V Rear sunshade UP signalRear sunshade front or rear switch operates UP
position and rear control cancel switch operates ON
position0
Other than above Battery voltage
4 R Rear sunshade DOWN signalRear sunshade front or rear switch operates DOWN
position and rear control cancel switch operates ON
position0
Other than above Battery voltage
5 LG Shift R position signalWhen A/T shift lever is R position Battery voltage
When A/T shift lever is other than R position 0
6 B Ground — 0
Page 3021 of 4647

EI-50
FLOOR TRIM
Revision: 2007 April2007 M35/M45
FLOOR TRIMPFP:74902
Removal and InstallationNIS00252
REMOVAL
1. Remove front seat (LH/RH) and rear seat cushion. Refer to SE-168, "Removal and Installation" and SE-
177, "Removal and Installation" .
2. Remove accelerator pedal pad. Refer to ACC-3, "
ACCELERATOR CONTROL SYSTEM" .
3. Remove rear floor grille and foot grille. Refer to ATC-143, "
DUCTS AND GRILLES" .
4. Remove front seat belt floor anchor bolt (LH/RH). Refer to SB-29, "
Removal and Installation of Front Seat
Belt" .
5. Remove center console. Refer to IP-10, "
INSTRUMENT PANEL ASSEMBLY" .
6. Remove instrument driver lower panel and instrument passenger lower cover. Refer to IP-10, "
INSTRU-
MENT PANEL ASSEMBLY" .
7. Remove floor hook.
8. Remove dash side finisher, front kicking plate inner, center pillar lower garnish, and rear kicking plate
inner, front body side welt (LH/RH), rear body side welt (LH/RH), rear wheel house garnish. Refer to EI-
37, "BODY SIDE TRIM" .

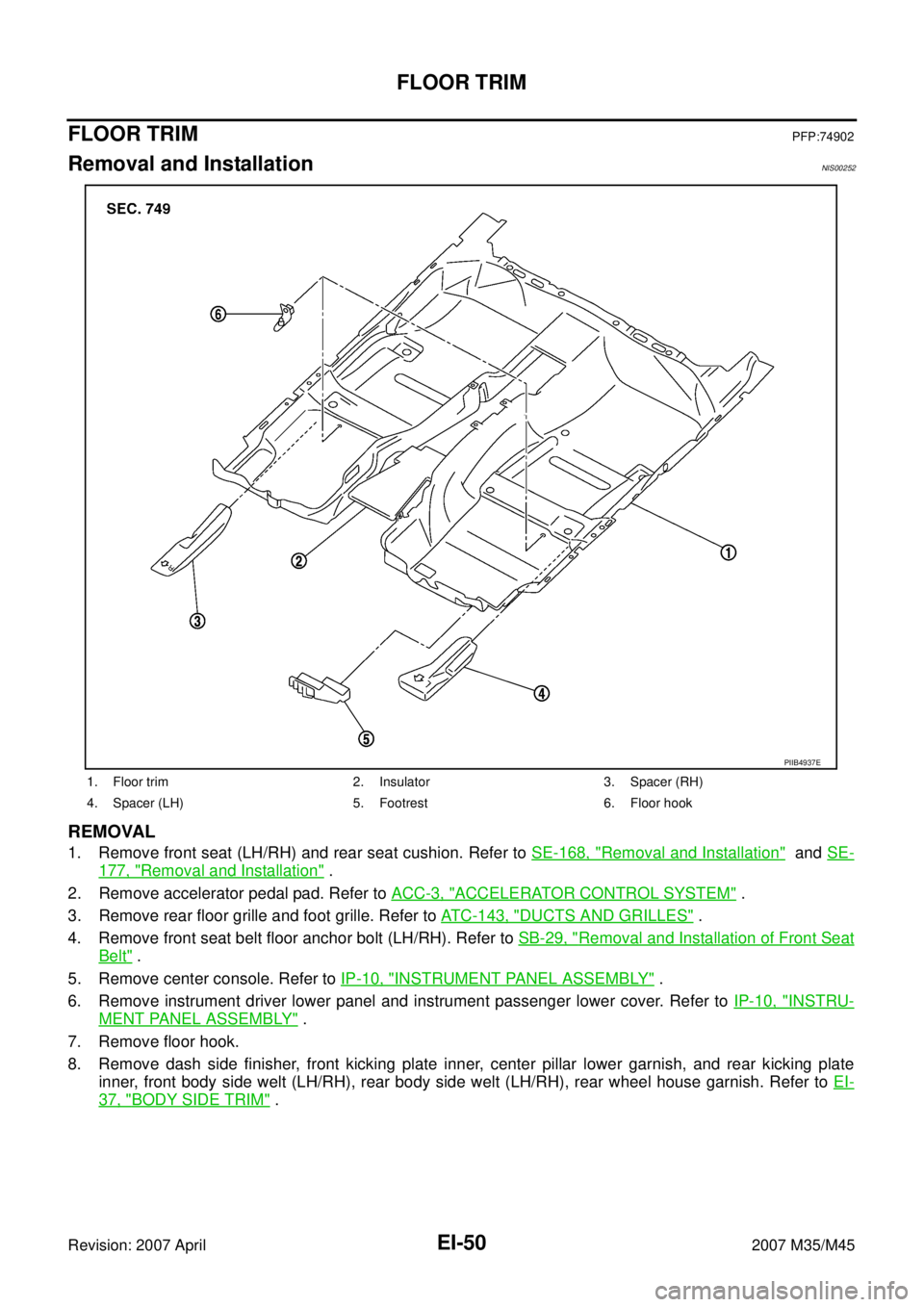

1. Floor trim 2. Insulator 3. Spacer (RH)
4. Spacer (LH) 5. Footrest 6. Floor hook
PIIB4937E
Page 3022 of 4647
FLOOR TRIM
EI-51
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2007 April2007 M35/M45
9. Remove floor carpet from carpet clips and remove floor carpet.
INSTALLATION
Install in the reverse order of removal.
PIIA7125E
Page 3023 of 4647
EI-52
HEADLINING
Revision: 2007 April2007 M35/M45
HEADLININGPFP:73910
Removal and InstallationNIS00253

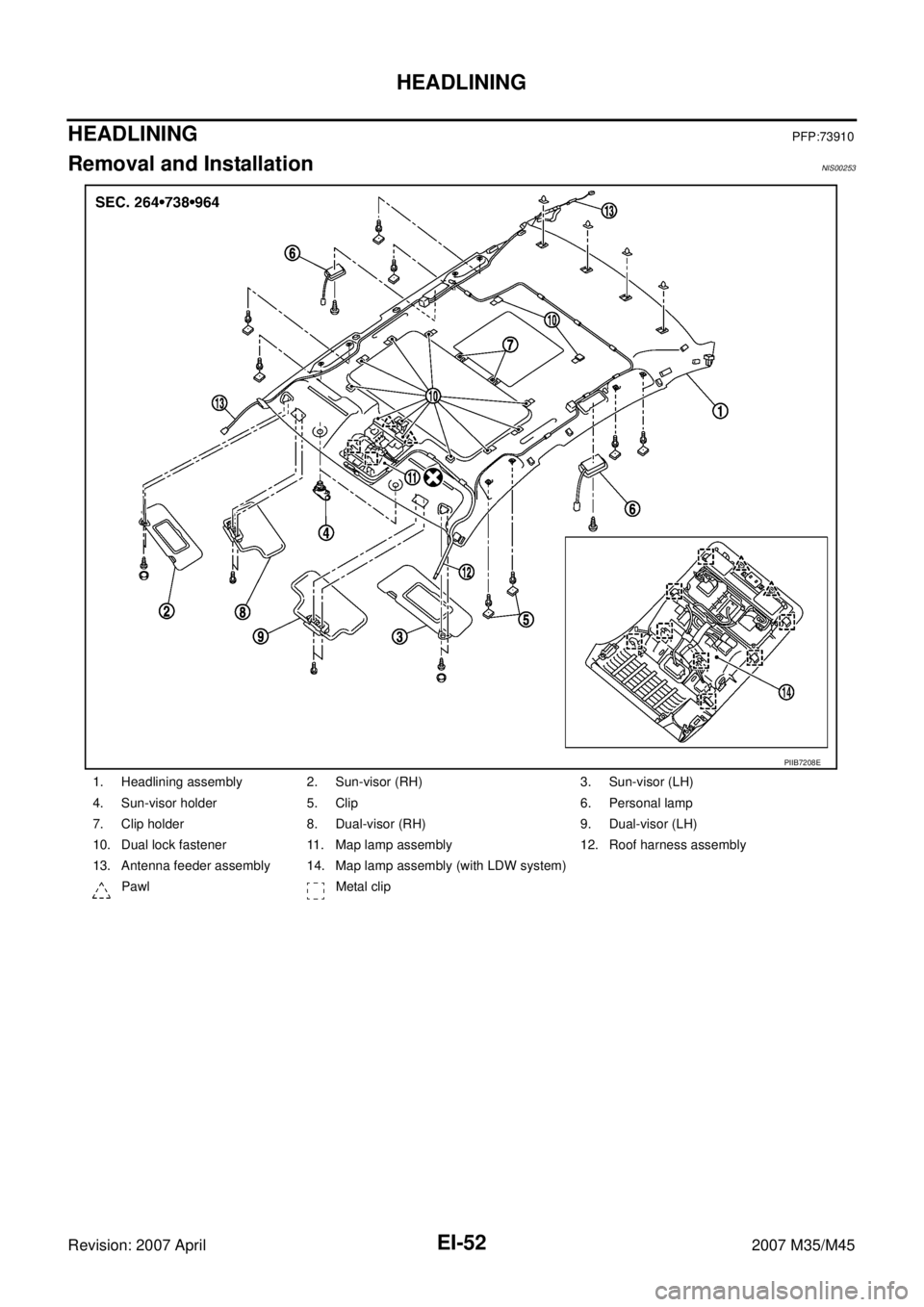

1. Headlining assembly 2. Sun-visor (RH) 3. Sun-visor (LH)
4. Sun-visor holder 5. Clip 6. Personal lamp
7. Clip holder 8. Dual-visor (RH) 9. Dual-visor (LH)
10. Dual lock fastener 11. Map lamp assembly 12. Roof harness assembly
13. Antenna feeder assembly 14. Map lamp assembly (with LDW system)
Pawl Metal clip
PIIB7208E
Page 3024 of 4647

HEADLINING
EI-53
C
D
E
F
G
H
J
K
L
MA
B
EI
Revision: 2007 April2007 M35/M45

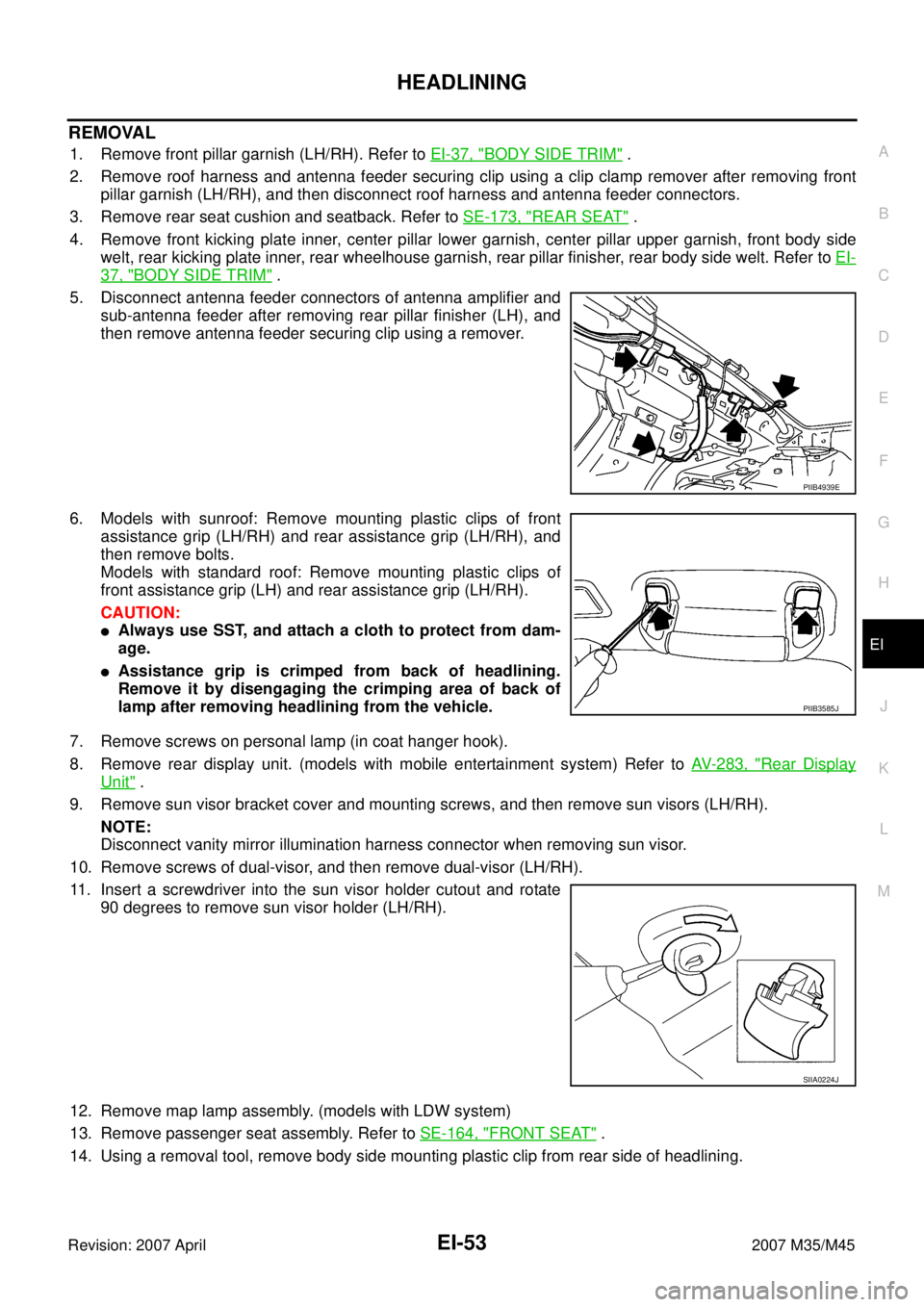

REMOVAL
1. Remove front pillar garnish (LH/RH). Refer to EI-37, "BODY SIDE TRIM" .
2. Remove roof harness and antenna feeder securing clip using a clip clamp remover after removing front
pillar garnish (LH/RH), and then disconnect roof harness and antenna feeder connectors.
3. Remove rear seat cushion and seatback. Refer to SE-173, "
REAR SEAT" .
4. Remove front kicking plate inner, center pillar lower garnish, center pillar upper garnish, front body side
welt, rear kicking plate inner, rear wheelhouse garnish, rear pillar finisher, rear body side welt. Refer to EI-
37, "BODY SIDE TRIM" .
5. Disconnect antenna feeder connectors of antenna amplifier and
sub-antenna feeder after removing rear pillar finisher (LH), and
then remove antenna feeder securing clip using a remover.
6. Models with sunroof: Remove mounting plastic clips of front
assistance grip (LH/RH) and rear assistance grip (LH/RH), and
then remove bolts.
Models with standard roof: Remove mounting plastic clips of
front assistance grip (LH) and rear assistance grip (LH/RH).
CAUTION:
Always use SST, and attach a cloth to protect from dam-
age.
Assistance grip is crimped from back of headlining.
Remove it by disengaging the crimping area of back of
lamp after removing headlining from the vehicle.
7. Remove screws on personal lamp (in coat hanger hook).
8. Remove rear display unit. (models with mobile entertainment system) Refer to AV- 2 8 3 , "
Rear Display
Unit" .
9. Remove sun visor bracket cover and mounting screws, and then remove sun visors (LH/RH).
NOTE:
Disconnect vanity mirror illumination harness connector when removing sun visor.
10. Remove screws of dual-visor, and then remove dual-visor (LH/RH).
11. Insert a screwdriver into the sun visor holder cutout and rotate
90 degrees to remove sun visor holder (LH/RH).
12. Remove map lamp assembly. (models with LDW system)
13. Remove passenger seat assembly. Refer to SE-164, "
FRONT SEAT" .
14. Using a removal tool, remove body side mounting plastic clip from rear side of headlining.
PIIB4939E
PIIB3585J
SIIA0224J
