Page 3665 of 4647

LT-214
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2007 April2007 M35/M45
to BCM terminal 52
to combination meter terminals 9, 10 and 11
to unified meter and A/C amp. terminals 55 and 71
through grounds M16 and M70.
BCM then supplies power
through BCM terminal 45
to front combination lamp LH (turn signal) terminal 10
to side turn signal lamp LH terminal 1
to rear combination lamp LH (turn signal) terminal 3,
through BCM terminal 46
to front combination lamp RH (turn signal) terminal 10
to side turn signal lamp RH terminal 1
to rear combination lamp RH (turn signal) terminal 3.
Ground is supplied
to front combination lamp LH (turn signal) terminal 9
to front combination lamp RH (turn signal) terminal 9
to side turn signal lamp LH terminal 2
to side turn signal lamp RH terminal 2
through grounds E22 and E43,
to rear combination lamp LH (turn signal) terminal 4
to rear combination lamp RH (turn signal) terminal 4
through grounds B5, B40 and B131.
The BCM also supplies input to unified meter and A/C amp. terminals 56 and 72 across the CAN communica-
tion lines.
The unified meter and A/C amp. which received the turn indicator signal makes the left and right turn signal
indicator turn on in combination meter.
With power and input supplied, the BCM controls the flashing of the hazard warning lamps.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
CAN Communication System DescriptionNKS003RM
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitNKS003RN
Refer to LAN-50, "CAN System Specification Chart" .
Page 3666 of 4647
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-215
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

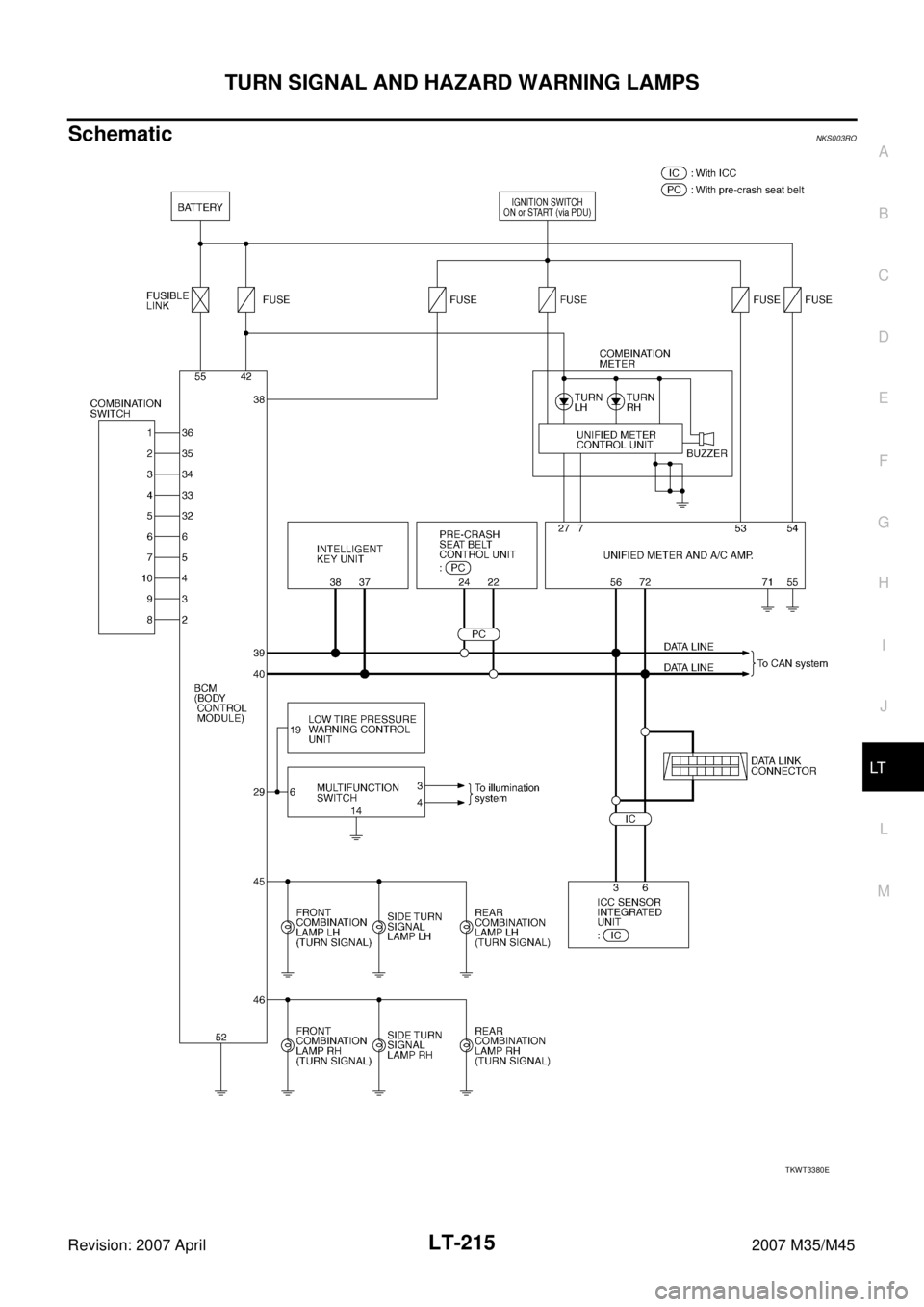

SchematicNKS003RO
TKWT3380E
Page 3667 of 4647
LT-216
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2007 April2007 M35/M45

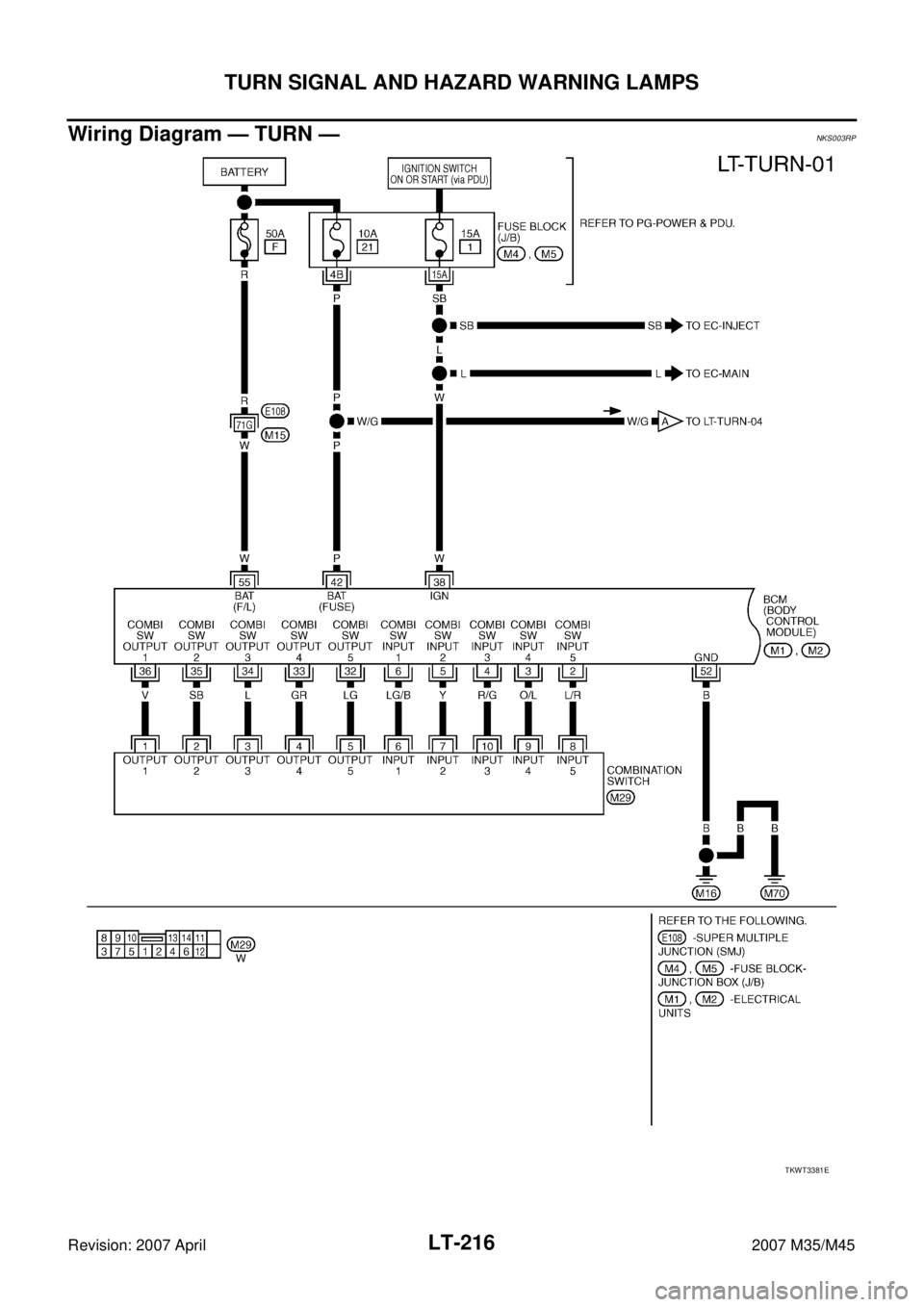

Wiring Diagram — TURN —NKS003RP
TKWT3381E
Page 3668 of 4647
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-217
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

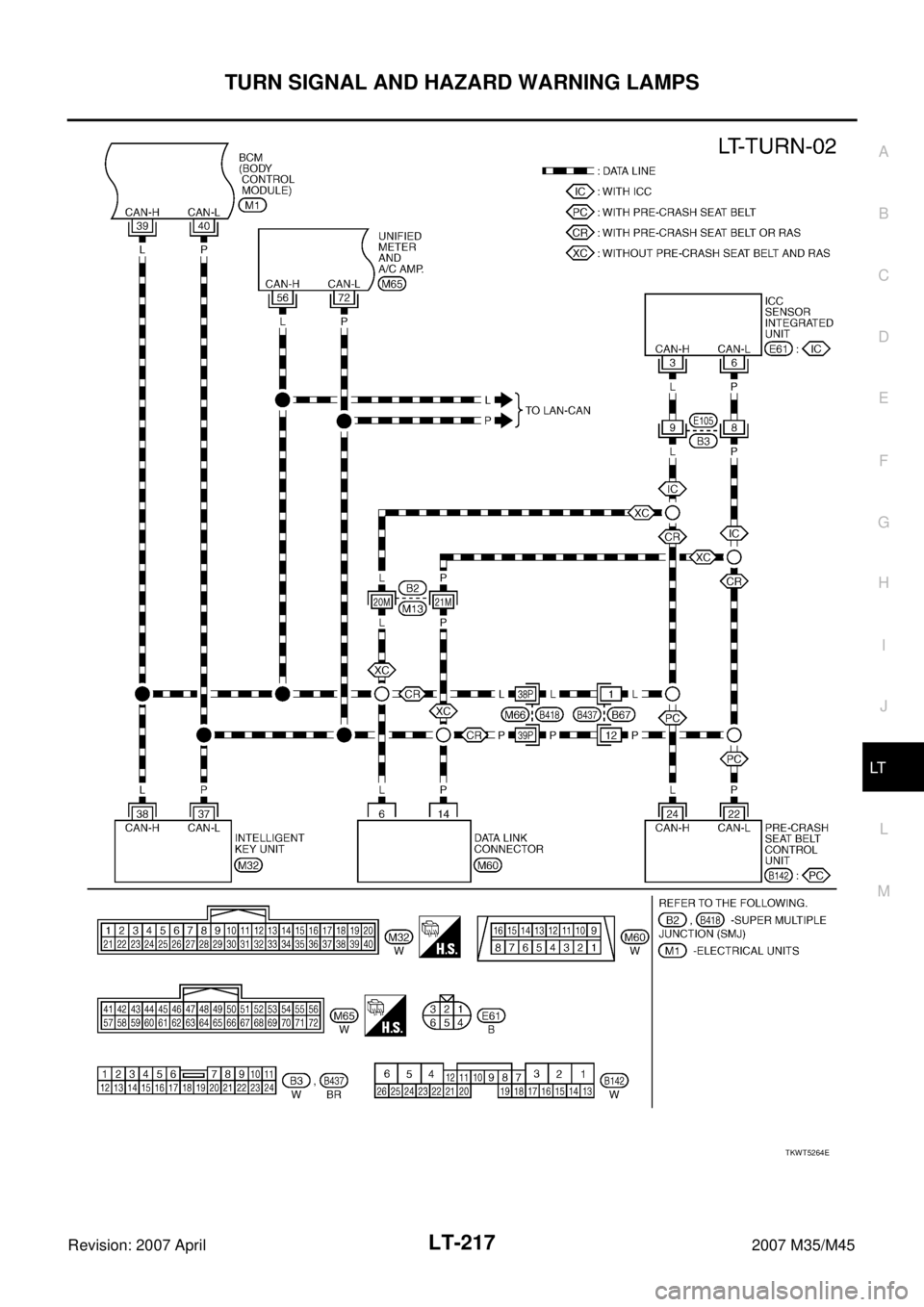

TKWT5264E
Page 3669 of 4647
LT-218
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2007 April2007 M35/M45

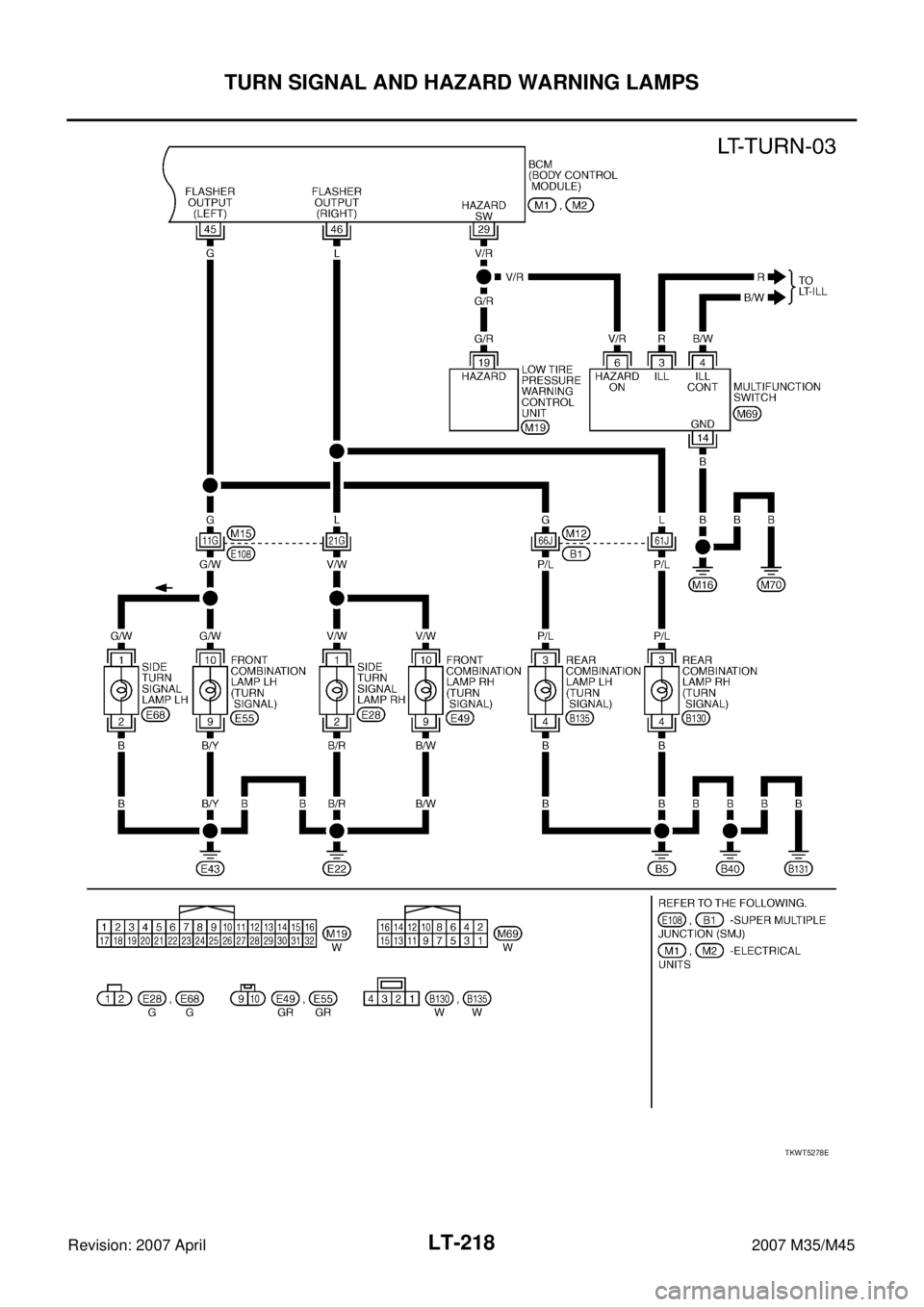

TKWT5278E
Page 3670 of 4647
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-219
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45

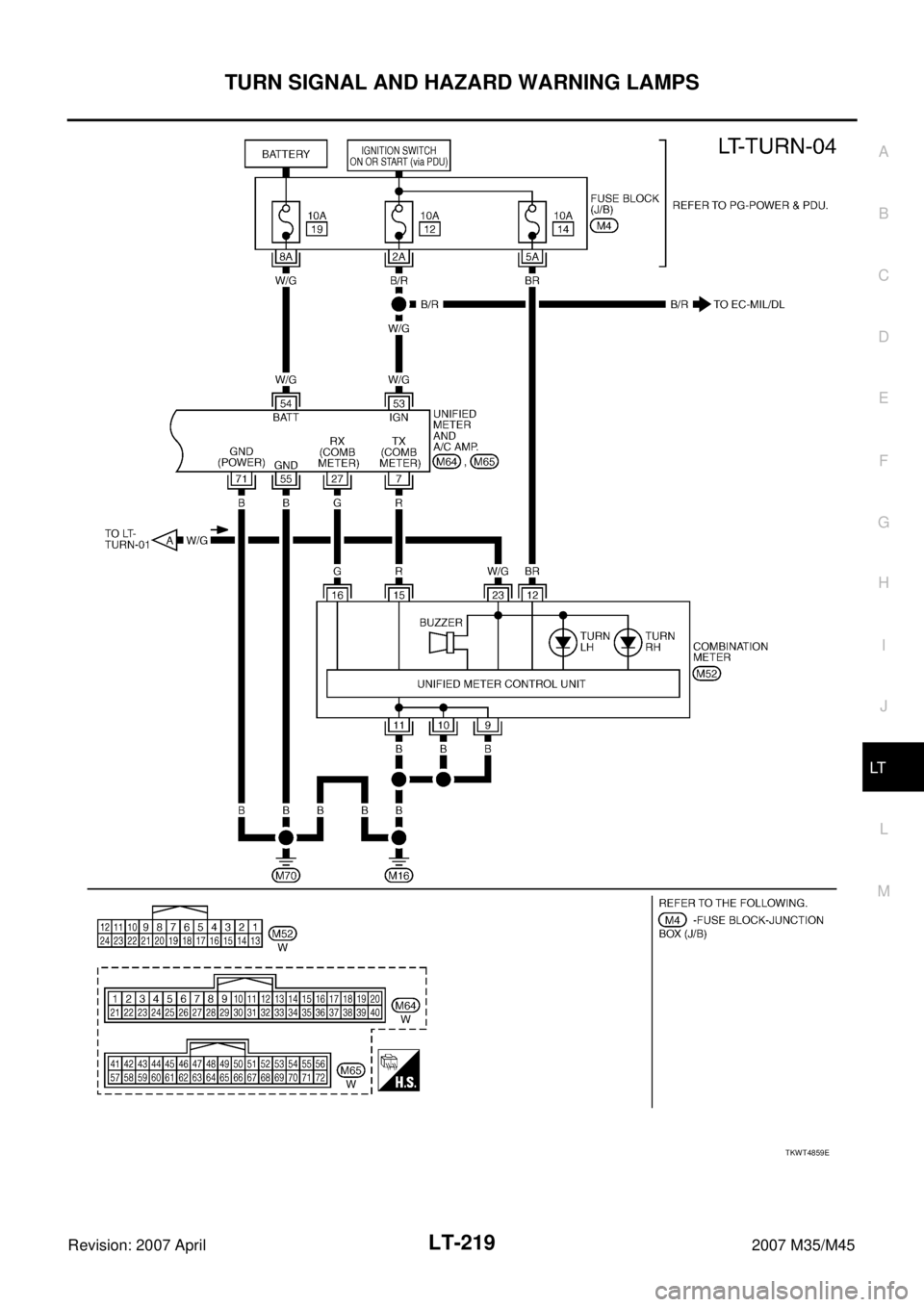

TKWT4859E
Page 3671 of 4647

LT-220
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2007 April2007 M35/M45
Terminals and Reference Values for BCMNKS003RQ
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-II. Refer to LT- 2 3 8 , "
DATA MONITOR" .
Te r m i n a l
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2L/RCombination
switch input 5ONLighting, turn, wiper
switch
(Wiper dial position 4)Turn signal switch to
right
Approx. 1.0 V
OFF Approx. 0 V
3 O/LCombination
switch input 4ONLighting, turn, wiper
switch
(Wiper dial position 4)Turn signal switch to left
Approx. 1.0 V
OFF Approx. 0 V
29 V/RHazard switch
signalOFF Hazard switchON Approx. 0 V
OFF Battery voltage
36 VCombination
switch output 1ONLighting, turn, wiper
switch
(Wiper dial position 4)
Any of several con-
ditions below
Turn signal switch to
right
Turn signal switch to
left
Approx. 1.2 V
OFF
Approx. 7.0 - 7.5 V
38 WIgnition switch
(ON) ON — Battery voltage
39 L CAN − H— — —
40 P CAN − L— — —
42 PBattery power
supplyOFF — Battery voltage
PKIB4957J
PKIB4957J
PKIB4958J
PKIB4960J
Page 3672 of 4647
TURN SIGNAL AND HAZARD WARNING LAMPS
LT-221
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2007 April2007 M35/M45
How to Perform Trouble DiagnosesNKS003RR
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 2 1 2 , "
System Description" .
3. Perform the Preliminary Check. Refer to LT- 2 2 2 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Do turn signal and hazard warning lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
45 GFlasher output
(Left)ON Turn signal switchTo l e f t
OFF Approx. 0 V
46 LFlasher output
(Right)ON Turn signal switchTo right
OFF Approx. 0 V
52 B Ground ON — Approx. 0 V
55 WBattery power
supplyOFF — Battery voltage Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
SKIA3009J
SKIA3009J
