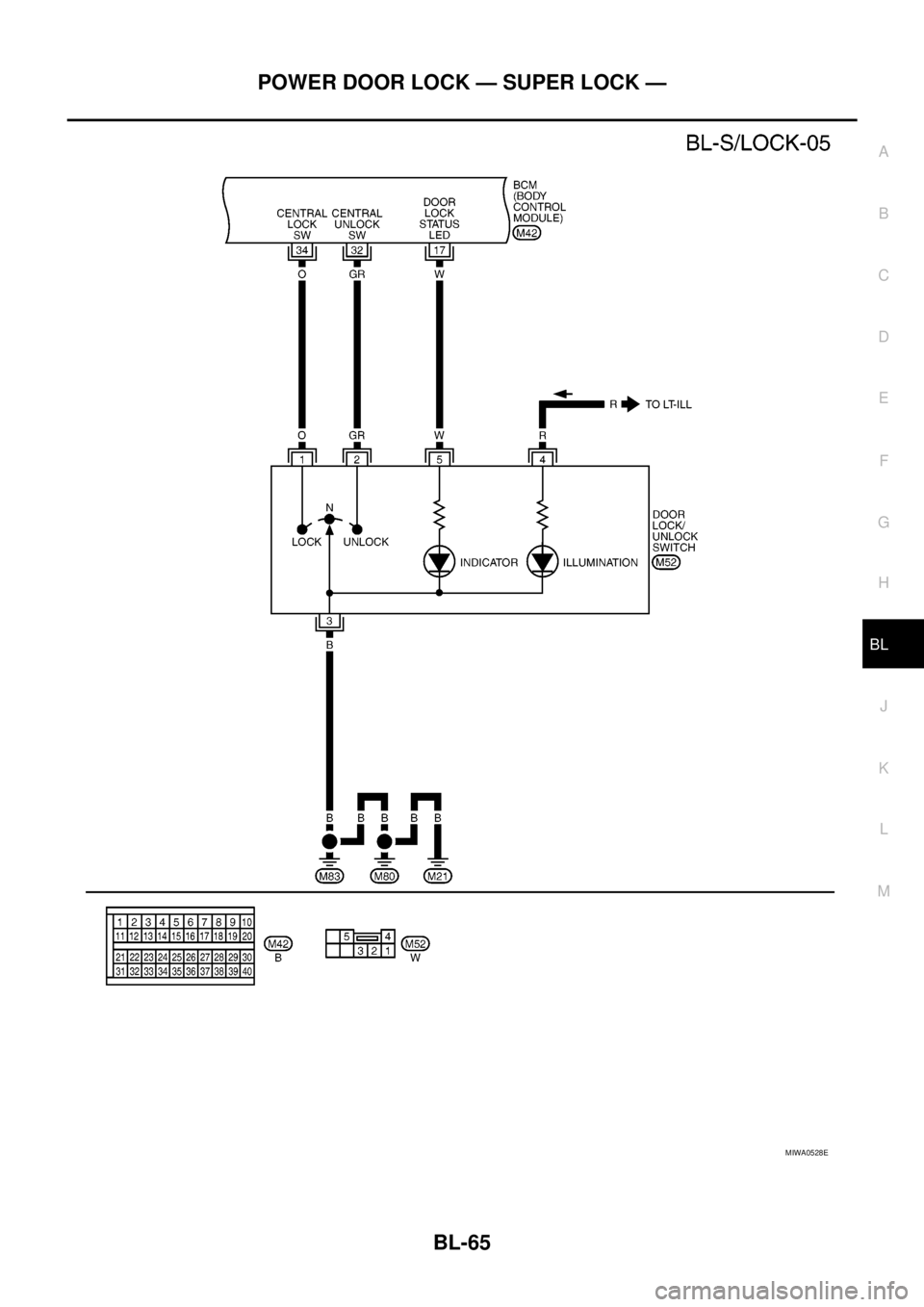

Page 649 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual POWER DOOR LOCK — SUPER LOCK —
BL-65
C
D
E
F
G
H
J
K
L
MA
B
BL
MIWA0528E

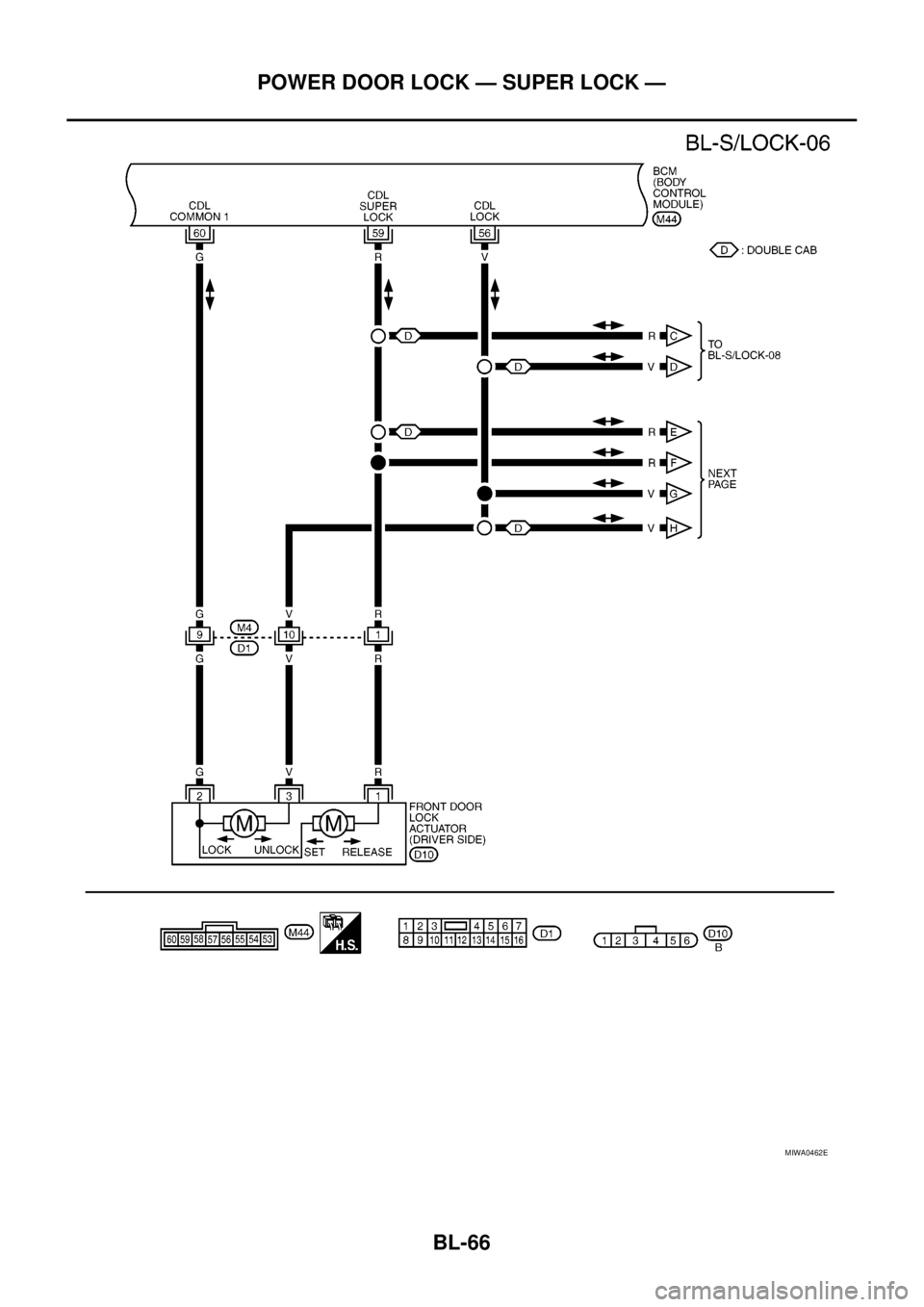

Page 650 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual BL-66
POWER DOOR LOCK — SUPER LOCK —
MIWA0462E

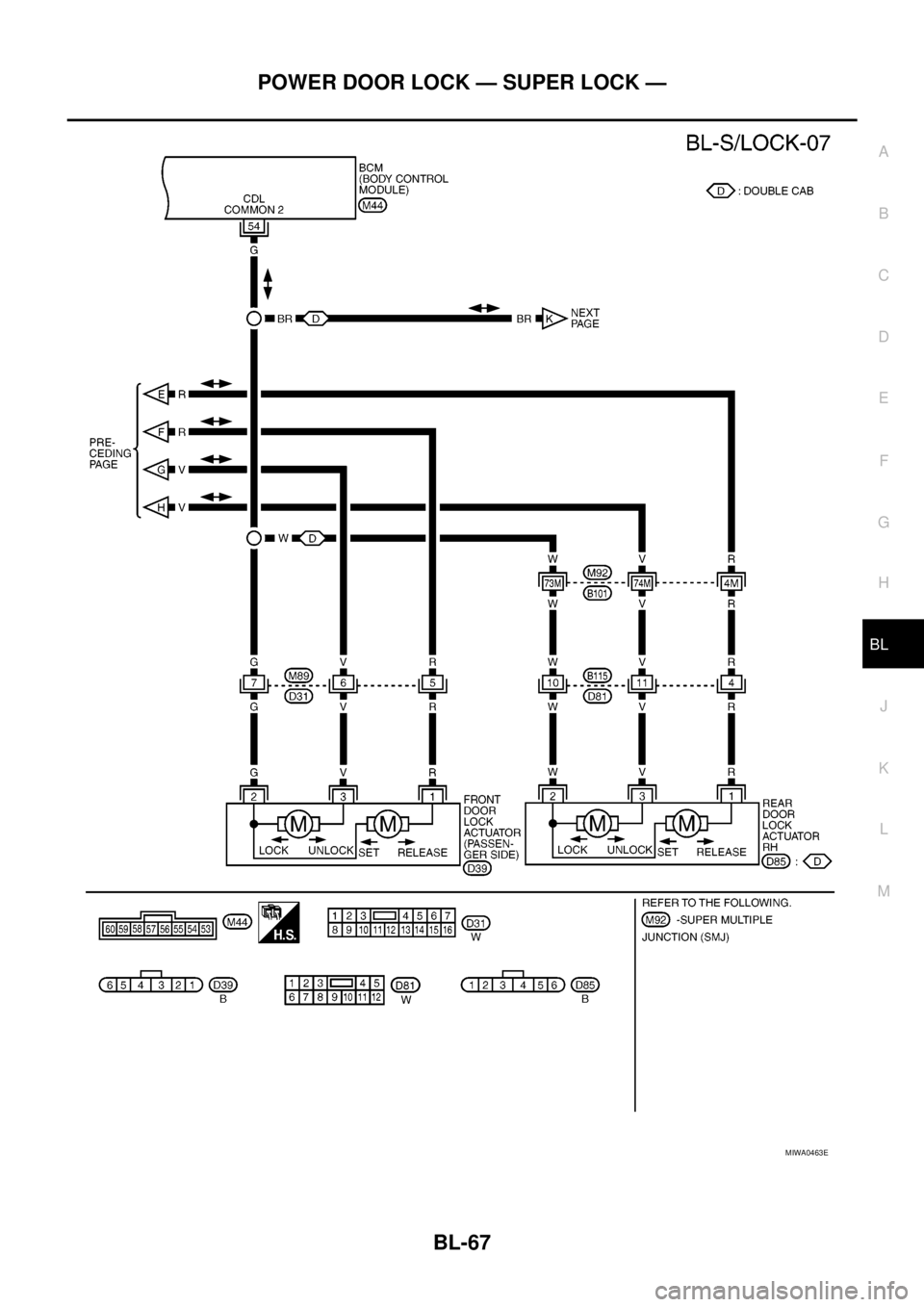

Page 651 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual POWER DOOR LOCK — SUPER LOCK —
BL-67
C
D
E
F
G
H
J
K
L
MA
B
BL
MIWA0463E

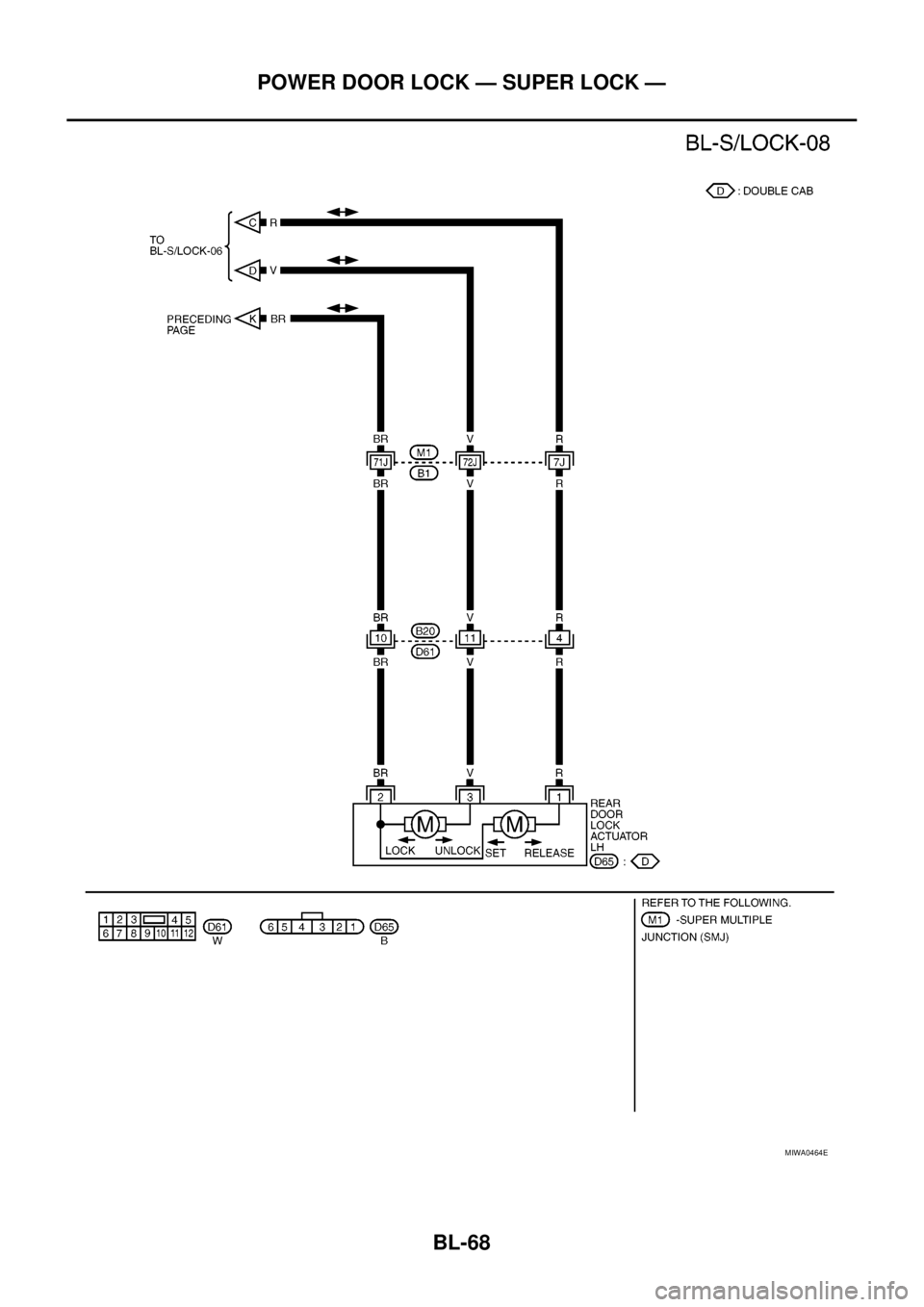

Page 652 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual BL-68
POWER DOOR LOCK — SUPER LOCK —
MIWA0464E

Page 653 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual POWER DOOR LOCK — SUPER LOCK —
BL-69
C
D
E
F
G
H
J
K
L
MA
B
BL
Terminals and Reference Value for BCMEIS00DX5
*: Double cab modelsTERMI-
NALWIRE
COLORITEM CONDITIONVOLTAGE [V]
(Approx.)
3 Y Ignitio

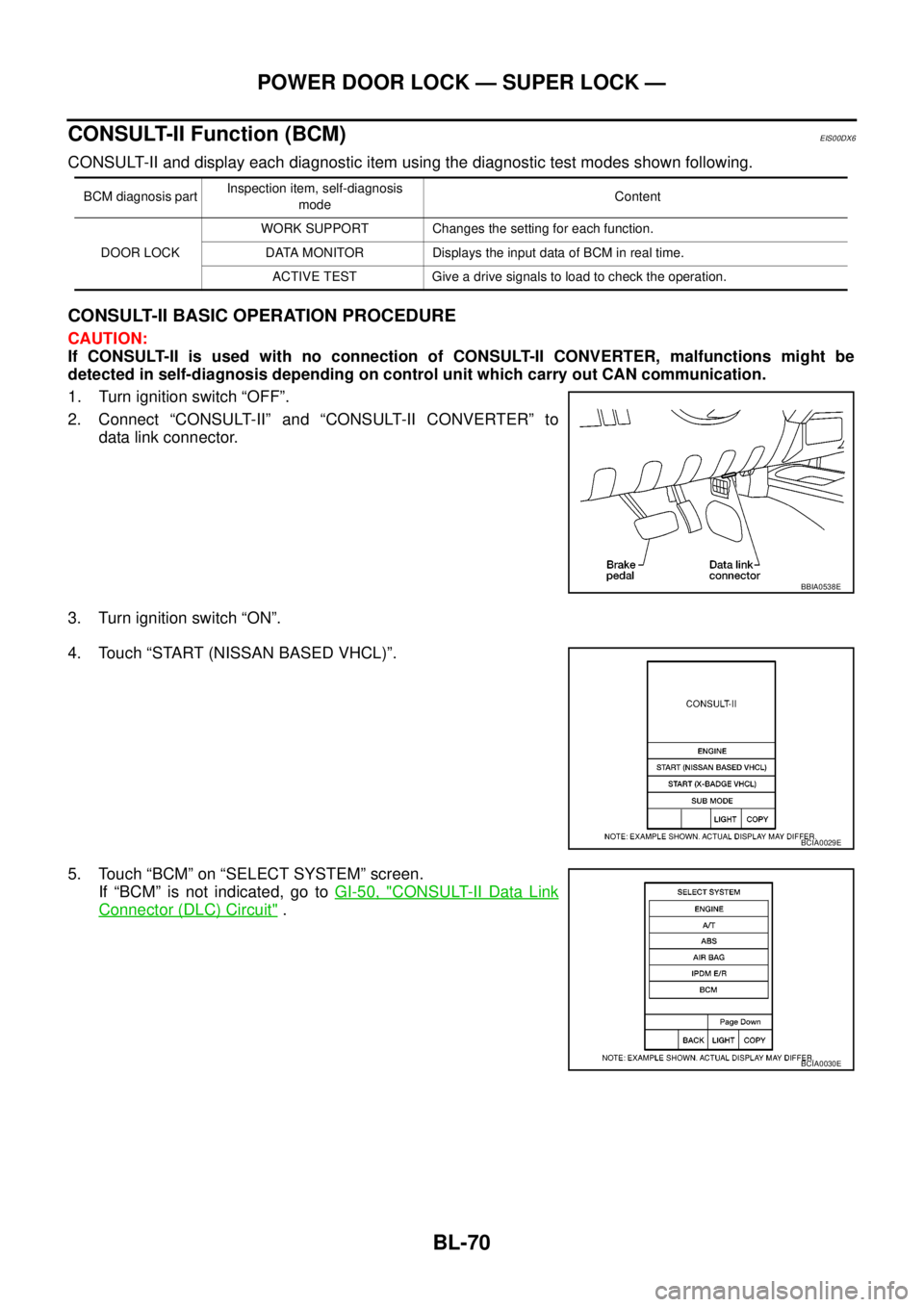

Page 654 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual BL-70
POWER DOOR LOCK — SUPER LOCK —
CONSULT-II Function (BCM)
EIS00DX6
CONSULT-II and display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II BASIC OPERATION PROC

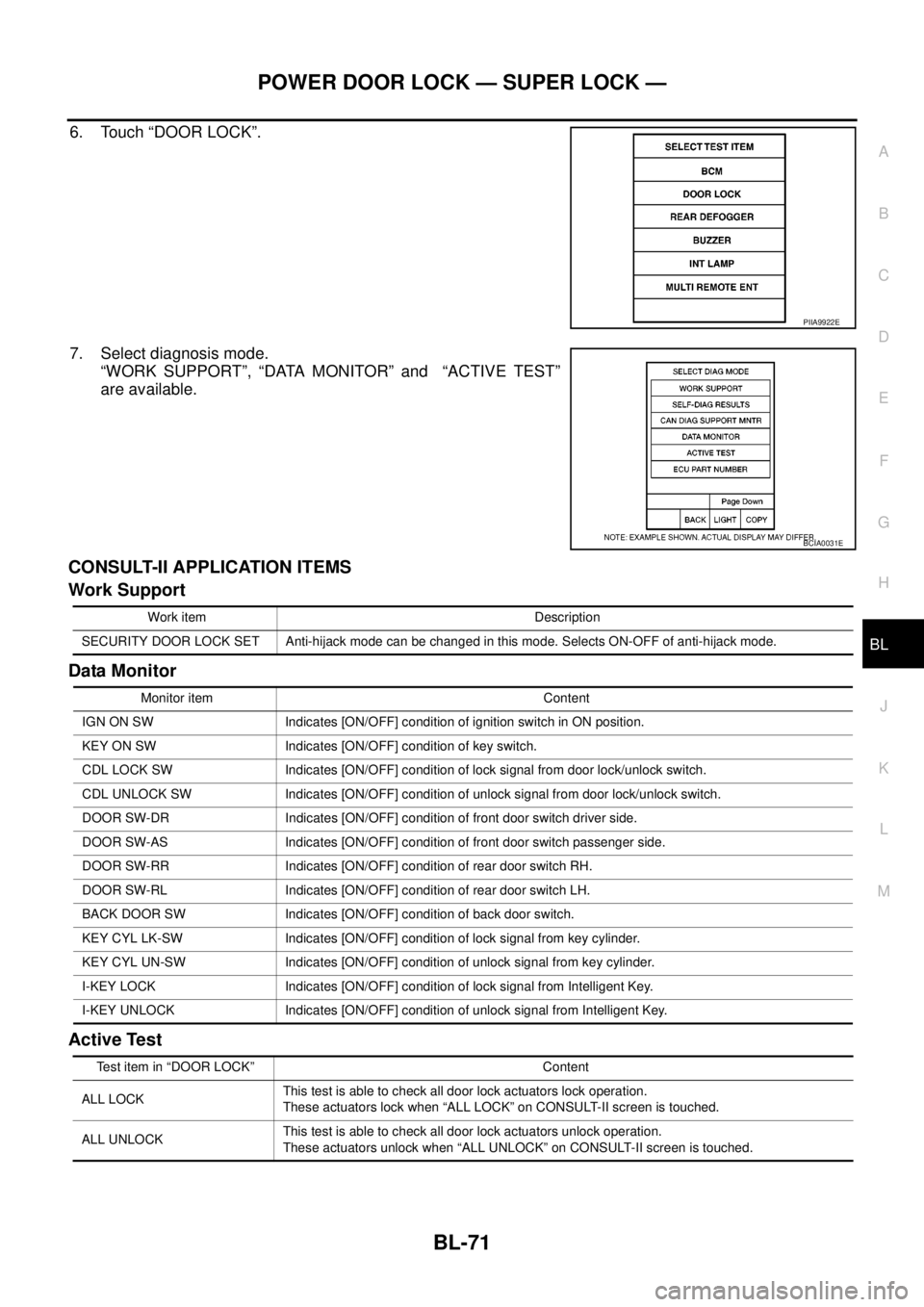

Page 655 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual POWER DOOR LOCK — SUPER LOCK —
BL-71
C
D
E
F
G
H
J
K
L
MA
B
BL
6. Touch “DOOR LOCK”.
7. Select diagnosis mode.
“WORK SUPPORT”, “DATA MONITOR” and “ACTIVE TEST”
are available.
CONSU

Page 656 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual BL-72
POWER DOOR LOCK — SUPER LOCK —
Work Flow
EIS00DX7
1. Check the symptom and customers requests.
2. Understand the outline of system. Refer toBL-57, "
System Description".
3. According to the

BL-72
POWER DOOR LOCK — SUPER LOCK —
Work Flow
EIS00DX7
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer toBL-57, "
System Description".
3. According to the trouble diagnosis, repair or replace the cause of the malfunction. Refer toBL-72, "
Trou-
ble Diagnoses Chart by Symptom".
4. Does power door lock system operate normally?
YES: GO TO 5.
NO:GOTO2.
5. INSPECTION END.
Trouble Diagnoses Chart by SymptomEIS00DX8
NOTE:
Always check the “Work Flow” before troubleshooting. Refer toBL-72, "
Work Flow".
*: Double cab modelsDR UNLOCKThis test is able to check door lock actuator (driver side) lock/unlock operation.
This actuator unlock when “DR UNLOCK” on CONSULT-II screen is touched.
OTHER UNLOCKThis test is able to check all door lock actuators (except driver side) unlock operation.
These actuators unlock when “OTHER UNLOCK” on CONSULT-II screen is touched. Test item in “DOOR LOCK” Content
Symptom Diagnosis/service procedure Reference page
SYMPTOM 1
Power door lock does not operate by using door lock/
unlock switch.1. Power supply and ground circuit checkBL-73
2. Door lock/unlock switch checkBL-86
3. Door switch checkBL-74
4. Front door lock actuator (driver side) checkBL-80
SYMPTOM 2
All door lock actuators except driver side does not oper-
ate using door lock/unlock switch.1.Front door lock actuator (passenger side) checkBL-81
SYMPTOM 3
Specific door lock actuator does not operate using door
lock/unlock switch.1.Front door lock actuator (driver side) checkBL-802.Front door lock actuator (passenger side) checkBL-81
3.Rear door lock actuator LH check*BL-82
4.Rear door lock actuator RH check*BL-82
SYMPTOM 4
Super lock does not operate by using Key fob.1. Key switch checkBL-78
2. Super lock actuator (driver side) checkBL-83
SYMPTOM 5
Specific super lock actuator does not operate.1.Super lock actuator (driver side) checkBL-832.Super lock actuator (passenger side) checkBL-84
3.Super lock actuator (rear LH) check*BL-84
4.Super lock actuator (rear RH) check*BL-85
SYMPTOM 6
Super lock cannot be released by ignition switch.1.Ignition switch ON circuit checkBL-73
SYMPTOM 7
Key reminder system does not operate.1. Key switch checkBL-78
2. If above systems are OK, replace BCM.BCS-17
SYMPTOM 8
Door lock indicator does not illuminate.1. Door lock/unlock switch indicator lamp checkBL-87
2. If above systems are OK, replace BCM.BCS-17
