Page 3073 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TF-106 TRANSFER CONTROL DEVICE c. Tighten the bolts to the specified torque. Refer toTF-112, "COM- PONENTS". 3. Install the breather hose to the transfer control device. 4. Connect the transfer contro

Page 3074 of 3171

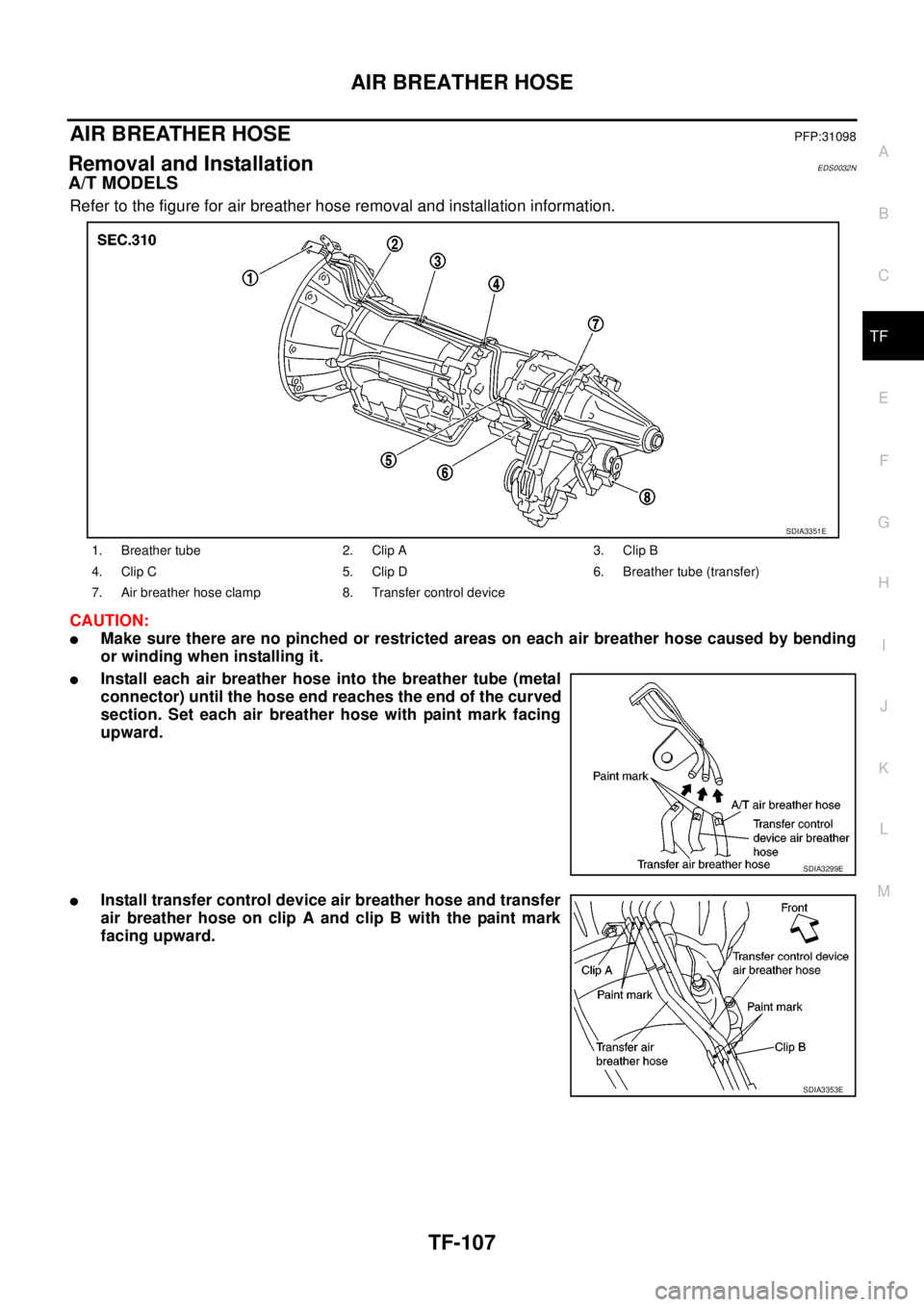

NISSAN NAVARA 2005 Repair Workshop Manual AIR BREATHER HOSE TF-107 C E F G H I J K L MA B TF AIR BREATHER HOSEPFP:31098 Removal and InstallationEDS0032N A/T MODELS Refer to the figure for air breather hose removal and installation information

Page 3075 of 3171

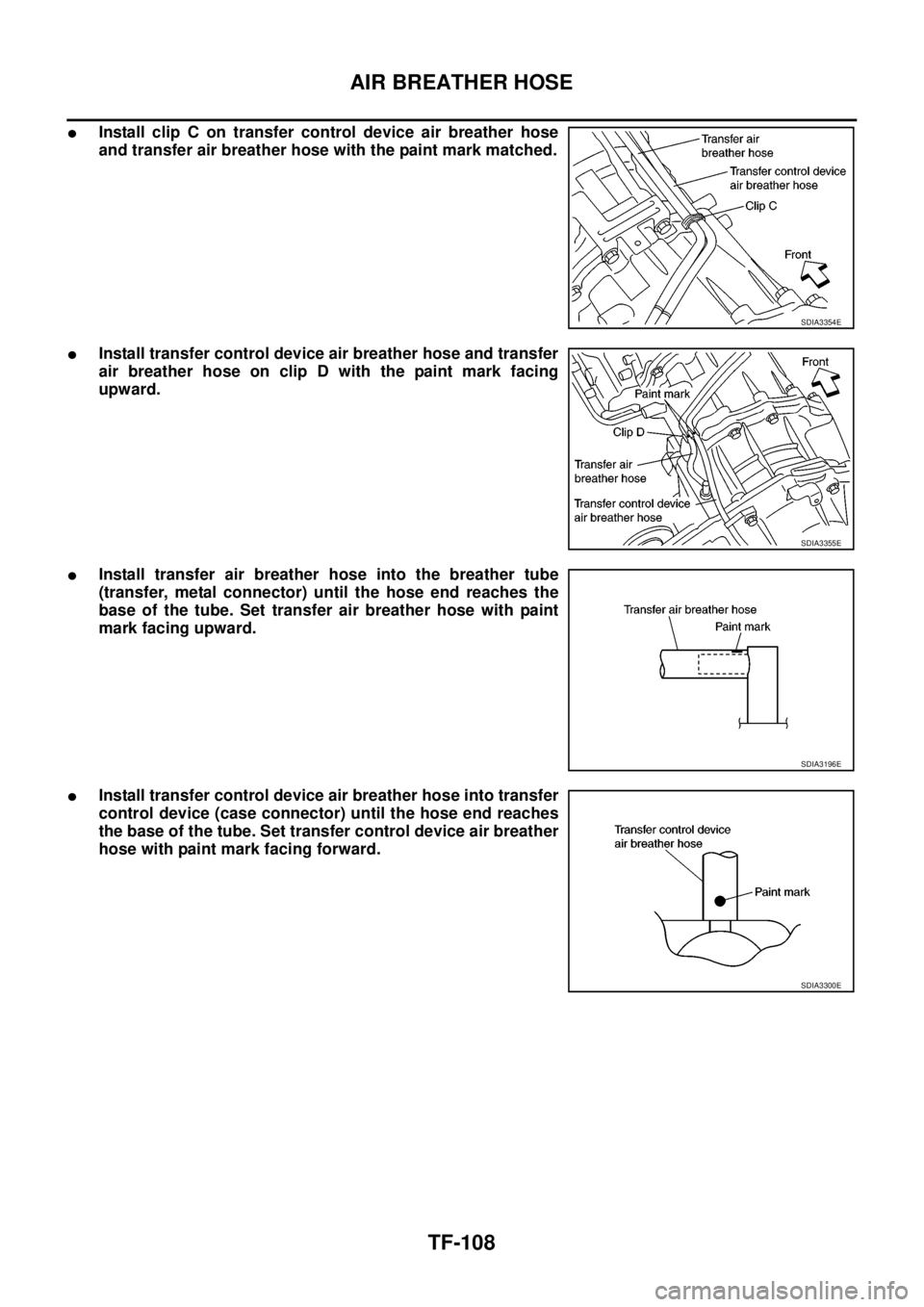

NISSAN NAVARA 2005 Repair Workshop Manual TF-108 AIR BREATHER HOSE lInstall clip C on transfer control device air breather hose and transfer air breather hose with the paint mark matched. lInstall transfer control device air breather hose and

Page 3076 of 3171

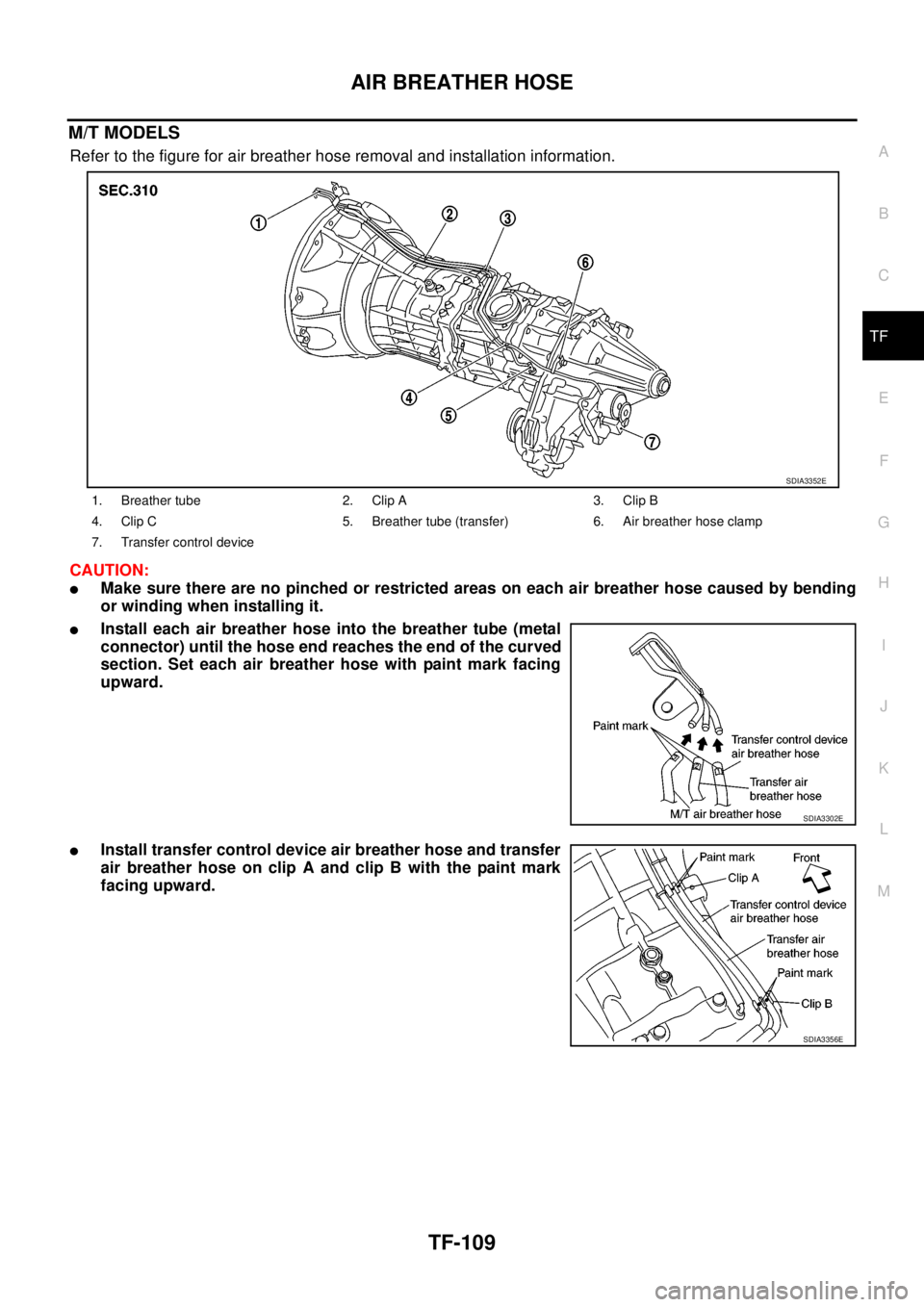

NISSAN NAVARA 2005 Repair Workshop Manual AIR BREATHER HOSE TF-109 C E F G H I J K L MA B TF M/T MODELS Refer to the figure for air breather hose removal and installation information. CAUTION: lMake sure there are no pinched or restricted are

Page 3077 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TF-110 AIR BREATHER HOSE lInstall transfer control device air breather hose and transfer air breather hose on clip C with the paint mark facing upward. lInstall transfer air breather hose into the bre

Page 3078 of 3171

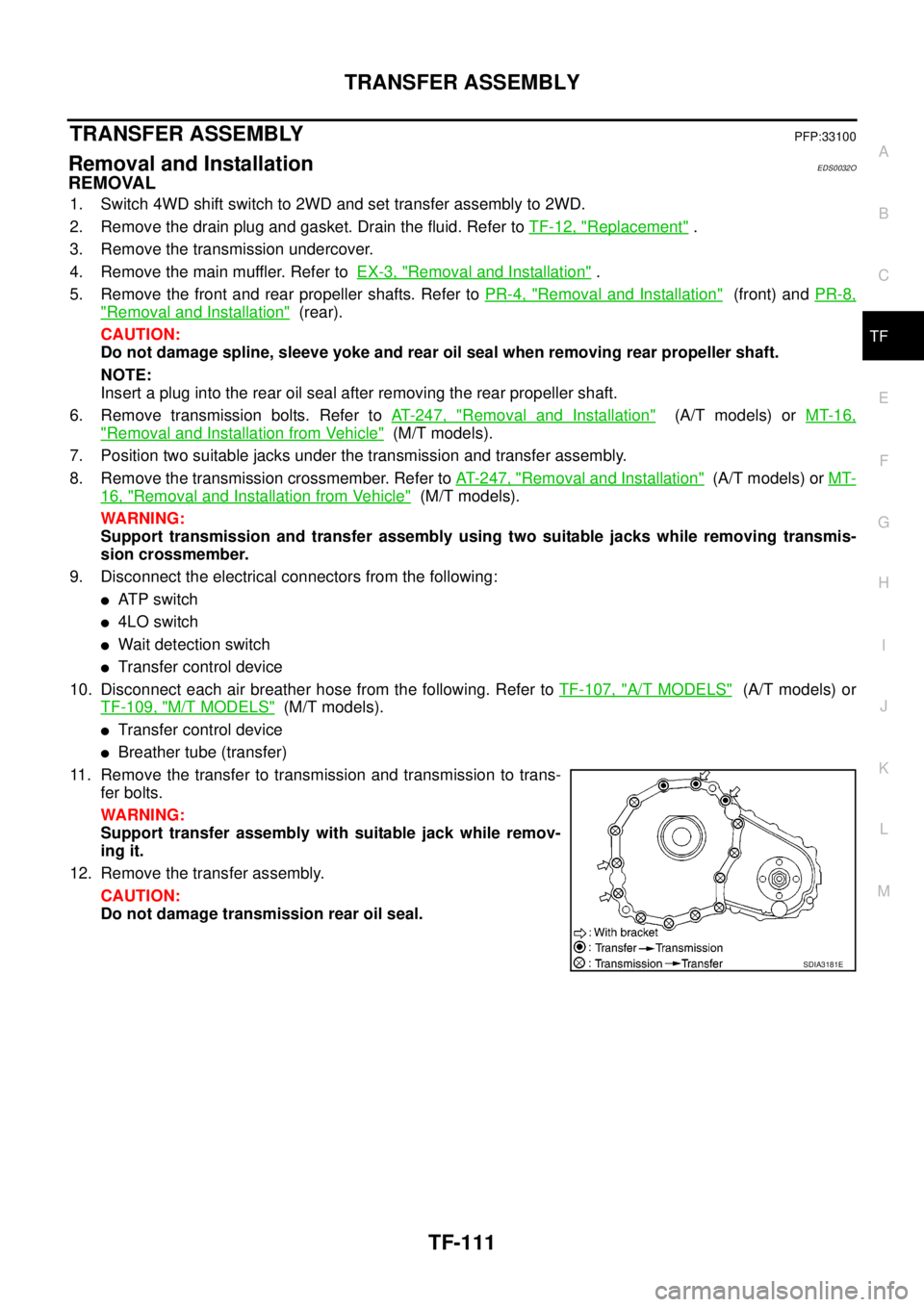

NISSAN NAVARA 2005 Repair Workshop Manual TRANSFER ASSEMBLY TF-111 C E F G H I J K L MA B TF TRANSFER ASSEMBLYPFP:33100 Removal and InstallationEDS0032O REMOVAL 1. Switch 4WD shift switch to 2WD and set transfer assembly to 2WD. 2. Remove the

Page 3079 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual TF-112 TRANSFER ASSEMBLY INSTALLATION Note the following, and install in the reverse order of removal. lTighten the bolts to specification. lAfter the installation, check the transfer fluid level and

Page 3080 of 3171

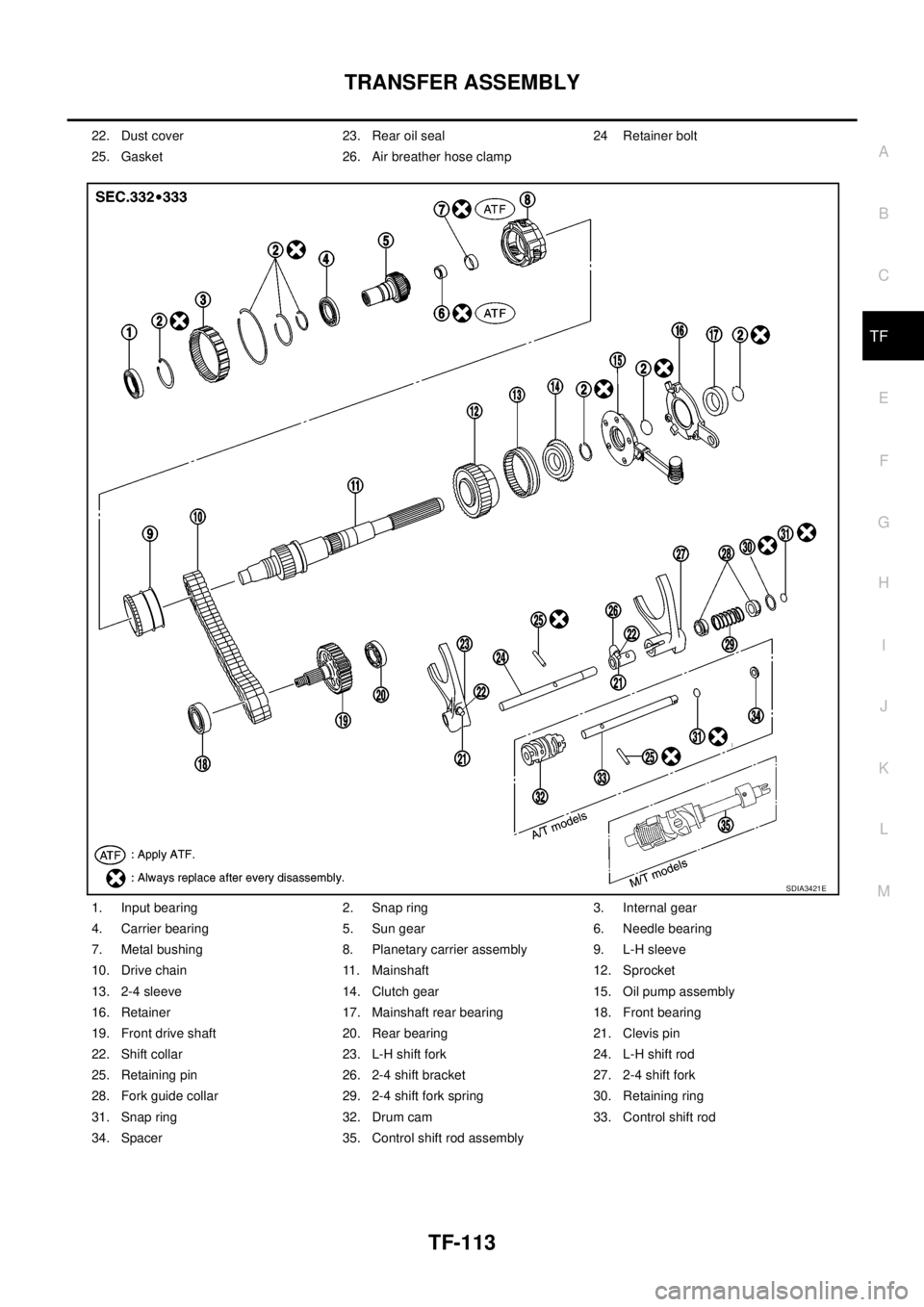

NISSAN NAVARA 2005 Repair Workshop Manual TRANSFER ASSEMBLY TF-113 C E F G H I J K L MA B TF 22. Dust cover 23. Rear oil seal 24 Retainer bolt 25. Gasket 26. Air breather hose clamp 1. Input bearing 2. Snap ring 3. Internal gear 4. Carrier be
