WARNING CHIMEPFP:24814
System DescriptionEKS00L9D
lBuzzer for warning chime system is installed in the combination meter.
lThe buzzer sounds at the following conditions:
–When combination meter receives buzzer output signal with CAN communication line
–When combination meter judges warning chime sound condition is found
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times
lthrough 50A fusible link (letterG, located in the fuse and fusible link box)
lto BCM terminal 57.
With ignition switch in the ON or START position, power is supplied
lthrough 10A fuse [No. 1, located in the fuse block (J/B)]
lto BCM terminal 3.
Ground is supplied
lto BCM terminal 55
lthrough grounds M21, M80 and M83.
LIGHT WARNING CHIME
With ignition switch in OFF or ACC position, driver's door open, and lighting switch in 1ST or 2ND position, the
light warning chime will sound.
lBCM detects ignition switch in OFF or ACC position, front door switch (driver side) ON, and lighting switch
in 1ST or 2ND position. And then transmits buzzer output signal (light warning chime) to combination
meter with CAN communication line.
lWhen combination meter receives buzzer output signal (light warning chime), it sounds the buzzer.
NOTE:
For further details of combination switch, refer toBCS-3, "
COMBINATION SWITCH READING FUNCTION".
KEY REMINDER WARNING CHIME
Key reminder chime sounds, at the same time, when key reminder system starts operating.
key reminder chime also sounds when the following three conditions are simultaneously met.
lKey is inserted in the ignition key cylinder
lDriver¢s door is opened
lThe setting of driver¢s door lock knob is “LOCK”
For information regarding key reminder system, refer toBL-21, "
POWER DOOR LOCK SYSTEM".
LOW-FUEL WARNING CHIME
Low-fuel warning chime sounds, when low-fuel warning lamp is turned ON.
Combination meter sounds warning chime three times when low-fuel warning lamp turns ON.
Page 962 of 3171
DI-52
WARNING CHIME
SEAT BELT WARNING CHIME
Seat belt warning chime sound for approximately 90 seconds, when vehicle speed becomes more than 25 km/
h (16 MPH) with driver seat belt unfastened.
When driver seat belt is unfastened, ground is supplied as signal
lto combination meter terminal 24
lthrough seat belt buckle switch (driver side) terminals 1 and 2
lthrough grounds B9 and B25 (LHD models), B106 and B121 (RHD models).
ABS actuator and electric unit (control unit) provides a vehicle speed signal to the combination meter.
Combination meter detects that driver seat belt is unfastened (seat belt buckle switch ON) and vehicle speed
more than 25 km/h (16 MPH). And then it sounds seat belt warning chime for 90 seconds.
NOTE:
Warning chime should be turned off under the following conditions.
lDriver seat belt is fastened (seat belt buckle switch OFF)
l90 seconds elapsed since warning chime start

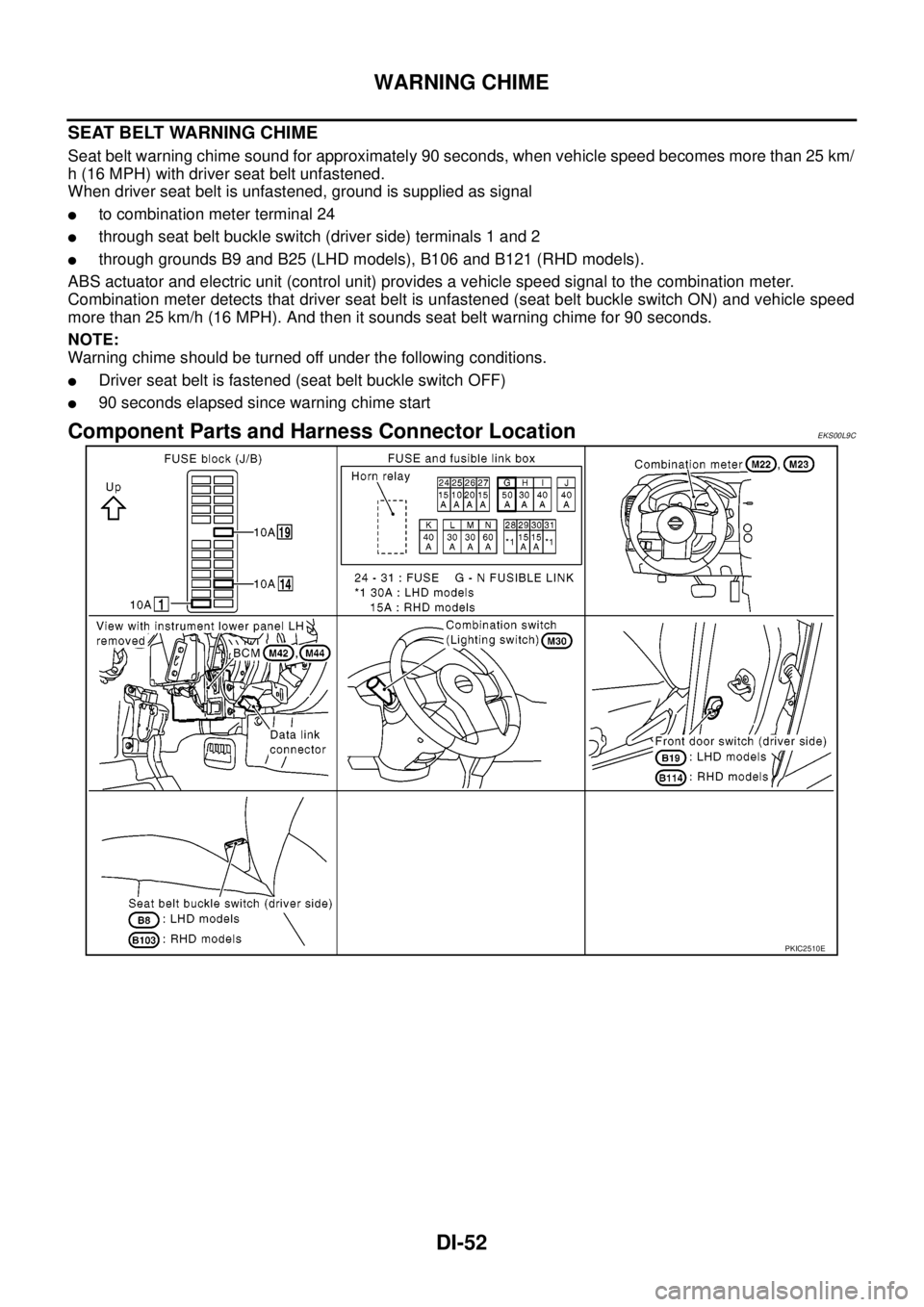

Component Parts and Harness Connector LocationEKS00L9C
PKIC2510E
Page 963 of 3171
WARNING CHIME
DI-53
C
D
E
F
G
H
I
J
L
MA
B
DI

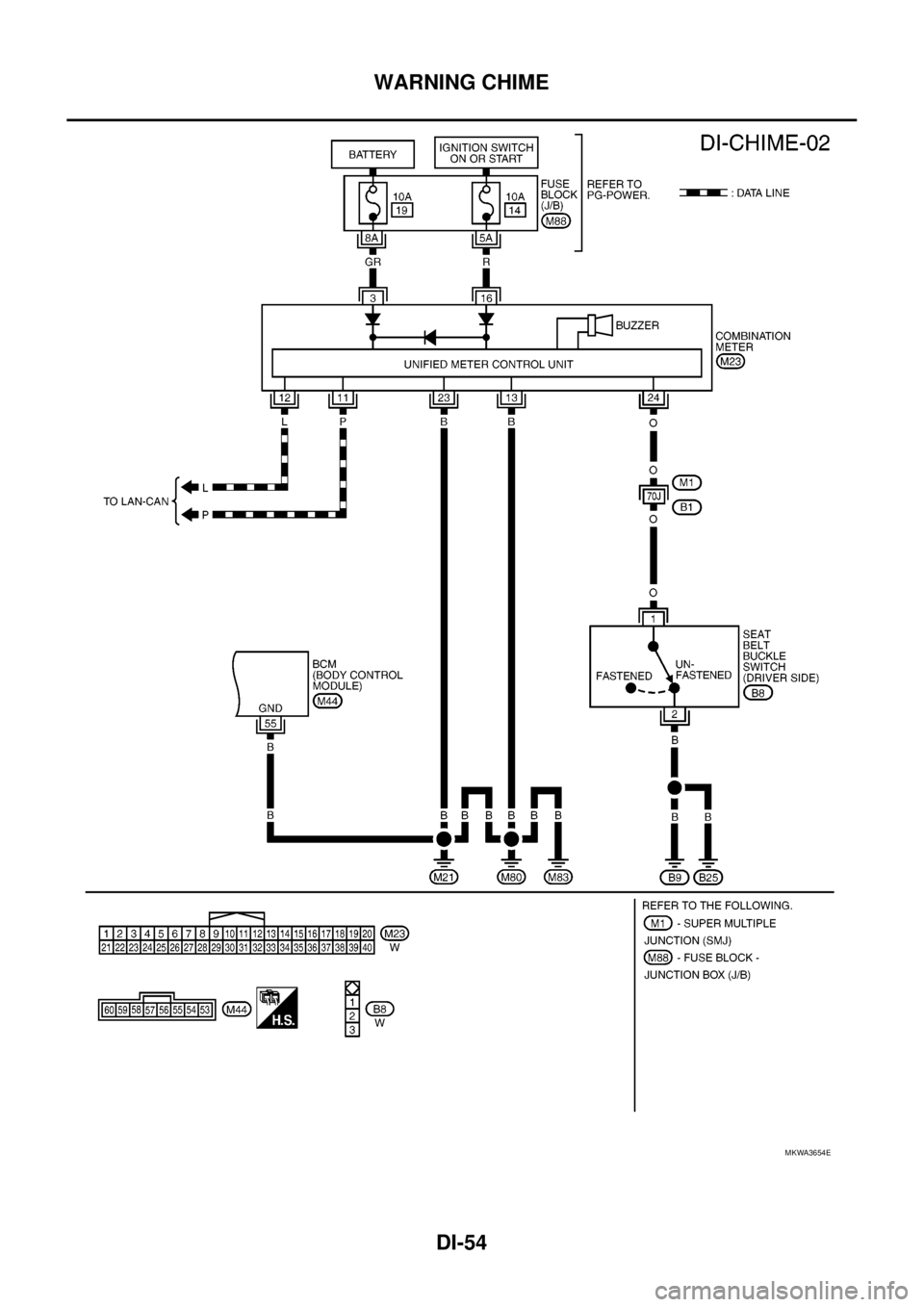

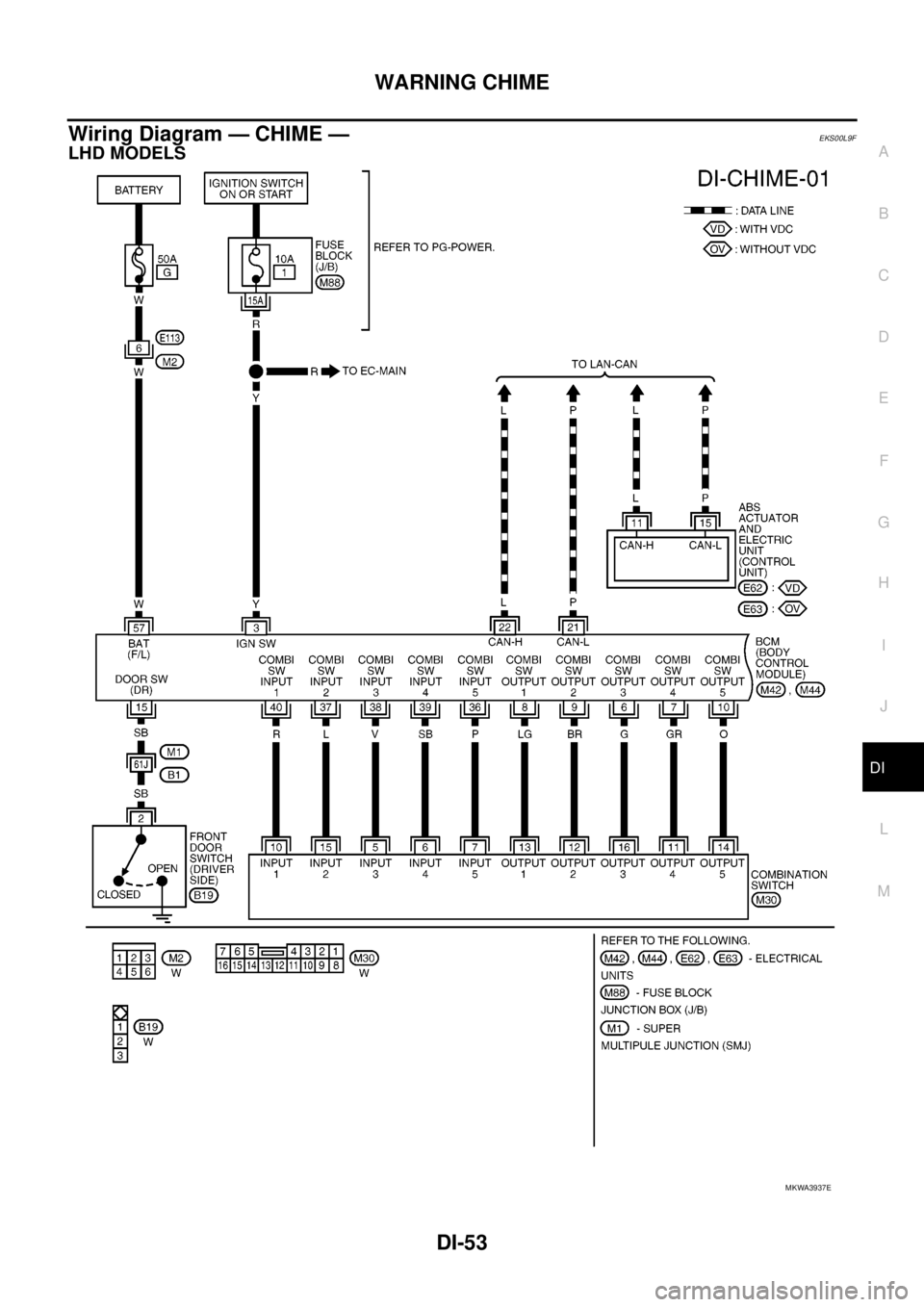

Wiring Diagram — CHIME —EKS00L9F
LHD MODELS
MKWA3937E
Page 964 of 3171
DI-54
WARNING CHIME
MKWA3654E
Page 965 of 3171
WARNING CHIME
DI-55
C
D
E
F
G
H
I
J
L
MA
B
DI

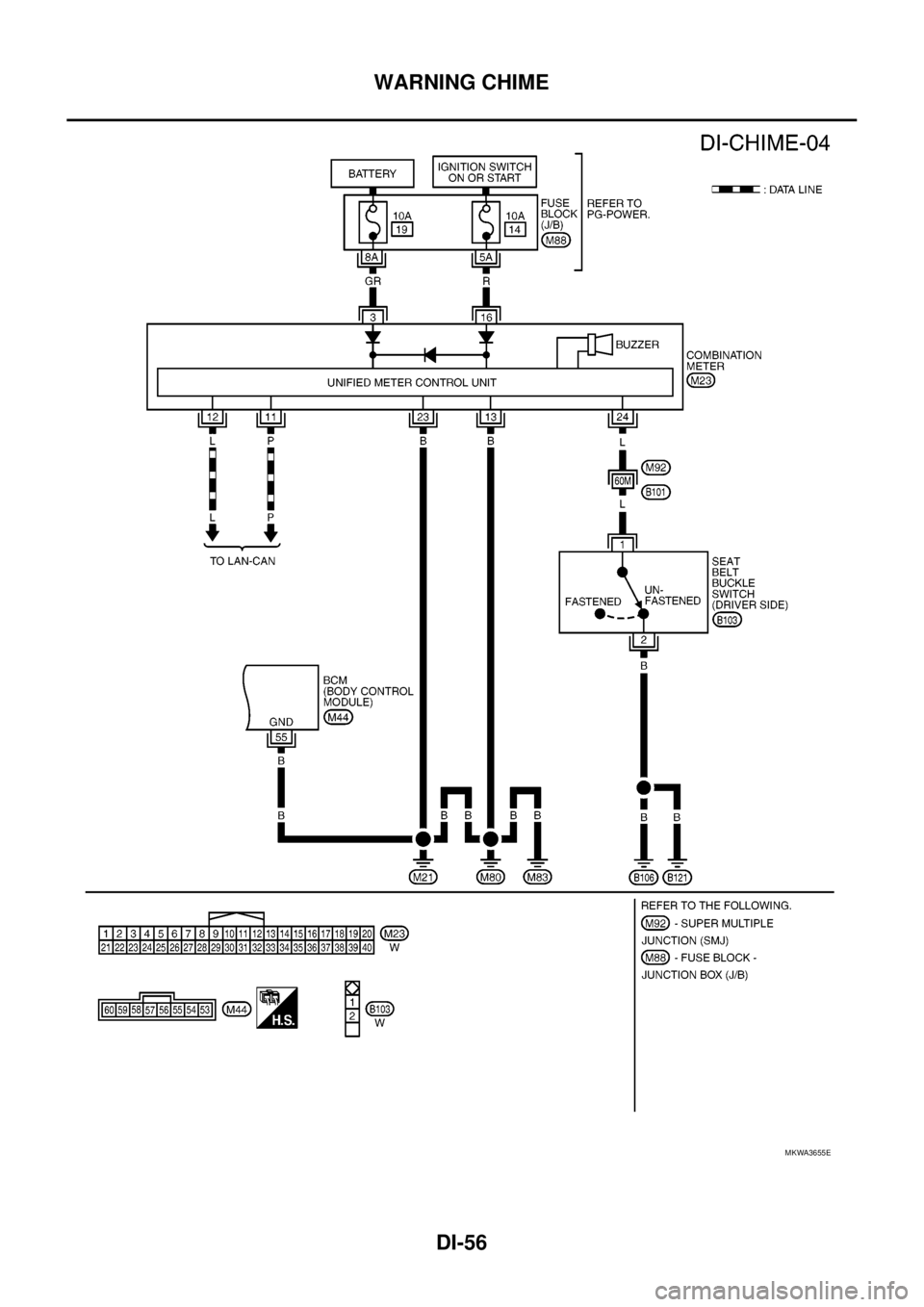

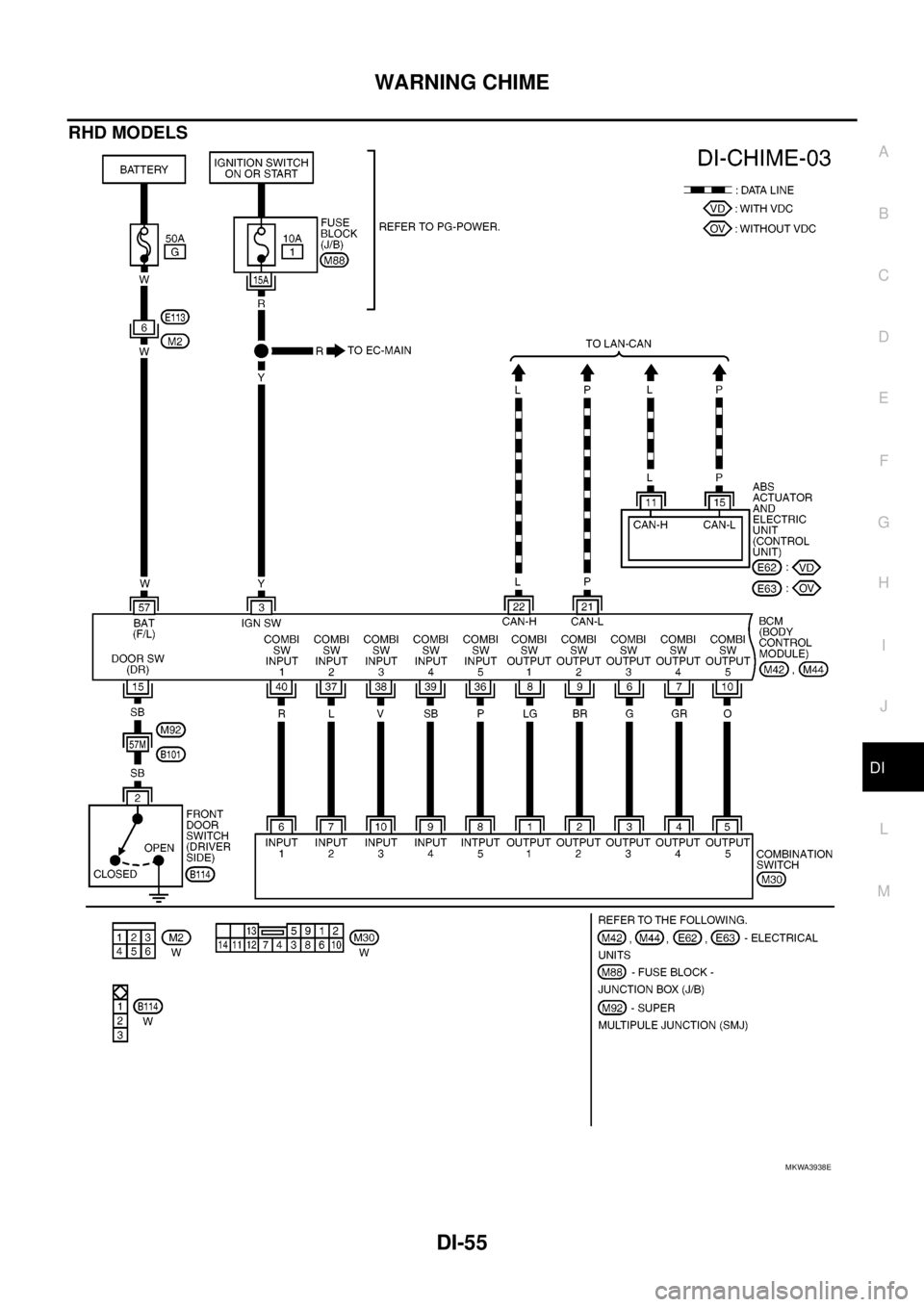

RHD MODELS
MKWA3938E
Page 966 of 3171
DI-56
WARNING CHIME
MKWA3655E
Page 967 of 3171

WARNING CHIME
DI-57
C
D
E
F
G
H
I
J
L
MA
B
DI
Terminals and Reference Value for BCMEKS00L9G
Terminals and Reference Value for Combination MeterEKS00L9H
*1: LHD models
*2: RHD modelsTe r m i -
nal No.Wire
colorItemCondition
Reference value
(Approx.) Ignition
switchMeasurement method
3 Y Ignition switch ON or START ON — Battery voltage
6 G Combination switch output 3
ON
lLighting switch, turn signal
switch and wiper switch OFF
lWiper dial position 4 7 GR Combination switch output 4
8 LG Combination switch output 1
9 BR Combination switch output 2
10 O Combination switch output 5
15 SBFront door switch (driver side)
signalOFFON (open) 0 V
OFF (closed) 12 V
21 P CAN L — — —
22 L CAN H — — —
36 P Combination switch input 5
ON
lLighting switch, turn signal
switch and wiper switch OFF
lWiper dial position 40V 37 L Combination switch input 2
38 V Combination switch input 3
39 SB Combination switch input 4
40 R Combination switch input 1
55 B Ground — — 0 V
57 W Battery power supply OFF — Battery voltage
PKIB4958J
Terminal
No.Wire
colorItemCondition
Reference value
(Approx.) Ignition
switchMeasurement method
3 GR Battery power supply Battery voltage
11 P C A N L — — —
12 L CAN H — — —
13 B Ground ON — 0 V
16 R Ignition power supply ON — Battery voltage
23 B Ground ON — 0 V
24O
*1
L*2Driver seat belt buckle switch ONDriver seat belt is unfastened 0 V
Driver seat belt is fastened 12 V
Page 968 of 3171

DI-58
WARNING CHIME
CONSULT-II Function (BCM)
EKS00L9K

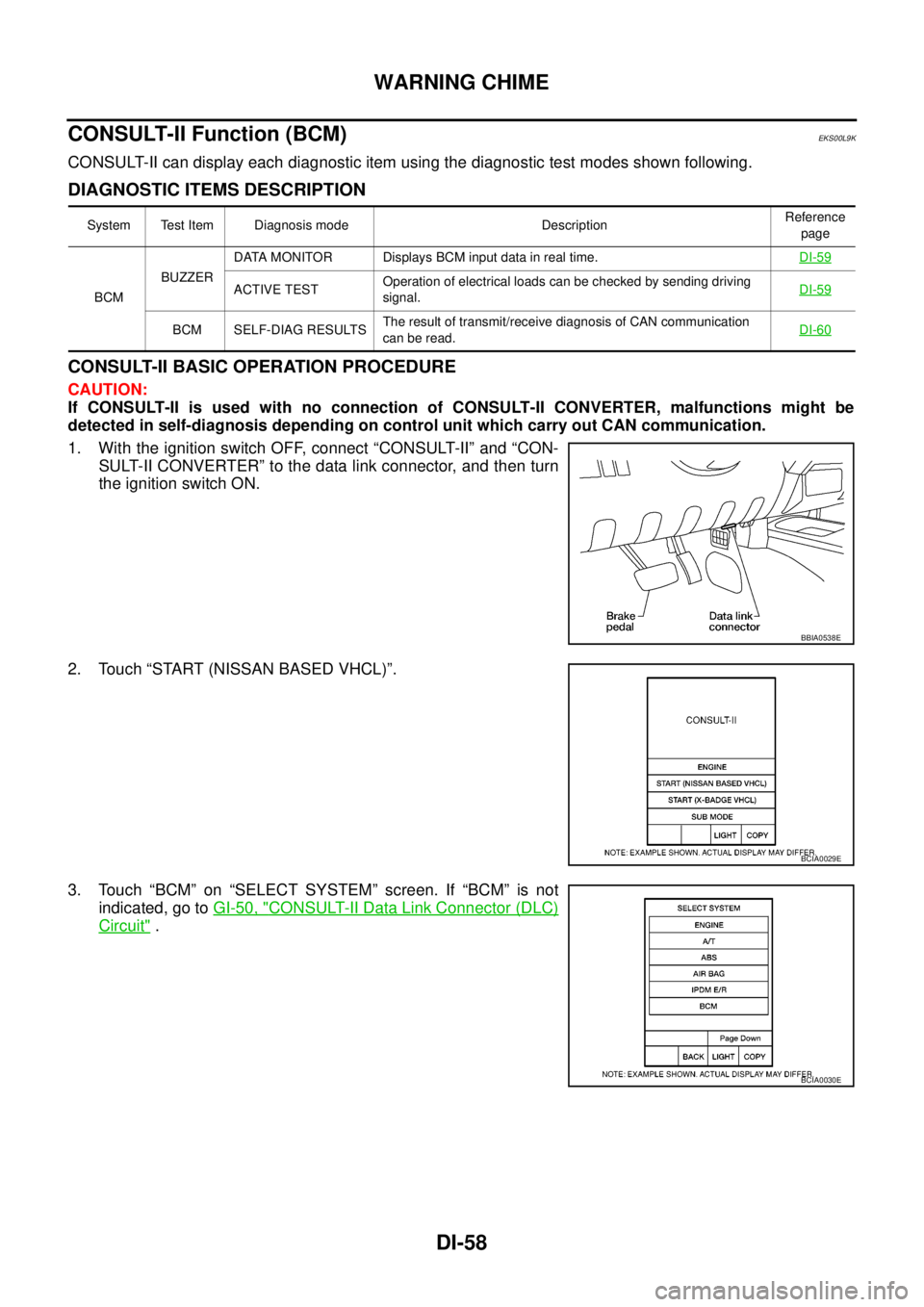

CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
DIAGNOSTIC ITEMS DESCRIPTION
CONSULT-II BASIC OPERATION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. With the ignition switch OFF, connect “CONSULT-II” and “CON-
SULT-II CONVERTER” to the data link connector, and then turn
the ignition switch ON.
2. Touch “START (NISSAN BASED VHCL)”.
3. Touch “BCM” on “SELECT SYSTEM” screen. If “BCM” is not
indicated, go toGI-50, "
CONSULT-II Data Link Connector (DLC)
Circuit".
System Test Item Diagnosis mode DescriptionReference
page
BCMBUZZERDATA MONITOR Displays BCM input data in real time.DI-59
ACTIVE TESTOperation of electrical loads can be checked by sending driving
signal.DI-59
BCM SELF-DIAG RESULTSThe result of transmit/receive diagnosis of CAN communication
canberead.DI-60
BBIA0538E
BCIA0029E
BCIA0030E
