AIR MIX DOOR MOTORPFP:27732
ComponentsEJS006CF
Air Mix Door Motors - Heater and Cooling Unit Assembly
NOTE:
This illustration is for LHD models. The layout for RHD models is symmetrically opposite.
Removal and InstallationEJS006CG
AIR MIX DOOR MOTOR (DRIVER)
Removal
1. Remove the heater and cooling unit assembly. Refer toATC-124, "HEATER&COOLING UNIT ASSEM-
BLY".
2. Remove the steering member from the heater and cooling unit assembly.
3. Disconnect the air mix door motor electrical connector.
4. Remove the three screws and remove the air mix door motor.
Installation
Installation is in the reverse order of removal.
AIR MIX DOOR MOTOR (PASSENGER)
Removal
1. Remove the instrument panel side finisher. Refer toEI-33, "Components".
2. Remove the lower instrument panel RH. Refer toIP-15, "
LOWER INSTRUMENT PANEL RH AND
GLOVE BOX".
3. Remove the steering member from the heater and cooling unit assembly.
4. Disconnect the air mix door motor electrical connector.
5. Remove the three screws and remove the air mix door motor.

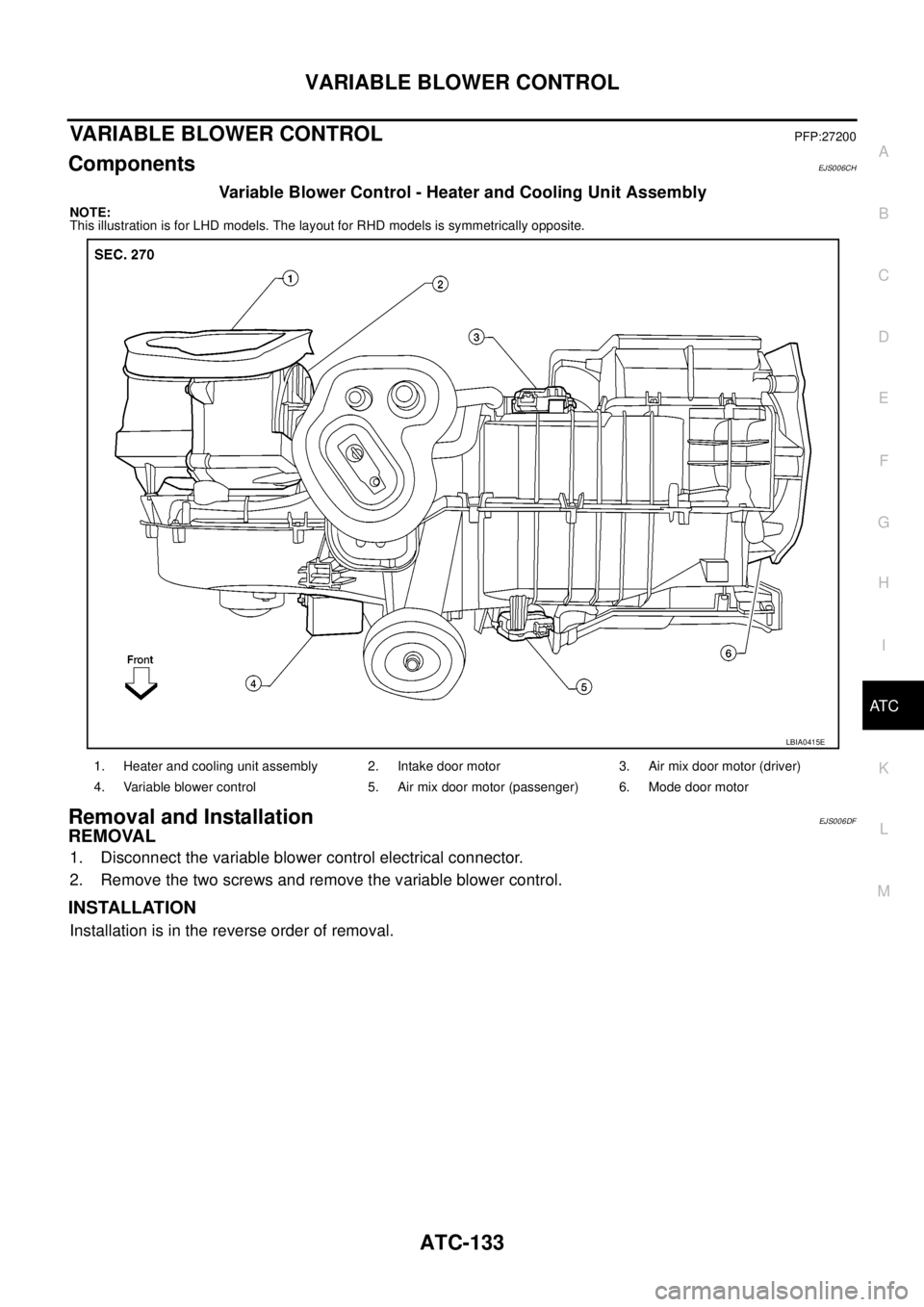

1. Heater and cooling unit assembly 2. Intake door motor 3. Air mix door motor (driver)
4. Variable blower control 5. Air mix door motor (passenger) 6. Mode door motor
LBIA0415E
Page 466 of 3171
ATC-132
AIR MIX DOOR MOTOR
Installation
Installation is in the reverse order of removal.
Page 467 of 3171
VARIABLE BLOWER CONTROL
ATC-133
C
D
E
F
G
H
I
K
L
MA
B
AT C
VARIABLE BLOWER CONTROLPFP:27200
ComponentsEJS006CH
Variable Blower Control - Heater and Cooling Unit Assembly
NOTE:
This illustration is for LHD models. The layout for RHD models is symmetrically opposite.
Removal and InstallationEJS006DF
REMOVAL
1. Disconnect the variable blower control electrical connector.
2. Remove the two screws and remove the variable blower control.
INSTALLATION
Installation is in the reverse order of removal.

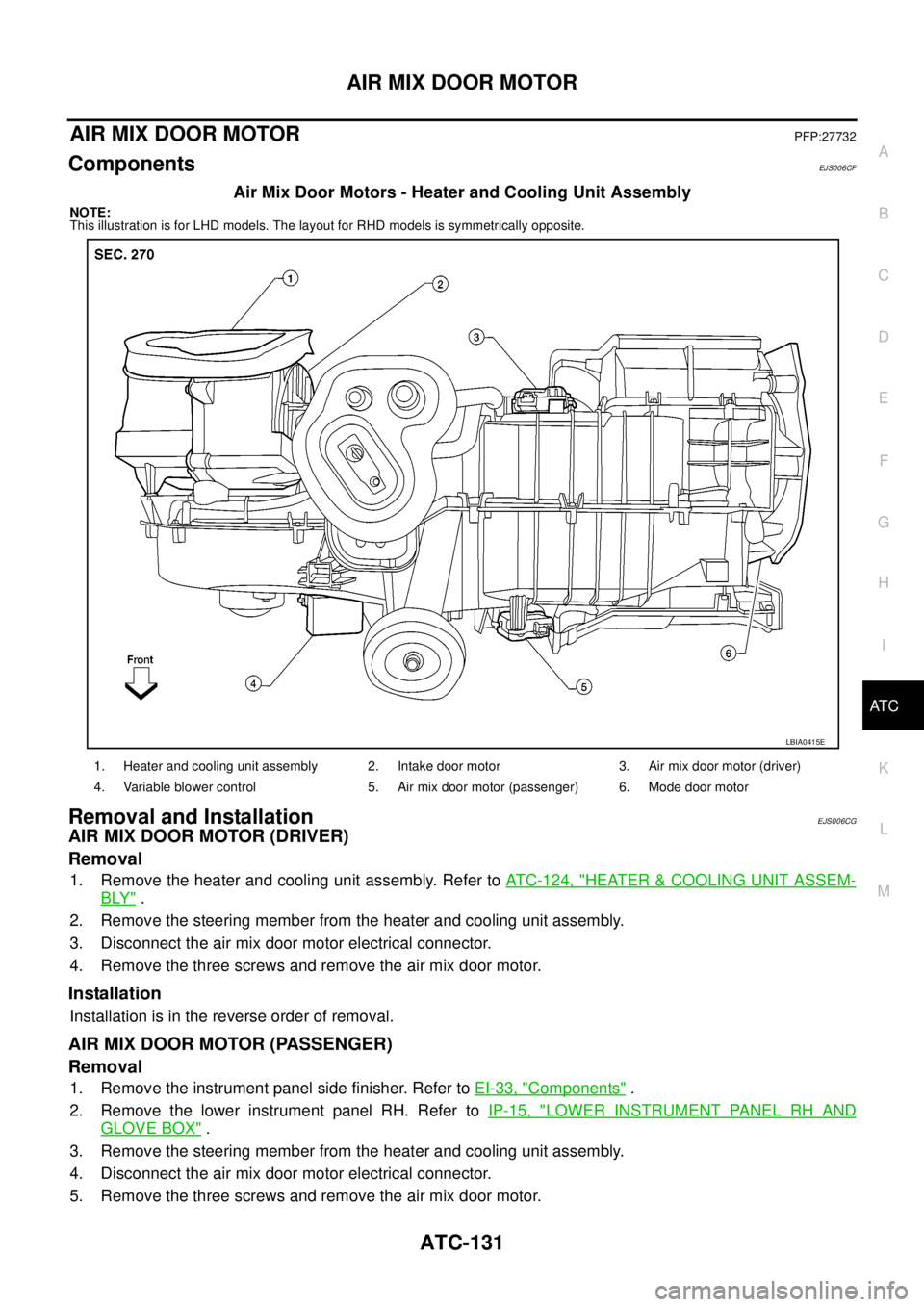

1. Heater and cooling unit assembly 2. Intake door motor 3. Air mix door motor (driver)
4. Variable blower control 5. Air mix door motor (passenger) 6. Mode door motor
LBIA0415E
Page 468 of 3171
ATC-134
DUCTS AND GRILLES
DUCTS AND GRILLES
PFP:27860
ComponentsEJS006CJ
Ducts - Heater and Cooling Unit Assembly
MJIB0212E
1. Defroster nozzle 2. LH side demister duct 3. LH ventilator duct
4. RH side demister duct 5. RH ventilator duct 6. Center ventilator duct
7. Heater and cooling unit assembly 8. Floor connector duct grilles 9. Floor connector duct
Page 469 of 3171
DUCTS AND GRILLES
ATC-135
C
D
E
F
G
H
I
K
L
MA
B
AT C
Grilles
10. Front floor ducts 11. Rear floor ducts 12. Rear console duct
13. Center console duct 14. Front console duct
MJIB0329E

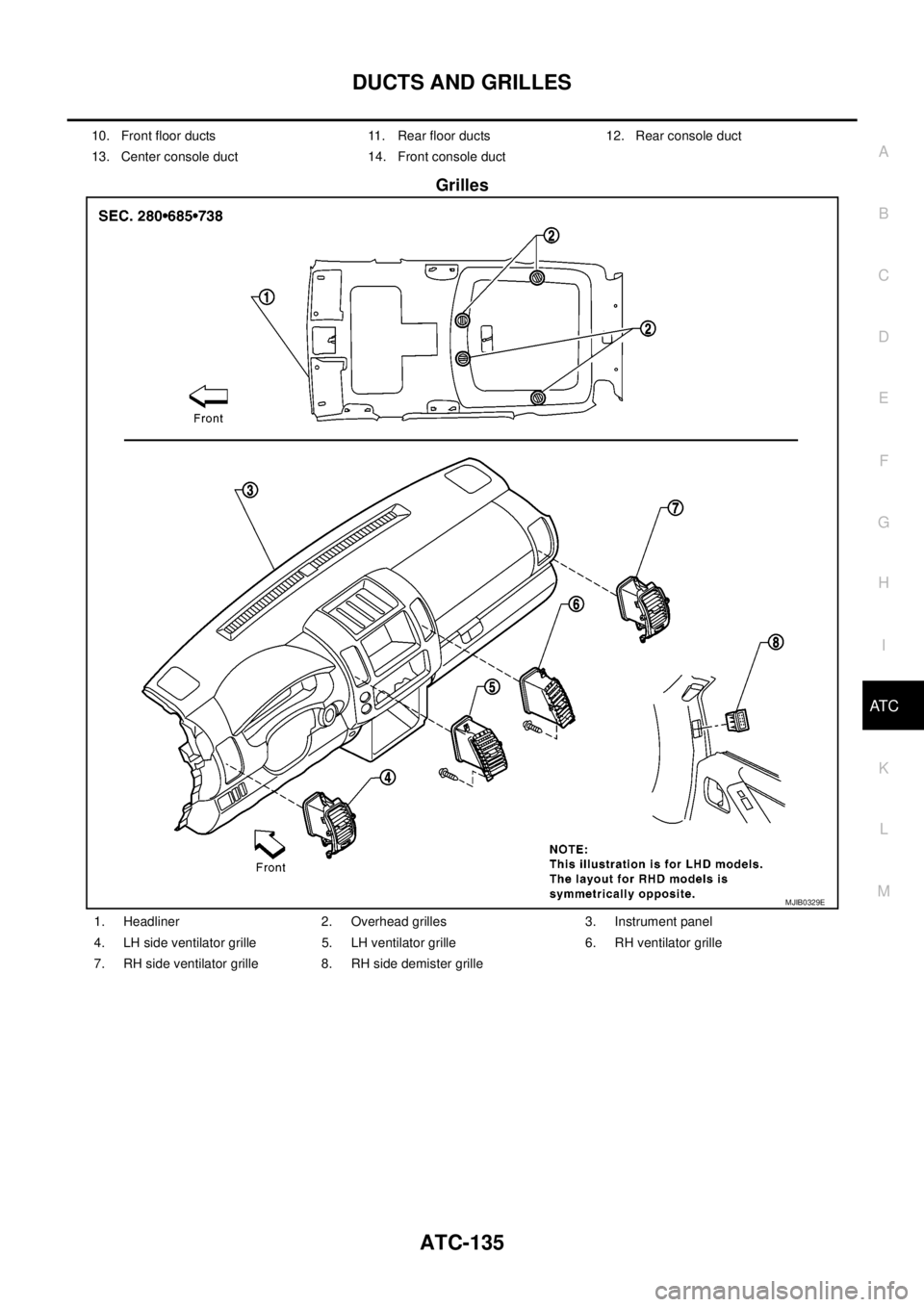

1. Headliner 2. Overhead grilles 3. Instrument panel
4. LH side ventilator grille 5. LH ventilator grille 6. RH ventilator grille
7. RH side ventilator grille 8. RH side demister grille
Page 470 of 3171

ATC-136
DUCTS AND GRILLES
Removal and Installation
EJS006CK
CONSOLE DUCTS AND CONSOLE GRILLE
Removal
The center console must be removed and disassembled to remove the console ducts and the console grille.
Refer toIP-16, "
CENTER CONSOLE".
Installation
Installation is in the reverse order of removal.
DEFROSTER NOZZLE
Removal
1. Remove the instrument panel trim. Refer toIP-10, "Removal and Installation".
2. Remove the defroster nozzle.
Installation
Installation is in the reverse order of removal.
RH AND LH SIDE DEMISTER DUCT
Removal
1. Remove the instrument panel trim. Refer toIP-10, "Removal and Installation".
2. Remove the center console. Refer toIP-16, "
CENTER CONSOLE".
3. Remove the RH or LH side demister duct.
Installation
Installation is in the reverse order of removal.
RH AND LH VENTILATOR DUCT
Removal
1. Remove the instrument panel trim. Refer toIP-10, "Removal and Installation".
2. Remove the center console. Refer toIP-16, "
CENTER CONSOLE".
3. Remove the RH or LH ventilator duct.
Installation
Installation is in the reverse order of removal.
CENTER VENTILATOR DUCT
Removal
1. Remove the heater and cooling unit assembly. Refer toATC-126, "REMOVAL".
2. Remove the center console. Refer toIP-16, "
CENTER CONSOLE".
3. Remove the defroster nozzle.
4. Remove the RH and LH ventilator ducts.
5. Remove the RH and LH side demister ducts.
6. Remove the center ventilator duct.
Installation
Installation is in the reverse order of removal.
FLOOR CONNECTOR DUCT
Removal
1. Remove the heater and cooling unit assembly. Refer toATC-126, "REMOVAL".
2. Remove the center console. Refer toIP-16, "
CENTER CONSOLE".
3. Remove the floor connector duct.
Installation
Installation is in the reverse order of removal.
Page 471 of 3171

DUCTS AND GRILLES
ATC-137
C
D
E
F
G
H
I
K
L
MA
B
AT C
FRONT AND REAR FLOOR DUCTS
Removal
1. Remove the center console. Refer toIP-16, "CENTER CONSOLE".
2. Remove the floor carpet. Refer toEI-38, "
Removal and Installation".
3. Remove the clips and remove the front and rear floor ducts.
Installation
Installation is in the reverse order of removal.
REAR OVERHEAD DUCTS
Removal
1. Remove the rear RH interior trim panel. Refer toEI-33, "BODY SIDE TRIM".
2. Remove the headliner. Refer toEI-40, "
HEADLINING".
NOTE:
The rear headliner duct (connected to the rear upper overhead duct) is part of the headliner and is
replaced as an assembly.
3. Remove the clips and remove the rear upper and lower overhead ducts.
Installation
Installation is in the reverse order of removal.
SIDE REAR FLOOR DUCT
Removal
1. Remove the rear RH interior trim panel. Refer toEI-33, "BODY SIDE TRIM".
2. Reposition the floor carpet out of the way.
3. Remove the clips and remove the side rear floor duct.
Installation
Installation is in the reverse order of removal.
GRILLES
Removal
1. Remove the necessary interior trim panel(s) to access the grille. Refer toIP-10, "Removal and Installation"
.
NOTE:
The overhead grilles are part of the headliner. To replace the overhead grilles the headliner must be
replaced. Refer toEI-40, "
HEADLINING".
2. Remove the grille from the interior trim panel.
Installation
Installation is in the reverse order of removal.
Page 472 of 3171

ATC-138
REFRIGERANT LINES
REFRIGERANT LINES
PFP:92600
HFC-134a (R-134a) Service ProcedureEJS006CL
SETTING OF SERVICE TOOLS AND EQUIPMENT
Discharging Refrigerant
WARNING:
Avoid breathing A/C refrigerant and lubricant vapor or mist. Exposure may irritate eyes, nose and
throat. Remove HFC-134a (R-134a) refrigerant from the A/C system using certified service equipment
meeting requirements of SAE J2210 HFC-134a (R-134a) recycling equipment or SAE J2201 HFC-134a
(R-134a) recovery equipment. If an accidental system discharge occurs, ventilate the work area before
resuming service. Additional health and safety information may be obtained from the refrigerant and
lubricant manufacturers.
Evacuating System and Charging Refrigerant

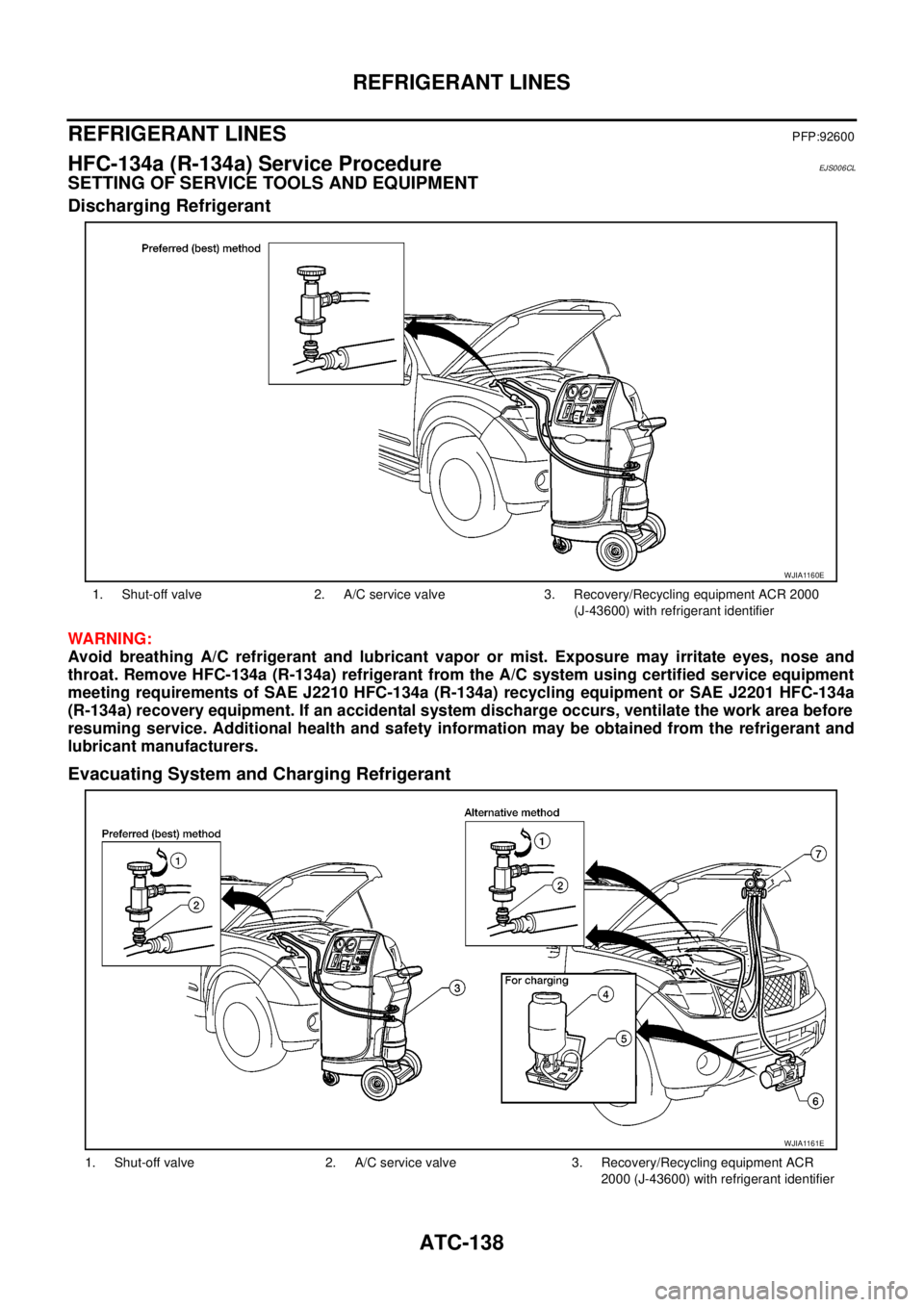

1. Shut-off valve 2. A/C service valve 3. Recovery/Recycling equipment ACR 2000
(J-43600) with refrigerant identifier
WJIA1160E
1. Shut-off valve 2. A/C service valve 3. Recovery/Recycling equipment ACR
2000 (J-43600) with refrigerant identifier
WJIA1161E
