Page 2025 of 3171
LAN-248
[CAN]
CAN SYSTEM (TYPE 15)
CAN SYSTEM (TYPE 15)
PFP:23710
Component Parts and Harness Connector LocationEKS00QB4
Refer toLAN-23, "Component Parts and Harness Connector Location".
SchematicEKS00QB5
Refer toLAN-25, "Schematic".
Wiring Diagram — CAN —EKS00QB6
Refer toLAN-26, "Wiring Diagram—CAN—".
Page 2026 of 3171
CAN SYSTEM (TYPE 15)
LAN-249
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

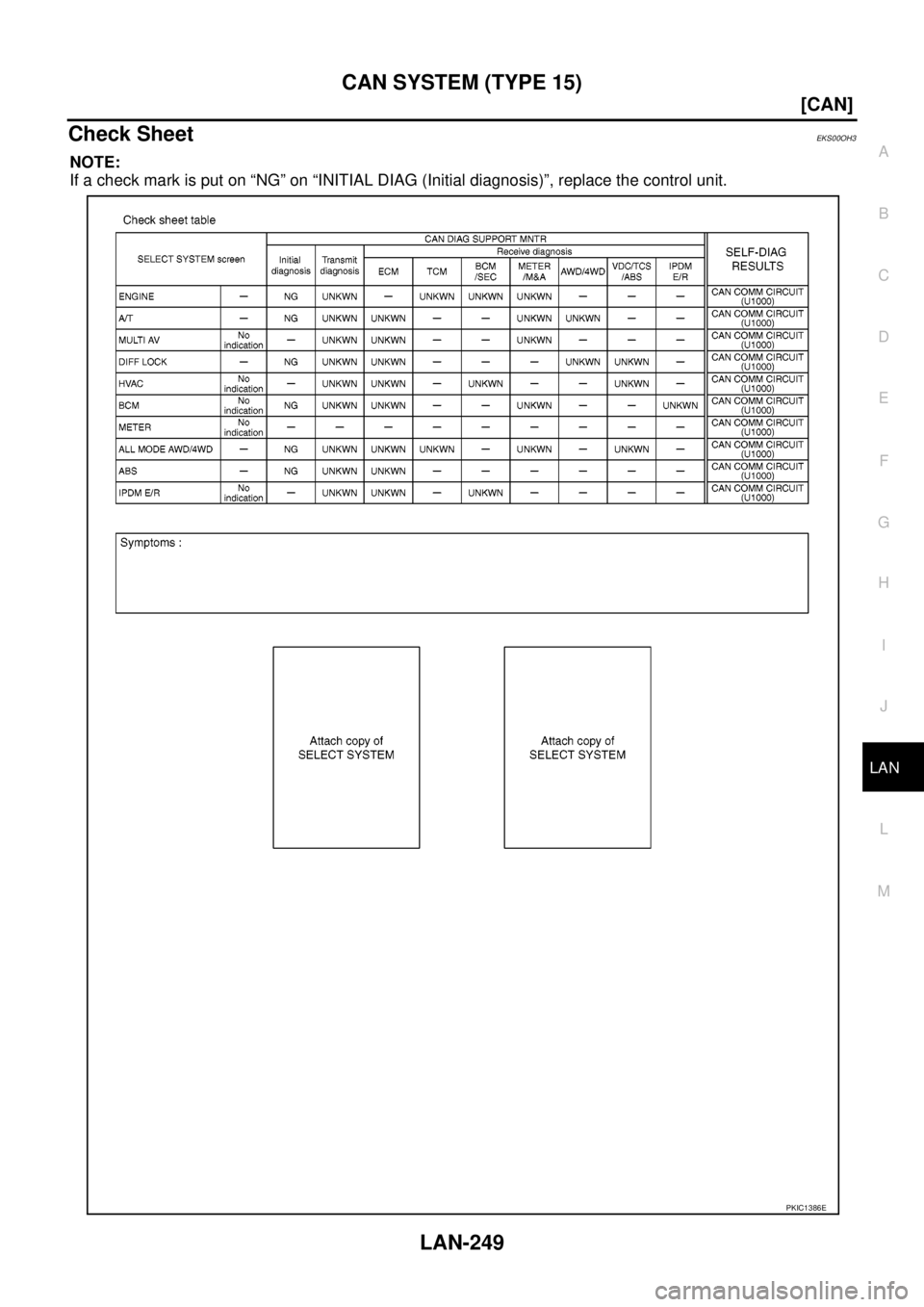

Check SheetEKS00OH3
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
PKIC1386E
Page 2027 of 3171
LAN-250
[CAN]
CAN SYSTEM (TYPE 15)

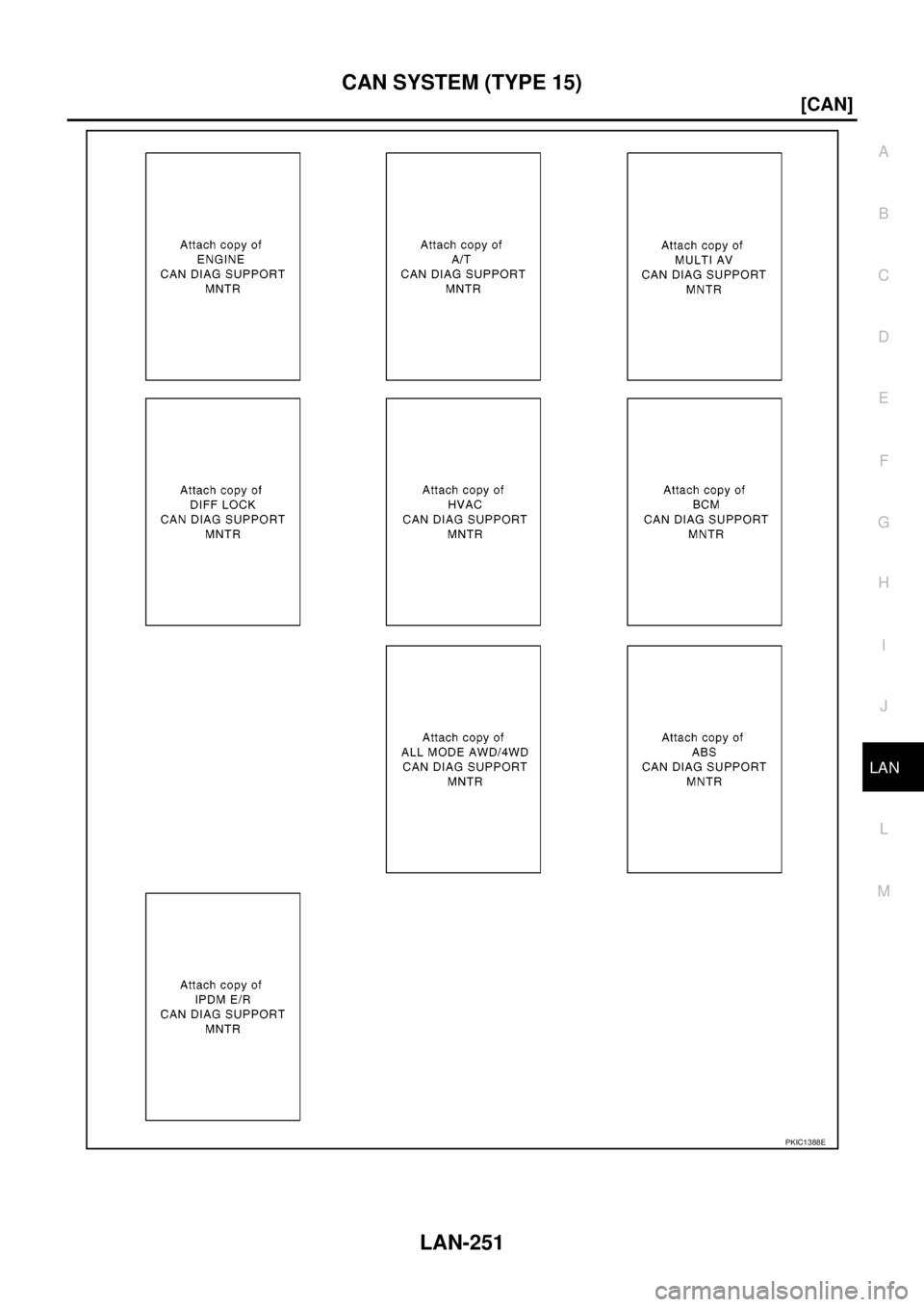

PKIC1387E
Page 2028 of 3171
CAN SYSTEM (TYPE 15)
LAN-251
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

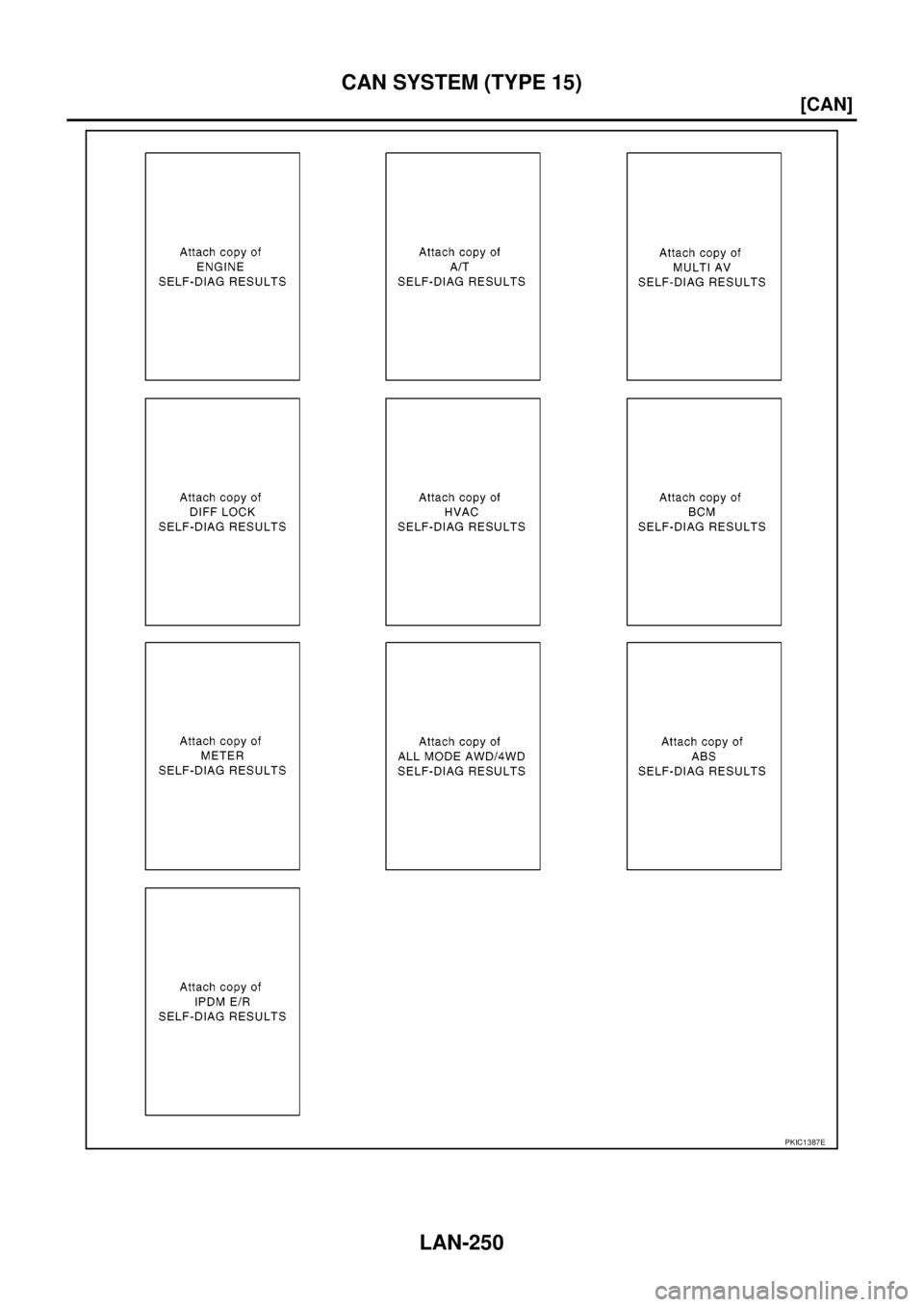

PKIC1388E
Page 2029 of 3171
LAN-252
[CAN]
CAN SYSTEM (TYPE 15)

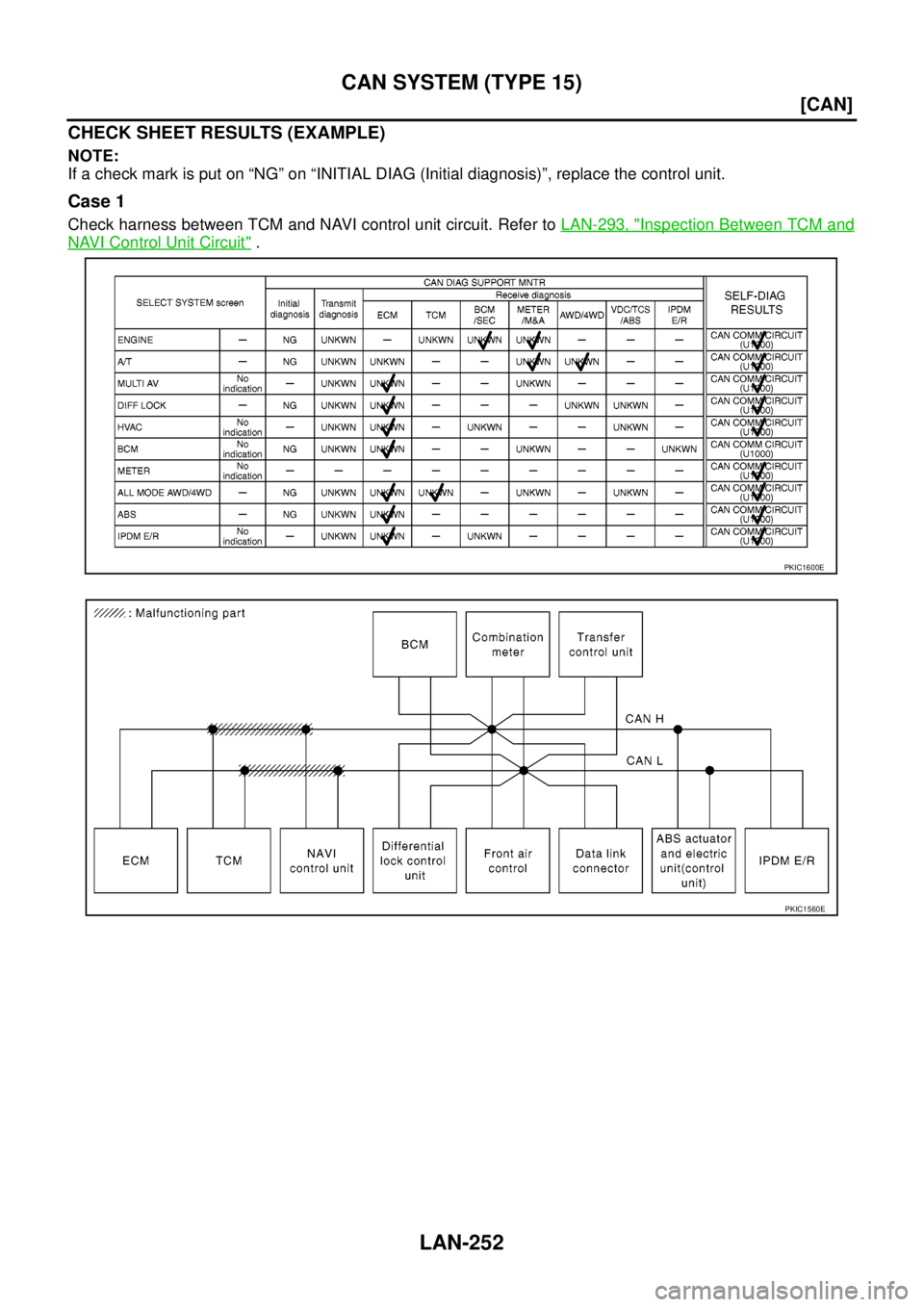

CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.
Case 1
Check harness between TCM and NAVI control unit circuit. Refer toLAN-293, "Inspection Between TCM and
NAVI Control Unit Circuit".
PKIC1600E
PKIC1560E
Page 2030 of 3171
CAN SYSTEM (TYPE 15)
LAN-253
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

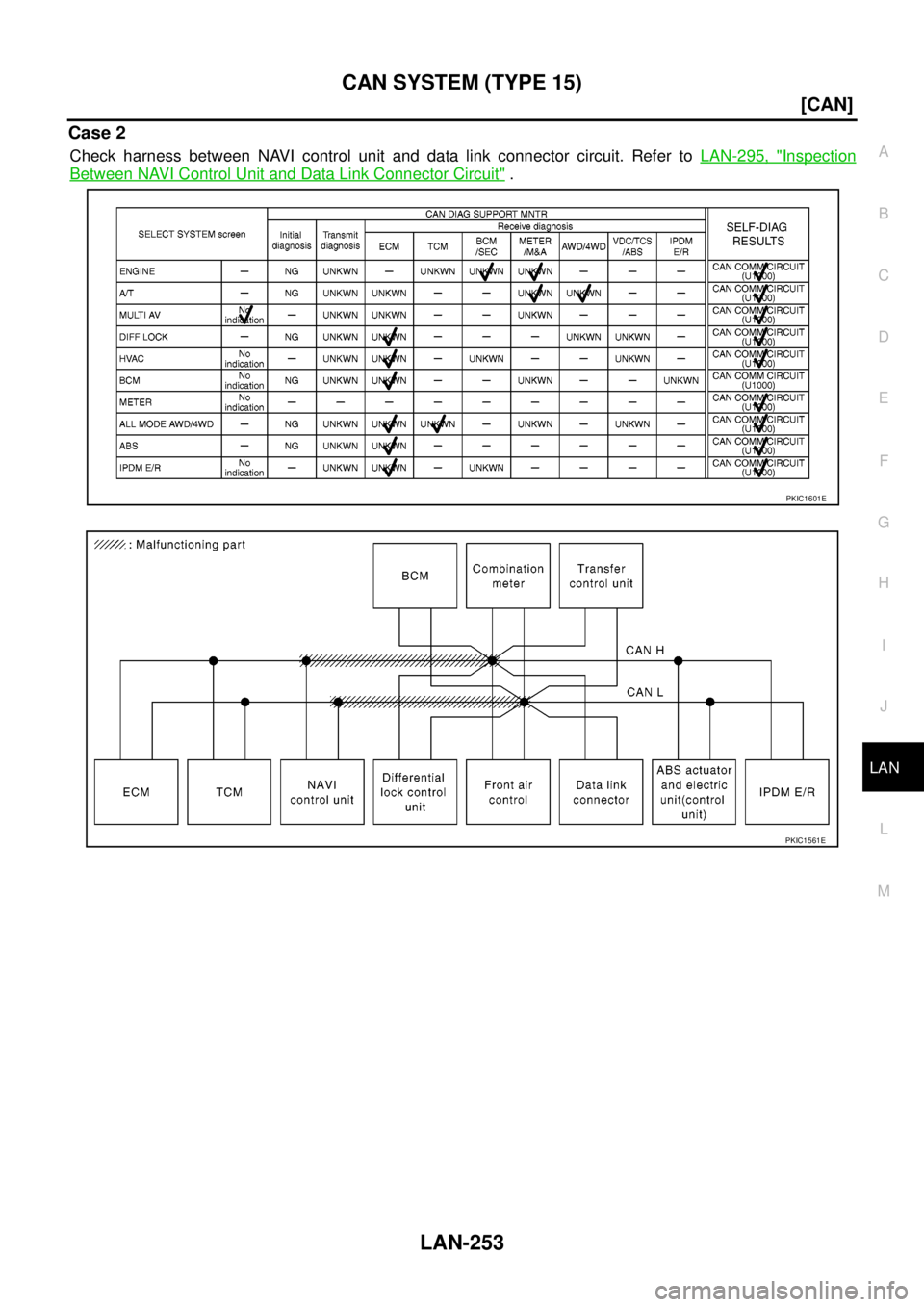

Case 2
Check harness between NAVI control unit and data link connector circuit. Refer toLAN-295, "Inspection
Between NAVI Control Unit and Data Link Connector Circuit".
PKIC1601E
PKIC1561E
Page 2031 of 3171
LAN-254
[CAN]
CAN SYSTEM (TYPE 15)
Case 3
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1602E
PKIC1562E
Page 2032 of 3171
CAN SYSTEM (TYPE 15)
LAN-255
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

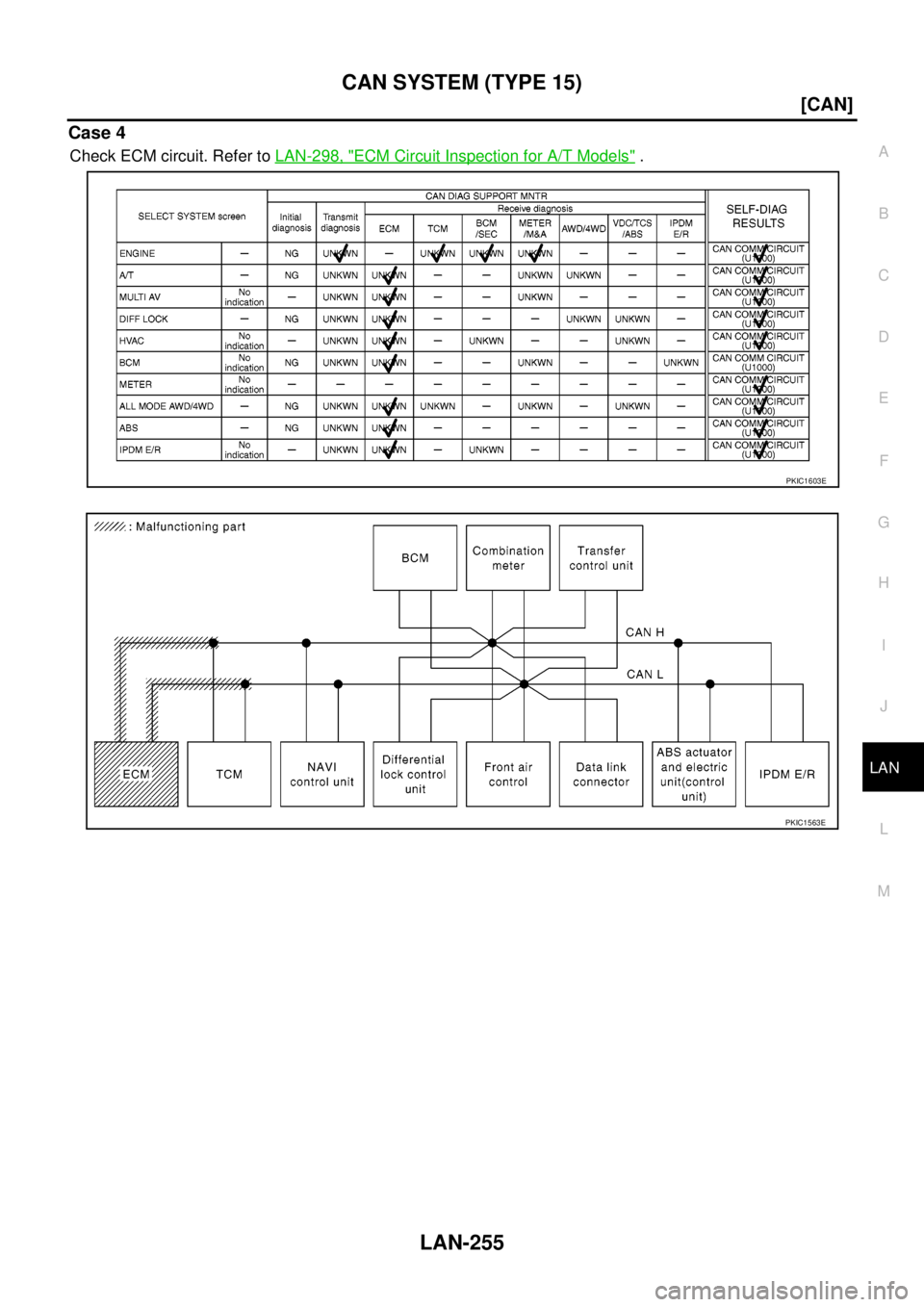

Case 4
Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models".
PKIC1603E
PKIC1563E
