Page 2041 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-264 [CAN] CAN SYSTEM (TYPE 15) Case 13 Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit (Control Unit) Circuit Inspection". PKIC1612E P

Page 2042 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 15) LAN-265 [CAN] C D E F G H I J L MA B LAN Case 14 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 15 Check CAN communication circuit. Refer toLAN-303,

Page 2043 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-266 [CAN] CAN SYSTEM (TYPE 15) Case 16 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection". Case 17 Check IPDM E/R ig

Page 2044 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 16) LAN-267 [CAN] C D E F G H I J L MA B LAN CAN SYSTEM (TYPE 16)PFP:23710 Component Parts and Harness Connector LocationEKS00OEF Refer toLAN-23, "Component Parts and Harness Connecto

Page 2045 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-268 [CAN] CAN SYSTEM (TYPE 16) Check Sheet EKS00OEI NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIC1429E

Page 2046 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 16) LAN-269 [CAN] C D E F G H I J L MA B LAN PKIB6525E

Page 2047 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-270 [CAN] CAN SYSTEM (TYPE 16) CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. Case 1 Check harness betw

Page 2048 of 3171

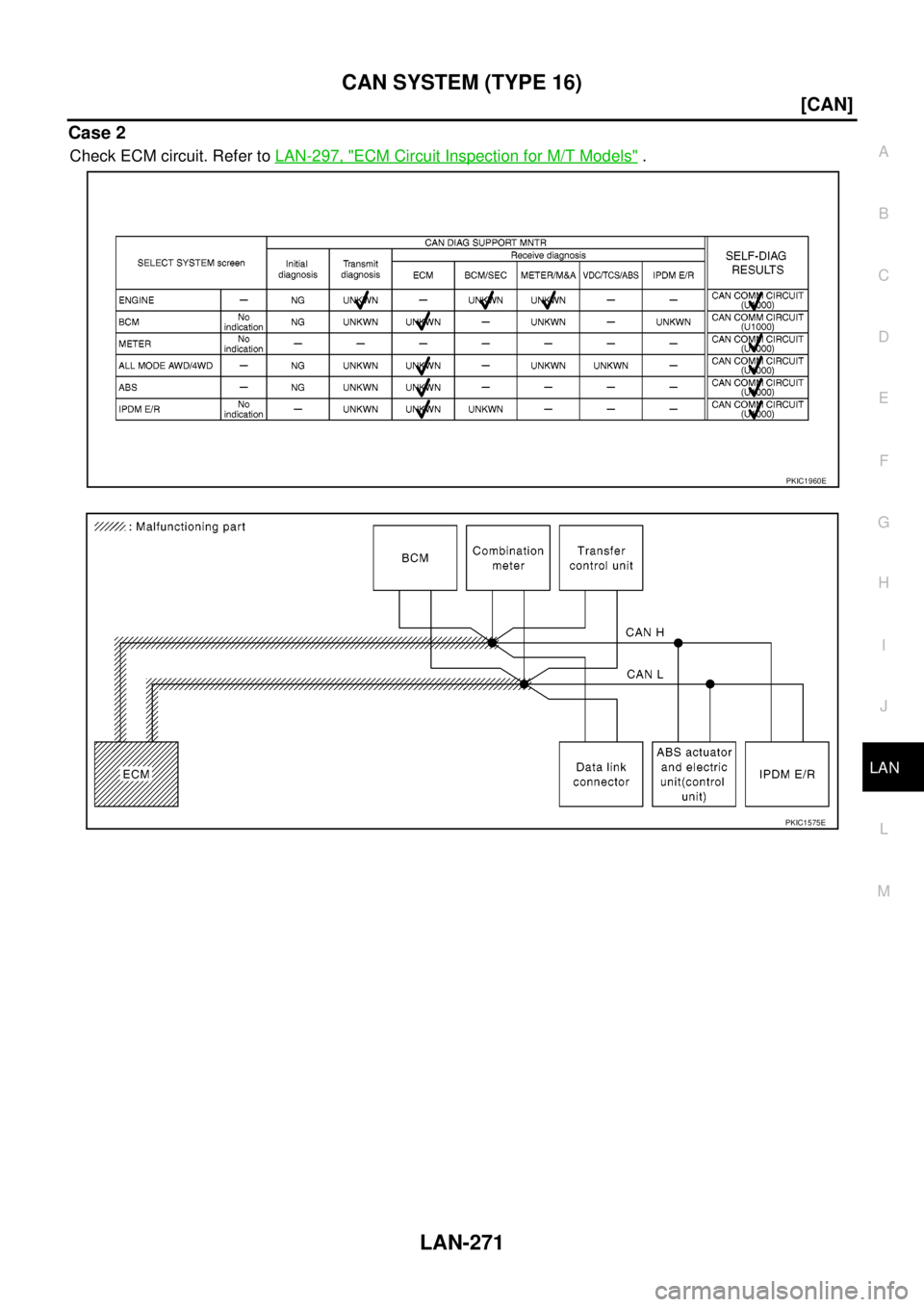

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 16) LAN-271 [CAN] C D E F G H I J L MA B LAN Case 2 Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models". PKIC1960E PKIC1575E
