Page 2153 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-70 HEADLAMP AIMING CONTROL (MANUAL) Removal and Installation EKS00P3A 1. Remove lower instrument panel (driver side) (1). Refer toIP-10, "Removal and Installation". 2. Press headlamp aiming switch

Page 2154 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FOG LAMP LT-71 C D E F G H I J L MA B LT FRONT FOG LAMPPFP:26150 Component Parts and Harness Connector LocationEKS00P3Y System DescriptionEKS00P3Z The control of the front fog lamps is dependent

Page 2155 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-72 FRONT FOG LAMP lto combination meter terminal 16. Ground is supplied lto BCM terminal 55 and lto combination meter terminal 23 lthrough grounds M21, M80 and M83, lto IPDM E/R terminals 38 and 59

Page 2156 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FOG LAMP LT-73 C D E F G H I J L MA B LT SchematicEKS00P41 MKWA3669E

Page 2157 of 3171

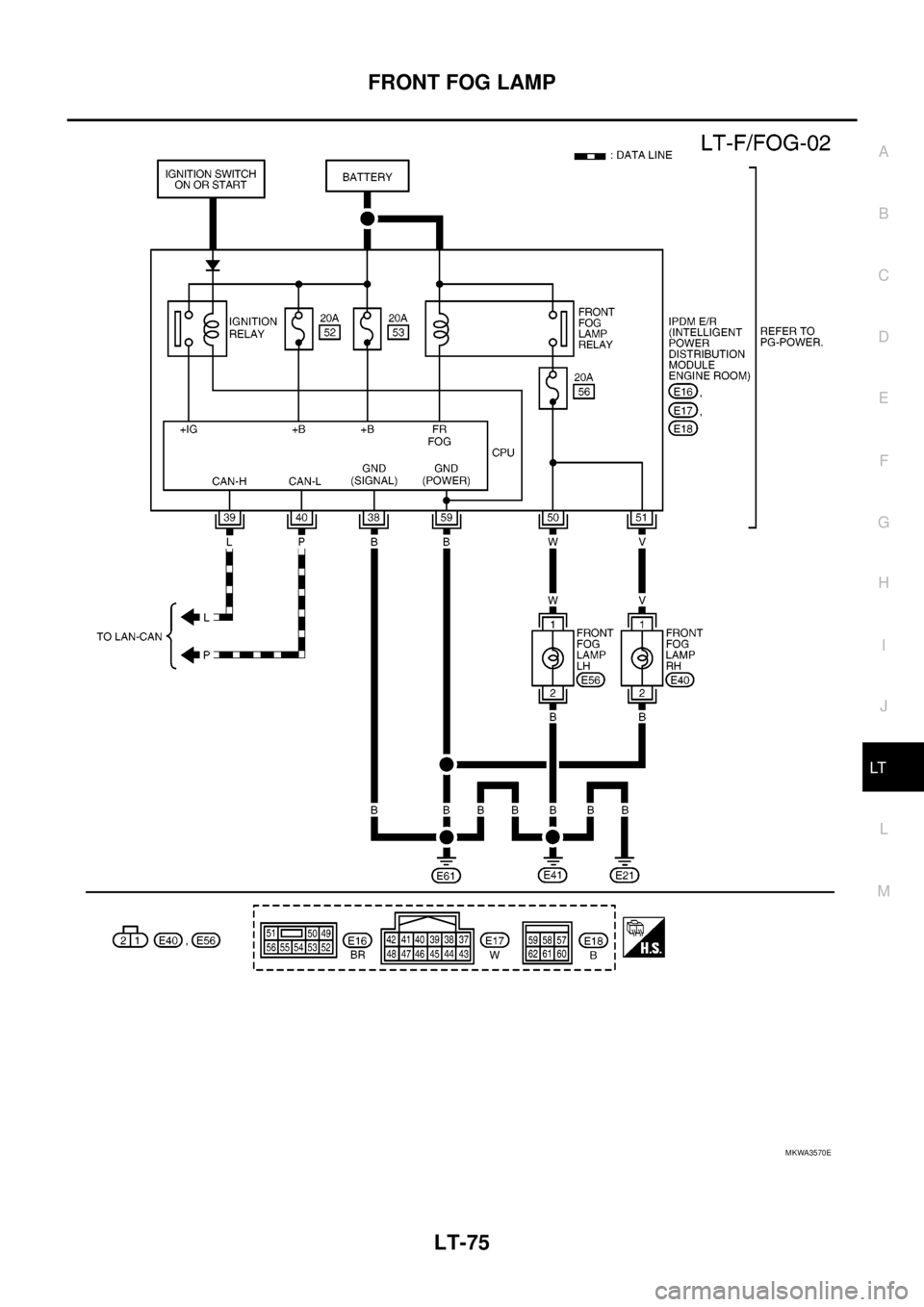

NISSAN NAVARA 2005 Repair Workshop Manual LT-74 FRONT FOG LAMP Wiring Diagram — F/FOG — EKS00P42 MKWA3569E

Page 2158 of 3171

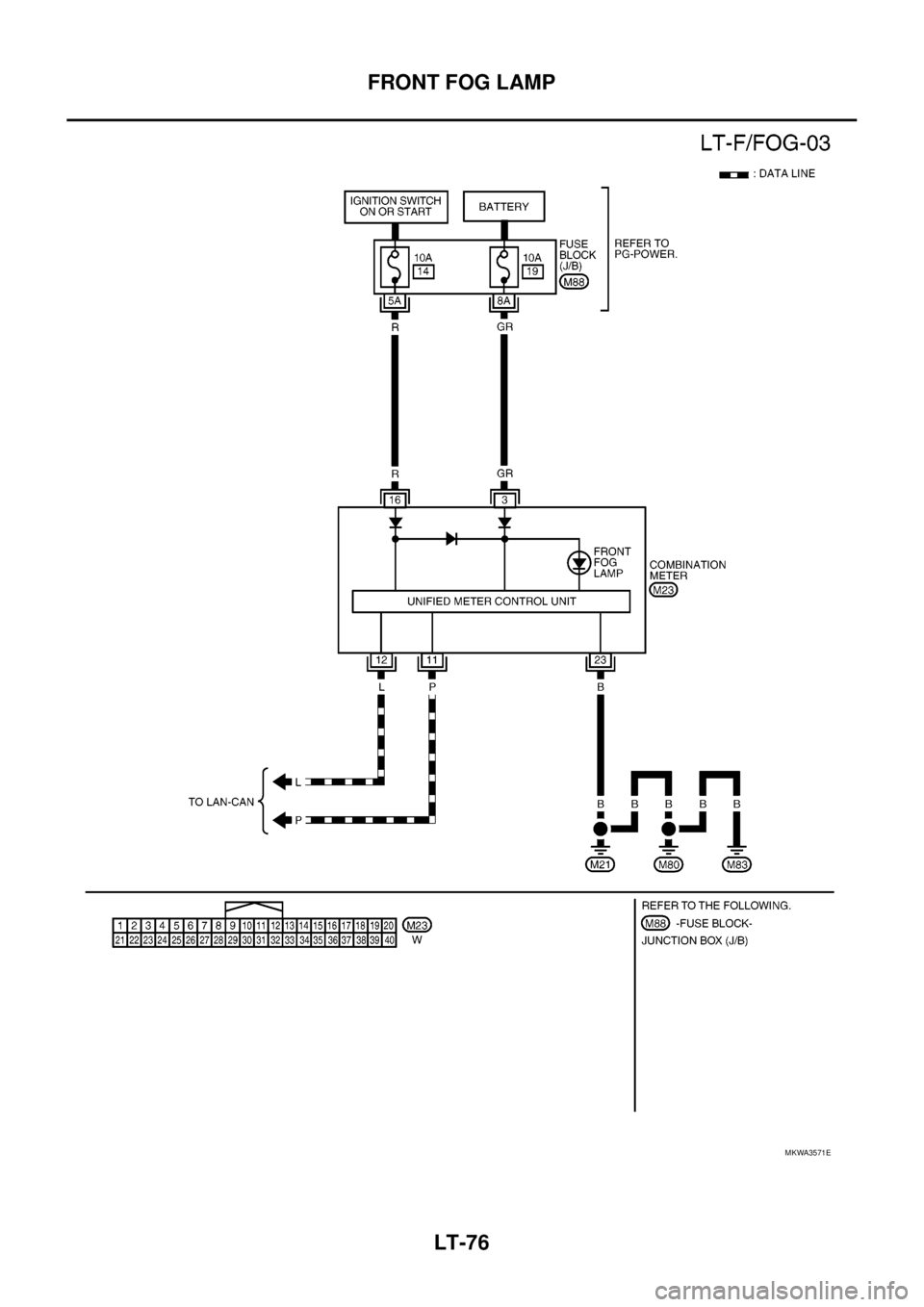

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FOG LAMP LT-75 C D E F G H I J L MA B LT MKWA3570E

Page 2159 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-76 FRONT FOG LAMP MKWA3571E

Page 2160 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FOG LAMP LT-77 C D E F G H I J L MA B LT Terminals and Reference Values for BCMEKS00P43 Terminals and Reference Values for IPDM E/REKS00P44 Te r m i n a l No.Wire colorSignal nameMeasuring condi
