Page 1905 of 3171

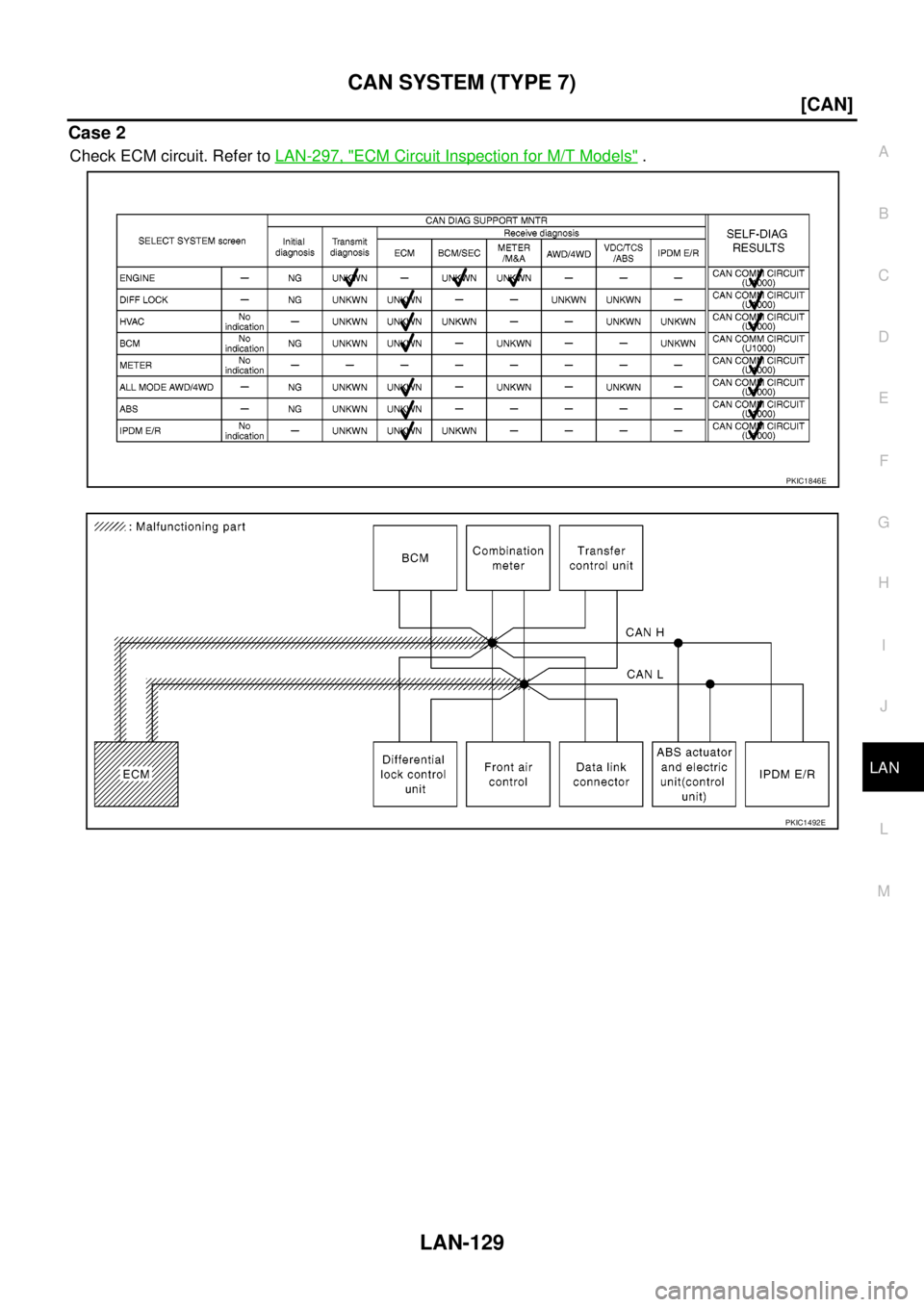

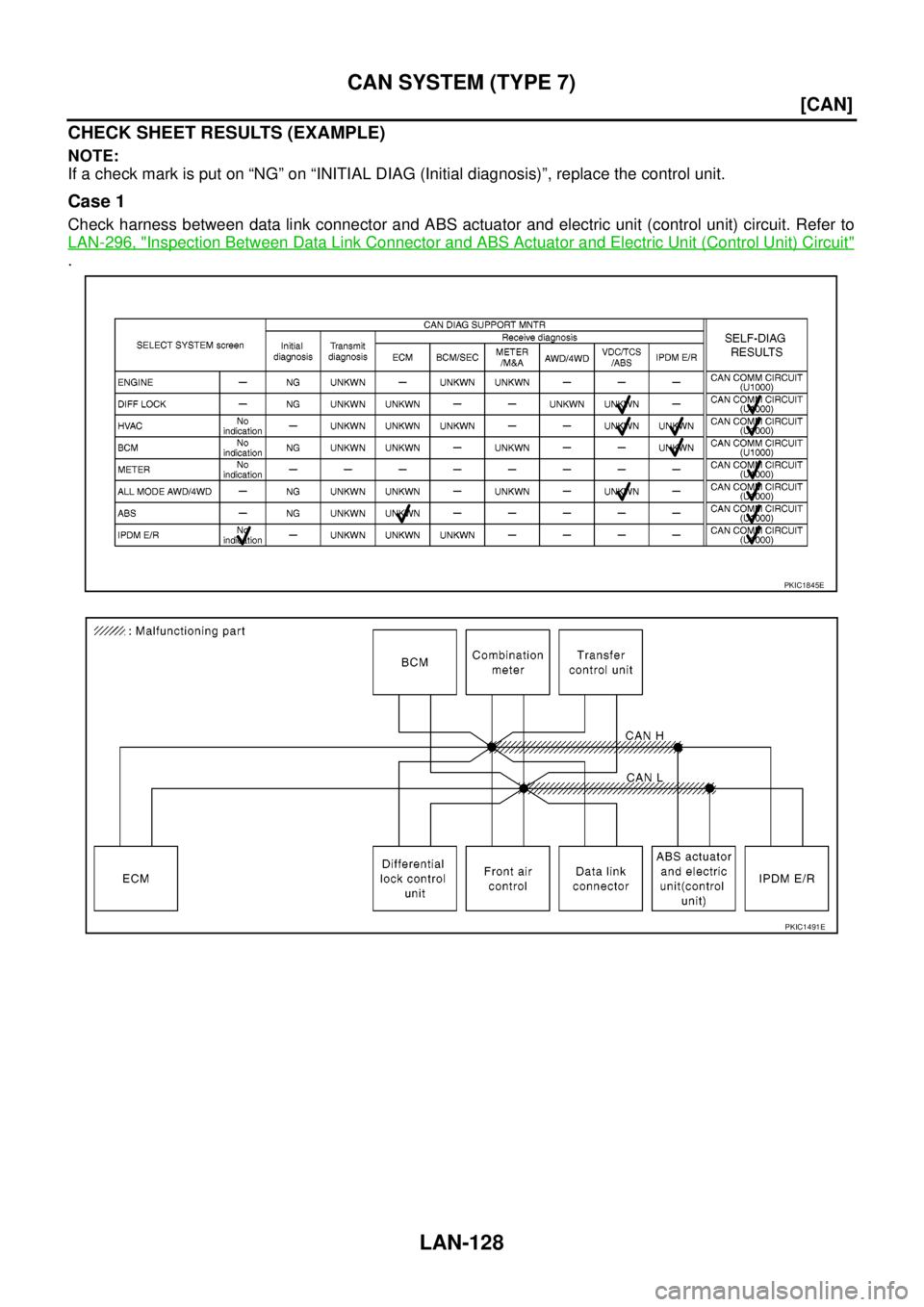

NISSAN NAVARA 2005 Repair Workshop Manual LAN-128 [CAN] CAN SYSTEM (TYPE 7) CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. Case 1 Check harness betwe

Page 1906 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 7) LAN-129 [CAN] C D E F G H I J L MA B LAN Case 2 Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models". PKIC1846E PKIC1492E

Page 1907 of 3171

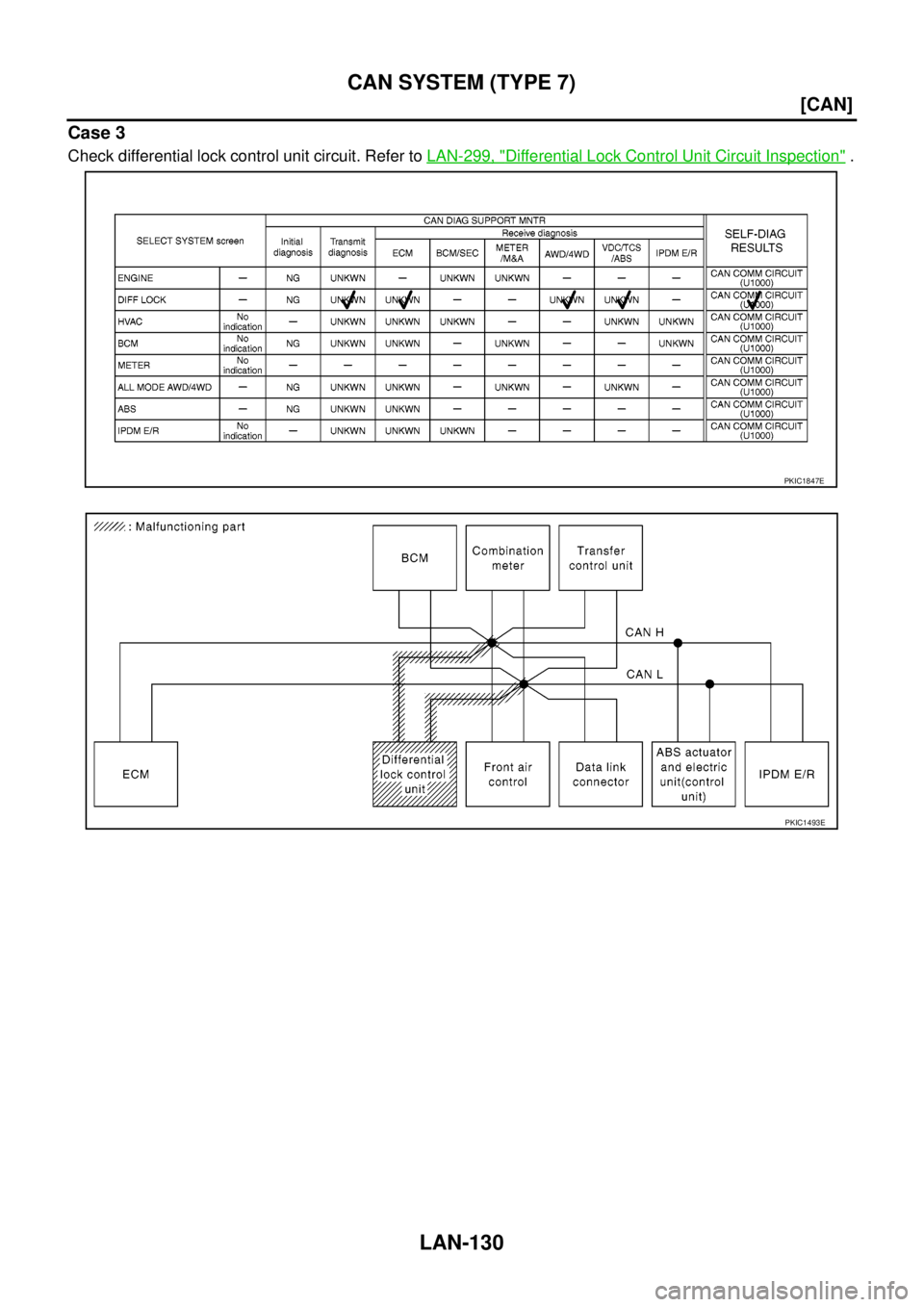

NISSAN NAVARA 2005 Repair Workshop Manual LAN-130 [CAN] CAN SYSTEM (TYPE 7) Case 3 Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection". PKIC1847E PKIC1493E

Page 1908 of 3171

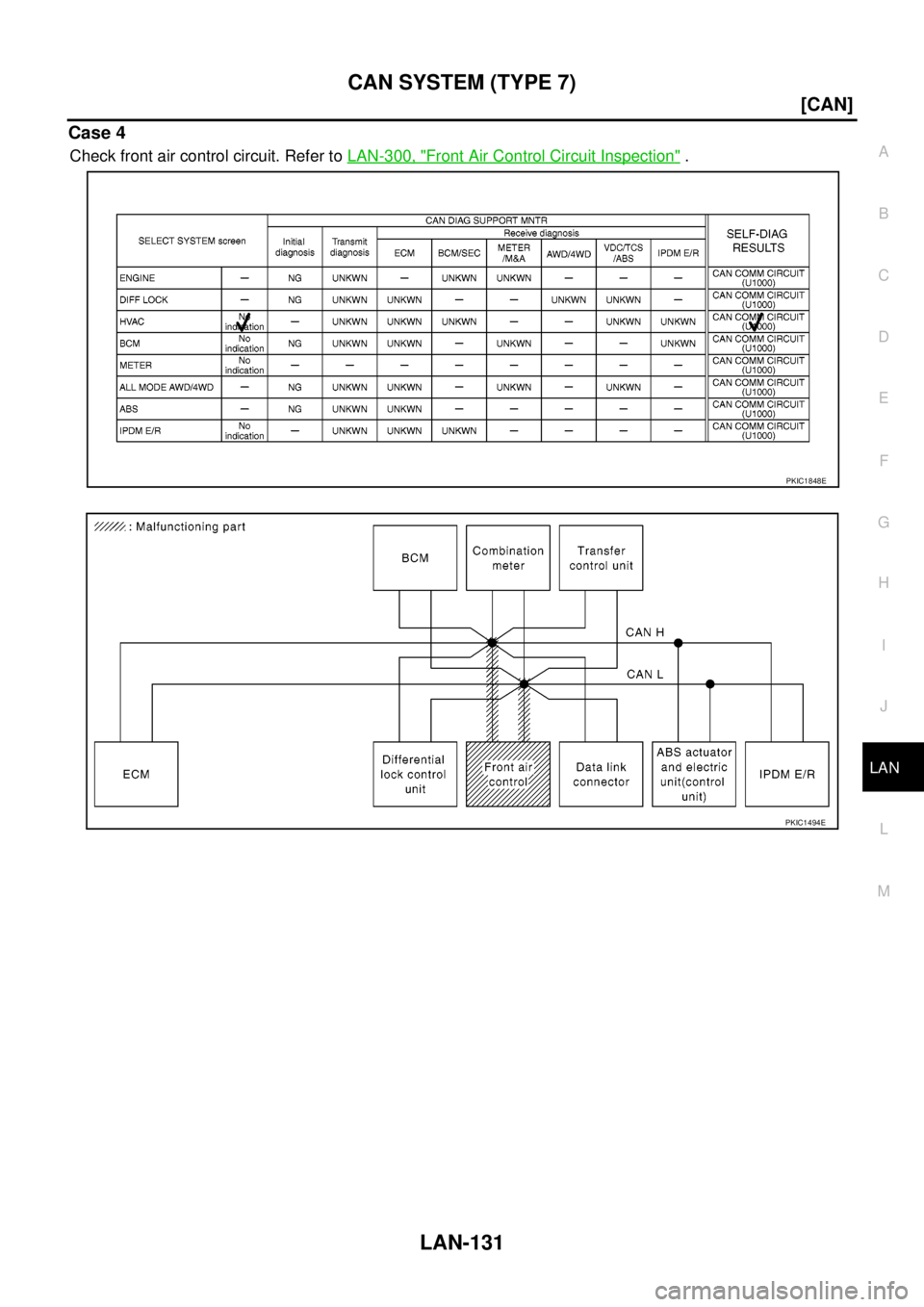

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 7) LAN-131 [CAN] C D E F G H I J L MA B LAN Case 4 Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection". PKIC1848E PKIC1494E

Page 1909 of 3171

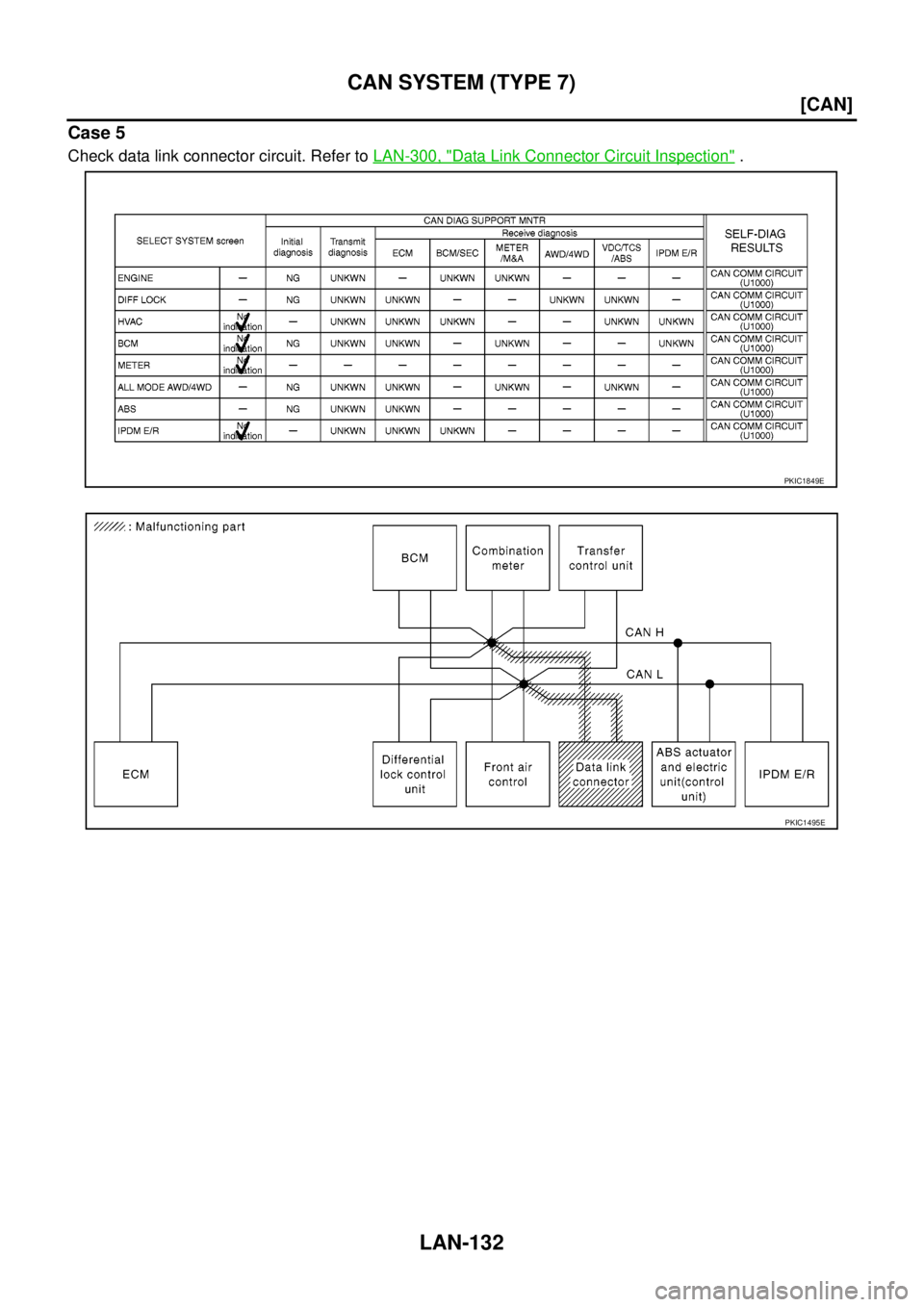

NISSAN NAVARA 2005 Repair Workshop Manual LAN-132 [CAN] CAN SYSTEM (TYPE 7) Case 5 Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection". PKIC1849E PKIC1495E

Page 1910 of 3171

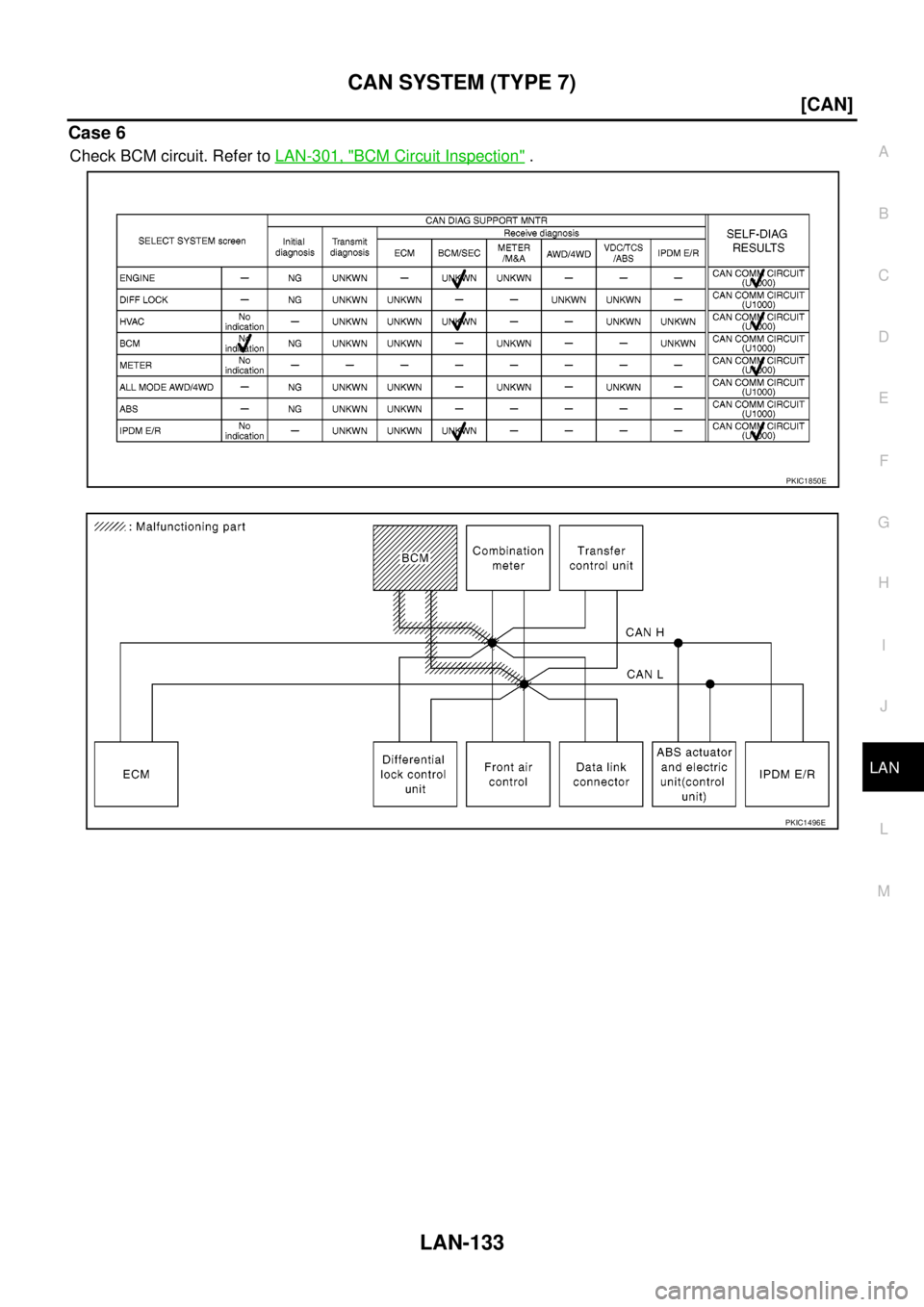

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 7) LAN-133 [CAN] C D E F G H I J L MA B LAN Case 6 Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection". PKIC1850E PKIC1496E

Page 1911 of 3171

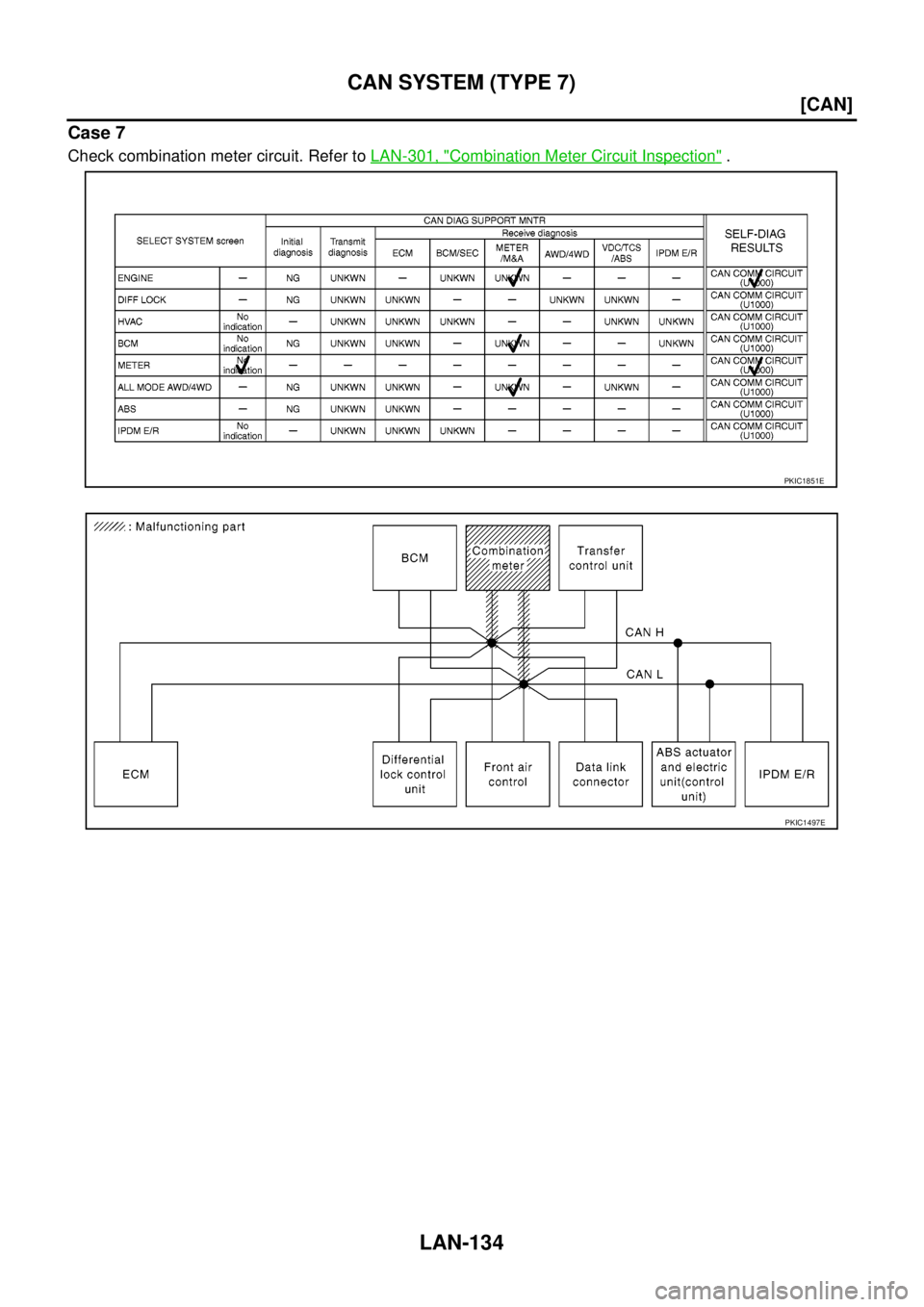

NISSAN NAVARA 2005 Repair Workshop Manual LAN-134 [CAN] CAN SYSTEM (TYPE 7) Case 7 Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection". PKIC1851E PKIC1497E

Page 1912 of 3171

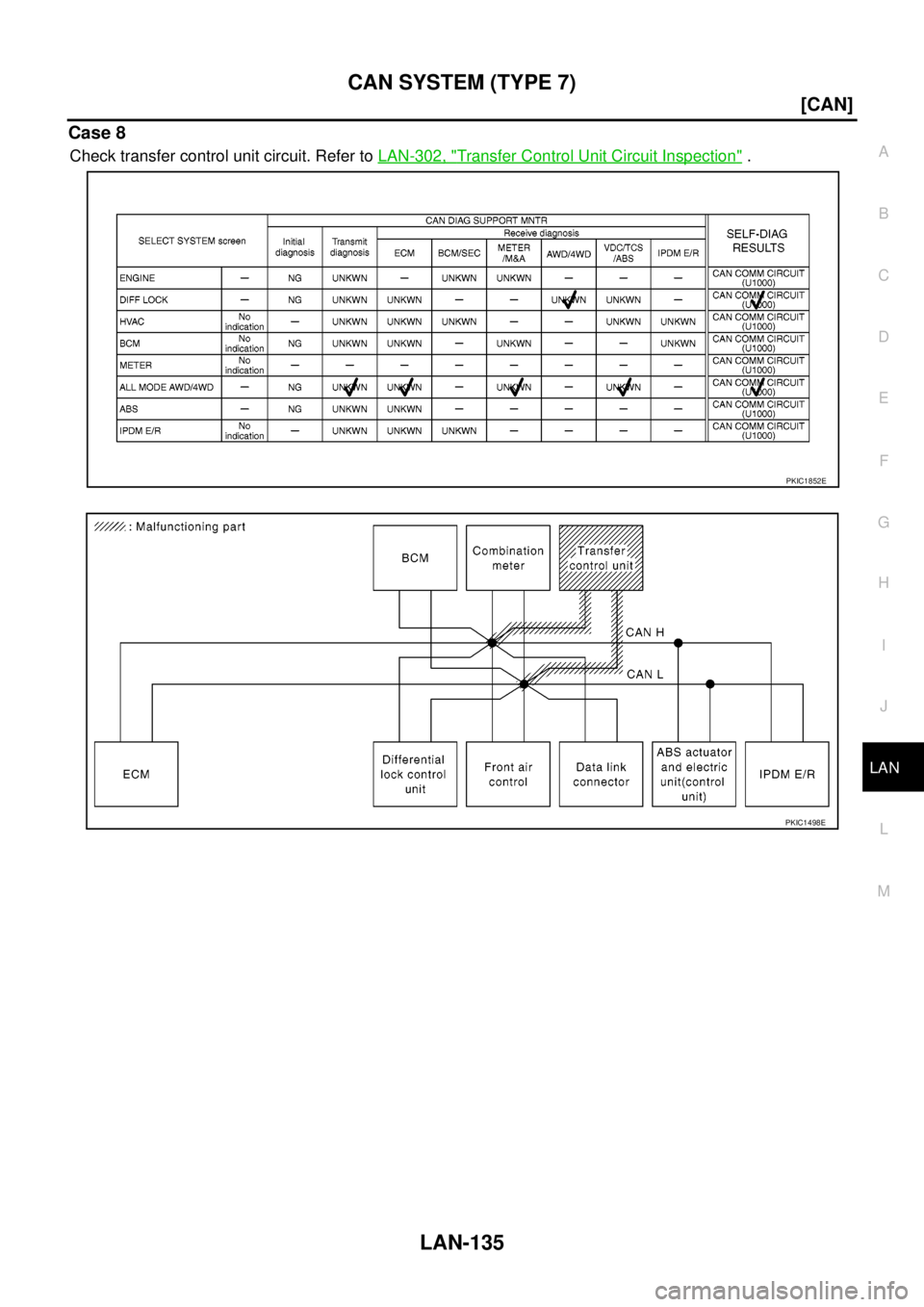

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 7) LAN-135 [CAN] C D E F G H I J L MA B LAN Case 8 Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection". PKIC1852E PKIC1498E
