Page 1977 of 3171
LAN-200
[CAN]

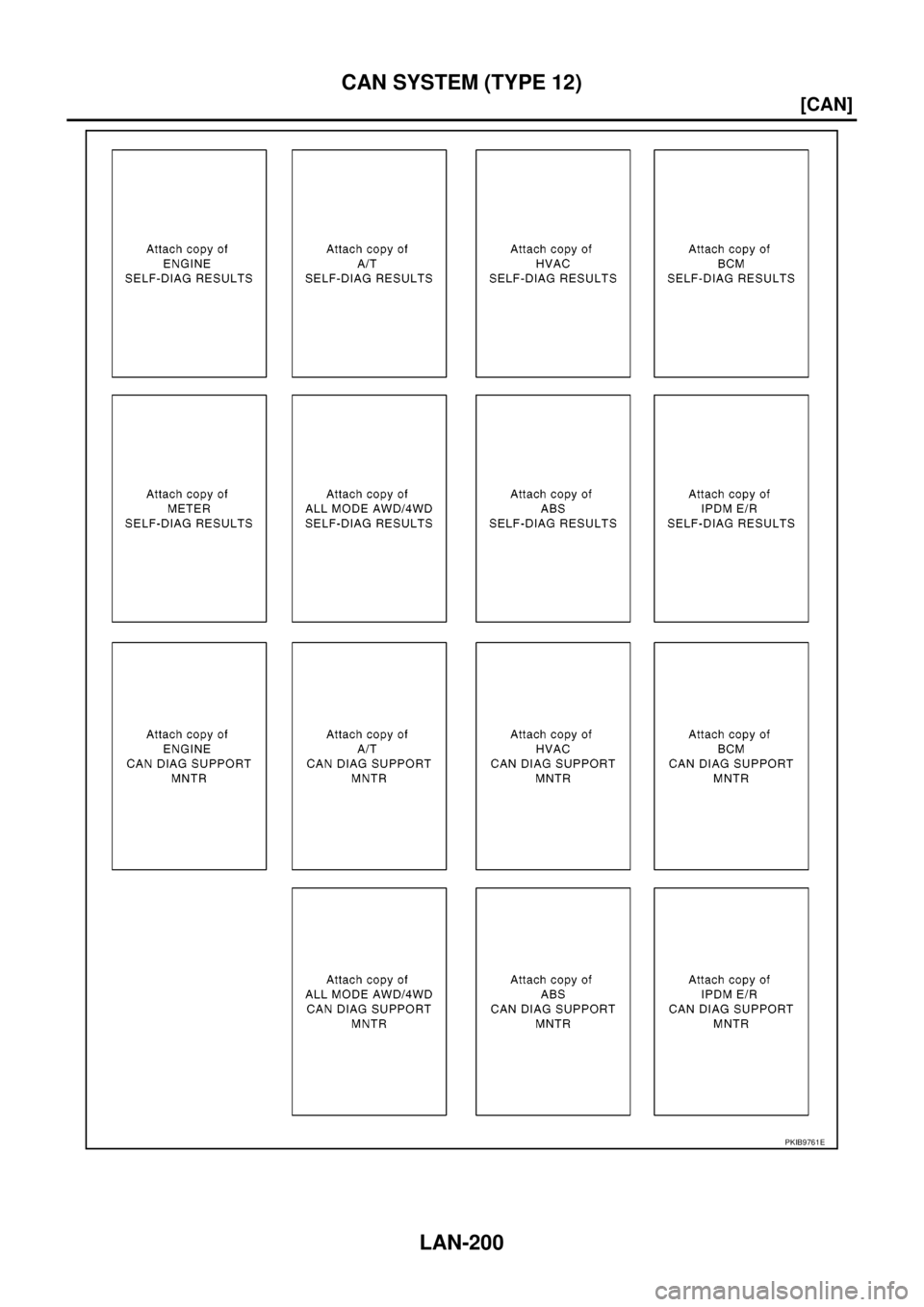

CAN SYSTEM (TYPE 12)
PKIB9761E
Page 1978 of 3171
CAN SYSTEM (TYPE 12)
LAN-201
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit.

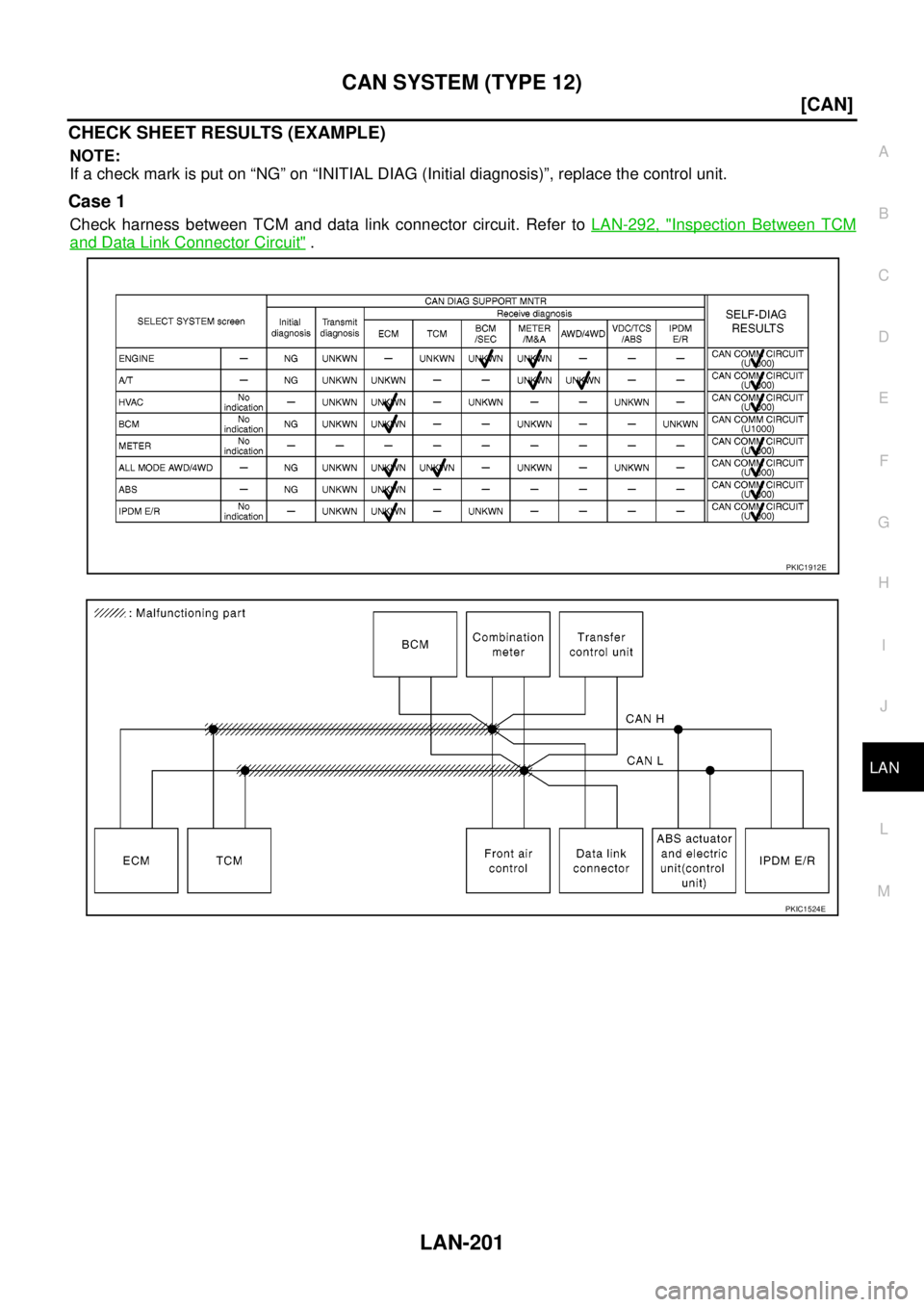

Case 1
Check harness between TCM and data link connector circuit. Refer toLAN-292, "Inspection Between TCM
and Data Link Connector Circuit".
PKIC1912E
PKIC1524E
Page 1979 of 3171
LAN-202
[CAN]
CAN SYSTEM (TYPE 12)

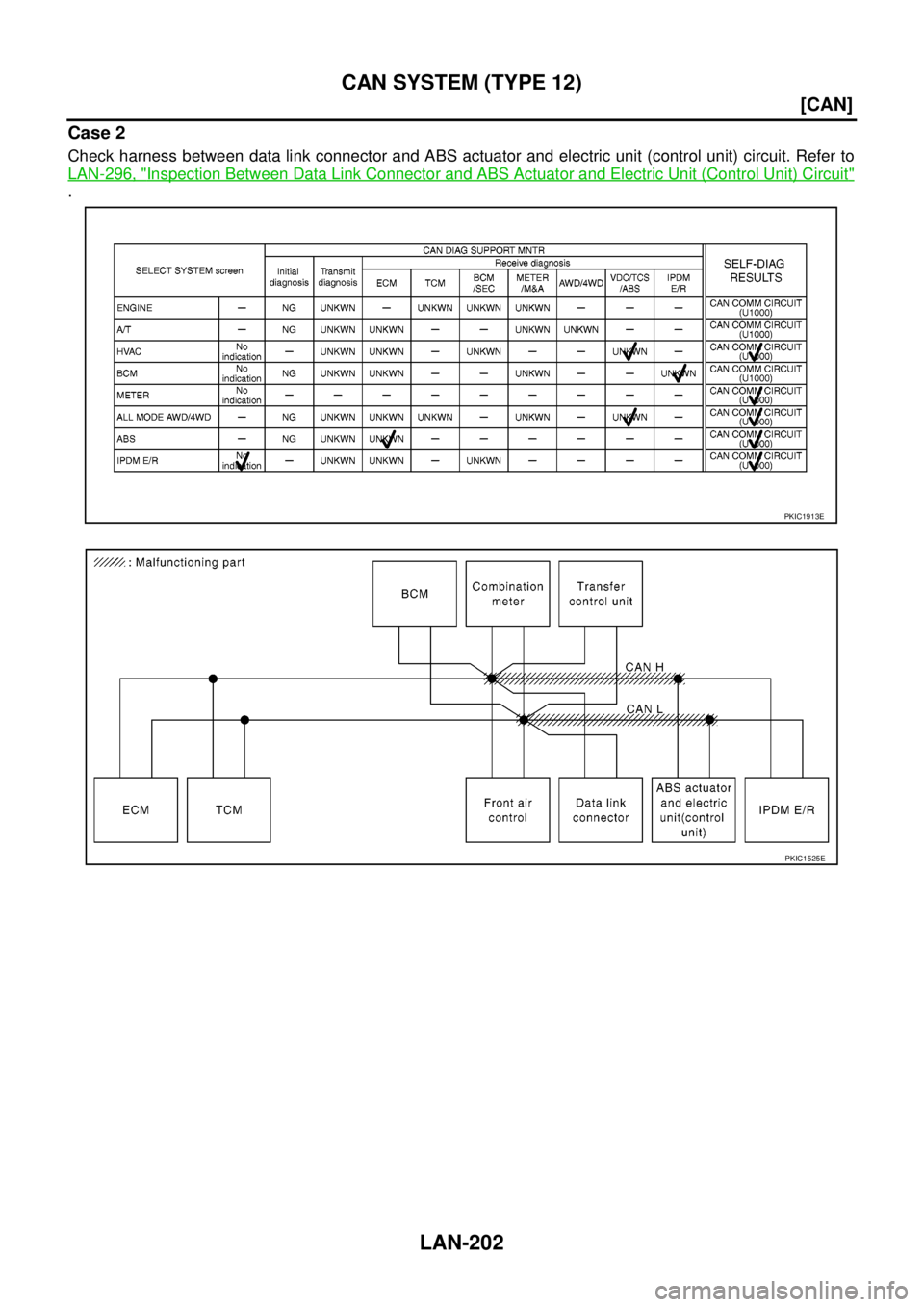

Case 2
Check harness between data link connector and ABS actuator and electric unit (control unit) circuit. Refer to
LAN-296, "
Inspection Between Data Link Connector and ABS Actuator and Electric Unit (Control Unit) Circuit"
.
PKIC1913E
PKIC1525E
Page 1980 of 3171
CAN SYSTEM (TYPE 12)
LAN-203
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

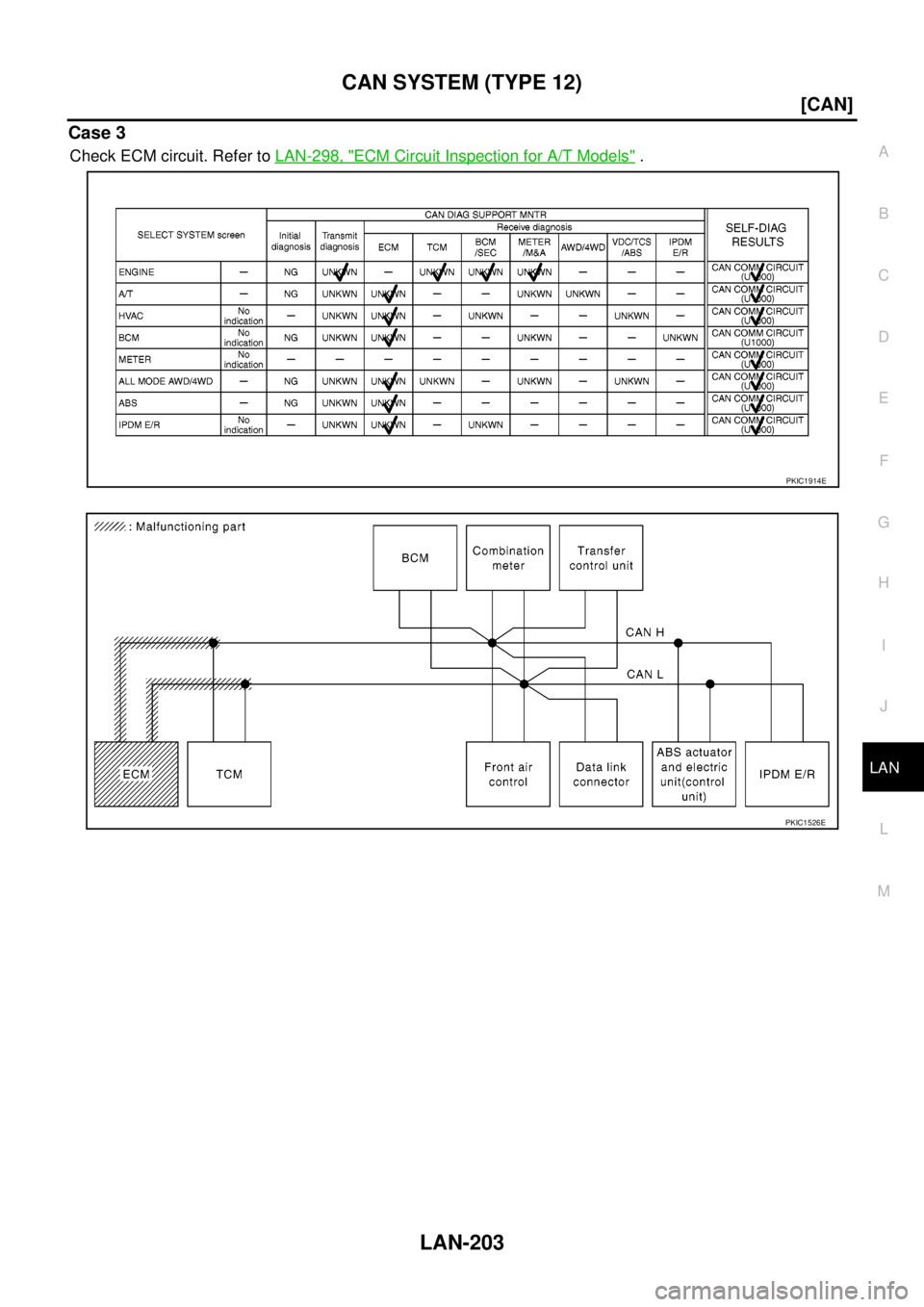

Case 3
Check ECM circuit. Refer toLAN-298, "ECM Circuit Inspection for A/T Models".
PKIC1914E
PKIC1526E
Page 1981 of 3171
LAN-204
[CAN]
CAN SYSTEM (TYPE 12)

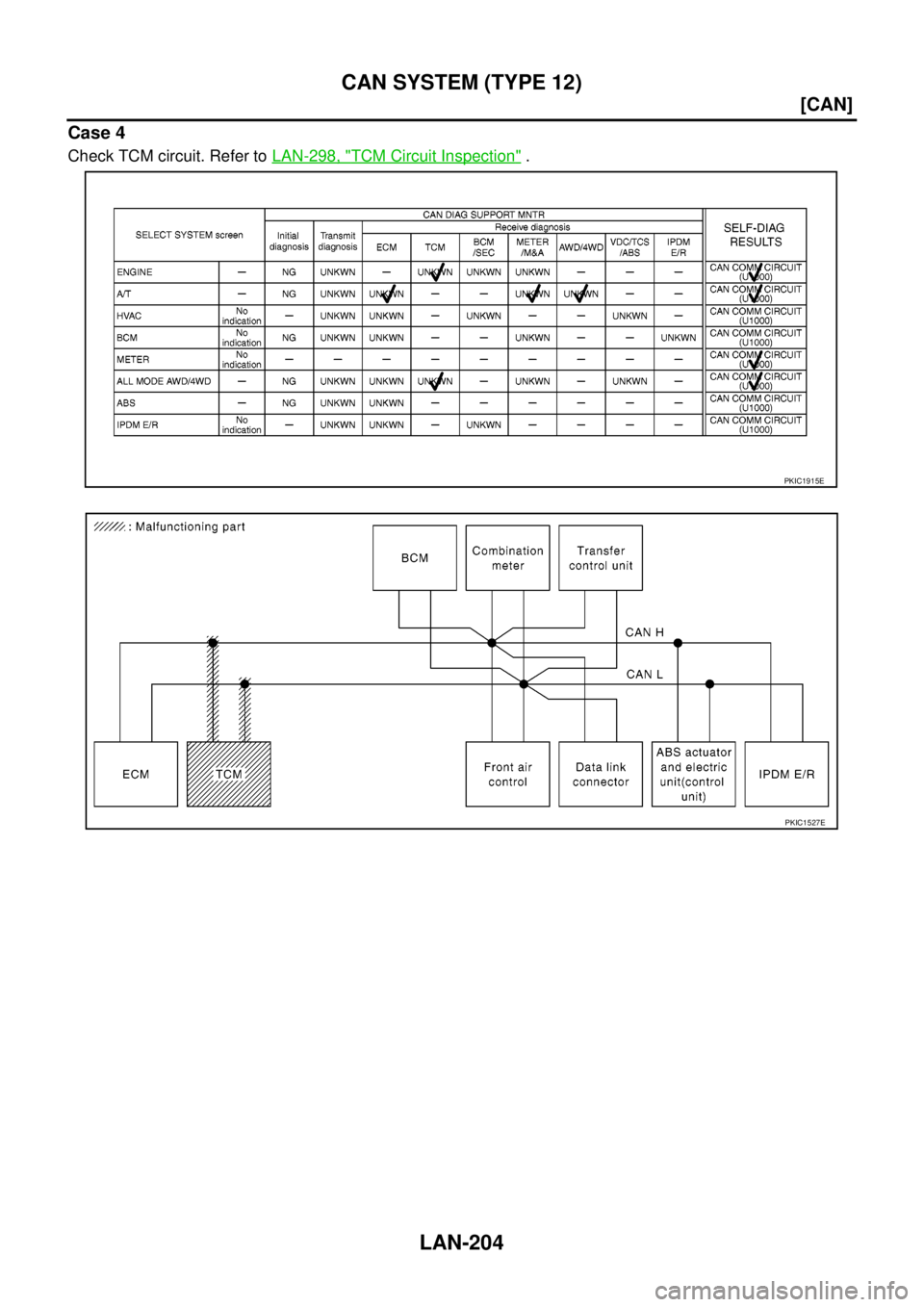

Case 4
Check TCM circuit. Refer toLAN-298, "TCM Circuit Inspection".
PKIC1915E
PKIC1527E
Page 1982 of 3171
CAN SYSTEM (TYPE 12)
LAN-205
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

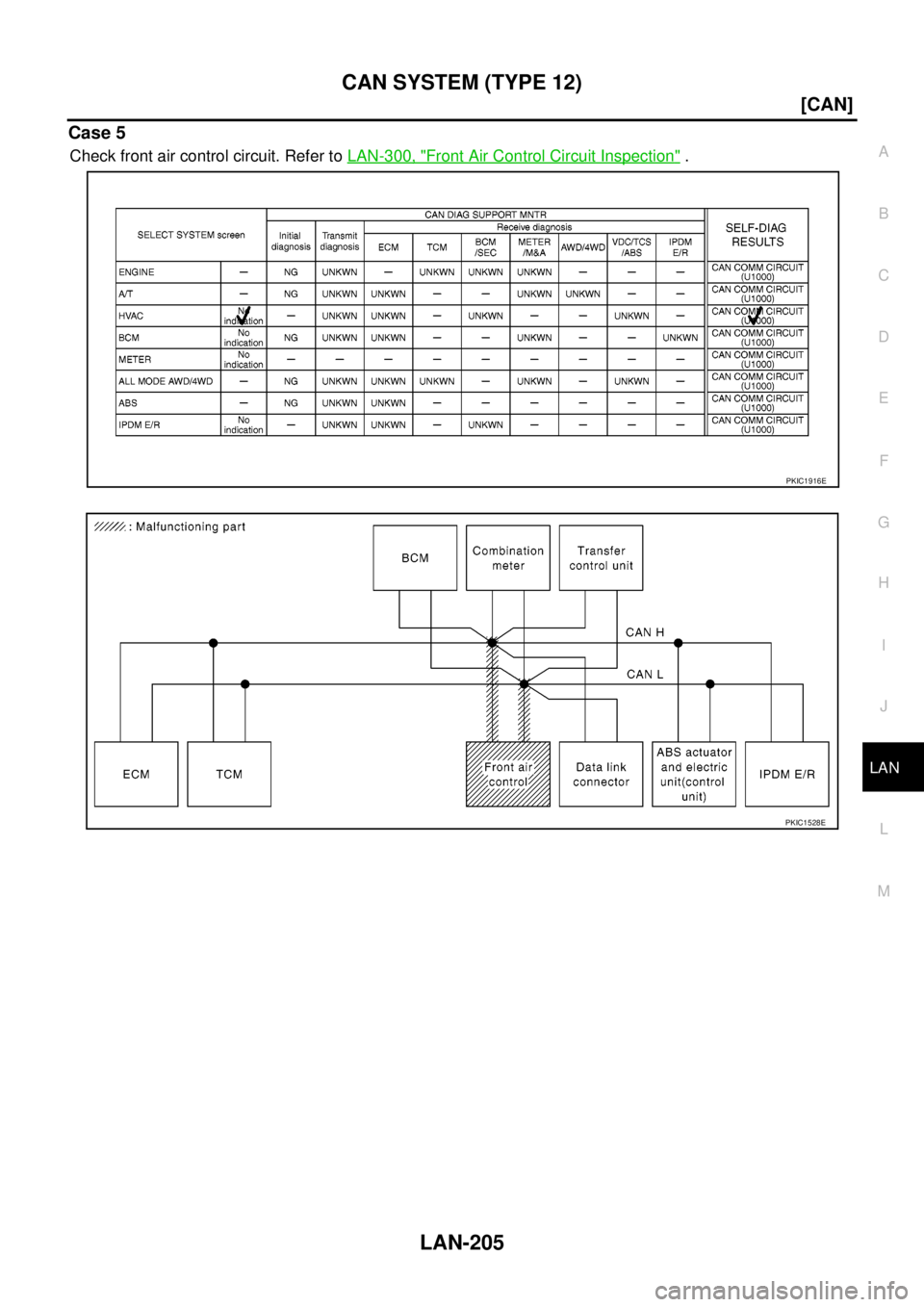

Case 5
Check front air control circuit. Refer toLAN-300, "Front Air Control Circuit Inspection".
PKIC1916E
PKIC1528E
Page 1983 of 3171
LAN-206
[CAN]
CAN SYSTEM (TYPE 12)

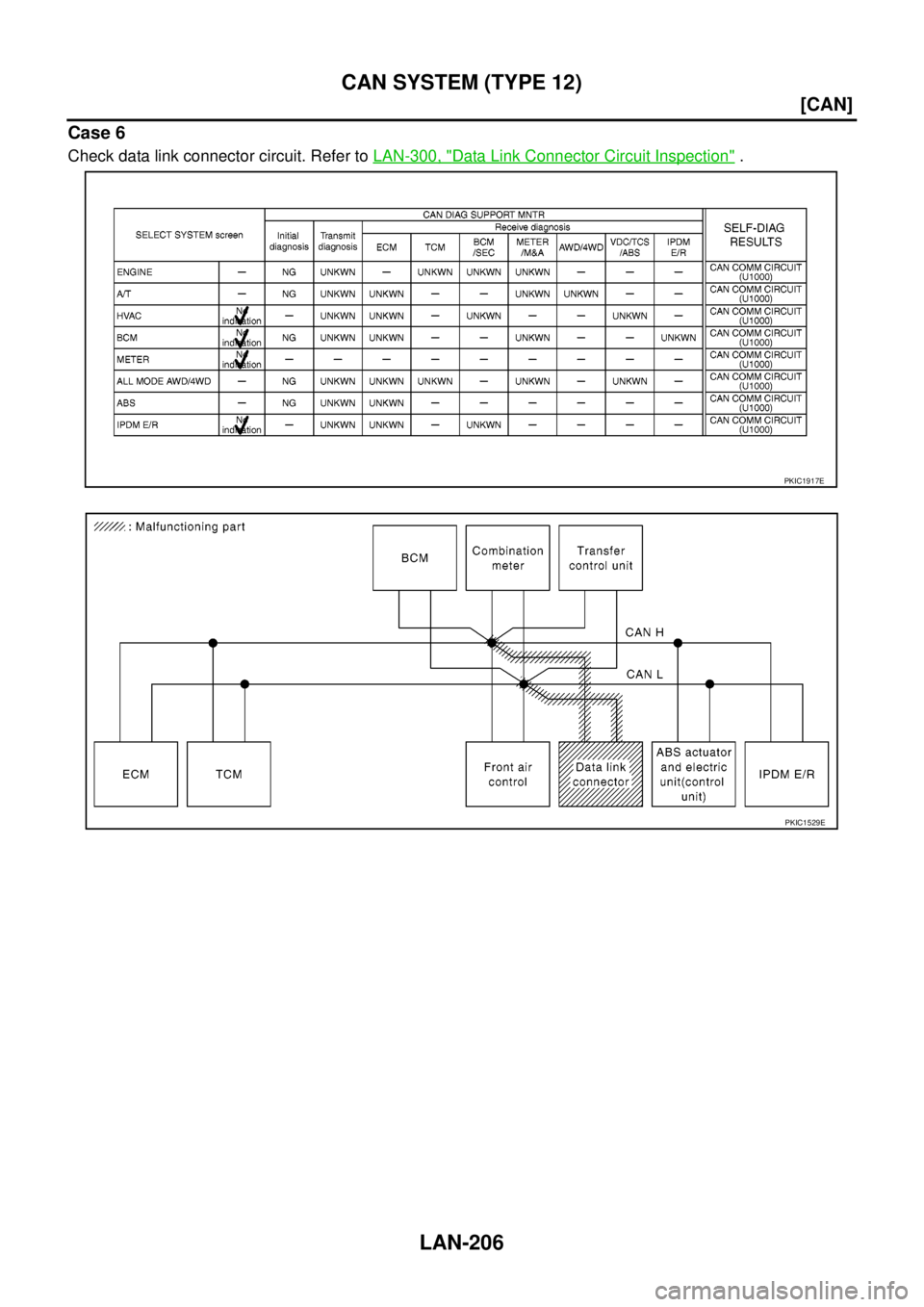

Case 6
Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection".
PKIC1917E
PKIC1529E
Page 1984 of 3171
CAN SYSTEM (TYPE 12)
LAN-207
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN

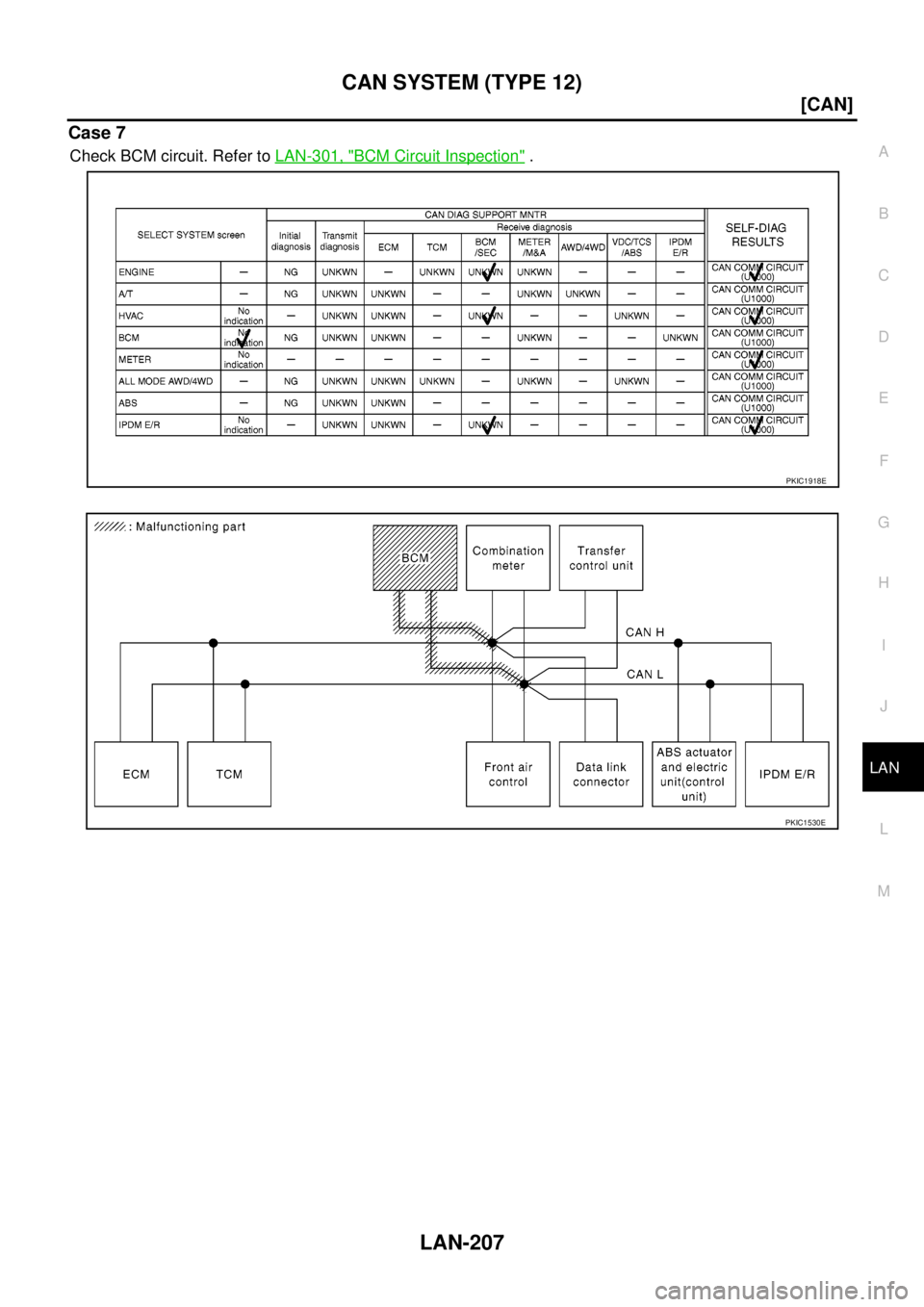

Case 7
Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection".
PKIC1918E
PKIC1530E
