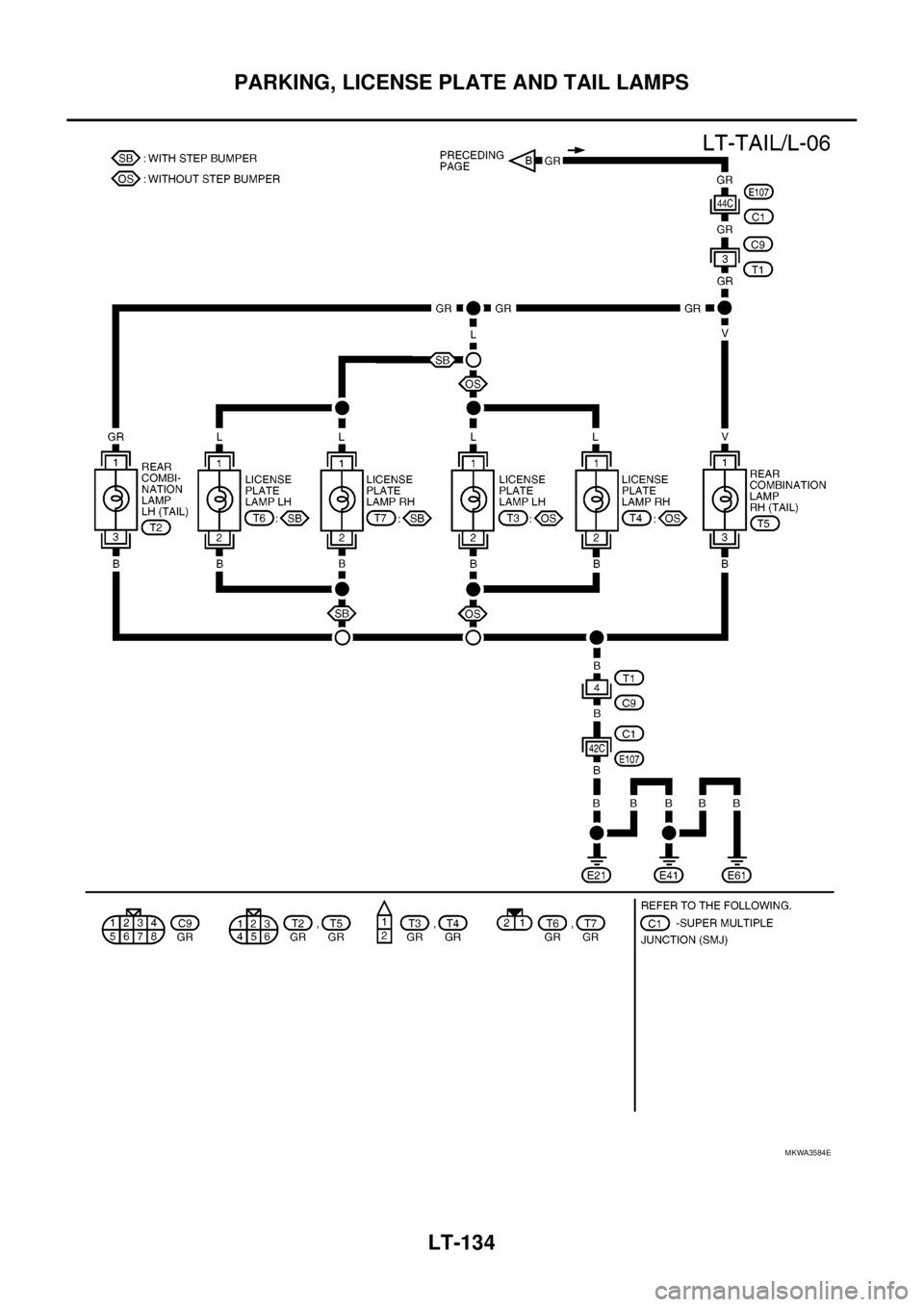

NISSAN NAVARA 2005 Repair Workshop Manual LT-134 PARKING, LICENSE PLATE AND TAIL LAMPS MKWA3584E

Page 2218 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-135 C D E F G H I J L MA B LT Terminals and Reference Values for BCMEKS00P9K Terminals and Reference Values for IPDM E/REKS00P9L Te r m i n a l No.Wire colorSi

Page 2219 of 3171

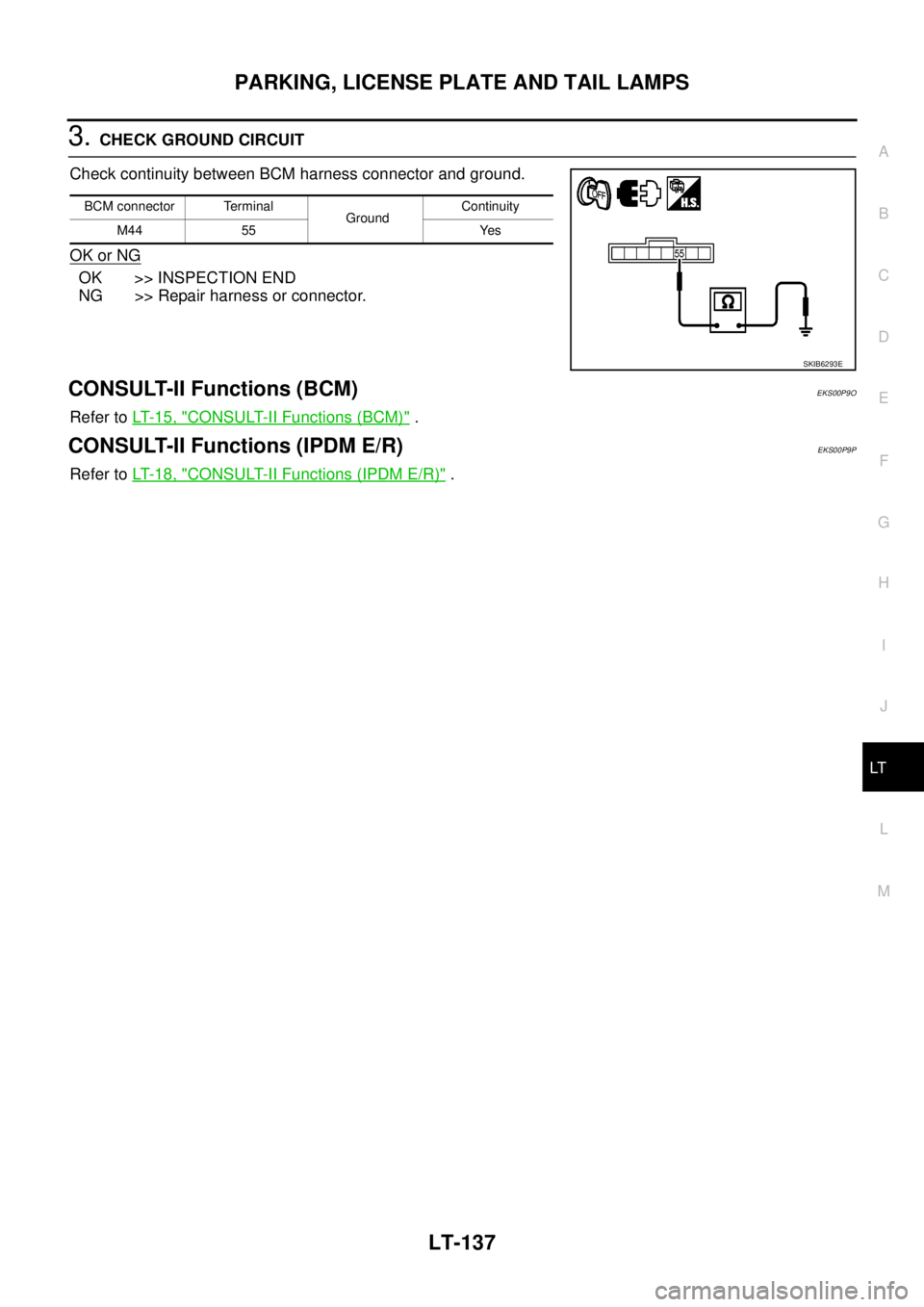

NISSAN NAVARA 2005 Repair Workshop Manual LT-136 PARKING, LICENSE PLATE AND TAIL LAMPS How to Proceed With Trouble Diagnosis EKS00P9M 1. Confirm the symptom or customer complaint. 2. Understand operation description and function description.

Page 2220 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-137 C D E F G H I J L MA B LT 3.CHECK GROUND CIRCUIT Check continuity between BCM harness connector and ground. OK or NG OK >> INSPECTION END NG >> Repair harn

Page 2221 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-138 PARKING, LICENSE PLATE AND TAIL LAMPS Clarence, License Plate and Tail Lamps Do Not Illuminate EKS00P9Q 1.CHECK COMBINATION SWITCH INPUT SIGNAL With CONSULT-II 1. Select “BCM” on CONSULT-II

Page 2222 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-139 C D E F G H I J L MA B LT 4.CHECK INPUT SIGNAL With CONSULT-II 1. Turn ignition switch OFF. 2. Disconnect connectors of front combination lamps, license pl

Page 2223 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-140 PARKING, LICENSE PLATE AND TAIL LAMPS 5.CHECK CLEARANCE, LICENSE PLATE AND TAIL LAMP CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector. 3. Check continuity between IPDM E/R

Page 2224 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual PARKING, LICENSE PLATE AND TAIL LAMPS LT-141 C D E F G H I J L MA B LT 6.CHECK GROUND CIRCUIT 1. Check continuity between front combination lamp (clearance) and ground. 2. Check continuity between lic
