NISSAN NAVARA 2005 Repair Workshop Manual WARNING CHIME DI-59 C D E F G H I J L MA B DI 4. Touch “BUZZER” or “BCM” on “SELECT TEST ITEM” screen. 5. Select “DATA MONITOR”, “ACTIVE TEST” or “SELF-DIAG RESULTS” on “SELE

Page 970 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DI-60 WARNING CHIME 4. During the operation check, touching “OFF” deactivates the operation. Display Item List SELF-DIAG RESULTS Operation Procedure 1. Touch “BCM” on “SELECT TEST ITEM” sc

Page 971 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual WARNING CHIME DI-61 C D E F G H I J L MA B DI SYMPTOM CHART Meter Buzzer Circuit InspectionEKS00L9L 1.CHECK CHIME OPERATION 1. Select “BUZZER” of “BCM”. 2. Perform “LIGHT WARN ALM”, “IGN

Page 972 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DI-62 WARNING CHIME Lighting Switch Signal Inspection EKS00L9O 1.CHECK BCM INPUT SIGNAL 1. Select “BCM”. 2. With “DATA MONITOR” of “BUZZER”, confirm “LIGHT SW 1ST” whenthelightingswitc

Page 973 of 3171

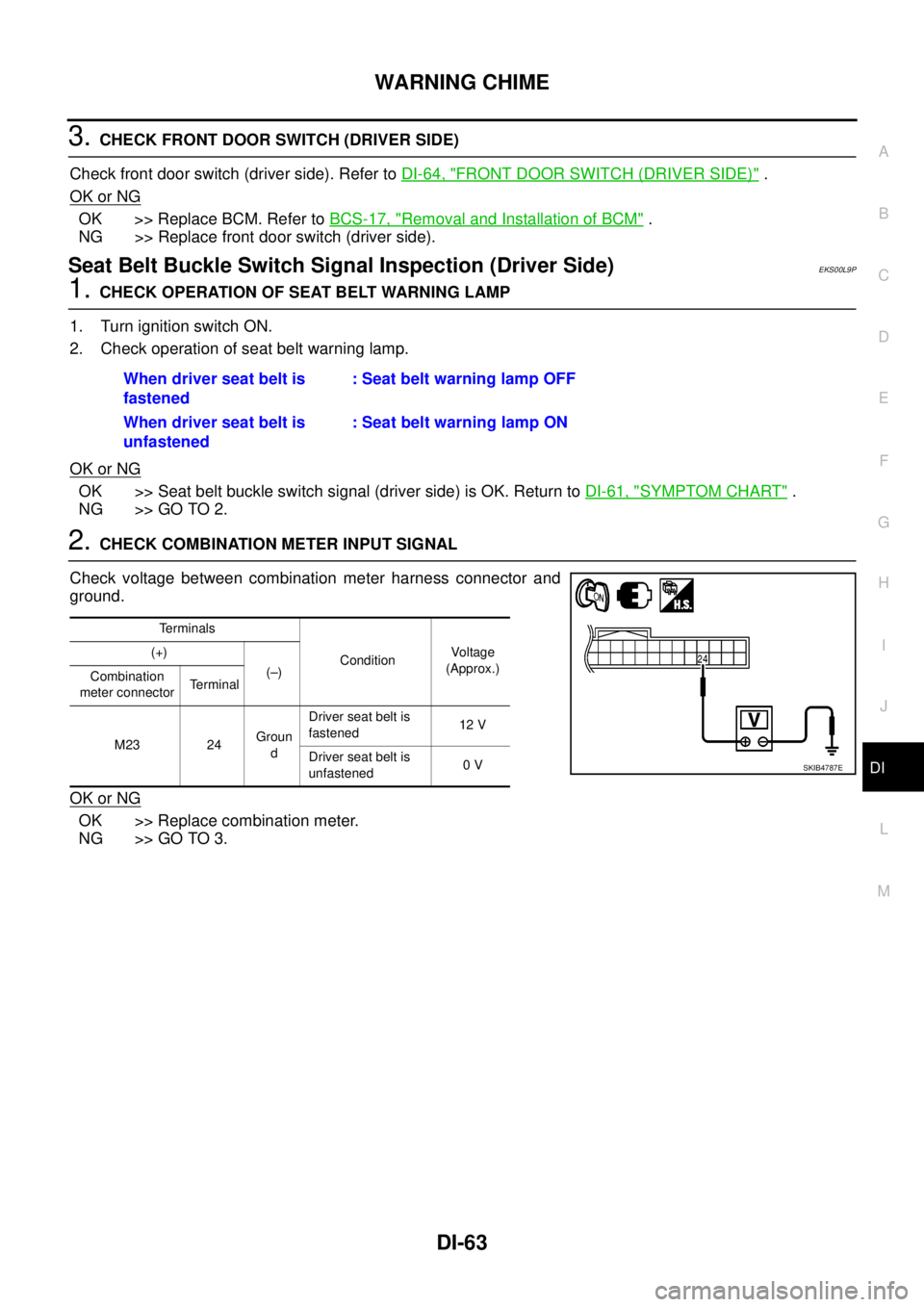

NISSAN NAVARA 2005 Repair Workshop Manual WARNING CHIME DI-63 C D E F G H I J L MA B DI 3.CHECK FRONT DOOR SWITCH (DRIVER SIDE) Check front door switch (driver side). Refer toDI-64, " FRONT DOOR SWITCH (DRIVER SIDE)". OK or NG OK >> Replace B

Page 974 of 3171

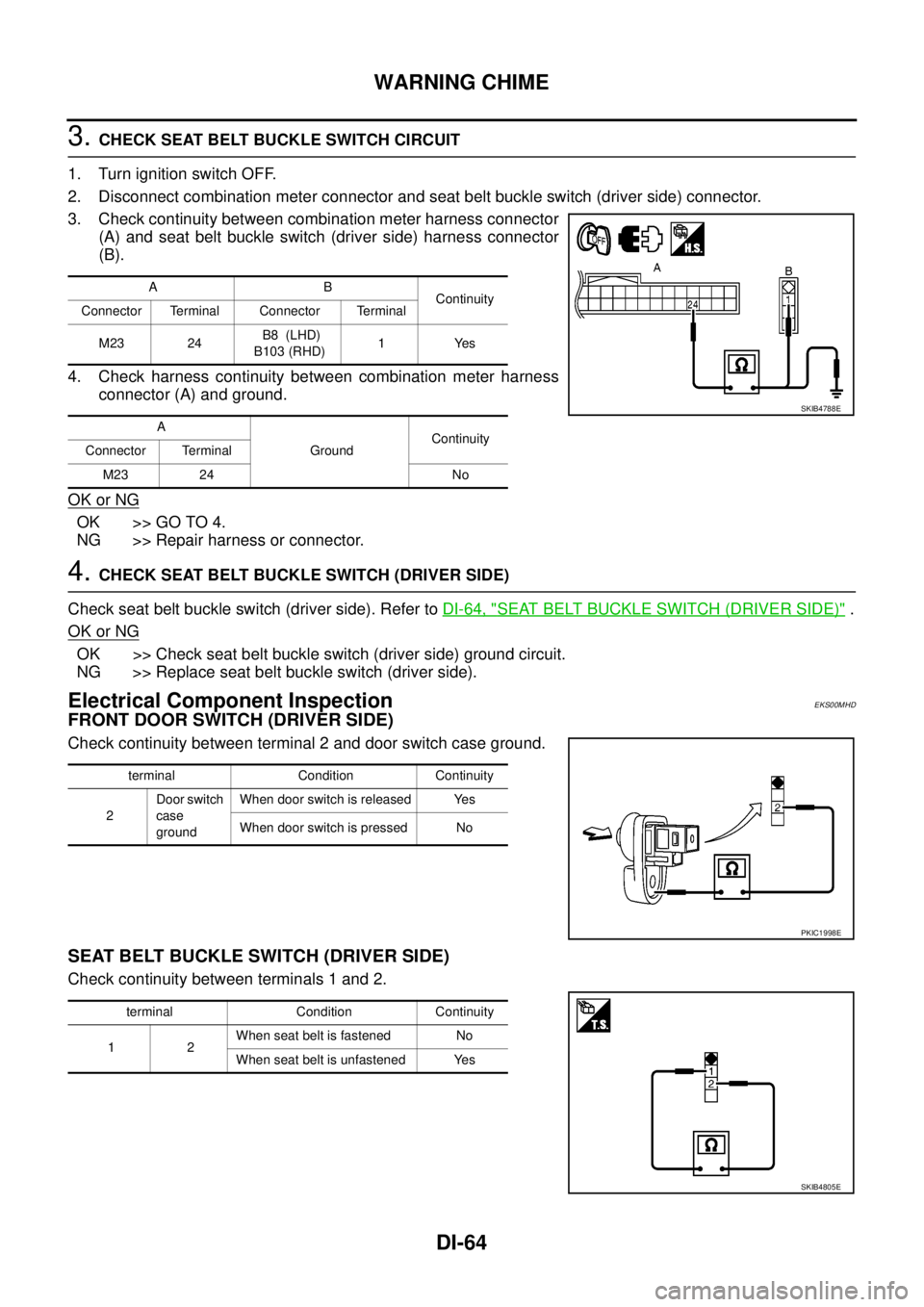

NISSAN NAVARA 2005 Repair Workshop Manual DI-64 WARNING CHIME 3.CHECK SEAT BELT BUCKLE SWITCH CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect combination meter connector and seat belt buckle switch (driver side) connector. 3. Check continu

Page 975 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN COMMUNICATION DI-65 C D E F G H I J L MA B DI CAN COMMUNICATIONPFP:23710 System DescriptionEKS00MHE CAN (Controller Area Network) is a serial communication line for real time application. It is an

Page 976 of 3171

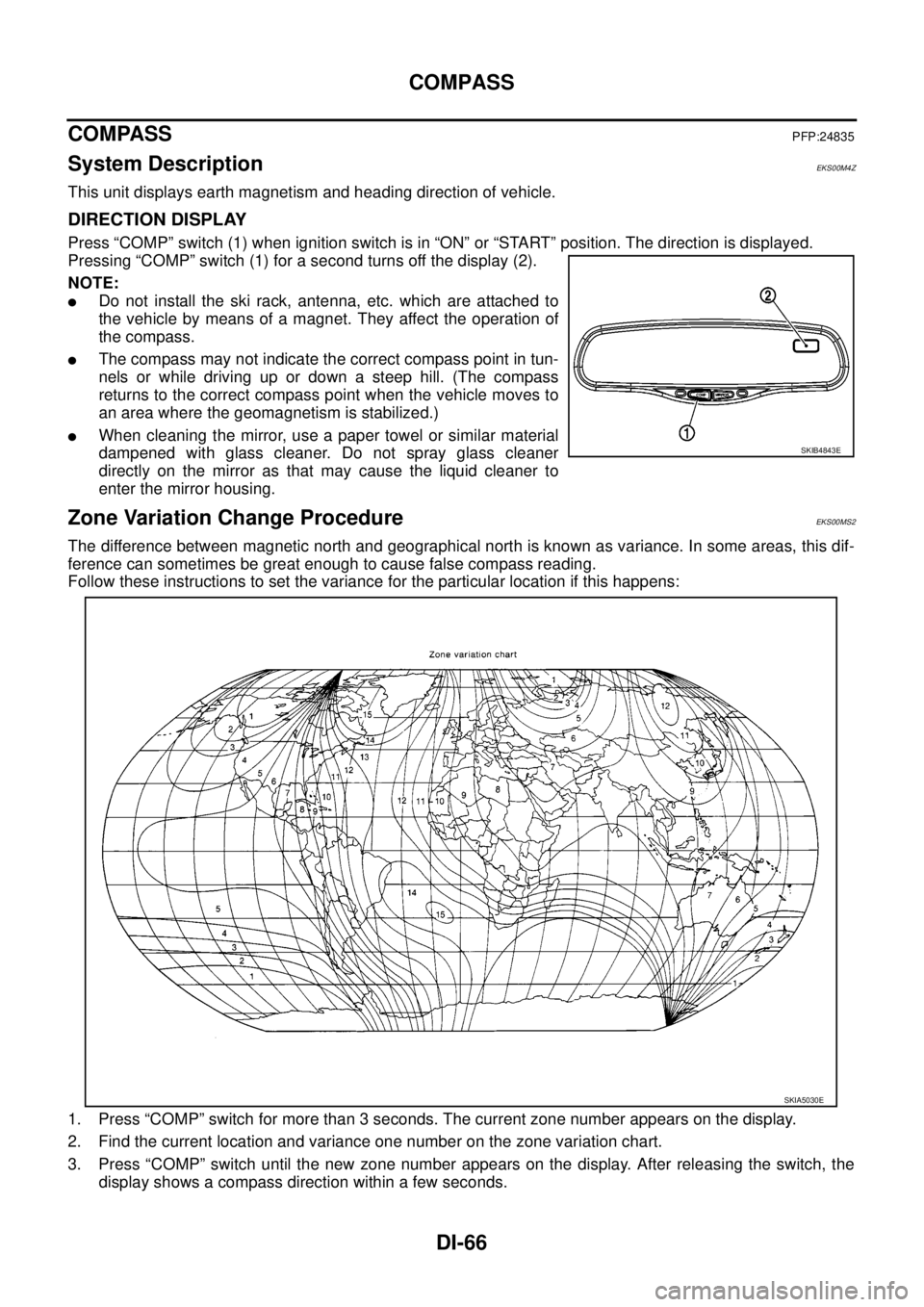

NISSAN NAVARA 2005 Repair Workshop Manual DI-66 COMPASS COMPASS PFP:24835 System DescriptionEKS00M4Z This unit displays earth magnetism and heading direction of vehicle. DIRECTION DISPLAY Press “COMP” switch (1) when ignition switch is in
