Page 2049 of 3171

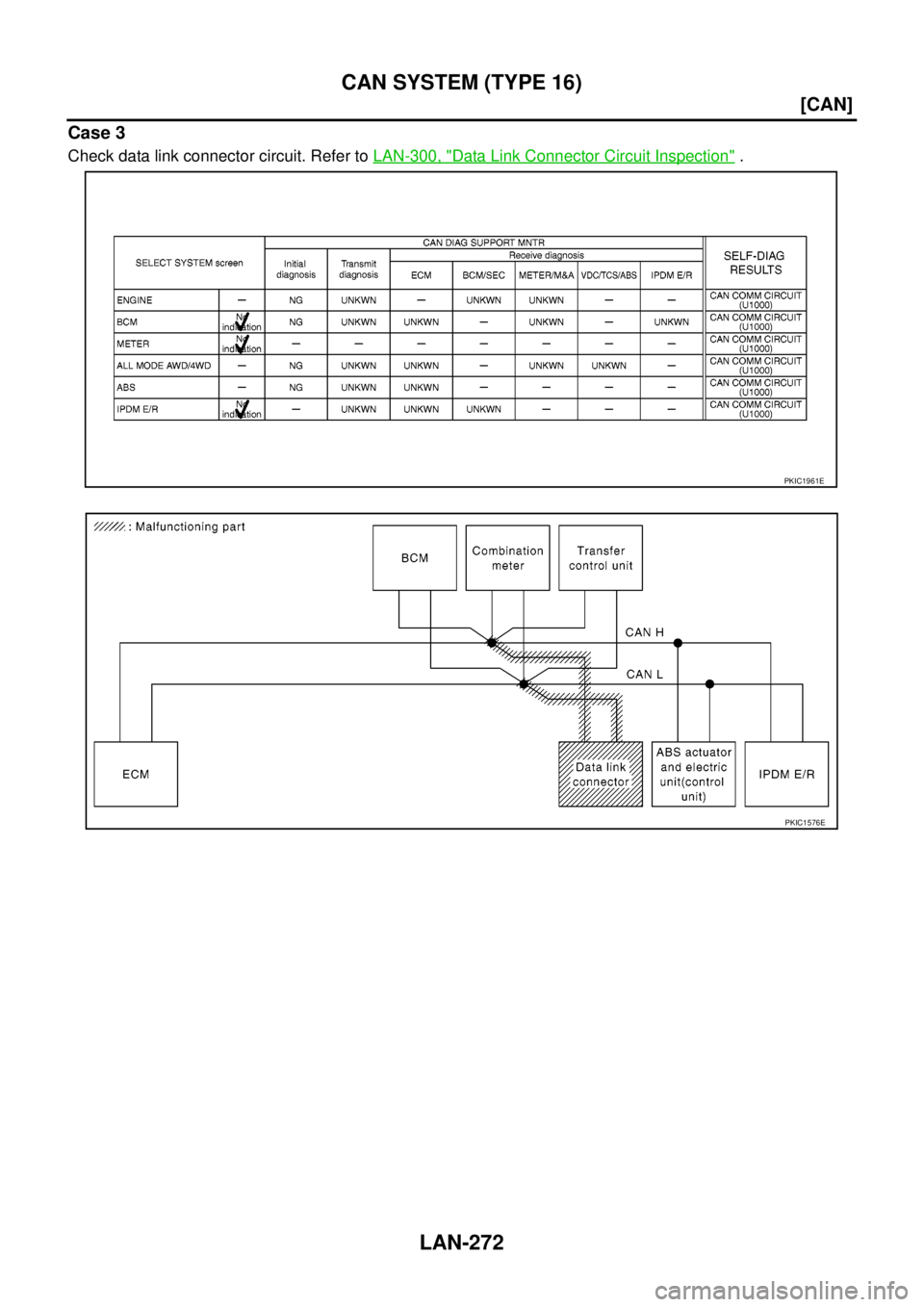

NISSAN NAVARA 2005 Repair Workshop Manual LAN-272 [CAN] CAN SYSTEM (TYPE 16) Case 3 Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection". PKIC1961E PKIC1576E

Page 2050 of 3171

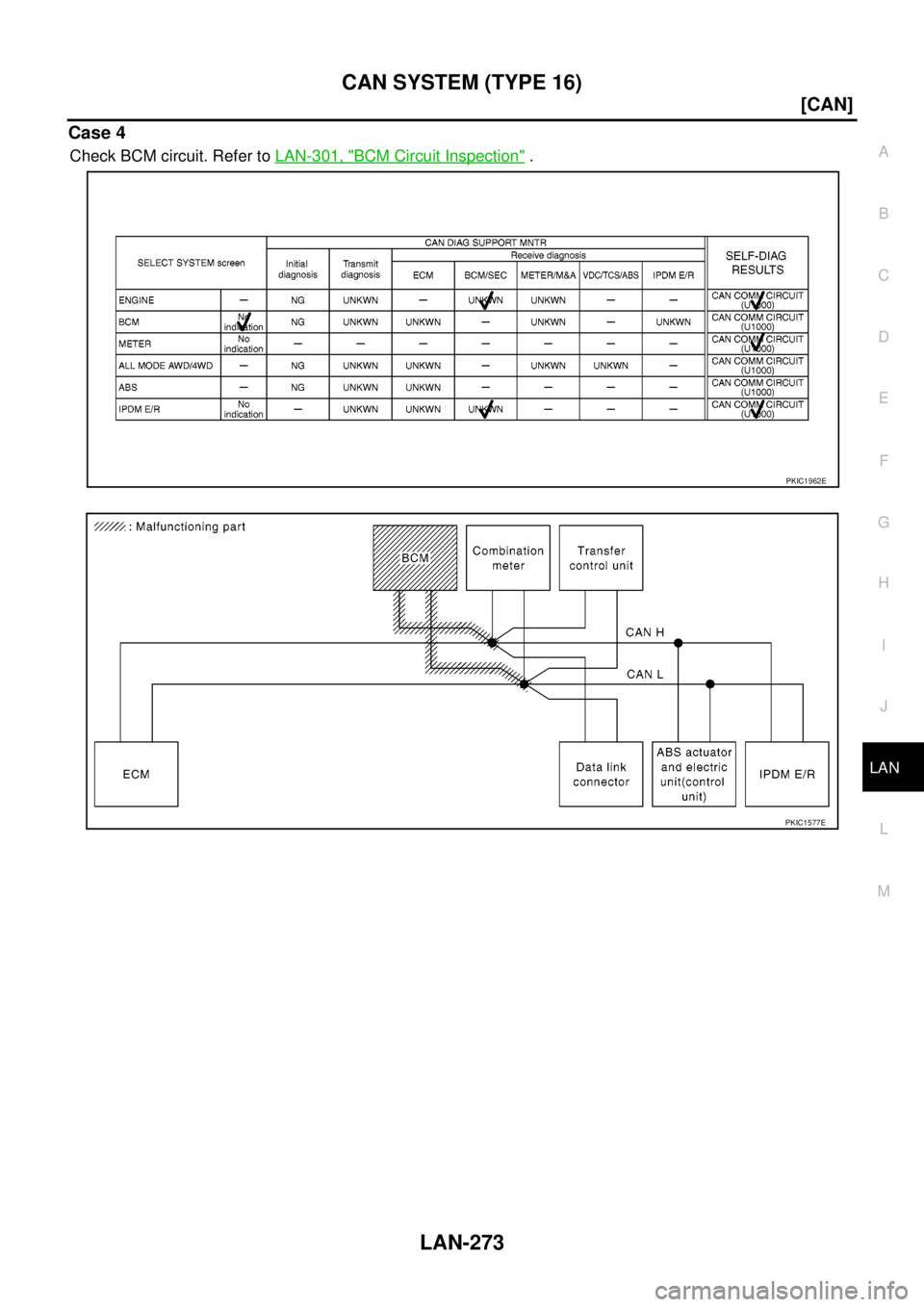

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 16) LAN-273 [CAN] C D E F G H I J L MA B LAN Case 4 Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection". PKIC1962E PKIC1577E

Page 2051 of 3171

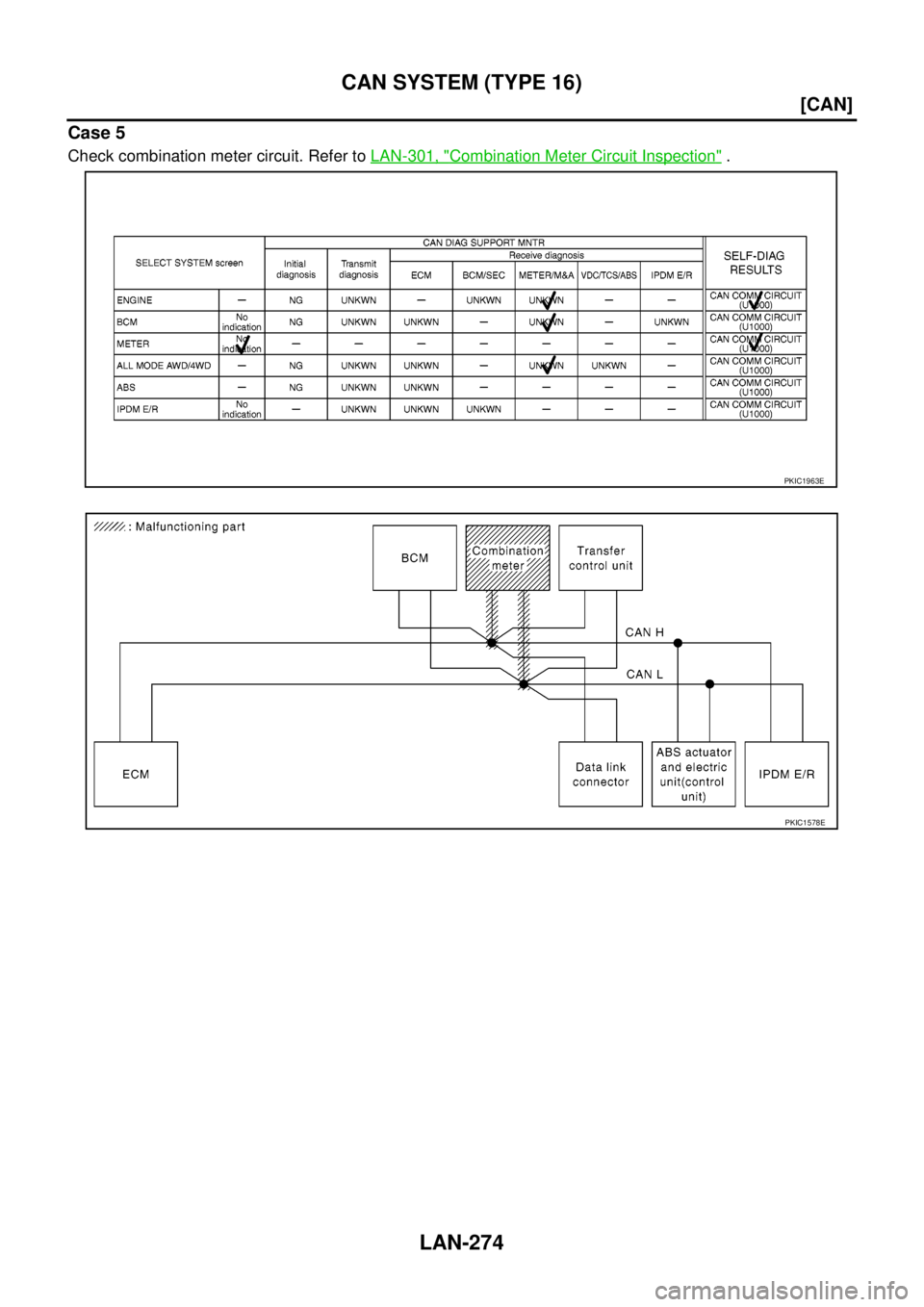

NISSAN NAVARA 2005 Repair Workshop Manual LAN-274 [CAN] CAN SYSTEM (TYPE 16) Case 5 Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection". PKIC1963E PKIC1578E

Page 2052 of 3171

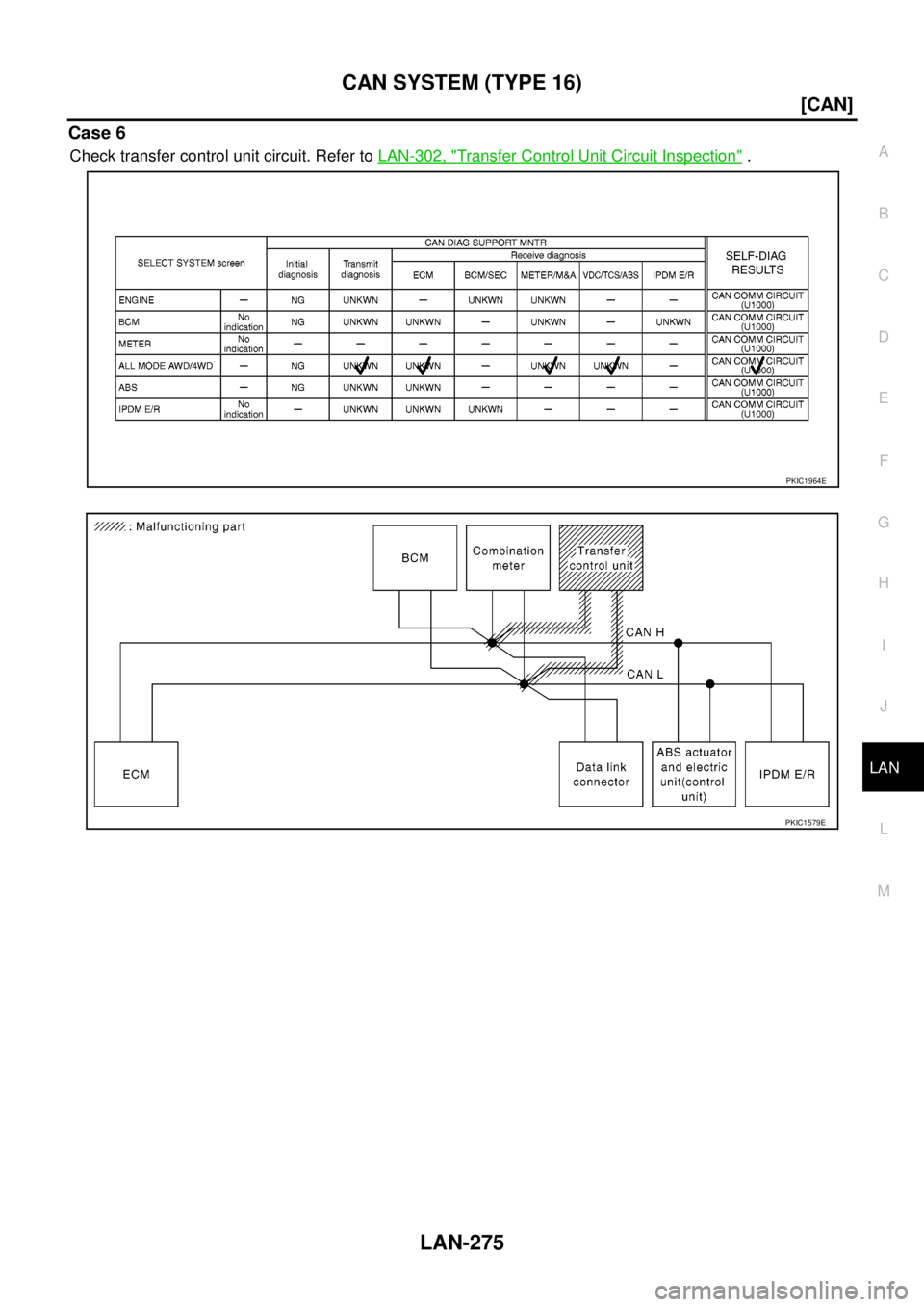

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 16) LAN-275 [CAN] C D E F G H I J L MA B LAN Case 6 Check transfer control unit circuit. Refer toLAN-302, "Transfer Control Unit Circuit Inspection". PKIC1964E PKIC1579E

Page 2053 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-276 [CAN] CAN SYSTEM (TYPE 16) Case 7 Check ABS actuator and electric unit (control unit) circuit. Refer toLAN-302, "ABS Actuator and Electric Unit (Control Unit) Circuit Inspection". PKIC1965E PK

Page 2054 of 3171

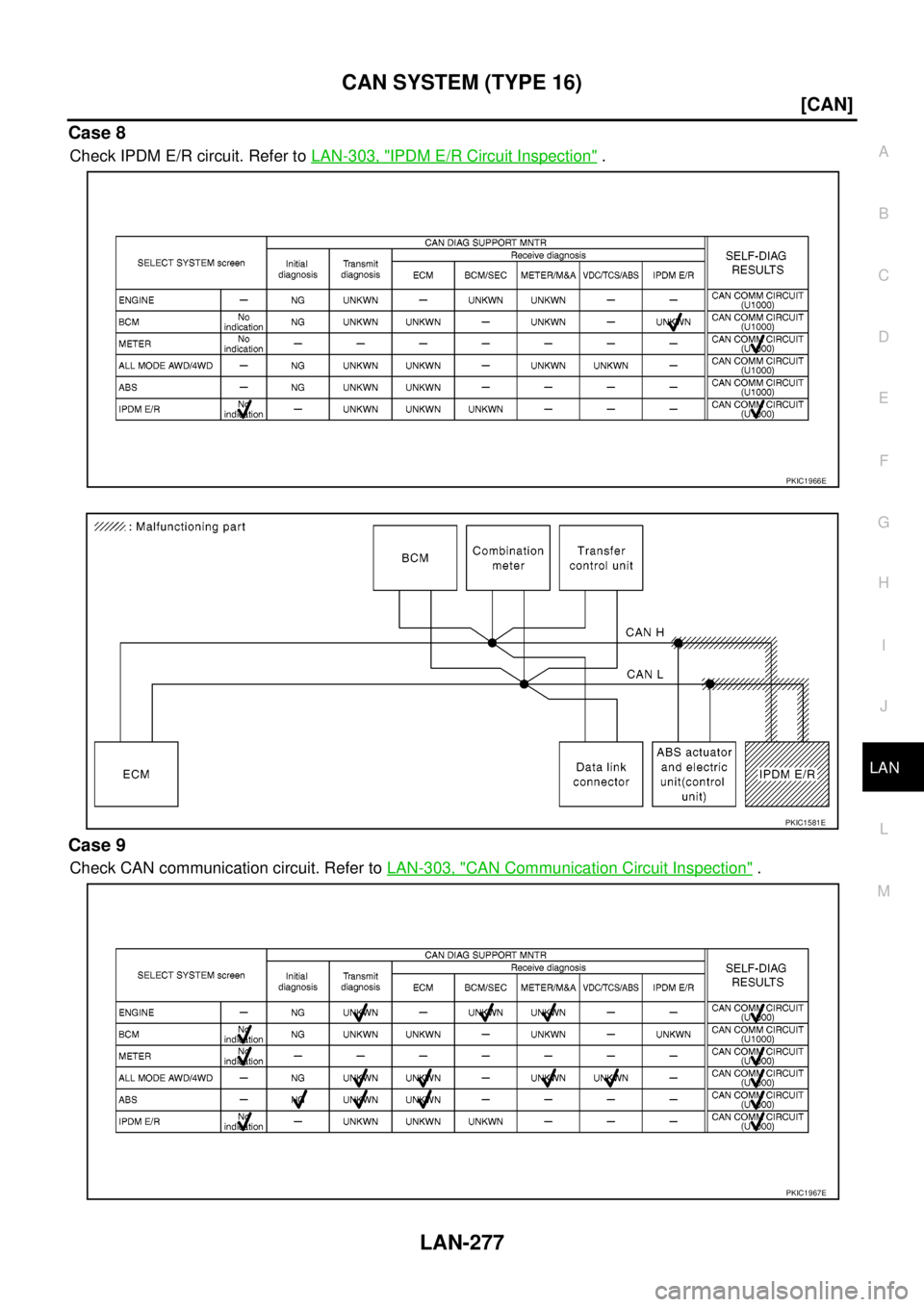

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 16) LAN-277 [CAN] C D E F G H I J L MA B LAN Case 8 Check IPDM E/R circuit. Refer toLAN-303, "IPDM E/R Circuit Inspection". Case 9 Check CAN communication circuit. Refer toLAN-303, "C

Page 2055 of 3171

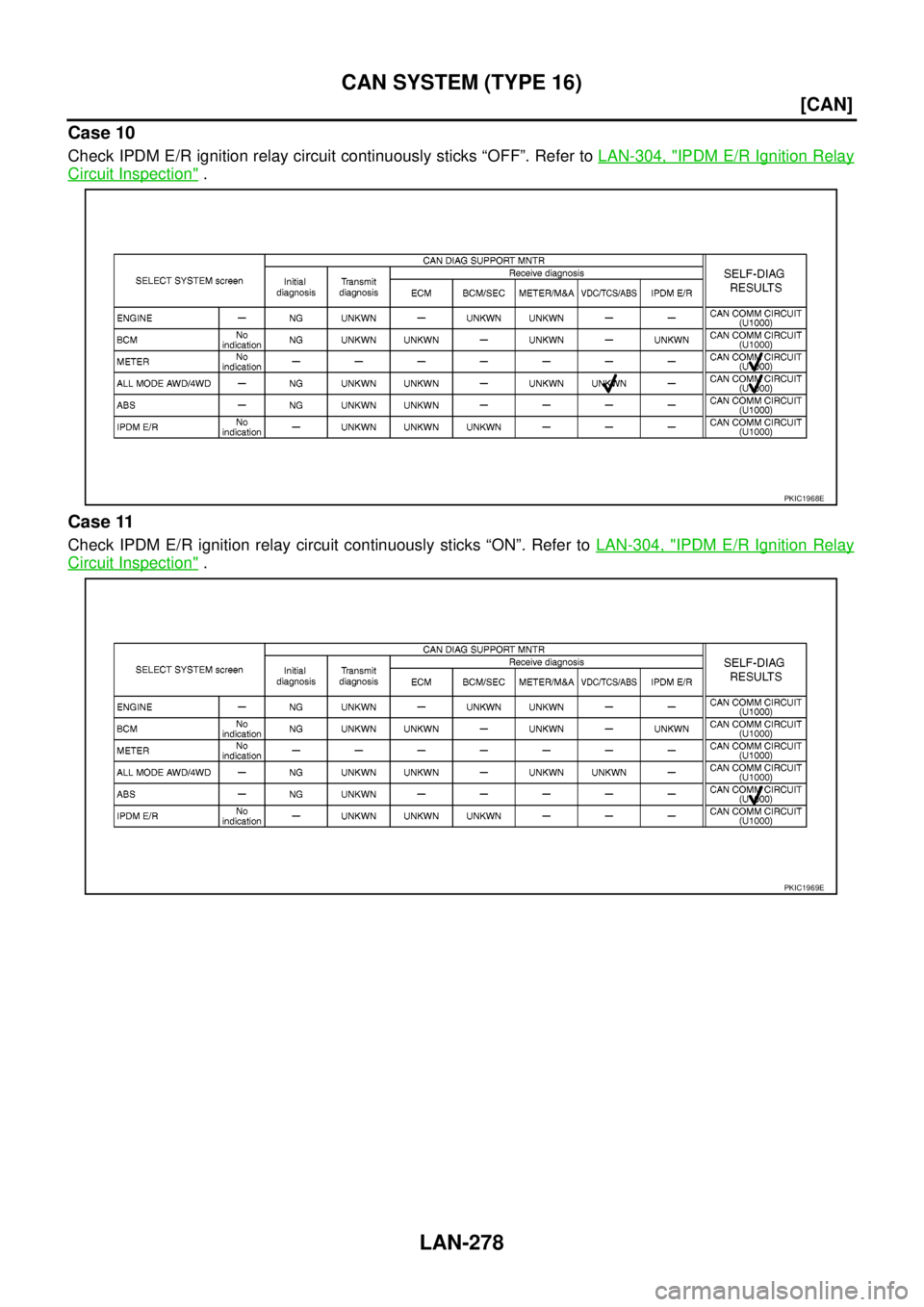

NISSAN NAVARA 2005 Repair Workshop Manual LAN-278 [CAN] CAN SYSTEM (TYPE 16) Case 10 Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer toLAN-304, "IPDM E/R Ignition Relay Circuit Inspection". Case 11 Check IPDM E/R ig

Page 2056 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 17) LAN-279 [CAN] C D E F G H I J L MA B LAN CAN SYSTEM (TYPE 17)PFP:23710 Component Parts and Harness Connector LocationEKS00OJJ Refer toLAN-23, "Component Parts and Harness Connecto
