NISSAN NAVARA 2005 Repair Workshop Manual FRONT DOOR GLASS AND REGULATOR
GW-35
C
D
E
F
G
H
J
K
L
MA
B
GW
FRONT DOOR GLASS AND REGULATORPFP:80300
Removal and InstallationEIS00BQ8
DOOR GLASS
Removal
1. Remove the front door finisher. Refer toEI

Page 1722 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual GW-36
FRONT DOOR GLASS AND REGULATOR
4. Operate power window main switch to raise or lower the door
window until the door glass mounting bolts appear.
5. Remove the door glass mounting bolts.
6. While

Page 1723 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT DOOR GLASS AND REGULATOR
GW-37
C
D
E
F
G
H
J
K
L
MA
B
GW
7. Disconnect the harness connector from the regulator assembly.
8. Remove the mounting bolts and remove the regulator assembly.
Installa

Page 1724 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual GW-38
REAR DOOR GLASS AND REGULATOR

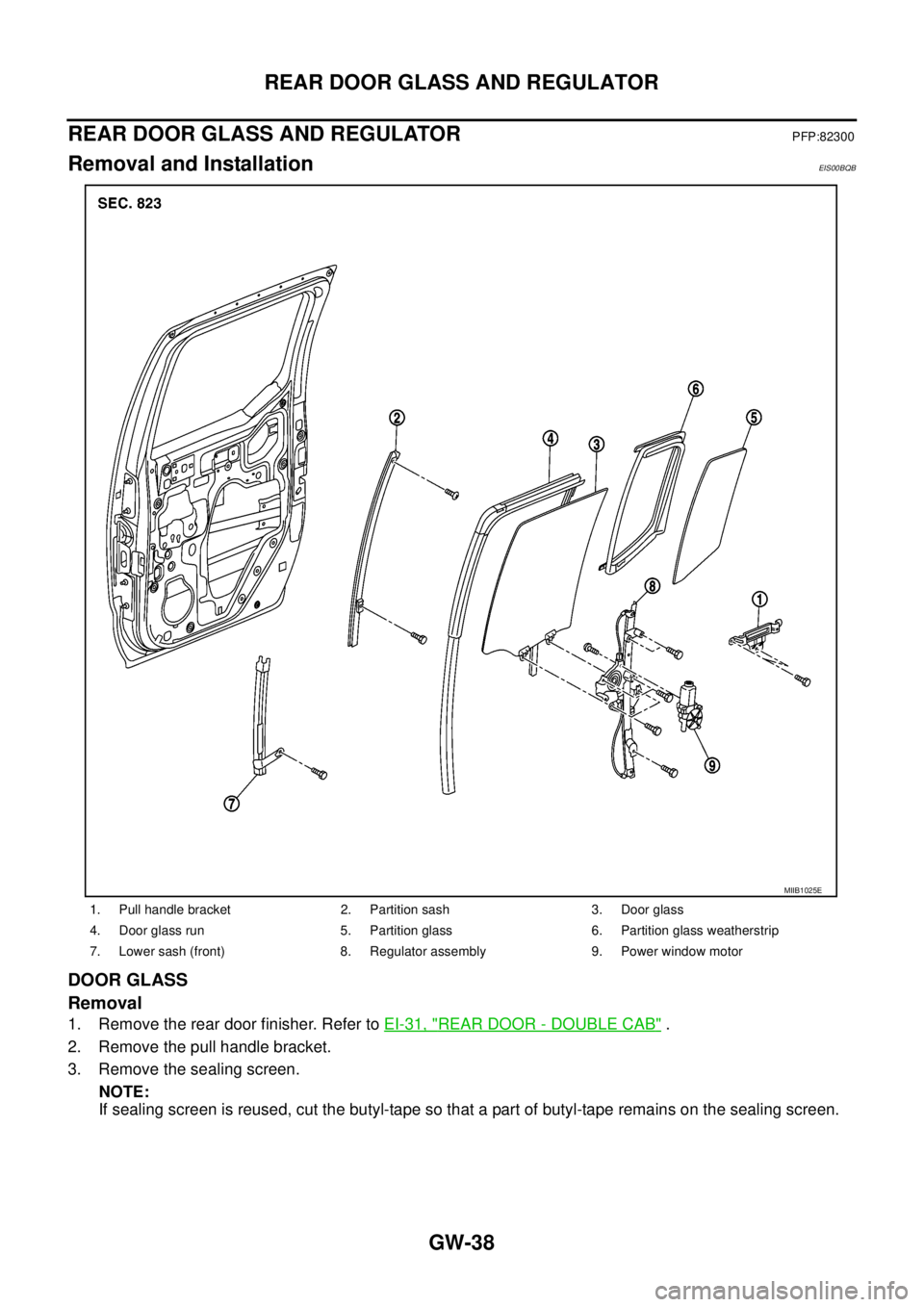

REAR DOOR GLASS AND REGULATOR
PFP:82300
Removal and InstallationEIS00BQB
DOOR GLASS
Removal
1. Remove the rear door finisher. Refer toEI-31, "REAR DOOR - DOUBLE CAB

Page 1725 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual REAR DOOR GLASS AND REGULATOR
GW-39
C
D
E
F
G
H
J
K
L
MA
B
GW
4. Operate power window main switch to raise or lower the door
window until the door glass mounting bolts appear.
5. Remove the partition

Page 1726 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual GW-40
REAR DOOR GLASS AND REGULATOR
8. Remove the mounting bolts and remove the regulator assembly.
Installation
Install in the reverse order of removal.
Inspection after Removal
Check the regulator a

Page 1727 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SIDE WINDOW GLASS
GW-41
C
D
E
F
G
H
J
K
L
MA
B
GW
SIDE WINDOW GLASSPFP:83300
Removal and InstallationEIS00DVP
REMOVAL
1. Remove the rear door finisher. Refer toEI-32, "REAR DOOR - KING CAB".
2. Apply

Page 1728 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual GW-42
SIDE WINDOW GLASS
INSTALLATION
lUse a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.
lWhile the urethane adhesive is curing, o

GW-42
SIDE WINDOW GLASS
INSTALLATION
lUse a genuine NISSAN Urethane Adhesive Kit (if available) or equivalent and follow the instructions fur-
nished with it.
lWhile the urethane adhesive is curing, open a door window. This will prevent the glass from being forced
out by passenger compartment air pressure when a door is closed.
lCheck gap along bottom to confirm that glass does not contact sheet metal.
lInform the customer that the vehicle should remain stationary until the urethane adhesive has completely
cured (preferably 24 hours). Curing time varies with temperature and humidity.
lInstall parts removed.
WARNING:
lKeep heat and open flames away as primers and adhesive are flammable.
lThe materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid
contact with the skin and eyes.
lUse in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if
inhaled. If affected by vapor inhalation, immediately move to an area with fresh air.
lDriving the vehicle before the urethane adhesive has completely cured may affect the perfor-
mance of the glass in case of an accident.
CAUTION:
lDo not use an adhesive which is past its usable term. Shelf life of this product is limited to six
months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.
lKeep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
lDo not leave primers or adhesive cartridge unattended with their caps open or off.
lThe vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-
pletely cured. Curing time varies depending on temperature and humidity. The curing time will
increase under lower temperatures and lower humidities.
Repairing Water Leaks for Rear Door Glass
Leaks can be repaired without removing or reinstalling glass.
If water is leaking between urethane adhesive material and body or glass, determine the extent of leakage.
This can be done by applying water to the rear door area while pushing glass outward.
To stop leak, apply primer (if necessary) and then urethane adhesive to the leak point.
