TROUBLE DIAGNOSIS
BRC-27
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2.CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E63 check
terminal for deformation, disconnection, looseness, and so on. If there is an error, repair or replace termi-
nal.
2. Connect the connector securely and perform self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
3.CHECK ABS ACTUATOR RELAY OR ABS MOTOR RELAY POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E63.
2. Check voltage between ABS actuator and electric unit (control
unit) harness connector E63 and ground.
OK or NG
OK >> GO TO 4.
NG >> Circuit malfunction between battery and ABS actuator and electric unit (control unit). Repair the
circuit.
4.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E63 and ground.
OK or NG
OK >> Perform self-diagnosis again. If the same results appear, replace ABS actuator and electric unit
(control unit).
NG >> Open or short in harness. Repair or replace harness.

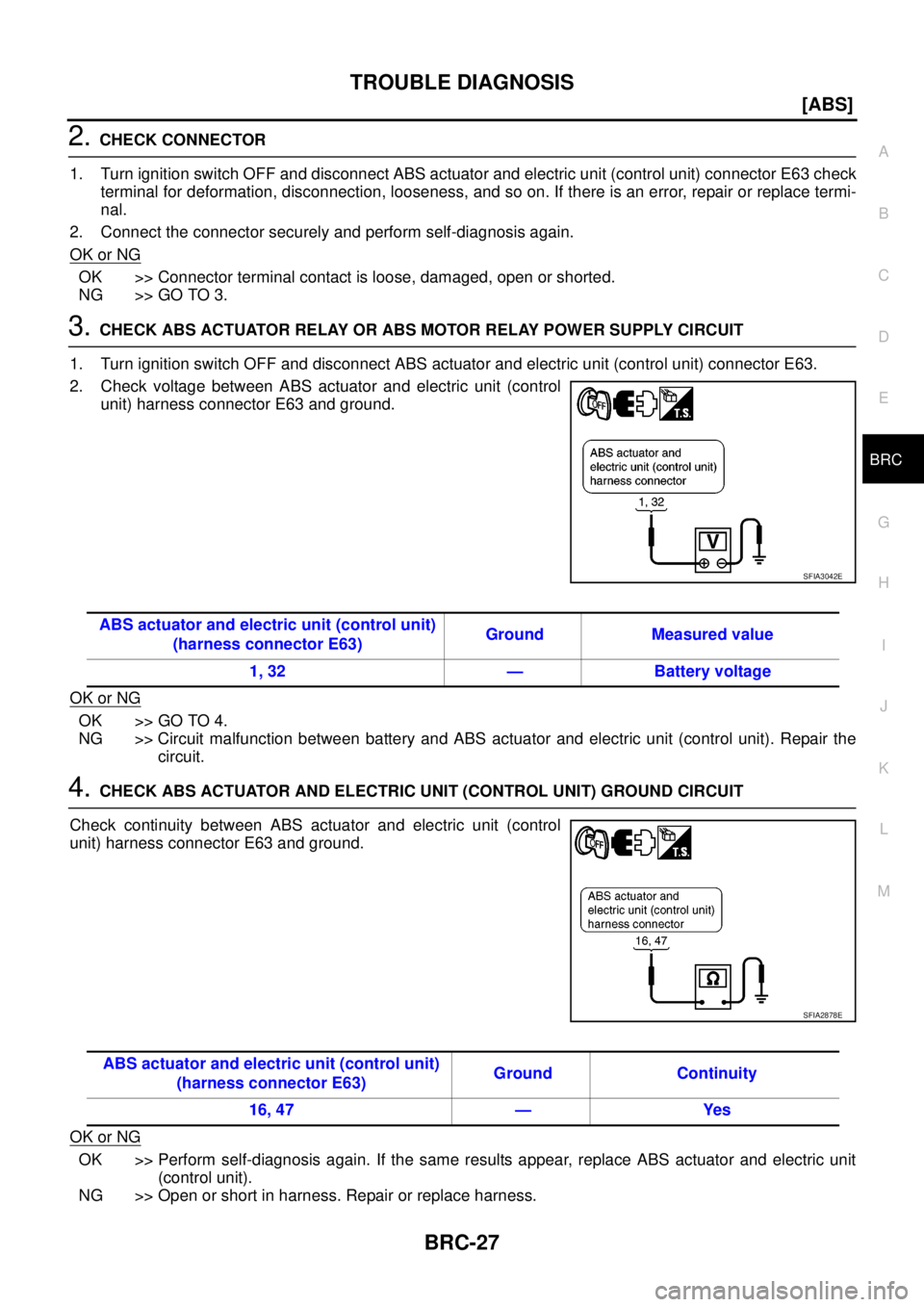

SFIA3042E
ABS actuator and electric unit (control unit)
(harness connector E63)Ground Measured value
1, 32 — Battery voltage
SFIA2878E
ABS actuator and electric unit (control unit)
(harness connector E63)Ground Continuity
16, 47 — Yes
Page 850 of 3171
![NISSAN NAVARA 2005 Repair Workshop Manual BRC-28
[ABS]
TROUBLE DIAGNOSIS
Inspection 4 CAN Communication Circuit
EFS005U2
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control NISSAN NAVARA 2005 Repair Workshop Manual BRC-28
[ABS]
TROUBLE DIAGNOSIS
Inspection 4 CAN Communication Circuit
EFS005U2
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control](/manual-img/5/57362/w960_57362-849.png)
BRC-28
[ABS]
TROUBLE DIAGNOSIS
Inspection 4 CAN Communication Circuit
EFS005U2
INSPECTION PROCEDURE
1.CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector, and check
the terminal for deformation, disconnection, looseness, and so on. If there is a malfunction, repair or
replace the terminal.
2. Reconnect connector to perform self-diagnosis.
Is
“CAN COMM CIRCUIT”displayed in the self-diagnosis display items?
YES >> Print out the self-diagnostic results, and refer toLAN-3, "Precautions When Using CONSULT-II".
NO >> Connector terminal connector is loose, damaged, open, or shorted.
Inspection 5 ABS Actuator and Electric Unit (Control Unit) Power Supply and
Ground Circuit
EFS005U3
INSPECTION PROCEDURE
1.CHECK SELF-DIAGNOSTIC RESULTS
Check self-diagnostic results.
Is above displayed in self-diagnosis display items?
YES >> GO TO 2.
NO >> INSPECTION END
2.CHECK CONNECTOR
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E63 check
terminals for deformation, disconnection, looseness, and so on.If there is an error, repair or replace termi-
nal.
2. Connect the connector securely and perform self-diagnosis again.
OK or NG
OK >> Connector terminal contact is loose, damaged, open or shorted.
NG >> GO TO 3.
Self-diagnostic results
BATTERY VOLTAGE [MALFUNCTION]
Page 851 of 3171
![NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS
BRC-29
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
3.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electri NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS
BRC-29
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
3.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electri](/manual-img/5/57362/w960_57362-850.png)
TROUBLE DIAGNOSIS
BRC-29
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
3.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF and disconnect ABS actuator and electric unit (control unit) connector E63.
2. Turn ignition switch ON or OFF and check voltage between ABS
actuator and electric unit (control unit) connector E63 and
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connectors.
4.CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) GROUND CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) connector E63 and ground.
OK or NG
OK >> Perform ABS actuator and electric unit (control unit) self-diagnosis again.
NG >> Repair harness or connectors.
SFIA2881E
ABS actuator and electric unit (control unit)
(harness connector E63)Ground Measurement conditionMeasured
value
4—Ignition switch ON Battery voltage
Ignition switch OFF Approx. 0 V
SFIA2878E
ABS actuator and electric unit (control unit)
(harness connector E63)Ground Continuity
16, 47 — Yes
Page 852 of 3171
BRC-30
[ABS]
TROUBLE DIAGNOSIS
Inspection 6 Brake Fluid Level Switch Circuit
EFS005U5
INSPECTION PROCEDURE
1.CHECK BRAKE FLUID LEVEL SWITCH
1. Turn ignition switch OFF and disconnect brake fluid level switch
connector E65. For brake fluid level switch connector, refer to
DI-10, "
Wiring Diagram—METER—".
2. Check continuity between brake fluid level switch connector
E65.
OK or NG
OK >> GO TO 2.
NG >> Replace reservoir tank. Refer toBR-17, "
BRAKE MASTER CYLINDER".

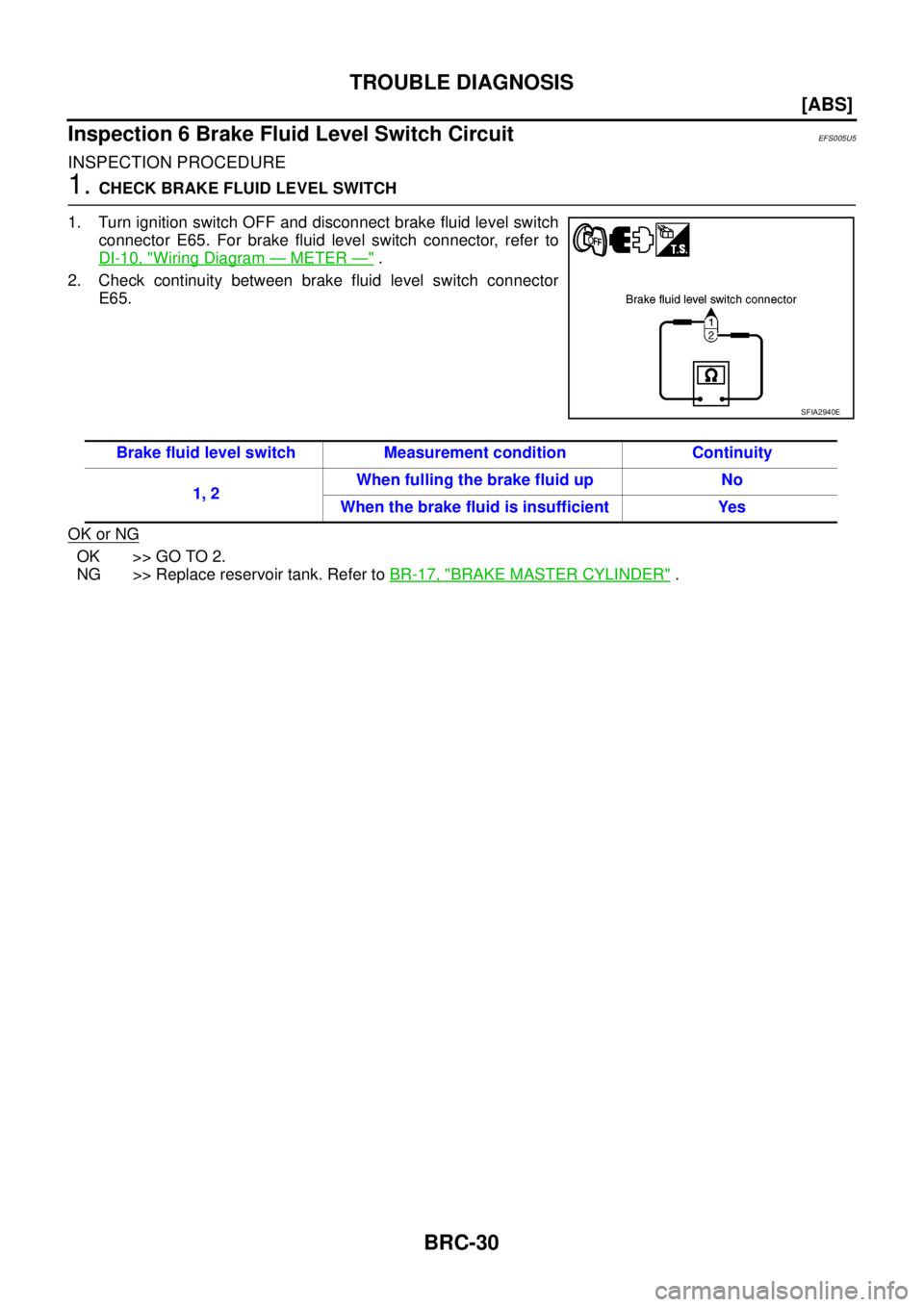

SFIA2940E
Brake fluid level switch Measurement condition Continuity
1, 2When fulling the brake fluid up No
When the brake fluid is insufficient Yes
Page 853 of 3171
TROUBLE DIAGNOSIS
BRC-31
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
2.CHECK HARNESS
1. Turn ignition switch OFF and disconnect combination meter con-
nector M23.
2. Check continuity between brake fluid level switch connector
E65, combination meter connector M23 and ground.
OK or NG
OK >> INSPECTION END
NG >> If the open or short in harness, repair or replace harness.

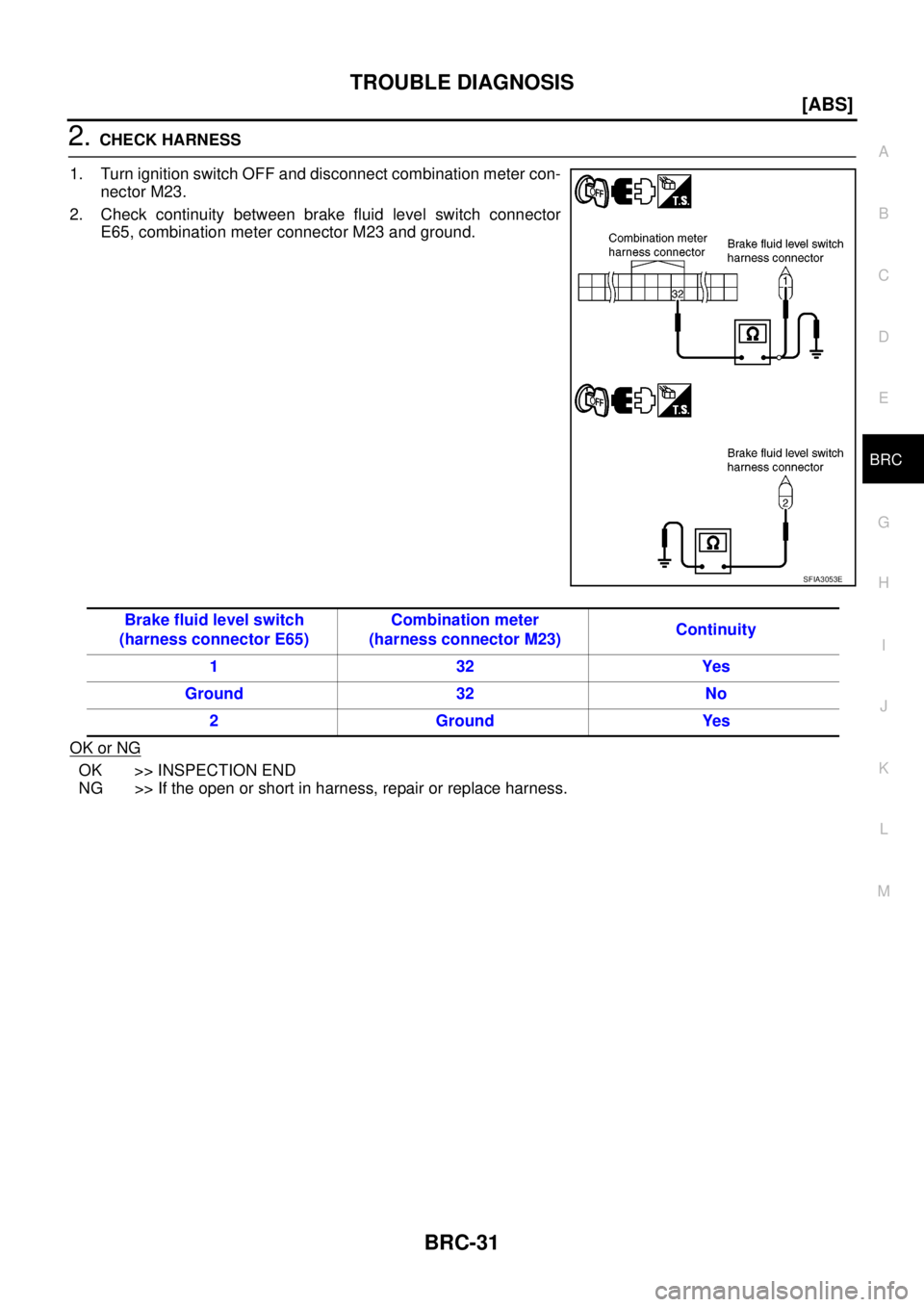

SFIA3053E
Brake fluid level switch
(harness connector E65)Combination meter
(harness connector M23)Continuity
132Yes
Ground 32 No
2 Ground Yes
Page 854 of 3171
![NISSAN NAVARA 2005 Repair Workshop Manual BRC-32
[ABS]
TROUBLE DIAGNOSIS
Inspection 7 Parking Brake Switch Circuit
EFS005U6
INSPECTION PROCEDURE
1.CHECK PARKING BRAKE SWITCH
1. Turn ignition switch OFF and disconnect parking brake switch
conn NISSAN NAVARA 2005 Repair Workshop Manual BRC-32
[ABS]
TROUBLE DIAGNOSIS
Inspection 7 Parking Brake Switch Circuit
EFS005U6
INSPECTION PROCEDURE
1.CHECK PARKING BRAKE SWITCH
1. Turn ignition switch OFF and disconnect parking brake switch
conn](/manual-img/5/57362/w960_57362-853.png)
BRC-32
[ABS]
TROUBLE DIAGNOSIS
Inspection 7 Parking Brake Switch Circuit
EFS005U6
INSPECTION PROCEDURE
1.CHECK PARKING BRAKE SWITCH
1. Turn ignition switch OFF and disconnect parking brake switch
connector (LHD model: B12, RHD model: B109). For brake fluid
level switch, refer toDI-10, "
Wiring Diagram—METER—".
2. Check continuity between parking brake switch connector and
ground.
OK or NG
OK >> GO TO 2.
NG >> Replace parking brake switch.
2.CHECK HARNESS
1. Disconnect combination meter connector M23.
2. Check continuity between parking brake switch connector (LHD
model: B12, RHD model: B109), combination meter connector
M23 and ground.
OK or NG
OK >> INSPECTION END
NG >> If the open or short in harness, repair or replace harness.

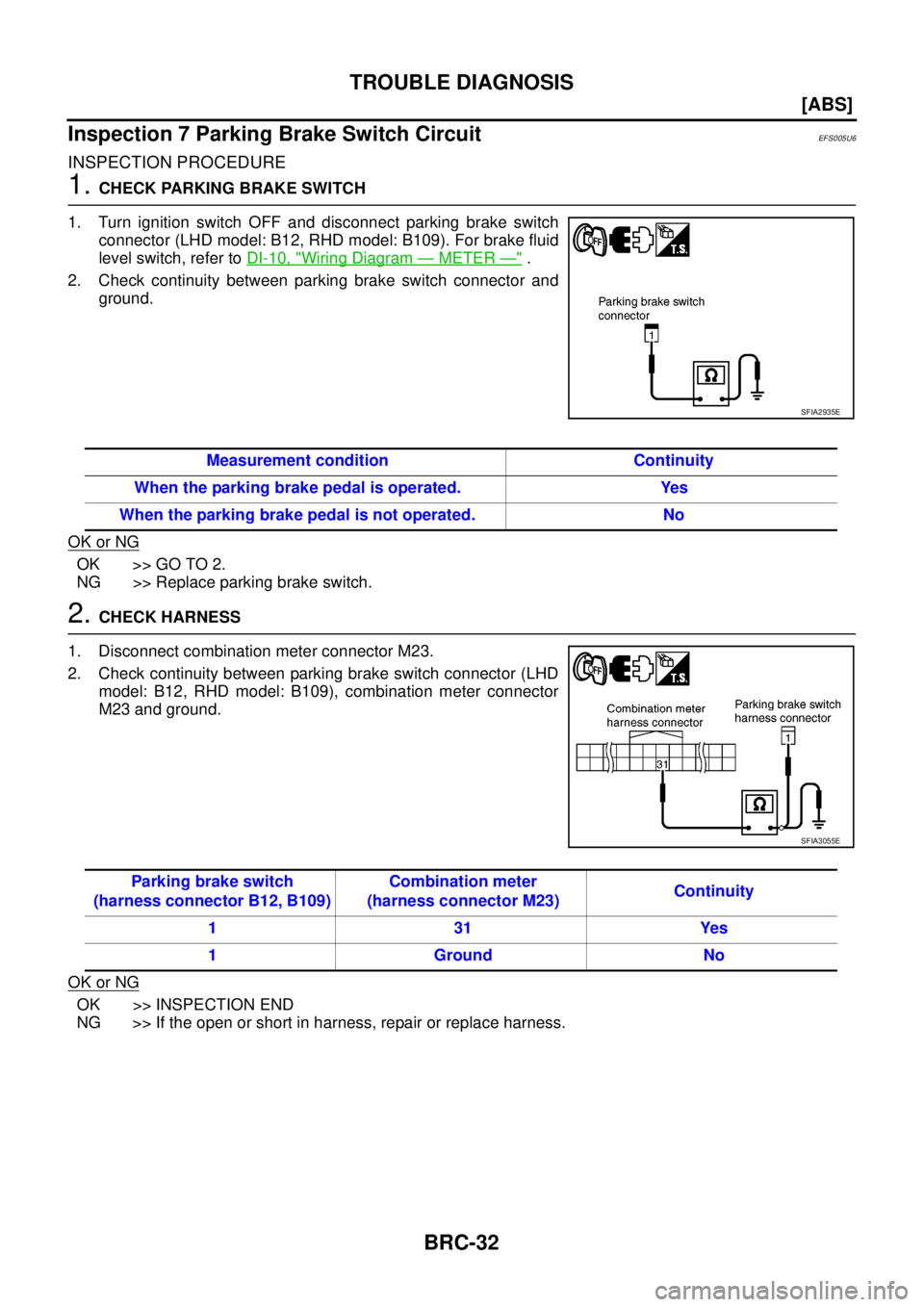

SFIA2935E
Measurement condition Continuity
When the parking brake pedal is operated. Yes
When the parking brake pedal is not operated. No
SFIA3055E
Parking brake switch
(harness connector B12, B109)Combination meter
(harness connector M23)Continuity
131Yes
1 Ground No
Page 855 of 3171
![NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS
BRC-33
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection 8 Warning lamp systemEFS005U7
INSPECTION PROCEDURE
1.CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis of ABS actuator and elect NISSAN NAVARA 2005 Repair Workshop Manual TROUBLE DIAGNOSIS
BRC-33
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection 8 Warning lamp systemEFS005U7
INSPECTION PROCEDURE
1.CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis of ABS actuator and elect](/manual-img/5/57362/w960_57362-854.png)
TROUBLE DIAGNOSIS
BRC-33
[ABS]
C
D
E
G
H
I
J
K
L
MA
B
BRC
Inspection 8 Warning lamp systemEFS005U7
INSPECTION PROCEDURE
1.CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis of ABS actuator and electric unit (control unit). Refer toBRC-18, "
Self-Diagnosis".
OK or NG
OK >> GO TO 2.
NG >> Check items displayed by self-diagnosis. Refer toBRC-18, "
Display Item List".
2.CHECK COMBINATION METER
Check if the indication and operation of combination meter are normal. Refer toDI-13, "
Self-Diagnosis Mode
of Combination Meter".
OK or NG
OK >> INSPECTION END
NG >> Repair or replace combination meter. Refer toDI-27, "
Removal and Installation of Combination
Meter".
Symptom 1: Excessive ABS Function Operation FrequencyEFS005U8
1.CHECK START
Check longitudinal brake force distribution using a brake tester. Refer toBR-35, "
SERVICE DATA AND SPEC-
IFICATIONS (SDS)".
OK or NG
OK >> GO TO 2.
NG >> Check the following system. If any malfunction is found, repair or replace malfunctioning parts.
lBrake booster. Refer toBR-19, "BRAKE BOOSTER".
lHydraulic line. Refer toBR-12, "BRAKE TUBE AND HOSE".
lFront brake caliper. Refer toBR-24, "FRONT DISC BRAKE".
lRear wheel cylinder. Refer toBR-30, "REAR DRUM BRAKE".
2.CHECK FRONT AND REAR AXLE
Make sure that there is no excessive play in the front and rear axles. Refer to Front:FAX-5, "
WHEEL BEAR-
ING INSPECTION",Rear:RAX-6, "Rear Axle Bearing".
OK or NG
OK >> GO TO 3.
NG >> Repair.
3.CHECK WHEEL SENSOR AND SENSOR ROTOR
Check wheel sensor and sensor rotor for the following.
lWheel sensor installation for damage
lWheel sensor rotor installation for damage
lWheel sensor connector connection
lWheel sensor harness inspection
OK or NG
OK >> GO TO 4.
NG >>
lReplace wheel sensor or sensor rotor.
lRepair harness.
Page 856 of 3171
![NISSAN NAVARA 2005 Repair Workshop Manual BRC-34
[ABS]
TROUBLE DIAGNOSIS
4.CHECK ABS WARNING LAMP DISPLAY
Make sure that the ABS warning lamp is turned off after the ignition switch is turned ON or when driving.
OK or NG
OK >> Normal
NG >> Pe NISSAN NAVARA 2005 Repair Workshop Manual BRC-34
[ABS]
TROUBLE DIAGNOSIS
4.CHECK ABS WARNING LAMP DISPLAY
Make sure that the ABS warning lamp is turned off after the ignition switch is turned ON or when driving.
OK or NG
OK >> Normal
NG >> Pe](/manual-img/5/57362/w960_57362-855.png)
BRC-34
[ABS]
TROUBLE DIAGNOSIS
4.CHECK ABS WARNING LAMP DISPLAY
Make sure that the ABS warning lamp is turned off after the ignition switch is turned ON or when driving.
OK or NG
OK >> Normal
NG >> Perform self-diagnosis. Refer toBRC-18, "
Self-Diagnosis".
Symptom 2: Unexpected Pedal ReactionEFS005U9
1.CHECK BRAKE PEDAL STROKE
Check brake pedal stroke. Refer toBR-6, "
Inspection and Adjustment".
Is the stroke too big?
YES >>lBleed air from brake piping. Refer toBR-11, "Bleeding Brake System".
lCheck brake pedal, brake booster, and master cylinder for mount play, looseness, brake sys-
tem fluid leakage, etc. Repair if necessary. Refer to Brake pedal:BR-8, "
COMPONENTS",
brake booster and master cylinder:BR-20, "
COMPONENTS".
NO >> GO TO 2.
2.CHECK FUNCTION
Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS. Check if braking force is
normal in this condition. Connect connector after inspection.
OK or NG
OK >> GO TO procedure 3 “CHECK WHEEL SENSOR AND SENSOR ROTOR” of symptom 1. Refer to
BRC-33, "
Symptom 1: Excessive ABS Function Operation Frequency".
NG >> Check the following system. If any malfunction is found, repair or replace malfunctioning parts.
lBrake booster. Refer toBR-19, "BRAKE BOOSTER".
lHydraulic line. Refer toBR-12, "BRAKE TUBE AND HOSE".
lFront brake caliper. Refer toBR-24, "FRONT DISC BRAKE".
lRear wheel cylinder. Refer toBR-30, "REAR DRUM BRAKE".
Symptom 3: The Stopping Distance Is LongEFS005UA
CAUTION:
The stopping distance on slippery road surfaces might be longer with the ABS operating than when
the ABS is not operating.
1.CHECK FUNCTION
Turn ignition switch OFF. Disconnect ABS actuator and electric unit (control unit) connector to deactivate ABS.
In this condition, check stopping distance. After inspection, connect connector.
OK or NG
OK >> GO TO procedure 3 “CHECK WHEEL SENSOR AND SENSOR ROTOR” of symptom 1. Refer to
BRC-33, "
Symptom 1: Excessive ABS Function Operation Frequency".
NG >>
lBleed air from the brake piping. Refer toBR-11, "Bleeding Brake System".
lCheck the following system. If any malfunction is found, repair or replace malfunctioning parts.
–Brake booster. Refer toBR-19, "BRAKE BOOSTER".
–Hydraulic line. Refer toBR-12, "BRAKE TUBE AND HOSE".
–Front brake caliper. Refer toBR-24, "FRONT DISC BRAKE".
–Rear wheel cylinder. Refer toBR-30, "REAR DRUM BRAKE".
