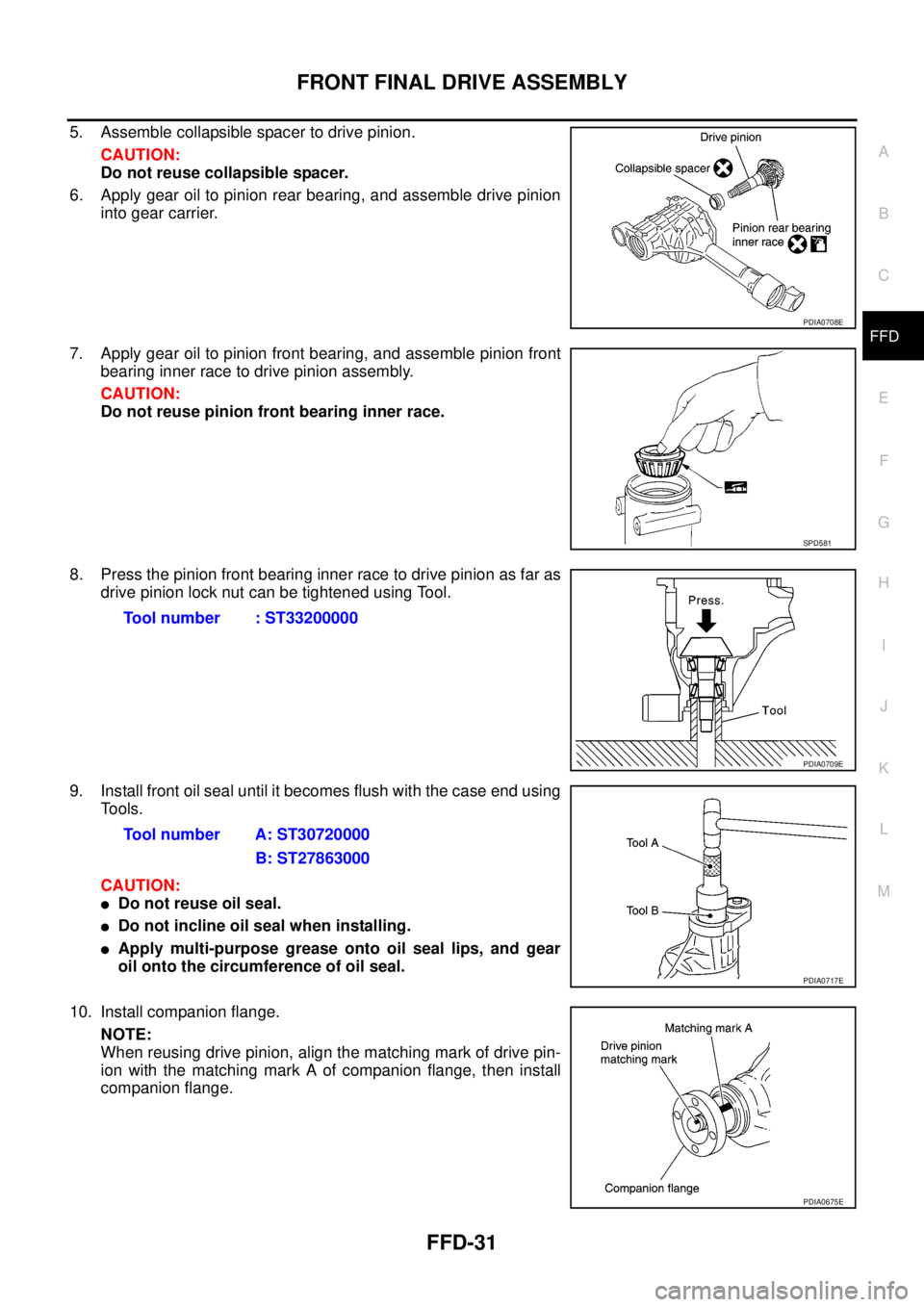

Page 1577 of 3171

FRONT FINAL DRIVE ASSEMBLY
FFD-31
C
E
F
G
H
I
J
K
L
MA
B
FFD
5. Assemble collapsible spacer to drive pinion.
CAUTION:
Do not reuse collapsible spacer.
6. Apply gear oil to pinion rear bearing, and assemble drive pinion
into gear carrier.
7. Apply gear oil to pinion front bearing, and assemble pinion front
bearing inner race to drive pinion assembly.
CAUTION:
Do not reuse pinion front bearing inner race.
8. Press the pinion front bearing inner race to drive pinion as far as
drive pinion lock nut can be tightened using Tool.
9. Install front oil seal until it becomes flush with the case end using
Tools.
CAUTION:
lDo not reuse oil seal.
lDo not incline oil seal when installing.
lApply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of oil seal.
10. Install companion flange.
NOTE:
When reusing drive pinion, align the matching mark of drive pin-
ion with the matching mark A of companion flange, then install
companion flange.
PDIA0708E
SPD581
Tool number : ST33200000
PDIA0709E
Tool number A: ST30720000
B: ST27863000
PDIA0717E
PDIA0675E

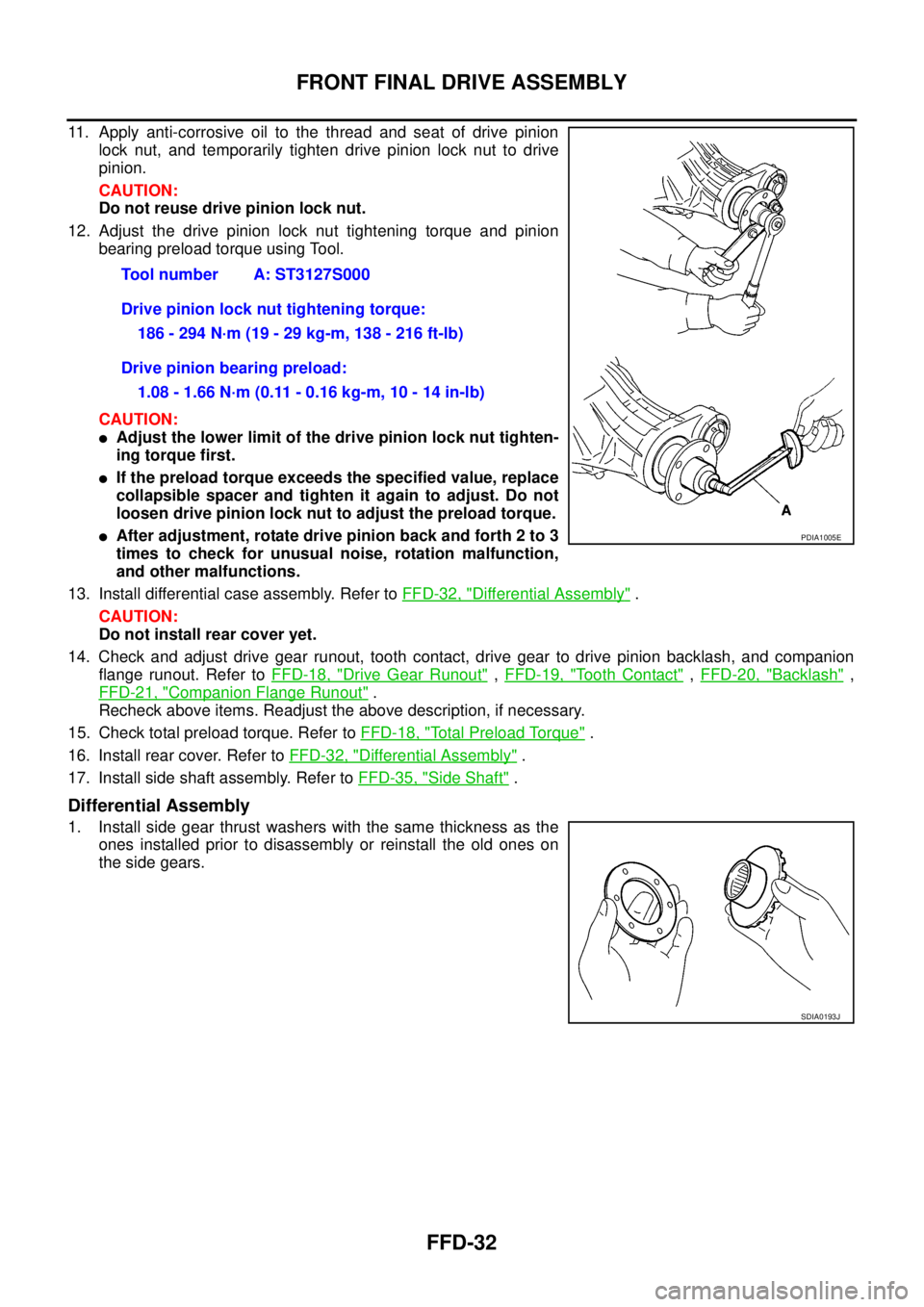

Page 1578 of 3171

FFD-32
FRONT FINAL DRIVE ASSEMBLY
11. Apply anti-corrosive oil to the thread and seat of drive pinion
lock nut, and temporarily tighten drive pinion lock nut to drive
pinion.
CAUTION:
Do not reuse drive pinion lock nut.
12. Adjust the drive pinion lock nut tightening torque and pinion
bearing preload torque using Tool.
CAUTION:
lAdjust the lower limit of the drive pinion lock nut tighten-
ing torque first.
lIf the preload torque exceeds the specified value, replace
collapsible spacer and tighten it again to adjust. Do not
loosen drive pinion lock nut to adjust the preload torque.
lAfter adjustment, rotate drive pinion back and forth 2 to 3
times to check for unusual noise, rotation malfunction,
and other malfunctions.
13. Install differential case assembly. Refer toFFD-32, "
Differential Assembly".
CAUTION:
Do not install rear cover yet.
14. Check and adjust drive gear runout, tooth contact, drive gear to drive pinion backlash, and companion
flange runout. Refer toFFD-18, "
Drive Gear Runout",FFD-19, "To o t h C o n t a c t",FFD-20, "Backlash",
FFD-21, "
Companion Flange Runout".
Recheck above items. Readjust the above description, if necessary.
15. Check total preload torque. Refer toFFD-18, "
Total Preload Torque".
16. Install rear cover. Refer toFFD-32, "
Differential Assembly".
17. Install side shaft assembly. Refer toFFD-35, "
Side Shaft".
Differential Assembly
1. Install side gear thrust washers with the same thickness as the
ones installed prior to disassembly or reinstall the old ones on
the side gears.Tool number A: ST3127S000
Drive pinion lock nut tightening torque:
186 - 294 N·m (19 - 29 kg-m, 138 - 216 ft-lb)
Drive pinion bearing preload:
1.08 - 1.66 N·m (0.11 - 0.16 kg-m, 10 - 14 in-lb)
PDIA1005E
SDIA0193J
Page 1579 of 3171

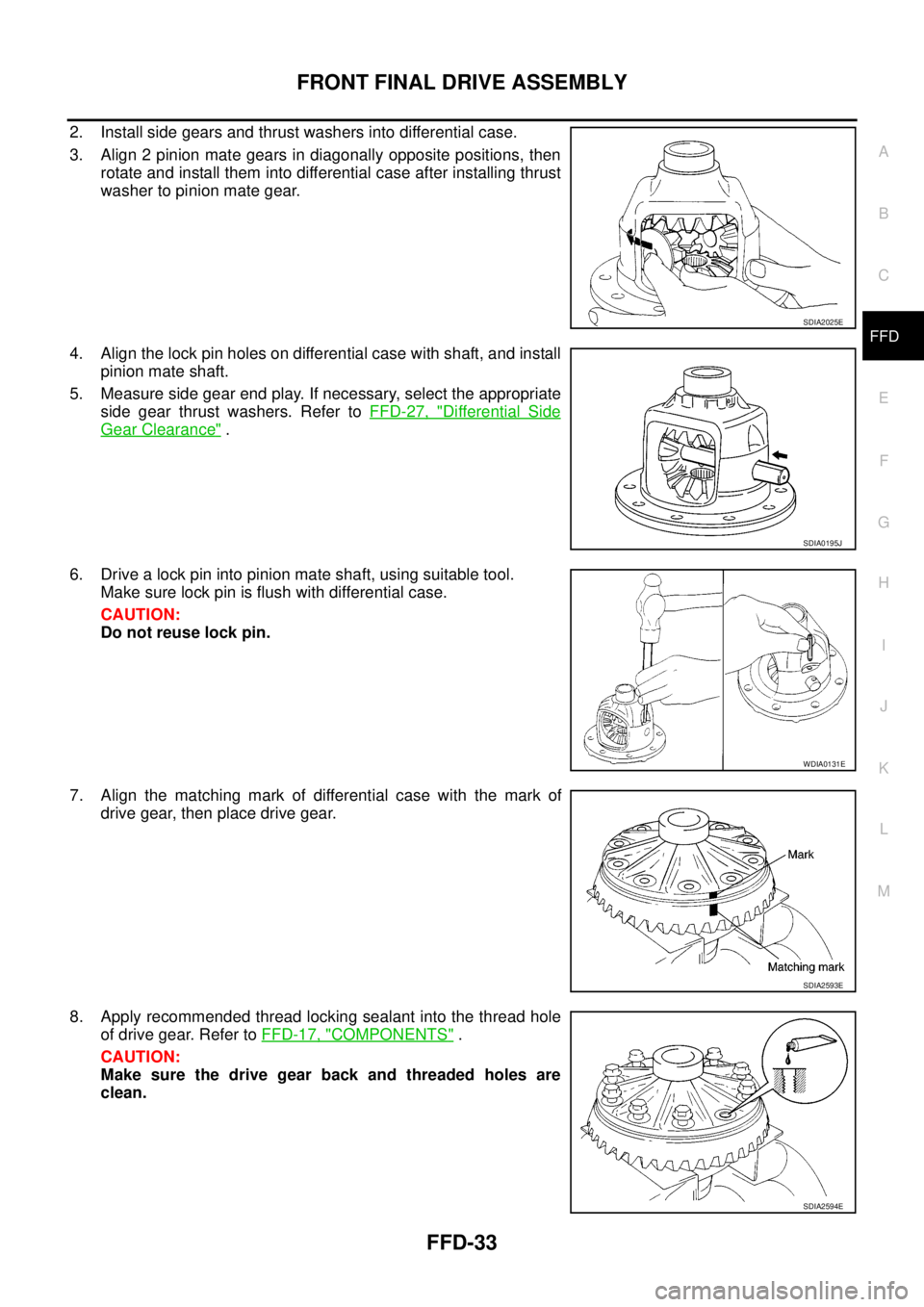

FRONT FINAL DRIVE ASSEMBLY
FFD-33
C
E
F
G
H
I
J
K
L
MA
B
FFD
2. Install side gears and thrust washers into differential case.
3. Align 2 pinion mate gears in diagonally opposite positions, then
rotate and install them into differential case after installing thrust
washer to pinion mate gear.
4. Align the lock pin holes on differential case with shaft, and install
pinion mate shaft.
5. Measure side gear end play. If necessary, select the appropriate
side gear thrust washers. Refer toFFD-27, "
Differential Side
Gear Clearance".
6. Drive a lock pin into pinion mate shaft, using suitable tool.
Make sure lock pin is flush with differential case.
CAUTION:
Do not reuse lock pin.
7. Align the matching mark of differential case with the mark of
drive gear, then place drive gear.
8. Apply recommended thread locking sealant into the thread hole
of drive gear. Refer toFFD-17, "
COMPONENTS".
CAUTION:
Make sure the drive gear back and threaded holes are
clean.
SDIA2025E
SDIA0195J
WDIA0131E
SDIA2593E
SDIA2594E
Page 1580 of 3171
FFD-34
FRONT FINAL DRIVE ASSEMBLY
9. Install drive gear on the bolts, and then tighten to the specified
torque. Refer toFFD-17, "
COMPONENTS".
CAUTION:
lTighten bolts in a crisscross pattern.
lAfter tightening the bolts to the specified torque, tighten
the bolts additionally by turning the bolts 34 to 39
degrees.
10. Press side bearing inner races to differential case, using Tools.
CAUTION:
Do not reuse side bearing inner race.
11. Install housing spacer.
12. Apply gear oil to side bearings, and install differential case
assembly with side bearing outer races into gear carrier.
13. Insert left and right original side bearing adjusting washers in
place between side bearings and gear carrier, using Tool.
SDIA0247J
Tool number A: ST33230000
B: ST33061000
SPD353
SPD527
Tool number : KV38100600
PDIA0706E
Page 1581 of 3171

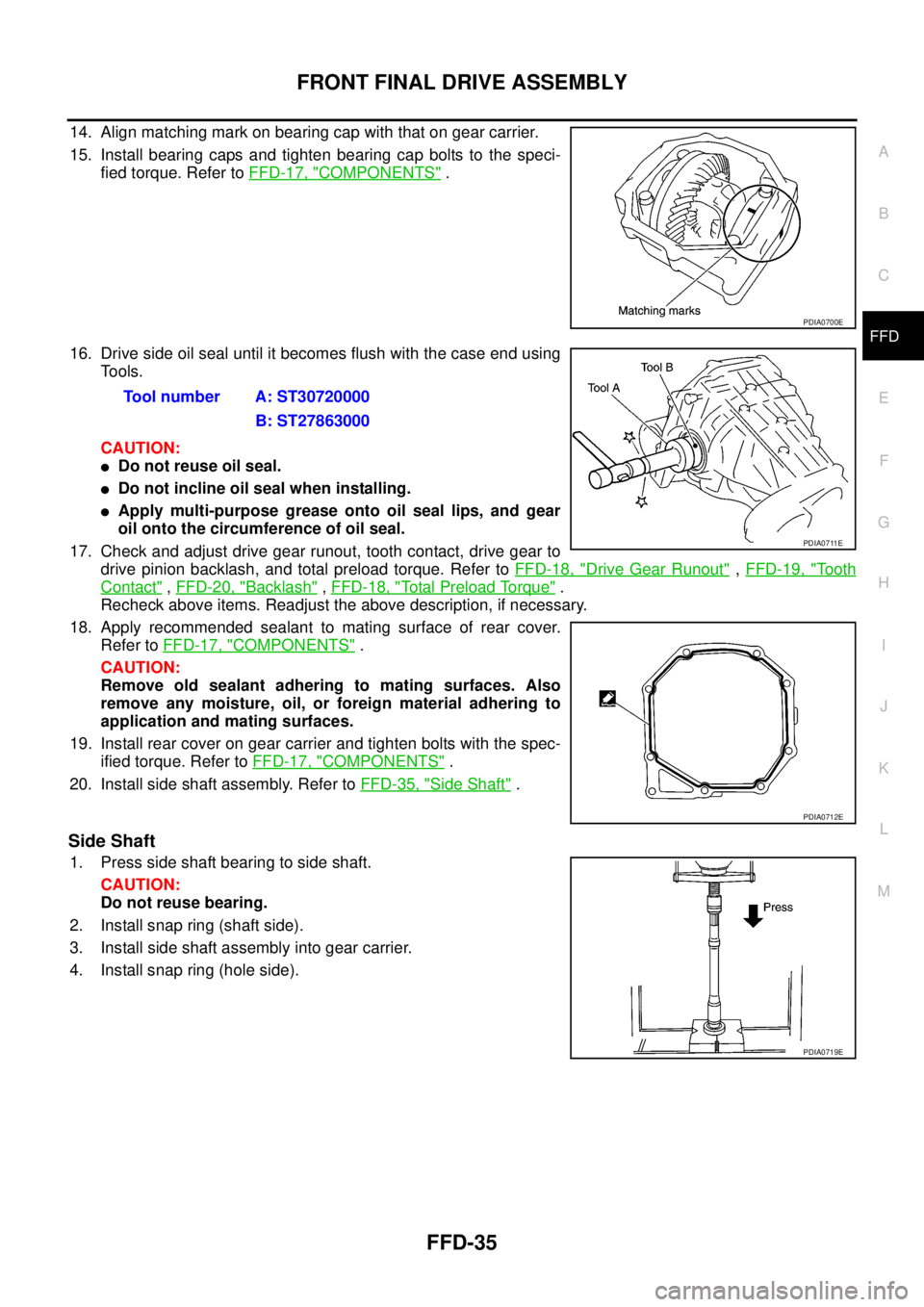

FRONT FINAL DRIVE ASSEMBLY
FFD-35
C
E
F
G
H
I
J
K
L
MA
B
FFD
14. Alignmatchingmarkonbearingcapwiththatongearcarrier.
15. Install bearing caps and tighten bearing cap bolts to the speci-
fied torque. Refer toFFD-17, "
COMPONENTS".
16. Drive side oil seal until it becomes flush with the case end using
Tools.
CAUTION:
lDo not reuse oil seal.
lDo not incline oil seal when installing.
lApply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of oil seal.
17. Check and adjust drive gear runout, tooth contact, drive gear to
drive pinion backlash, and total preload torque. Refer toFFD-18, "
Drive Gear Runout",FFD-19, "To o t h
Contact",FFD-20, "Backlash",FFD-18, "Total Preload Torque".
Recheck above items. Readjust the above description, if necessary.
18. Apply recommended sealant to mating surface of rear cover.
Refer toFFD-17, "
COMPONENTS".
CAUTION:
Remove old sealant adhering to mating surfaces. Also
remove any moisture, oil, or foreign material adhering to
application and mating surfaces.
19. Install rear cover on gear carrier and tighten bolts with the spec-
ified torque. Refer toFFD-17, "
COMPONENTS".
20. Install side shaft assembly. Refer toFFD-35, "
Side Shaft".
Side Shaft
1. Press side shaft bearing to side shaft.
CAUTION:
Do not reuse bearing.
2. Install snap ring (shaft side).
3. Install side shaft assembly into gear carrier.
4. Install snap ring (hole side).
PDIA0700E
Tool number A: ST30720000
B: ST27863000
PDIA0711E
PDIA0712E
PDIA0719E
Page 1582 of 3171
FFD-36
FRONT FINAL DRIVE ASSEMBLY
5. Drive side oil seal until it becomes flush with the case end using
To o l s .
CAUTION:
lDo not reuse oil seal.
lDo not incline oil seal when installing.
lApply multi-purpose grease onto oil seal lips, and gear
oil onto the circumference of oil seal.Tool number A: ST30720000
B: ST27863000
PDIA0828E
Page 1583 of 3171

SERVICE DATA AND SPECIFICATIONS (SDS)
FFD-37
C
E
F
G
H
I
J
K
L
MA
B
FFD
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
General SpecificationsEDS00358
*: Option
Inspection and AdjustmentEDS00359
DRIVE GEAR RUNOUT
Unit: mm (in)
DIFFERENTIAL SIDE GEAR CLEARANCE
Unit: mm (in)
PRELOAD TORQUE
Unit: N·m (kg-m, in-lb)
BACKLASH
Unit: mm (in)
COMPANION FLANGE RUNOUT
Unit: mm (in)
SELECTIVE PARTS
Side Gear Thrust Washer
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.Applied modelYD25DDTi
6M/T 5A/T
Grade SE, XE* XE SE
Final drive modelR180A
Gear ratio 3.692 3.538
Number of teeth (Drive gear/Drive pinion) 48/13 46/13
Oil capacity (Approx.)
(lmp pt)0.85 (1-1/2)
Number of pinion gears2
Drive pinion adjustment spacer type Collapsible
Item Runout limit
Drive gear back face 0.08 (0.0031) or less
Item Specification
Side gear backlash (Clearance between side gear and differential
case)0.1 (0.004) or less
(Each gear should rotate smoothly without excessive resistance
during differential motion.)
Item Specification
Pinion bearing (P
1) 1.08 - 1.66 (0.11 - 0.16, 10 - 14)
Side bearing (P
2) 0.59 - 1.08 (0.06 - 0.11, 6 - 9)
Side bearing to pinion bearing (Total preload)
(Total preload = P
1+P2)1.67 - 2.74 (0.17 - 0.27, 15 - 24)
Item Specification
Drive gear to drive pinion gear 0.10 - 0.15 (0.0039 - 0.0059)
Item Runout limit
Companion flange face 0.1 (0.004) or less
Inner side of the companion flange 0.1 (0.004) or less
Thickness Part number* Thickness Part number*
0.75 (0.0295)
0.78 (0.0307)
0.81 (0.0319)
0.84 (0.0331)38424 W2010
38424 W2011
38424 W2012
38424 W20130.87 (0.0343)
0.90 (0.0354)
0.93 (0.0366)
0.96 (0.0378)38424 W2014
38424 W2015
38424 W2016
38424 W2017
Page 1584 of 3171

FFD-38
SERVICE DATA AND SPECIFICATIONS (SDS)
Pinion Height Adjusting Washer
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.
Side Bearing Adjusting Washer
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information.Thickness Part number* Thickness Part number*
3.09 (0.1217)
3.12 (0.1228)
3.15 (0.1240)
3.18 (0.1252)
3.21 (0.1264)
3.24 (0.1276)
3.27 (0.1287)
3.30 (0.1299)
3.33 (0.1311)
3.36 (0.1323)38154 EA000
38154 EA001
38154 EA002
38154 EA003
38154 EA004
38154 EA005
38154 EA006
38154 EA007
38154 EA008
38154 EA0093.39 (0.1335)
3.42 (0.1346)
3.45 (0.1358)
3.48 (0.1370)
3.51 (0.1382)
3.54 (0.1394)
3.57 (0.1406)
3.60 (0.1417)
3.63 (0.1429)
3.66 (0.1441)38154 EA010
38154 EA011
38154 EA012
38154 EA013
38154 EA014
38154 EA015
38154 EA016
38154 EA017
38154 EA018
38154 EA019
Thickness Part number* Thickness Part number*
1.95 (0.0768)
2.00 (0.0787)
2.05 (0.0807)
2.10 (0.0827)
2.15 (0.0846)
2.20 (0.0866)
2.25 (0.0886)
2.30 (0.0906)38453 EA000
38453 EA001
38453 EA002
38453 EA003
38453 EA004
38453 EA005
38453 EA006
38453 EA0072.35 (0.0925)
2.40 (0.0945)
2.45 (0.0965)
2.50 (0.0984)
2.55 (0.1004)
2.60 (0.1024)
2.65 (0.1043)38453 EA008
38453 EA009
38453 EA010
38453 EA011
38453 EA012
38453 EA013
38453 EA014
