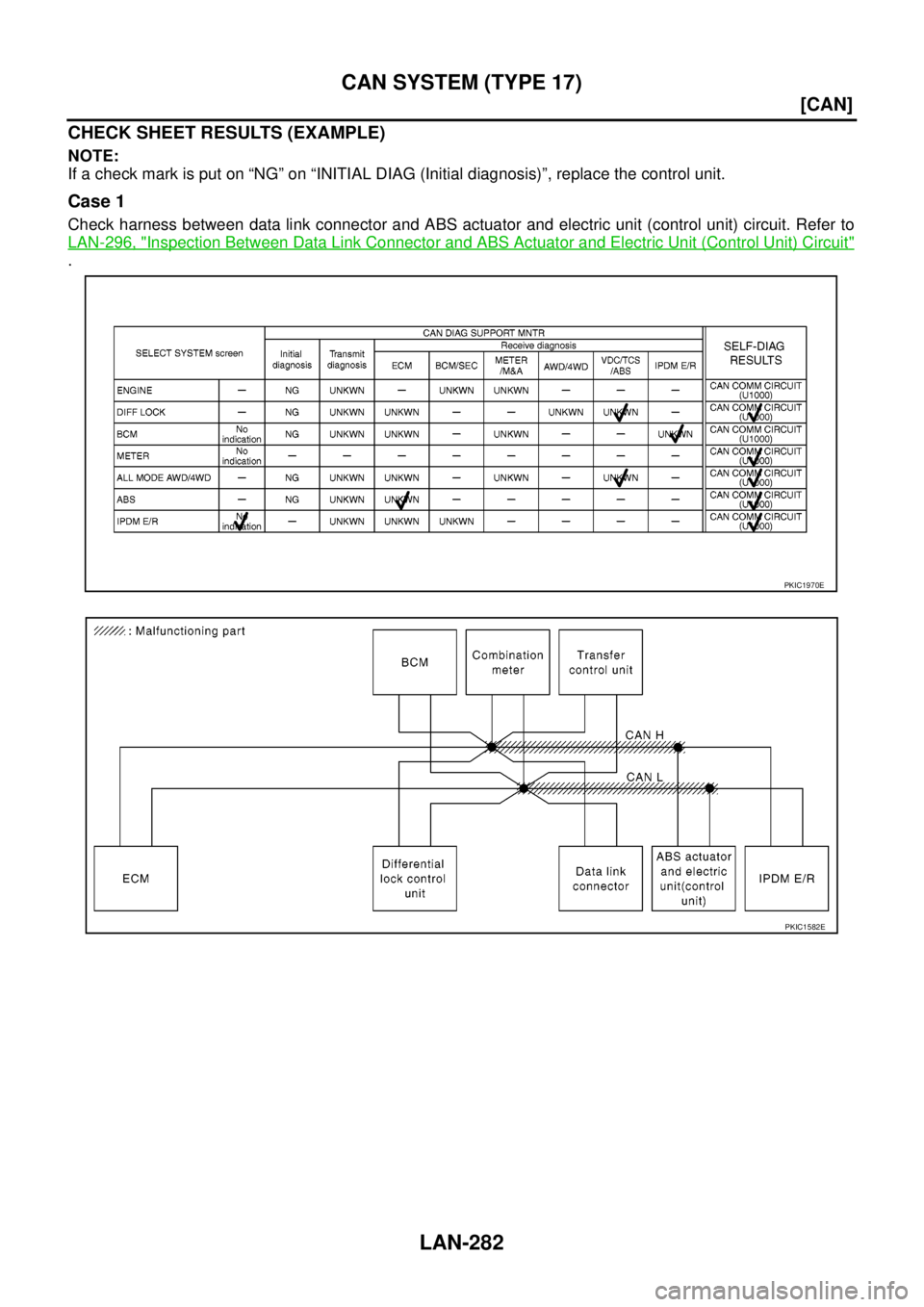

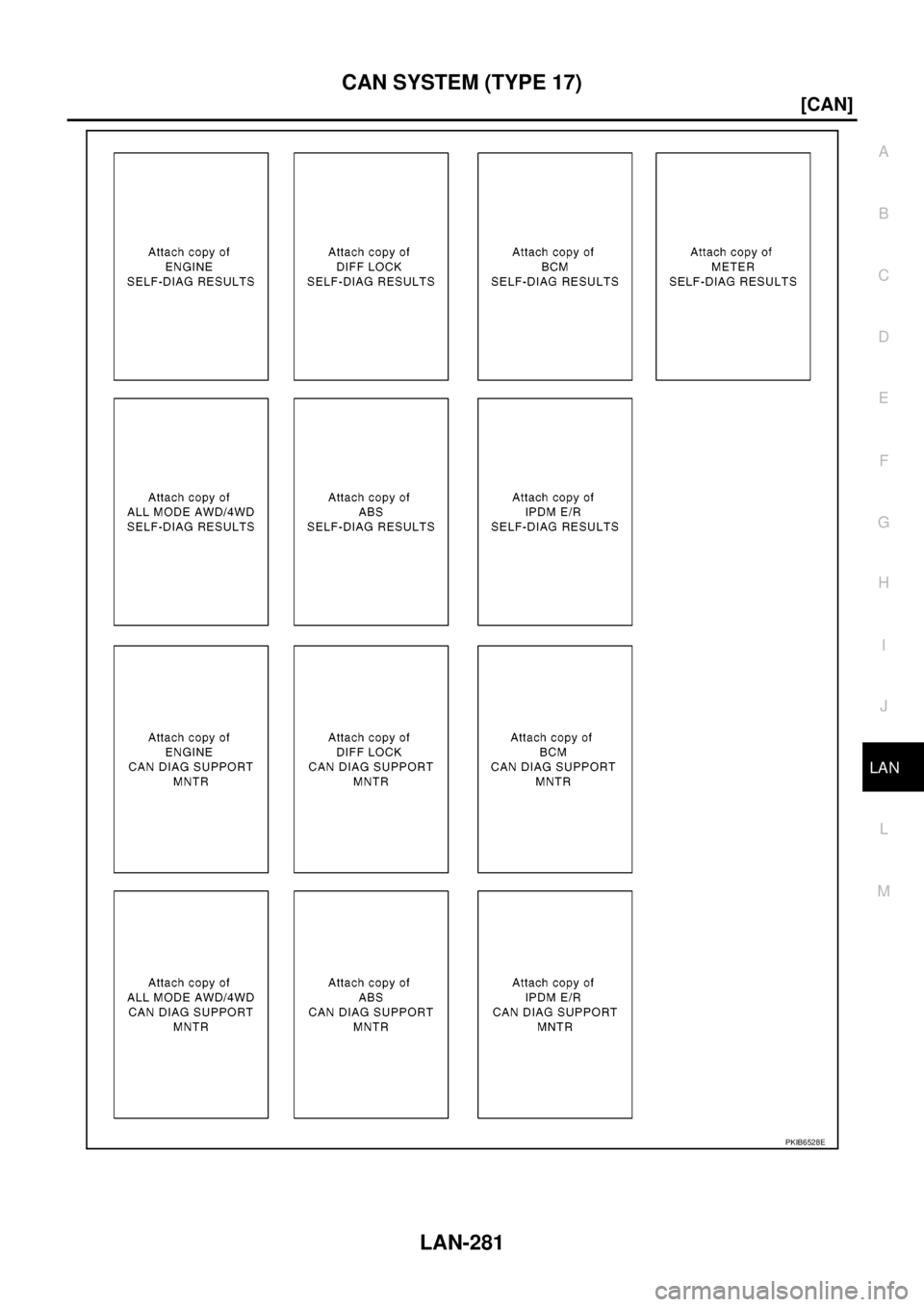

NISSAN NAVARA 2005 Repair Workshop Manual LAN-280 [CAN] CAN SYSTEM (TYPE 17) Check Sheet EKS00OJM NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. PKIC1430E

Page 2058 of 3171

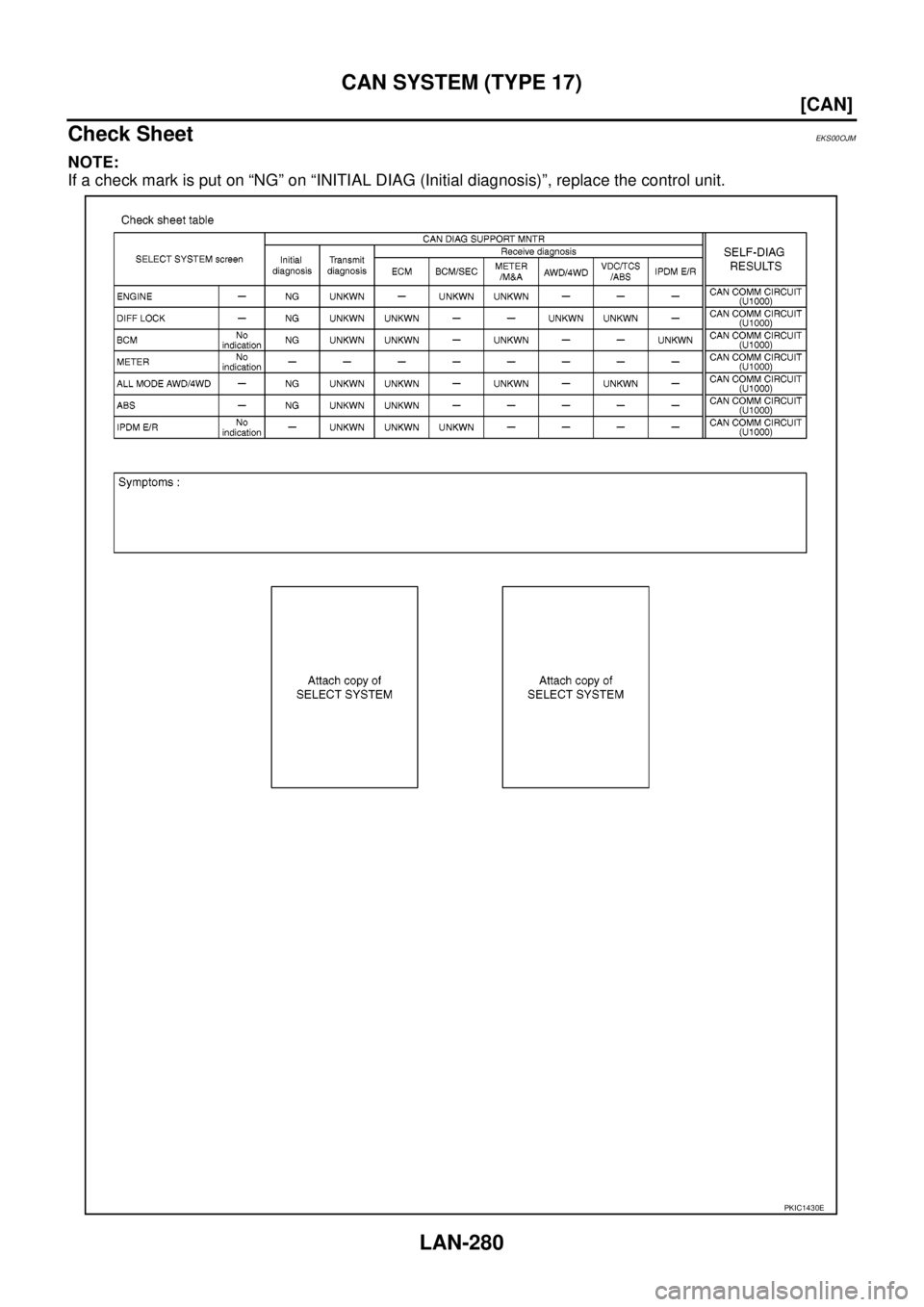

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 17) LAN-281 [CAN] C D E F G H I J L MA B LAN PKIB6528E

Page 2059 of 3171

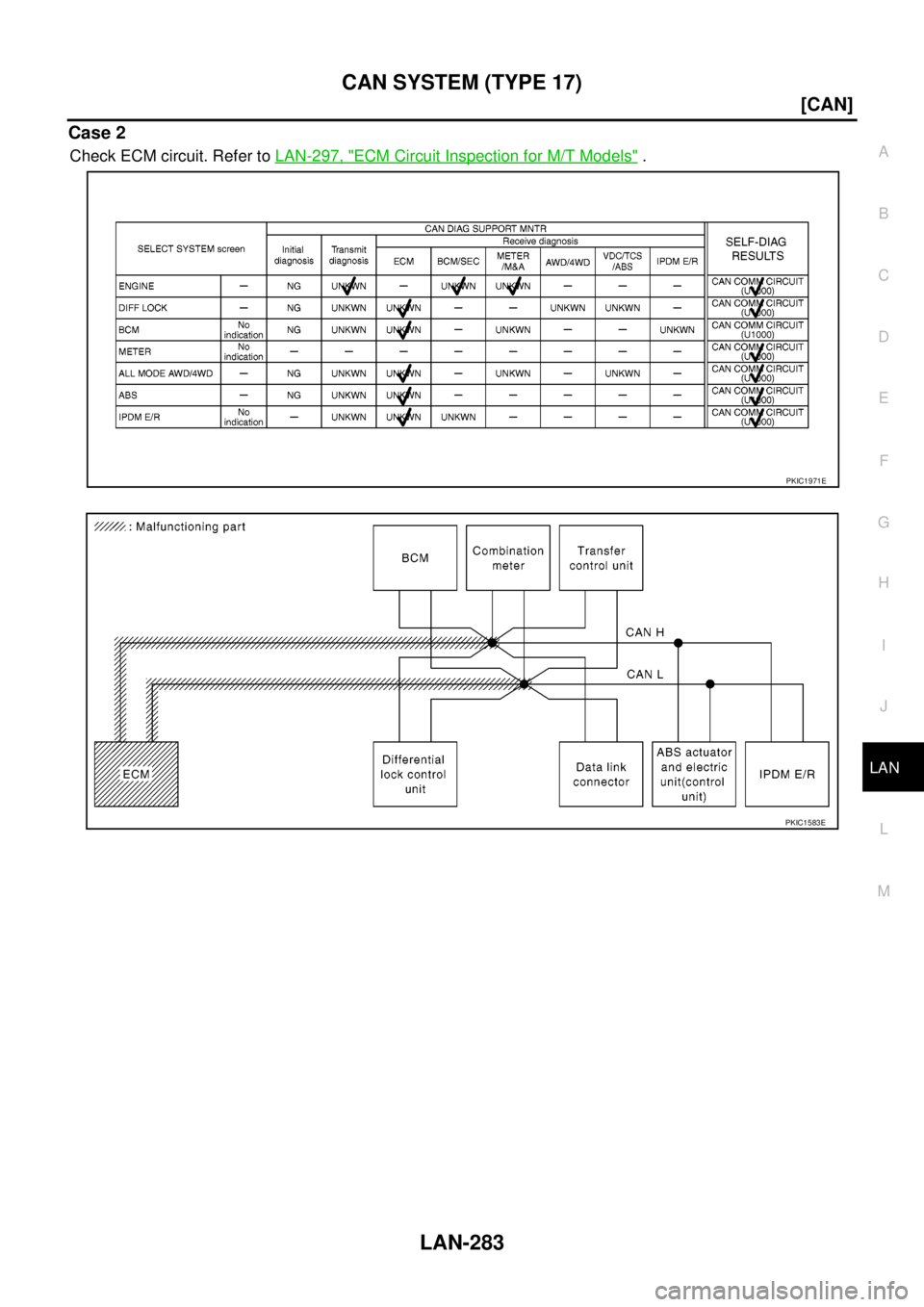

NISSAN NAVARA 2005 Repair Workshop Manual LAN-282 [CAN] CAN SYSTEM (TYPE 17) CHECK SHEET RESULTS (EXAMPLE) NOTE: If a check mark is put on “NG” on “INITIAL DIAG (Initial diagnosis)”, replace the control unit. Case 1 Check harness betw

Page 2060 of 3171

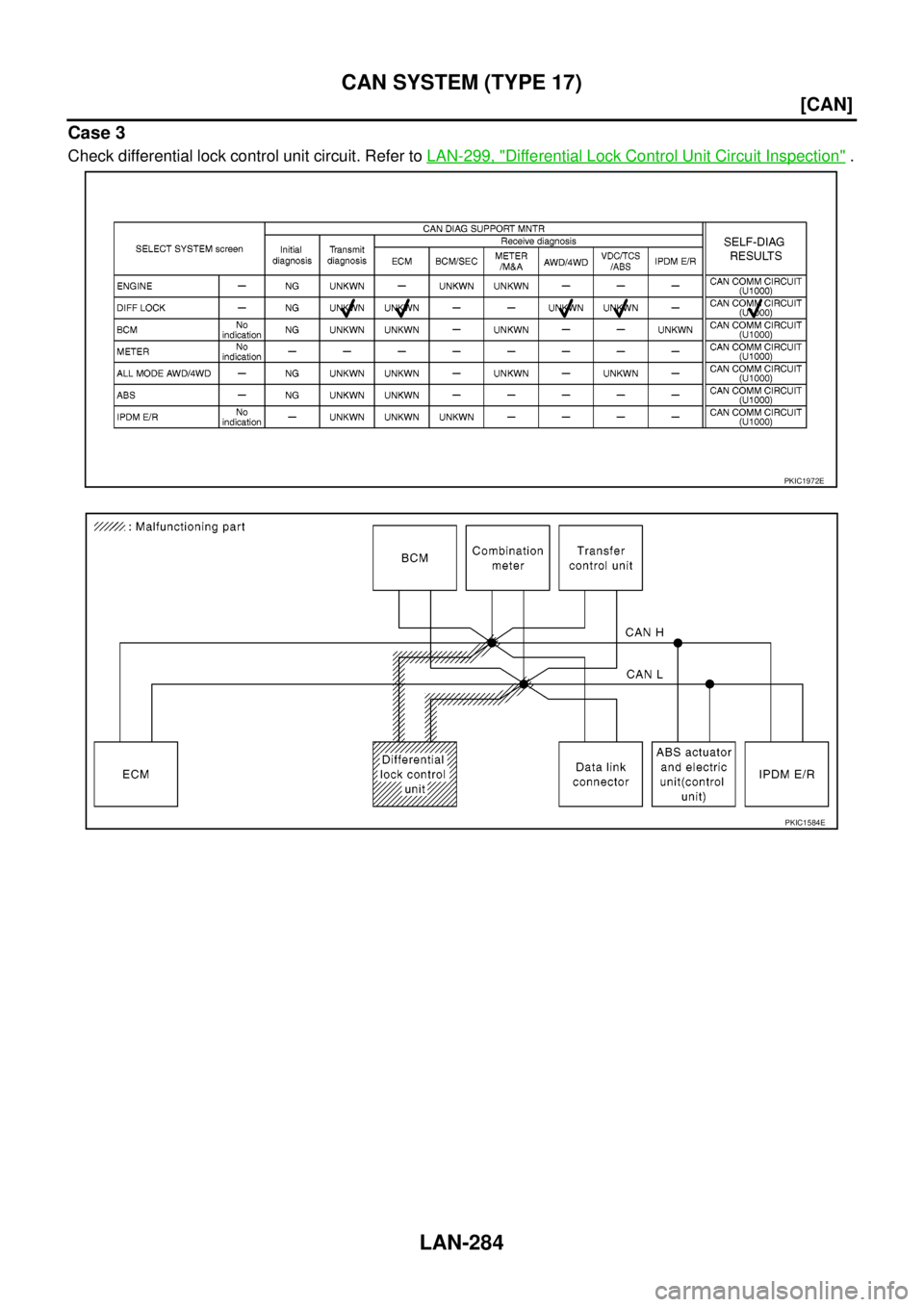

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 17) LAN-283 [CAN] C D E F G H I J L MA B LAN Case 2 Check ECM circuit. Refer toLAN-297, "ECM Circuit Inspection for M/T Models". PKIC1971E PKIC1583E

Page 2061 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-284 [CAN] CAN SYSTEM (TYPE 17) Case 3 Check differential lock control unit circuit. Refer toLAN-299, "Differential Lock Control Unit Circuit Inspection". PKIC1972E PKIC1584E

Page 2062 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 17) LAN-285 [CAN] C D E F G H I J L MA B LAN Case 4 Check data link connector circuit. Refer toLAN-300, "Data Link Connector Circuit Inspection". PKIC1973E PKIC1585E

Page 2063 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LAN-286 [CAN] CAN SYSTEM (TYPE 17) Case 5 Check BCM circuit. Refer toLAN-301, "BCM Circuit Inspection". PKIC1974E PKIC1586E

Page 2064 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CAN SYSTEM (TYPE 17) LAN-287 [CAN] C D E F G H I J L MA B LAN Case 6 Check combination meter circuit. Refer toLAN-301, "Combination Meter Circuit Inspection". PKIC1975E PKIC1587E
