2005 NISSAN NAVARA Repair Workshop Manual

instrument panel air bleeding sunroof CD changer alternator fuel cap release

Load previous 8 pages

Page 1513 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CYLINDER BLOCK
EM-131
C
D
E
F
G
H
I
J
K
L
MA
EM
lIf corrected, measure the bearing oil clearance of the corrected journal and/or pin. Then select the main
bearing or connecting rod bearing. Refer toEM

Page 1514 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-132
CYLINDER BLOCK
MAIN BEARING OIL CLEARANCE
Method by Measurement
lInstall main bearings to cylinder block and bearing cap, and
tighten the bolts to the specified torque. Refer toEM-114,
"ASSEMBL

Page 1515 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CYLINDER BLOCK
EM-133
C
D
E
F
G
H
I
J
K
L
MA
EM
MAIN BEARING CAP BOLT DEFORMATION
lMeasure the outer diameter of threaded area, d1 and d2, at the
points specified in the figure.
lWhen the necked point

Page 1516 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-134
CYLINDER BLOCK

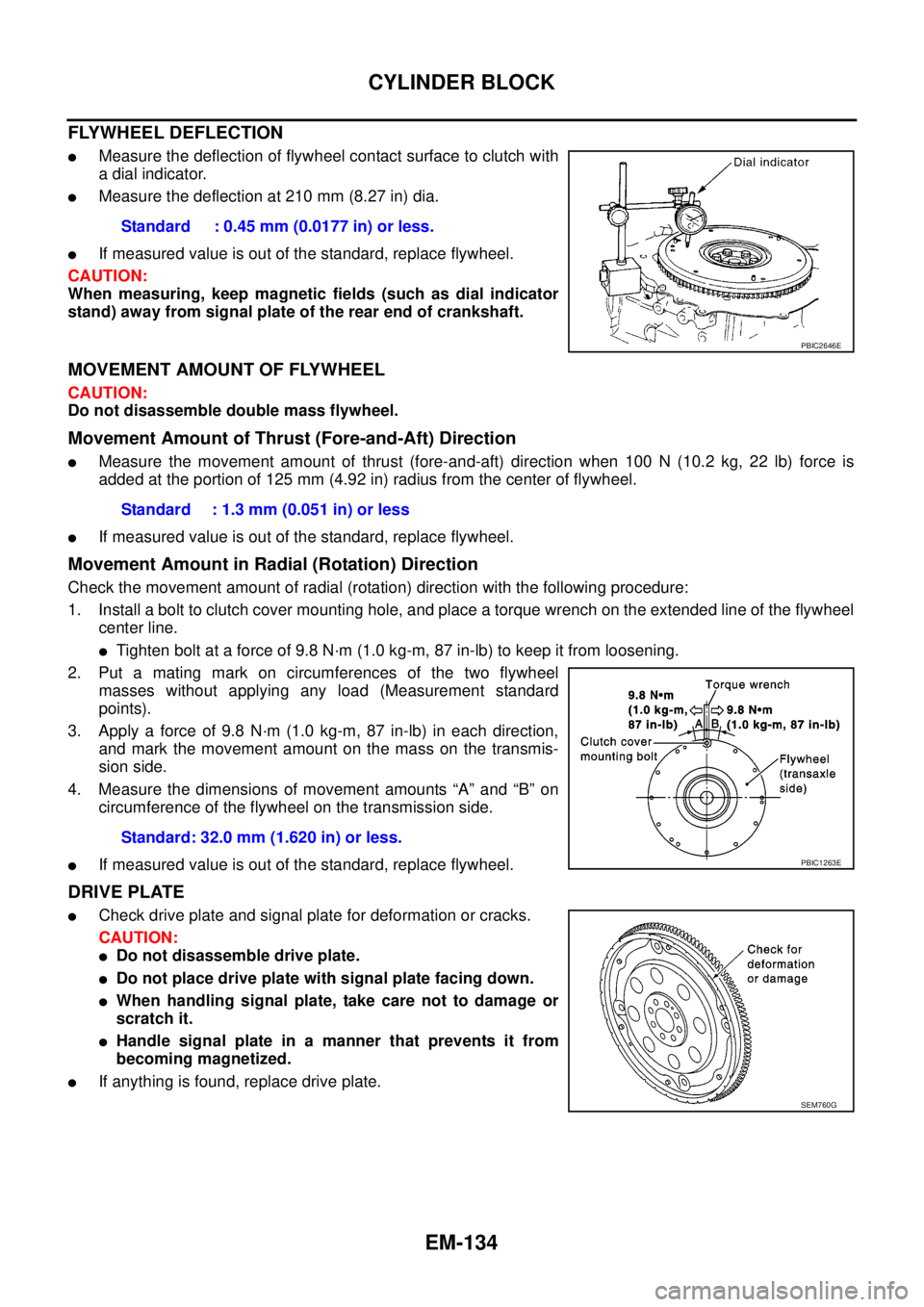

FLYWHEEL DEFLECTION
lMeasure the deflection of flywheel contact surface to clutch with
a dial indicator.
lMeasure the deflection at 210 mm (8.27 in) dia.
lIf measured value is ou

EM-134
CYLINDER BLOCK
FLYWHEEL DEFLECTION
lMeasure the deflection of flywheel contact surface to clutch with
a dial indicator.
lMeasure the deflection at 210 mm (8.27 in) dia.
lIf measured value is out of the standard, replace flywheel.
CAUTION:
When measuring, keep magnetic fields (such as dial indicator
stand) away from signal plate of the rear end of crankshaft.
MOVEMENT AMOUNT OF FLYWHEEL
CAUTION:
Do not disassemble double mass flywheel.
Movement Amount of Thrust (Fore-and-Aft) Direction
lMeasure the movement amount of thrust (fore-and-aft) direction when 100 N (10.2 kg, 22 lb) force is
added at the portion of 125 mm (4.92 in) radius from the center of flywheel.
lIf measured value is out of the standard, replace flywheel.
Movement Amount in Radial (Rotation) Direction
Check the movement amount of radial (rotation) direction with the following procedure:
1. Install a bolt to clutch cover mounting hole, and place a torque wrench on the extended line of the flywheel
center line.
lTighten bolt at a force of 9.8 N·m (1.0 kg-m, 87 in-lb) to keep it from loosening.
2. Put a mating mark on circumferences of the two flywheel
masses without applying any load (Measurement standard
points).
3. Apply a force of 9.8 N·m (1.0 kg-m, 87 in-lb) in each direction,
and mark the movement amount on the mass on the transmis-
sion side.
4. Measure the dimensions of movement amounts “A” and “B” on
circumference of the flywheel on the transmission side.
lIf measured value is out of the standard, replace flywheel.
DRIVE PLATE
lCheck drive plate and signal plate for deformation or cracks.
CAUTION:
lDo not disassemble drive plate.
lDo not place drive plate with signal plate facing down.
lWhen handling signal plate, take care not to damage or
scratch it.
lHandle signal plate in a manner that prevents it from
becoming magnetized.
lIf anything is found, replace drive plate.Standard : 0.45 mm (0.0177 in) or less.
PBIC2646E
Standard : 1.3 mm (0.051 in) or less
Standard: 32.0 mm (1.620 in) or less.
PBIC1263E
SEM760G

Page 1517 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-135
C
D
E
F
G
H
I
J
K
L
MA
EM
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitEBS01E6H
GENERAL SPECIFICATIONS
INTAKE MANIFOLD AND EXHAUST MANI

Page 1518 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-136
SERVICE DATA AND SPECIFICATIONS (SDS)
CYLINDER HEAD
Unit: mm (in)
VA LV E
Valve Dimensions
Unit: mm (in)
Valve Clearance
Unit: mm (in)
*: Approximately 80°C (176°F) Item Standard Limit
Cylind

Page 1519 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual SERVICE DATA AND SPECIFICATIONS (SDS)
EM-137
C
D
E
F
G
H
I
J
K
L
MA
EM

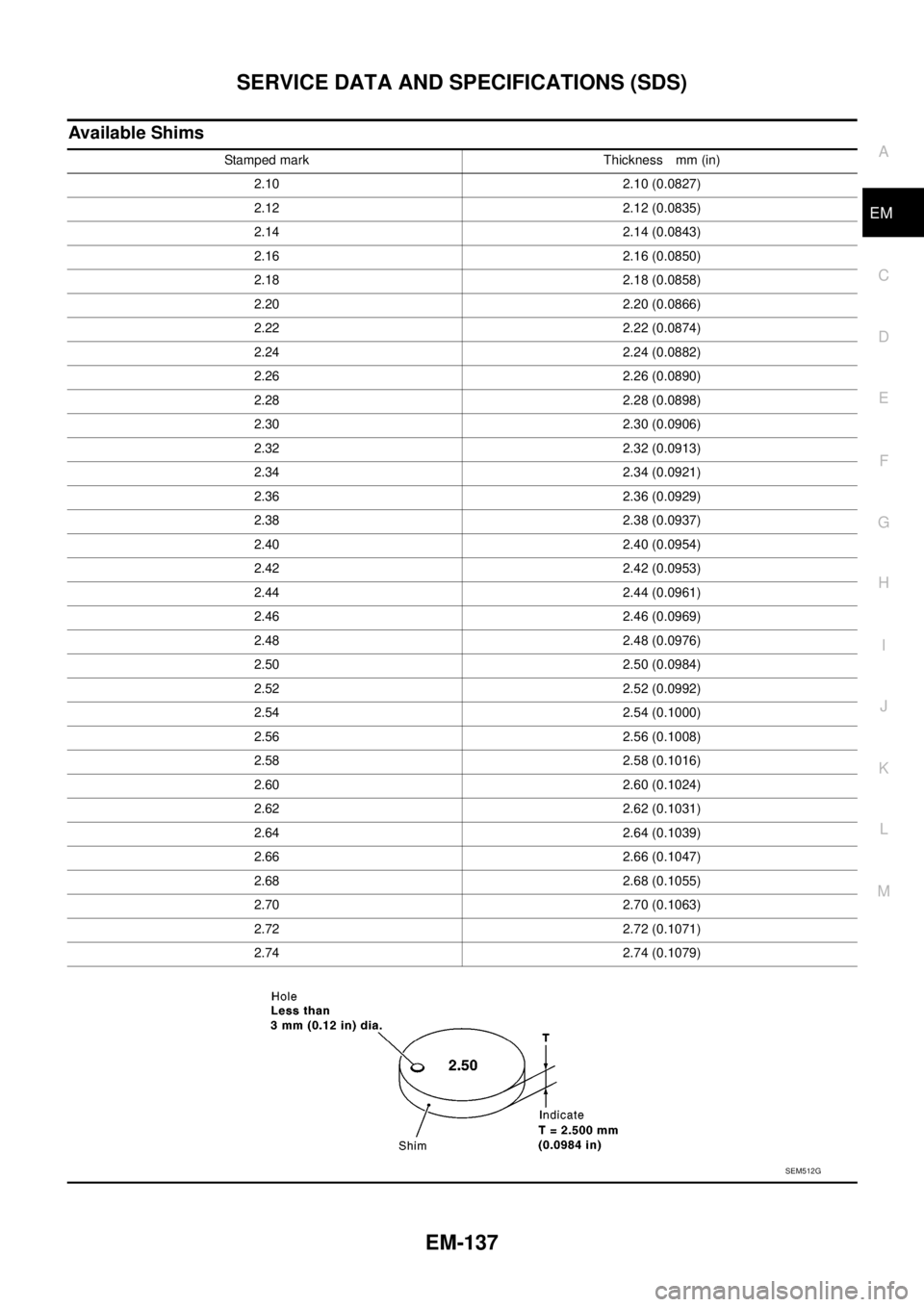

Available Shims
Stamped mark Thickness mm (in)
2.10 2.10 (0.0827)
2.12 2.12 (0.0835)
2.14 2.14 (0.0843)
2.16 2.16 (0.0850)
2.18 2

Page 1520 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-138
SERVICE DATA AND SPECIFICATIONS (SDS)
Valve Spring
Valve Lifter
Unit: mm (in)

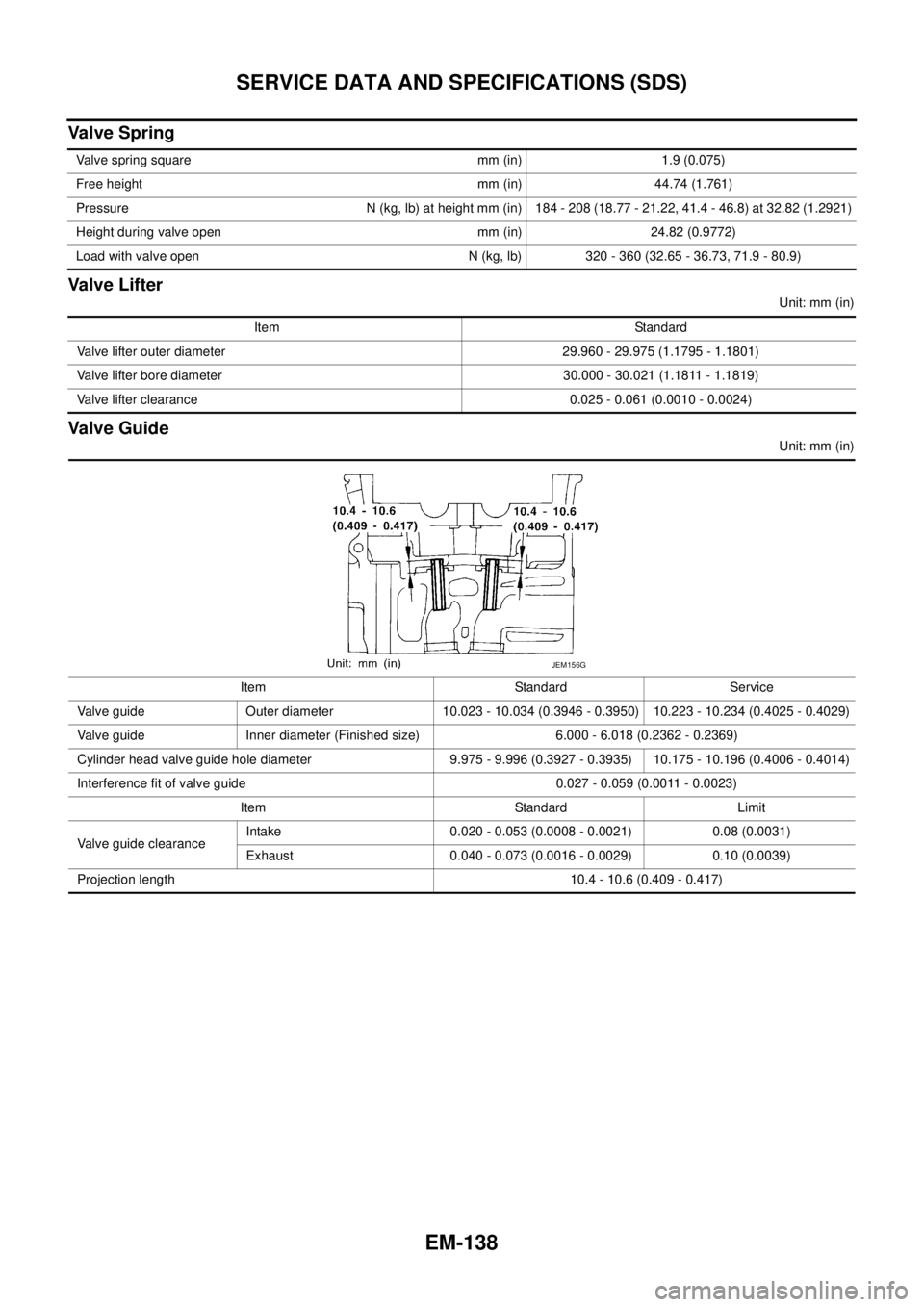

Valve Guide
Unit: mm (in) Valve spring square mm (in) 1.9 (0.075)
Free height mm (in) 44.74 (1.761)
Pressure N (kg,
