NISSAN NAVARA 2005 Repair Workshop Manual CYLINDER BLOCK
EM-123
C
D
E
F
G
H
I
J
K
L
MA
EM
CAUTION:
When grinding the crankshaft pin to use an under size bearing,
avoid damaging the fillet R.
HOW TO SELECT MAIN BEARING
When Using New Cylinder

Page 1506 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-124
CYLINDER BLOCK
Under Size Bearing Usage
lIf bearing clearance is out of the specifications for main bearings in standard size, use under size bear-
ings.
lWhen using under size bearings, measur

EM-124
CYLINDER BLOCK
Under Size Bearing Usage
lIf bearing clearance is out of the specifications for main bearings in standard size, use under size bear-
ings.
lWhen using under size bearings, measure bearing inner diameter with bearing installed, and grind crank-
shaft journals to adjust clearance to the specification.
Main Bearing Under Size List
Unit: mm (in)
CAUTION:
When grinding crank journals to use under size bearings, keep
corners radius of fillet R. (All journals)
Inspection After DisassemblyEBS01E6G
CRANKSHAFT END PLAY
lUsing dial gauge, measure crankshaft travel amount by moving
the crankshaft forward or backward.
lIf the value exceeds the limit, replace thrust bearings with new
ones and measure again.
If the measurement exceeds the limit again, replace crankshaft
with a new one.
62.967 - 62.975
(2.4790 - 2.4793)0
lBearing grade No.
lBearing thickness
lOil clearance
lIdentification colorSTD 0
1.816 - 1.820
(0.0715 - 0.0717)
0.039 - 0.066
(0.0015 - 0.0026)
BlackSTD 1
1.820 - 1.824
(0.0717 - 0.0718)
0.039 - 0.066
(0.0015 - 0.0026)
BrownSTD 2
1.824 - 1.828
(0.0718 - 0.0720)
0.039 - 0.066
(0.0015 - 0.0026)
Green
62.959 - 62.967
(2.4787 - 2.6790)1
lBearing grade No.
lBearing thickness
lOil clearance
lIdentification colorSTD 1
1.820 - 1.824
(0.0717 - 0.0718)
0.039 - 0.066
(0.0015 - 0.0026)
BrownSTD 2
1.824 - 1.828
(0.0718 - 0.0720)
0.039 - 0.066
(0.0015 - 0.0026)
GreenSTD 3
1.828 - 1.832
(0.0720 - 0.0721)
0.039 - 0.066
(0.0015 - 0.0026)
Yellow
62.951 - 62.959
(2.4784 - 2.4787)2
lBearing grade No.
lBearing thickness
lOil clearance
lIdentification colorSTD 2
1.824 - 1.828
(0.0718 - 0.0720)
0.039 - 0.066
(0.0015 - 0.0026)
GreenSTD 3
1.828 - 1.832
(0.0720 - 0.0721)
0.039 - 0.066
(0.0015 - 0.0026)
YellowSTD 4
1.832 - 1.836
(0.0721 - 0.0723)
0.039 - 0.066
(0.0015 - 0.0026)
Blue
Size Thickness
US 0.25(0.0098) 1.949 - 1.953 (0.0767 - 0.0769)
Standard dimension R : 1.5 - 1.7 mm (0.0591 - 0.0669 in)
JEM216G
Standard : 0.10 - 0.25 mm (0.0039 - 0.0098 in)
Limit : 0.30 mm (0.0118 in)
JEM202G

Page 1507 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CYLINDER BLOCK
EM-125
C
D
E
F
G
H
I
J
K
L
MA
EM
CONNECTING ROD SIDE CLEARANCE
lUsing feeler gauge, measure side clearance between connect-
ing rod and crankshaft arm.
lIf measured value exceeds the li

Page 1508 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-126
CYLINDER BLOCK
PISTON RING SIDE CLEARANCE
lUsing feeler gauge, measure the side clearance between piston
ringandpistonringgroove.
Unit: mm (in)
lAlign top ring and external surface of piston. M

Page 1509 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CYLINDER BLOCK
EM-127
C
D
E
F
G
H
I
J
K
L
MA
EM

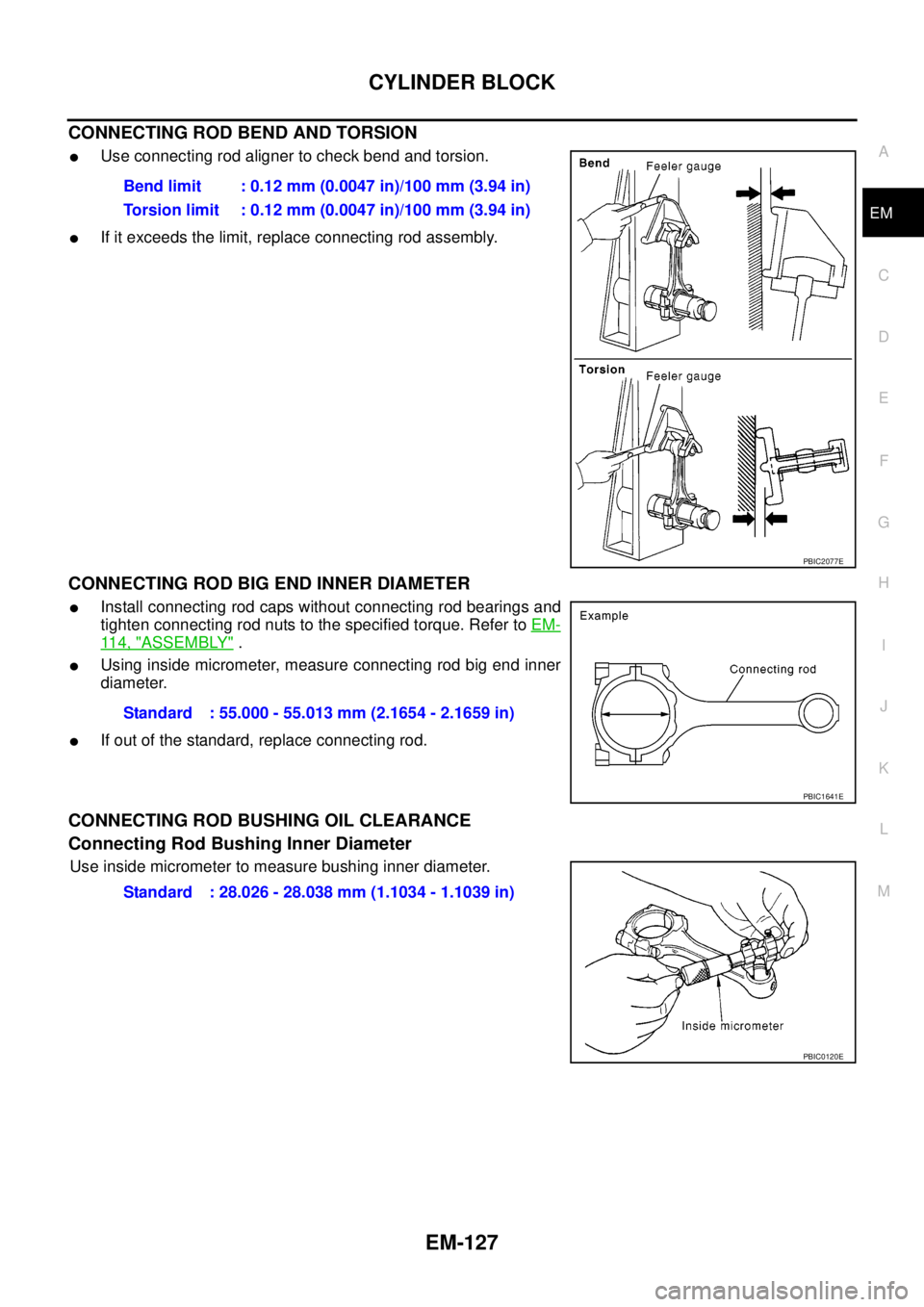

CONNECTING ROD BEND AND TORSION
lUse connecting rod aligner to check bend and torsion.
lIf it exceeds the limit, replace connecting rod assembly.
CONNEC

Page 1510 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-128
CYLINDER BLOCK
Piston Pin Outer Diameter
Use micrometer to measure piston pin outer diameter.
Calculation of Connecting Rod Bushing Clearance
(Connecting rod bushing clearance) = (Connecting ro

Page 1511 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual CYLINDER BLOCK
EM-129
C
D
E
F
G
H
I
J
K
L
MA
EM

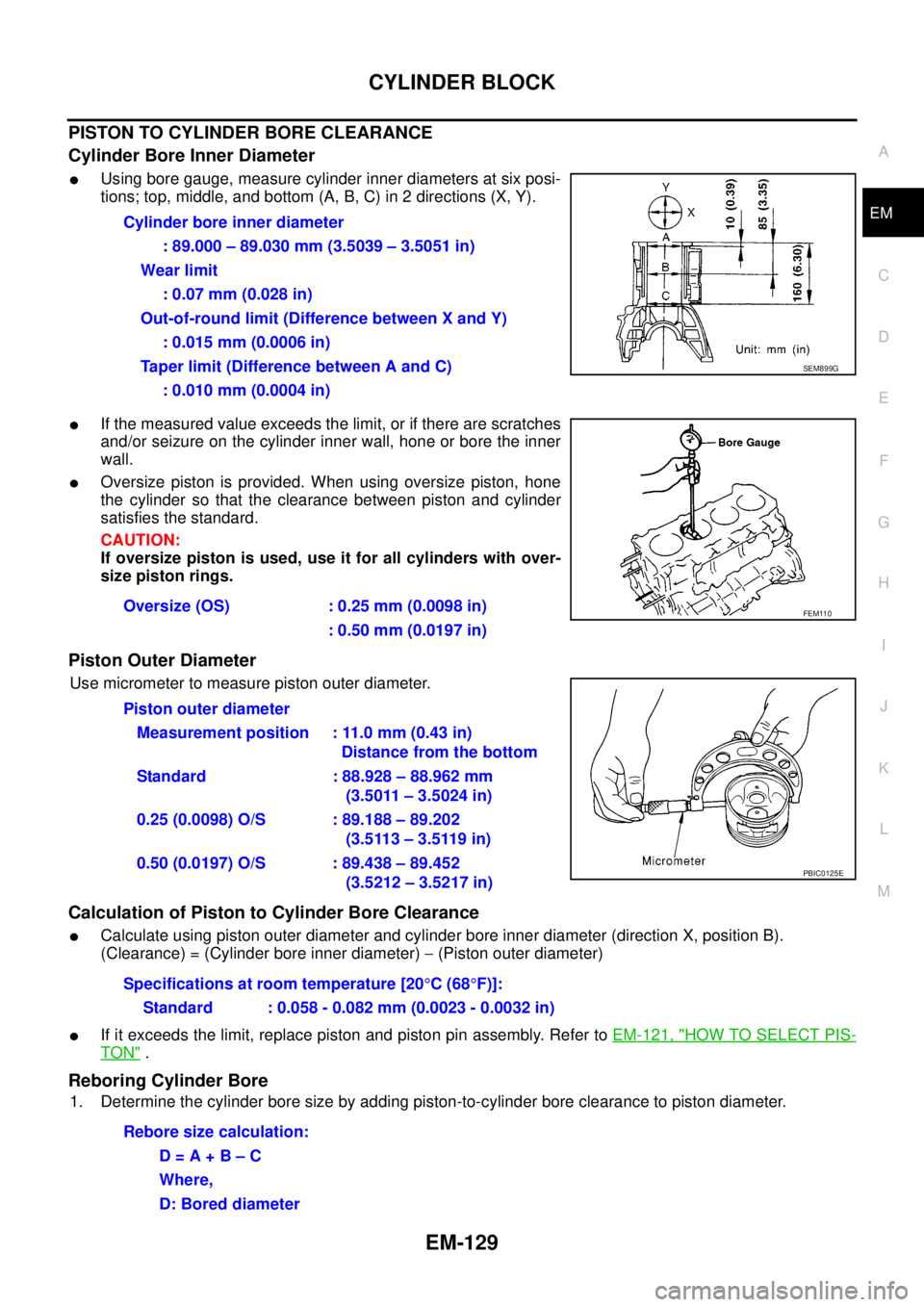

PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
lUsing bore gauge, measure cylinder inner diameters at six posi-
tions; top, middle, and

Page 1512 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual EM-130
CYLINDER BLOCK
2. Install main bearing caps and tighten bolts to the specified torque. Refer toEM-114, "ASSEMBLY".This
will prevent distortion of cylinder bores.
3. Cut cylinder bore.
NOTE:
lWh
