Page 1153 of 3171

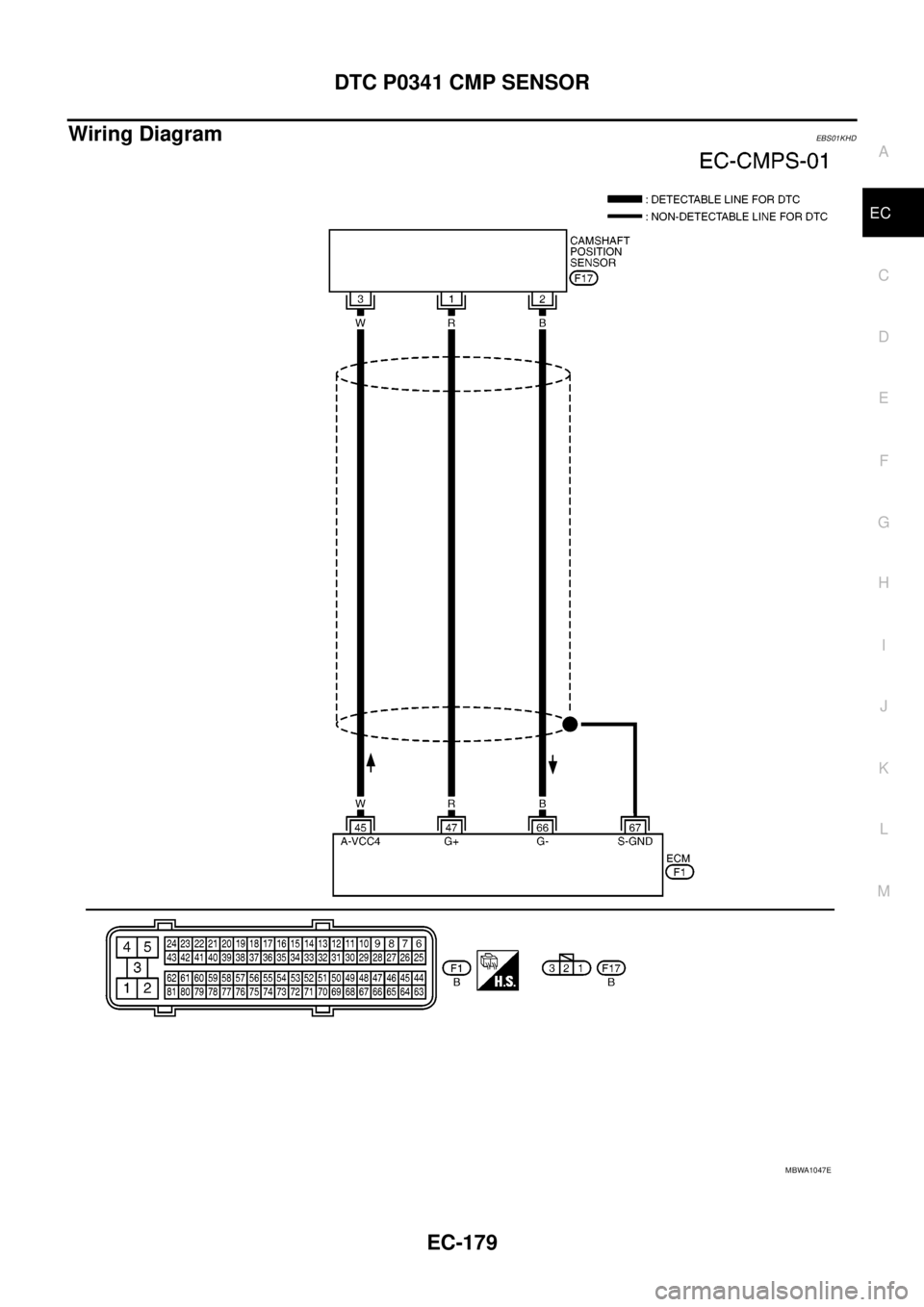

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0340 CMP SENSOR EC-173 C D E F G H I J K L MA EC Wiring DiagramEBS01KH5 MBWA1047E

Page 1154 of 3171

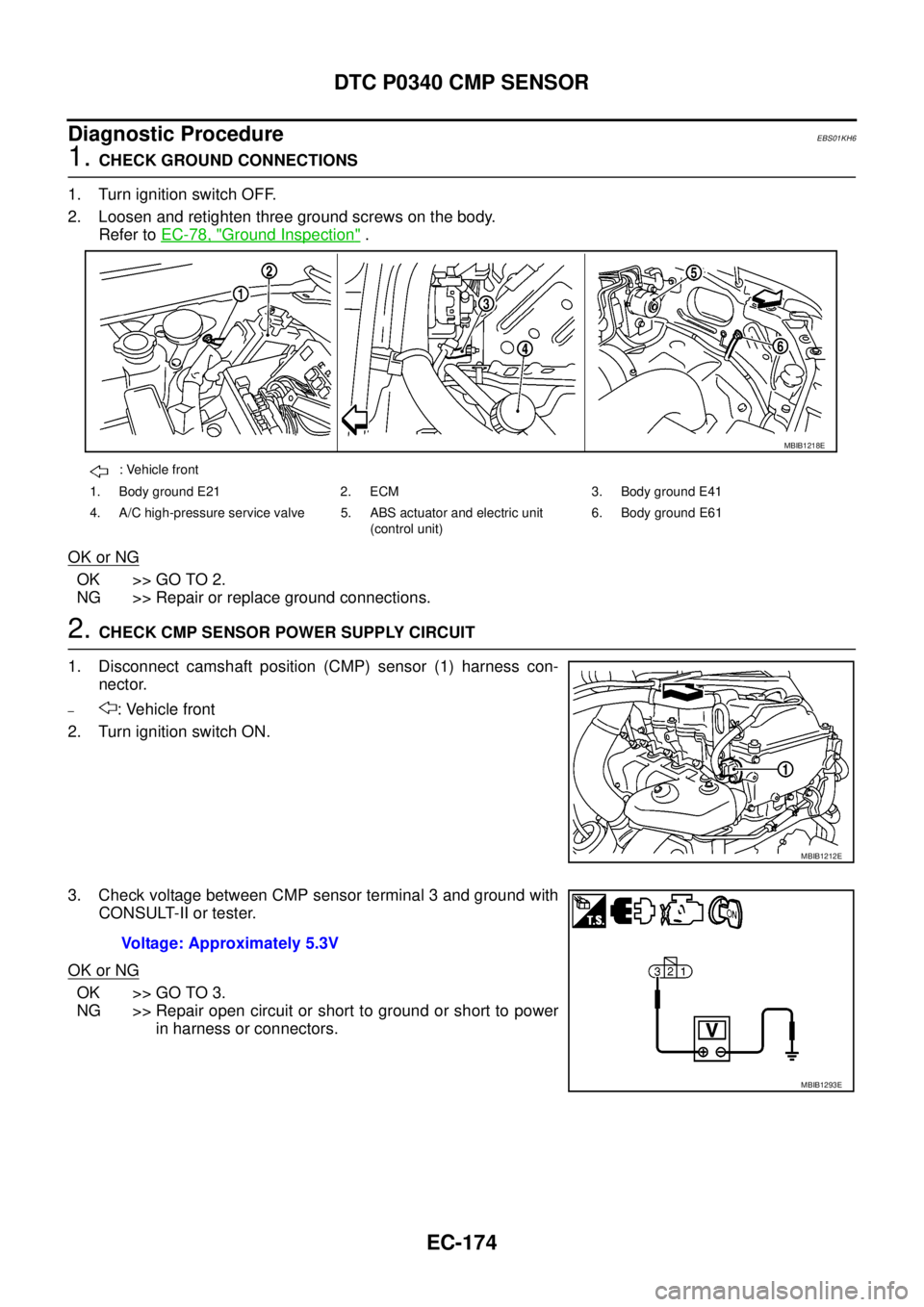

NISSAN NAVARA 2005 Repair Workshop Manual EC-174 DTC P0340 CMP SENSOR Diagnostic Procedure EBS01KH6 1.CHECK GROUND CONNECTIONS 1. Turn ignition switch OFF. 2. Loosen and retighten three ground screws on the body. Refer toEC-78, " Ground Inspe

Page 1155 of 3171

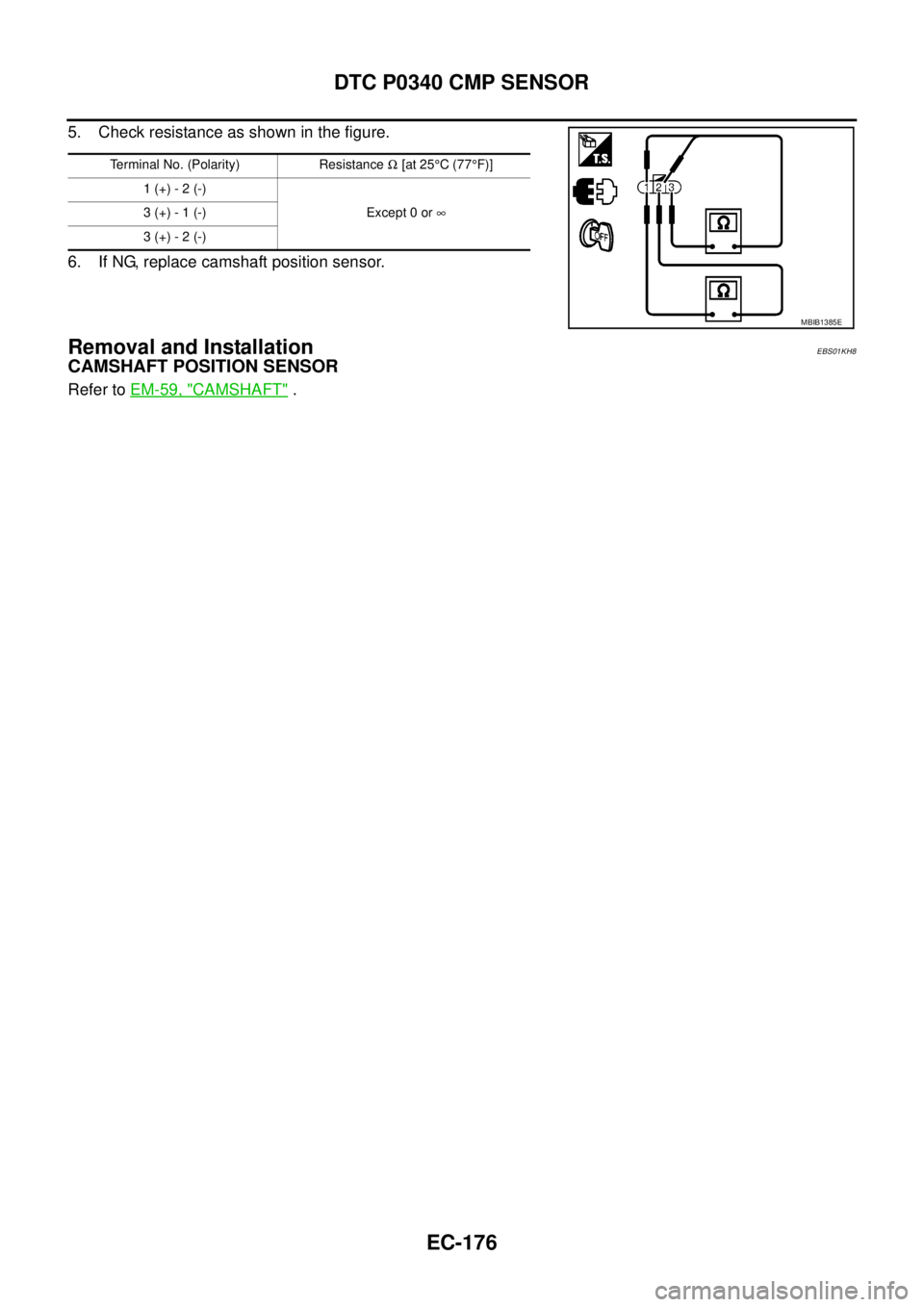

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0340 CMP SENSOR EC-175 C D E F G H I J K L MA EC 3.CHECK CMP SENSOR GROUND CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check harness continuity

Page 1156 of 3171

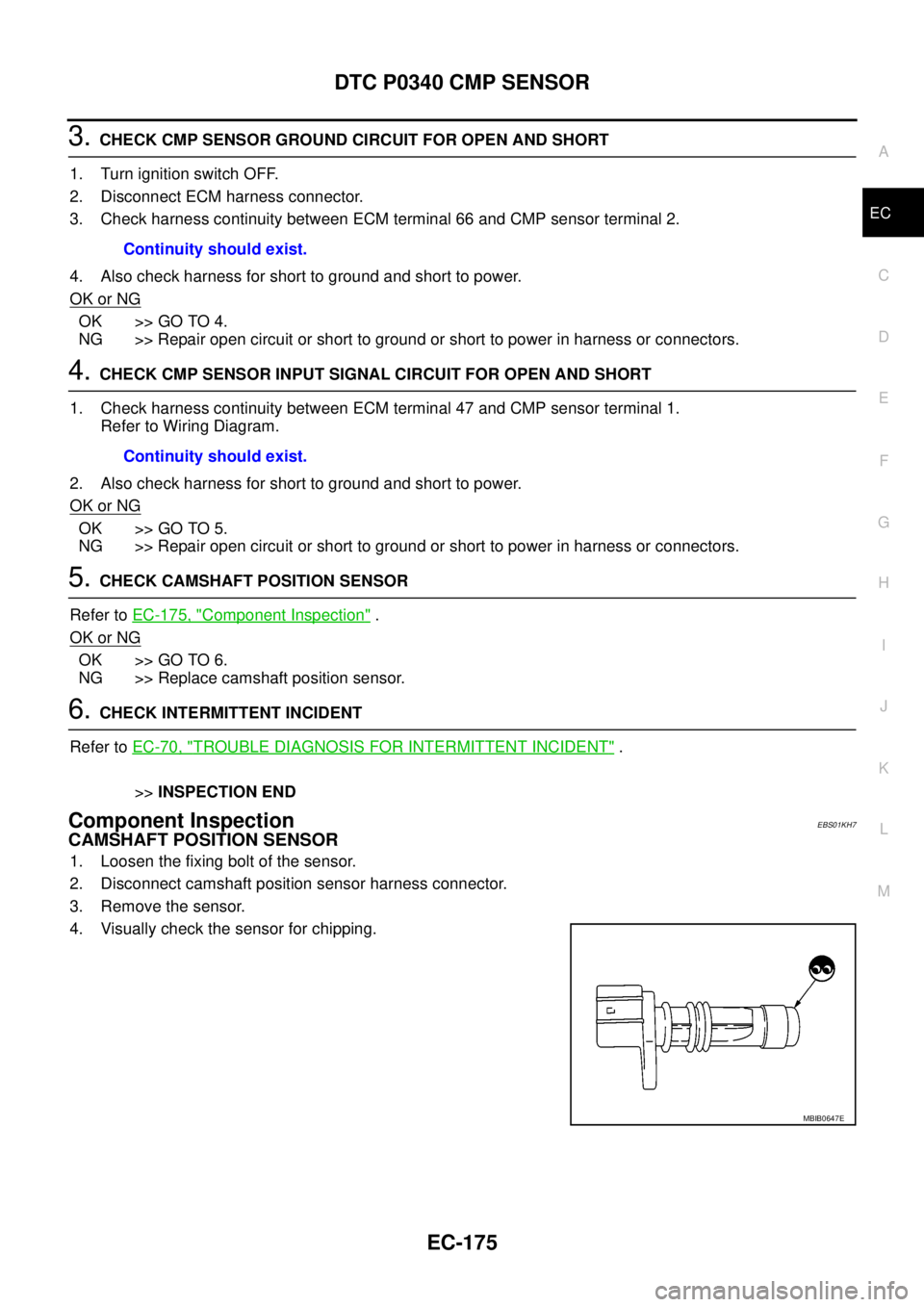

NISSAN NAVARA 2005 Repair Workshop Manual EC-176 DTC P0340 CMP SENSOR 5. Check resistance as shown in the figure. 6. If NG, replace camshaft position sensor. Removal and InstallationEBS01KH8 CAMSHAFT POSITION SENSOR Refer toEM-59, "CAMSHAFT".

Page 1157 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0341 CMP SENSOR EC-177 C D E F G H I J K L MA EC DTC P0341 CMP SENSORPFP:23731 DescriptionEBS01KH9 The camshaft position (CMP) sensor senses the retraction with cam- shaft (left side) to identify

Page 1158 of 3171

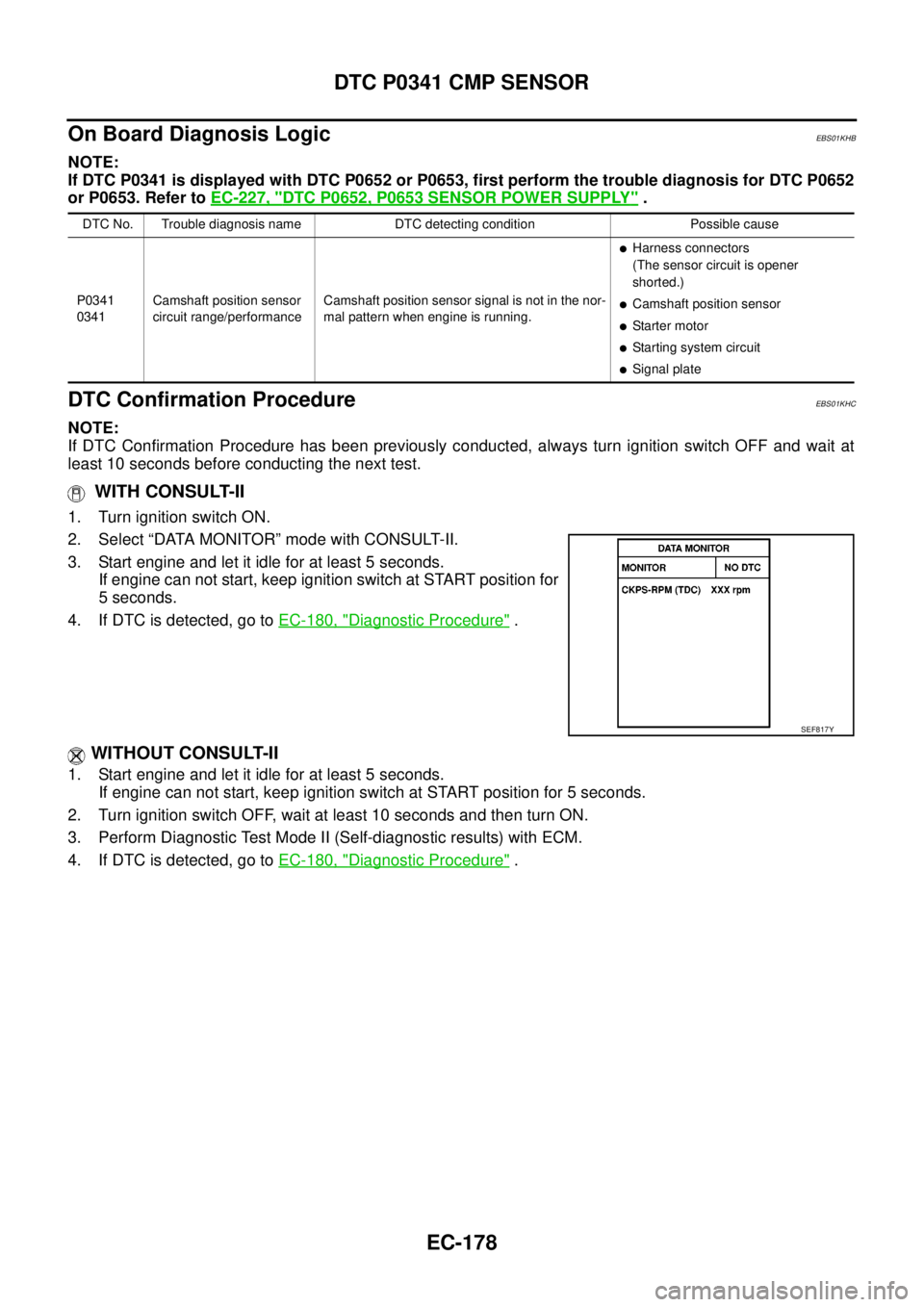

NISSAN NAVARA 2005 Repair Workshop Manual EC-178 DTC P0341 CMP SENSOR On Board Diagnosis Logic EBS01KHB NOTE: If DTC P0341 is displayed with DTC P0652 or P0653, first perform the trouble diagnosis for DTC P0652 or P0653. Refer toEC-227, " DTC

Page 1159 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual DTC P0341 CMP SENSOR EC-179 C D E F G H I J K L MA EC Wiring DiagramEBS01KHD MBWA1047E

Page 1160 of 3171

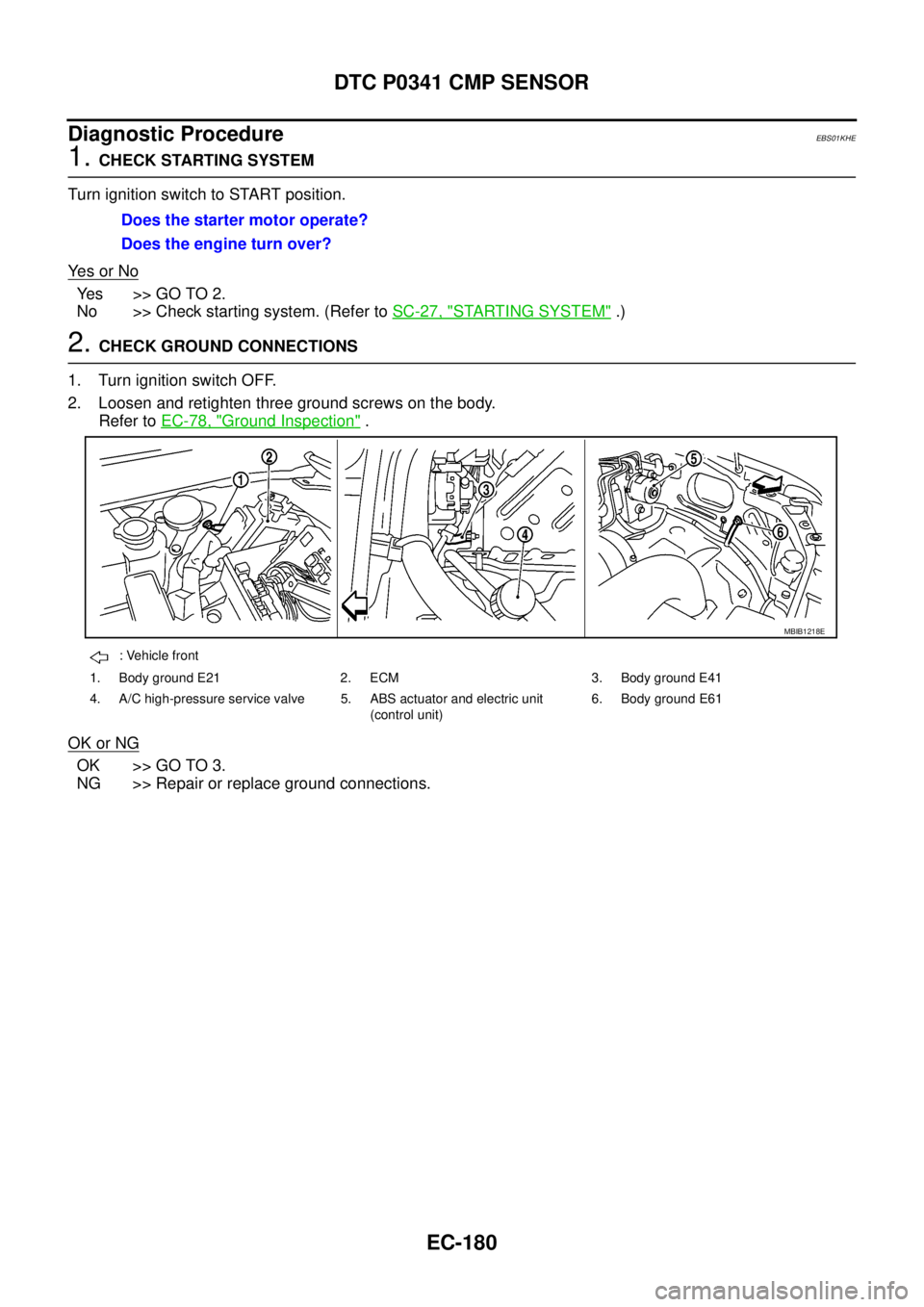

NISSAN NAVARA 2005 Repair Workshop Manual EC-180 DTC P0341 CMP SENSOR Diagnostic Procedure EBS01KHE 1.CHECK STARTING SYSTEM Turn ignition switch to START position. Ye s o r N o Yes >>GOTO2. No >> Check starting system. (Refer toSC-27, " START
