Page 2161 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-78 FRONT FOG LAMP How to Proceed With Trouble Diagnosis EKS00P45 1. Confirm the symptom or customer complaint. 2. Understand operation description and function description. Refer toLT-71, " System

Page 2162 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FOG LAMP LT-79 C D E F G H I J L MA B LT 3.CHECK GROUND CIRCUIT Check continuity between BCM harness connector and ground. OK or NG OK >> INSPECTION END NG >> Repair harness or connector. CONSUL

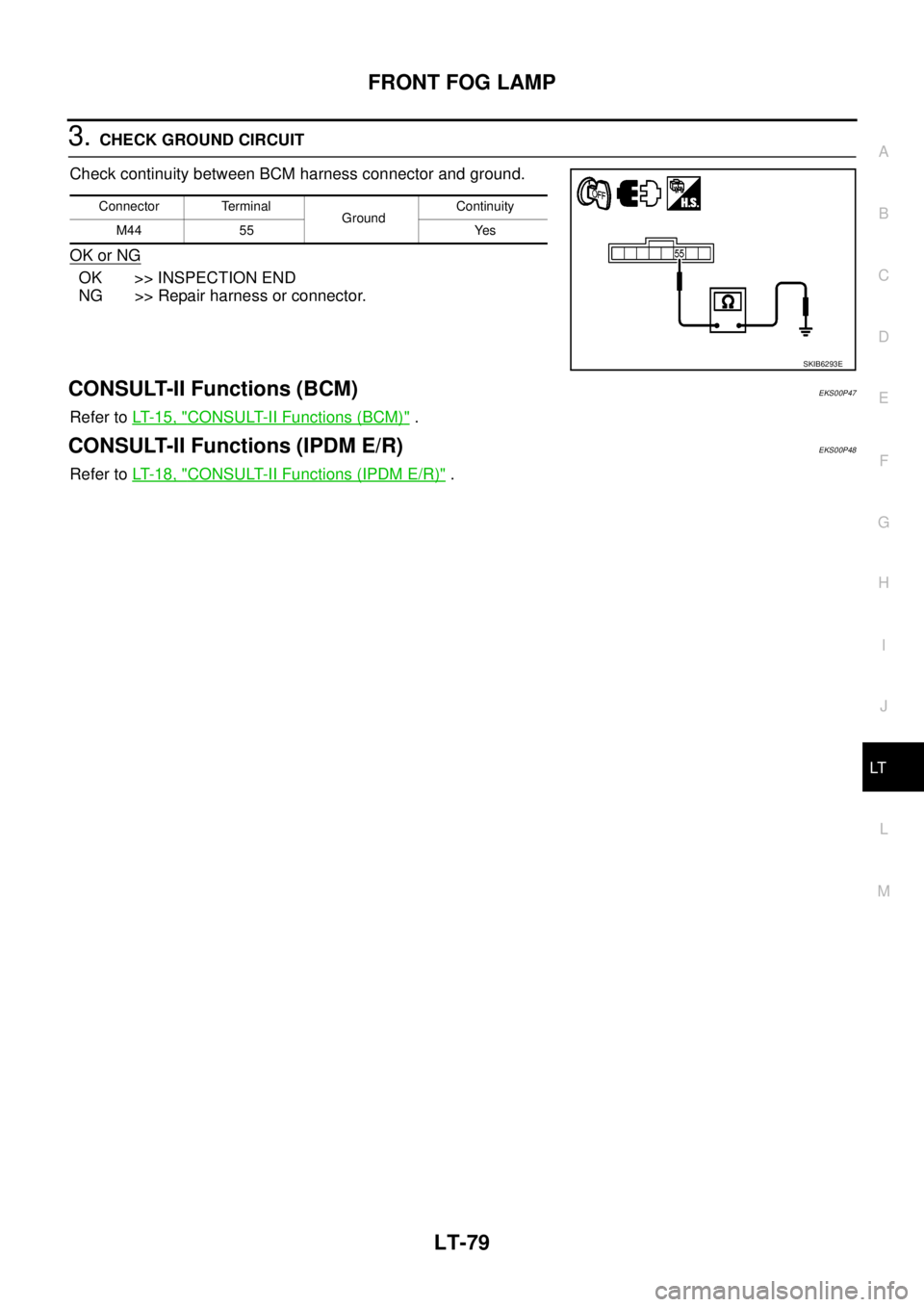

Page 2163 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-80 FRONT FOG LAMP Front Fog Lamps Do Not Illuminate (Both Sides) EKS00P49 1.CHECK COMBINATION SWITCH INPUT SIGNAL With CONSULT-II 1. Select “BCM” on CONSULT-II. Select “HEAD LAMP” on “SEL

Page 2164 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FOG LAMP LT-81 C D E F G H I J L MA B LT 4.CHECK FOG LAMP INPUT SIGNAL With CONSULT-II 1. Turn ignition switch OFF. 2. Disconnect front fog lamp RH and LH connector. 3. Select “IPDM E/R” on

Page 2165 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-82 FRONT FOG LAMP 6.CHECK FRONT FOG LAMP CIRCUIT 1. Turn ignition switch OFF. 2. Disconnect IPDM E/R connector. 3. Check continuity between IPDM E/R harness connector (A) and front fog lamp (RH and

Page 2166 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FOG LAMP LT-83 C D E F G H I J L MA B LT 3.CHECK FRONT FOG LAMP GROUND CIRCUIT 1. Turn ignition switch OFF. 2. Check continuity between front fog lamp (RH or LH) harness connector and ground. OK

Page 2167 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual LT-84 FRONT FOG LAMP Front Fog Lamps Do Not Turn OFF EKS00P4C 1.CHECK FRONT FOG LAMP TURN OFF Make sure that lighting switch is OFF. And make sure front fog lamp turns off when ignition switch is turn

Page 2168 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual FRONT FOG LAMP LT-85 C D E F G H I J L MA B LT Aiming AdjustmentEKS00P4D The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb. Before performing aiming adjustment, make sure o
