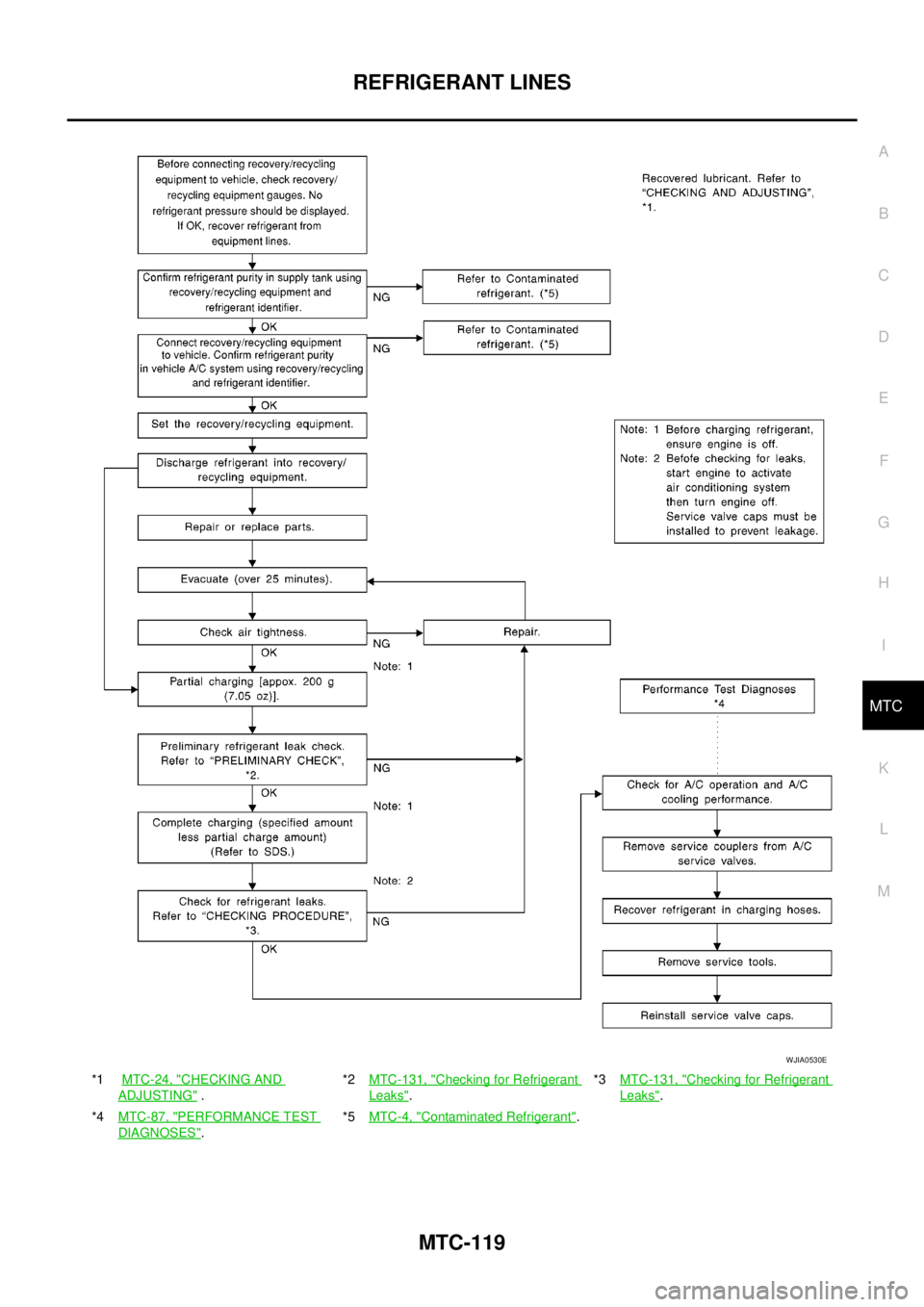

NISSAN NAVARA 2005 Repair Workshop Manual MTC-118 REFRIGERANT LINES REFRIGERANT LINES PFP:92600 HFC-134a (R-134a) Service ProcedureEJS005HA SETTING OF SERVICE TOOLS AND EQUIPMENT Discharging Refrigerant WARNING: Avoid breathing A/C refrigeran

Page 2506 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual REFRIGERANT LINES MTC-119 C D E F G H I K L MA B MTC *1MTC-24, "CHECKING AND ADJUSTING".*2MTC-131, " Checking for Refrigerant Leaks".*3MTC-131, " Checking for Refrigerant Leaks". *4MTC-87, " PERFORMAN

Page 2507 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual MTC-120 REFRIGERANT LINES Components EJS005HB A/C Compressor and Condenser —LHD Models— MJIB0276E 1. High-pressure service valve 2. Clip 3. High-pressure A/C pipe 4. Refrigerant pressure sensor 5.

Page 2508 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual REFRIGERANT LINES MTC-121 C D E F G H I K L MA B MTC A/C Compressor and Condenser —RHD Models— MJIB0277E 1. High-pressure service valve 2. Clip 3. High-pressure A/C pipe 4. Refrigerant pressure se

Page 2509 of 3171

NISSAN NAVARA 2005 Repair Workshop Manual MTC-122 REFRIGERANT LINES Removal and Installation for Compressor EJS005HC A/C Compressor Mounting REMOVAL 1. Discharge the refrigerant. Refer toMTC-118, "HFC-134a (R-134a) Service Procedure". 2. Remo

Page 2510 of 3171

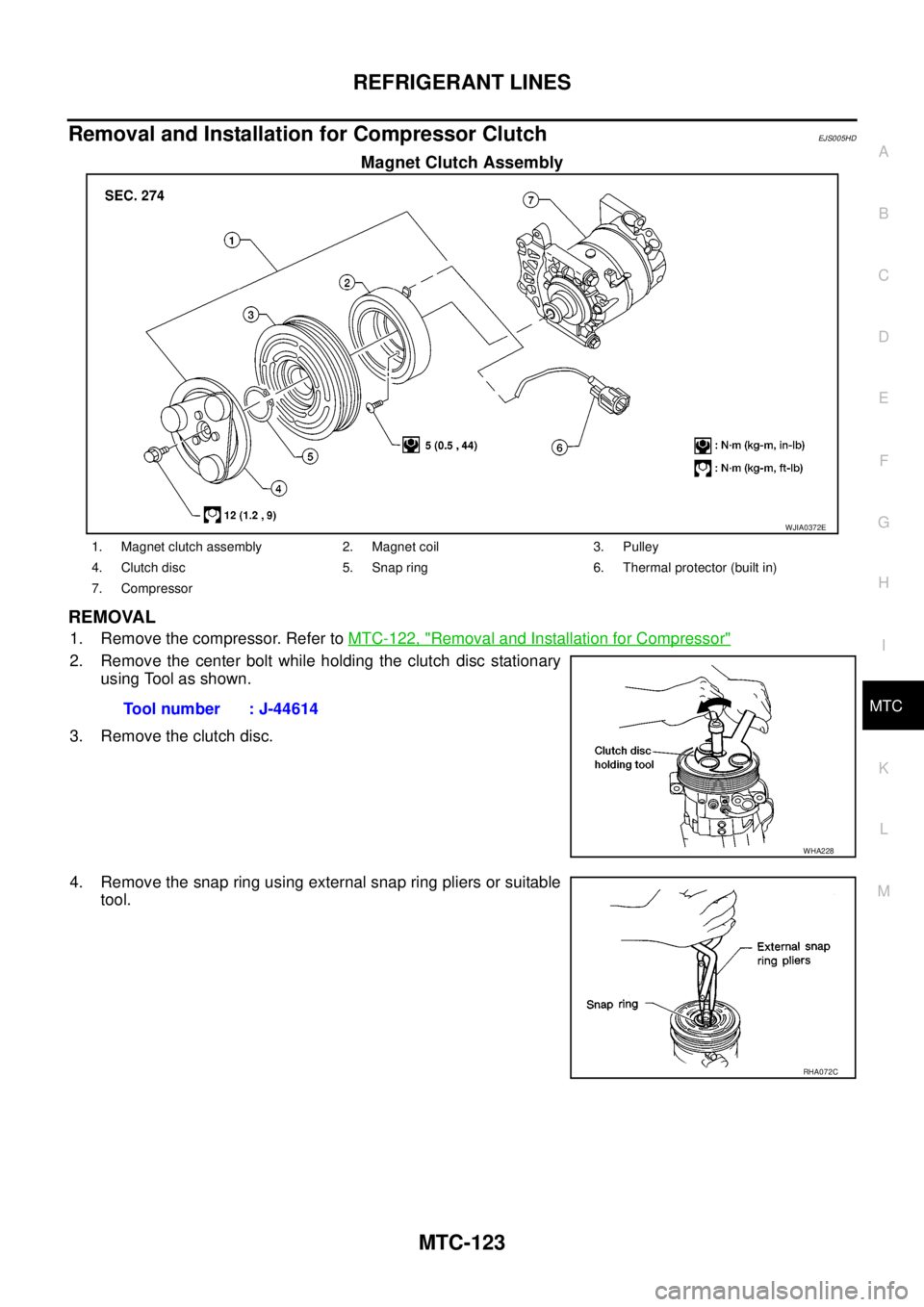

NISSAN NAVARA 2005 Repair Workshop Manual REFRIGERANT LINES MTC-123 C D E F G H I K L MA B MTC Removal and Installation for Compressor ClutchEJS005HD Magnet Clutch Assembly REMOVAL 1. Remove the compressor. Refer toMTC-122, "Removal and Insta

Page 2511 of 3171

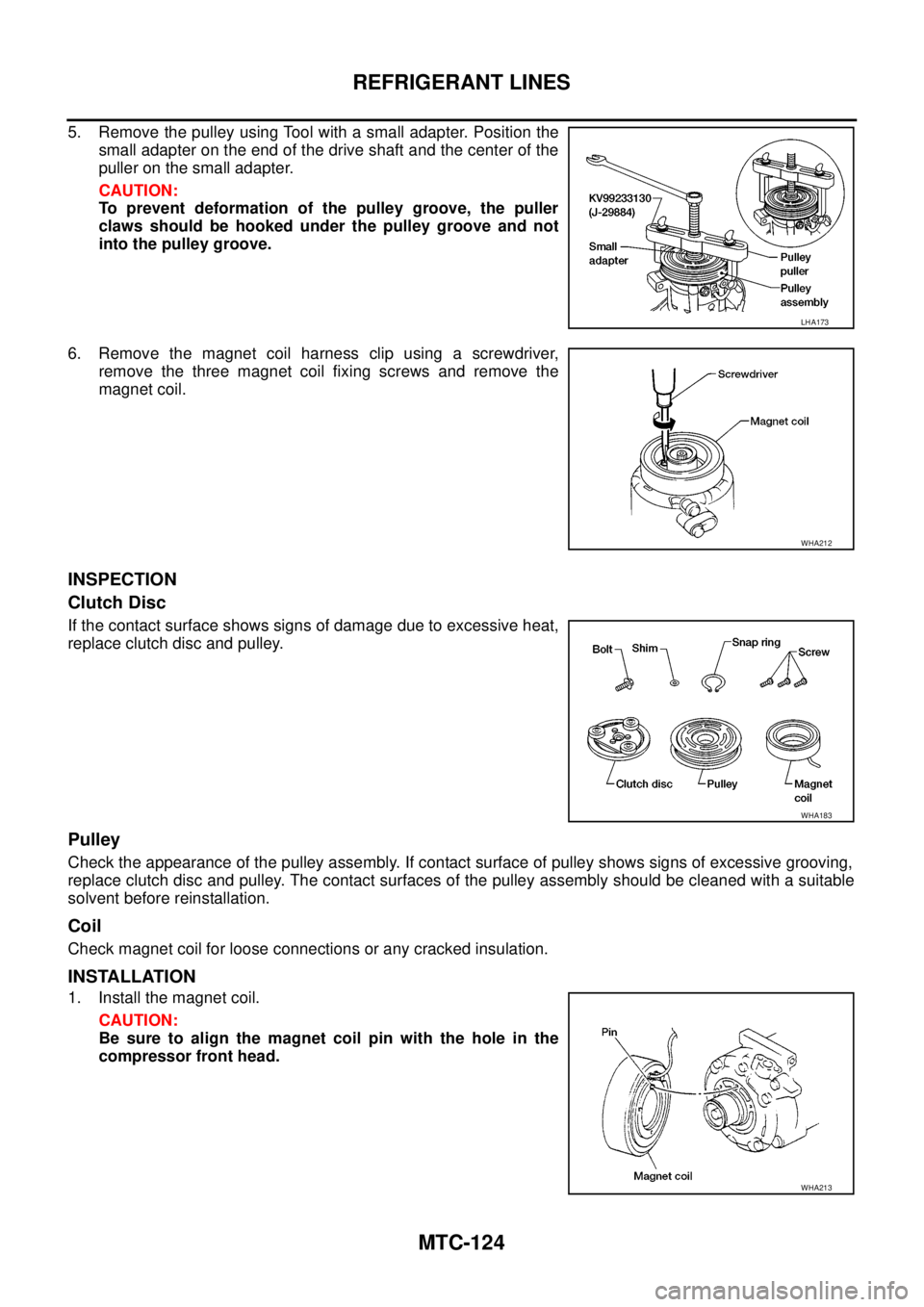

NISSAN NAVARA 2005 Repair Workshop Manual MTC-124 REFRIGERANT LINES 5. Remove the pulley using Tool with a small adapter. Position the small adapter on the end of the drive shaft and the center of the puller on the small adapter. CAUTION: To

Page 2512 of 3171

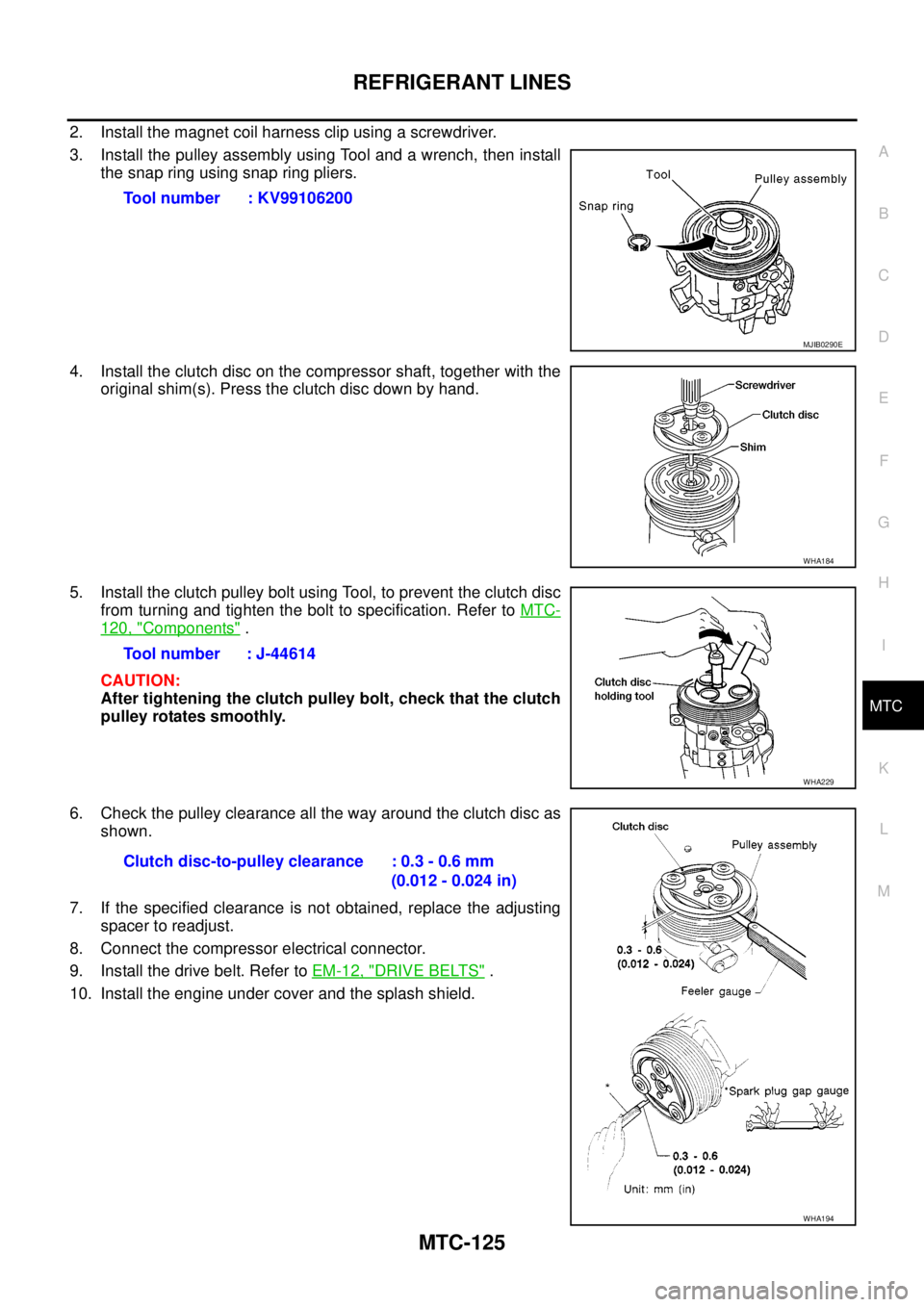

NISSAN NAVARA 2005 Repair Workshop Manual REFRIGERANT LINES MTC-125 C D E F G H I K L MA B MTC 2. Install the magnet coil harness clip using a screwdriver. 3. Install the pulley assembly using Tool and a wrench, then install the snap ring usi
